Functional Overview
ACME’s STAGE PAR COLOUR offers the unique HSIC mode and outstanding color mixing effects, plus high efficiency, low energy consumption and efficient heat dissipation, ensuring the fixture operates with low noise for extended periods. Small and compact, the STAGE PAR COLOUR’s double hanger design makes it suitable for flying or floor-mounting, giving multiple Installationoptions to the lighting designer.
STAGE PAR COLOUR uses fast-lock mounting for fast mounting and demounting, reducing Installationtime and improving work efficiency. Its low noise operation (under 38dB@1m) and its IP66 protection rating make it suitable for conference centers, exhibition halls, outdoor performances, clubs, parties and many other applications.
Features
1x 150W RGBW LED module
Unique HSIC mode
Outstanding color mixing effects
Variable CTO: 2000K – 10000K
High efficiency, low energy consumption, good heat dissipation, long lifetime
Compact design, small size, low weight (only 3.5kg)
Low noise (under 38dB@1m); suitable for a wide variety of applications
Double hanger design, for multiple Installationoptions
Outstanding variable speed strobe effect
Smooth dimming from 0-100%
Flicker-free management
IP66 protection rating
Dust-proof and oil-proof design
Maximum Connection:
120V, 60Hz = 13 sets
230V, 50Hz = 23 sets
Technical & Specification
Model
BL-100 RGBW
Light Source
1x 150W RGBW LED module
LED life expectancy: 10,000 hours
Optical System
Advanced optical Systemensures clear, wide-range wash effect
Beam Angle: 37°
Controland Program
4-button touch panel
Display: OLED display
Protocols: DMX-512, RDM
DMX Protocol modes: 3
Controlchannels: 6, 7, HSIC channels
Firmware upgradeable via DMX link
Electrical and Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100-240V, 50/60Hz
Power consumption: 115W
Waterproof power connector input/output
Data in/out: 3-pin or 5-pin IP XLR

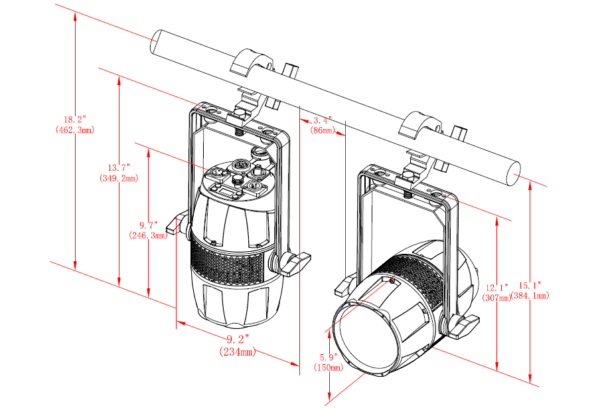

Fixture Specification
Height: 307mm (12”)
Width: 234mm (9.2”)
Depth: 247mm (9.7”)
Weight: 3.5kg (7.7lb)
Work Environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C
Approvals
CE compliant
Installation
Horizontal or vertical mounting available
Operating position is universal
Fast-lock bracket with single locking point
Safety cable attachment point
Included Items
User Manual
Power Cable
Optional Accessories (with item code)

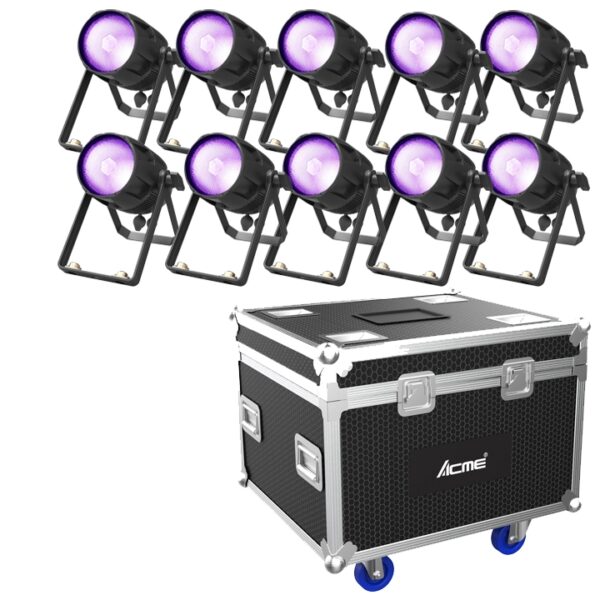

Flight case:
3205001216 (12 in 1)
3205001223 (10 in 1)
Barn door: 63581327
Clamp: 2060001614 (C-250)
Signal line: 3-pin or 5-pin IP signal line
Safety cable: 2060001603-A (SW-05)
