Functional Overview
STAGE PAR COLOUR D15, the unique CTO and tungsten effect, plus high efficiency, low energy consumption, good heat dissipation, ensure the fixture can works under a low noise for a long time. Small size with compact design, equipped with double hangers, makes it suitable for mid-air or floor, provide multiple Installationoptions to lighting designer. STAGE PAR CCT adoptes the fast-locked mounting, can install & disassemble the fixture more quickly, recude the Installationtime, improve the work efficiency. Low noise under 38dB@1m & IP66 protection rating, can be used for conference centers, exhibition halls, outdoor performances, clubs, parties and other places. Meanwhile, the beam angle is 15 degrees, which can also meet the lighting requirements of architecture.
Features
1 x 150W RGBW LED module
Unique HSIC mode
Outstanding color mixing effect
Variable CTO: 2000K – 10000K
High efficiency, low energy consumption, good heat dissipation, long lifetime
Compact design, small size,only 3.5kg, technology leading peer similar products
Low noise under 38dB@1m, can be used for conference centers, exhibition halls and other places

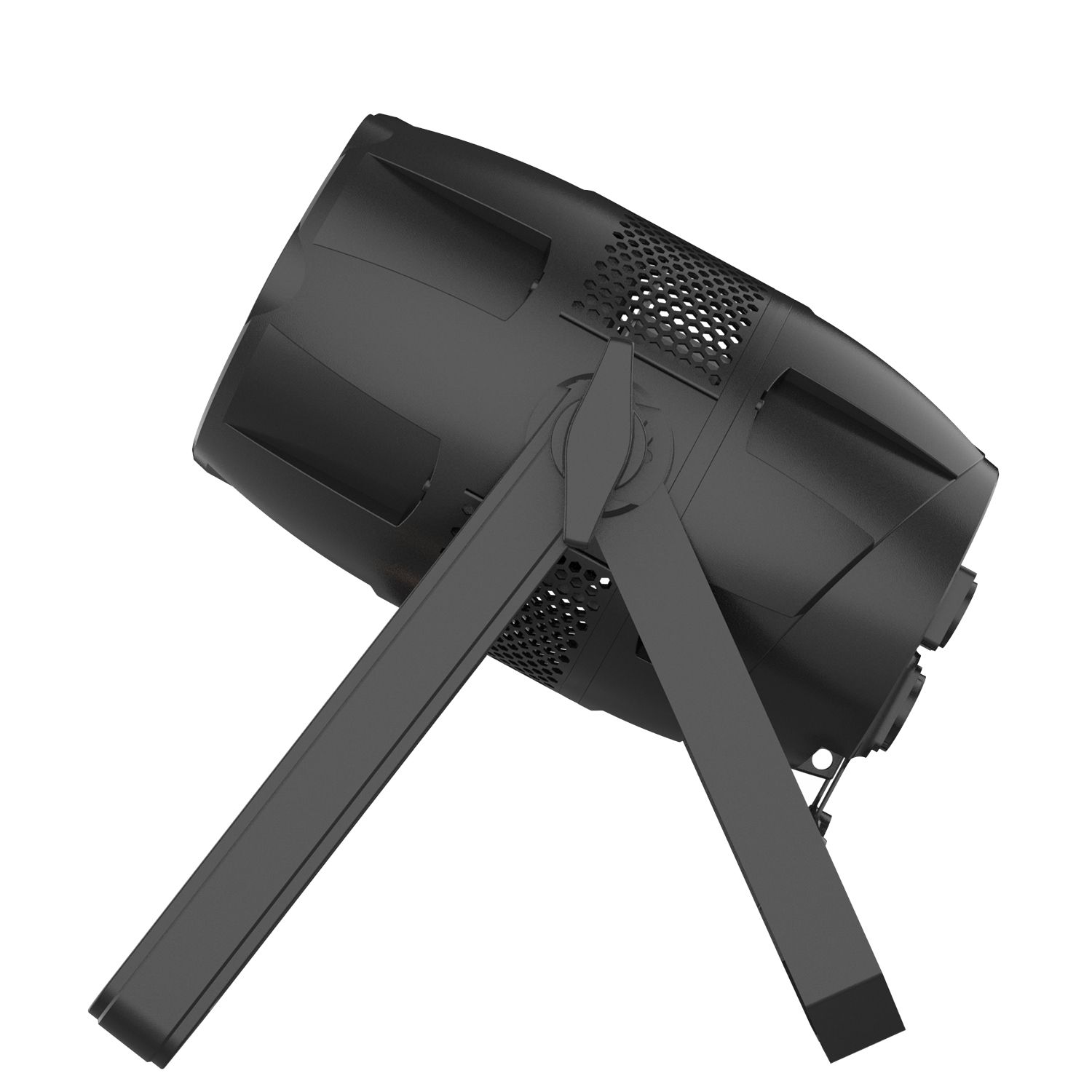

Double hanger design, multiple Installationoptions
Outstanding strobe effect with variable speed
0~100% smooth dimming
Flicker free management
Dust-proof and oil-proof design
It can be used outdoors all year round by IP66
Maximum QTY of connnection:
230V 50Hz: 23 sets
120V，60Hz: 13 sets
Technical & Specification
Model
BL-100 RGBW D15
Light Source
1 x 150W RGBW LED module
LED life expectancy: 10000 hours
Optical System
Advanced Optical System

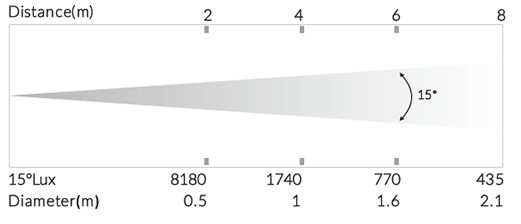

Beam Angle: 15°
Controland Program
4-buttons touch panel
Display: OLED display
Protocols: DMX512,RDM
DMX Protocol modes: 3
Controlchannels:6/7/HSIC channels
Upgrade the firmware via DMX link
Electrical and Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100-240 V, 50/60 Hz
Power consumption: 125 W

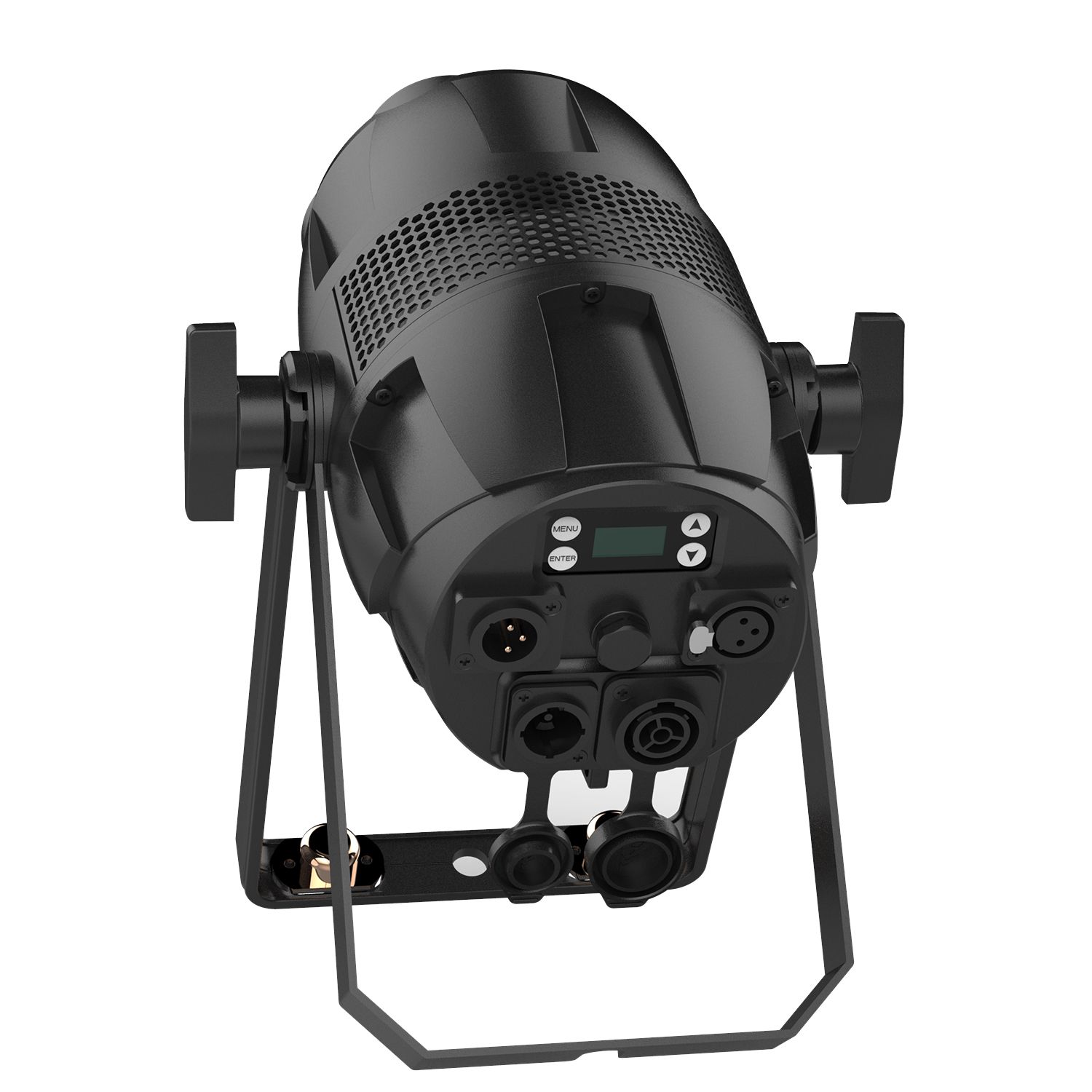

Waterproof Power Connector input/output
Data in/out: 3-pin or 5-pin IP XLR

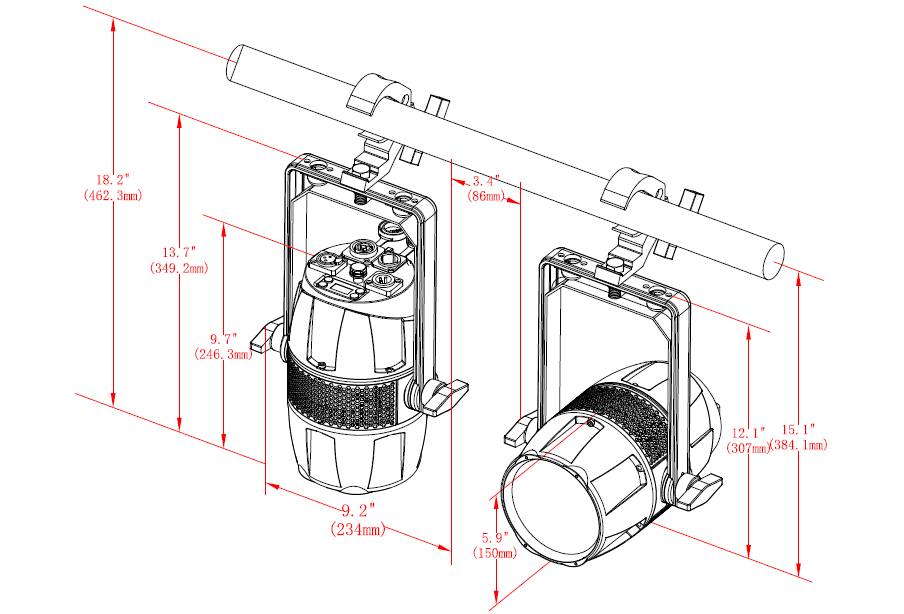

Fixture Specification
Height: 307 mm (12″)
Width: 234 mm (9.2″)
Depth: 247 mm (9.7″)
Weight: 3.5 kg (7.7 lbs)
Work Environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C
Protection Rating: IP66
Approvals
CE Compliant
Installation
Horizontally or vertically mounting are available
Operating position is universal

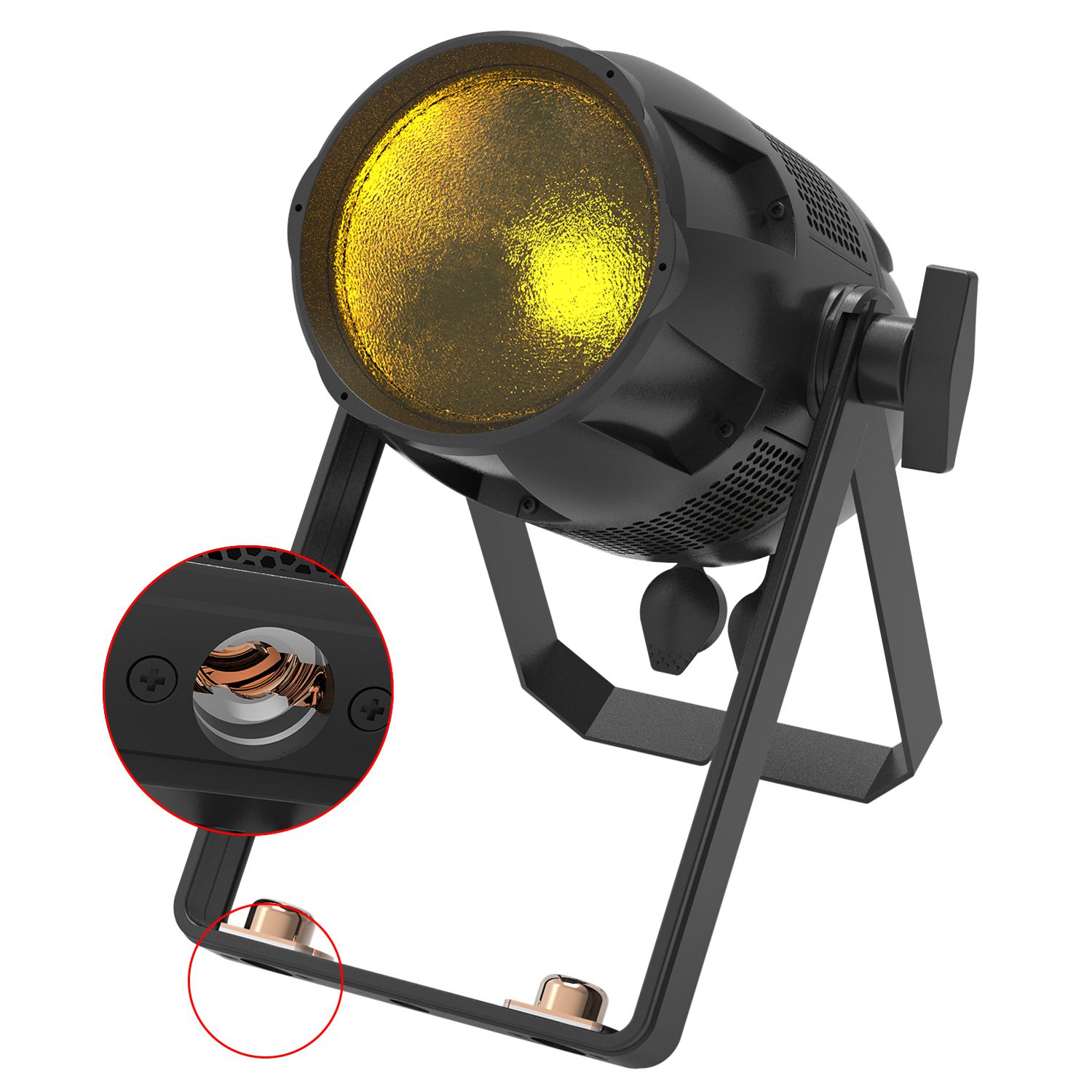

Bracket can be fast-locked and with one locking point for clamp’s installaiton
Safety cable attachment point
Included Items
User Manual
Power Cable
Optional Accessories (with item code)

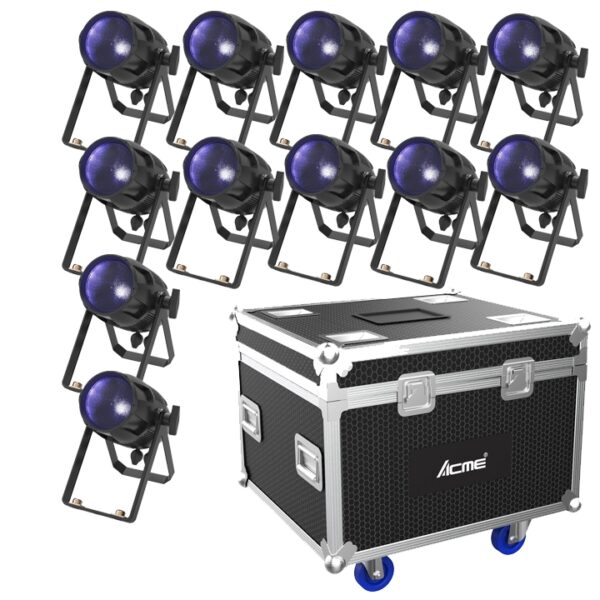

Flight Case：
3205001216（12 in 1）
3205001223（10 in 1）
Clamp：2060001614（C-250）
Signal Line：3-pin or 5-pin IP signal line
Safety cable: 2060001603-A (SW-05)
