Functional Overview

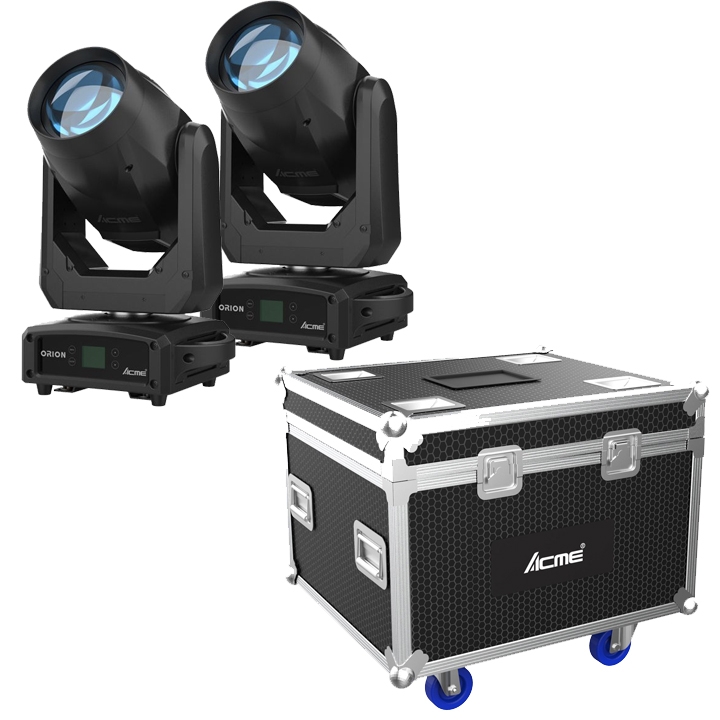

ACME is fully committed to long-life lamp technology. The latest break-through long-life solution from Philips (the MSD PLATINUM 12R LL 260W discharge lamp) enables the newest member of ACME’s Long-Life product family.
ORION, with extended 6,000-hour life span, produces a straight, sharp 2˚ beam in any application, making it a cost-saving investment.
Digital position correction technology offers fast and smooth movement. A wide range of mid-air effects is achievable via static gobo wheel (16 gobos) and Color Wheel (14 colors) in conjunction with two rotating 8- or 24-facet prisms.
The fixture’s compact housing makes it suitable for multiple applications, including events, Installations, TV shows and rental.
Features
Diameter of lens: 143mm
Long-lifedesign: 6,000 hour lamp life, withsleep mode&instant wake-up
Color temperature: 8000K
Macro effect and half-tone effect
Rainbow effect in both directions

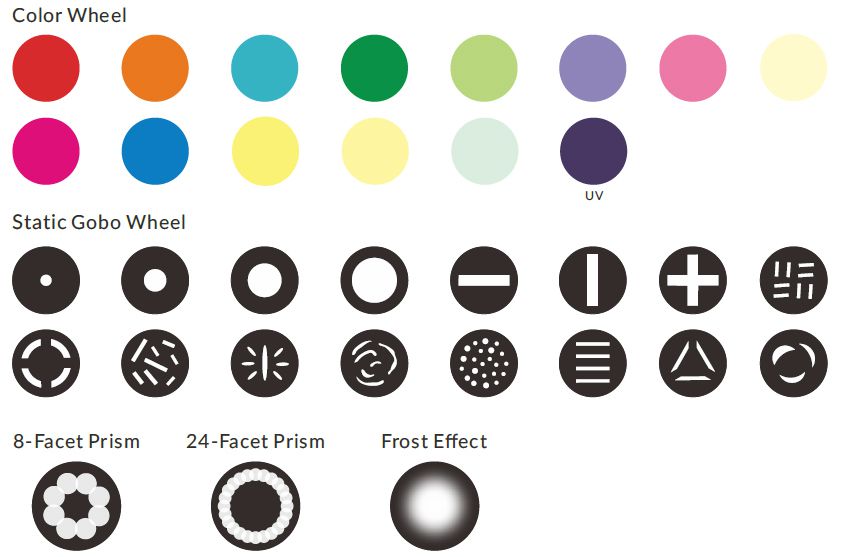

1x static gobo wheelwith 16 gobos plus open
1x Color Wheel with 14 colors plus open
2x prisms: dual 8- and 24-facet prisms, rotatable in both directions and overlayable

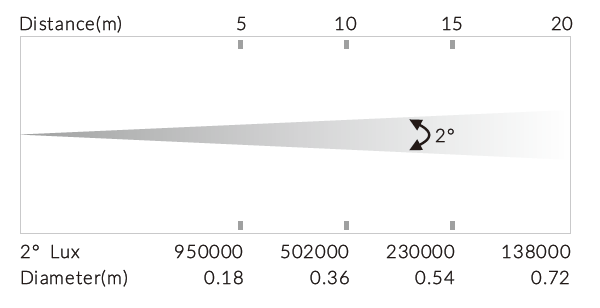

Beam angle: 2°
Frost: can be used independently
Motorized focus
Outstanding strobe effect with variable speed
Smooth dimming from 0-100%
Flicker-free management
Dust-proof and oil-proof design
Technical & Specification
Model
XP-260 BEAM
Light Source
Light Source: Philips MSD Platinum 12R LL (Long-Life)
Life expectancy: 6,000 hours
Optical System
Advanced optical Systemensuresclear, sharp image quality
High-efficiency Optical System
Beam angle: 2°
Control& Program
4-button touch panel
Display: Color display
Protocols: DMX512,Master/Slave
DMX modes: 2
Controlchannels: 13, 16
Pan/Tiltresolution: 16-bit
Electronic ballast
Firmware Upgrade via DMX link & USB
PAN & TILT
Pan movement: 540°
Tilt movement: 270°
AutomaticPan/Tiltposition correction
Digital waveform correction technology, ensures accurate positioning of Pan and Tilt, avoidingvariation after high speed movementand reset.
Static Gobos
1x static gobo wheelwith 16 gobos plus open
Color Wheel
1x Color Wheel with 14 colors plus white
Electrical & Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100-240V, 50/60Hz
Power consumption: 375W
Power cord out
Data in/out: 3-pin XLR

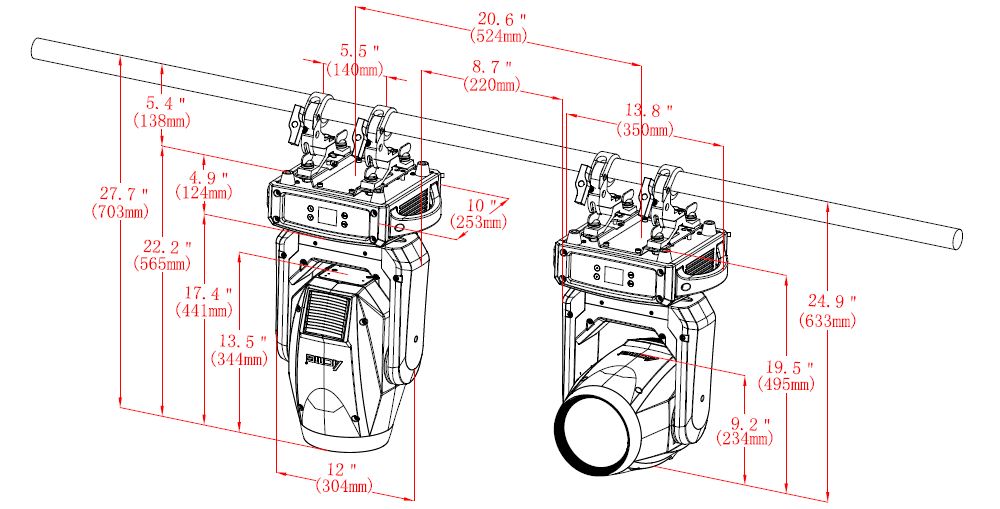

Fixture Specification
Height: 565mm (22.2”)
Width: 350mm (13.8”)
Depth: 253mm (10.0”)
Weight: 18kg (39.7lb)
Work Environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C
Approvals
CE compliant
Installation
Horizontal or vertical mounting
Operating position is universal
2 pairs of 1/4-turn locking points under base
2x fast-lock clamps with 1/4-turn locks for 50mm truss
Safety cable attachment point
Included Items
User Manual
Power Cable
2x fast-lock clamps with 1/4-turn locks for 50mm truss
Optional Accessories (with item code)
Raincover: 3033001749
Clamp: 2060001614 (C-250)
Safety cable: 2060000200 (SW-02)
Signal line: 3-pin signal line
