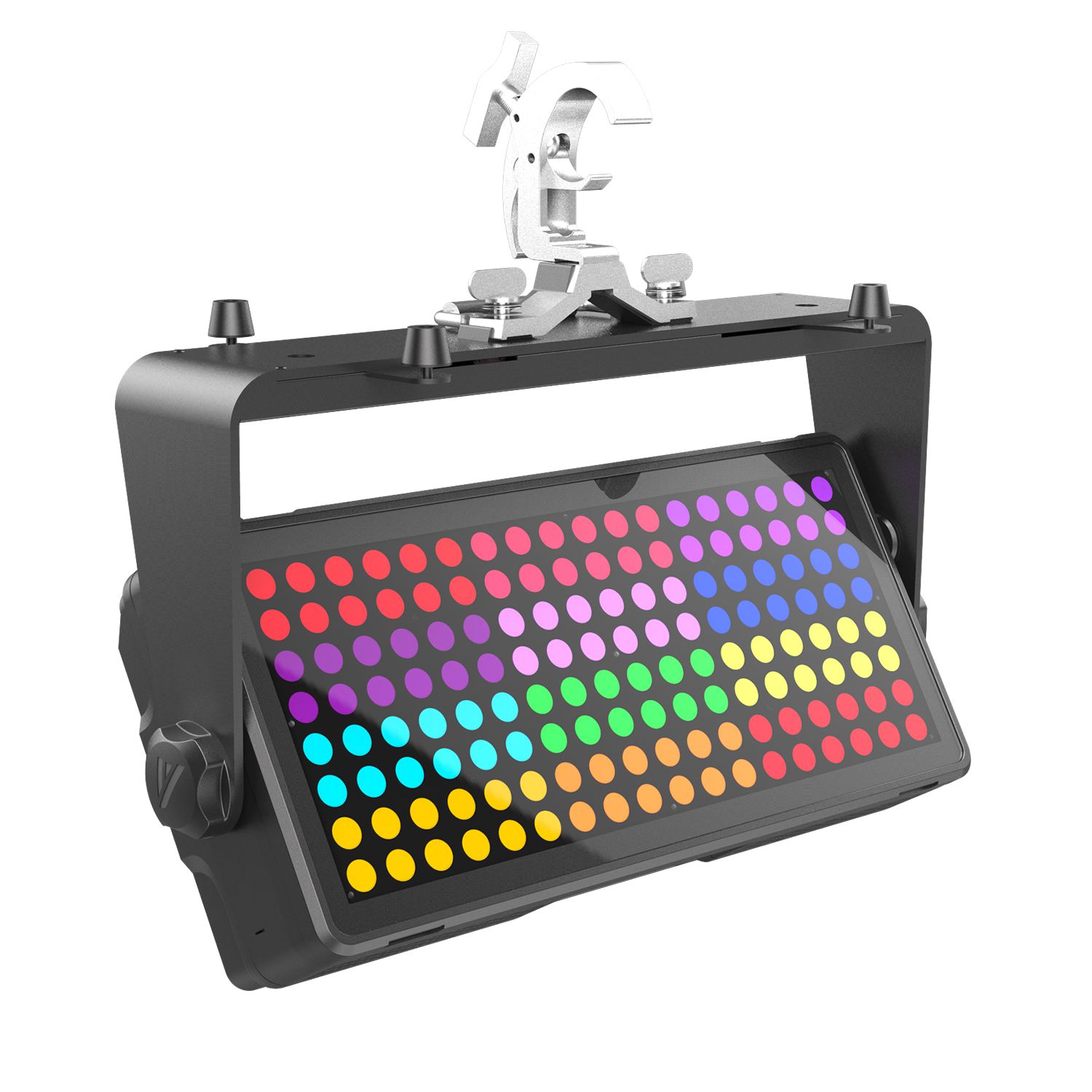

Functional Overview

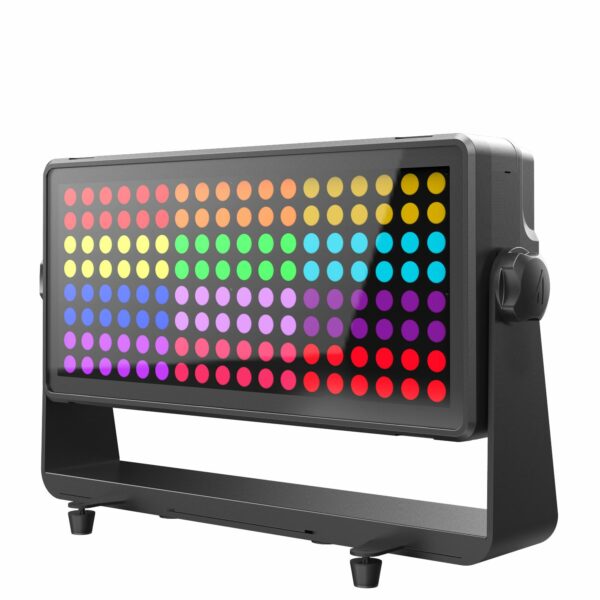

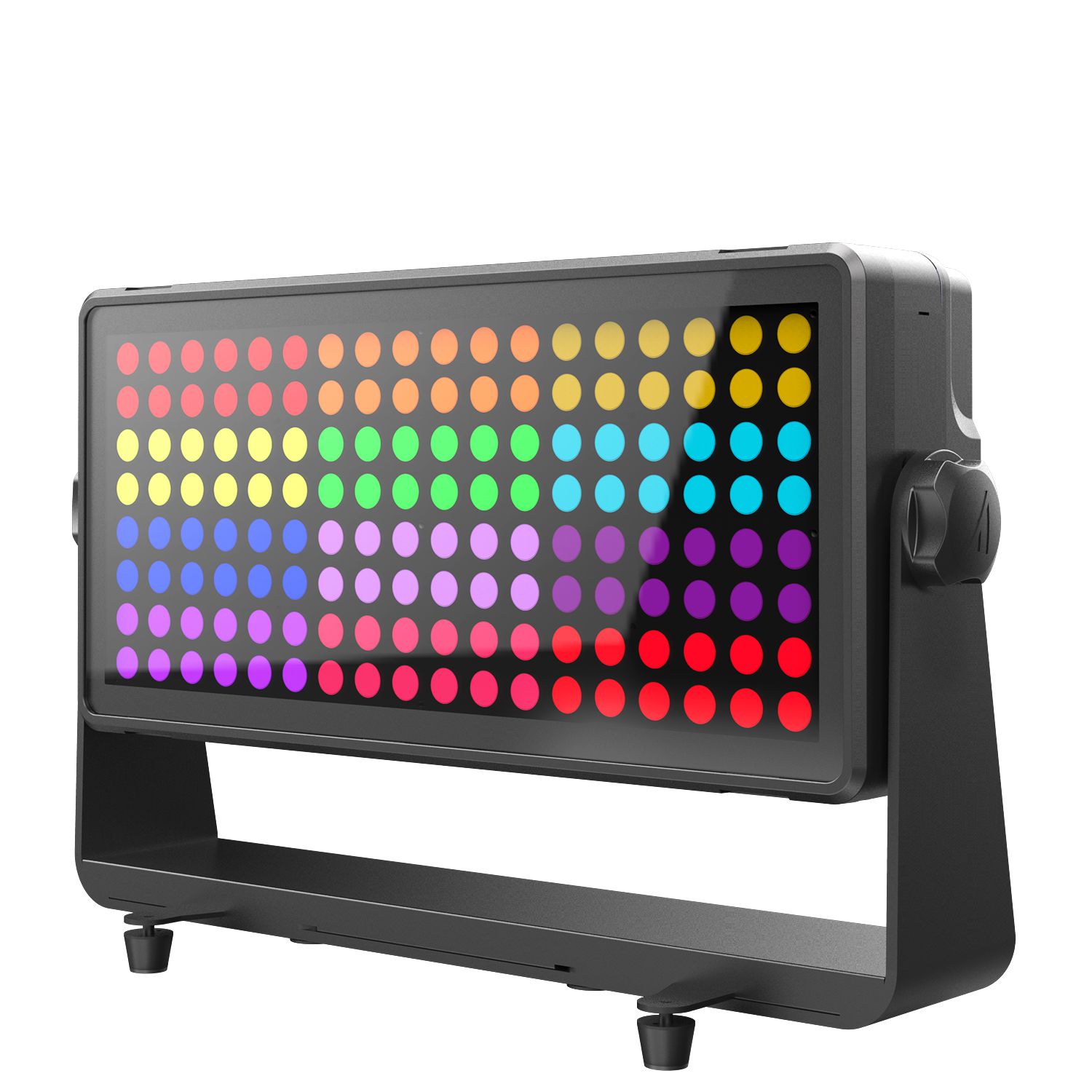

ACME’s THUNDERBOLT is a powerful, full-color, 4-in-1 RGBW LED strobe equipped with 144x 10W LEDs, delivering an incredible 50,000 lumens with super-fast strobe performance. The unit Features a 22° beam angle and offers smooth dimming performance and flicker-free operation. THUNDERBOLT’s LEDs are divided into 12 individually controllable segments, enabling wide-ranging color effects and pixel-mapping combinations for creative light shows. Each segment provides fast feedback, individual color Controland smooth dimming.
THUNDERBOLT enables a wide, even-field coverage, making this fixture ideal for stage floor or large area wall-washing over short and medium throws. At the same time, deploying the THUNDERBOLT saves production resources, as fewer fixtures are needed for large-scale applications. What’s more, THUNDERBOLT’s durable IP65-rating ensures that the fixture is kept free of particles and liquids, including smoke fluid, dust, dirt, airborne pollution and humidity, reaching the internal optics and Light Sources.
To achieve a stable, constant 1,500W output, the luminaire Features a unique thermal management design. The special aluminum alloy and surface treatment ensures maximum heat dispersion under any conditions. With its lifting yoke and extendable stands, the THUNDERBOLT is easy to transport and rig.
Features
Light Source: 144x 10W RGBW LEDs
12x individually controllable LED zones
High brightness, outstanding wash effect
Powerful strobe effect
Small size, light weight
Smooth, high-resolution dimmer 0–100%
Flicker-free management
Protection Rating: IP65 – can be used outdoors all year round
Connected quantity:
Maximum units in DMX connecting mode: 32 sets
Maximum units in Power supply connecting mode:
120V, 60Hz = 1 set
230V, 50Hz = 2 sets
Technical & Specification
Model
LP-14410
Light Source
Light Source: 144x 10W RGBW LEDs
LED life expectancy: 20,000 hours
optical System& Effects

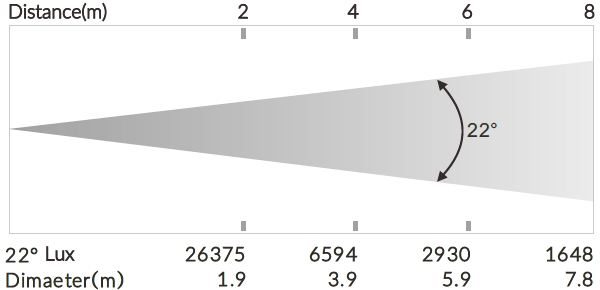

Beam angle: 22°
RGBW color mixing
12x individually controllable LED zones
High-brightness, outstanding wash effect
Powerful strobe effect
Smooth, high-resolution dimmer 0–100%
Appearance
Small size, light weight
No gaps between units in combination

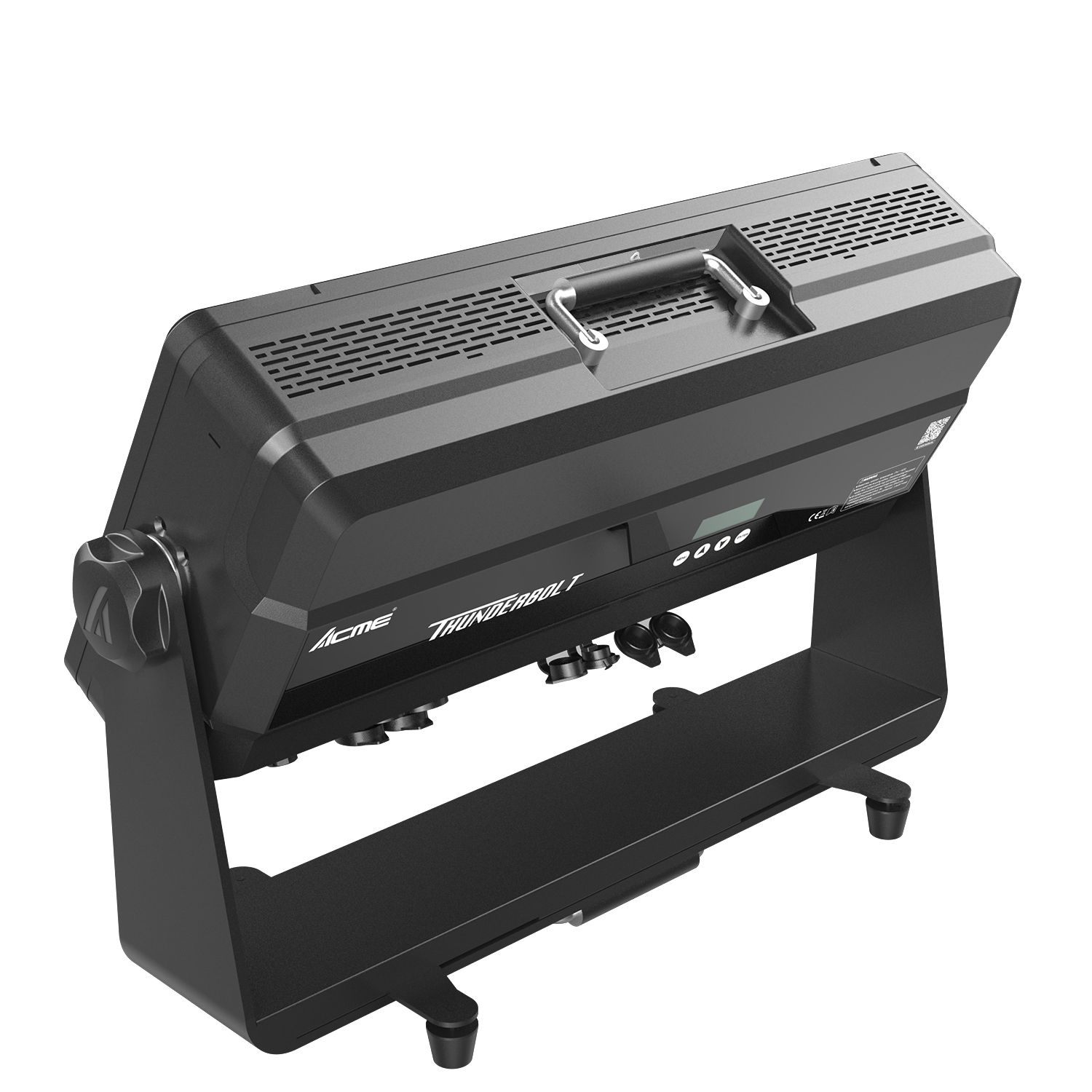

Carry handles top and bottom for easy portability
Flexible stands for stable horizontal mounting, even on slopes
Concealed magnet cover

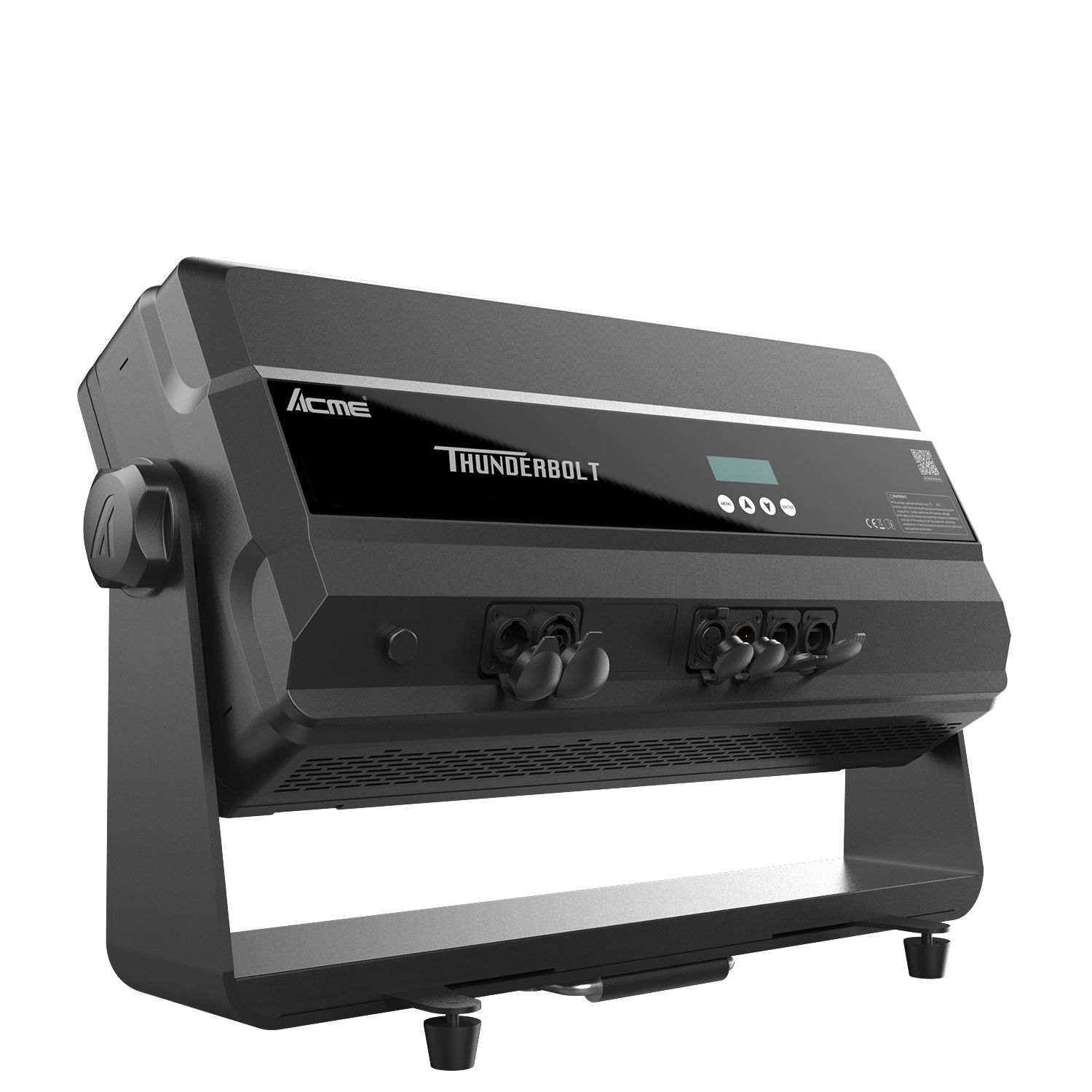

Controland Program
4-button touch panel
Display: OLED display
ControlMode: DMX-512, RDM, Art-Net
DMX Protocol modes:
A. 4, 8 (16-bit), 8, 9, 52 channels
B. 1, 2, 3, 4, 6, 12 pixels
Firmware upgradeable via DMX link
Electrical and Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100-240V, 50/60Hz
Power consumption: 1500W
Power in/out: Waterproof power connector in/out
Data in/out: 3-pin or 5-pin IP XLR, RJ45

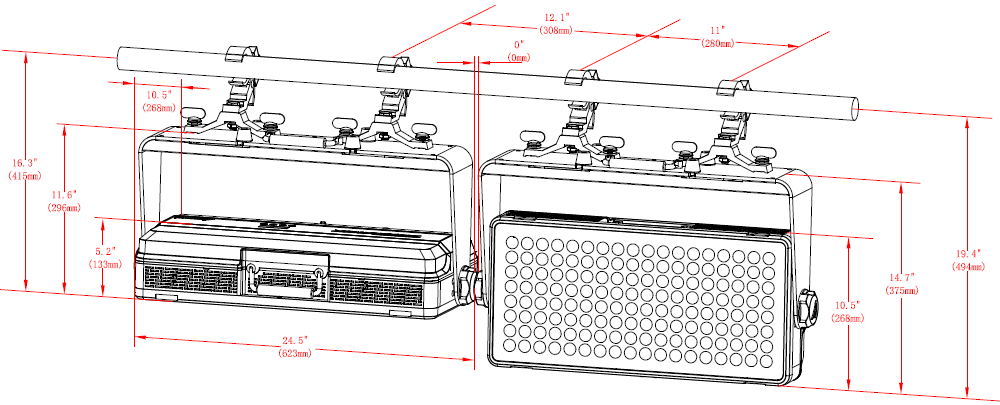

Fixture Specification
Height: 397mm (15.6”)
Width: 623mm (24.5”)
Depth: 133mm (5.2”)
Weight: 17kg (37.5lb)
Work Environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C
Protection Rating: IP65
Approvals
CE compliant
cETLus compliant
Installation

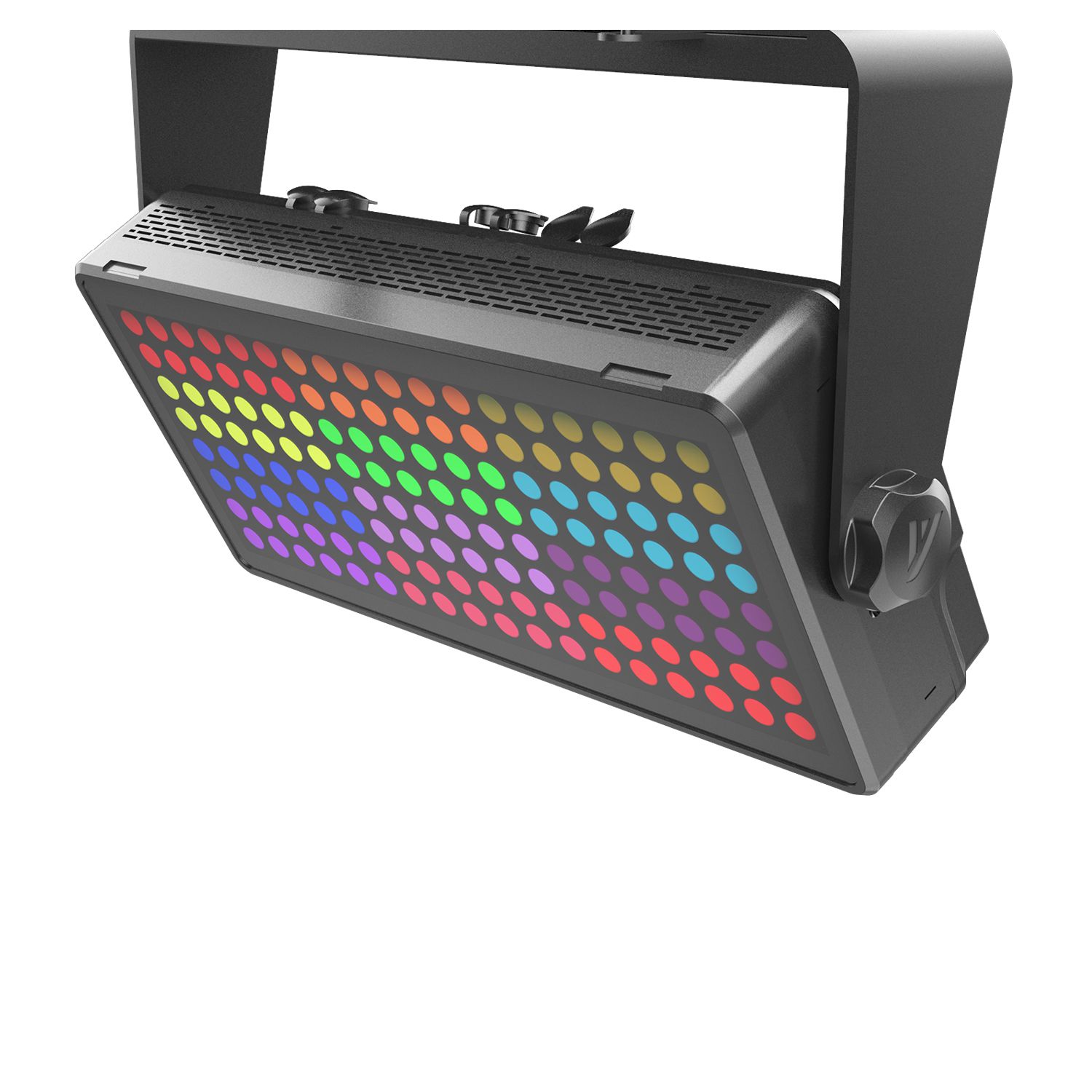

Horizontal or vertical mounting available
Operating position is universal
2 pairs fast-lock points under base
2x fast-lock clamps for 50mm truss (install 1 or 2 clamps as required)
Safety cable attachment point
Included Items
User Manual
Power Cable
Top and bottom carry handles
Adjustable foot-stands
Concealed magnetic cover
2x fast-lock clamps for 50mm truss
Optional Accessories (with item code)

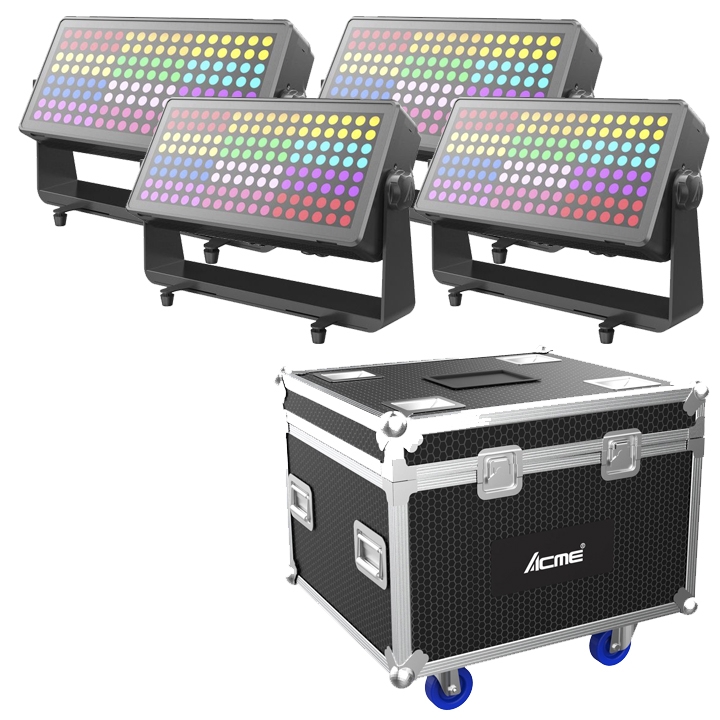

Flight case: 3205001268 (4 in 1)
Clamp: 2060001614 (C-250)
Safety cable: 2060001603-A (SW-05)
Signal line: 3-pin or 5-pin IP signal line
