Functional Overview

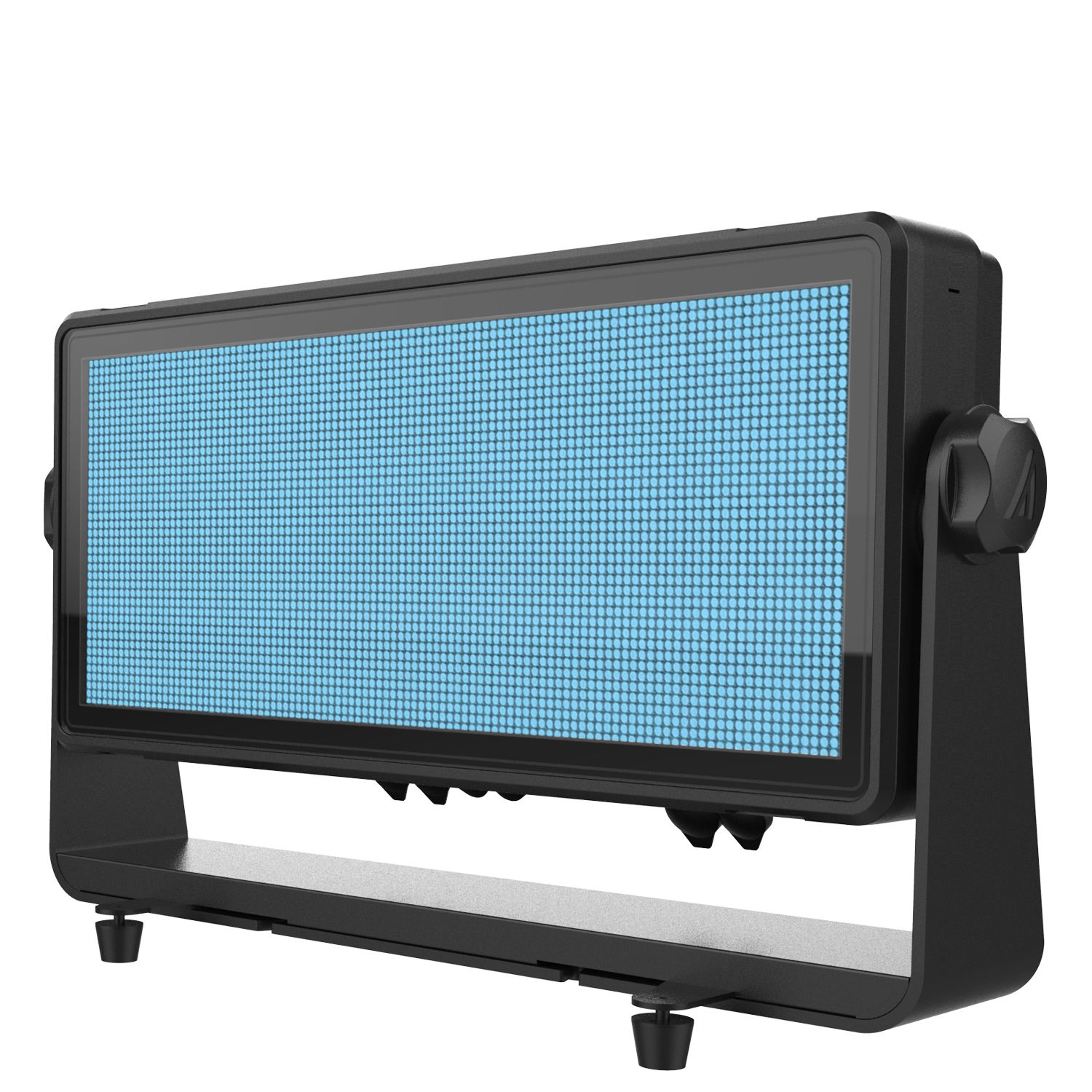

ACME’s THUNDERSTRUCK is a powerful, full-color, RGBW 4-in-1 SMD LED strobe equipped with 2,304x LEDs, delivering an incredible 70,000 lumen output, with a super-fast strobe pulse. It Features a wide (110°) beam angle and offers a smooth dimming performance and flicker-free operation.
THUNDERSTRUCK’s LEDs are divided into 12 individually controllable segments, generating wide-ranging color effects and pixel-mapping combinations for creative light shows. Each segment provides fast feedback, individual RGBW color Controland smooth dimming. With THUNDERSTRUCK, it is possible to obtain a wide even-field coverage making this fixture ideal for stage floor or large area wall washes, to create high-power wide effects in short and medium throws. What’s more, deploying THUNDERSTRUCK saves production resources as fewer fixtures are required for large-scale applications.
The durable IP65 rating of the THUNDERSTRUCK ensures that the fixture is kept free of particles and liquids, including smoke fluid, dust, dirt, airborne pollution and humidity, reaching the internal optics and Light Sources. To achieve a constant, stable 1,500W output, the luminaire Features a unique thermal management design. The special aluminum alloy and surface treatment ensures maximum heat dispersion under any conditions. Top and bottom carry handles and extendable stands make the THUNDERSTRUCK easy to transport and rig.
Features
Light Source: 2304x RGBW LEDs
Effects: 12x individually controllable LED zones; outstanding color mixing effect; adjustable strobe speed
Flicker-free management
Connected quantity:
Maximum units of DMX connecting mode: 32 sets
Maximum units of Power supply connecting mode:
120V, 60Hz: 1 set
230V, 50Hz: 2 sets
Technical & Specification
Model
LP-2304
Light Source
Light Source: 2304x RGBW LEDs
LED life expectancy: 10,000 hours
Total output: 70,000 lumens
optical System& Effects

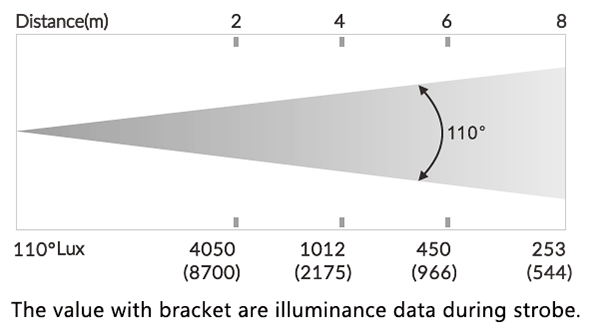

Beam angle: 110°
RGBW color mixing
12x individually controllable LED zones
High brightness, outstanding washing effect
Powerful strobe effect
Smooth, high-resolution dimmer 0–100%
Appearance
Small size, light weight
No gaps between units in combination

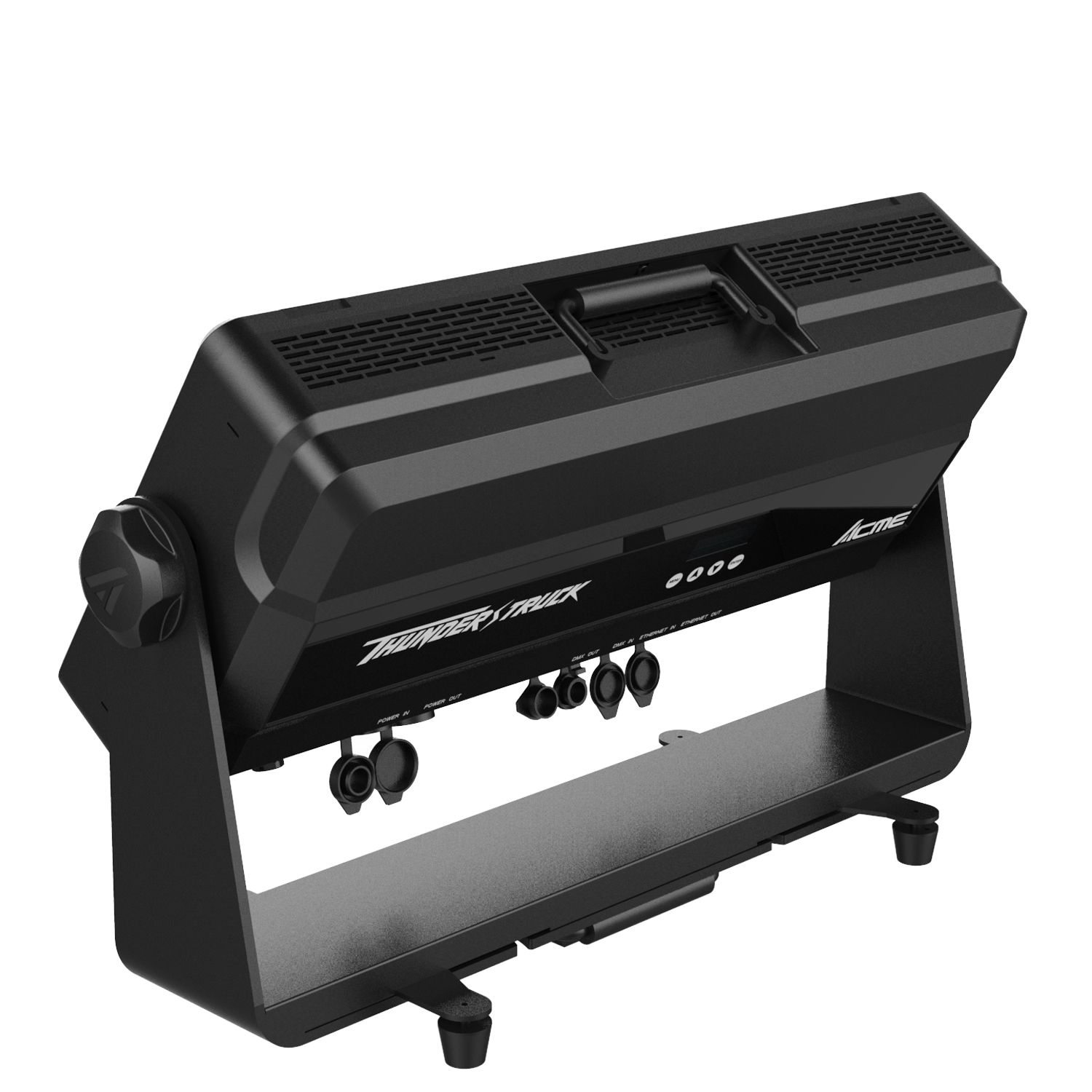

Carry handles top and bottom for easy portability
Flexible stands for stable horizontal mounting, even on slopes; Flown Installationalso possible
Concealed magnet cover
IP65 protection rating
Controland Program
4-button touch panel
Display: OLED display
Protocols: DMX-512, RDM
DMX Protocol modes: 13
Controlchannels:
4, 8 (16-bit), 8, 9, 52 channels
1, 2V, 2H, 3, 4, 6V, 6H, 12 pixels
Firmware upgradeable via DMX link

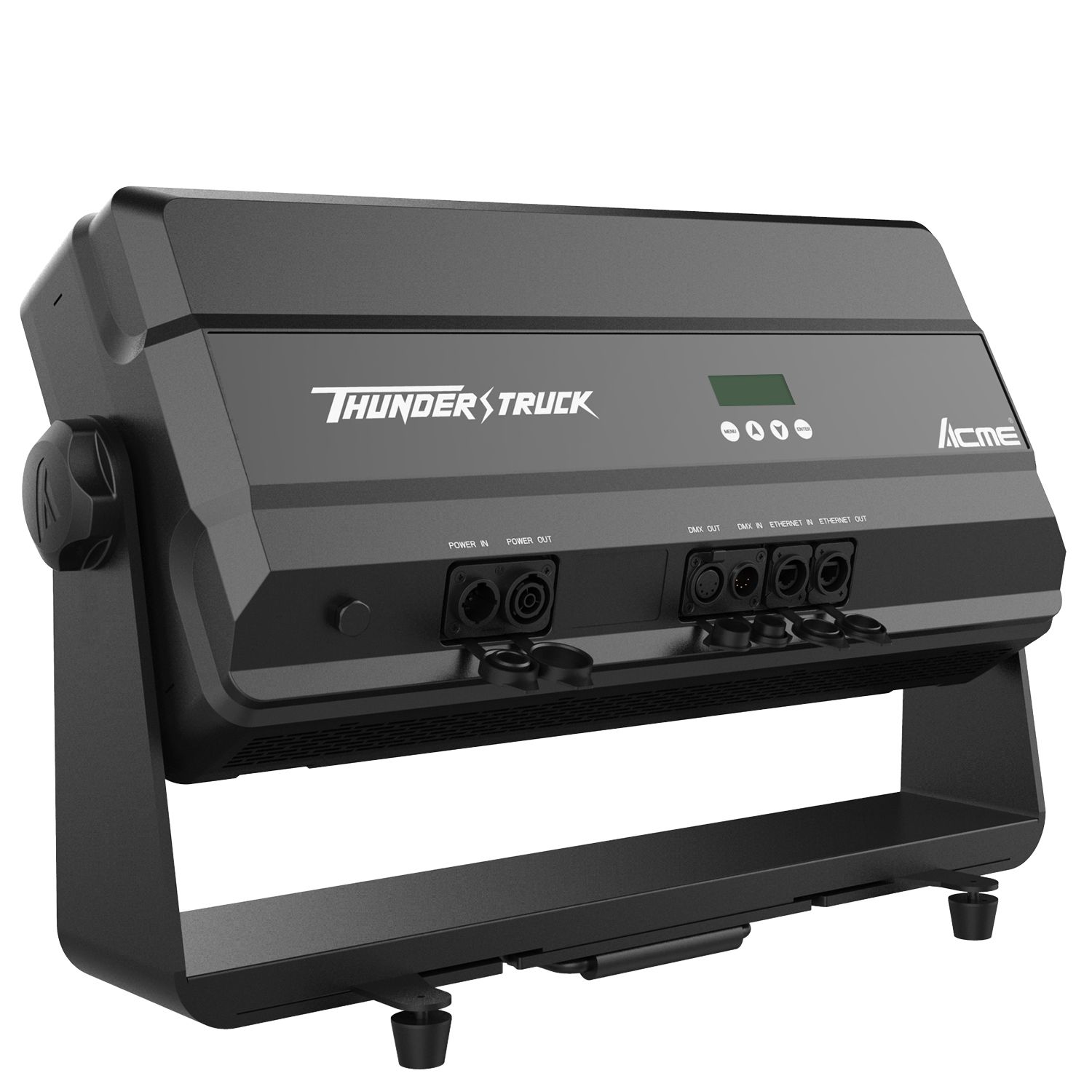

Electrical and Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100–240V, 50/60Hz
Power consumption: 1500W
Power in/out: Waterproof power connector in/out
Data in/out: 5-pin XLR

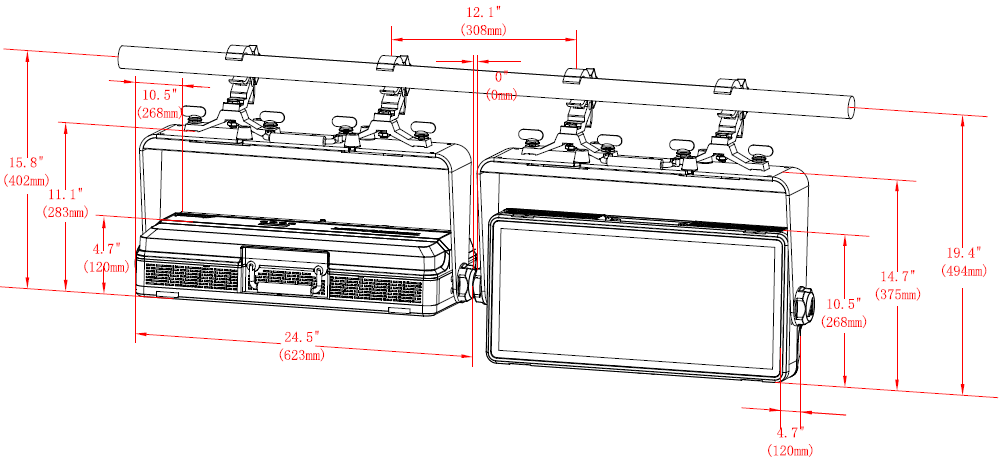

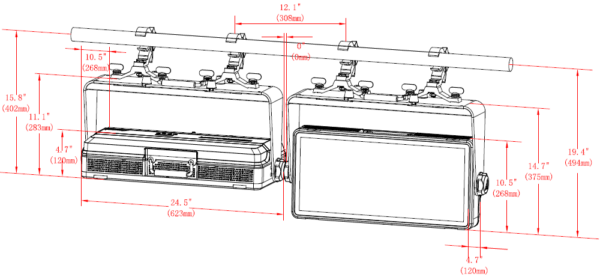

Fixture Specification
Height: 397mm (15.63”)
Width: 123mm (4.84”)
Depth: 623mm (24.53”)
Weight: 16kg (35.27lb)
Work Environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C
Approvals
CE compliant
cETLus compliant
Installation
Horizontal or vertical mounting available
Operating position is universal
2 pairs fast-lock points under base

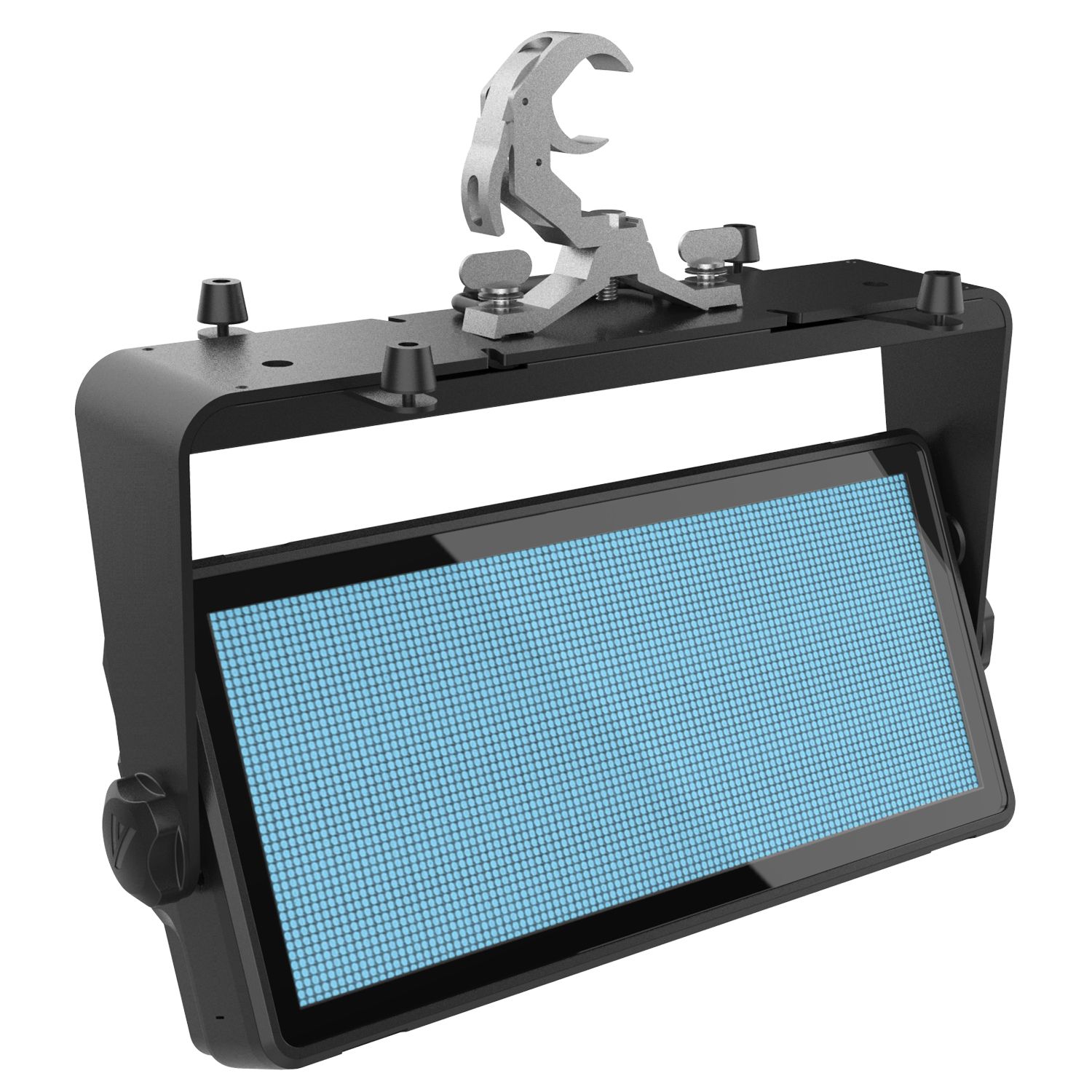

2x fast-lock clamps for 50mm truss (install 1 or 2 clamps as required)
Safety cable attachment point
Included Items
User Manual
Power Cable
Top and bottom carry handles
Adjustable foot-stands
Concealed magnetic cover
2x fast-lock clamps for 50mm truss
Optional Accessories (with item code)

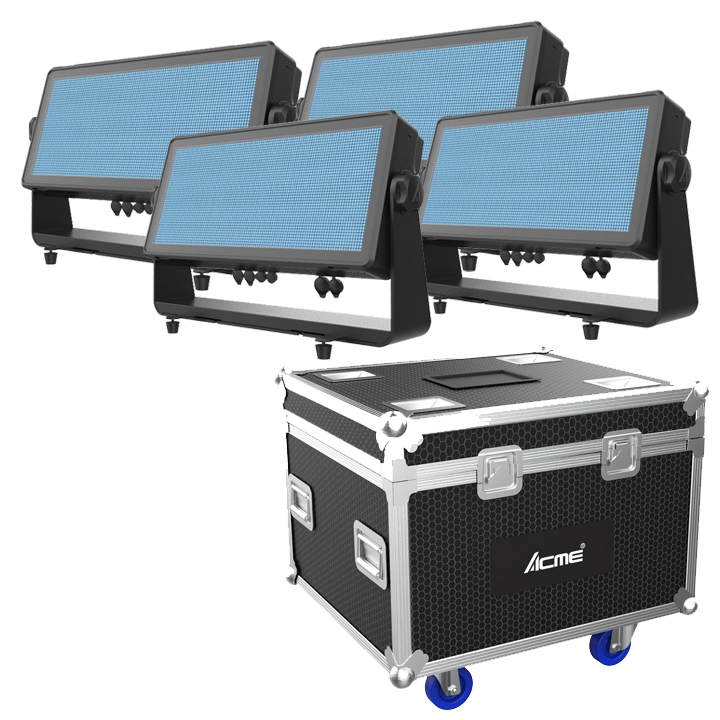

Flight case: 320500124 (4 in 1)
Clamp: 2060001614 (C-250)
Safety cable: 2060001603-A (SW-05)
