Functional Overview
The STAGE BLINDER IP WW2 from ACME is an LED fixture with a classic Blinder appearance, and a familiar ‘tungsten’ effect. It has a patented plug-in function, and can be quickly rigged without the need for tools. It can be freely combined with ACME’s other STAGE BLINDER IP series fixtures for added creative options, and offers multiple, easily located rotation angles.
Brighter than the traditional audience blinder, with an outstanding variable speed strobe effect and IPX4 protection rating, the STAGE BLINDER IP WW2 is suitable for large and medium-sized concerts, variety acts and other professional stage or entertainment applications requiring a striking visual impact.
Features
Light Source: 2x 125W LED module
Color Temperature: 2700K / 1200K (Tungsten mode)
Beam Angle: 50°
Unique tungsten effect
Smooth dimming from 0-100%
Outstanding variable speed strobe effect
Fast, tool-free mounting of multiple units in an orientation
Multiple, easily located rotation angles
Ultra-high brightness, brighter than traditional audience blinder
Compact design, excellent thermal design, easy Installation
Suitable for large and medium concerts and events of all kinds
Flicker-free management
Dust-proof and oil-proof design
Protection Rating: IPX4
Maximum Connection:
120V, 60Hz = 4 sets
230V, 50Hz = 8 sets
Technical & Specification
Model
BL-200 WW2
Light Source
Light Source: 2x 125W LED module
LED life expectancy: 10,000 hours
Optical System
Advanced optical Systemensures clear, wide-range wash effect
Controland Program
4-button panel
Display: LCD display
Protocols: DMX512, RDM
DMX Protocol modes: 4
Controlchannels: 1, 2, 4, 6
Dimmer: 8-bit or 16-bit
Firmware upgradeable via DMX link
Electrical and Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100-240V, 50/60Hz
Power consumption: 235W
waterproof power connector in/out
Data in/out: 3-pin or 5-pin IP XLR
Fixture Specification
Height: 200mm (6.8”)
Width: 215mm (8.4”)
Depth: 400mm (15.7”)
Weight: 6.8kg (14.9lb)
Work Environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C
Protection Rating: IPX4
Approvals
CE compliant
Installation
Horizontal or vertical mounting available
Operating position is universal
Foot-stands with 3 locking points
Safety cable attachment point
Included Items
User Manual
Optional Accessories (with item code)

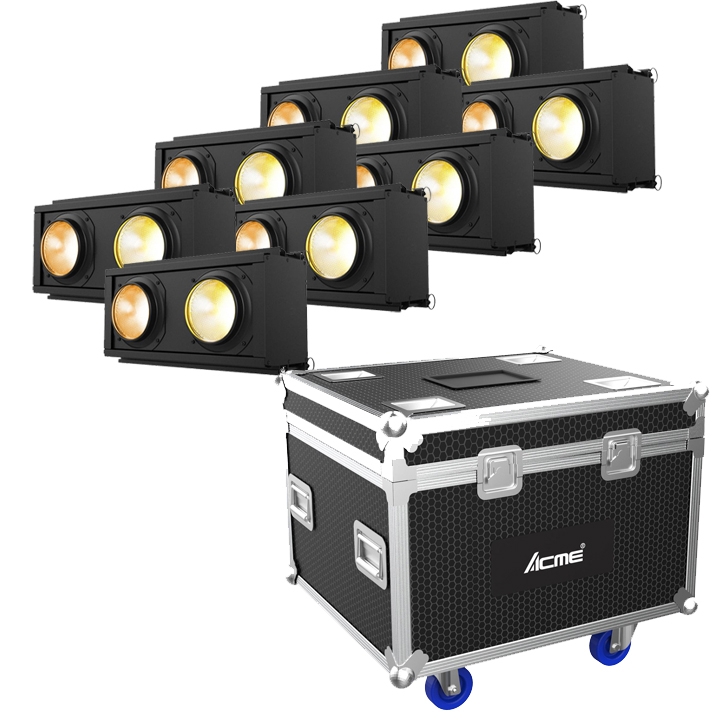

Flight case: 3205001171 (8 in 1)
Clamp: 2060001614 (C-250)
Safety cable: 2060000200 (SW-02)
