Functional Overview

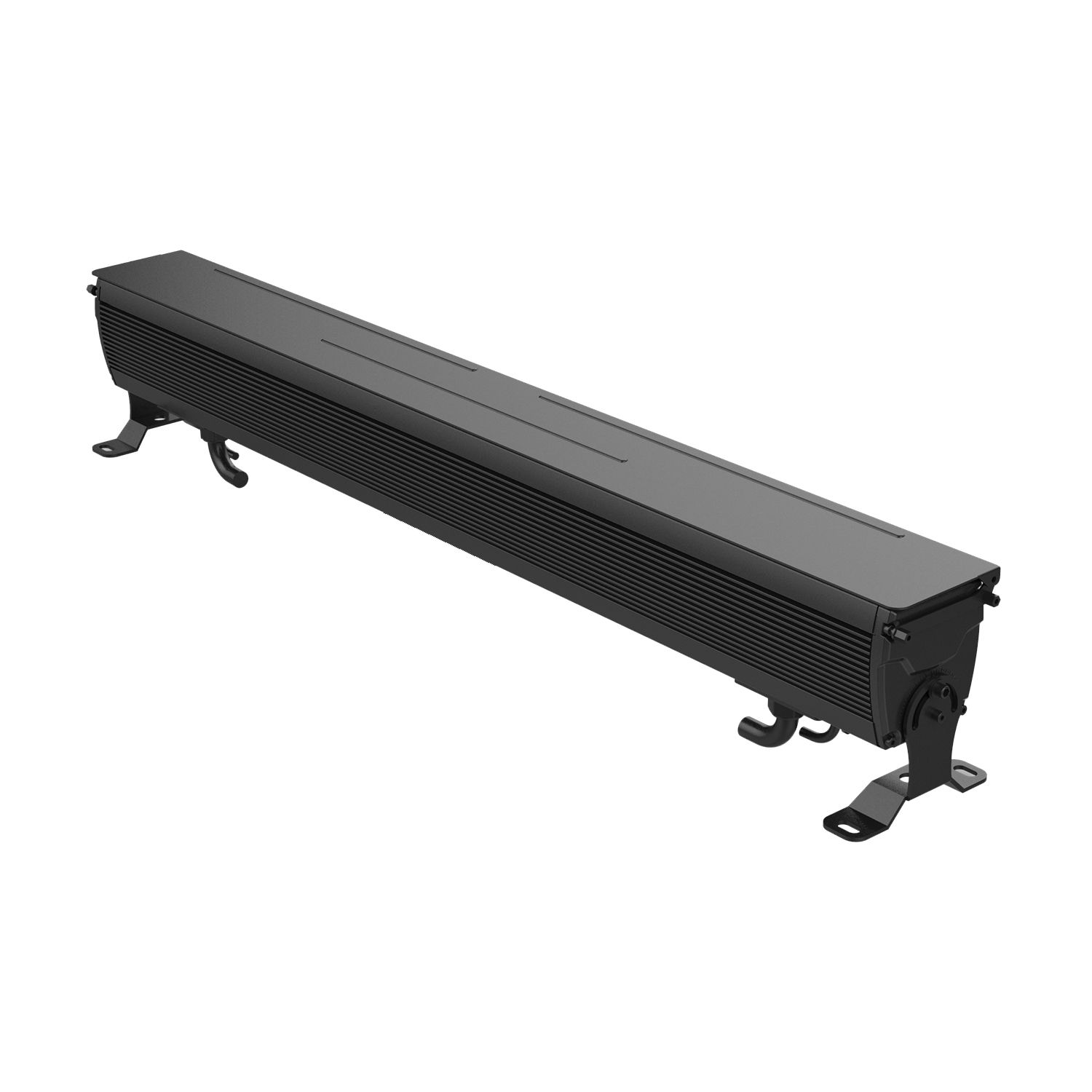

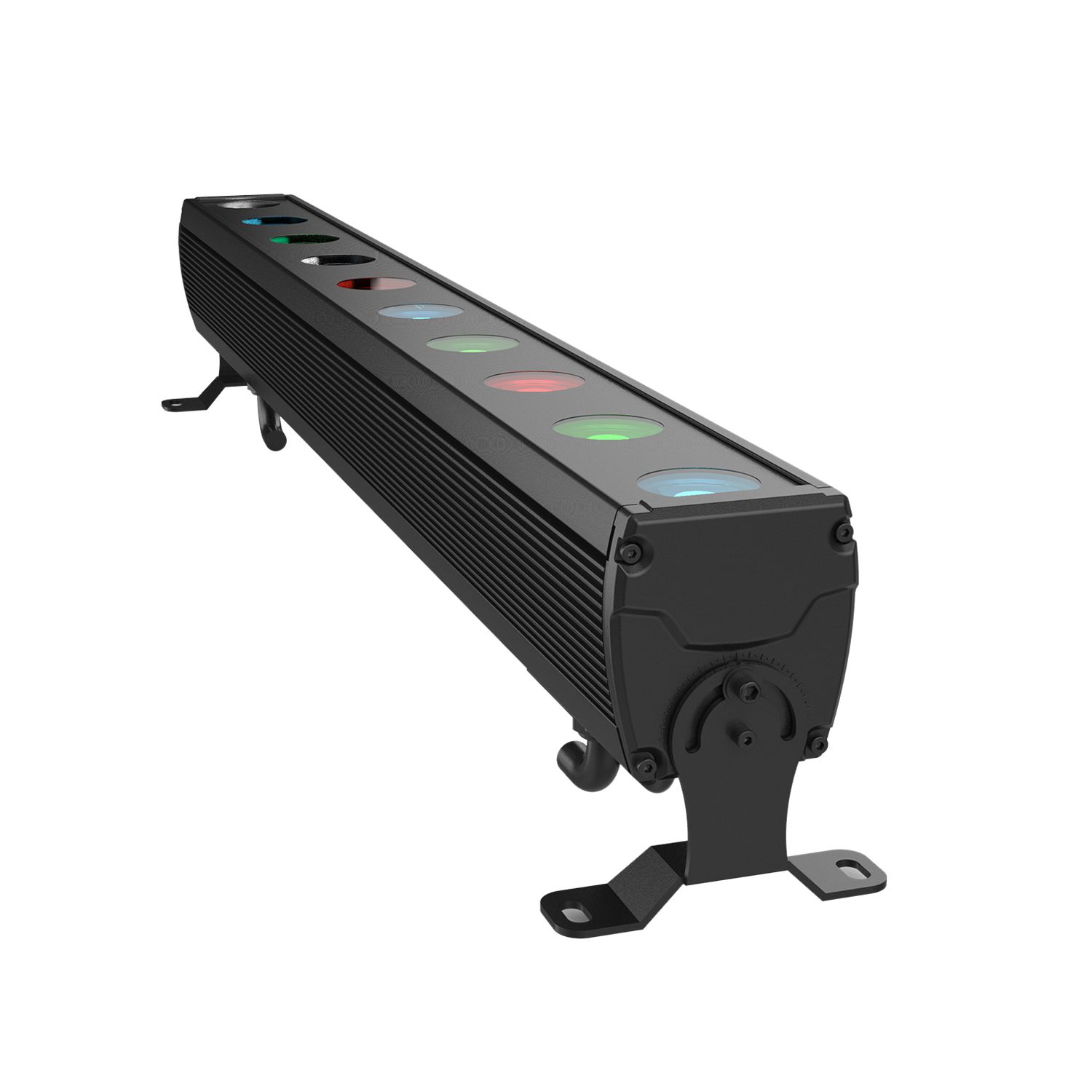

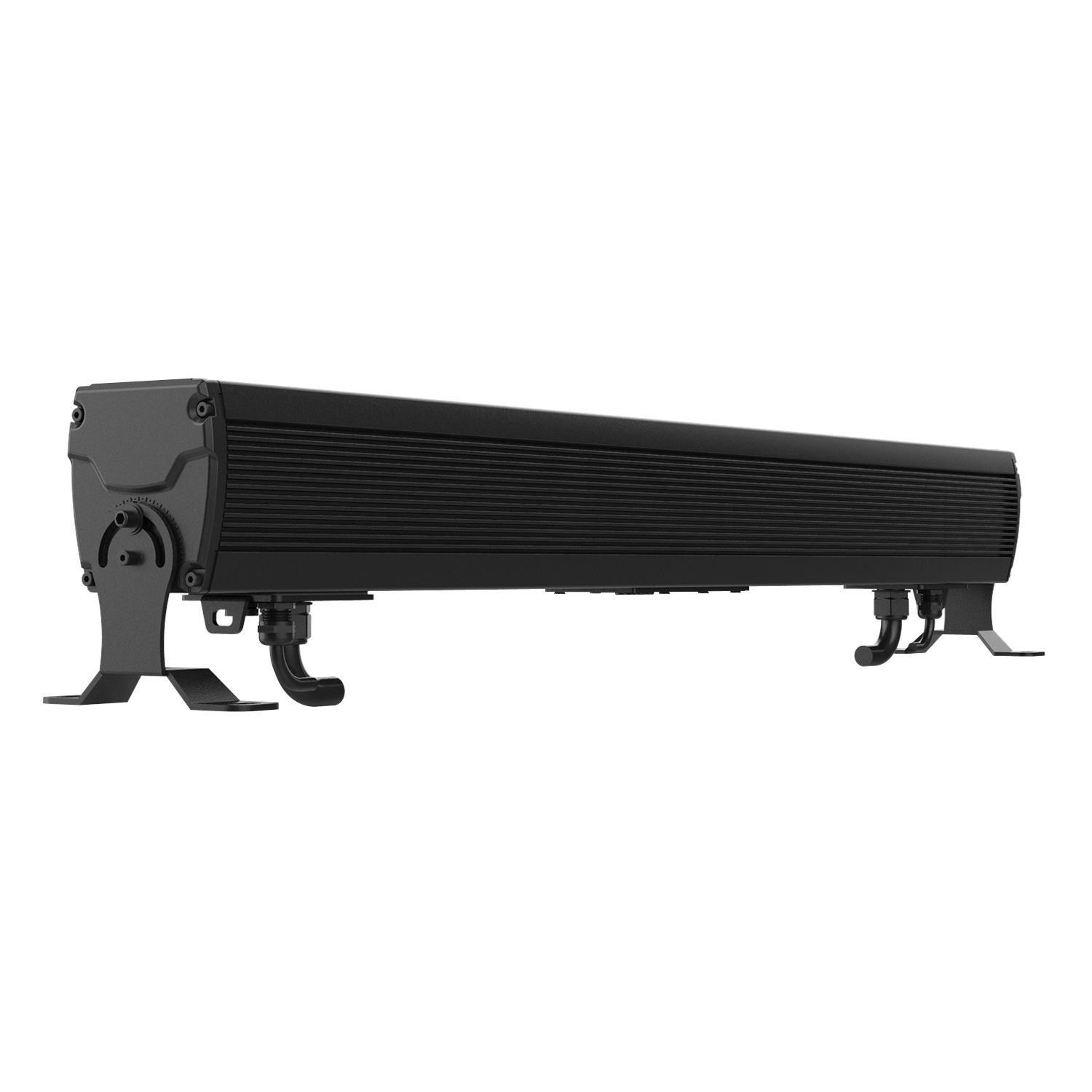

The ACME TOUR PIXEL BAR 1010 II is equipped with 10x 15W RGBW LEDs in a sleek, low-profile 1 meter bar housing, producing a bright linear beam pattern, with high quality color-mixing and flexible pixelcontrol. The light-weight aluminum alloy unit is fitted with high-efficient optical lenses to keep the beam angle to a tight 10°. With its IP65 protection rating, the Tour Pixel Bar 1010 II is capable of handling even the most demanding environments.
The equally-spaced LEDs allow for the creation of seamless, multi-unit strips, in horizontal or vertical orientation, with full pixel-mapping capabilities. Thanks to its all-important high IP65-rated housing, dust, rain, snow and other harsh weather conditions are no longer a problem – a major plus for a bar fixture of this type. Its fast and variable-speed strobe and smooth 0-100% dimming make this luminaire a great choice for a wide variety of applications.
Features
Efficient LED lens & uniform color mixing
Smooth dimming from 0-100%
Outstanding variable speed strobe effect
Individual LED pixelcontrol, equally-spaced LEDs for joining multiple units
IP65 protection
Can be adjusted 180° on double mounting brackets
Optional diffuser ，expanding effective wash range

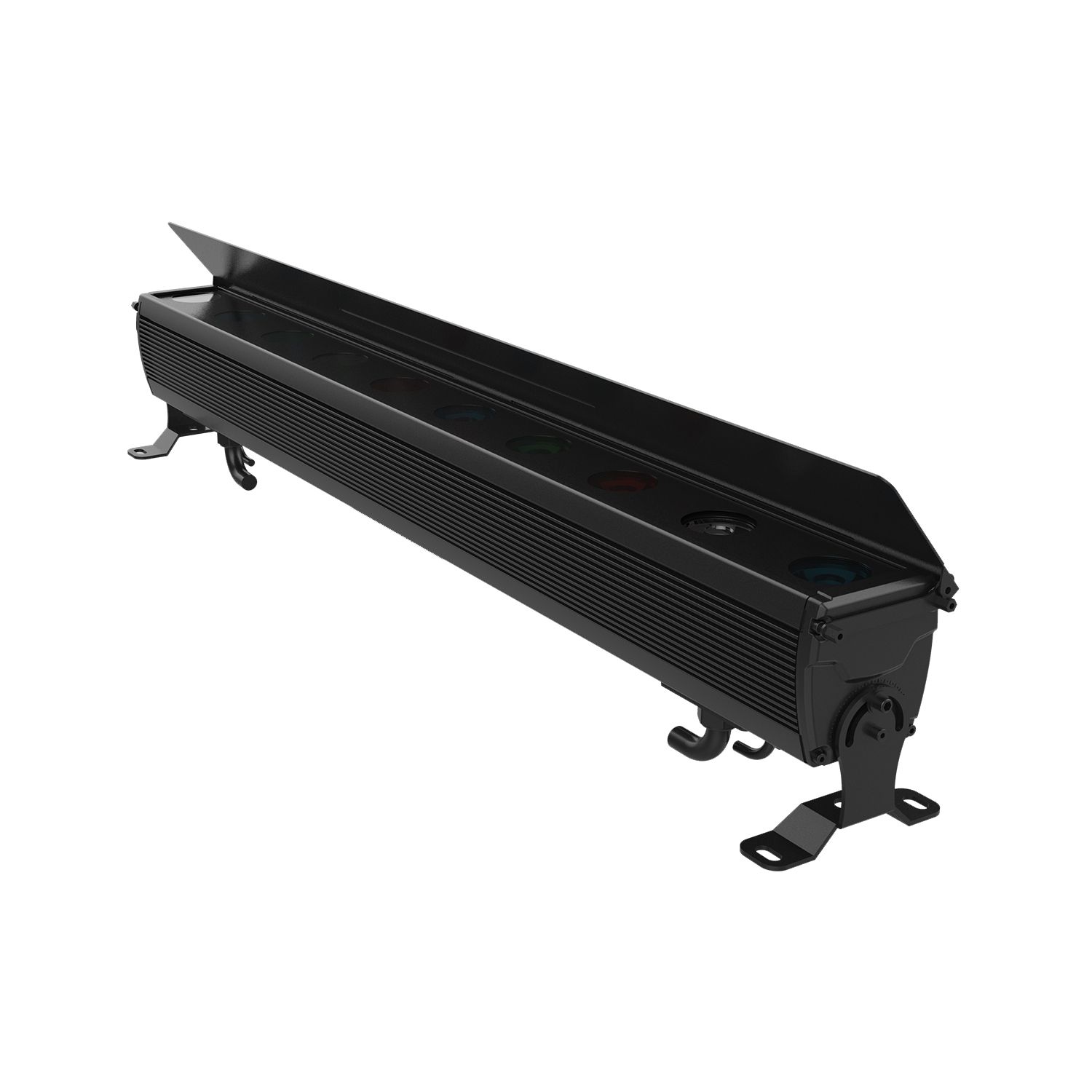

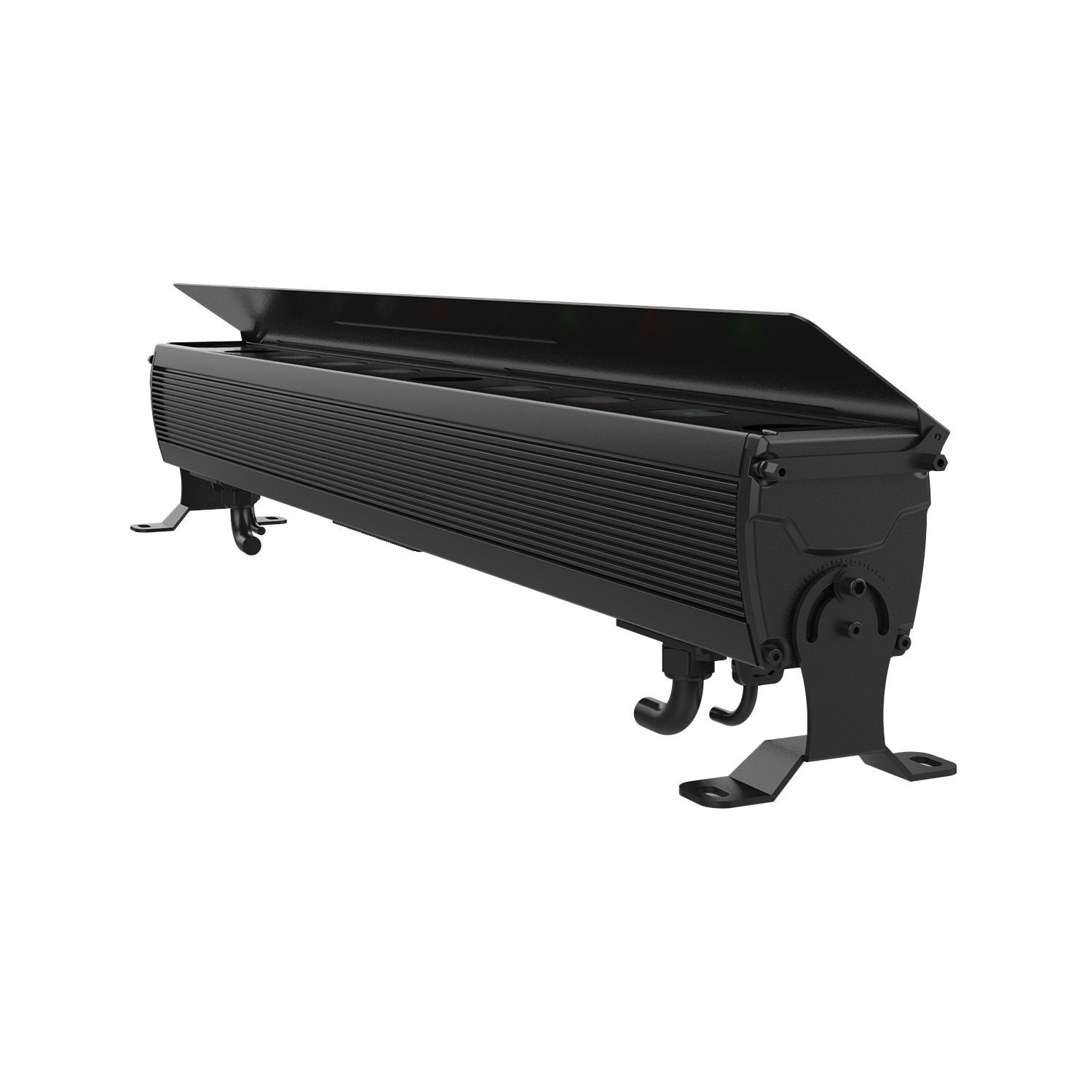

Optional barn-door can prevent glare
Technical & Specification
Model
TB-1010QW II
Specifications
Light Source: 10x 15W RGBW LED

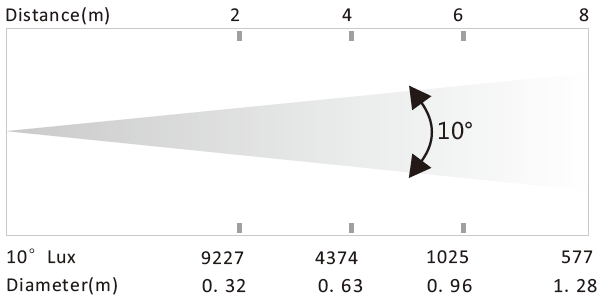

Beam Angle: 10°
Control
DMX Channel: 4, 5, 7, 40 channels
ControlMode: DMX-512, Master/Slave
Firmware upgradeable via DMX link
Construction

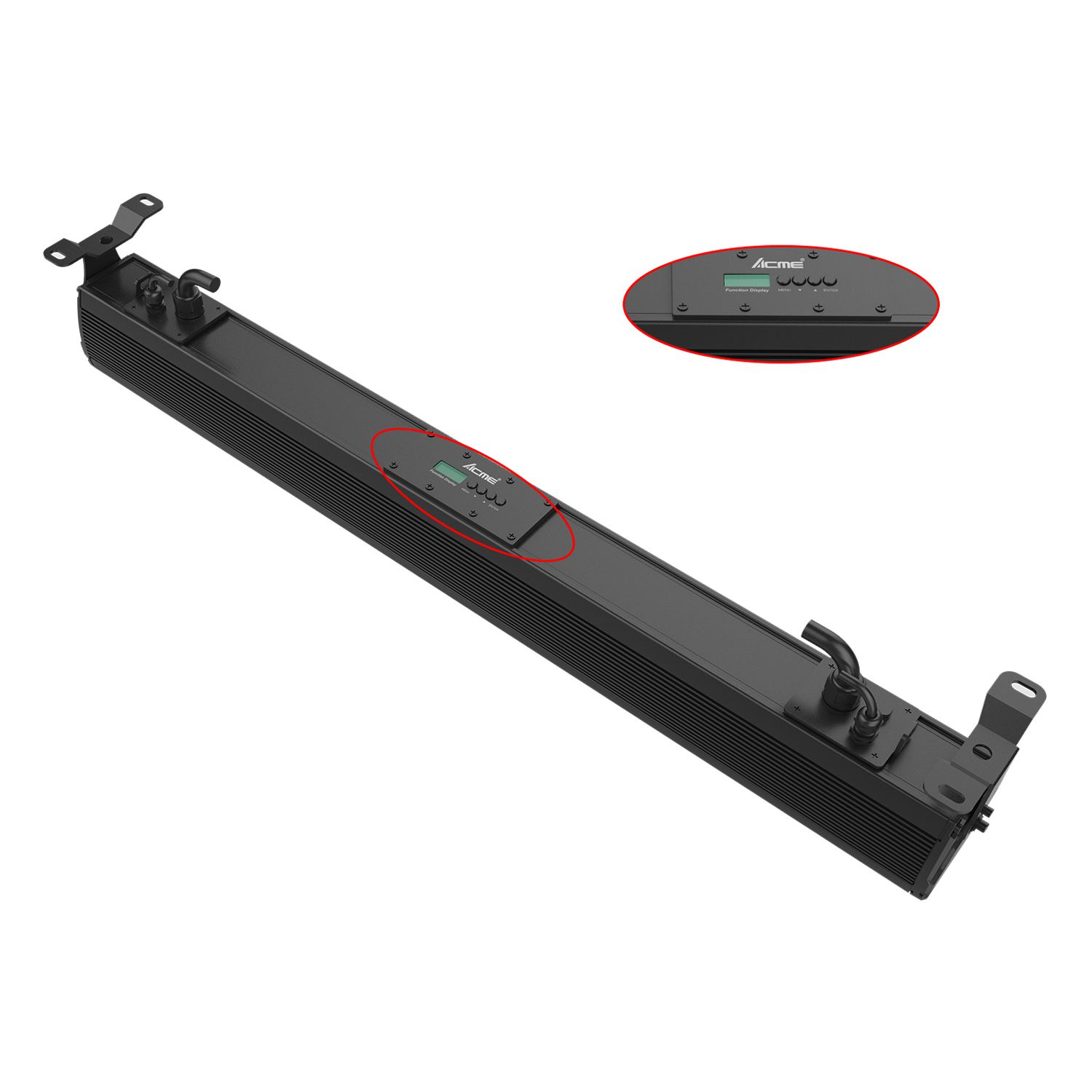

Display: LED display
Data in/out: 3-pin waterproof connector
Power in/out: Power cord out
Protection Rating: IP65
Electrical
Input voltage range: AC 100-240V, 50/60Hz
Power Consumption: 130W
Fixture Specification
Height: 112mm (4.4″)
Width: 104mm (4″)
Depth: 953mm (37.5″)
Weight: 10kg (22lb)
Approvals
CE compliant
Optional Accessories (with item code)

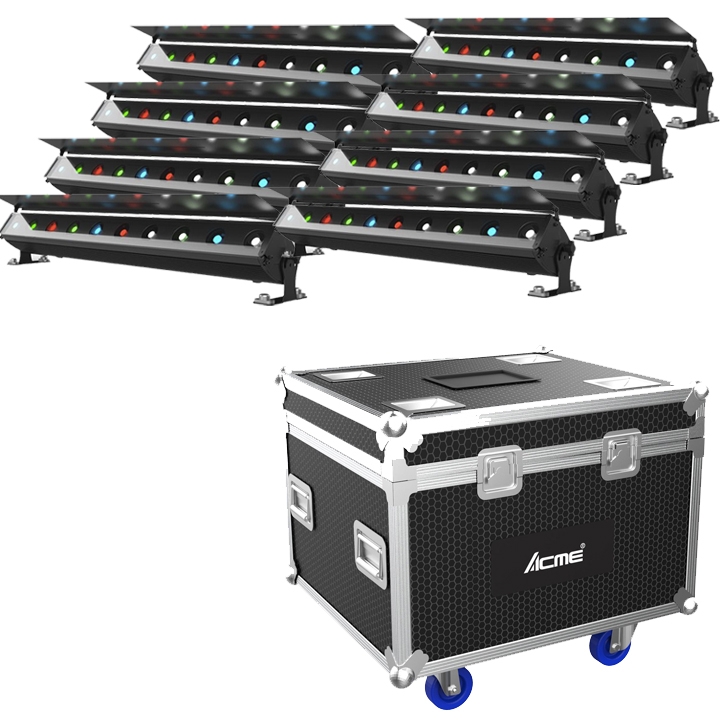

Flight case: 3205001272 (8 in 1)

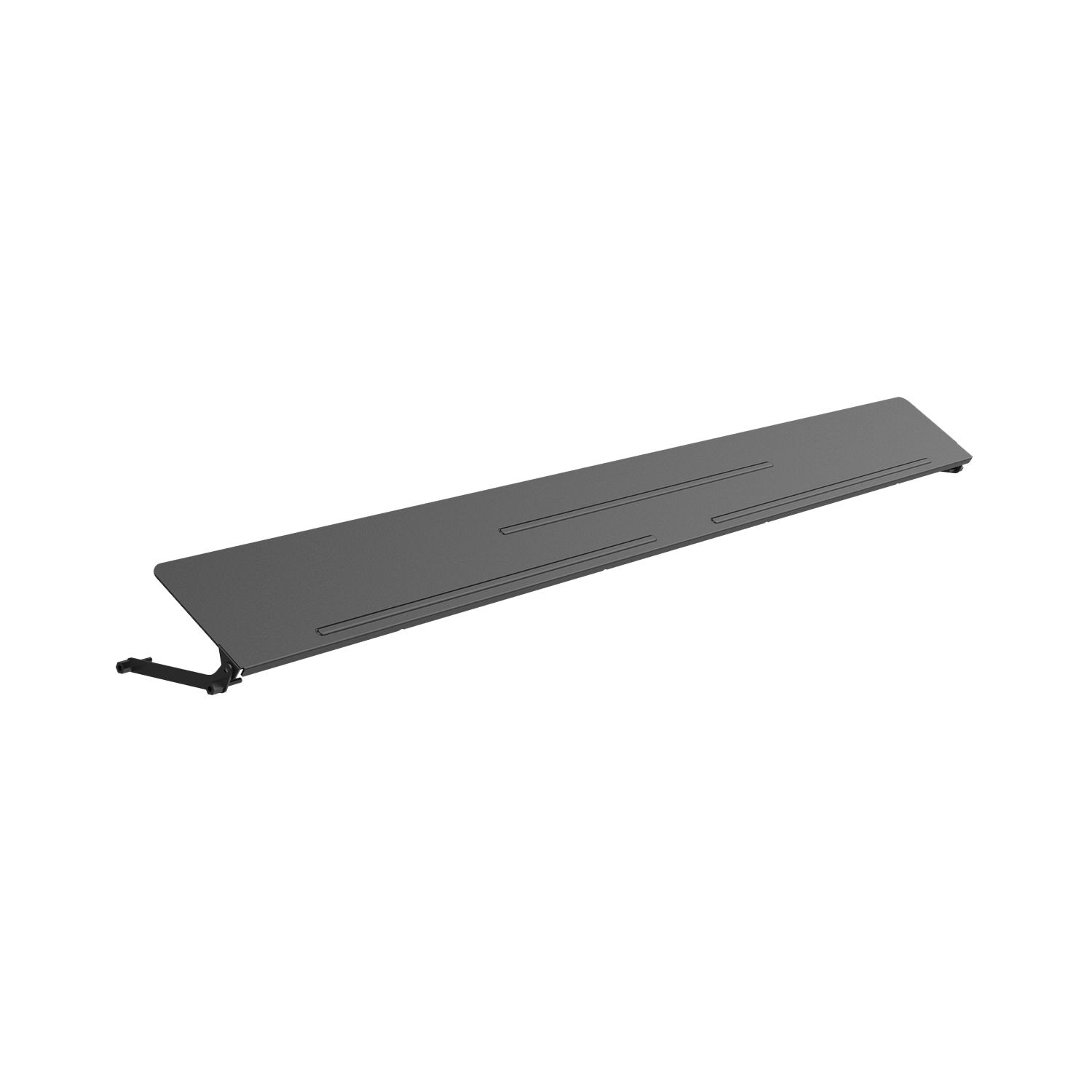

Barn-door: 4089280040
Diffuser: 3005003225
Signal line: 3-pin IP signal line
