Functional Overview

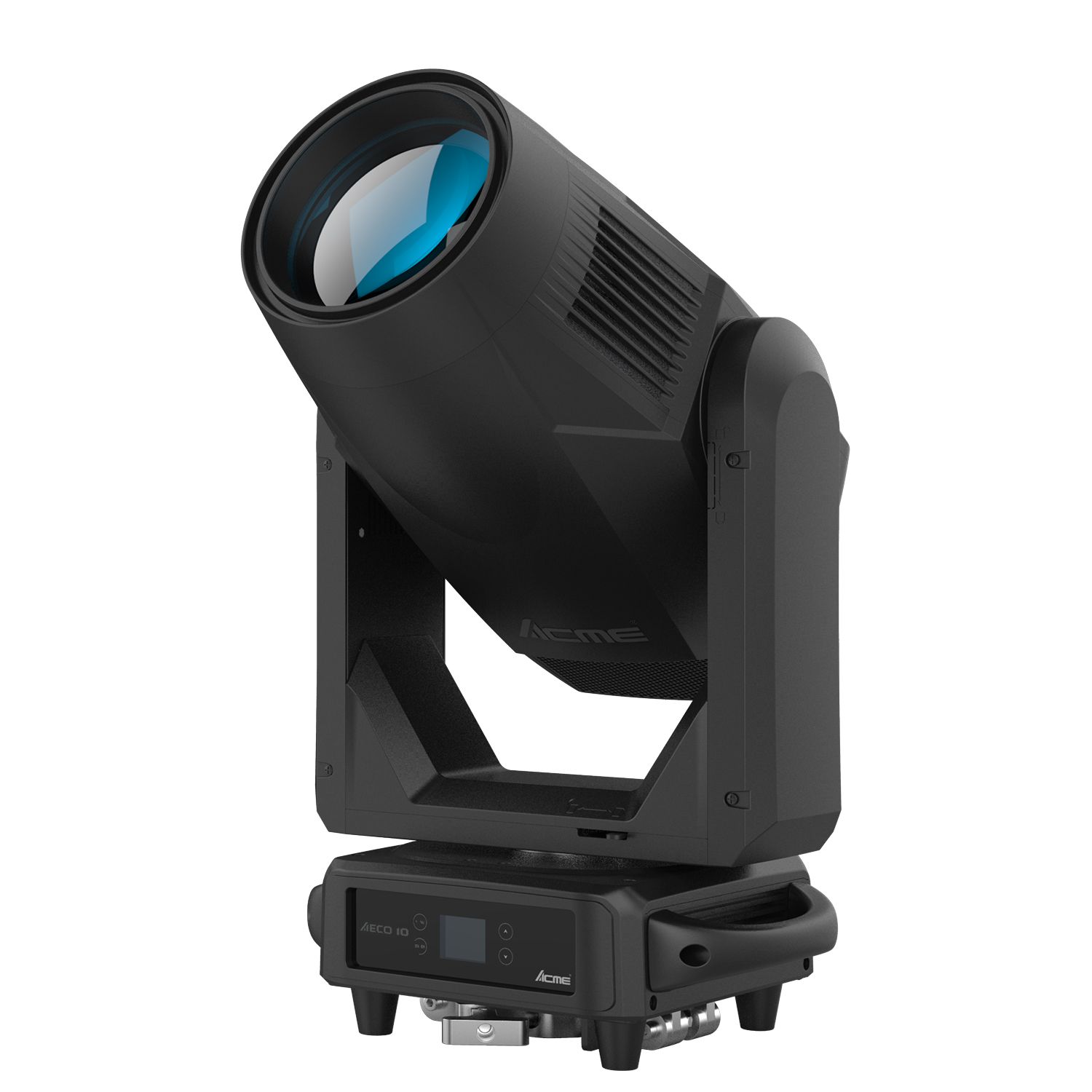

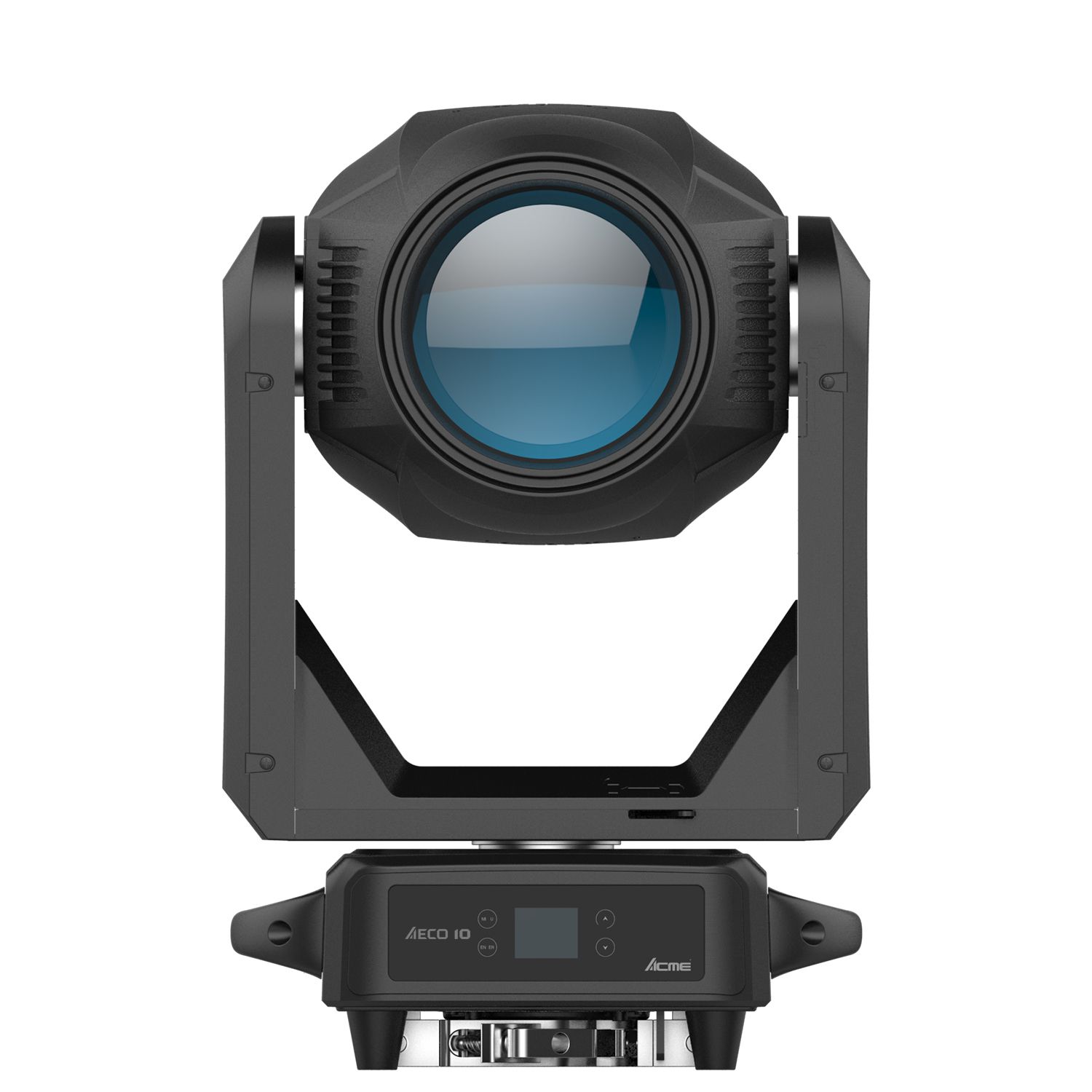

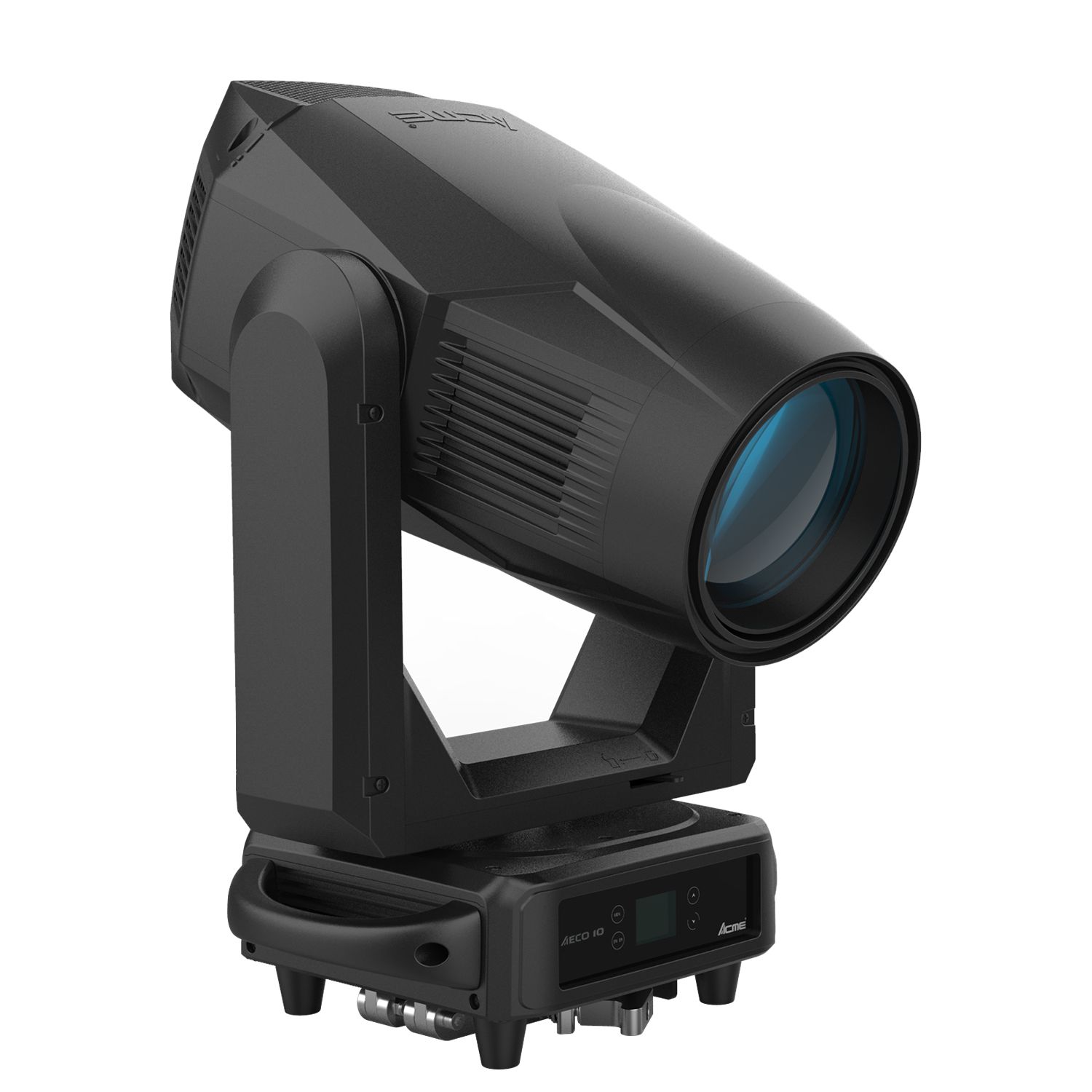

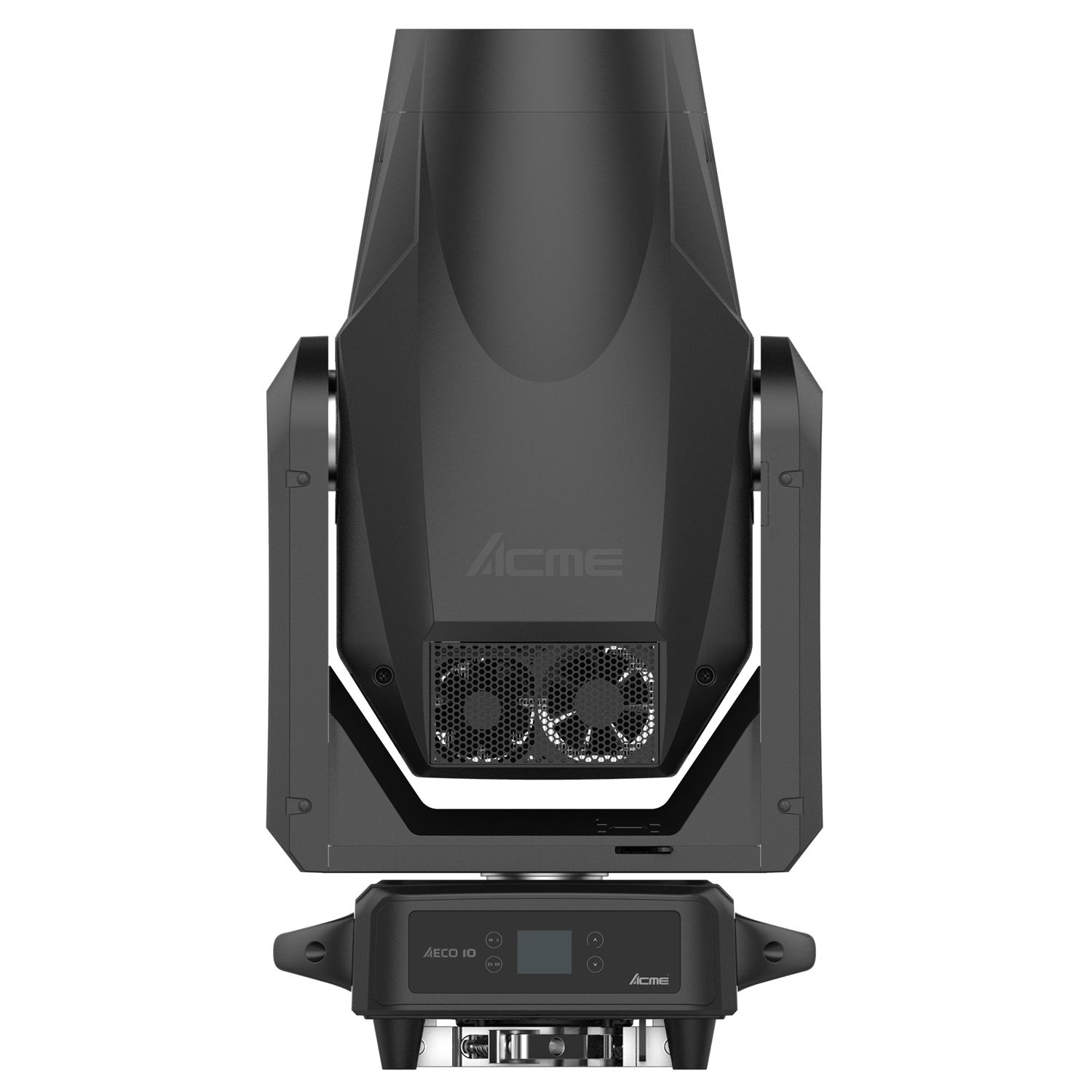

ACME AECO 10 uses an innovative 1200W LED engine. With the high-precision optical elements, diameter of lens is 180mm, not only prolongs the working life of the light source, but also brings the bright light output to the AECO 10. Its light beam is flat and smooth.
Based on the perfect combination of light source and optical technology, this series has created a high-CRI version -AECO 10, with a luminous flux of 31,000lm, RA≥95, R9≥90, get a high saturation color restoration. At the minimum angle of 5 ° and 10 meters distance, the illumination of the AECO 10 is 19,350lux respectively.
Linear CMY color mixing system provides rich color saturation and clear seamless color transition. The flow speed can be changed by adjusting the speed of the animation wheel, to create outstanding water and flame effect. All gobo wheels are made of high-definition color separation glass, they complement each other and create various graphics together with animation wheel. The color temperature of the AECO 10 is between 5,600k and 6,400k.
Zoom range 5 °-52 ° and the spot of Iris can be zoomed from 5% to 100%. A 4-facets prism and a 4-facets linear prism can rotate in either direction. 2 different frost filters to create and improve the wash effect, they can be used independently and overlayed. Fast and smooth framing shutters can rotate at ±60 degrees. Various patterns options provide a high flexibility for the lighting designers.
Various patterns options provide a high flexibility for the lighting designers. AECO 10 not only with beam, spot, wash and framing, but also uses the energy-saving and environmental protection high-power LED engine. It is a high-brightness and high-CRI LED moving head, which specially designed for performances, dance halls, theatres, etc. Silvermoon provides an almost unlimited design and potential, create a greater return on investment!
Features
Diameter of lens: 180mm
Fits a powerful 1200W LED engine and its front lens is 180mm diameter
Color Temperature: 6,000K (±400K)
high CRI mode lumen output up to 31,000 lm
High CRI mode Ra>95 R9≥ 90

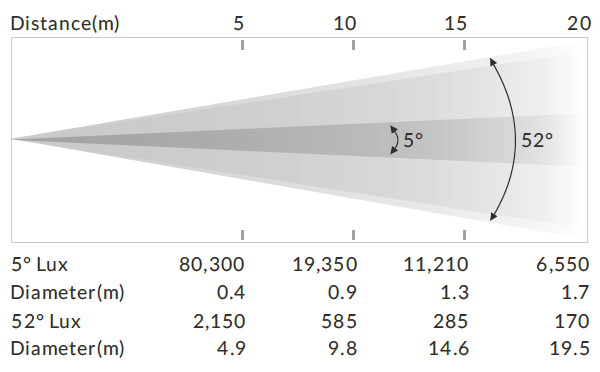

At 5° angle & 10 meters distance, output achieves 19,350 lux

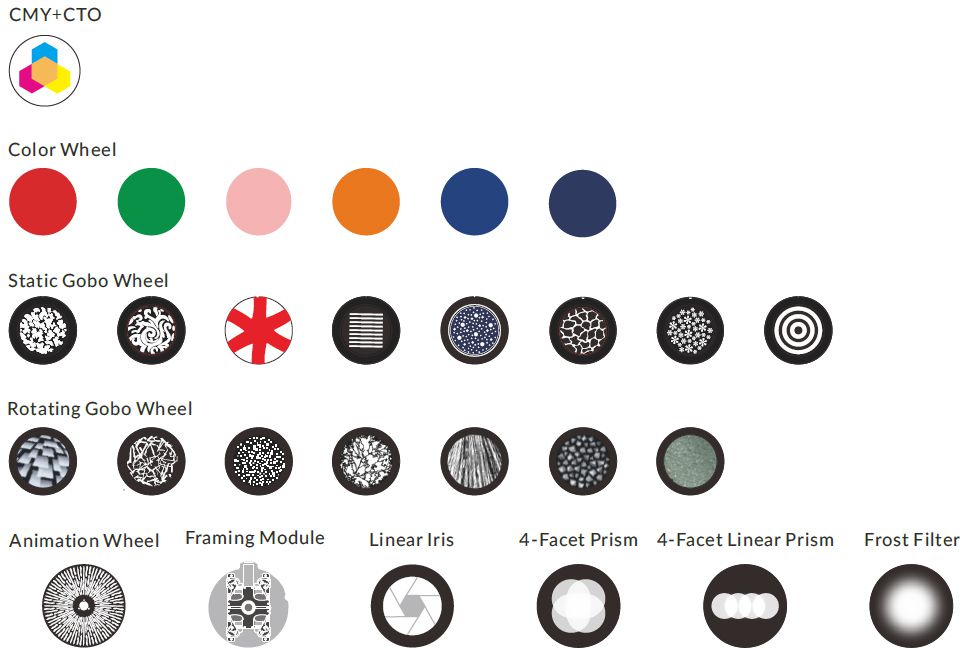

Linear CMY color mixing
Excellent color macro effect
Variable CTO: 2700K-6500K
Static gobo wheel: 1 static gobo wheel with 8 gobos
Rotating gobo wheel: 1 rotating gobo wheel with 7 gobos, convenient replacment
Outside diameter: 29.8mm
Inside diameter: 22mm
Color wheel: 1 color wheel with 6 colors
Animation wheel: 1 animation wheel with outstanding water and flame effect, the effect disk can rotate and be replaced
Prisms: 1pc 4-facet prism & 1pc 4-facets linear prism, both can rotate in either direction
Beam Angle: 5°-52°
Frost: 2 different frost filters to create and improve the wash effect. They can be used independently and overlayed
Motorized linear Iris
4 x fast and smooth framing shutters; The position and the angle of each shutter blade can be controlled individually; Each shutter blade can block out light completely; The framing module can rotate at ±60 degrees
Flicker free management
Dust-proof and oil-proof design
Technical & Specification
Light source
Light Sources: Powerful 1200W LED engine
LED life expectancy: 20000 hours
Optical System
Advanced optical system to ensure image quality, clear and sharp

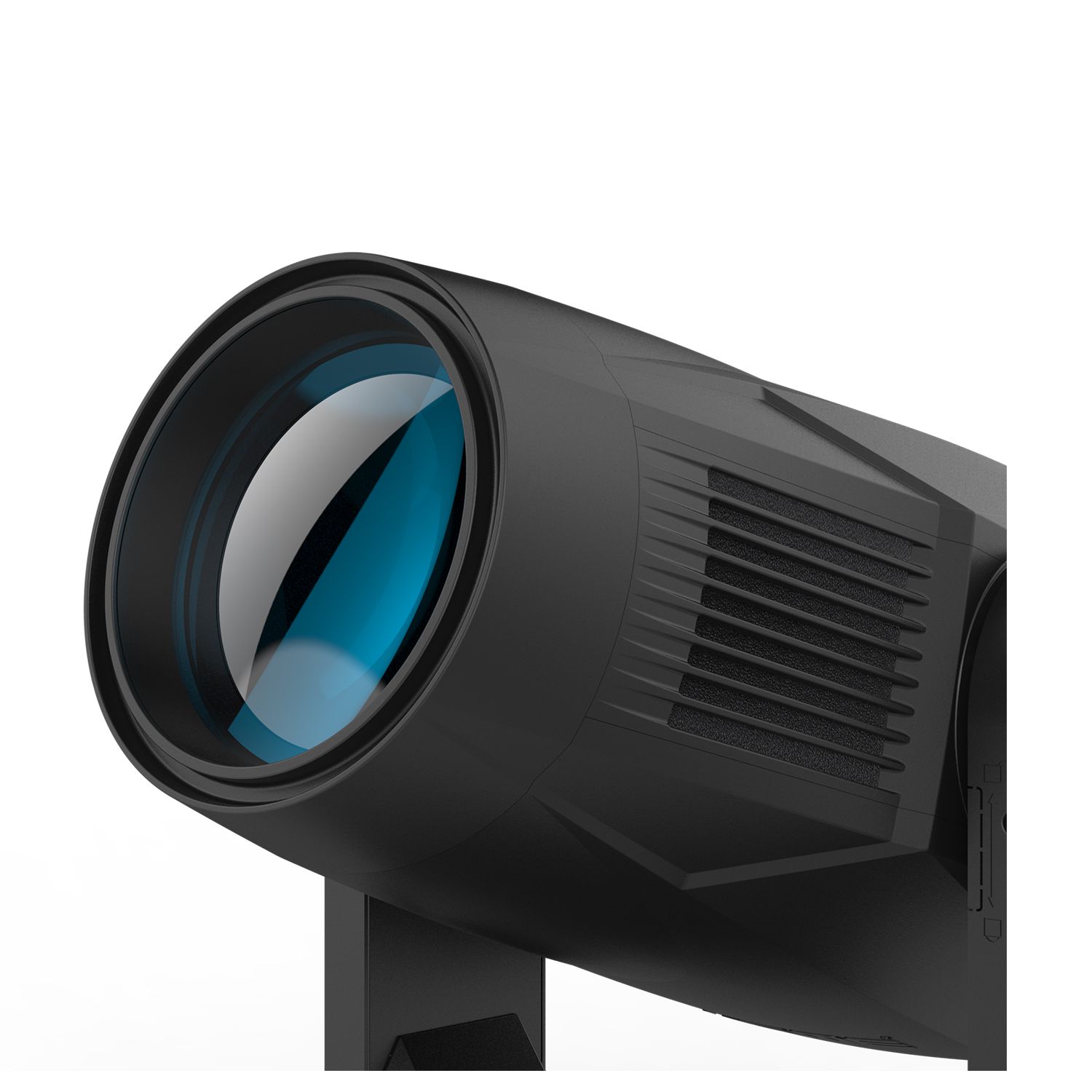

High – efficiency optical system, diameter of lens is 180 mm
Beam Angle: 5°-52°
Control & Program
4-buttons touch panel
Display: LCD display
Battery backup for user setup without mains connection
Protocols: DMX512, RDM, Art-Net, sACN
DMX Protocol modes: 4
Control channels: 35,26,29,20
Pan/Tilt Resolution: 16 bit
Firmware Upgrade: Upgrade via DMX link or USB disk
PAN & TILT
Pan movement: 540°
Tilt movement: 270°
Fixation: Pan/Tilt lock
Automatic Pan/Tilt position correction
Rotating Gobos
1 x rotating gobos, with 7 gobos plus open, convenient replacement
Outside diameter: 29.8 mm
Image diameter: 22 mm
Thickness: 1.1 mm
Max. thickness: 4mm
borofloat or better glass materials
Set with “SLOT & LOCK” system for gobos replacement
Static Gobos
1 x static gobos with 8 gobos
Color Wheel
1 x color wheel with 6 colors
Animation Wheel
1 x animation wheel with outstanding water and flame effect, the effect disk can rotate and be replaced
Framing System
Blade: 4 fast and smooth framing shutters, each shutter blade position and angle can be controlled individually;
Movement is fast & smooth, with adjustable speed
Framing shutters can be precise motion with smooth movement
Each shutter blade can block out light completely, the framing module can be rotated at ±60°

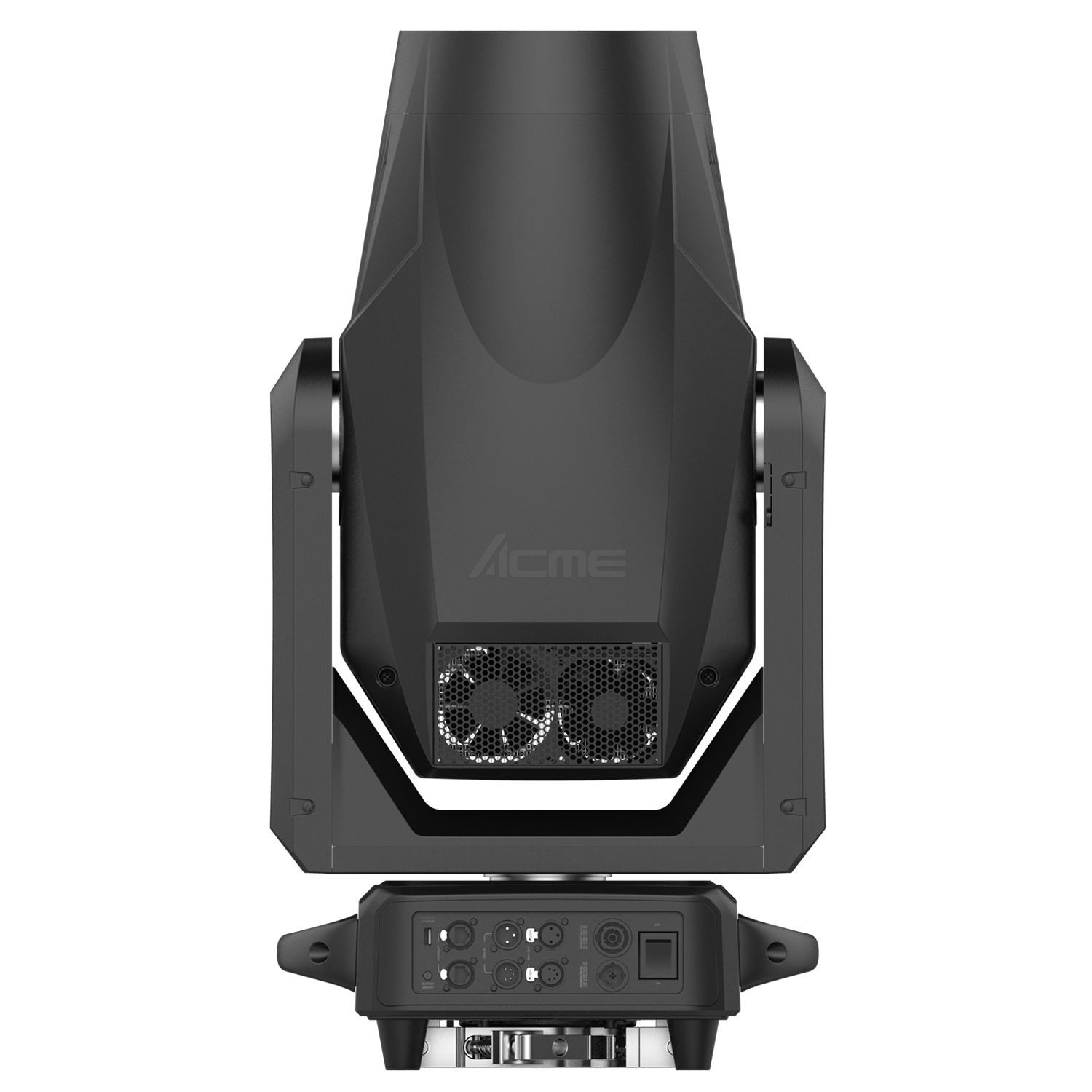

Electrical & Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100-240 V, 50/60 Hz
Power consumption: 1350 W
Power In/Out：Power Connector in/out
Date In/Out：3-pin & 5-pin XLR, RJ45 connector

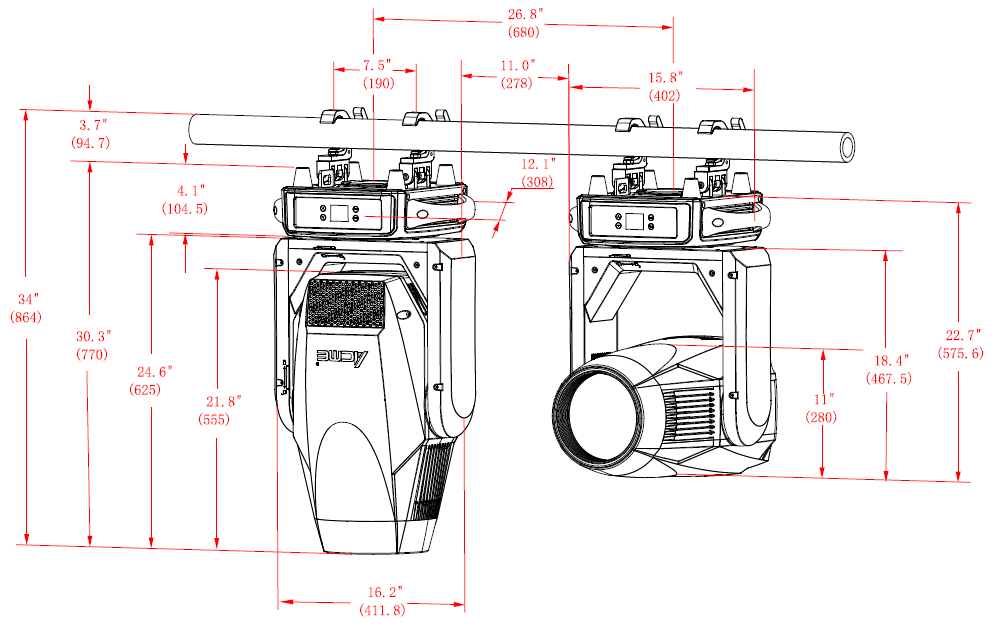

Fixture Specification
Height: 770 mm (30.3″)
Width: 308 mm (12.1″)
Depth: 412 mm (16.2″)
Weight: 37kg (81.6lbs)
F/C dimensions:
Height: 905 mm (35.6″)
Width: 595 mm (23.4″)
Depth: 715 mm (28.1″)
Weight: 85kg (187.4 lbs) (with F/C, 1 in 1 standard )
Work environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C
Installation
Horizontally or vertically mounting are available
Operating position is universal

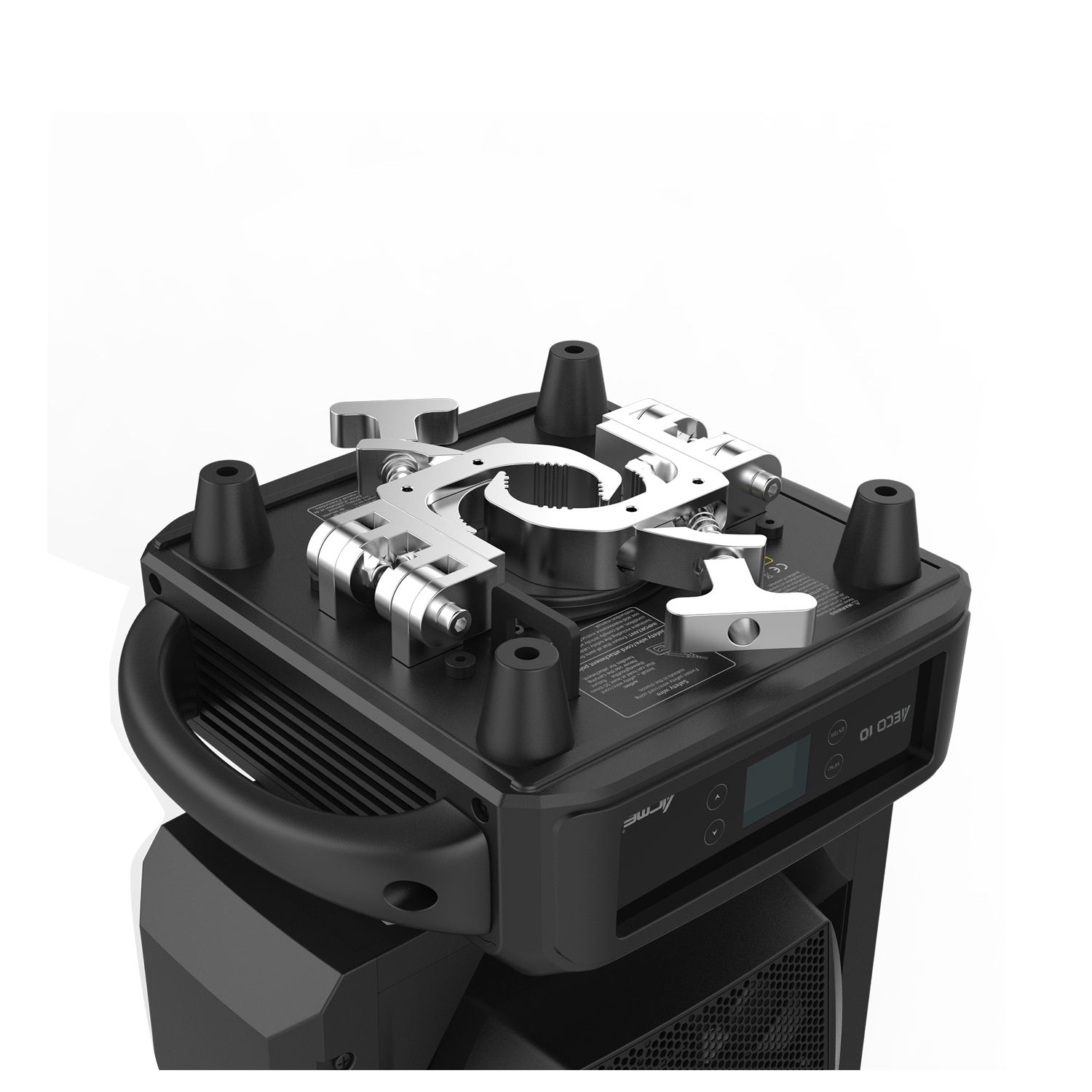

2 pairs of locking points under the base

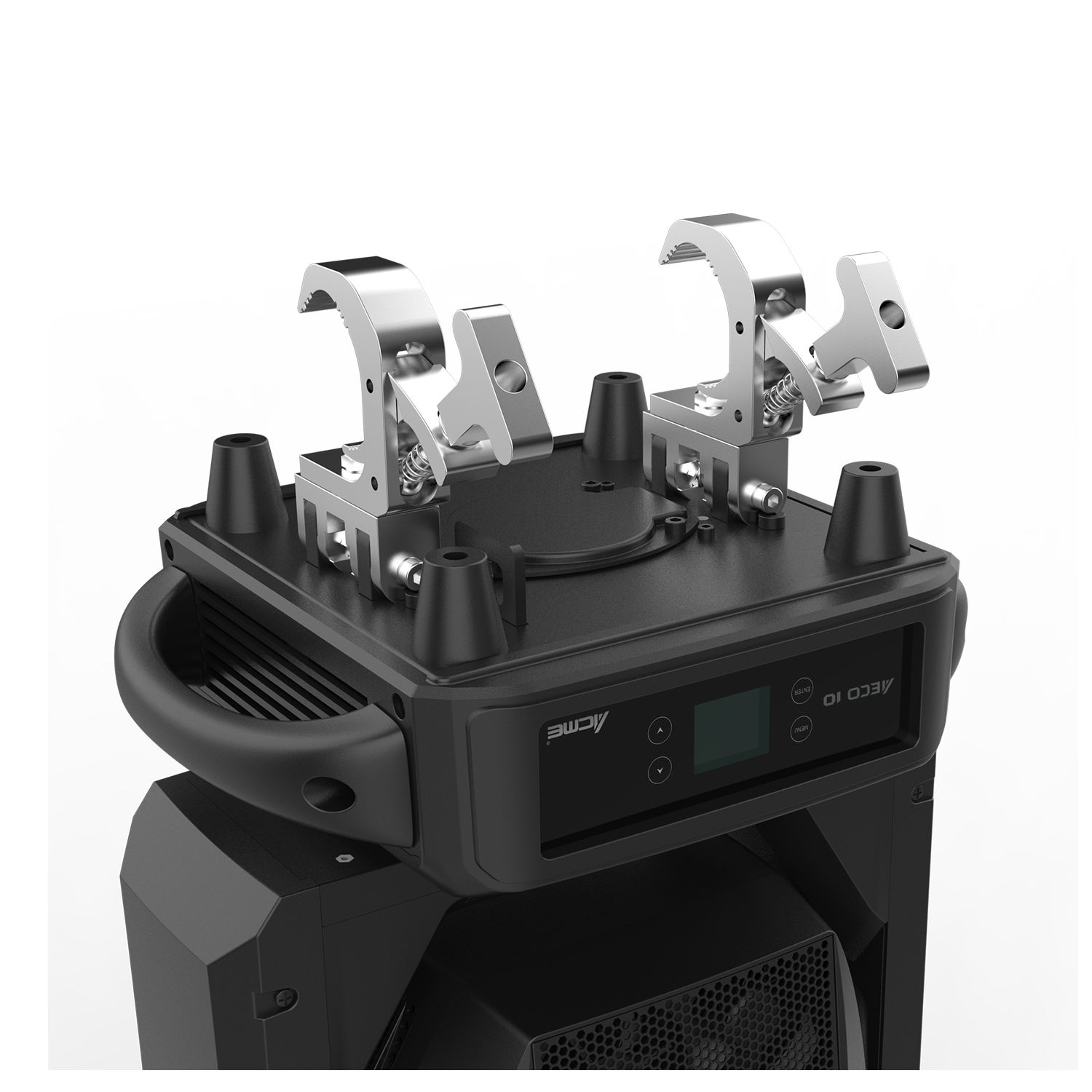

2 x fixed clamps for 50 millimeter truss
Safety cable attachment hole
Included items
User Manual
Power Cable
2 x fixed clamps for 50 millimeter truss
Optional Accessories (with item code)
Raincover：3033001750
Clamp：2060001614（C-250）
Safety cable : 2060000200（SW-02）
Signal Line：3-pin & 5-pin signal line
