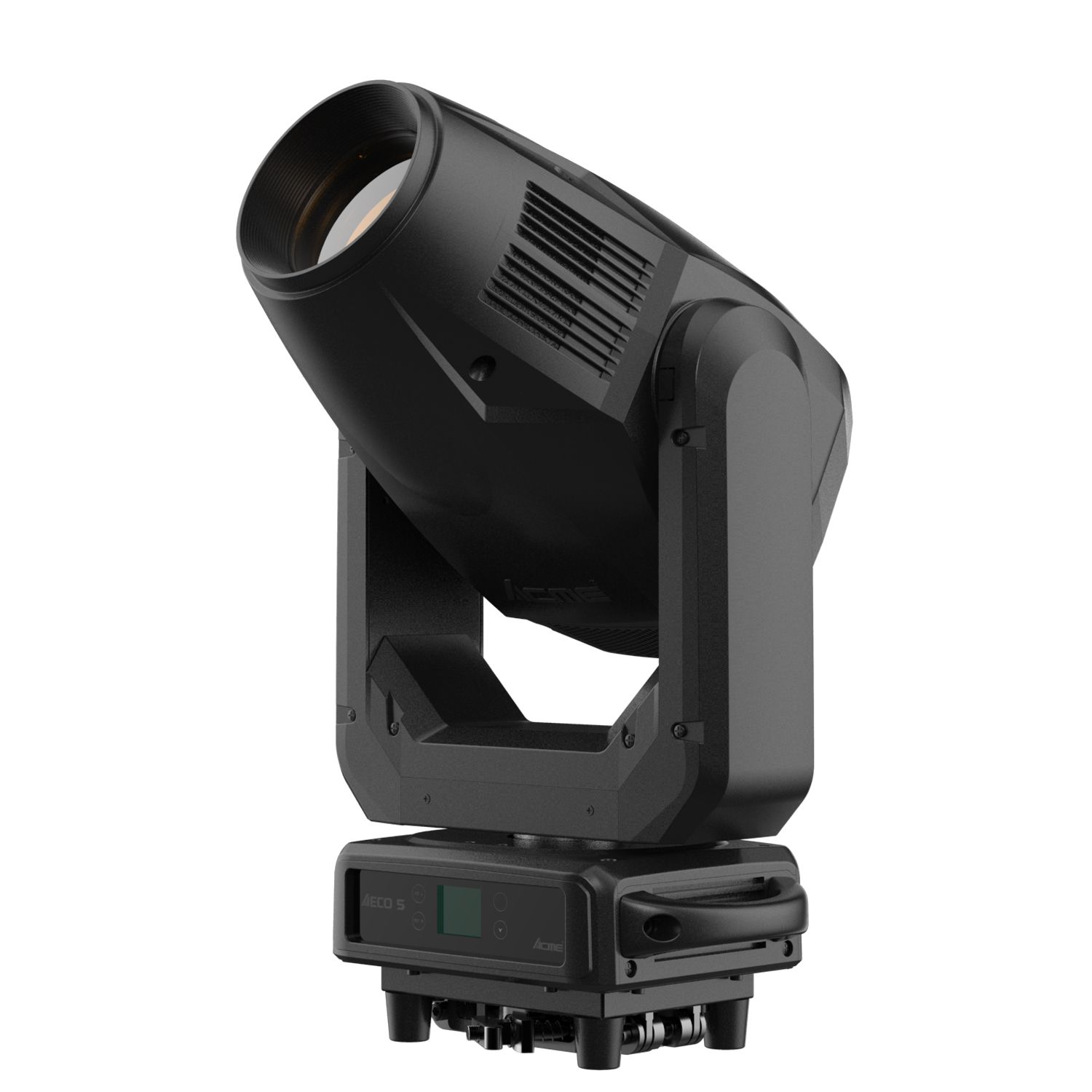

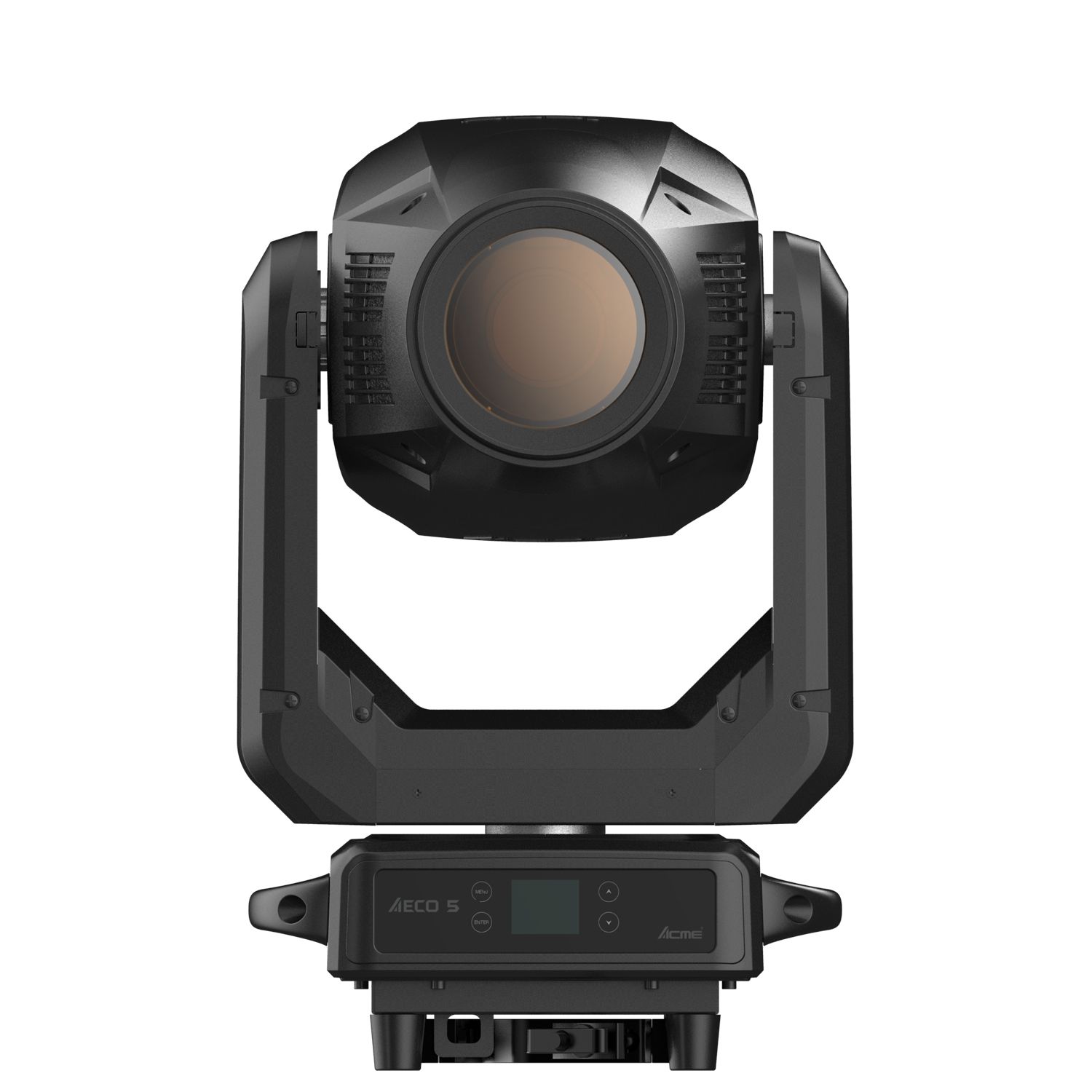

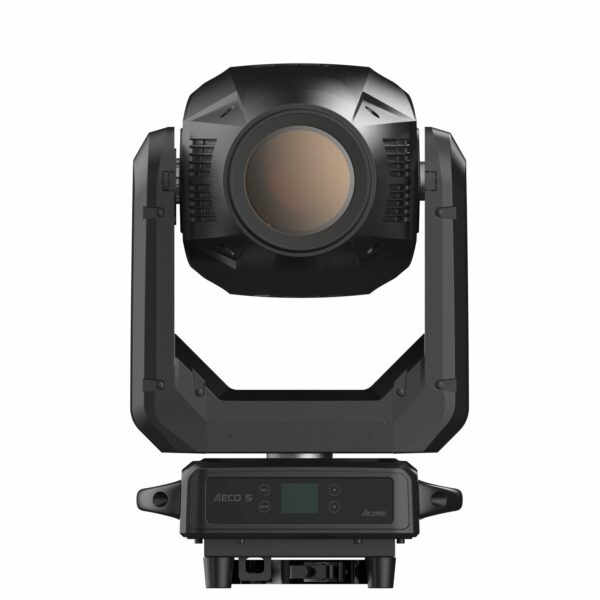

Functional Overview
ACME AECO 5 uses an innovative 450W LED engine. The diameter of front lens is 120mm, its light beam is flat and smooth.
Based on the perfect combination of light source and optical technology, AECO 5 as a high-CRI fixture, with a luminous flux of 13,000lm, RA≥95, R9＞90, get a high saturation color restoration.
Linear CMY color mixing system provides rich color saturation and clear seamless color transition. All gobo wheels are made of high-definition color separation glass, can create various graphics together with color wheel. The linear CTO color temperature of the AECO 5 is between 2,700k and 6,000k.
Zoom range 6.5°-54°, motorized linear Iris, a 4-facets prism rotatable in either direction; 2 different frost filters to create and improve the wash effect, they can be used independently and overlayed. Fast and smooth framing shutters can rotate at ±45 degrees. Various patterns options provide a high flexibility for the lighting designers.
AECO 5 not only with beam, spot, wash and framing, but also uses the energy-saving and environmental protection LED engine. It is a high-CRI LED moving head, which specially designed for performances, theatres, TV studios, etc. AECO 5 provides multiplicate design and potential, create a greater return on investment!

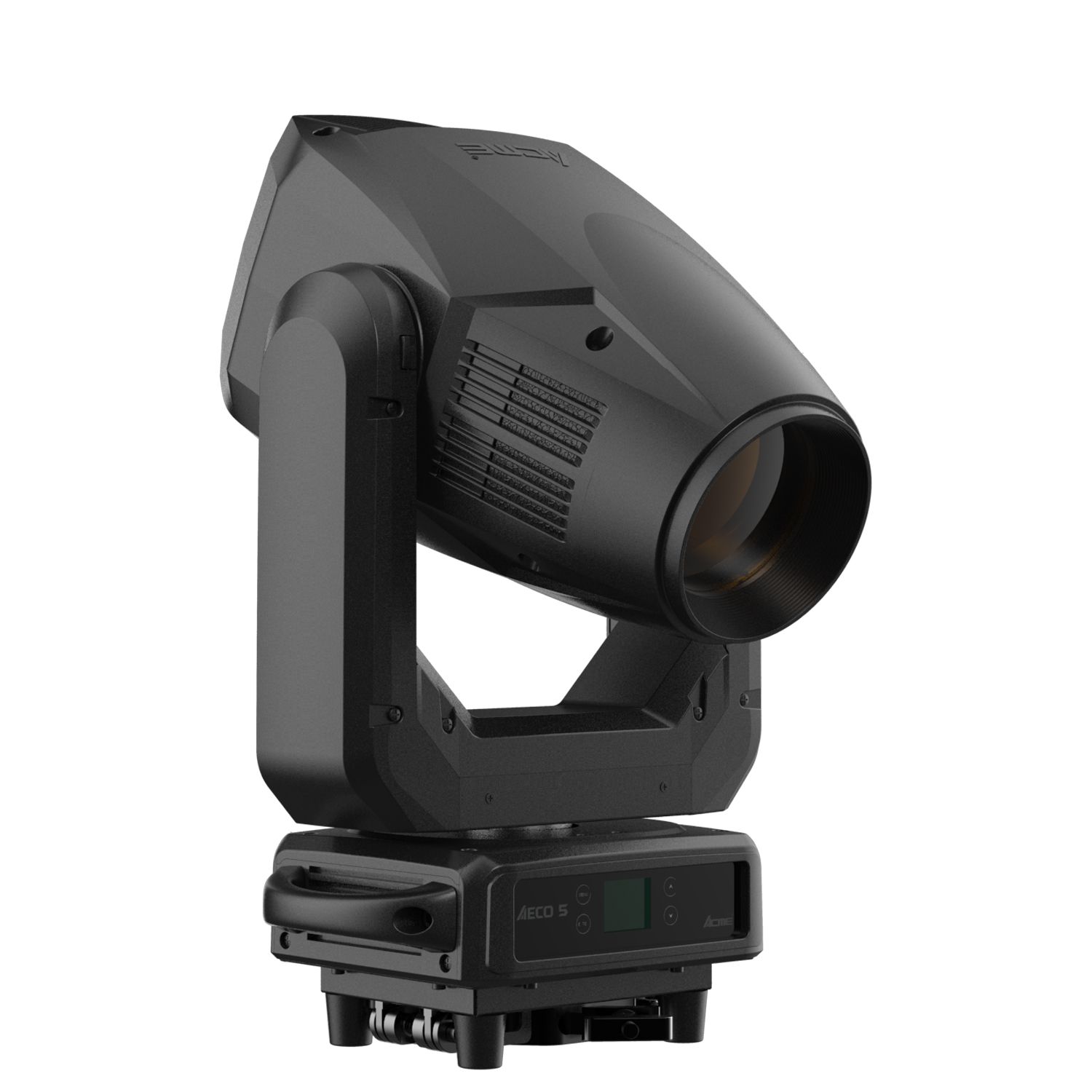

Features
Fits a 450W LED engine and its front lens is 120mm diameter
Color Temperature: 6,000K
Total lumen output up to 13,000 lm
High CRI mode Ra≥95 R9＞90
Motorized focus
Linear CMY color mixing
Variable CTO: 2700K-6000K

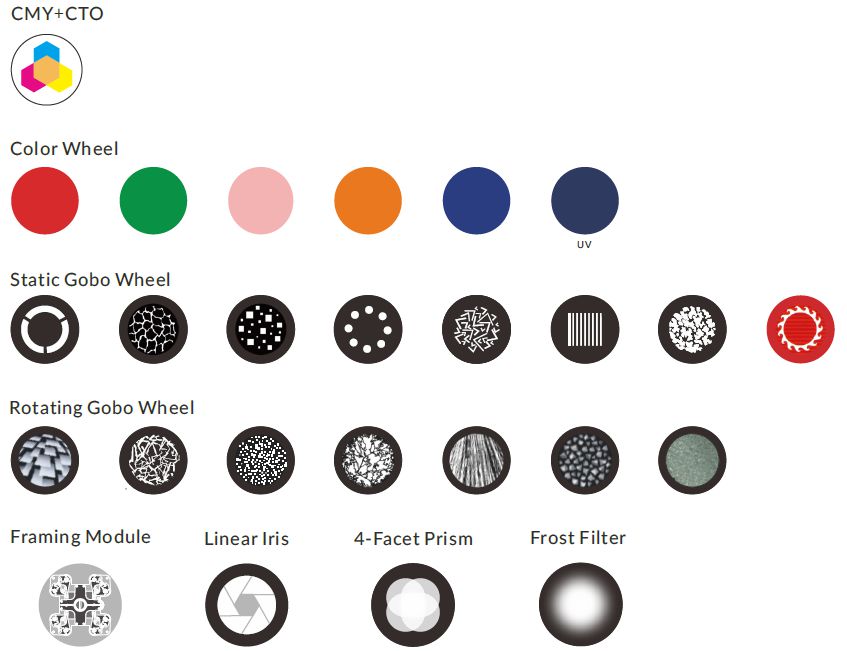

Static gobo wheel: 1 static gobo wheel with 8 gobos
Rotating gobo wheel: 1 rotating gobo wheel with 7 gobos, convenient replacment
Color wheel: 1 color wheel with 6 colors
Prisms: 1pc 4-facet prism rotatable in either direction
Beam Angle: 6.5°-54°
Frost: 2 different frost filters to create and improve the wash effect. They can be used independently and overlayed.
Motorized linear Iris
Smooth dimming from 0-100%
Outstanding strobe effect with various speeds
4 x fast and smooth framing shutters; The position and the angle of each shutter blade can be controlled individually; Each shutter blade can block out light completely; The framing module can rotate at ±45 degrees.
2 x fixed clamps for 50mm truss
Flicker free management
Dust-proof and oil-proof design
Technical & Specification
Light Source
Light Sources: 450W LED engine
LED life expectancy: 20000 hours

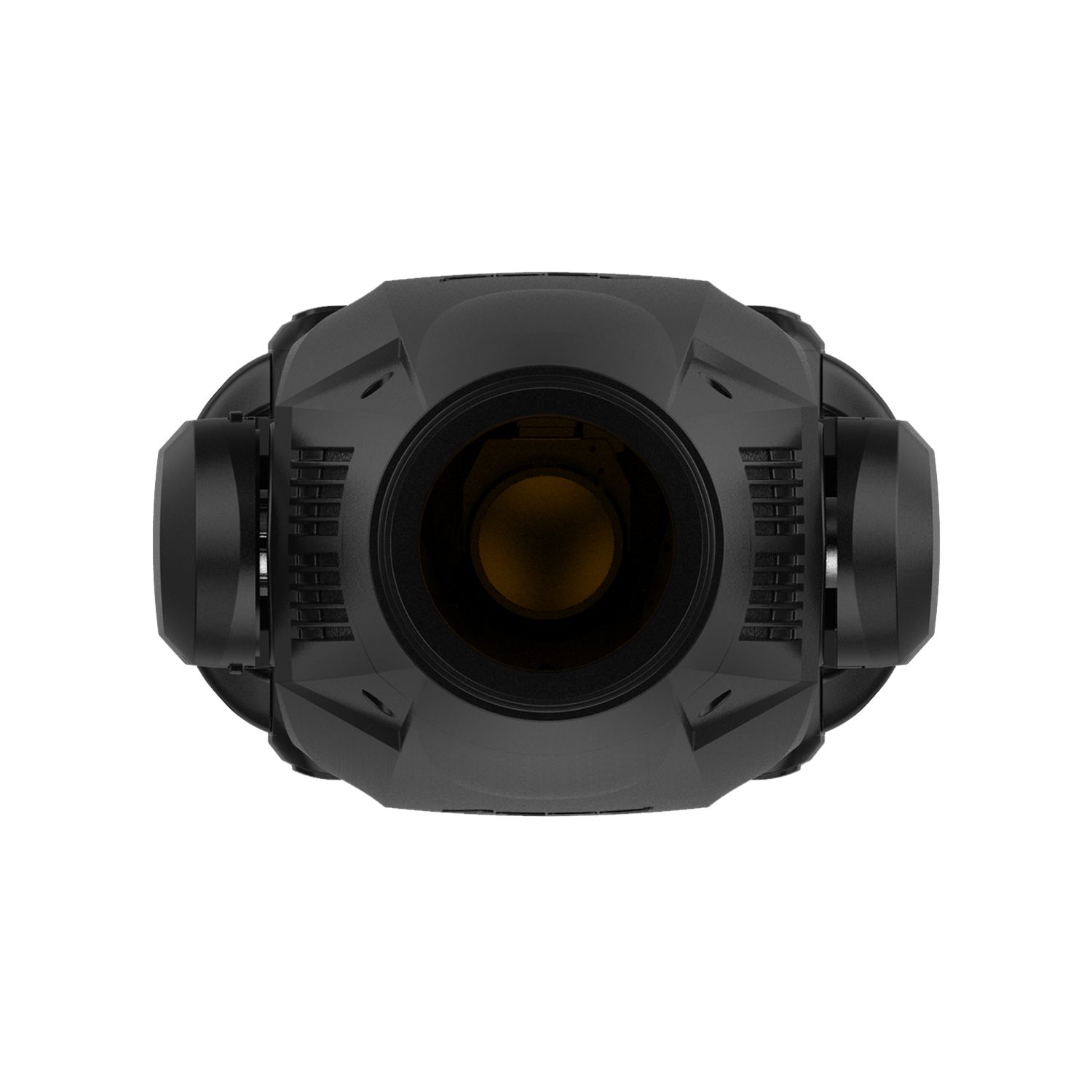

Optical System
Advanced optical system to ensure image quality, clear and sharp
High – efficiency optical system， zoom ratio 1:8.3
Diameter of front lens is 120 mm

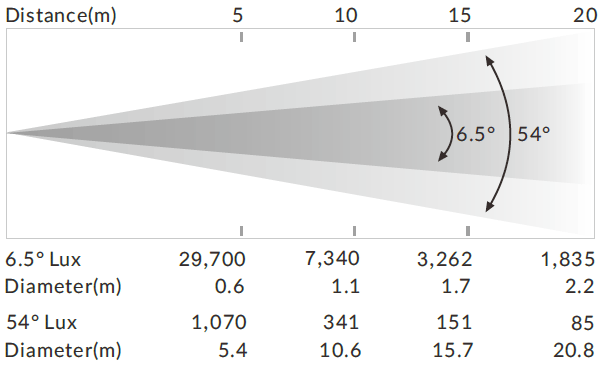

Beam Angle: 6.5°-54°

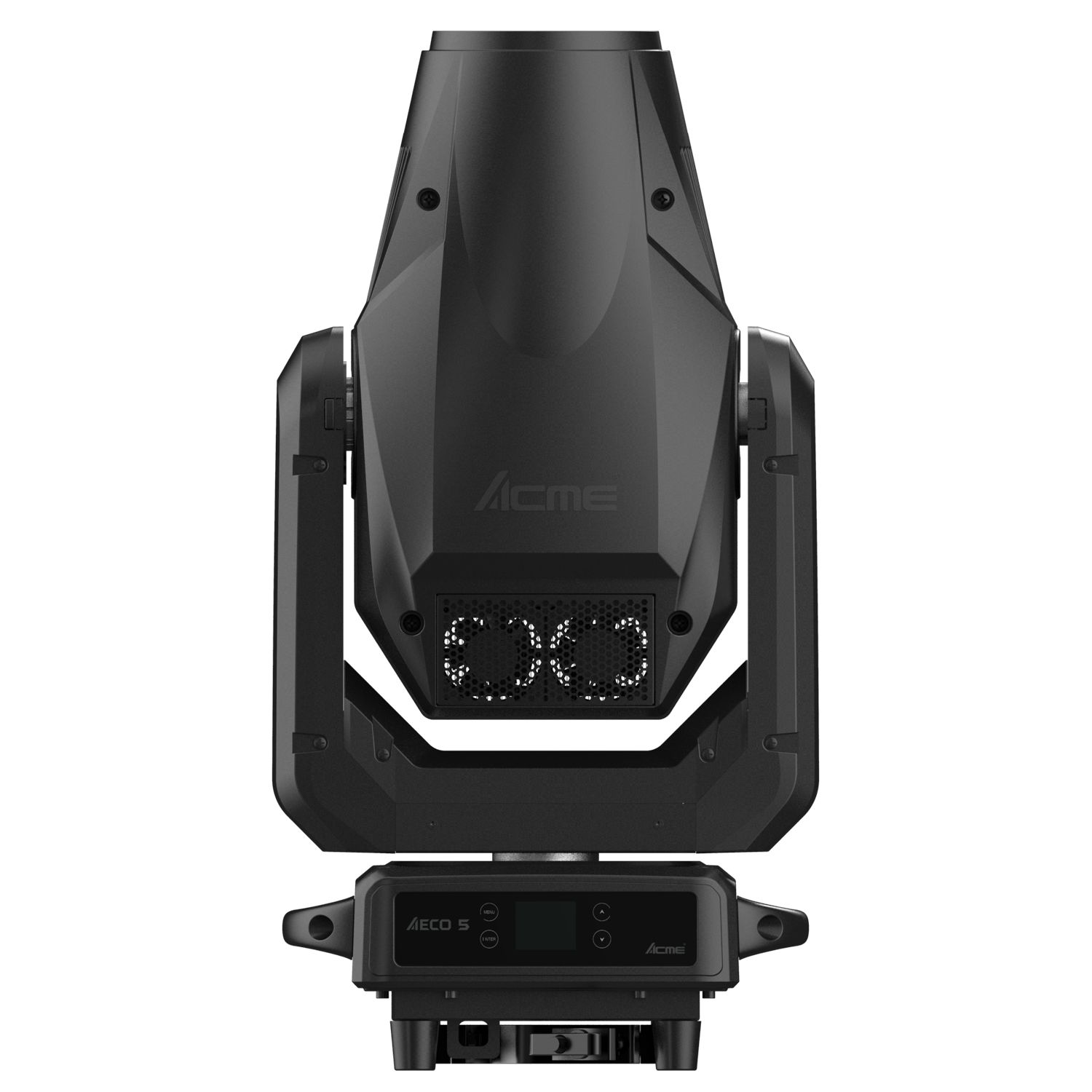

Control & Program
4-buttons touch panel
Display: LCD display
Protocols: DMX512, RDM, Art-Net, sACN
DMX Protocol modes: 3
Control channels: 33,24,28
Pan/Tilt Resolution: 16-bit
Firmware Upgrade: Upgrade via DMX link or USB disk

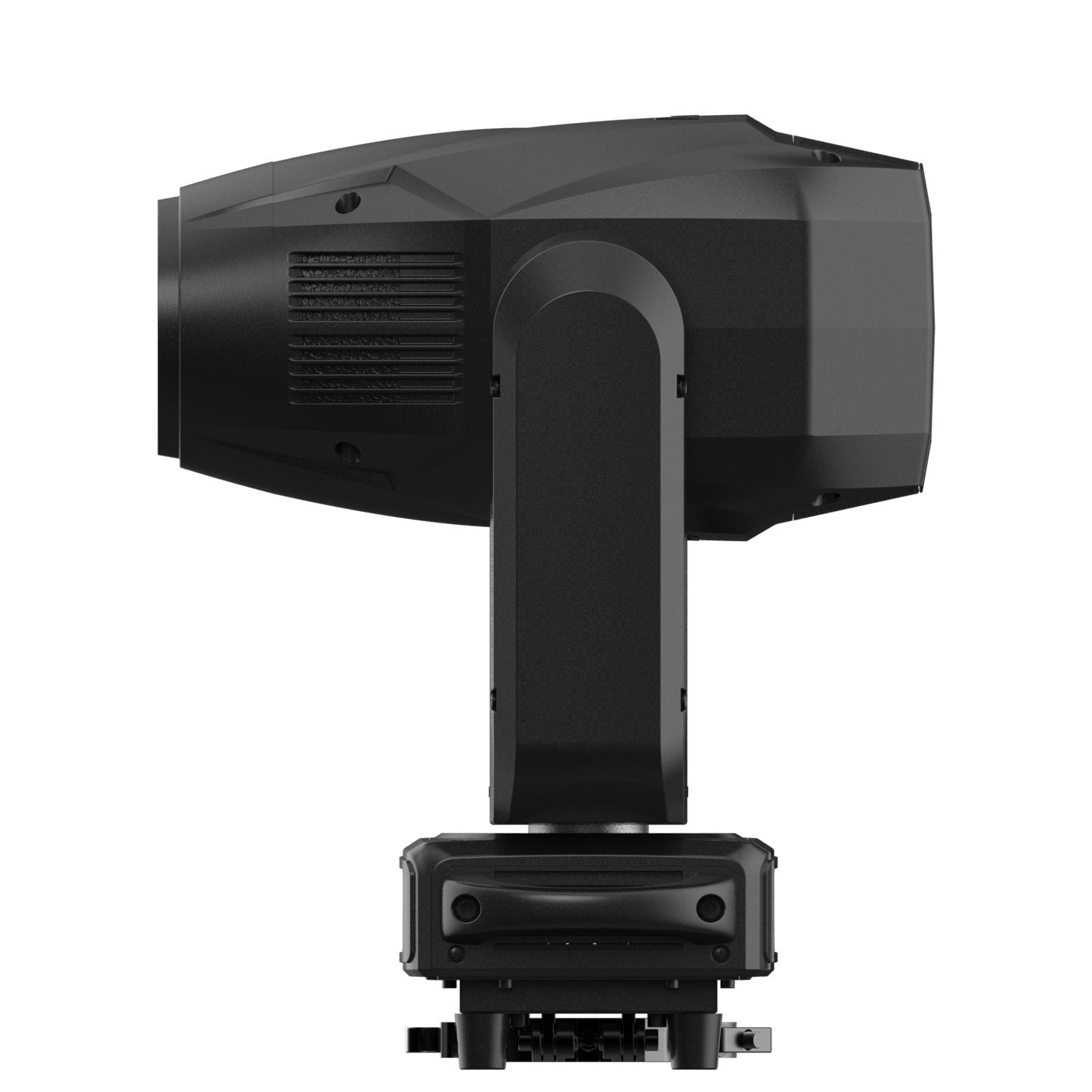

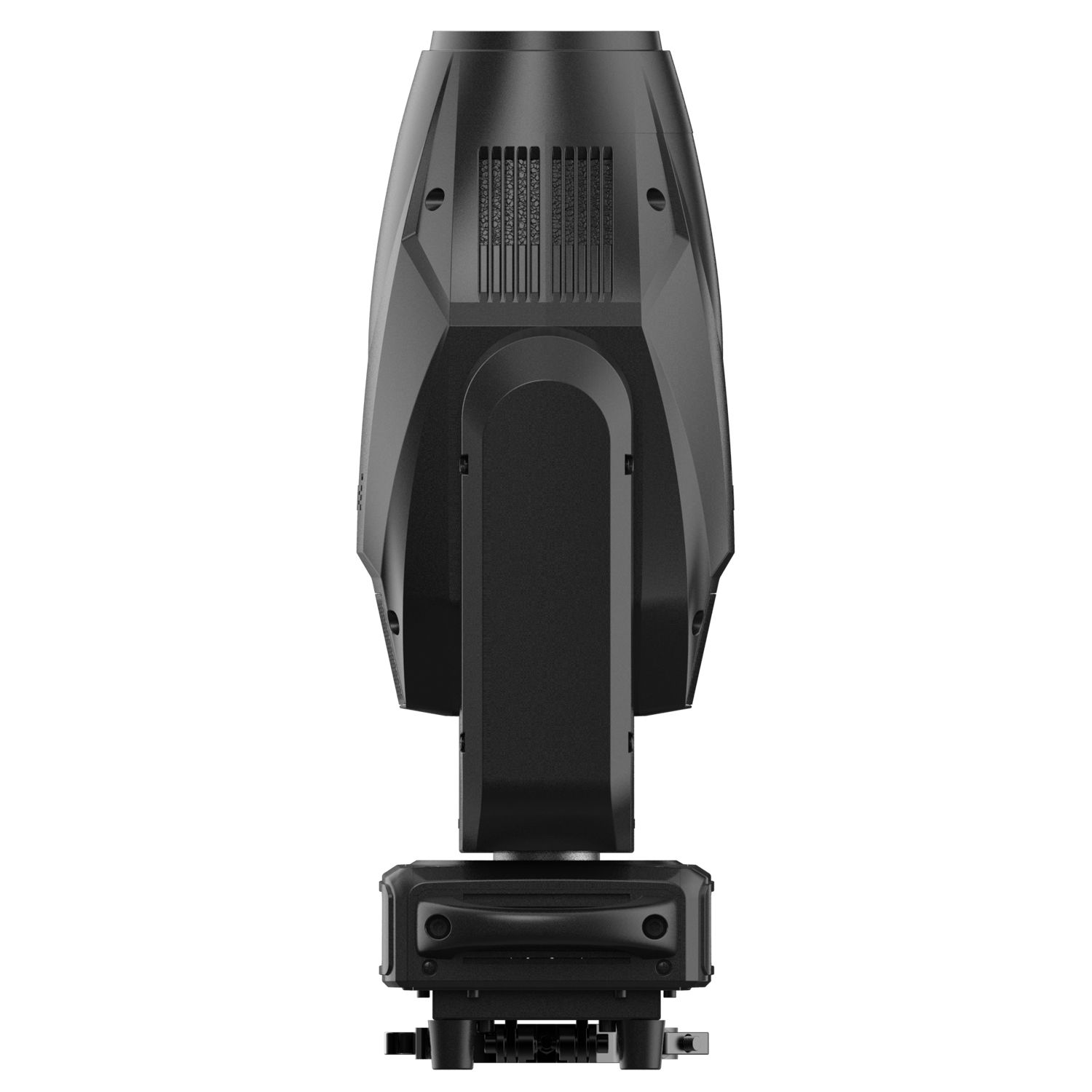

Pan & Tilt
Pan movement: 540°
Tilt movement: 270°
Fixation: Pan/Tilt lock
Automatic Pan/Tilt position correction
Rotating Gobos
1 x rotating gobos, with 7 gobos plus open, convenient replacement
Image diameter: 17 mm
Outside diameter: 22.5 mm
Thickness: 1.1 mm
Max. thickness: 2.5mm
borofloat or better glass materials
Set with “SLOT & LOCK” system for gobos replacement
Static Gobos
1 x static gobos with 8 gobos plus open
Color Wheel
1 x color wheel with 6 colors plus white
Framing System
Blade: 4 fast and smooth framing shutters, each shutter blade position and angle can be controlled individually;
Movement is fast & smooth, with adjustable speed
Framing shutters can be precise motion with smooth movement
Each shutter blade can block out light completely, the framing module can be rotated at ±45°

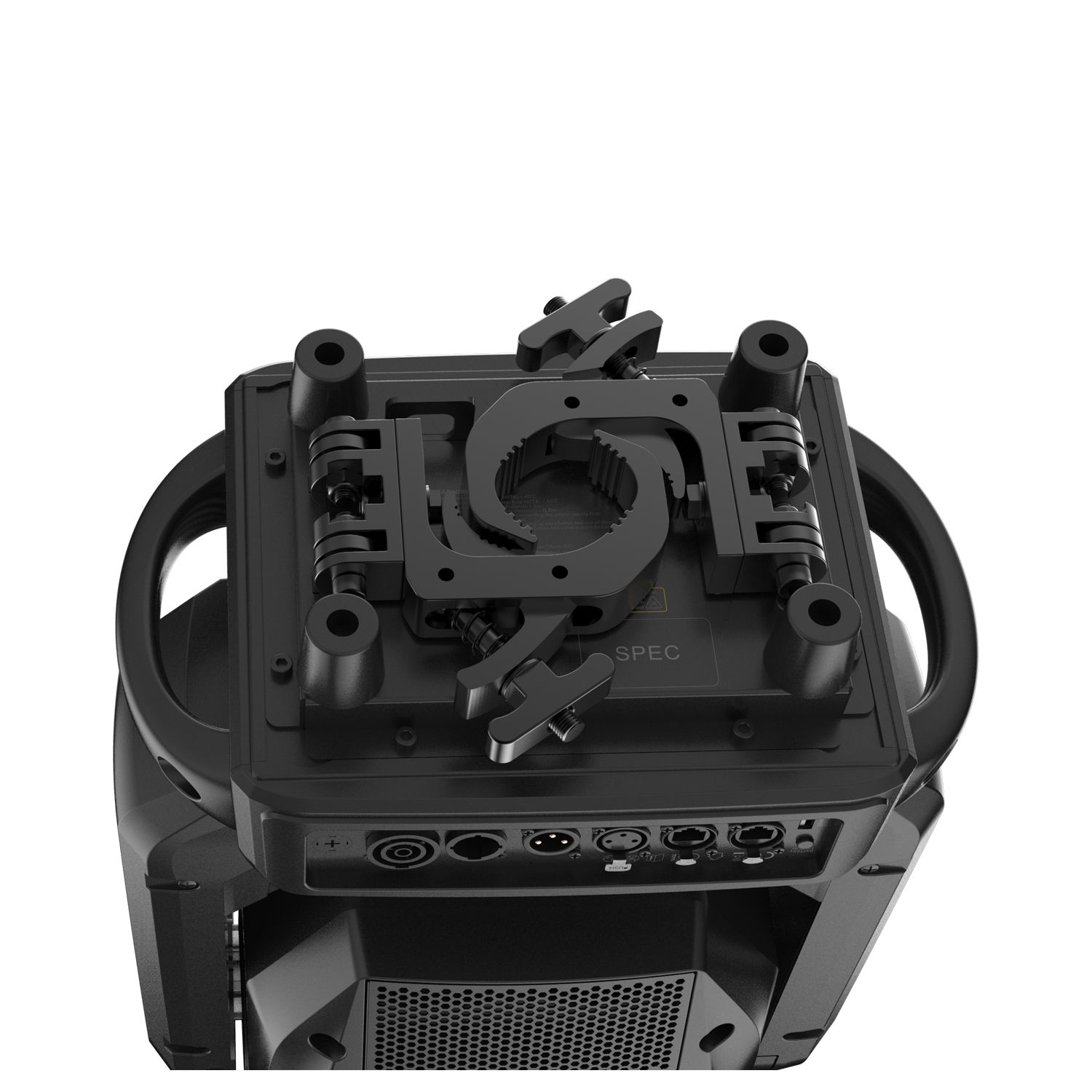

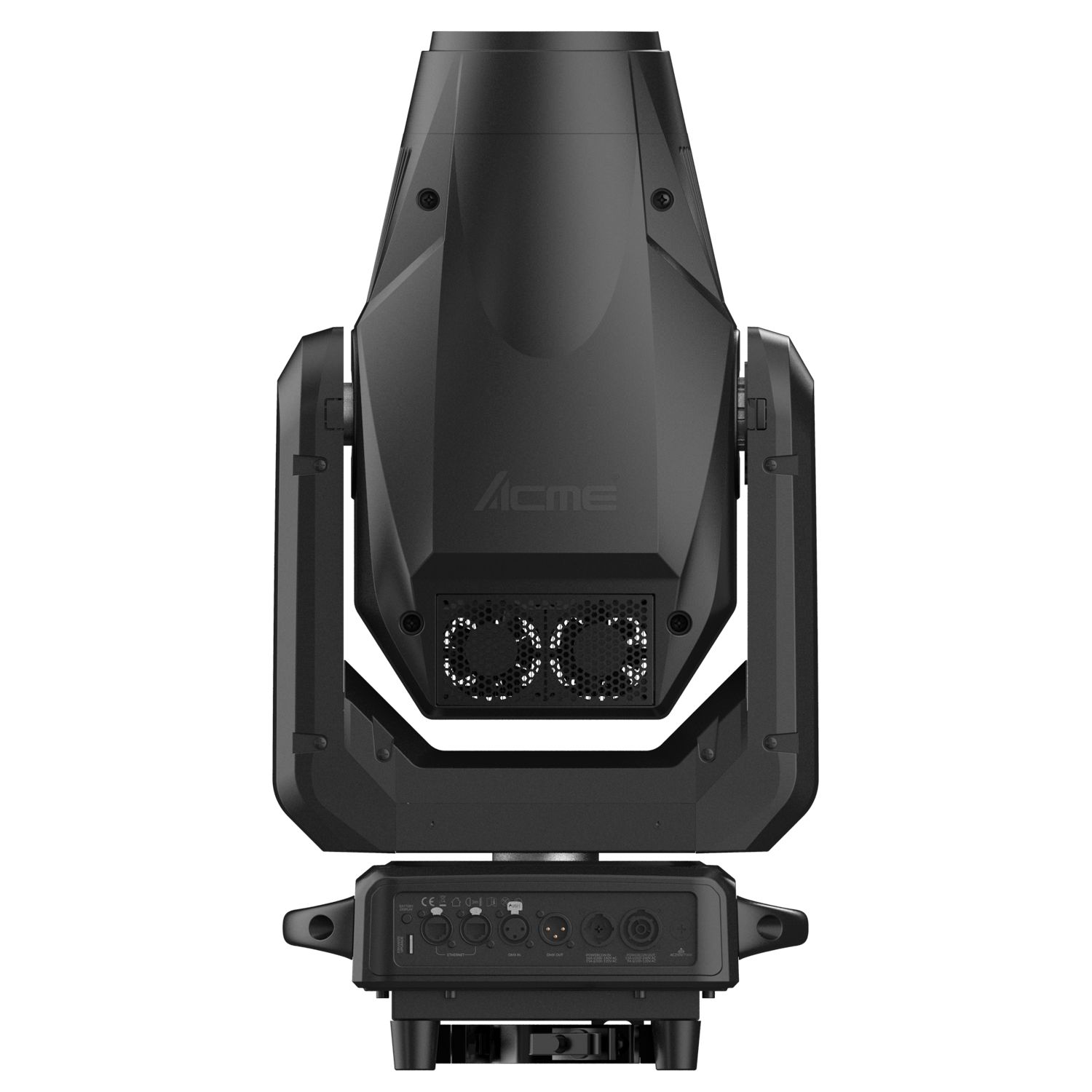

Electrical & Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100-240V, 50/60Hz
Power consumption: 650W
Power In/Out：Power Connector in/out or Power Cord Out
Date In/Out：3-pin or 5-pin XLR，RJ45

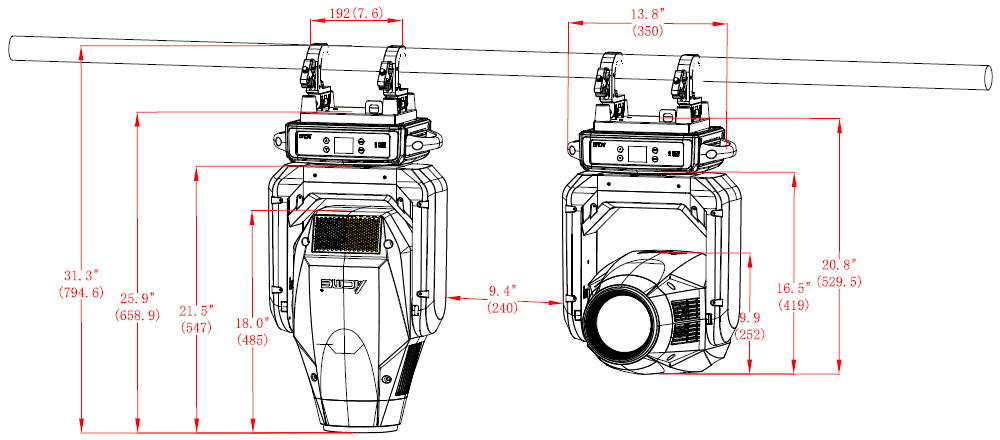

Fixture Specification
Height: 692 mm (27.2″)
Width: 364 mm (14.3″)
Depth: 252 mm (9.9″)
Weight: 26.5 kg (58.5 lbs)
F/C dimensions:
Height: 600 mm (23.6″)
Width: 600 mm (23.6″)
Depth: 990 mm (40″)
Weight: 93 kg (205) lbs (with F/C, 2 in 1 standard )
Work environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C

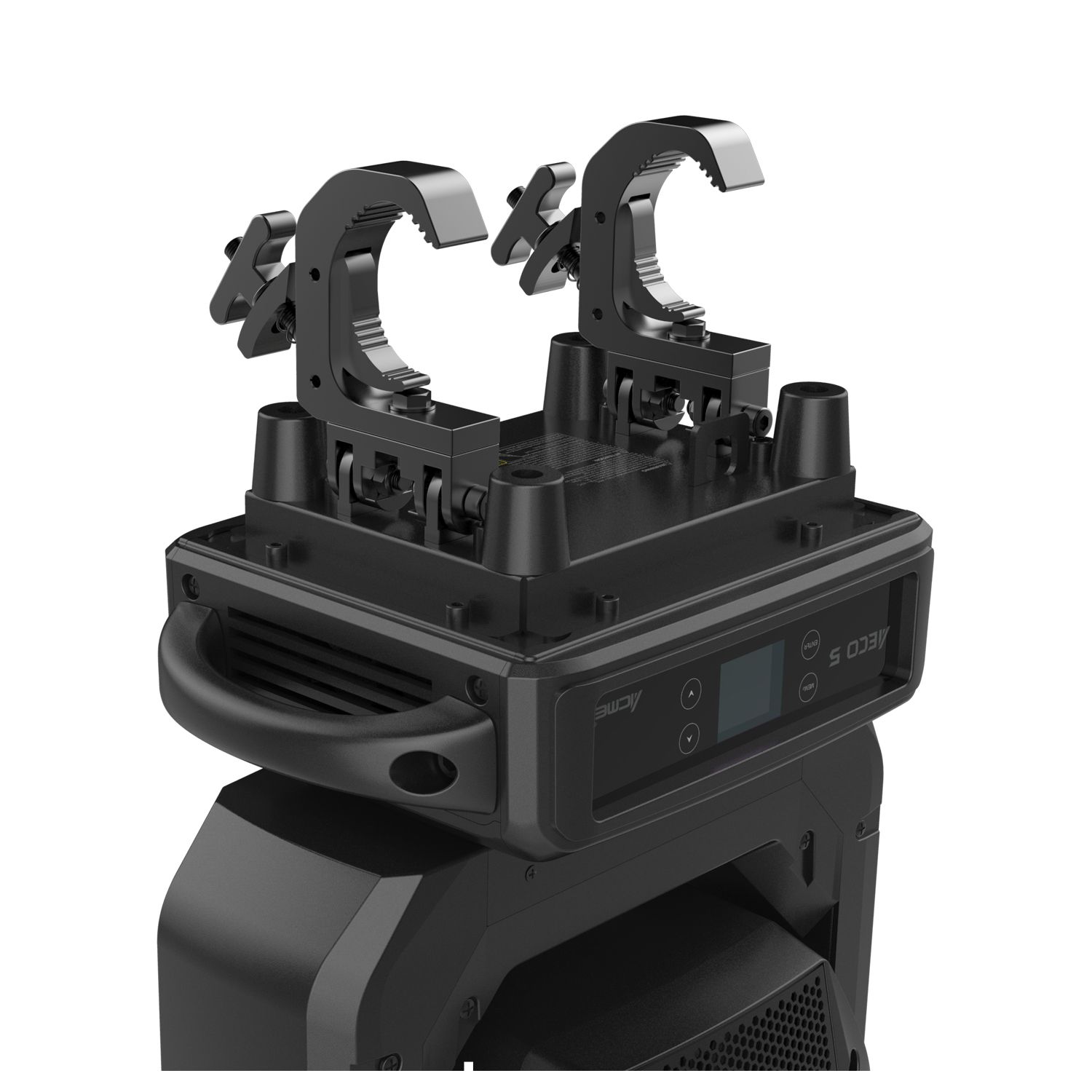

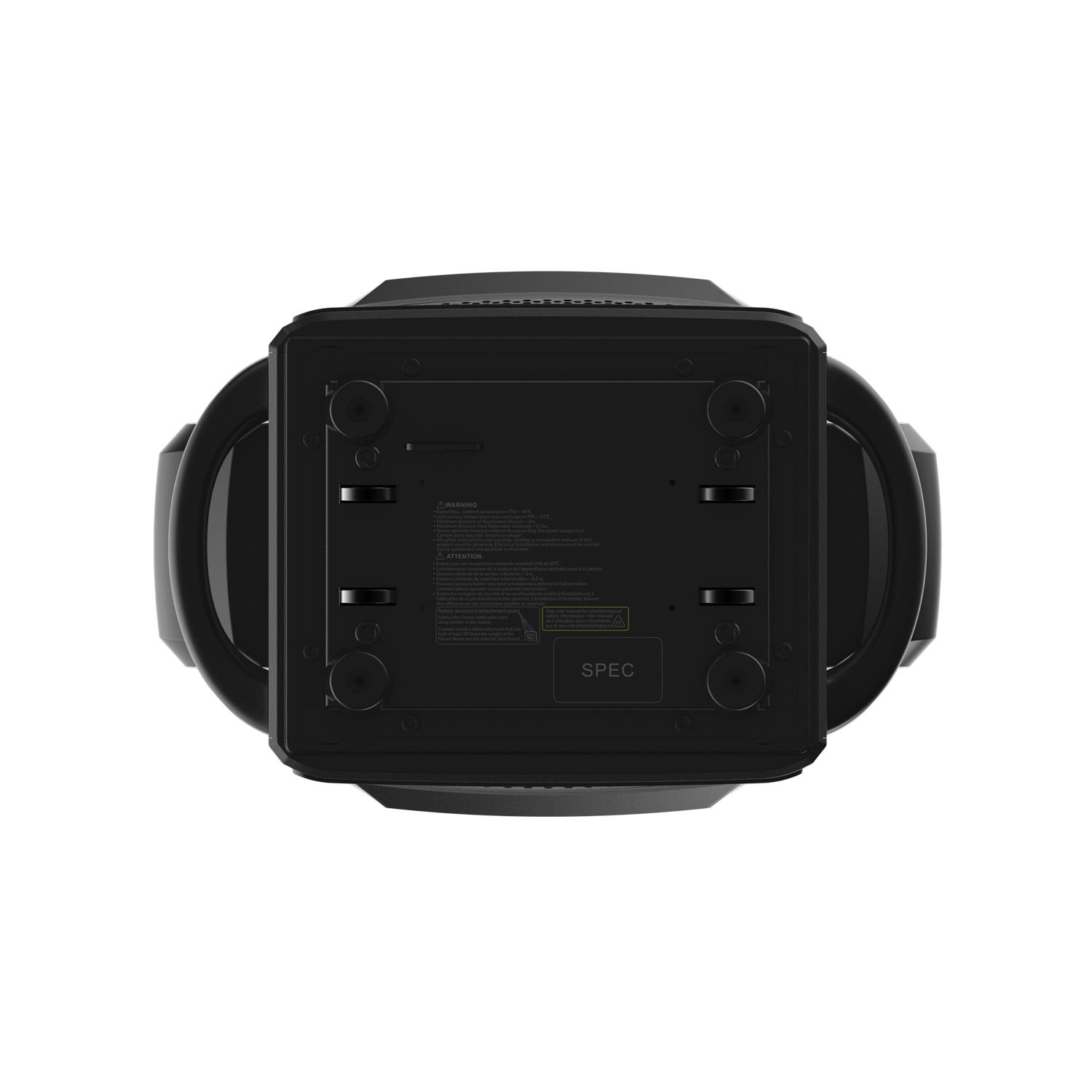

Installation
Horizontally or vertically mounting are available
Operating position is universal
2 x fixed clamps for 50 millimeter truss
Safety cable attachment hole
Included items
User Manual
Power Cable
2 x fixed clamps for 50 millimeter truss
Optional Accessories (with item code)
Raincover : 3033001750
Safety cable: 2060000200（SW-02）
Signal Line：3-pin or 5-pin signal line
