Functional Overview

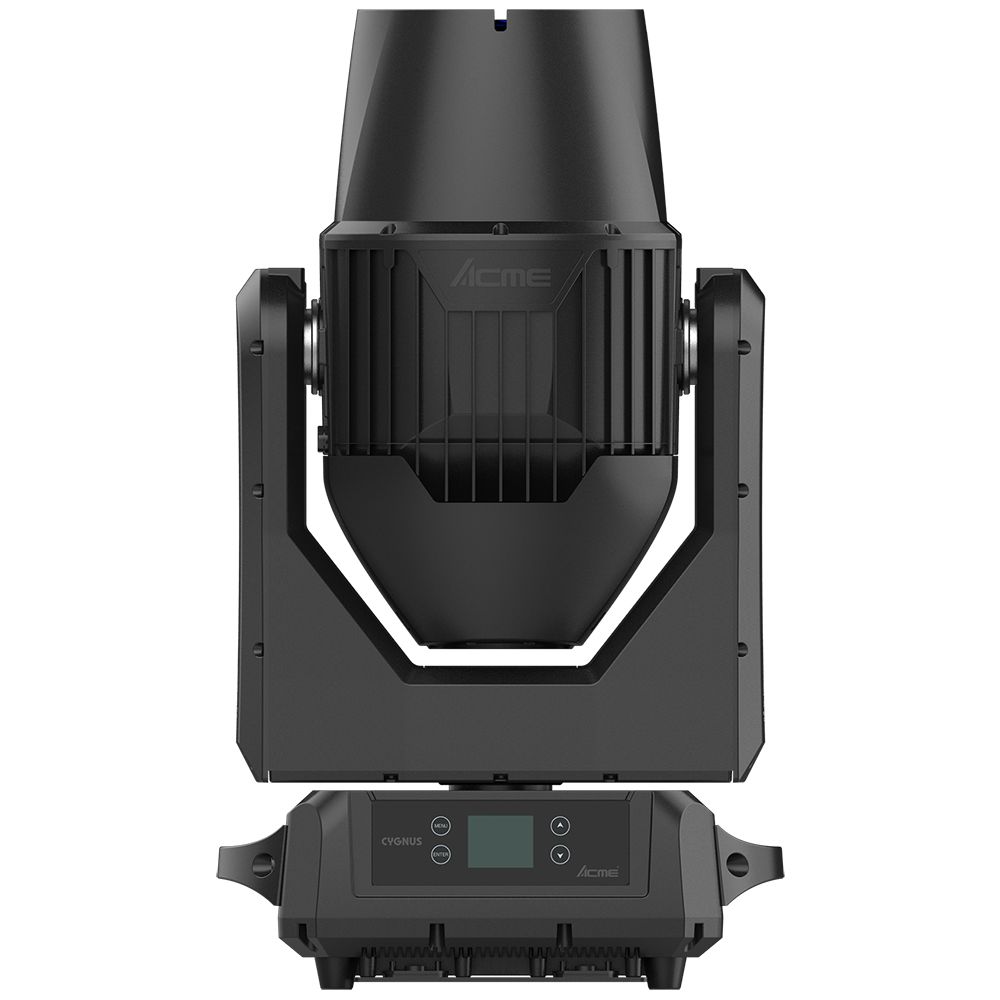

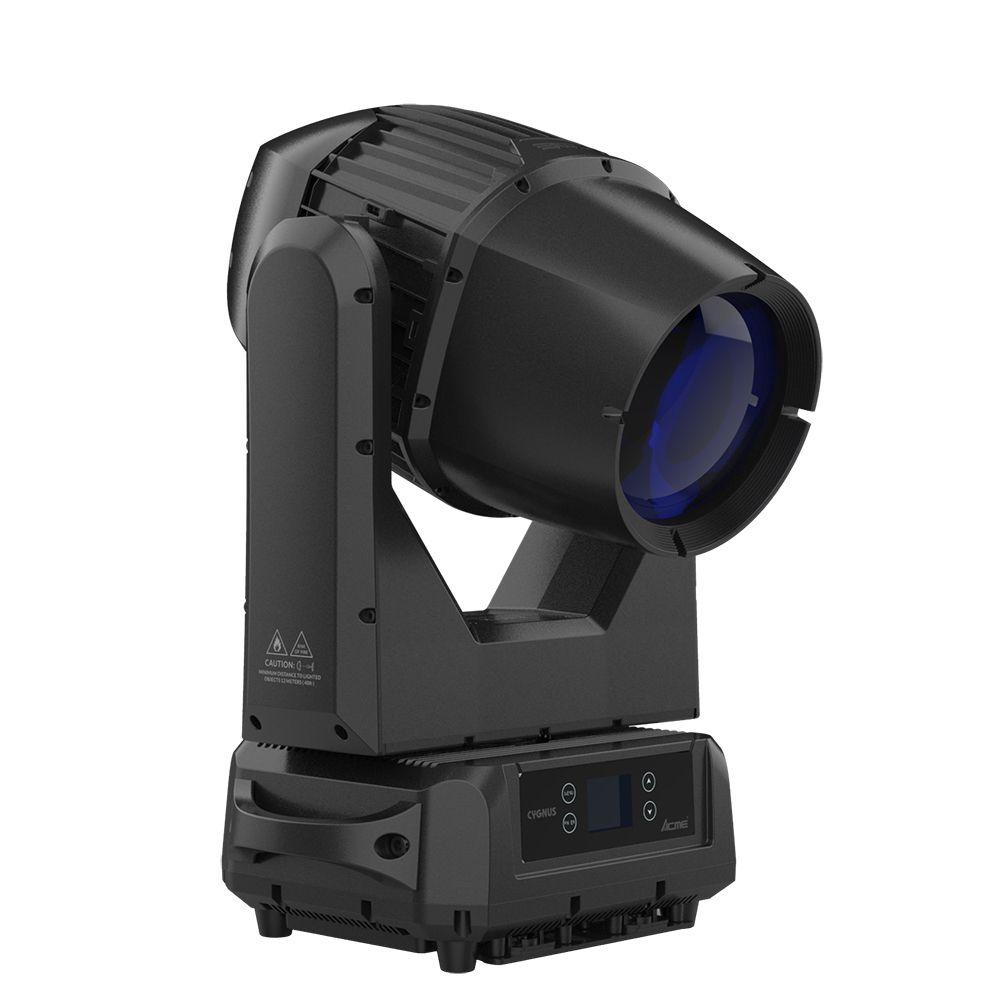

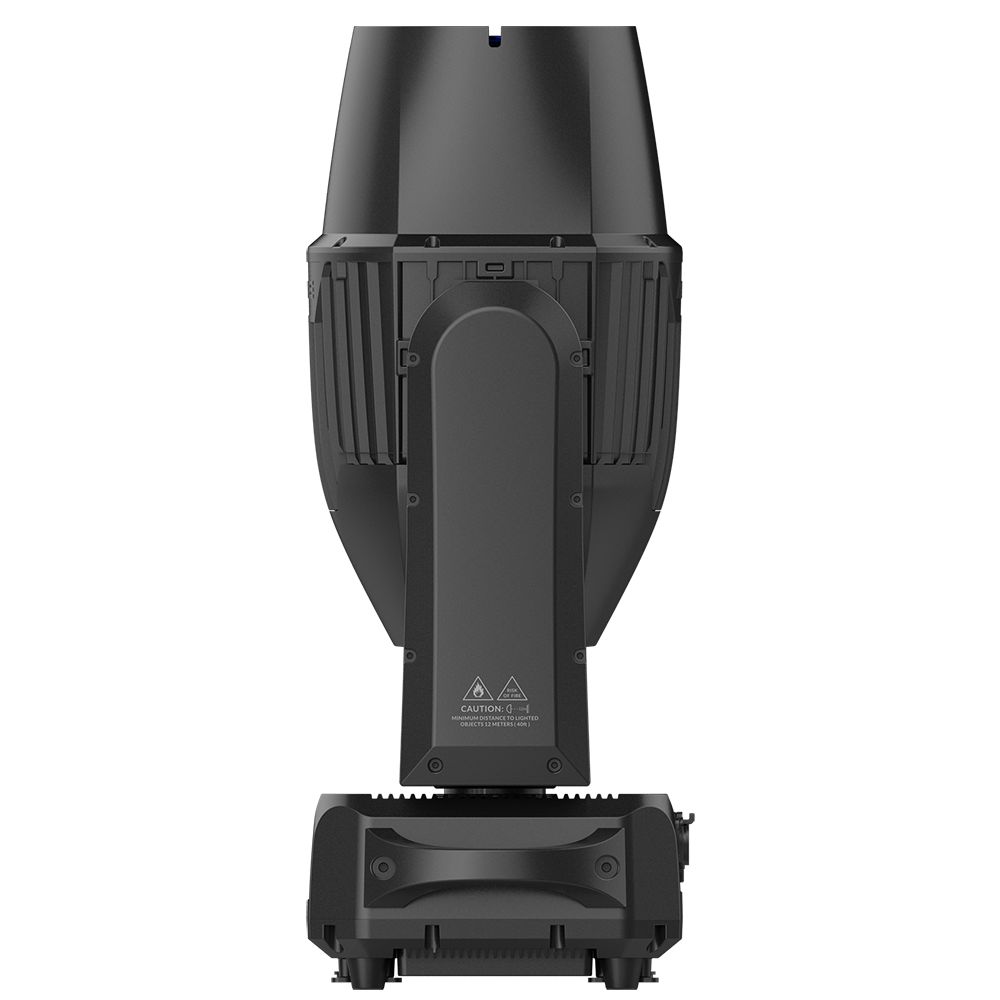

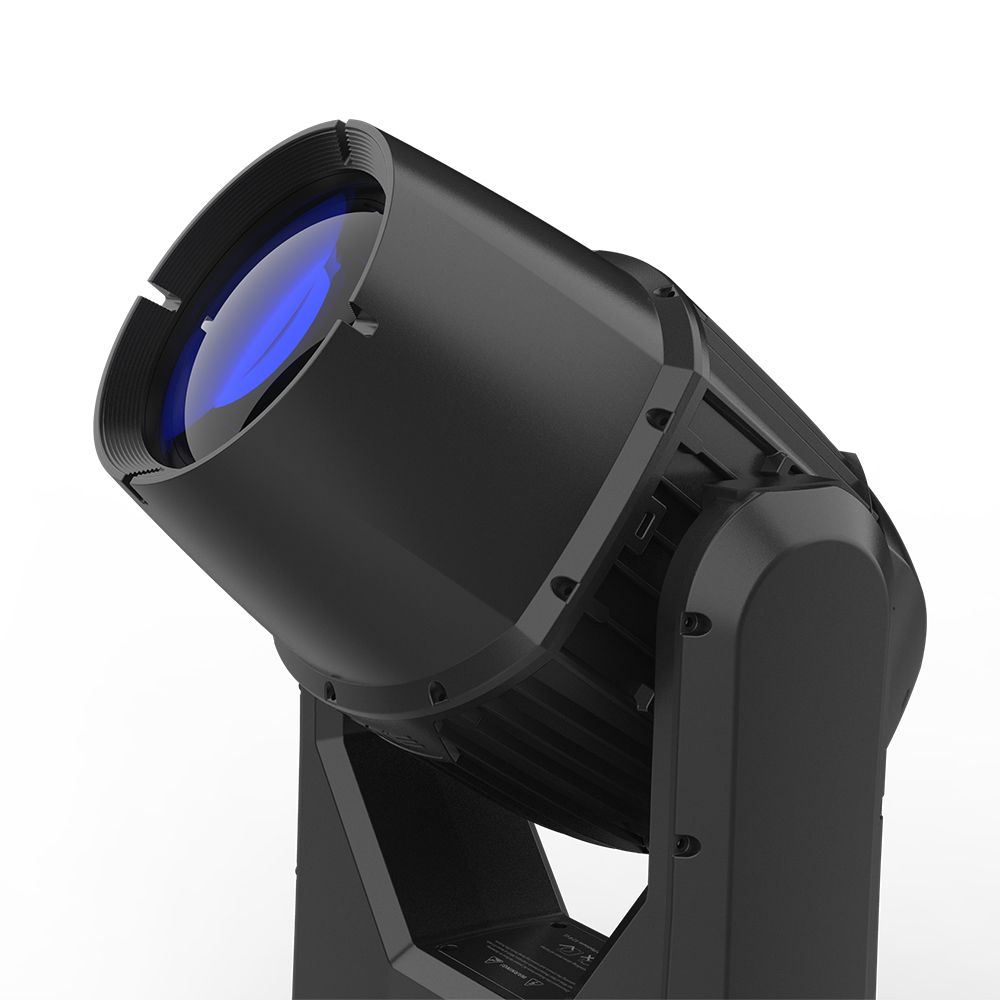

AQUARIUS, an compact design IP66-rated outdoor professional moving beam fixture with a Philips MSD Platinum 12R LL discharge lamp (up to 6,000-hour lifespan) that produces a razor-sharp 2˚ beam. With robust construction and IP66 protection, the AQUARIUS is perfectly suited for either indoor or outdoor use. Its durable aluminum die-cast housing protects it from dust, sand, moisture, and liquids, making it ideal for use in all situations from dusty deserts to rainy fields. Perfect for festivals and outdoor events, as well as installation in open-air applications and other outside entertainment spaces, this ground-breaking fixture offers extended operational life and reduced need for maintenance, thanks to its sealed casing design.
The AQUARIUS’s wealth of features includes linear motorized focus, 8-facet and 24-facet circular prisms rotating in both directions and overlayable, a built-in color wheel with 14 colors, and an independent frost filter for wash effects. It is fitted with an optional 3/5 pin DMX in/out and power connector in/out to daisy chain power. All connections are IP66 rated with rubber protective covers.
Features
Light source: Philips MSD Platinum 12R LL

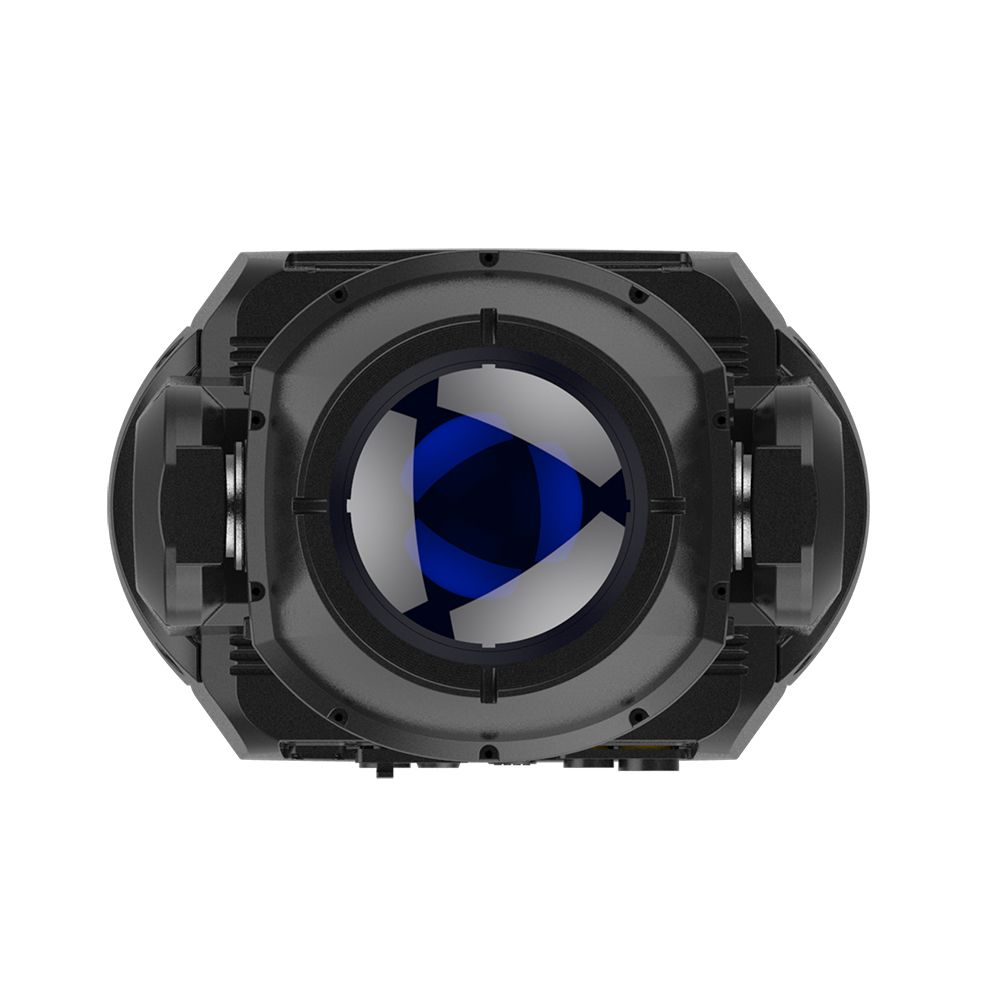

Diameter of lens: 152mm
Lamp life：6000 hours
color temperature:7800K

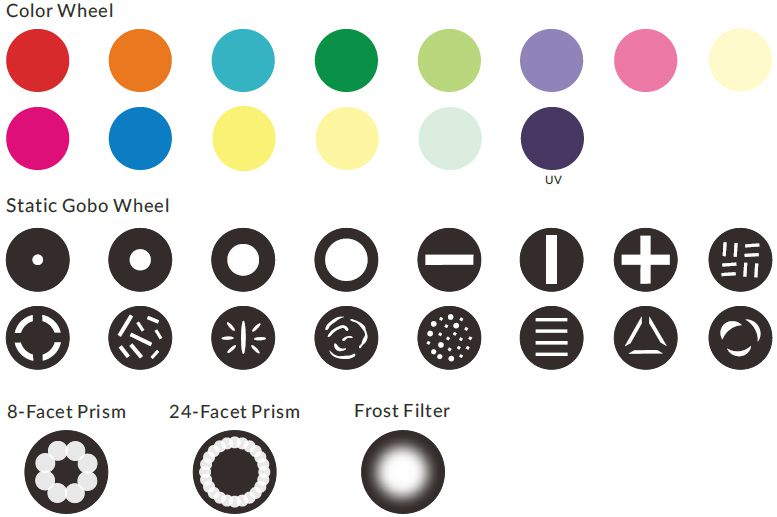

Static gobo Wheel: 1 static gobo wheel with 16 gobos plus open
Color Wheel: 1 color wheel with 14 colors plus open
Prism: 8-facet prism + 24-facet prism, rotatable in both directions and overlayable
IP66 protection rotating
0~100% smooth dimming
Motorized focus
Outstanding color macro effect
Outstanding strobe effect with variable speed
Flicker free management
Dust-proof and oil-proof design
Technical & Specification
Model
XP 320 BEAM IP
Light source
Light source: Philips MSD Platinum 12R LL
Lamp life：6000 hours
Optical system
Advanced optical system to ensure image quality, clear and sharp

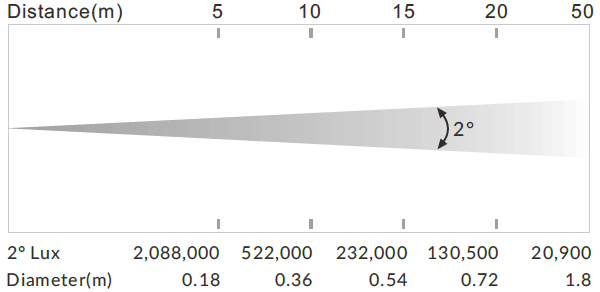

Beam Angle: 2°
Control and Program
4-buttons touch panel
Display: LCD display
Protocols: DMX512,RDM
DMX Protocol modes: 2
Control channels: 13,18
Firmware upgrade via DMX link or USB disk
Pan/Tilt Resolution: 16 bit
PAN & TILT
Pan movement: 540°
Tilt movement: 270°
Automatic Pan/Tilt position correction
Static Gobos
1 x static gobos with 16 gobos plus open
Color Wheel
1 x color wheel with 14 colors plus open
Electrical and Connectors
Power supply with electronic auto-ranging
Input voltage range: 100-240V~ 50/60Hz
Power consumption: 410W

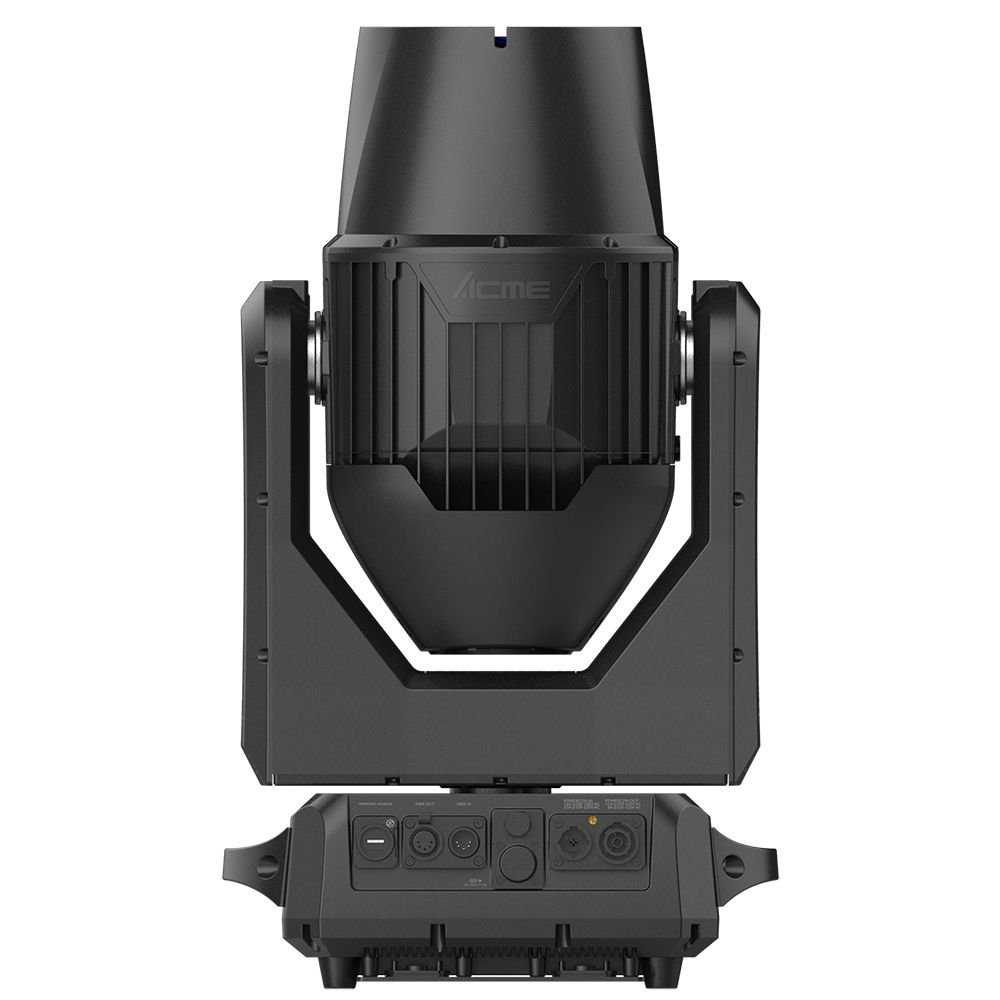

Power In/Out: IP Power Connector in/out
Data in/out: 3-pin or 5-pin IP XLR
Fixture Specification

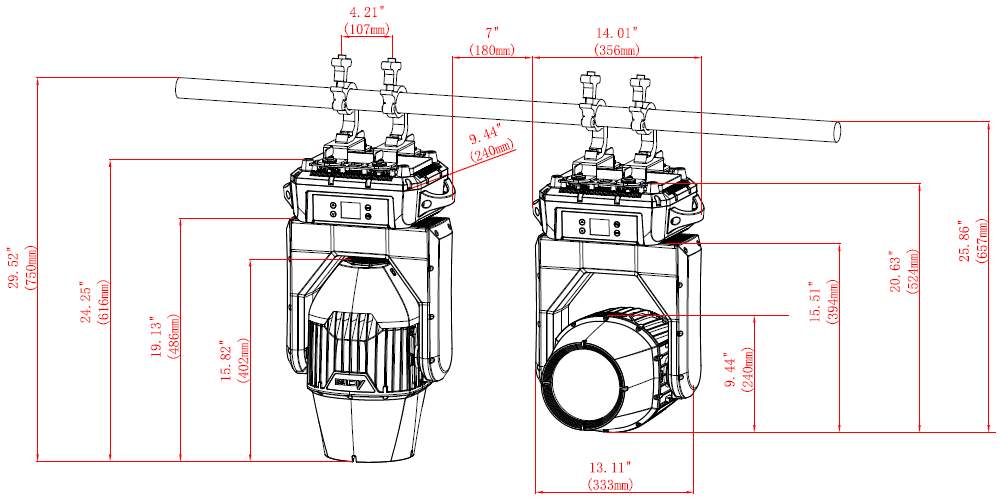

Fixture Dimensions:
Width: 356mm (14″)
Depth: 240 mm (9.4″)
Height: 616 mm (24″)
Weight: 20.5kg (45.2lbs)
Flight Case Dimensions:
Width: 510mm (20.1″)
Depth: 445 mm (17.5″)
Height: 65.5 mm (25.8″)
Weight: 26.5kg (58.4lbs) (One-pack per carton)
Work environment
Maximum ambient temperature: 45°C
Maximum surface temperature: 65°C
Minimum operating temperature: -10°C
Protection rating：IP66
Installation
Available in horizontal or vertical mounting
Universal operating position

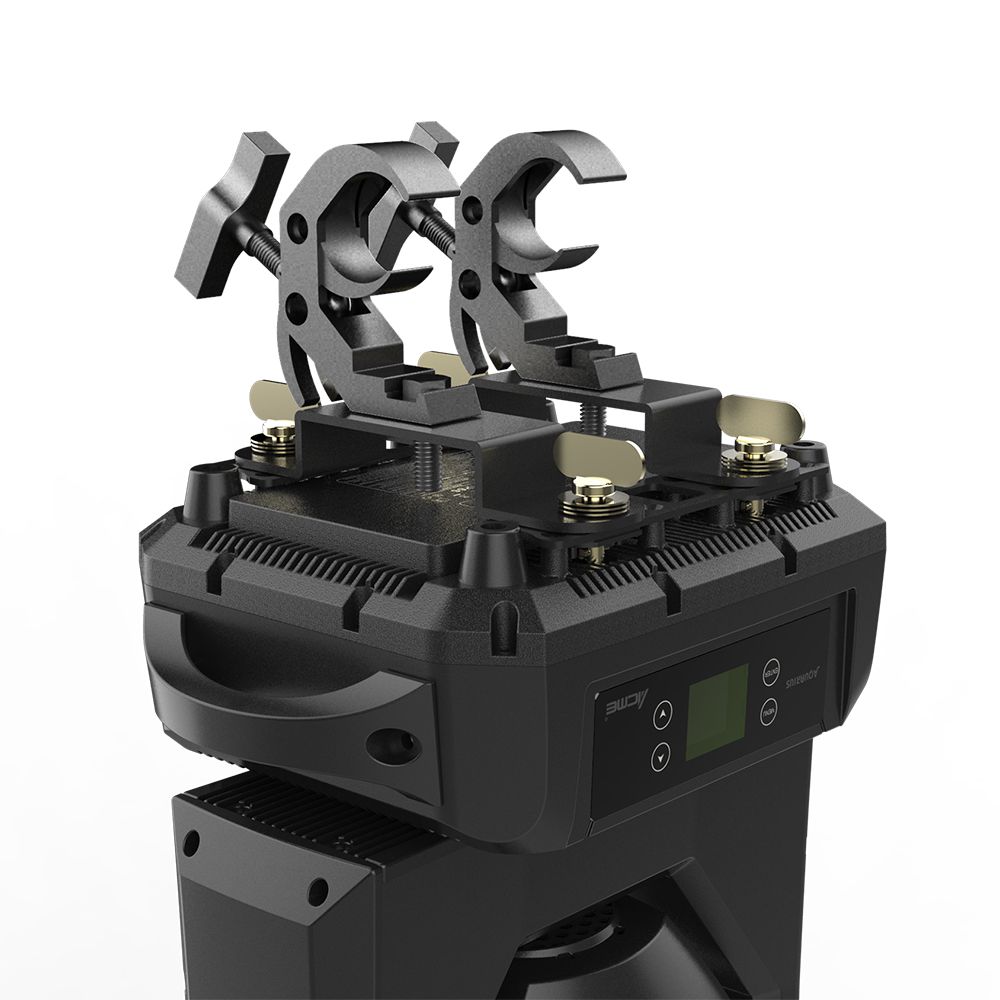

2x 1/4 fast-lock clamps for 50mm truss
Safety rope hole
Included items
Digital User Manual
Power cable
2x 1/4 fast-lock clamps for 50mm truss
Optional Accessories (with item code)
Clamp: 2060001632 (C-250B)
Signal Line：3-pin or 5-pin signal line
Safety rope : 2060001603-A (SW-05)
