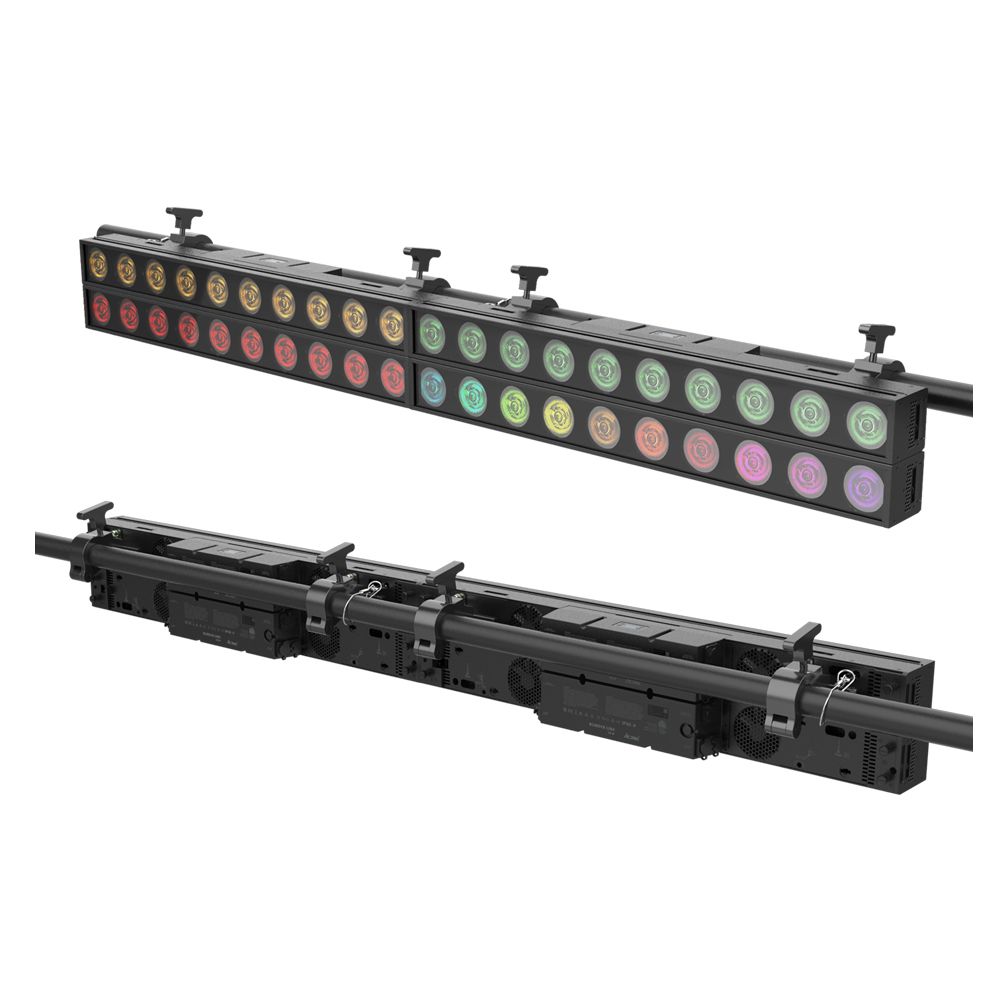

Acme Blinder Line 10 IP

Functional Overview

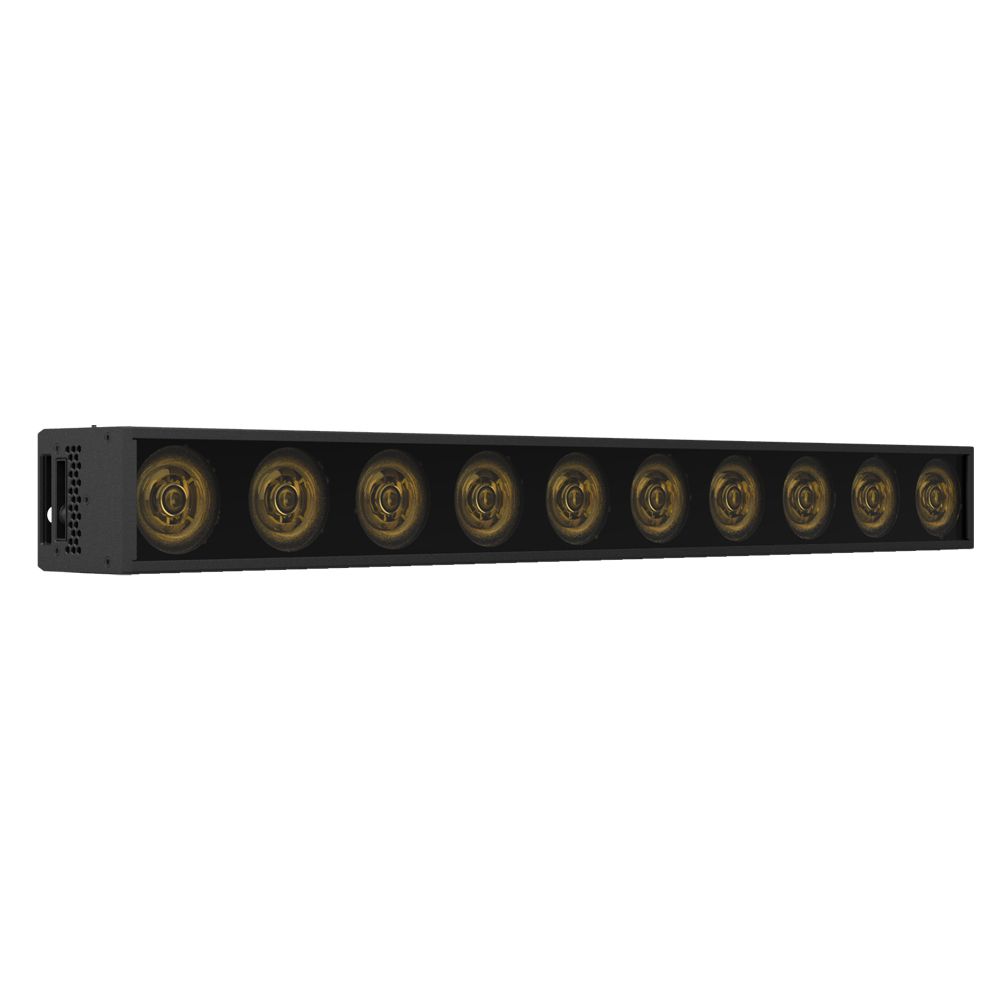

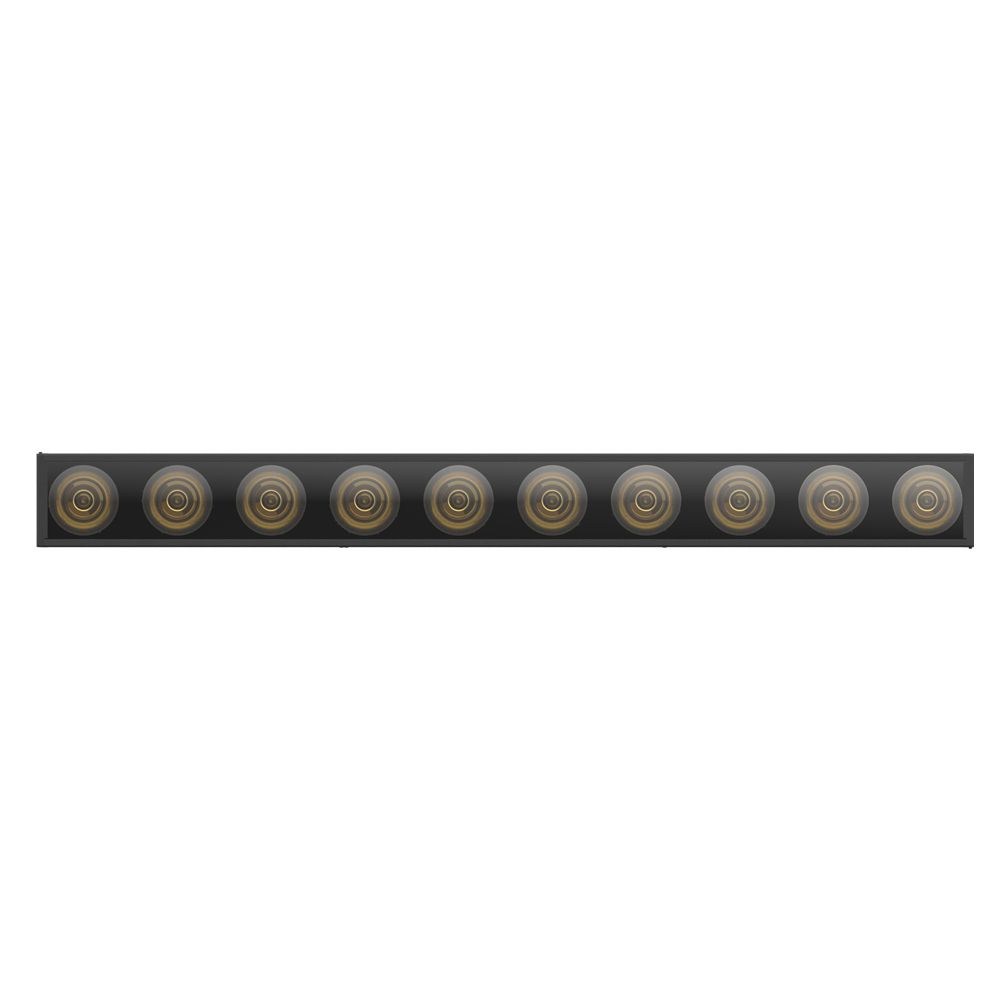

Introducing ACME’s latest innovation, the BLINDER LINE 10 IP — A versatile linear blinder light. This exceptional fixture boasts 10 high-powered 150W RGBAW LED sources that deliver stunning color effects, and it comes equipped with a 3-angle electronic haze system. Notably, it offers a powerful strobe effect and a unique filament lamp effect, guaranteeing captivating lighting outcomes. The fixture provides precise brightness control, adjustable from 0 to 100%, and its integrated interlocking connectors make quick setup effortless. With Bluetooth and Wi-Fi capabilities, mobile control and upgrades are more convenient than ever for maintenance.

All-weather IP66 protection rating, offers a comprehensive suite of advanced features, ensuring exceptional effects and various application capabilities.

Features

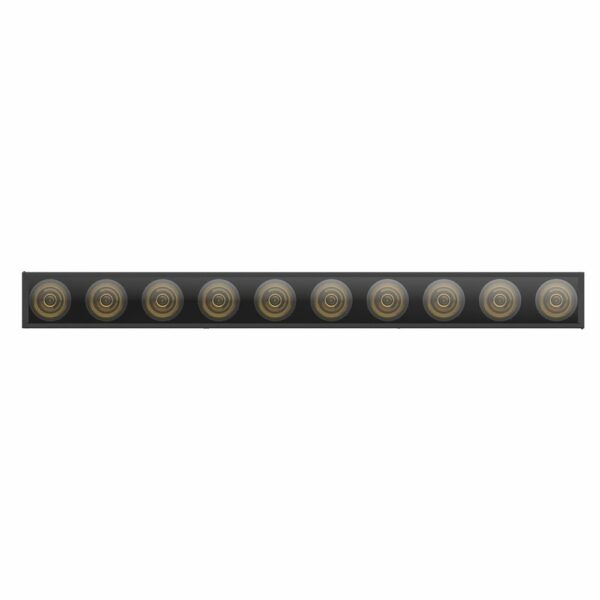

• LED Engine comprised of 10, 150-Watt RGBAW LEDs
• Individual pixel control and built-in color macro effects
• Patented Smart Glass Technology for frost effects
• Tungsten emulation during dimming
• Smooth dimming from 100 to 0%

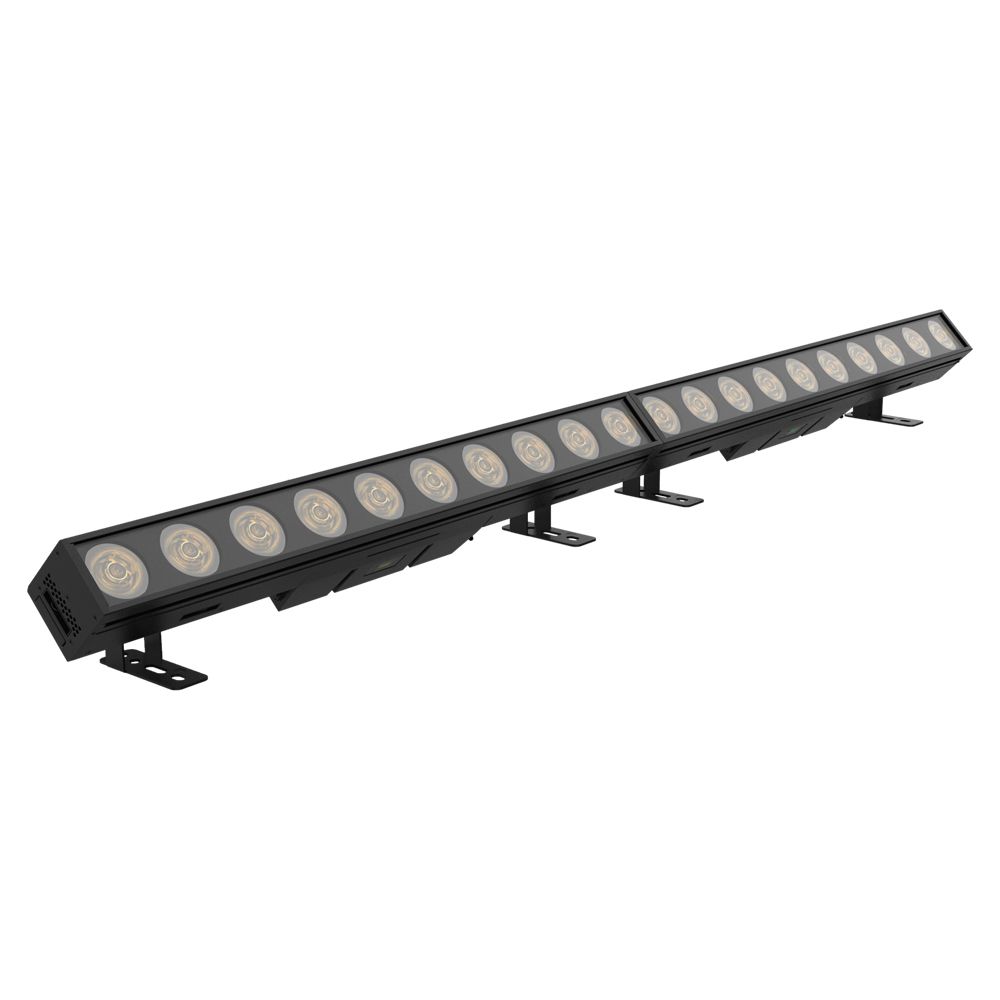

• Hidden, tool-free interlocking system for combining units
• Bluetooth and Wi-Fi enabled for smartphone control and upgrades
• IP66 rated

Model

• BLB 10 IP

Light Source

• Light Source: 10 x 150W RGBAW LED Engine
• Life Expectancy: 20,000 hours

Optical System

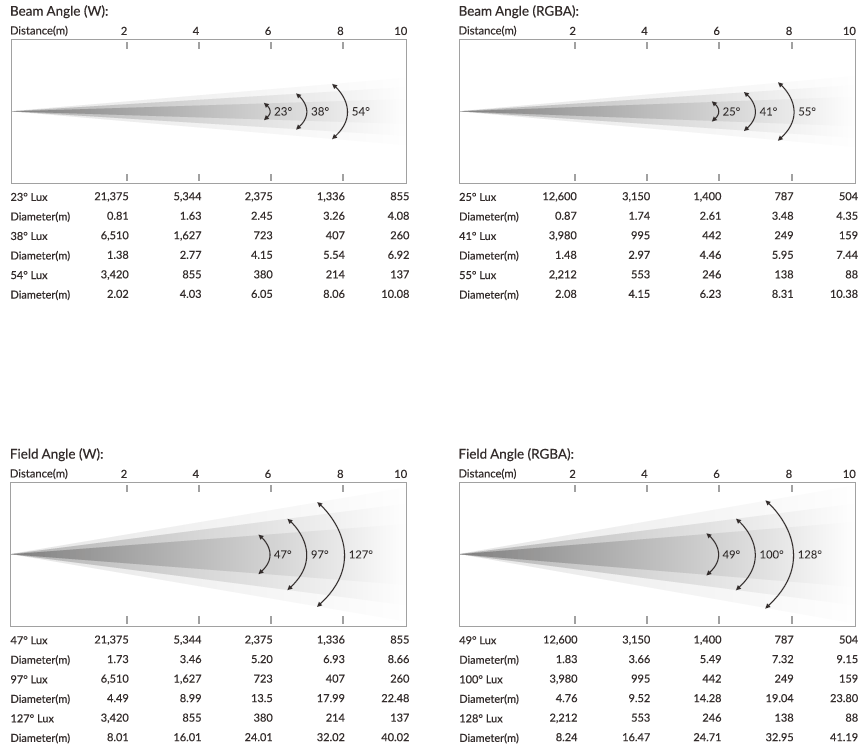

• Beam Angles:
  • 23°, 38°, 54° (W)
  • 25°, 41°, 55° (RGBA)
• Field Angles:
  • 47°, 97°, 127° (W)
  • 49°, 100°, 128° (RGBA)

Control and Program

• 4-Button touch panel
• Display: OLED display
• Protocols: DMX512, RDM, Art-Net, sACN
• DMX Protocol Modes: 2
• Control Channels: 14/55
• Firmware Upgrade: Upgrade via DMX link, WIFI or Bluetooth

Other Effects

• Outstanding strobe effect
• Variable light adjustment from 0 to 100%

Electrical and Connectors

• Input Voltage Range: 100-240V~ 50/60Hz
• Power Consumption: 690 W

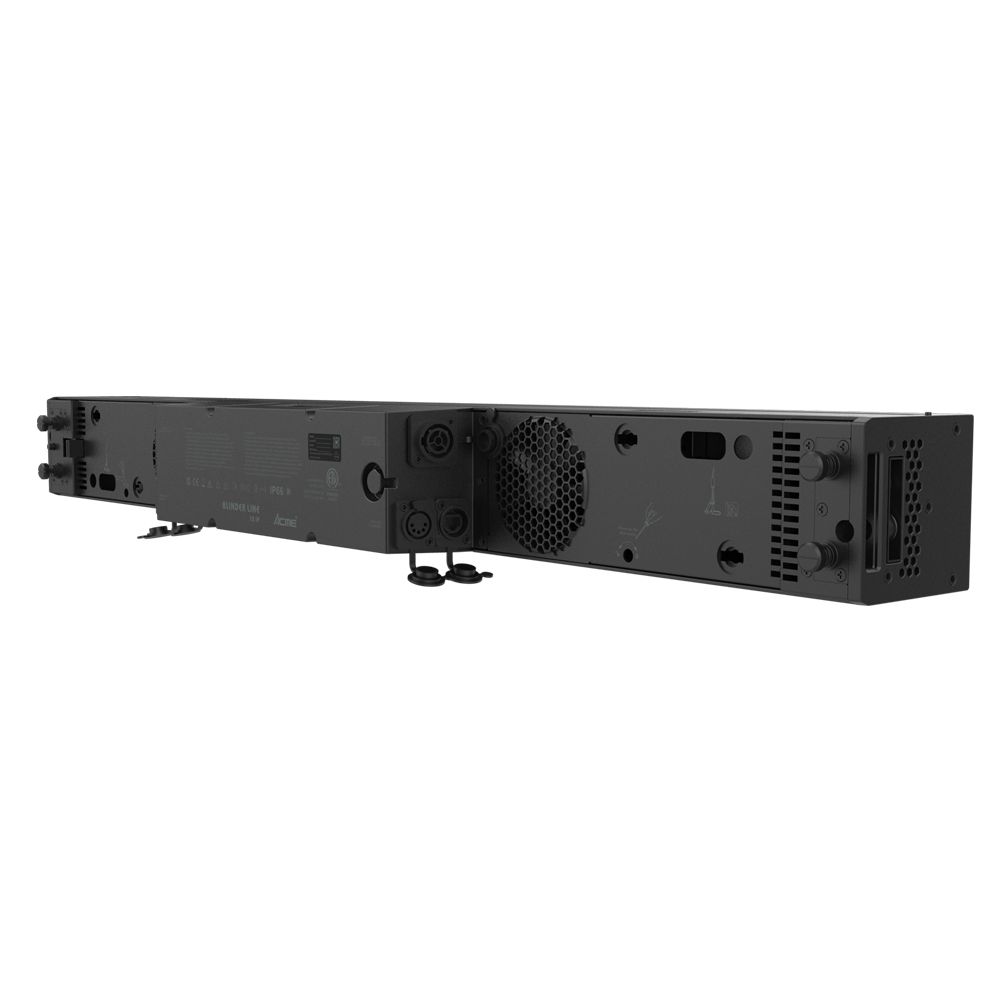

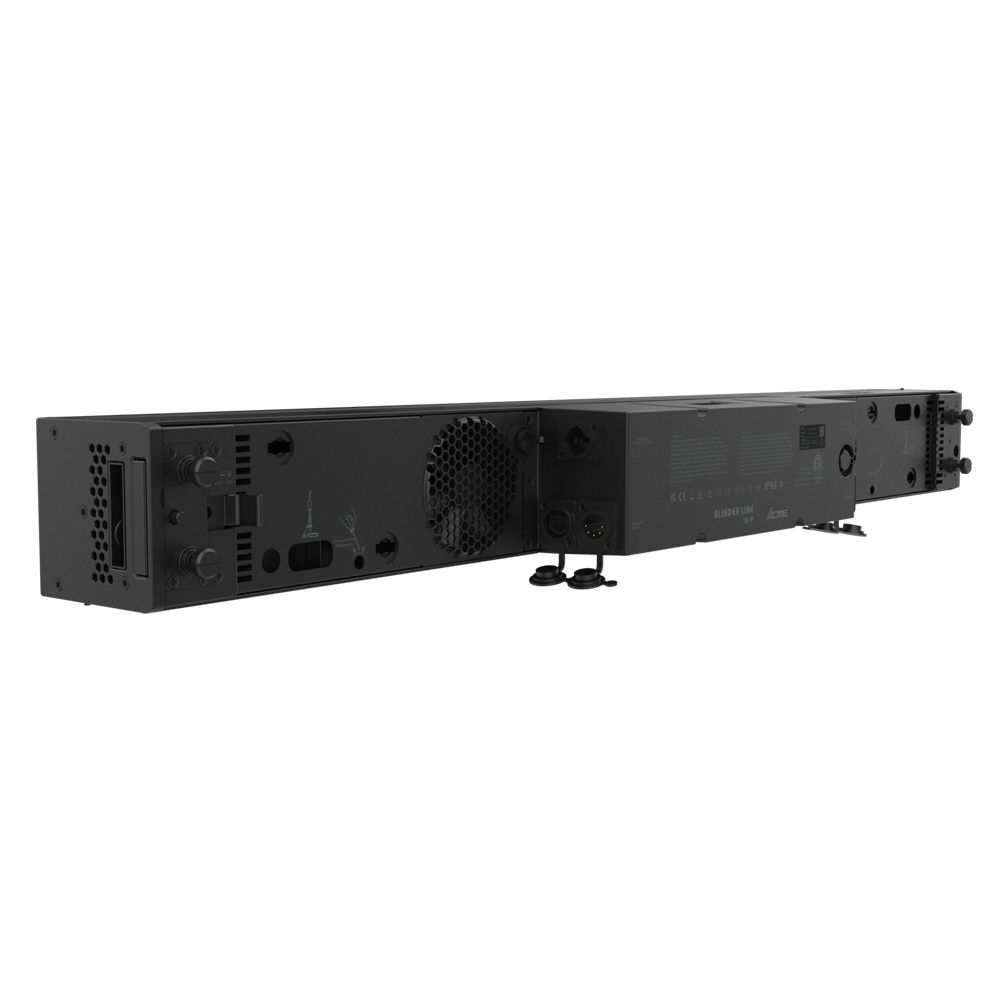

• Power In/Out: Waterproof Power Connector in/out
• Date In/Out: 5-pin Waterproof XLR, RJ45 connector

Fixture Specification

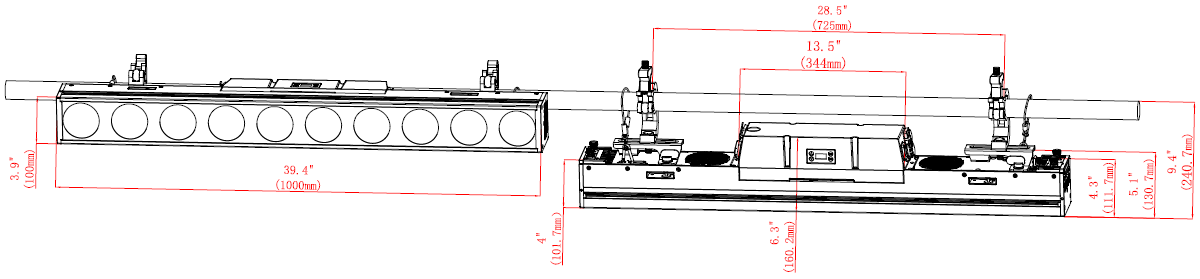

• Fixture Dimensions:
  • Width: 1000 mm (39.4″)
  • Depth: 103 mm (4.0″)
  • Height: 158.5 mm (6.2″)
  • Weight: 13.6 kg (30 lbs)
• Flight Case Dimensions:
  • Width: 1220 mm (48.0″)
  • Depth: 610 mm (24.0″)
  • Height: 850 mm (33.5″)
  • Weight: 184 kg (405.6 lbs)(includes flight case, eight fixtures per flight case)
• Carton Specification:
  • Width: 1105 mm (43.5″)
  • Depth: 285 mm (11.2″)
  • Height: 200 mm (7.9″)
  • Weight: 16 kg (35.3 lbs)(includes carton, one per carton)

Work environment

• Maximum Ambient Temperature: 40°C
• Minimum Operating Temperature: -10°C
• Maximum Surface Temperature: 70°C
• Protection Rating: IP66

Installation

• Horizontally or vertically mounting are available
• Universal working position

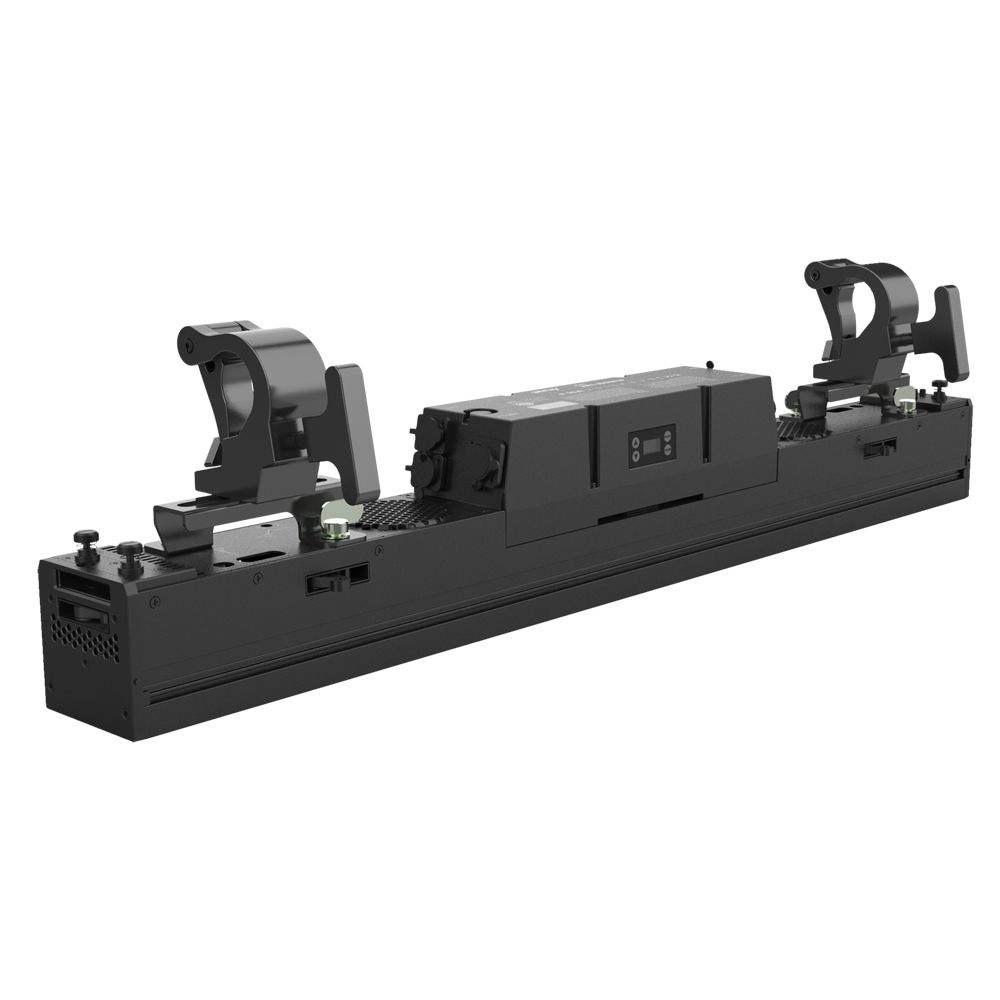

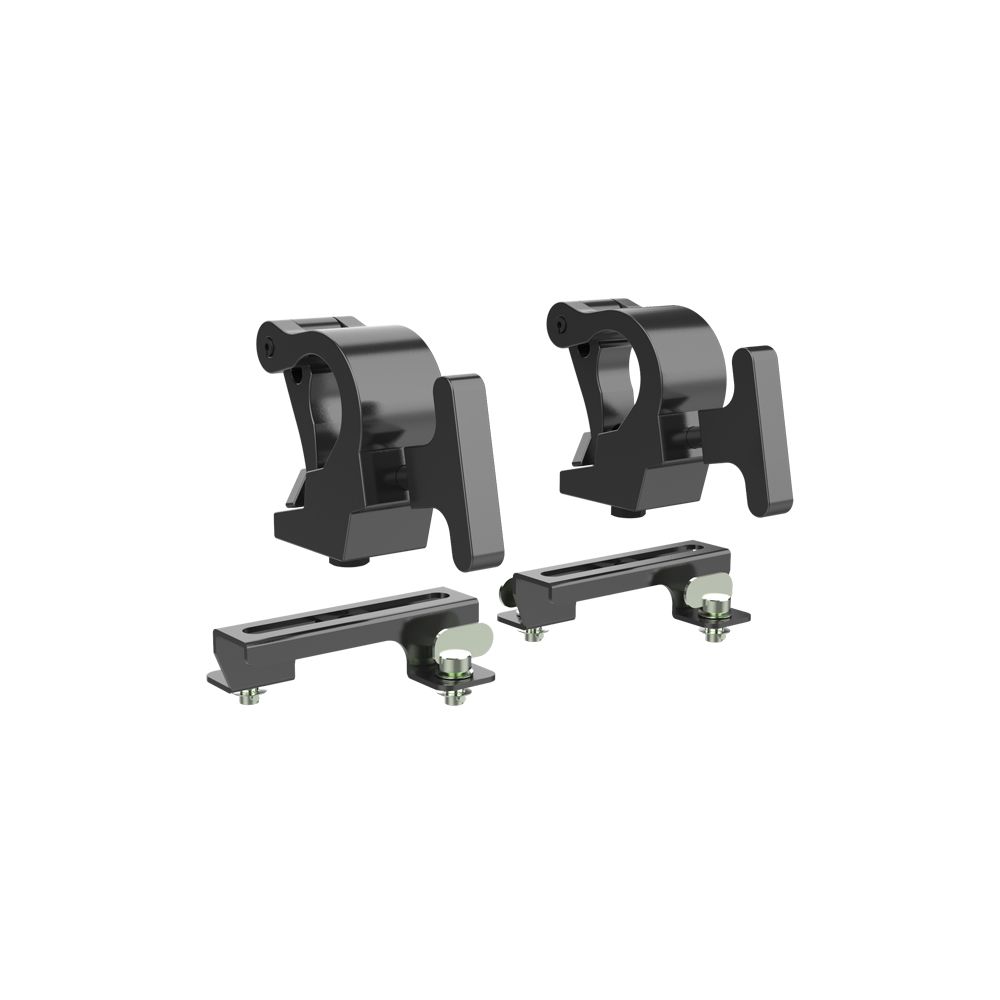

• Horizontal: Utilizing two omega brackets (supplied) and clamps (by others)

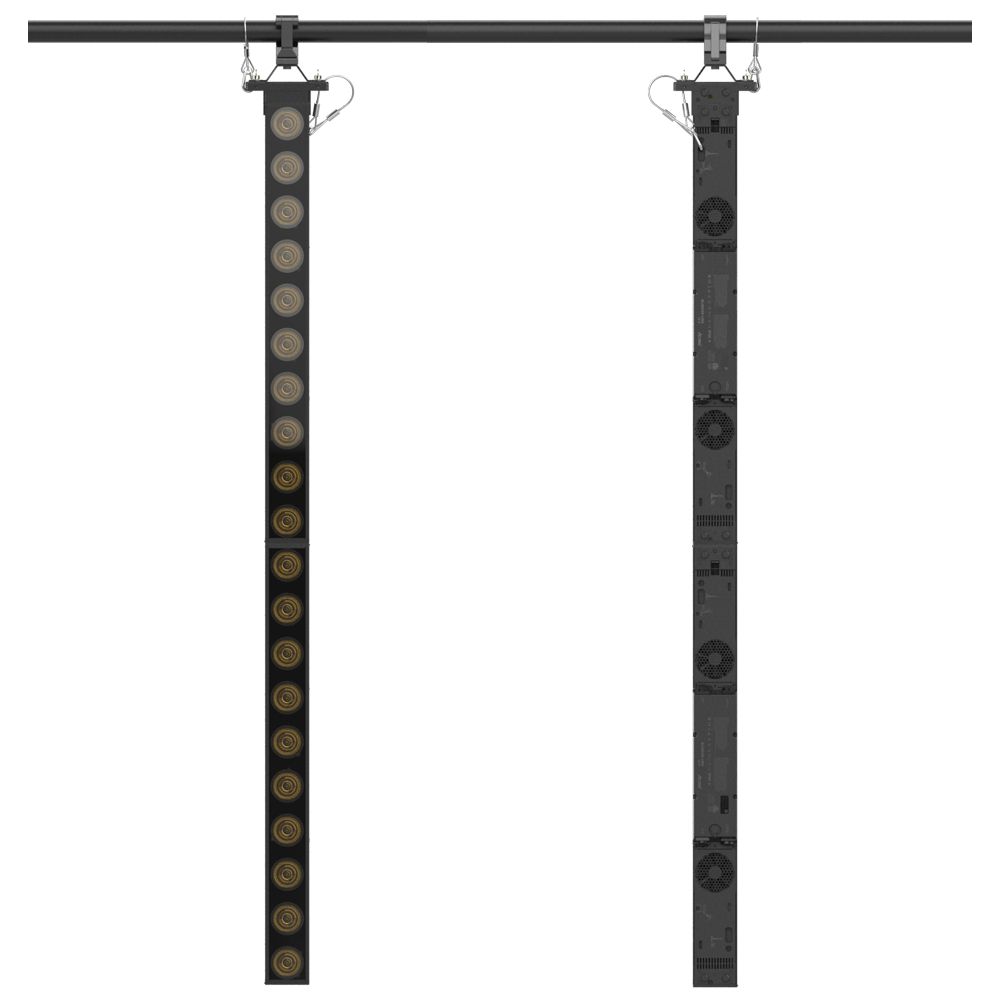

• Vertical: Using one hanging bracket (sold separately) with clamp (by others)

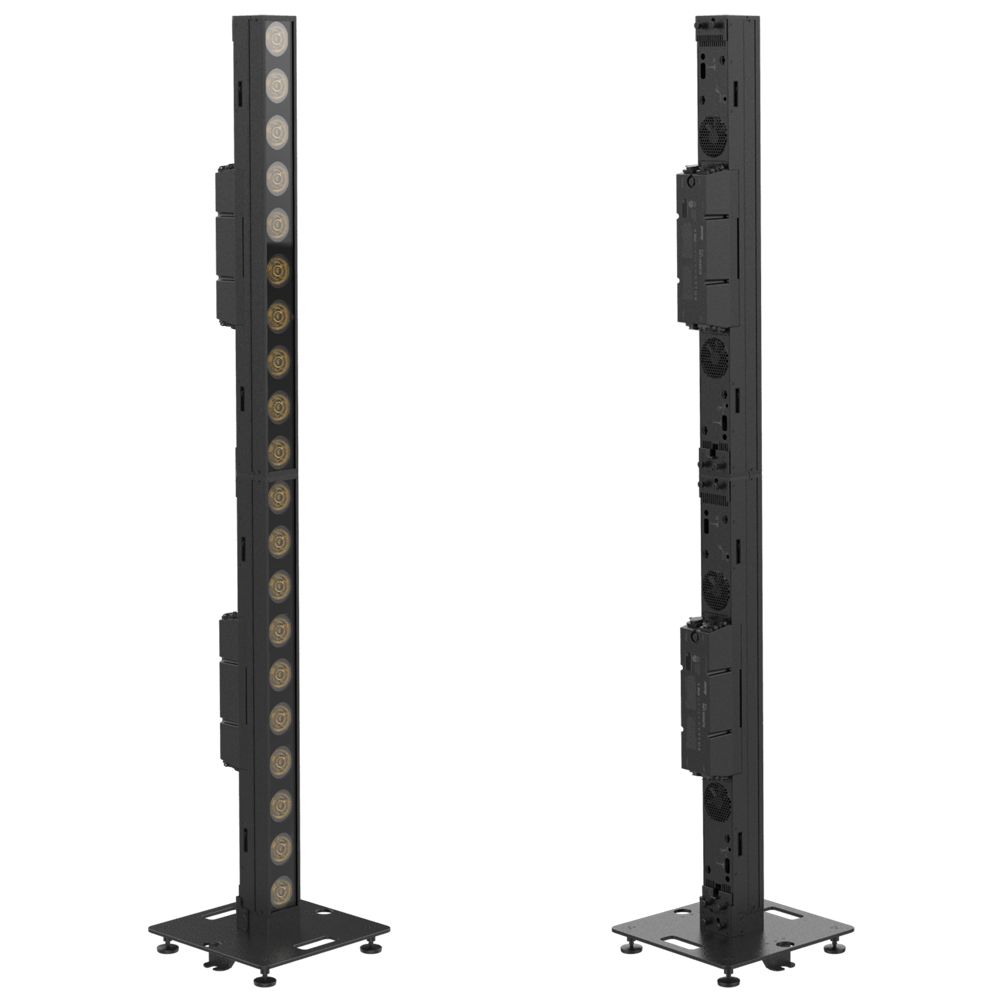

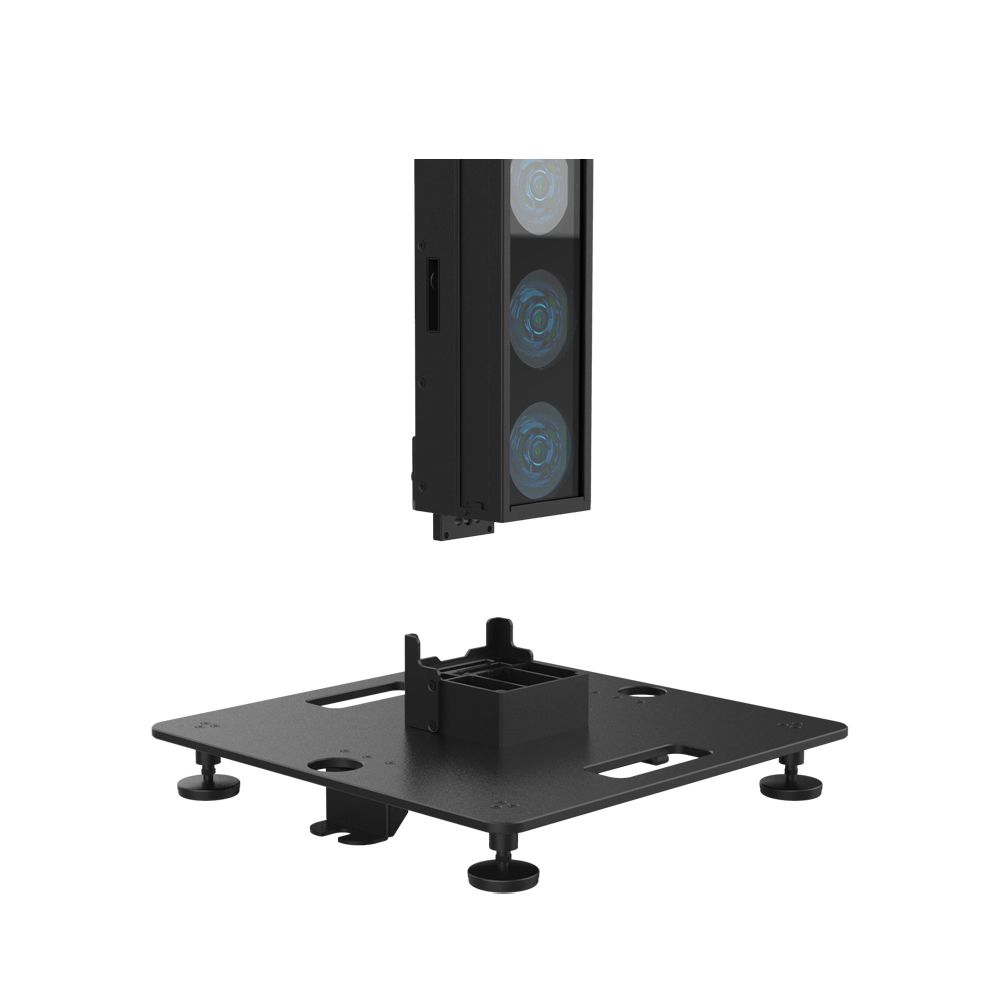

• Vertical Stand: Mounted to floor stand (sold separately)

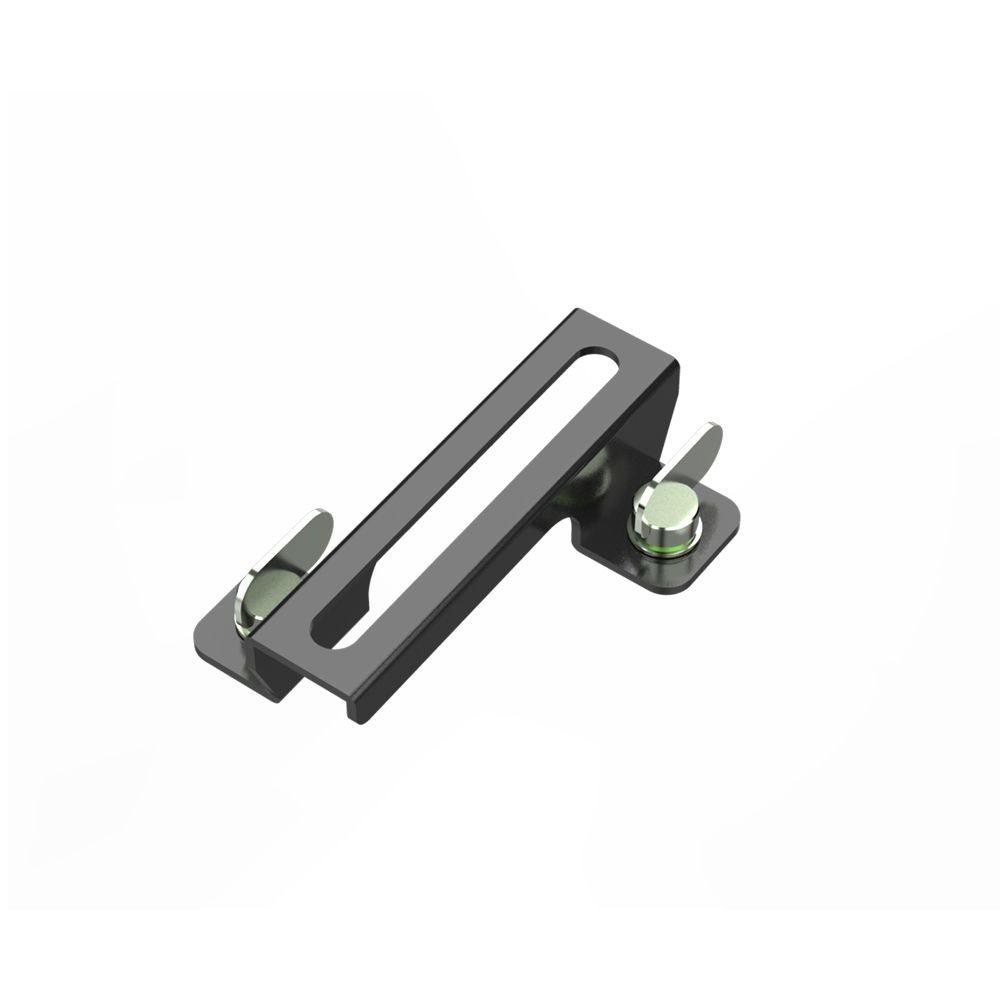

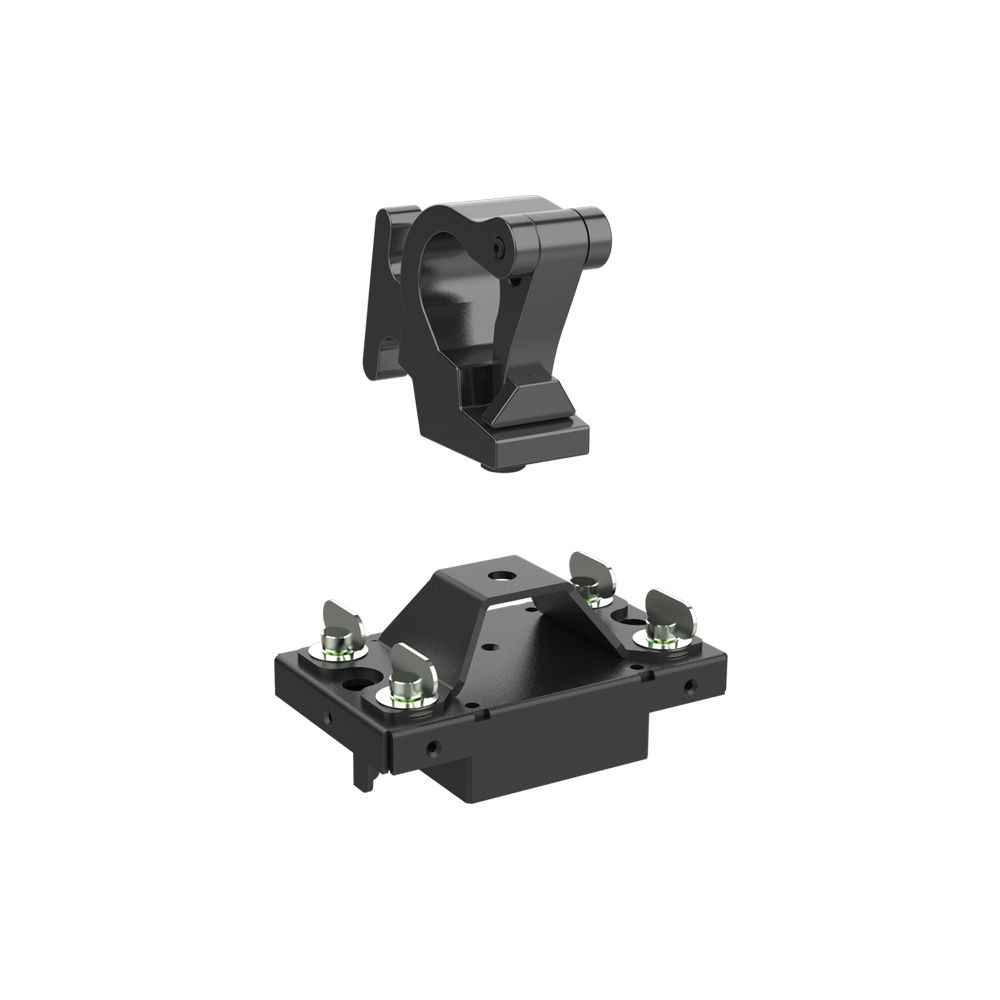

• Floor: Two floor brackets (sold separately)
• Safety rope hole

Included Items

• Digital User Manual
• Power Cable
• 2 x omega brackets

Optional Accessories (with item code)

• Eight Hole Flight Case: 3205096028
• Four Hole Flight Case: 3205001345

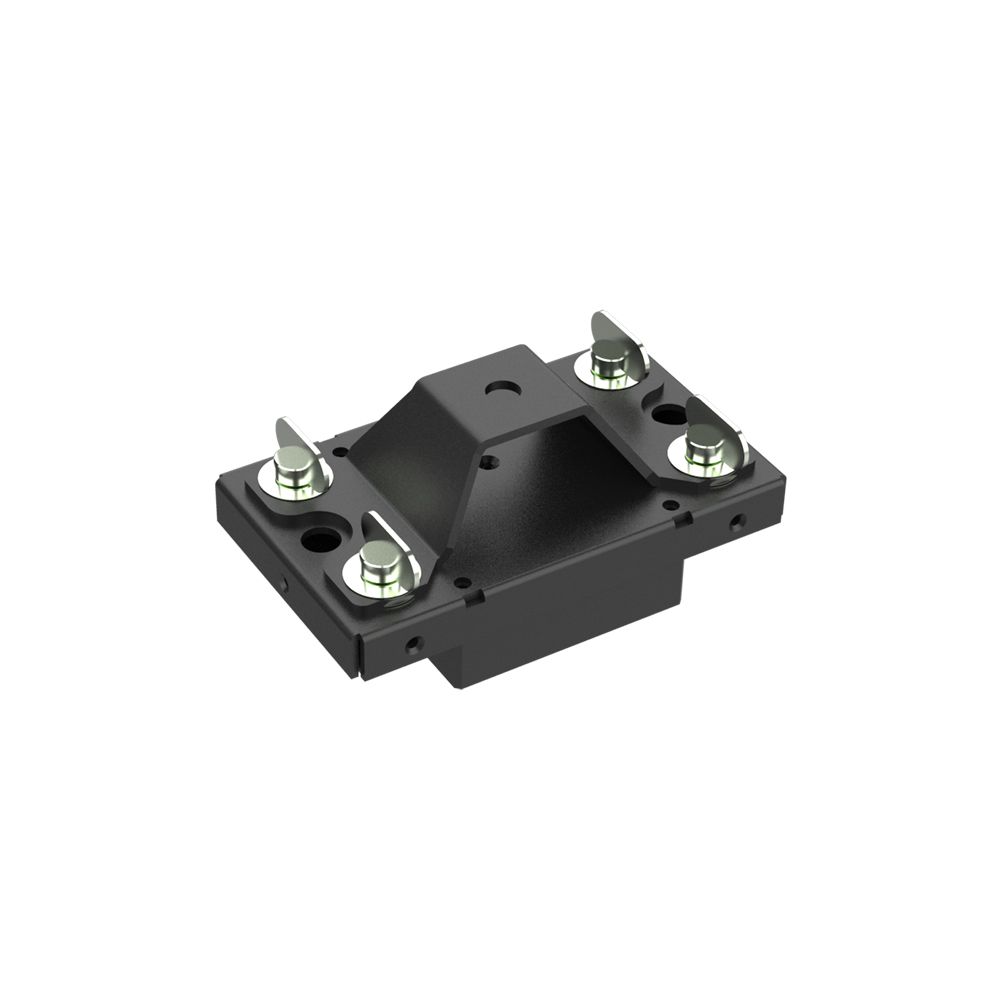

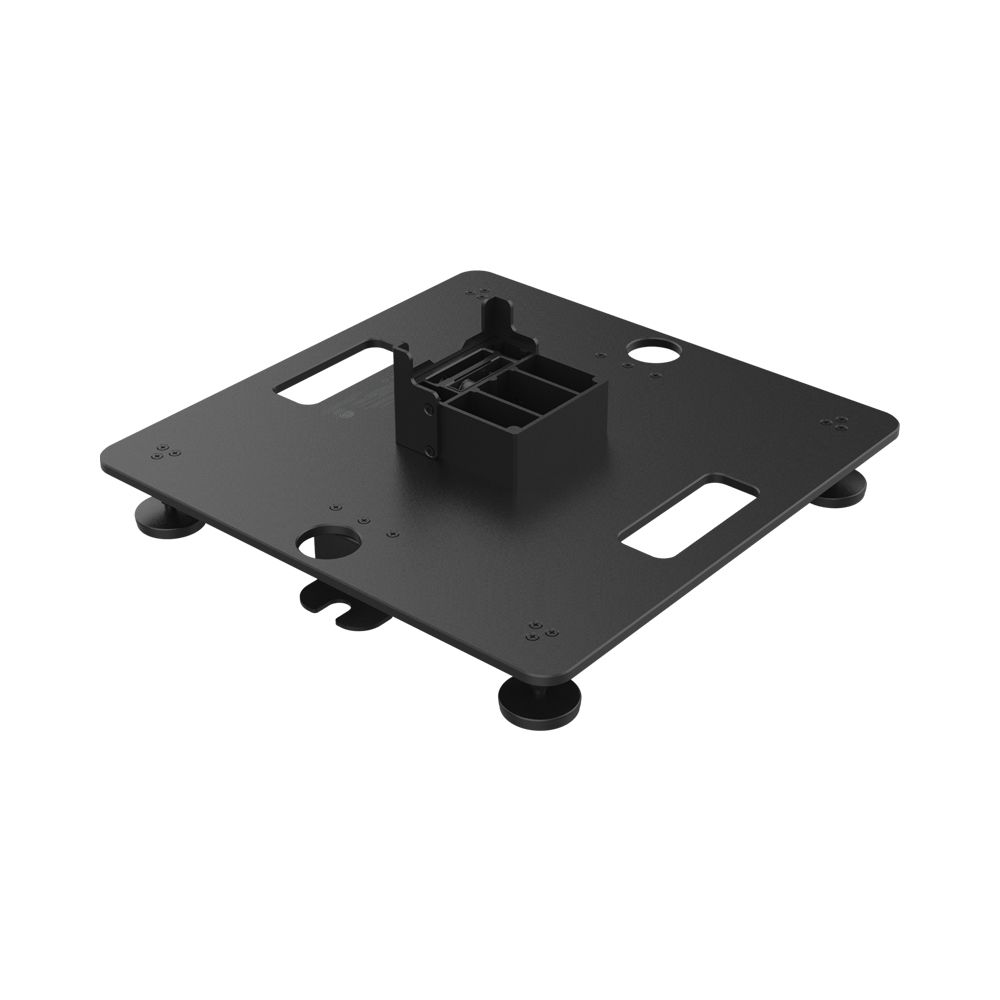

• BLB Base Stand: 63582785
• BLB Foot Stand: 63582981

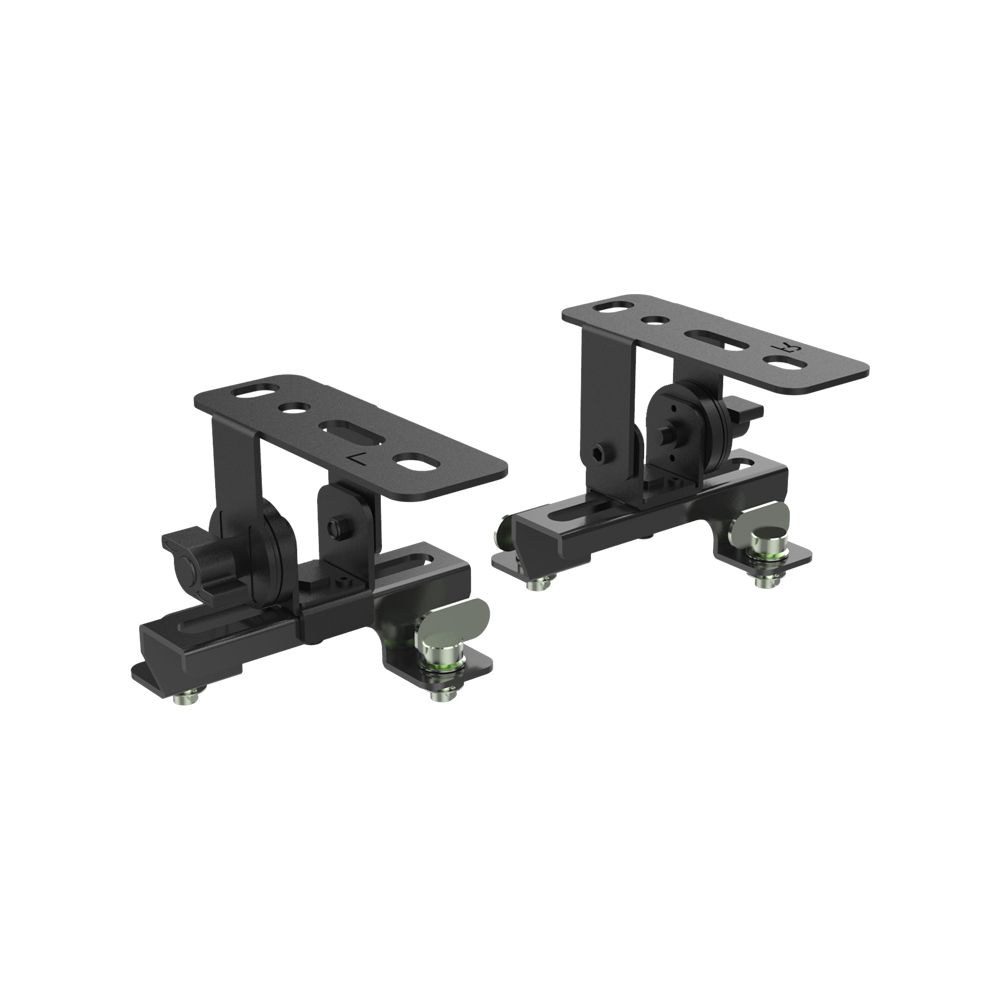

• BLB Hanging Bracket: 63582969
• Clamp: 2060001625 (C-150B)
• Signal Line: 5-pin waterproof signal line, RJ45 connector
• Safety Cable: 2060001603-A (SW-05)
