Acme Blinder Line 5 IP

Functional Overview

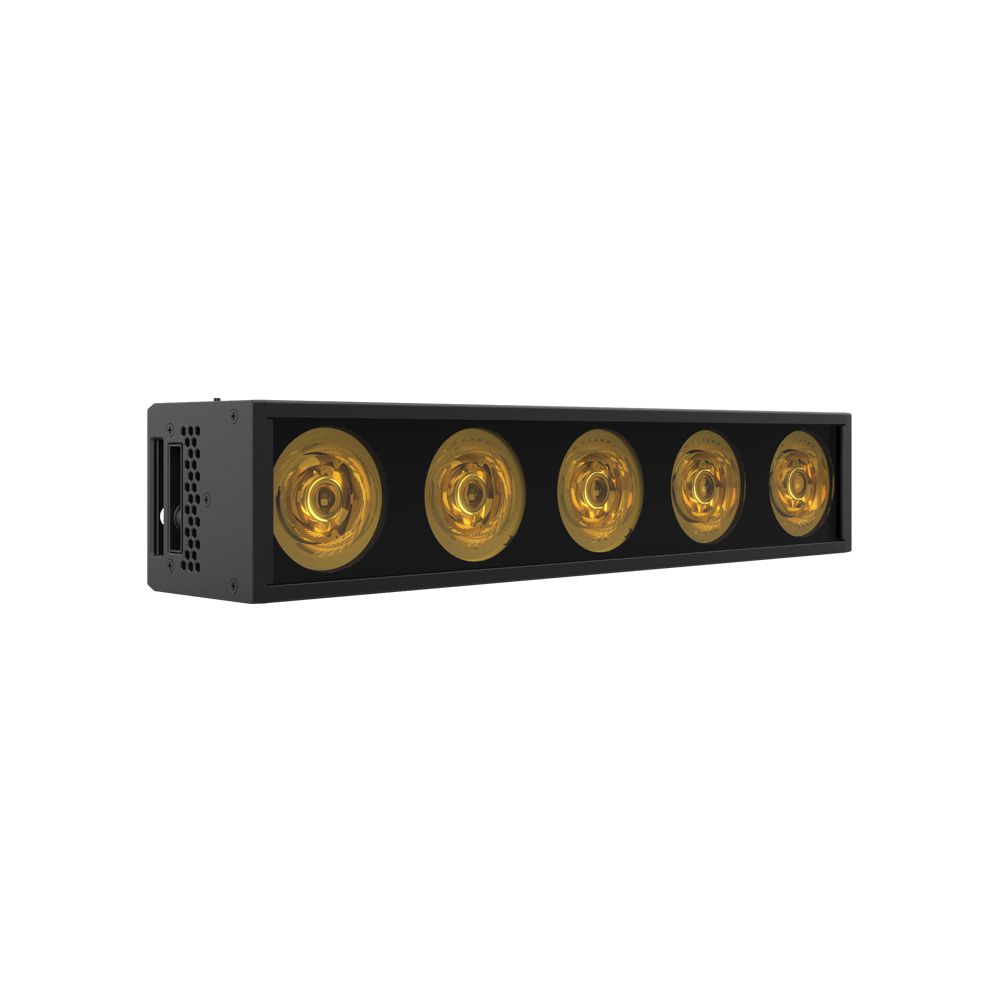

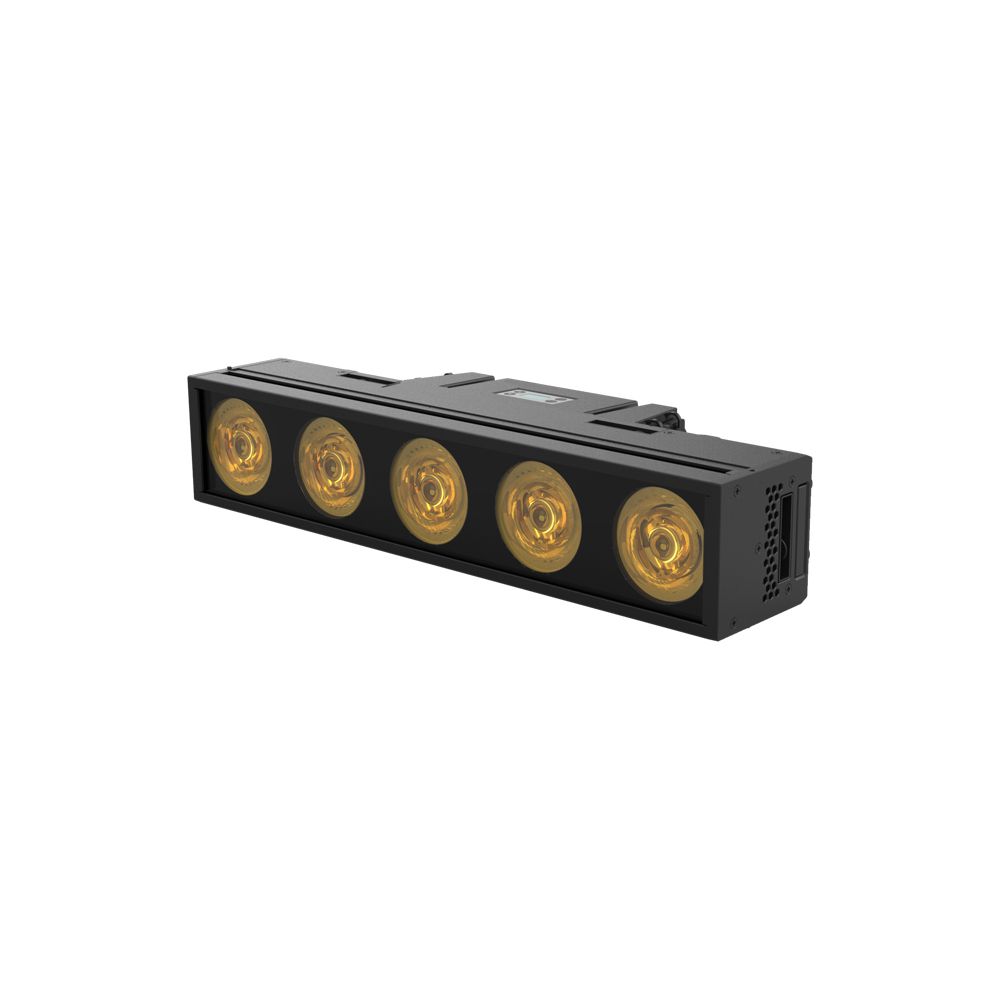

The BLINDER LINE 5 IP, the complementary shorter version of the BLINDER LINE 10 IP, is a half-meter length blinder fixture with the same features and functionalities as the longer version. This luminaire is powered with five, 150-Watt RGBAW LEDs that produce vivid colors and captivating visual effects.

The BLINDER LINE 5 IP features ACME’s patented Smart Glass technology for soft light effects and has extremely bright strobe effects, four different dimming curves, and individual pixel control for unlimited looks and effects. Multiple units can be connected end-to-end using their integrated interlocking connectors.

The BLINDER LINE 5 IP has an IP66 protection rating, making this fixture perfect for any application, indoors or outdoors, in any weather conditions.

Features

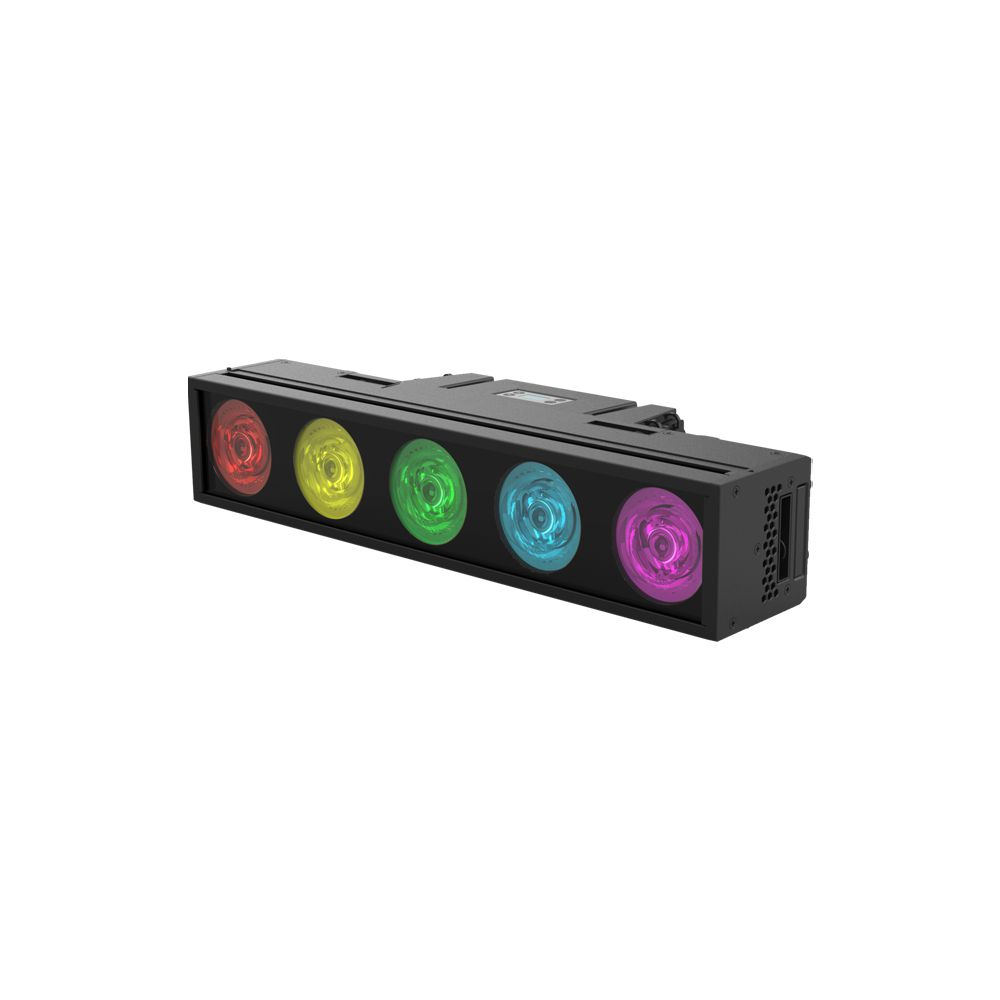

• LED Engine comprised of 5 x 150W RGBAW
• Individual pixel control and built-in color macro effects
• Patented Smart Glass Technology for frost effects
• High output strobe effects
• Tungsten emulation during dimming
• Smooth dimming 0-100% (4 user selectable dimming curves)

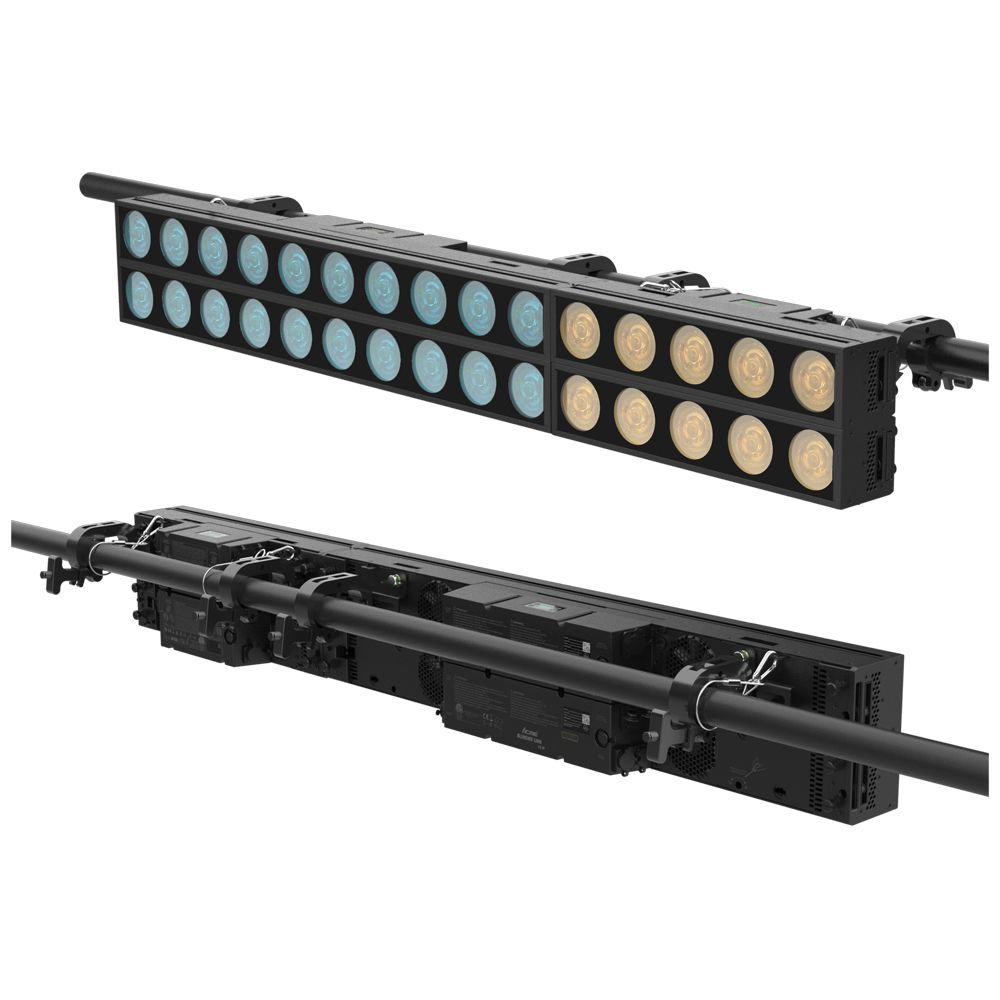

• Integrated interlocking system for combining units
• IP66 rated

Model

• BLB 5 IP

Light Source

• Light Source: 5 x 150W RGBAW LEDs
• Total Lumen Output of Fixture: 10,500 lumens
• Life Expectancy: 20,000 hours* Manfacturer specification

Optical System

• Beam Angle:
  • 23°, 34°, 52° (W)
  • 24°, 33°, 55° (RGBA)
• Field Angle:
  • 46°, 88°, 127° (W)
  • 48°, 85°, 131° (RGBA)

Control and Program

• 4 touch button control panel
• Display: OLED display
• Protocols: DMX512, RDM, Art-Net, sACN
• DMX Protocol Modes: 2
• Control Channels: 14/30
• Firmware Upgrade: Upgrade via DMX link

Other Effects

• High output strobe effects
• Smooth dimming 0-100% (4 user selectable dimming curves)

Electrical and Connectors

• Input Voltage Range: 100-240VAC, 50/60Hz
• Power Consumption: 350W

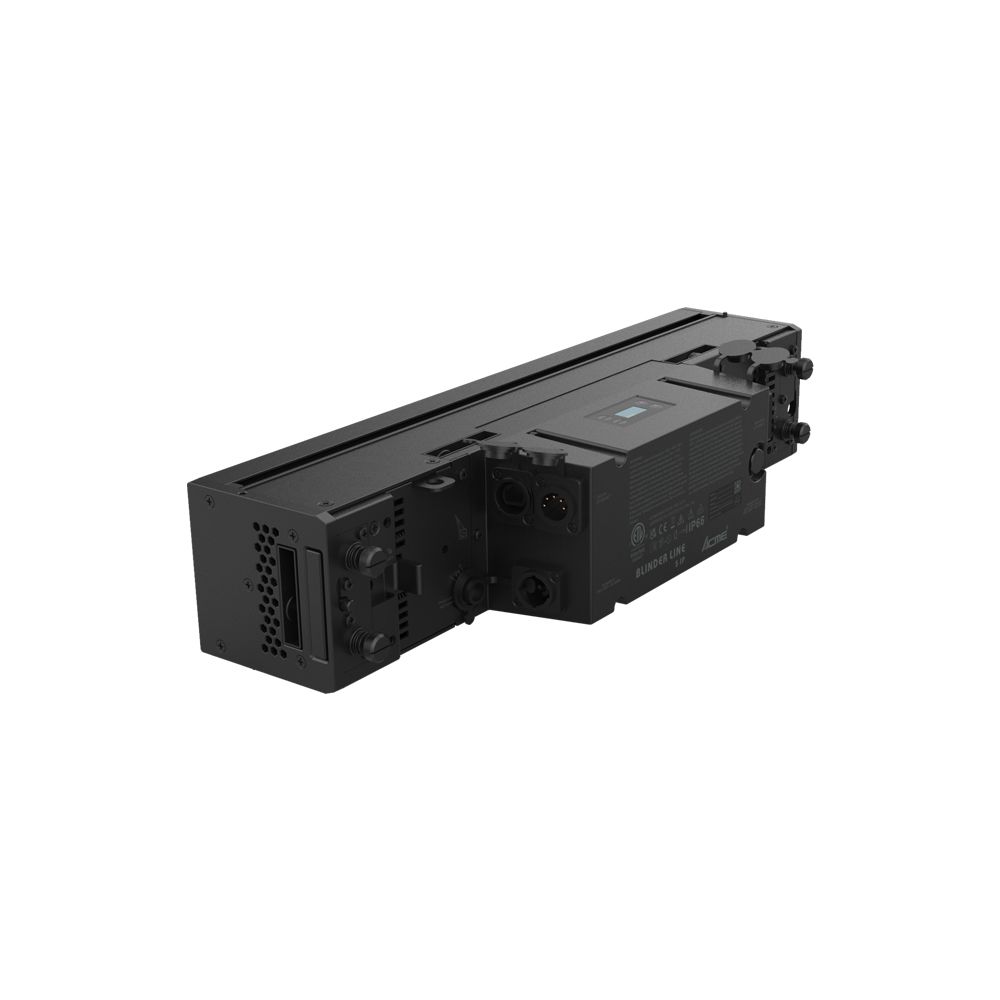

• Power In/Out: Waterproof power connector in/out

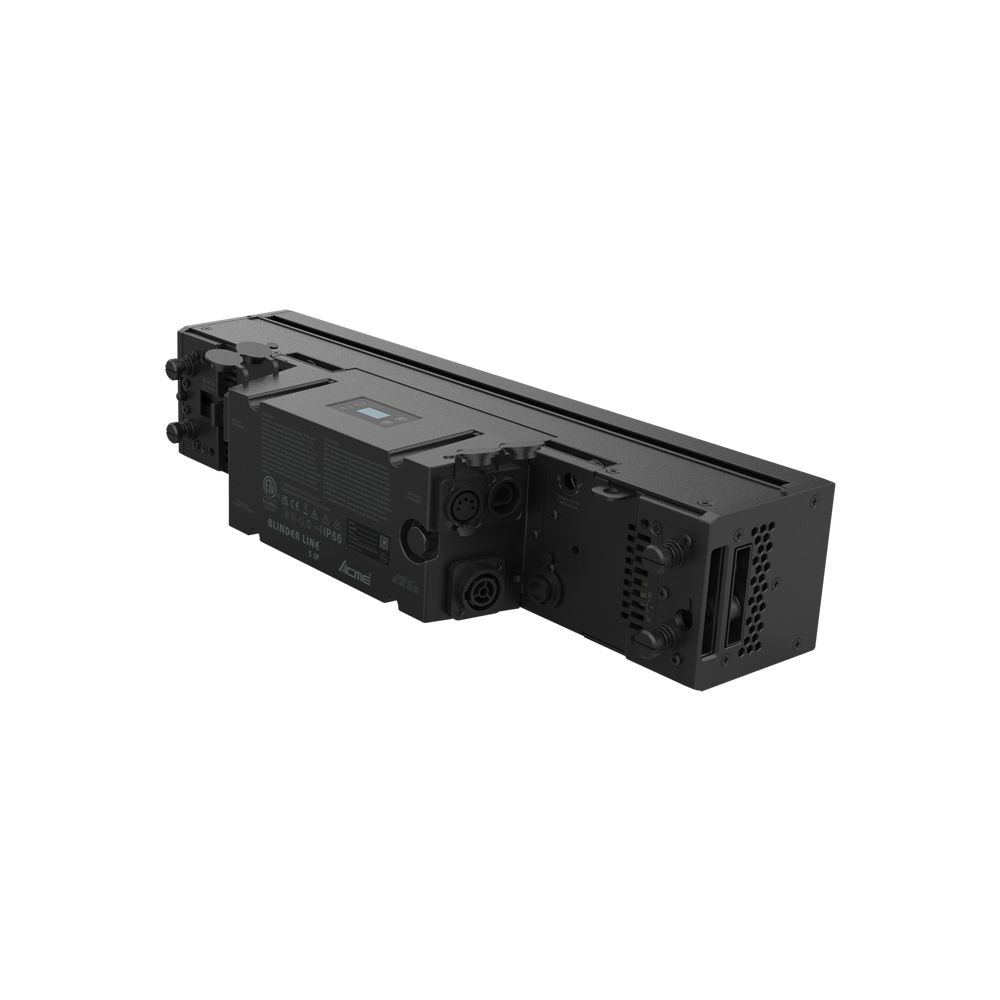

• Data In/Out: 5-pin waterproof XLR, RJ45 connector

Physical Information

• Fixture Dimensions:
  • Width: 500 mm (19.7″)
  • Depth: 103.3 mm (4.1″)
  • Height: 160.3 mm (6.3″)
  • Weight: 7.7 kg (17.0 lbs)

Packing Information

• Flight Case Dimensions:
  • International Standard:
    • Width: 880 mm (34.6″)
    • Depth: 580 mm (22.8″)
    • Height: 890 mm (35.0″)
    • Weight:
      G.W.: 115 kg (253.5 lbs) (eight-pack loader case)
  • North American Standard:
    • Width: 1,220 mm (48.0″)
    • Depth: 610 mm (24.0″)
    • Height: 850 mm (33.5″)
    • Weight:
      G.W.: 179 kg (394.6 lbs) (twelve-pack loader case)
• Carton Dimensions:
  • Width: 630 mm (24.8″)
  • Depth: 245 mm (9.6″)
  • Height: 210 mm (8.3″)
  • Weight: 9.0 kg (19.8 lbs) (one-pack loader carton)

Work environment

• Maximum Ambient Temperature: 40°C
• Minimum Operating Temperature: -10°C
• Maximum Surface Temperature: 70°C
• Protection Rating: IP66

Approvals

• CE compliant
• UKCA compliant
• cETLus compliant

Installation

• Horizontally or vertically mounting
• Universal working position

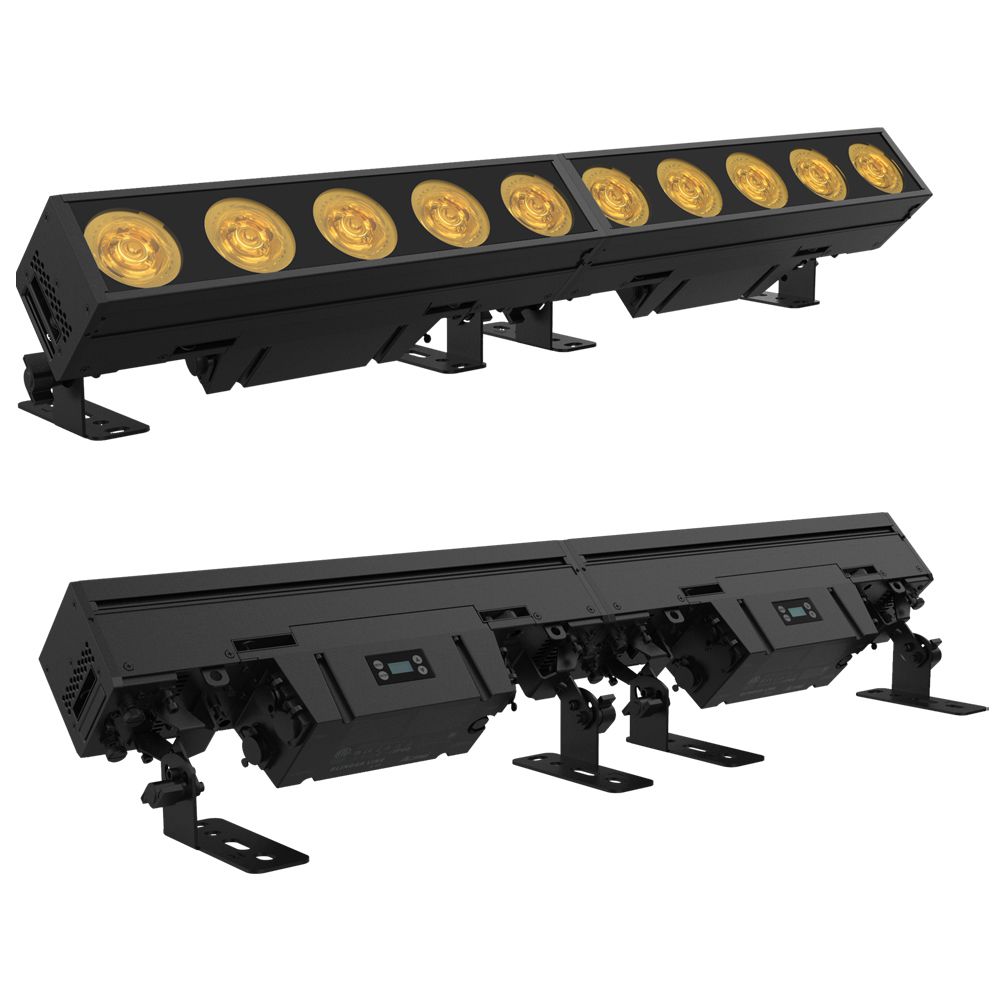

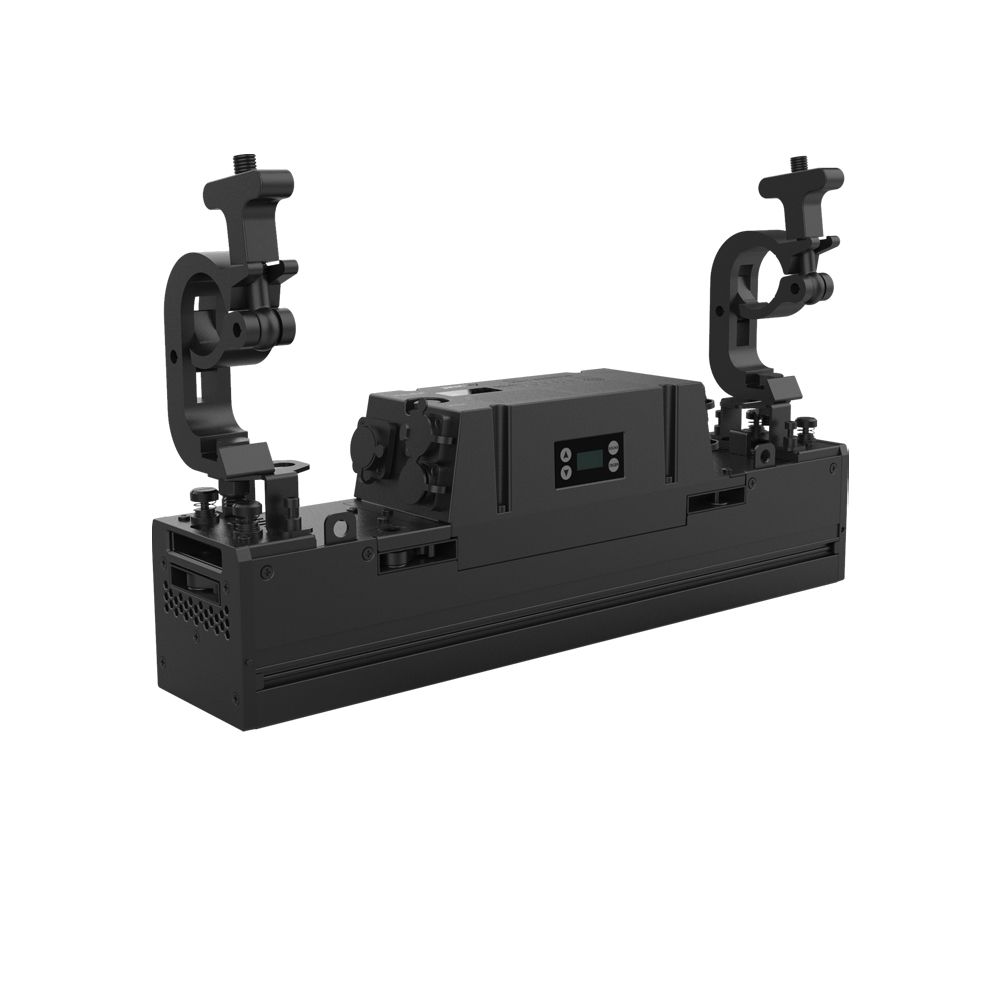

• Horizontal: Utilizing two brackets (supplied) and clamps (by others), a maximum of 6 fixtures may be connected
• Vertical: Using one hanging bracket (sold separately) with clamp (by others), a maximum of 5 fixtures may be connected

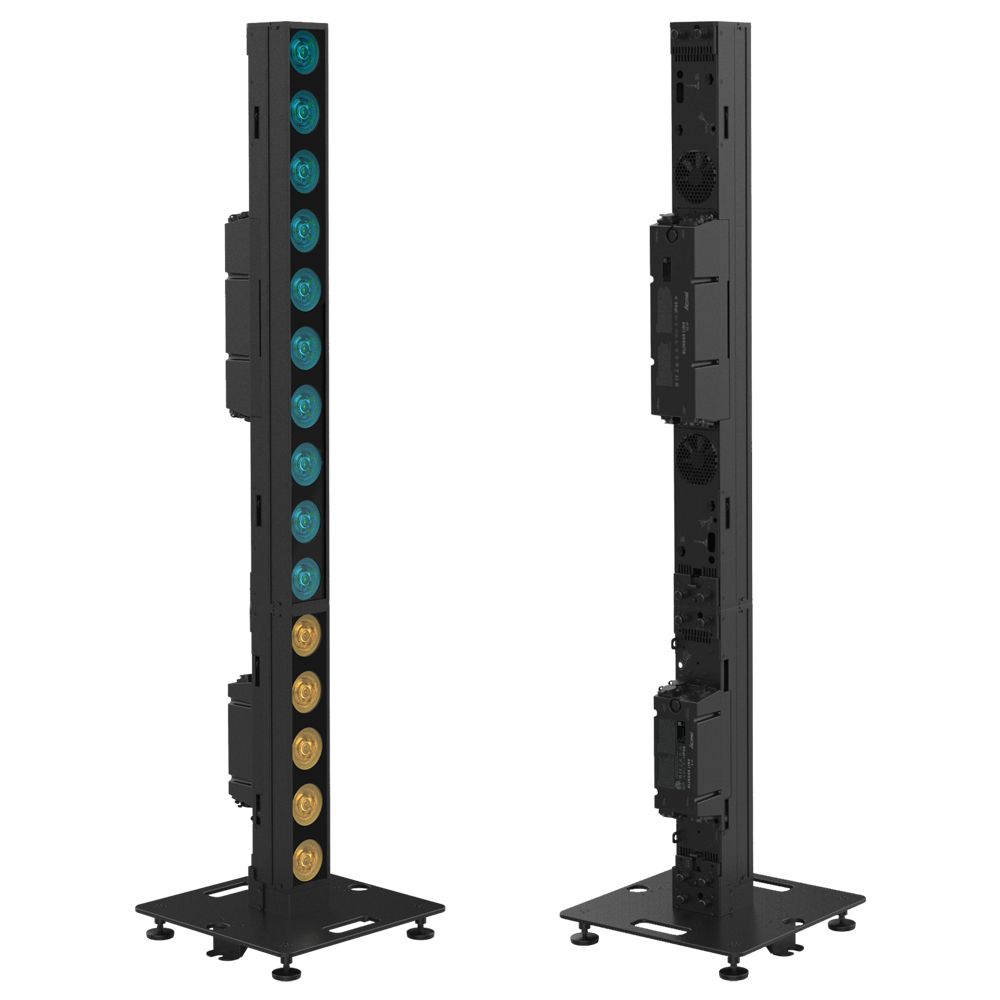

• Vertical Stand: Mounted to one floor stand (sold separately), a maximum of 2 fixtures may be connected
• Floor: Two floor brackets (sold separately)
• Safety cable attachment point

Included Items

• Digital user manual
• Power cable with TRUE1 type connector

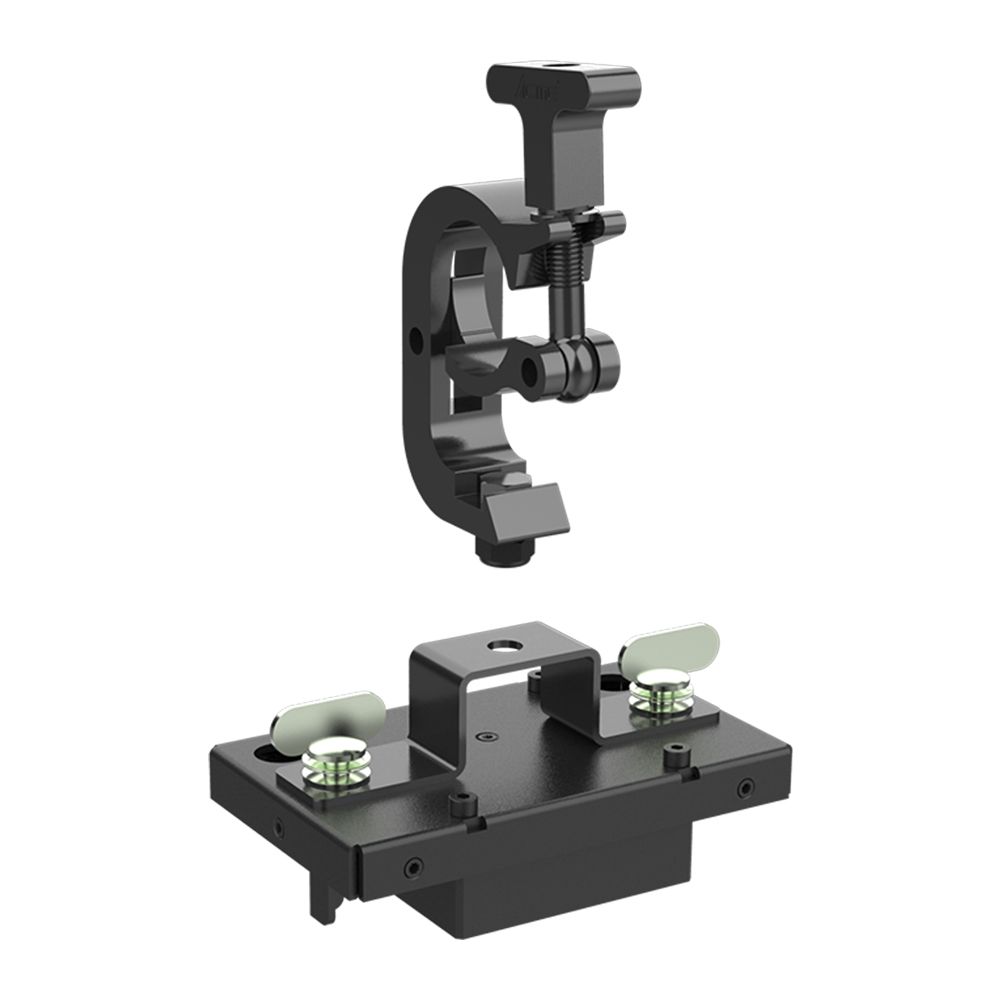

• 2 x brackets (4015240180)

Optional Accessories (with item code)

• Flight Case:
  • International Standard: 3205001359 (eight-pack loader case)
  • North American Standard: 3205110039 (twelve-pack loader case)
• BLINDER LINE Series Base Stand: 63582785

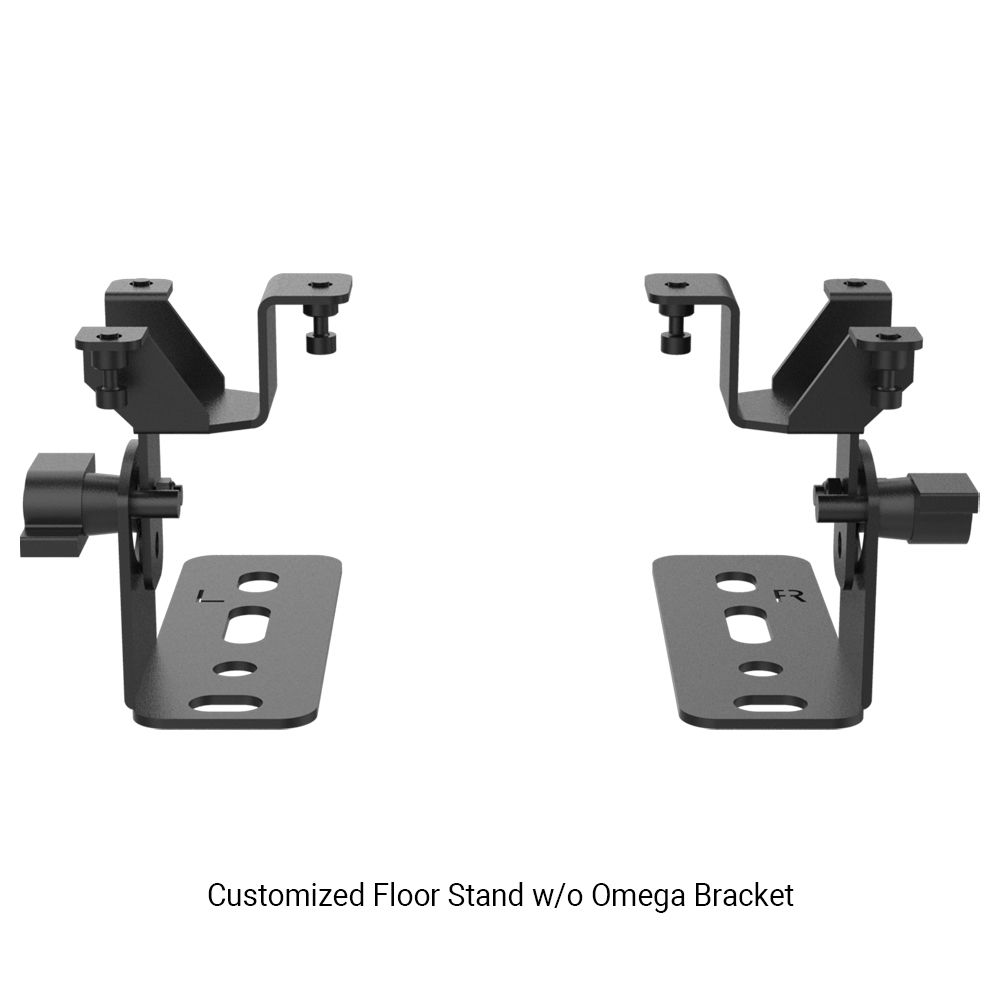

• Customized Floor Stand w/o Omega Bracket: 63583364 (in pair)
• BLINDER LINE Series Hanging Bracket: 63582969
• Clamp: 2060001625 (C-150B)
• Signal Line: 3-pin waterproof signal line (3017013468), 5-pin waterproof signal line (3017013473), RJ45
• Safety Cable: 2060001603-A (SW-05)
