Functional Overview

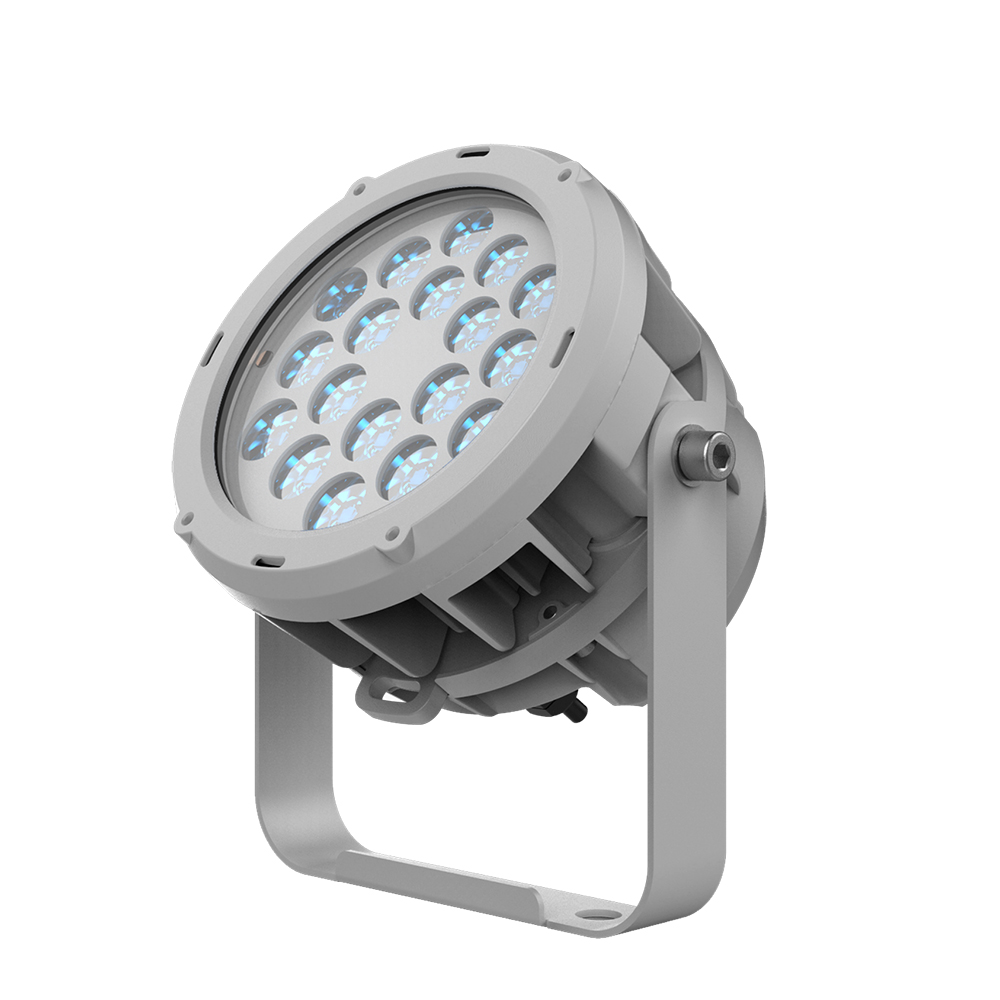

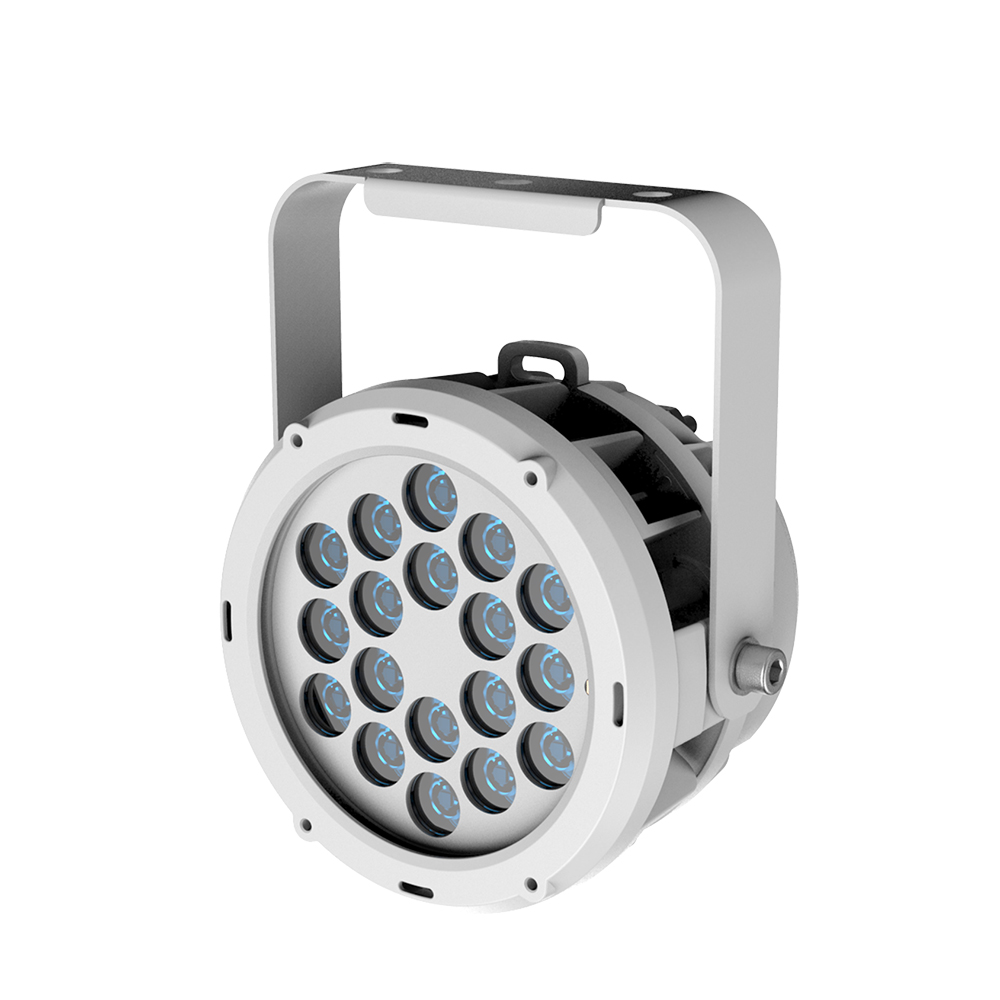

COOLIE 186, an excellent outdoor lighting can unit with 18pcs 6w RGBW LEDs, delivers big power from a rugged flat and compact metal IP66 housing. Multiple angle lenses are ready for you to pick and give you ample control over the flexible color mixing reaching from warm, rich to solid, and pastel washing colors. And outdoor rated power and signal connectors allow for easy connections without mazy cabling. Fitted with an intelligent light sensor that can automatically activate the light and allow the user to set the light duration according to the environment. Suitable to multiple indoor and outdoor par light applications.
Features

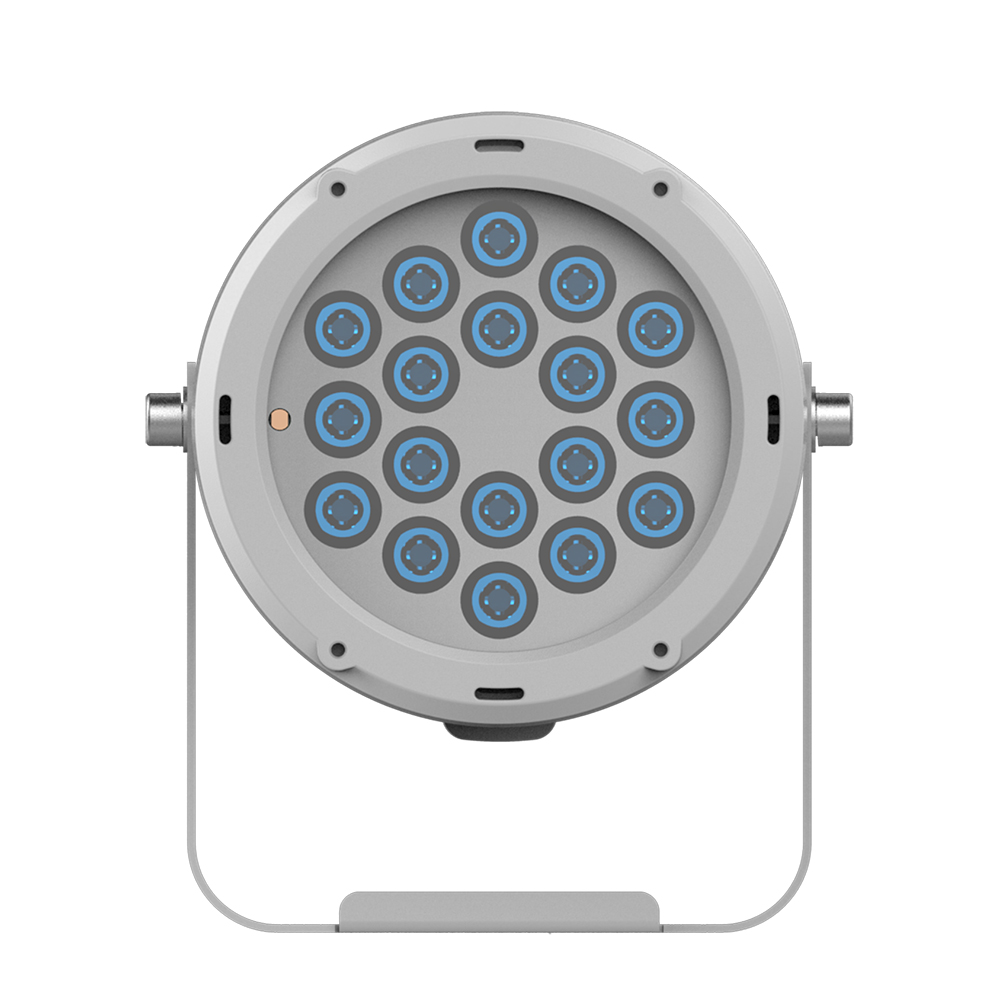

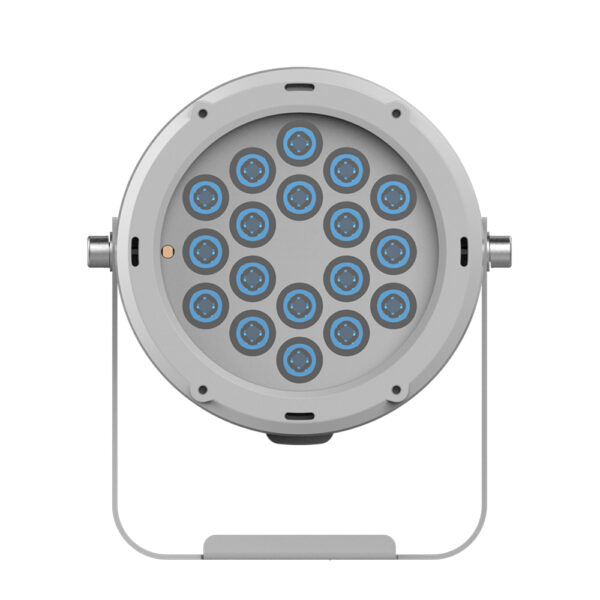

Light Source:18 x 6W RGBW LED
Total lumen output up to 3,276lm (18°)
Variable CTO: 2,500K-8,000K
Compact size, light weight, high light efficiency, low energy consumption
Intelligent light sense can automatically activate the light and set the light duration according to the environment
0-100% smooth dimming
Outstanding strobe effect with variable speed
IP66 protection rating
Optional half or full size anti-glare shield
Technical & Specification
Model
BW 186
Light Source
Light Source:18 x 6W RGBW LED
Life Expectancy: 20,000 hours
Optical System
High – efficiency optical system
Beam Angle: 18°, 22°,24°,43°, 58° (Optional Lenses)
Field Angle:37°, 45°,53°, 77°, 95°
Control and Program

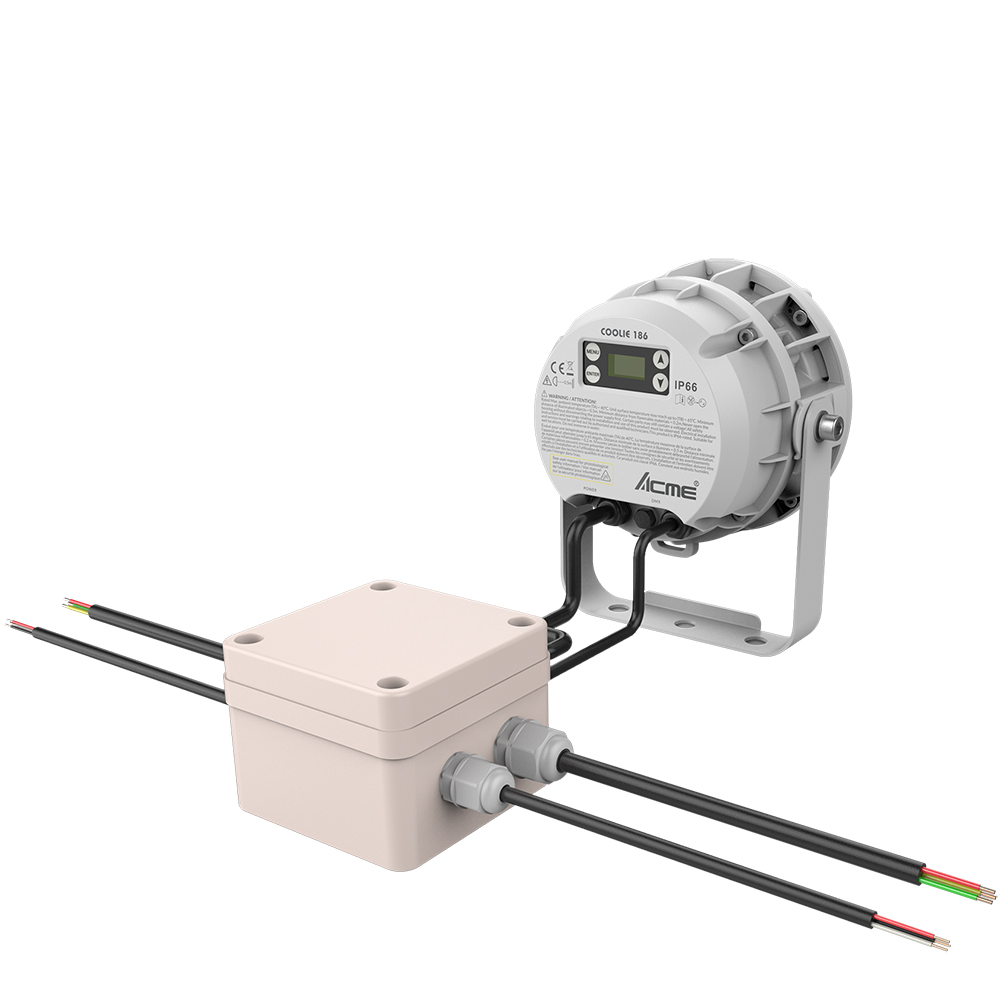

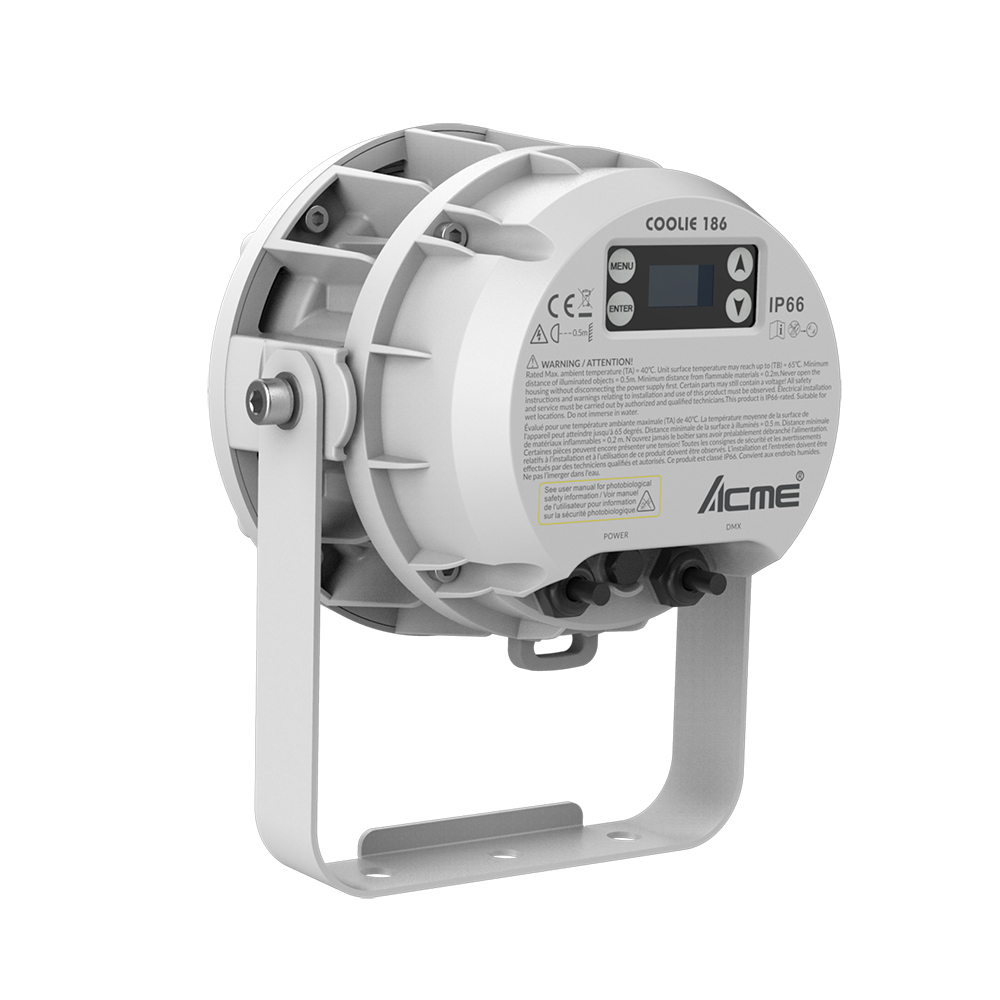

4-Button touch panel
Display: OLED display
Protocols: DMX512, RDM
DMX Protocol modes: 4
Control channels:10/8/5/4
Firmware Upgrade: Upgrade via DMX link
Electrical and Connectors
Input voltage range: 100-240V~ 50/60Hz
Power consumption:55W

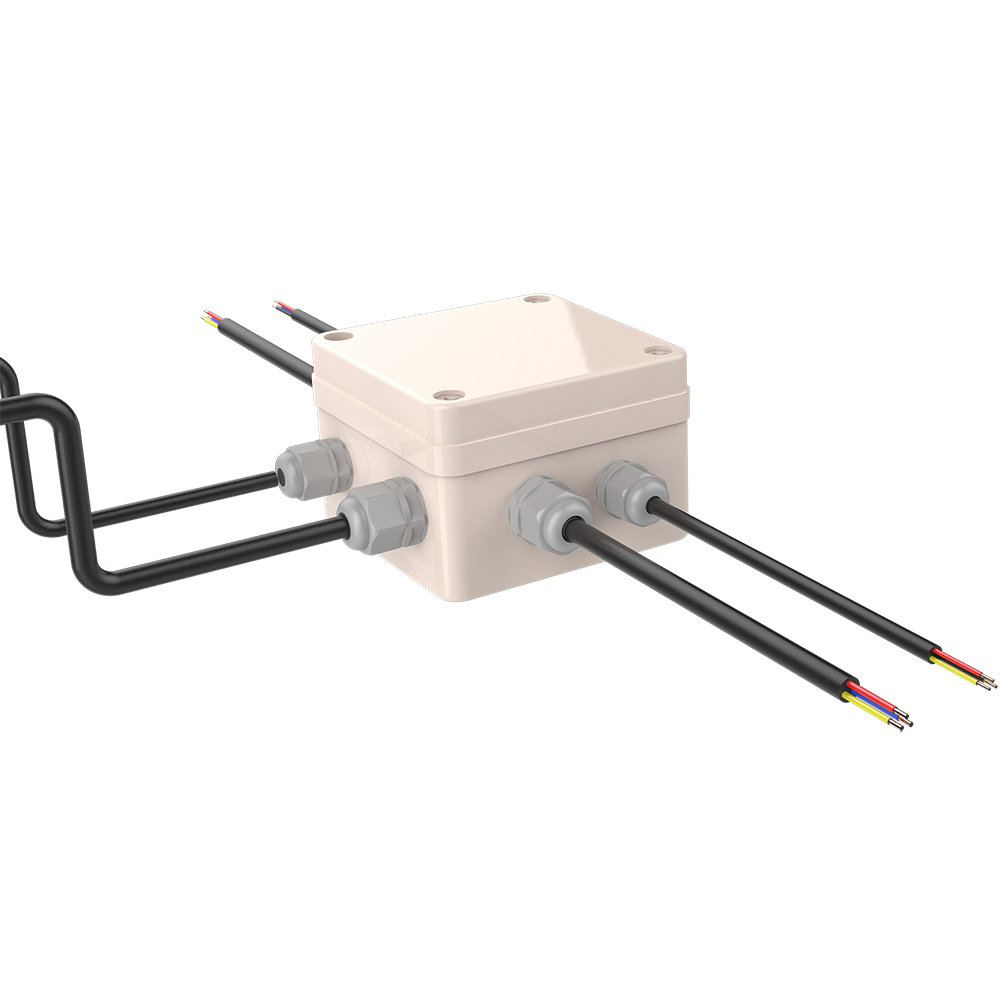

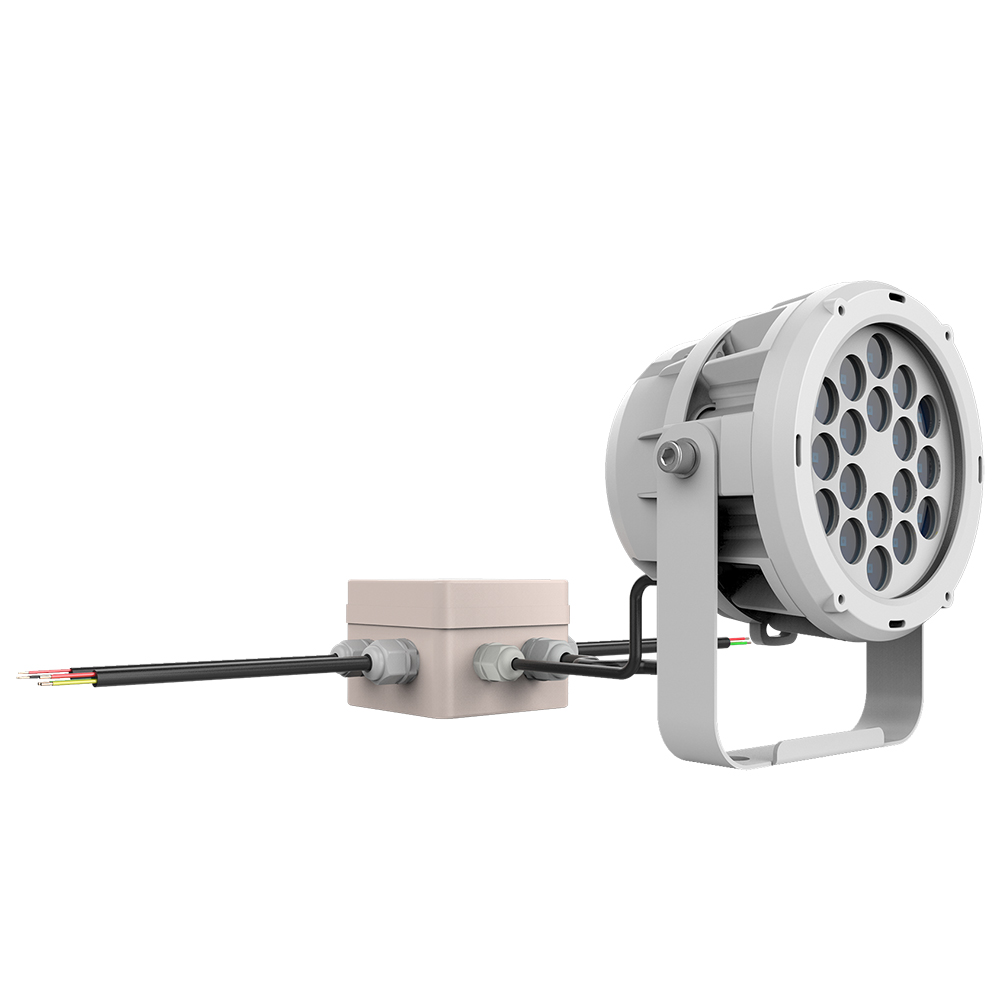

Power In/Out: bare wire output
Date In/Out: bare wire output

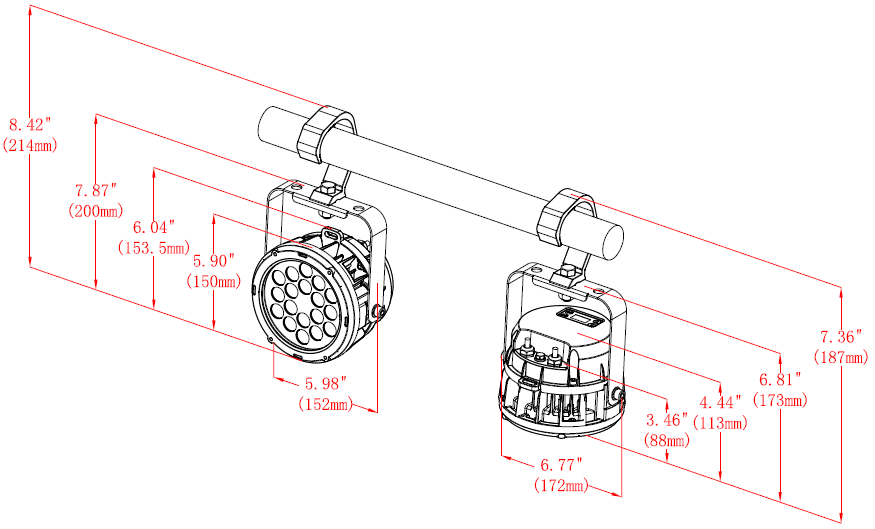

Fixture Specification
Width: 200mm (7.9″)
Depth: 172mm (6.8″)
Height: 113mm (4.4″)
Weight: 2.2kg (4.9lbs)
Carton Dimensions
Width: 260mm (10.2″)
Depth: 230mm (9.1″)
Height: 185mm (7.3″)
Weight: 2.3kg (5.1lbs)(one-pack per carton)
Work Environment
Maximum ambient temperature: 45°C
Maximum surface temperature: 75°C
Minimum operating temperature: 0°C
Neutral salt spray: 720 hours
Approvals
CE compliant
Installation
Available in horizontal or vertical mounting
Universal operating position
The feet support with 3 locking points
Safety Rope Hole
Included Items
Digital User Manual
Factory certificate and warranty card
Optional Accessories (with item code)
Anti-glare shield:

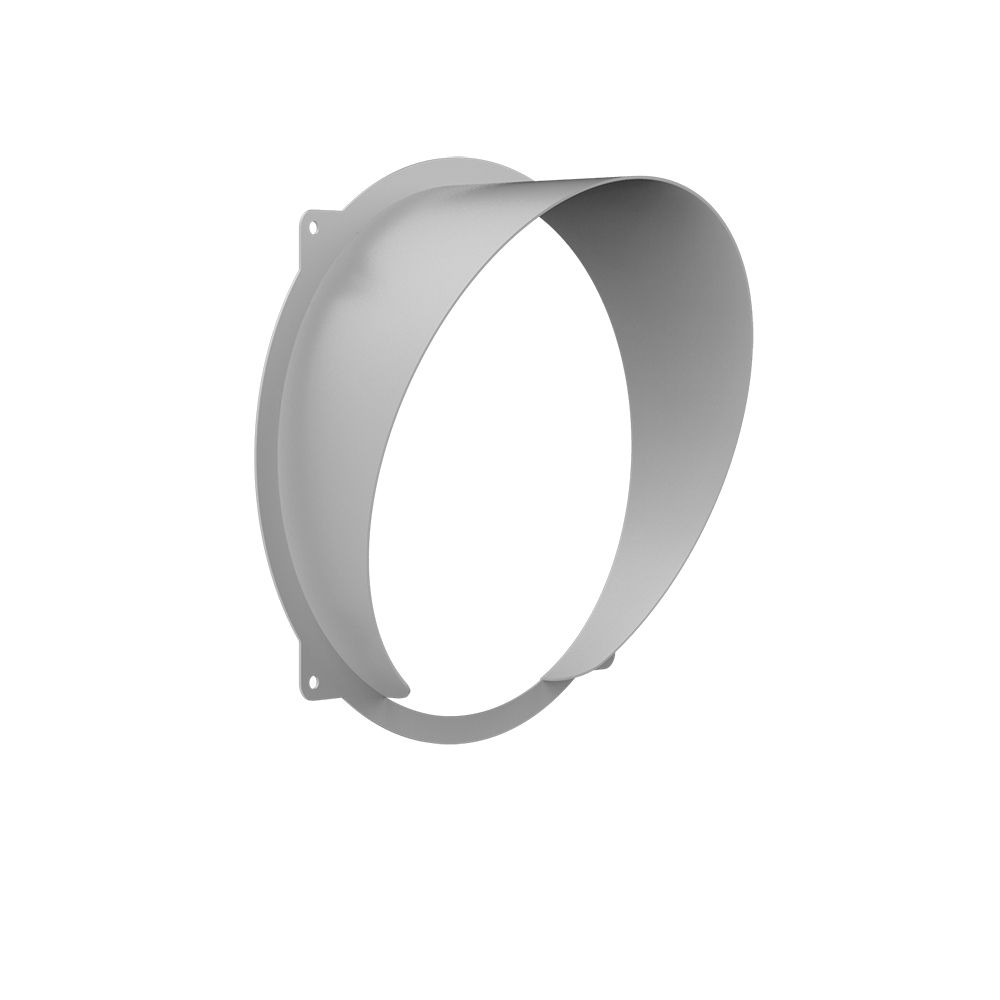

Half anti-glare shield: 4100010010

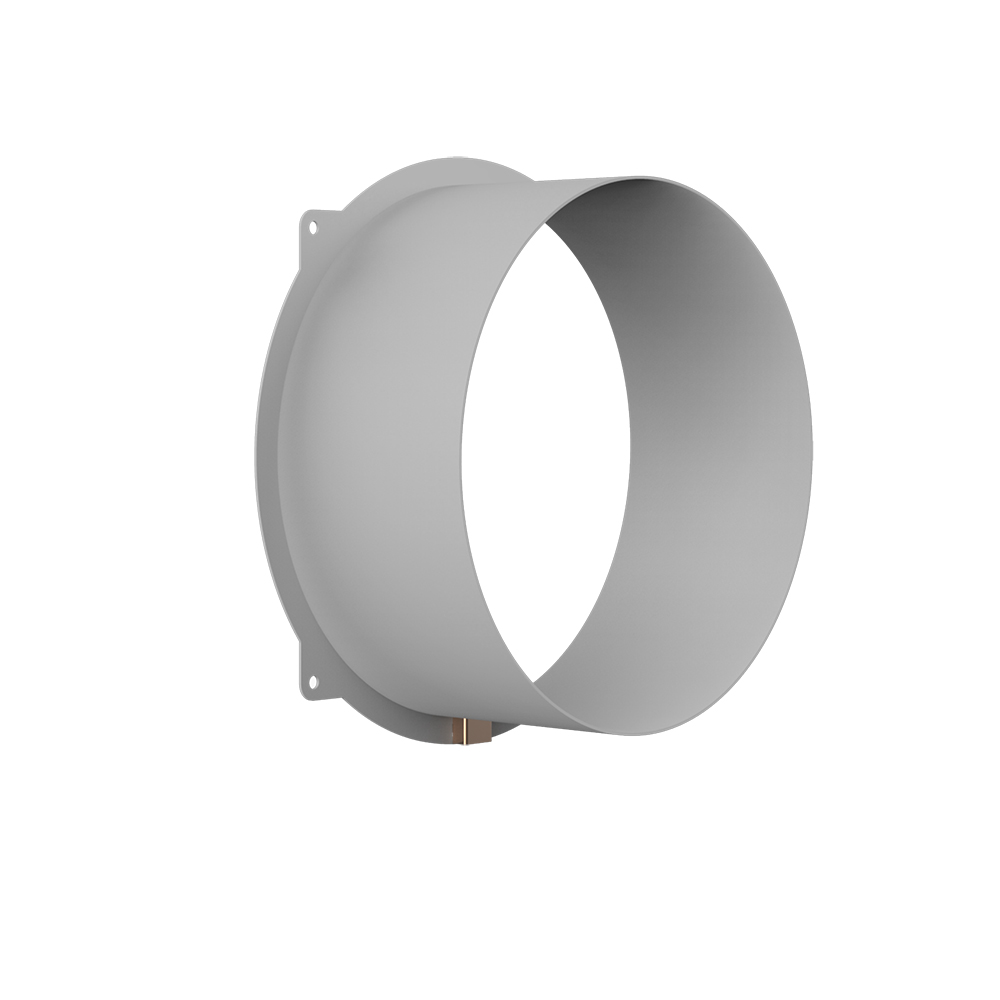

Full anti-glare shield: 4100010100
Safety cable: 2060000200(SW-02)
