Functional Overview

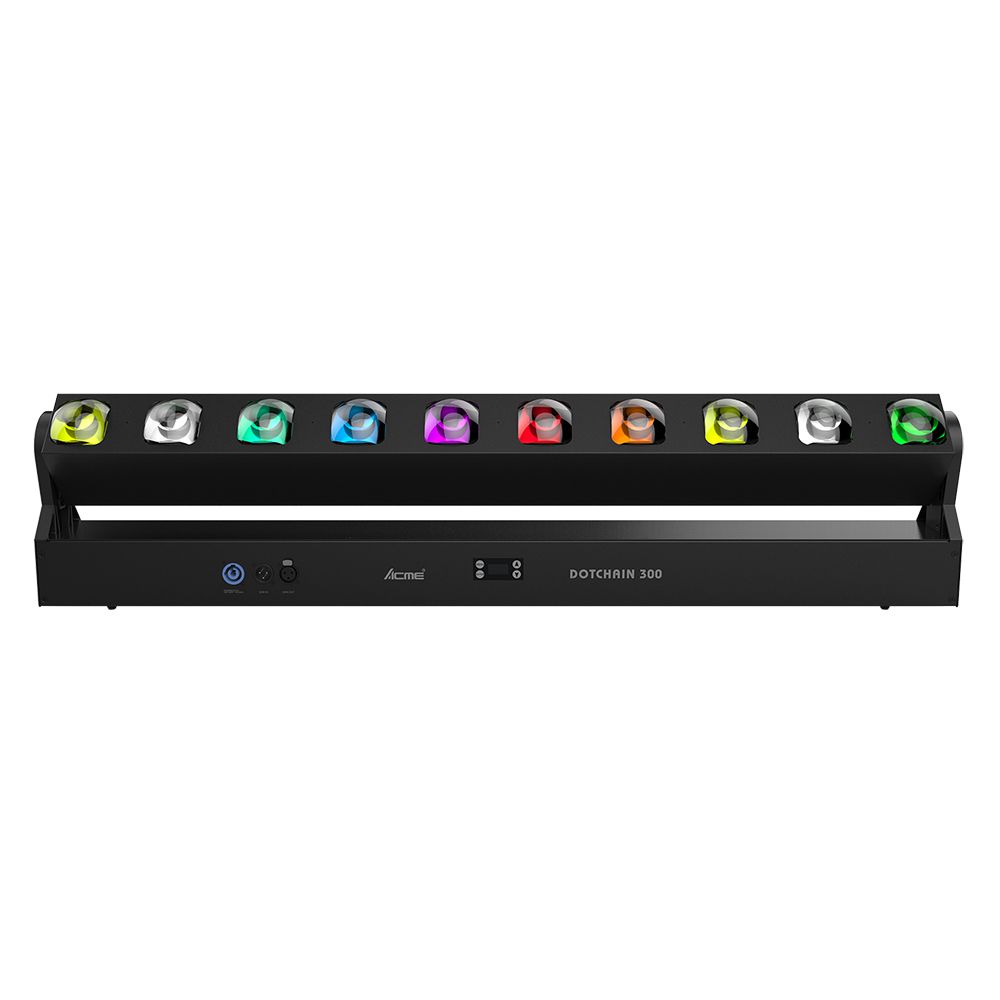

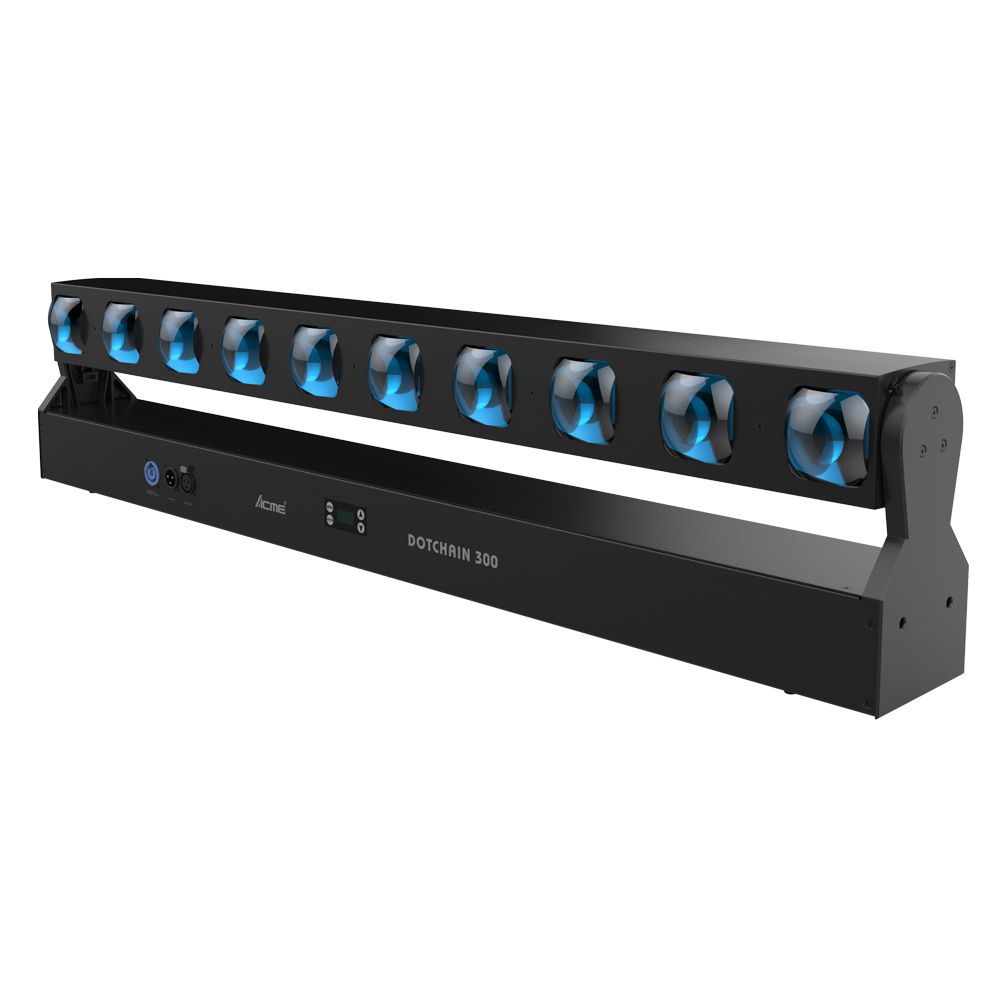

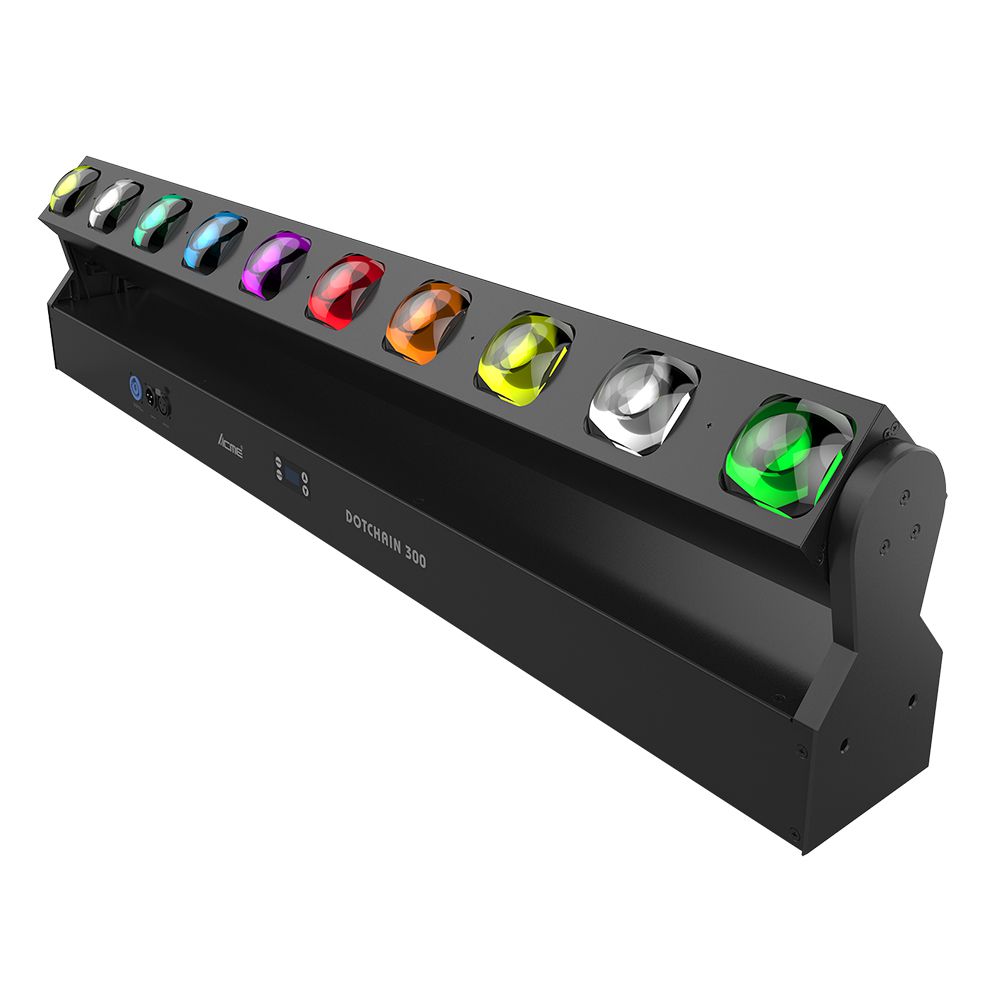

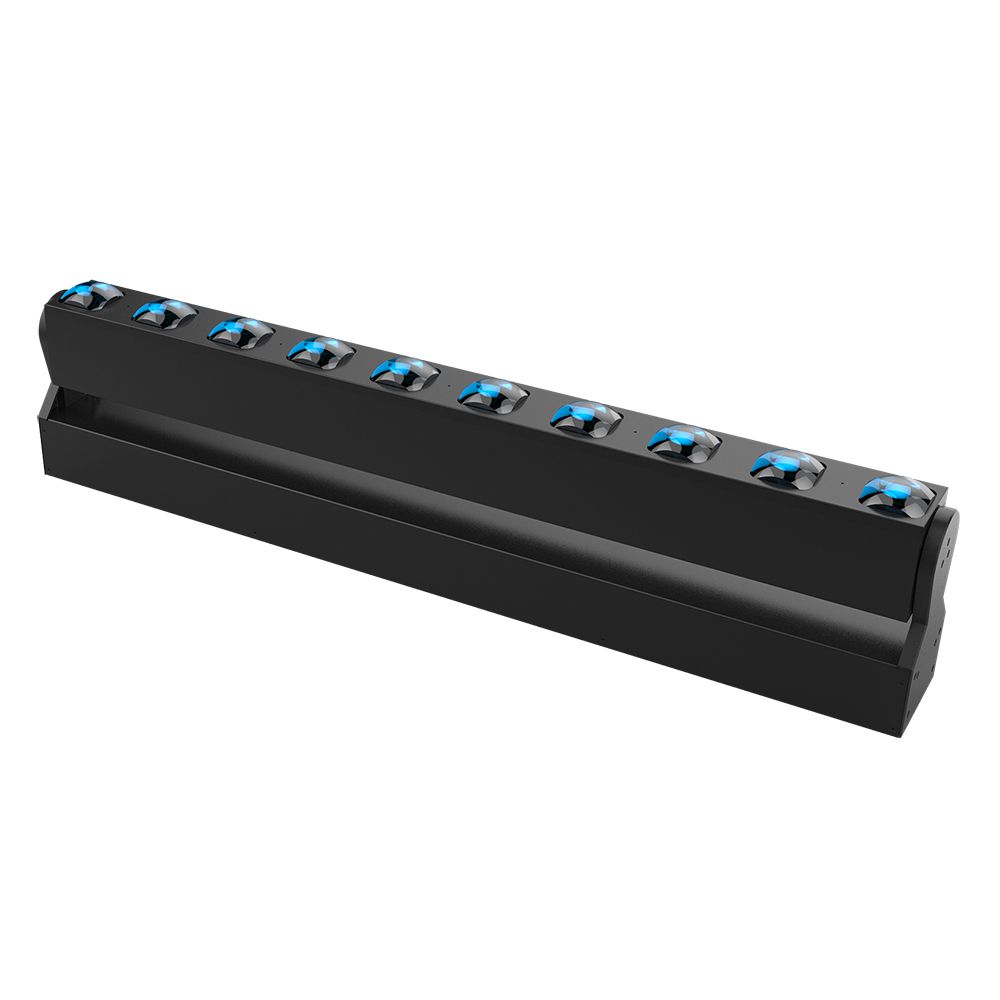

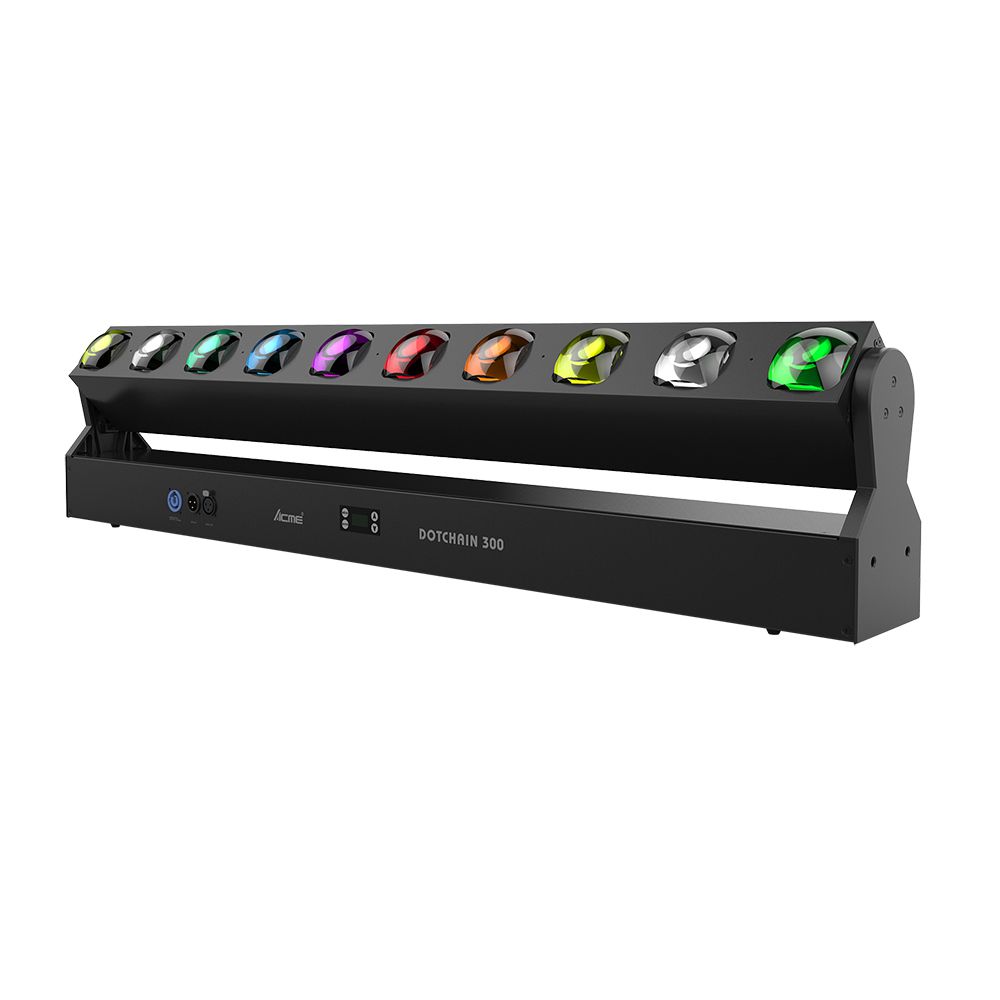

DOTCHAIN 300 newly launched LED bar light, is fitted with 10 premium-quality pixel-controllable 20W RGBW LEDs. With fixed sharp beam angle designed in a tight 2°, Dotchain 300 can deliver powerful beam and shiny strobe. What’s more, the equally-spaced LEDs allow for the creation of multi-unit strips in the horizontal/vertical orientation or any other patterns, with full pixel-mapping capabilities. It also has 220° in tilt movement, making sure the beams can cover the most field of the installation site. Absolutely quiet operation with no fans design will keep it free of externally heavy oil smoke or coloured paper from entertainment applications. With an economic investment, you can decorate the wedding halls, clubs, bars, ballrooms, and other entertainment applications with this all-new DOTCHAIN 300.
Features
- Light source: 10x 20W RGBW LED
- Fixed Beam Angle at a Tight 2°
- 10 LEDs can be controlled individually
- Smooth dimming from 0-100%
- Outstanding strobe effect with variable speed

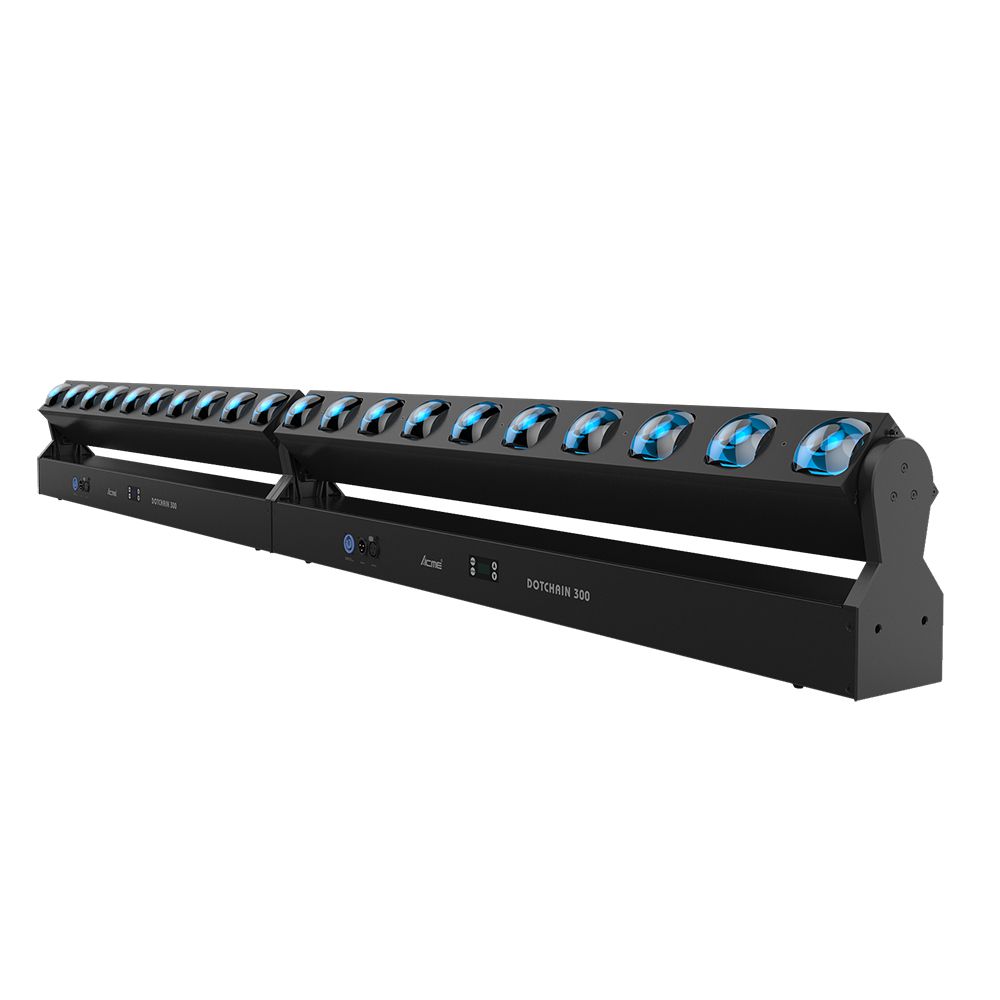

- With the equally-spaced LEDs, it enables an endless layout of multi-unit strips in various patterns.
Model
- BAR 300
Light Source
- Light source: 10x 20W RGBW LED

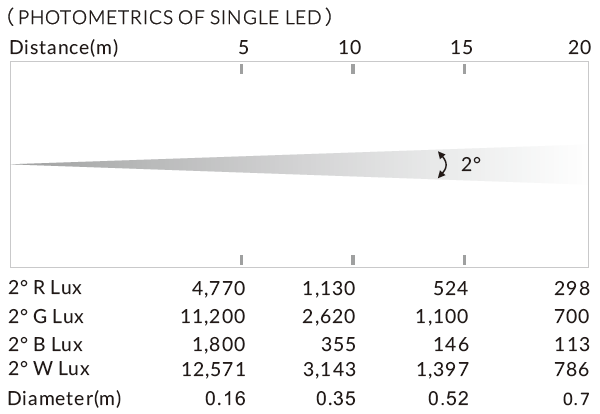

- Beam angle: 2°
Optical System

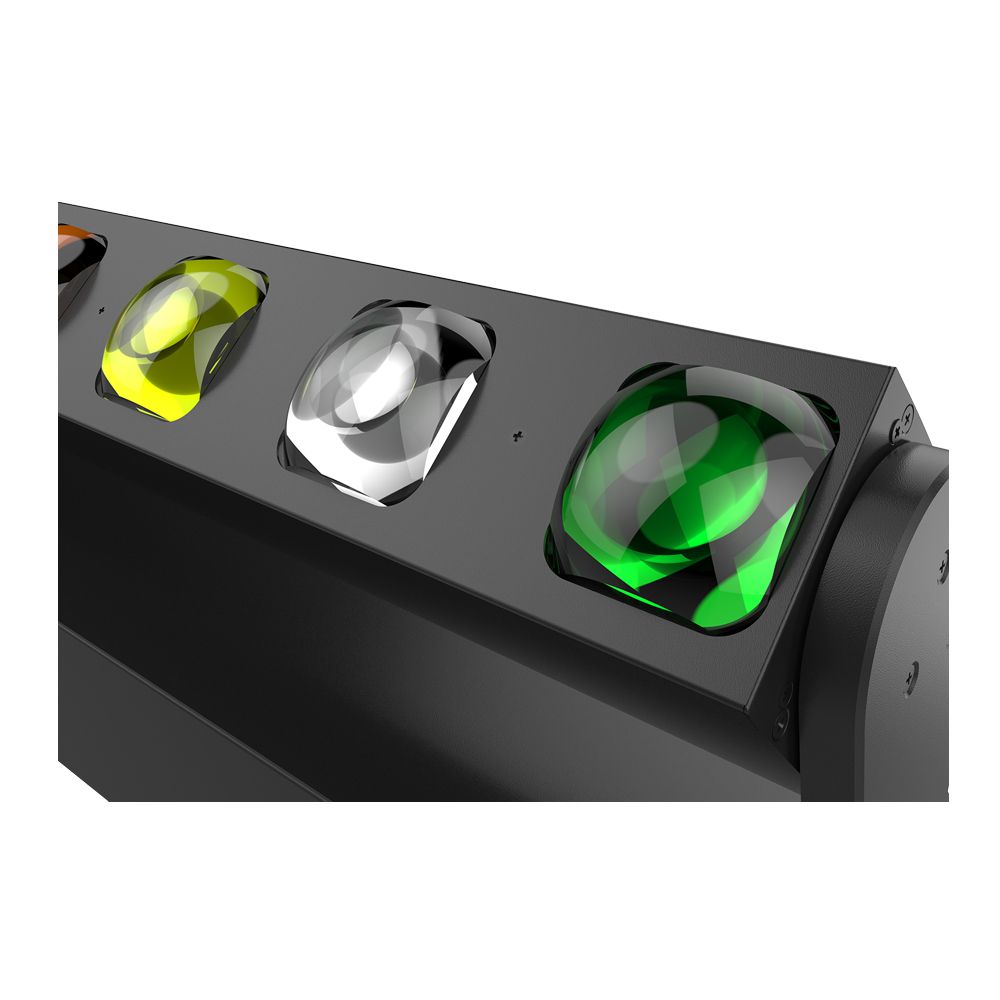

- Advanced optical design and high-efficient lenses to ensure the tight beam angle
Control and Program
- 4-buttons touch panel
- Display: OLED display
- Protocols: DMX512, RDM
- DMX Protocol modes: 2
- Control channels: 47/12
- Upgrade the firmware via DMX link
Pan & Tilt
- Tilt movement: 220°
Electrical and Connectors
- Input voltage range: 100-240V~ 50/60Hz
- Power consumption: 180 W
- Power in/out: Power Connector in/out
- Data in/out: 3-pin / 5-pin XLR

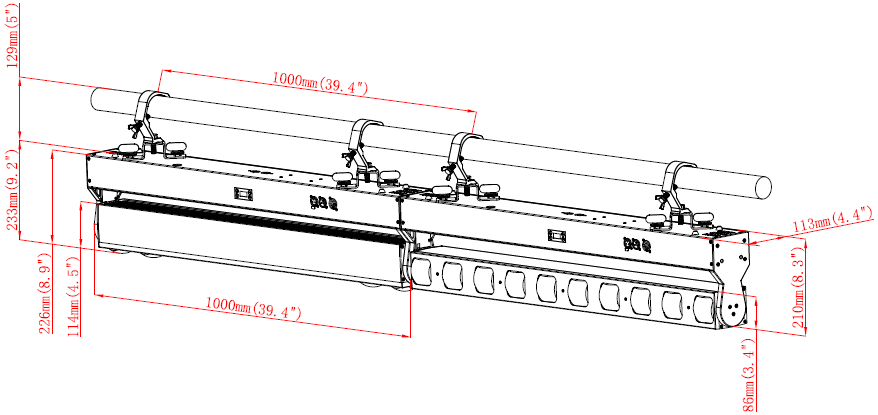

Fixture Specification
- Height: 1,000mm (39.4″)
- Width: 117mm (4.6″)
- Depth: 233mm (9.2″)
- Weight: 11kg (24.3lbs)
Carton Specification
- Height: 1,095mm (43.1″)
- Width: 315mm (12.4″)
- Depth: 230mm (9.1″)
- Weight: 13kg (28.7lbs)(One-pack per carton)
Work Environment
- Maximum ambient temperature: 45°C
- Minimum operating temperature: 0°C
- Maximum surface temperature: 56°C
- Protection rating：IP20
Approvals
- CE compliant
nstallation
- Horizontally or vertically mounting are available
- Operating position is universal

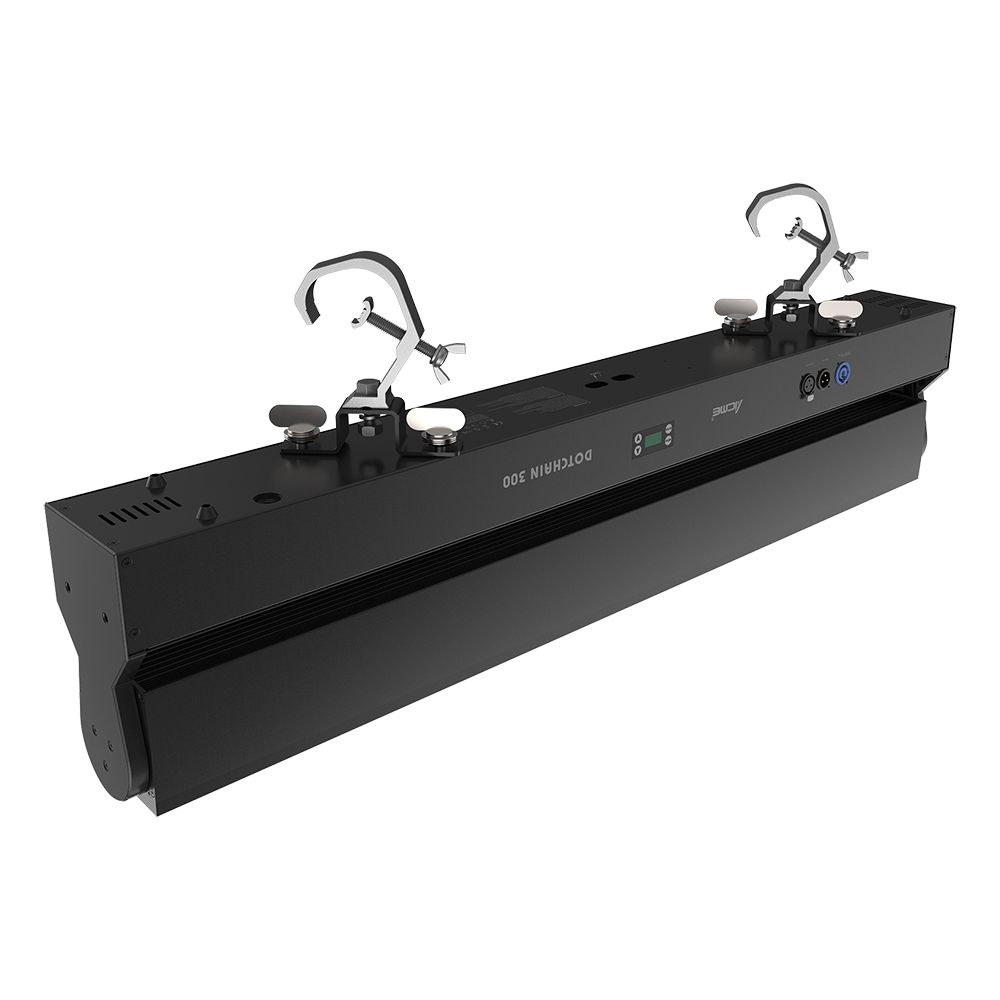

- 2 x Fast-locked clamps for 50 millimeter truss
- Safety Rope Hole
Included Items
- Digital User Manual
- Power Cable
- 2 x Fast-locked clamps for 50 millimeter truss
Optional Accessories (with item code)
- Signal Line: 3/5-pin XLR signal line
- Safety cable: 2060000200(SW-02)
