Acme – EYES CVW

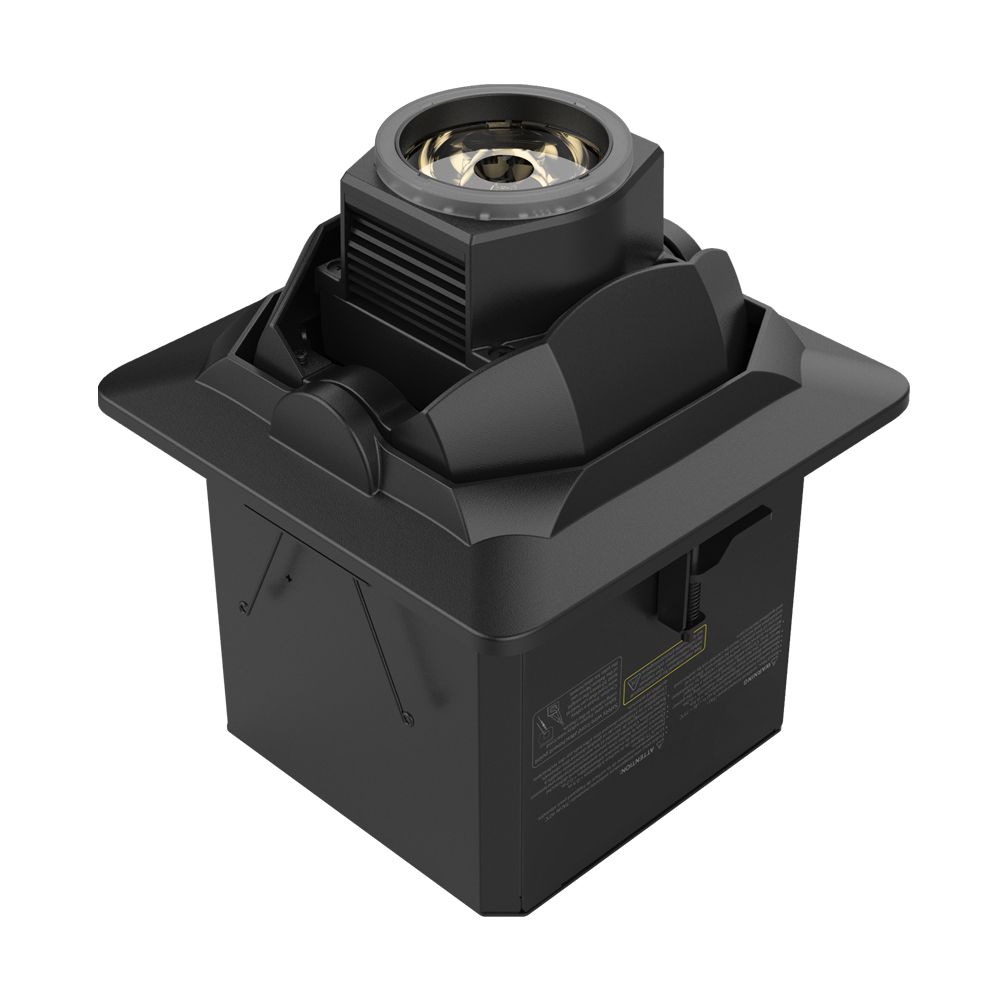

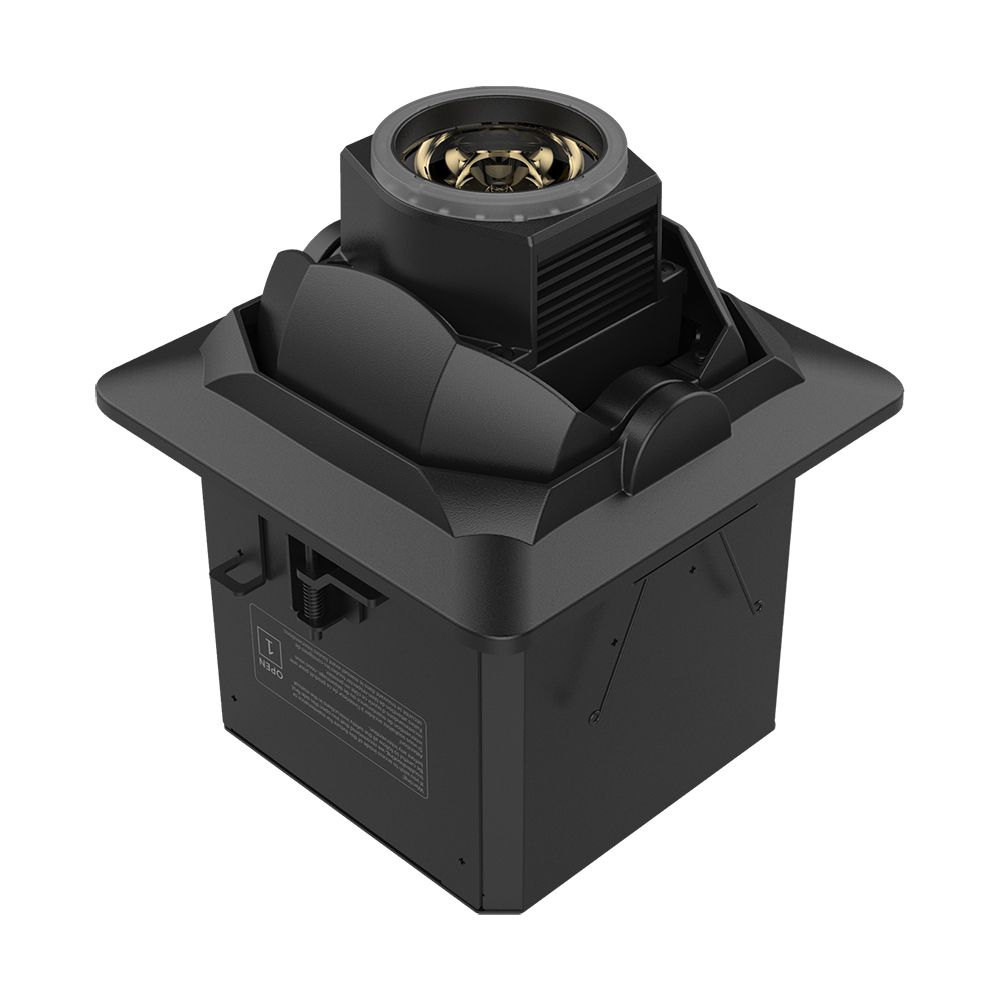

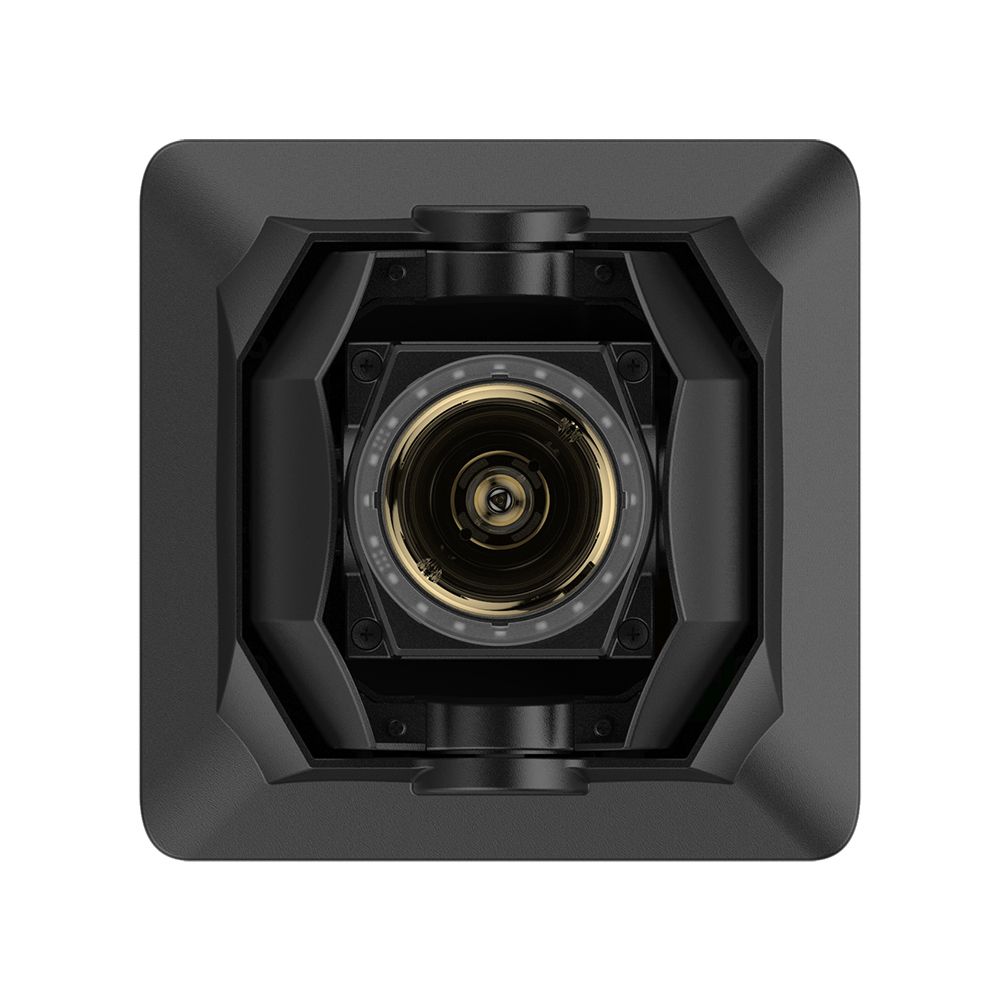

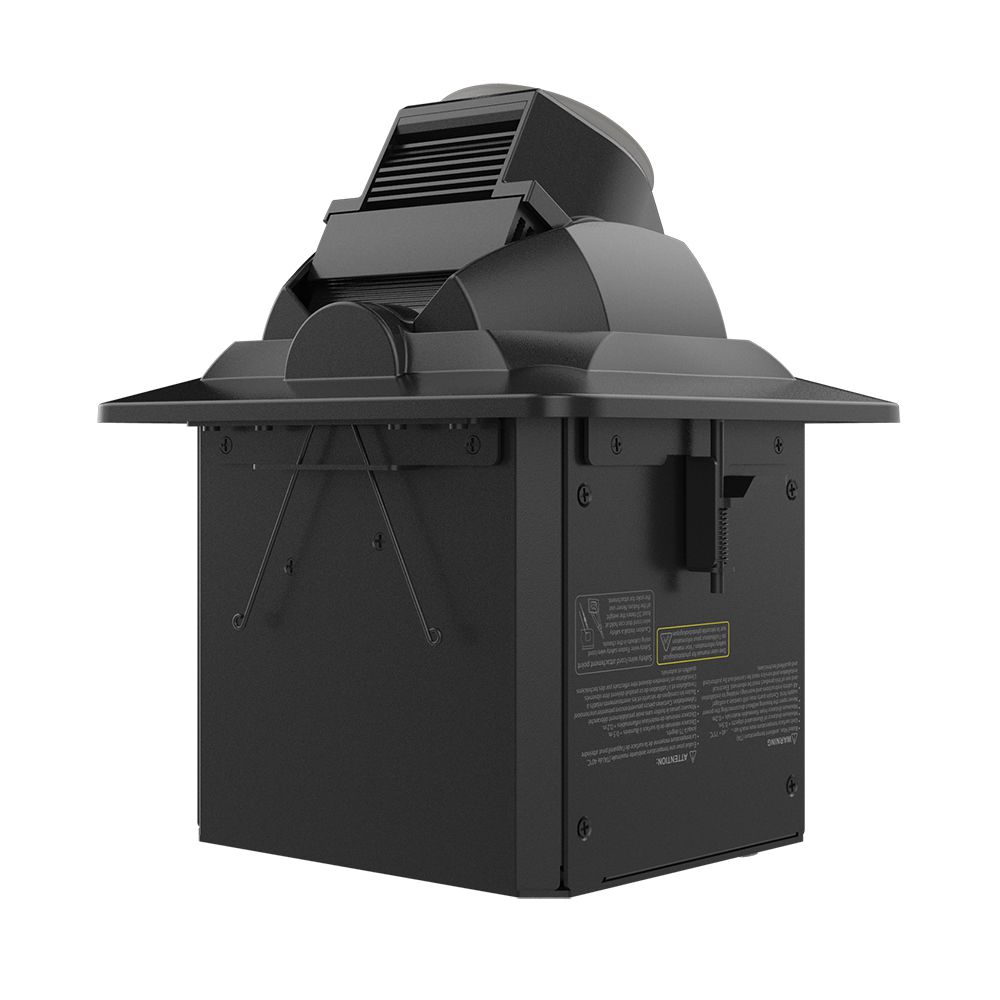

EYES CVW is an effect light suitable for small performance venues such as bars, clubs, weddings, TV stations, and theaters.The design of the lamp is compact and light, and the shape is flexible and changeable; with a circular LED lamp ring, which integrates point-by-point control, circle control, strobe, dimming, surface light and other functions, and a unique ultra-short-distance XY-axis structure design, which can pass the XY-axis The rotation angle realizes the dynamic effect of drawing and 3D space, which provides the lighting designer with unlimited creative fun. It can also be built into the ceiling. It is suitable for various entertainment venues such as bars, KTVs, hotels, banquet halls, etc.

Features
Light source:
1x 40W cold/warm white LED
20 x 0.5W RGBW ring LED
Zoom range: 5°/23°
Effects: With ring led, it can pixel control, circle control, strobe, dimming, surface lighting and other functions
Single point control, adjustable color temperature,Color rendering index RA≥95
High light efficiency, low energy consumption, good heat dissipation, low noise, long life
Compact design, small size and light weight
Smooth dimming from 0~100%
Multi-speed strobe effect
Can be quickly spliced horizontally and vertically, embedded in the ceiling and fixed-point installation

Technical & Specification
Model
BEAM 50C VW

Light source
1x 40W cold/warm white LED
20 x 0.5W RGBW ring LED
LED life expectancy: 20000 hours

Optical system and Effects

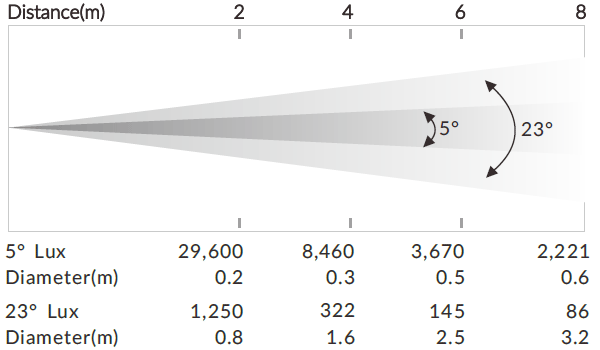

Zoom range: 5°/23°
Color temperature:3000~6000K
LED can be controlled pixel by pixel ,Color rendering Ra≥95
High resolution dimmer 0–100%

Control and Program
4-buttons touch panel
Display: OLED display with battery backup
Protocols: DMX512,RDM, Master/Slave
DMX Protocol modes: 2
Control channels: 12 ,27

PAN & TILT
Pan movement: 77°
Tilt movement: 77°
Automatic Pan/Tilt position correction

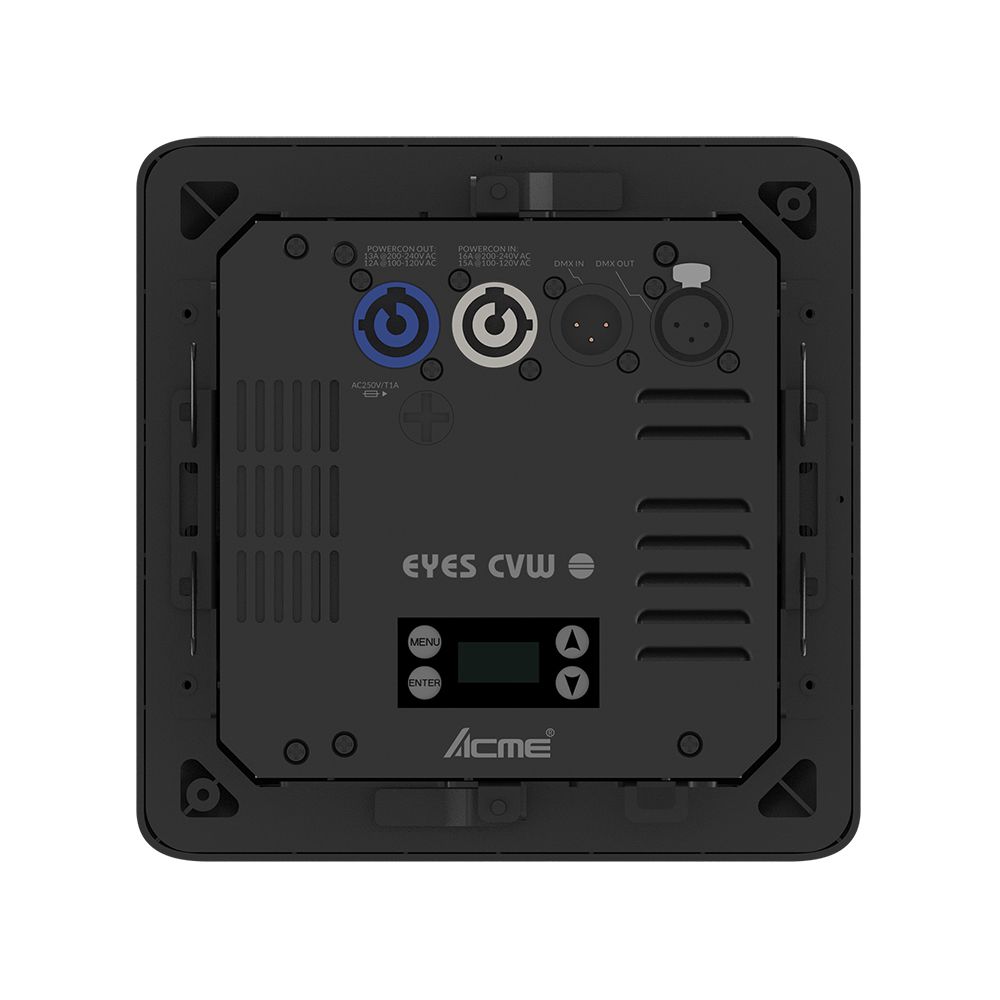

Electrical and Connectors
Input voltage range: 100–240V~ 50/60Hz
Power consumption: 50 W
Power in/out: PowerCon input/output
Data in/out: 3-pin & 5-pin XLR

Fixture Specification

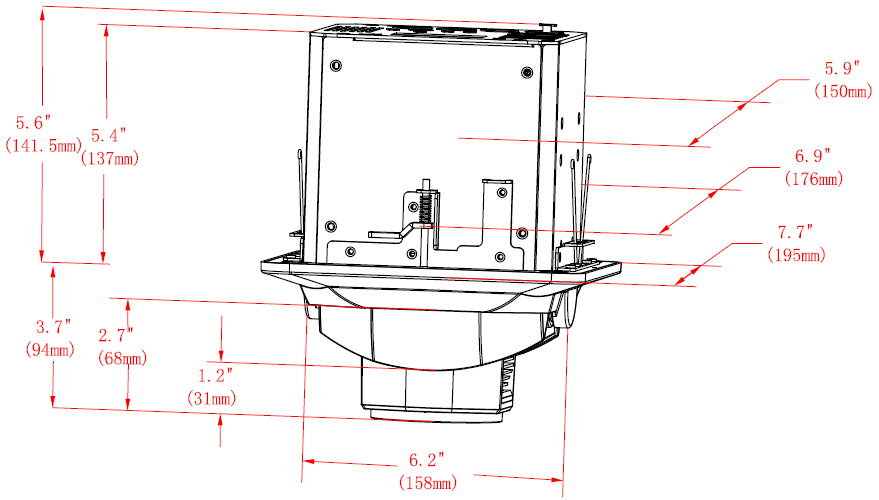

Fixture Dimension:
Width:195 mm (7.67″)
Depth:195 mm (7.67″)
Height: 236 mm (9.3″)
Weight: 3.5 kg (7.7 lbs)
Carton Dimension：
Width:345 mm (13.6″)
Depth:275 mm (10.8″)
Height: 305 mm (12″)
Weight: 4.3kg (9.5lbs) (one pack per carton)

Work environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C

Installation

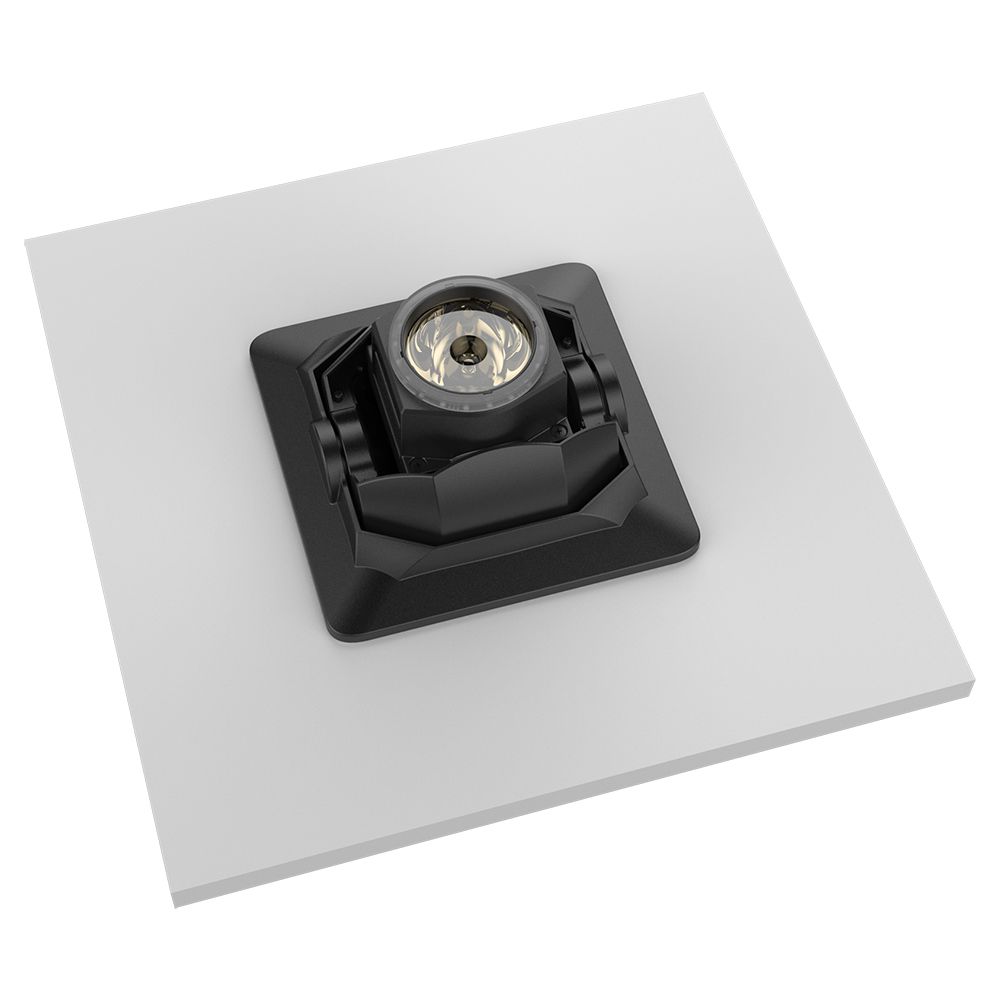

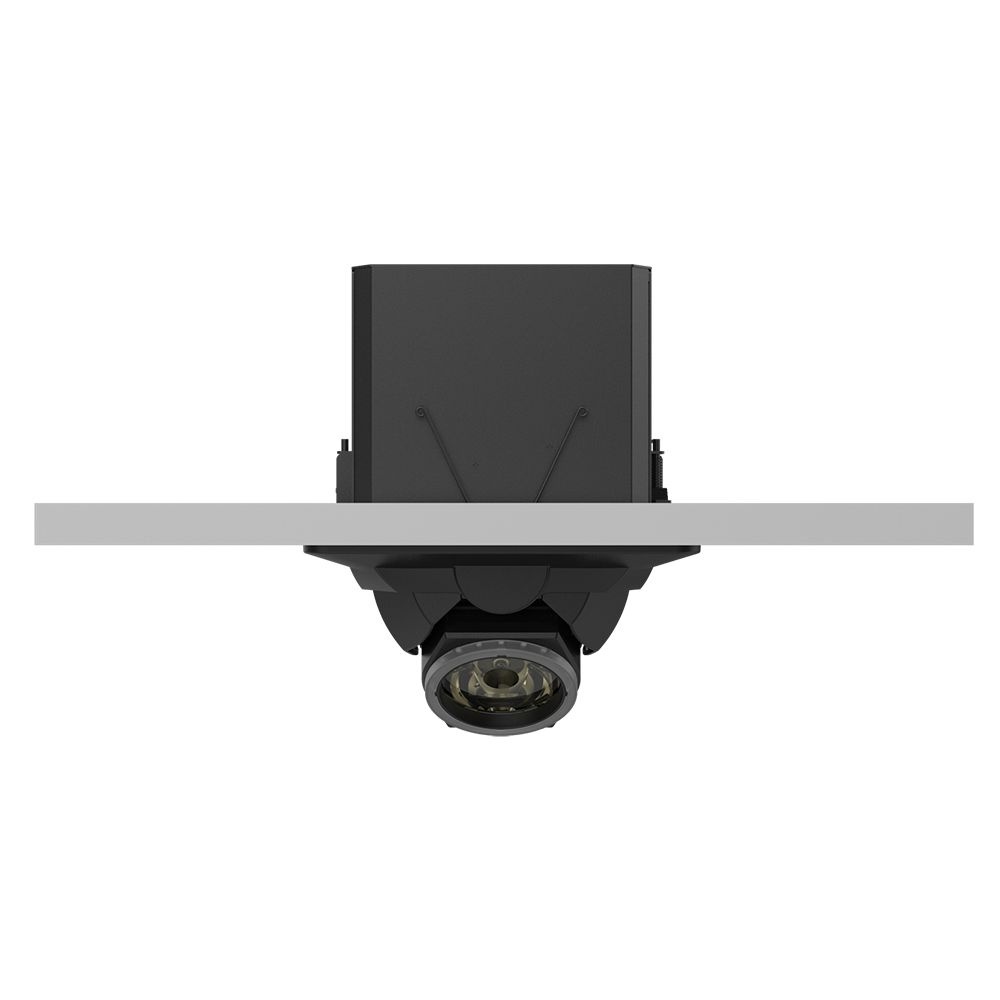

Built-in embedded ceiling fixed point installation
Operating position is universal
Safety cable attachment point
