Acme – EYES VW

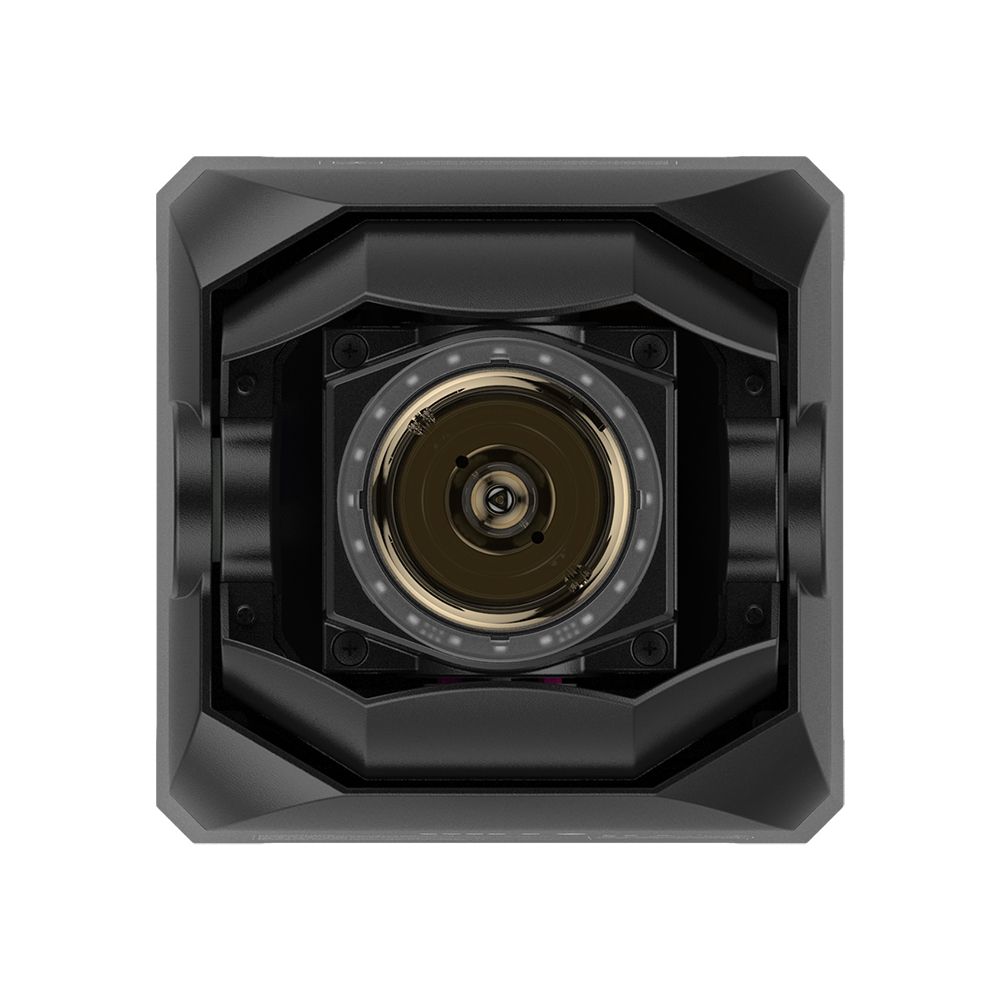

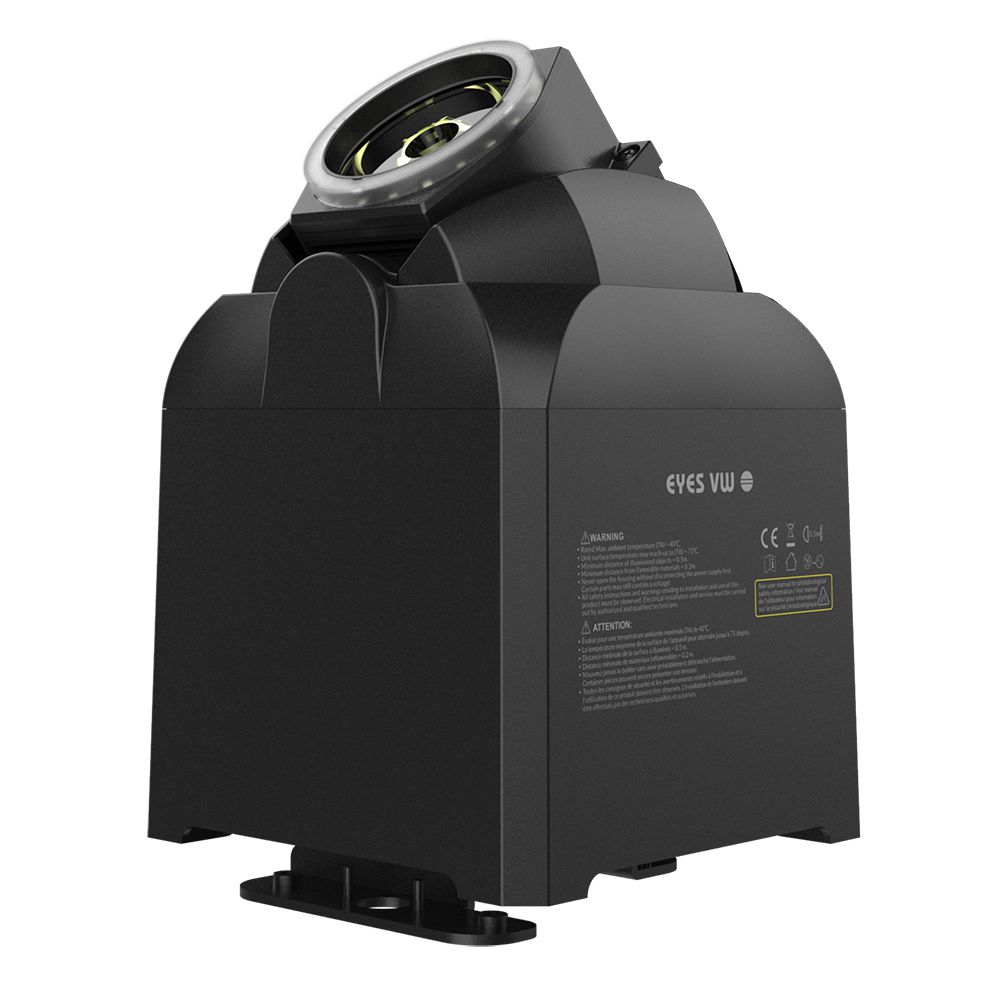

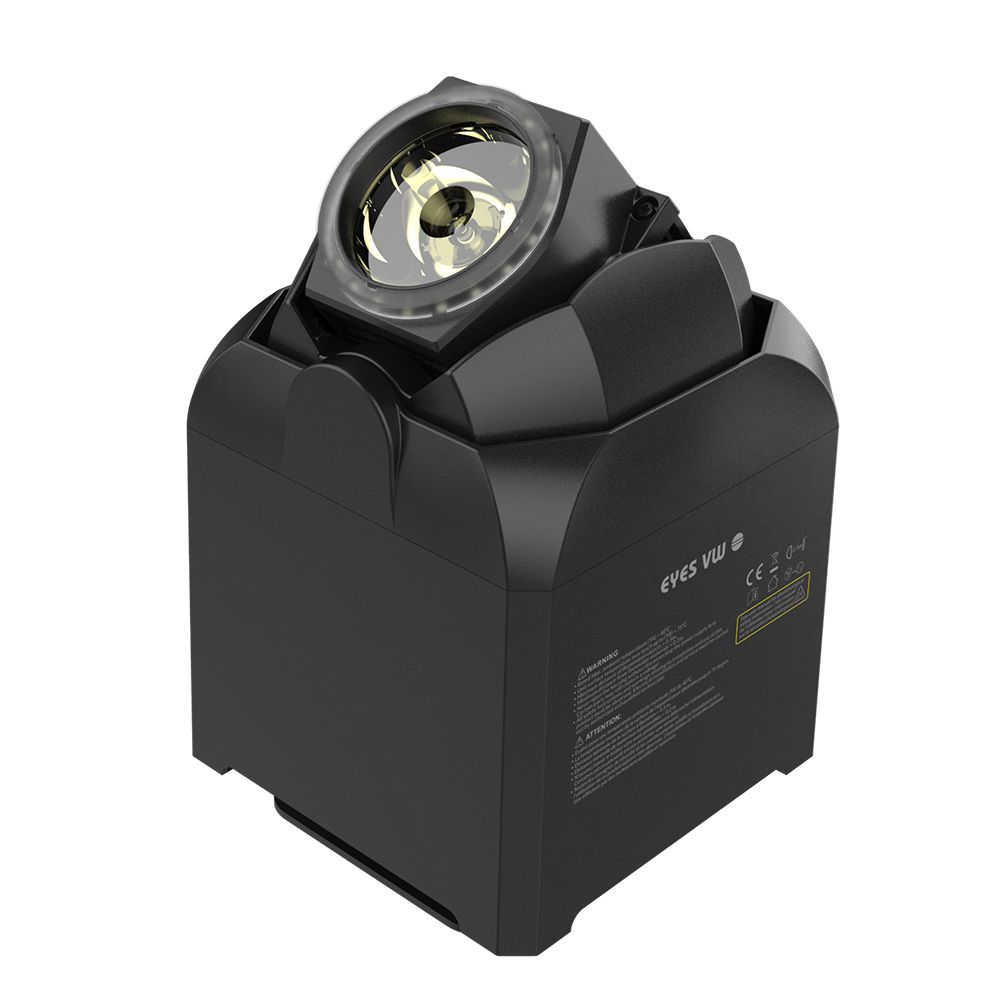

EYES VW with compact and lightweight design，can realize horizontal and vertical uniform and fast splicing, and the shape is flexible and changeable; with a circular LED light ring, which integrates point-by-point control, circle control, stroboscopic, dimming, surface light and other functions. The drawing effect can be achieved through the rotation angle of the XY axis, very suitable for bars, ball rooms, night clubs, and other entertainment applications, providing unlimited creative fun to the lighting designer.

Features
Light source:
1x 40W cold/warm white LED

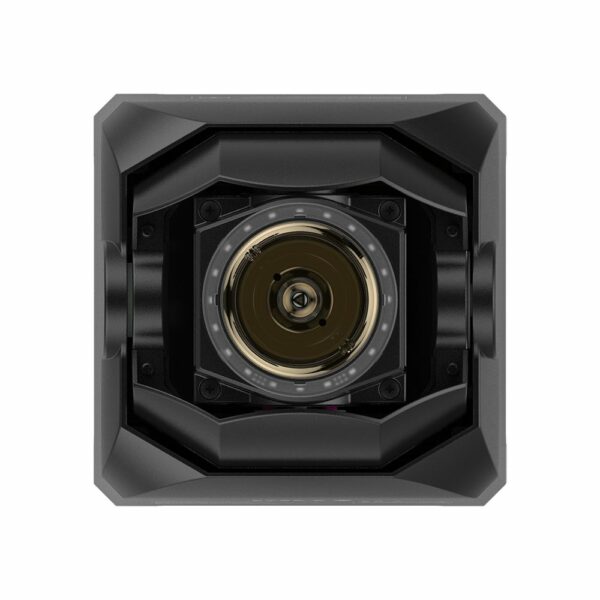

20 x 0.5W RGBW ring LED
Zoom range: 5°/23°
Effects: With ring led, it can pixel control, circle control, strobe, dimming, surface lighting and other functions
Single point control, adjustable color temperature,Color rendering index RA≥95
High light efficiency, low energy consumption, good heat dissipation, low noise, long life
Compact design, small size and light weight
Smooth dimming from 0~100%
Multi-speed strobe effect

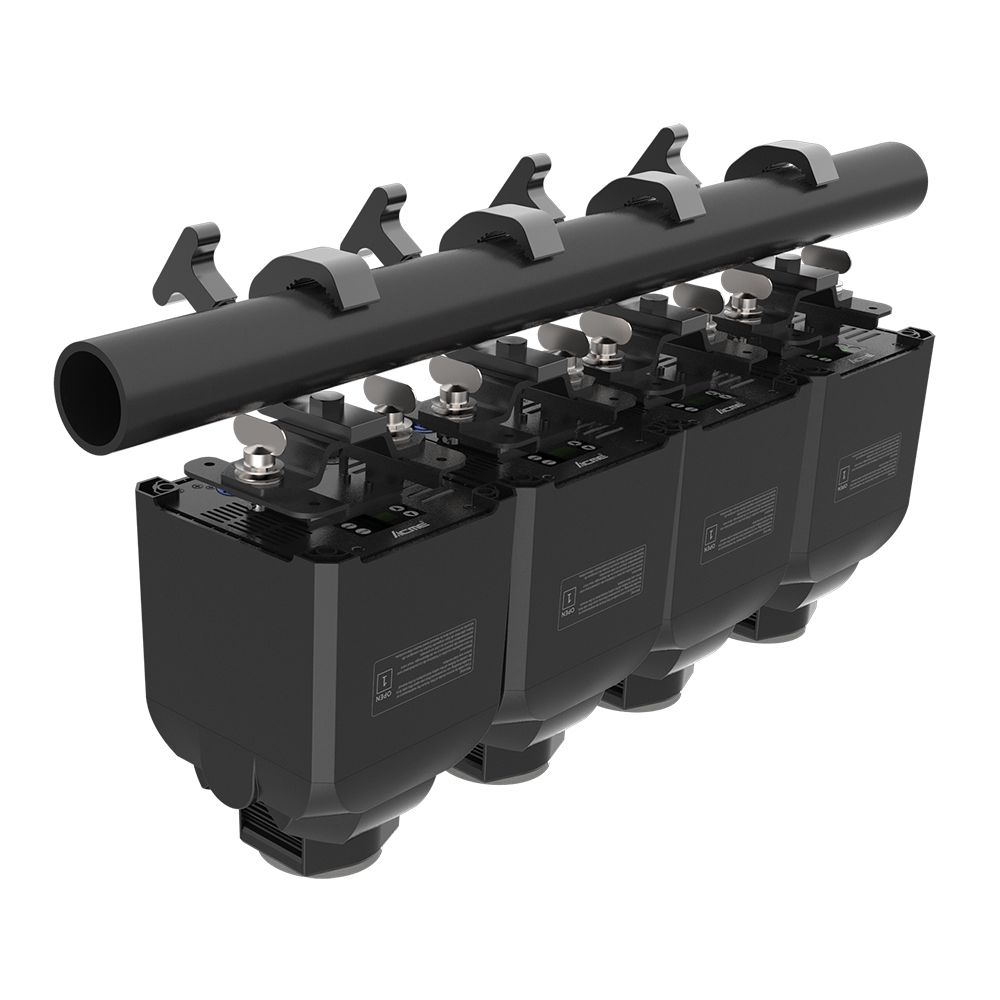

Can be quickly spliced horizontally and vertically

Technical & Specification
Model
BEAM 50 VW

Light source
1x 40W cold/warm white LED
20 x 0.5W RGBW ring LED
LED life expectancy: 20000 hours
High – efficiency optical system

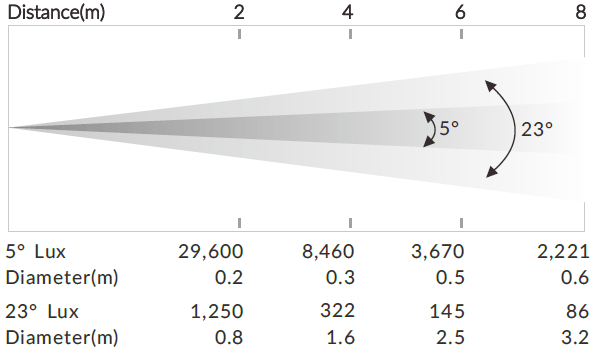

Beam Angle: 5°/23°

Control and Program
4-buttons touch panel
Display: OLED display with battery backup
Protocols: DMX512, RDM
DMX Protocol modes: 2
Control channels: 12 , 27
Firmware Upgrade: Upgrade via DMX link
Pan/Tilt Resolution: 16 bit

PAN & TILT
Pan movement: 77°
Tilt movement: 77°
Automatic Pan/Tilt position correction

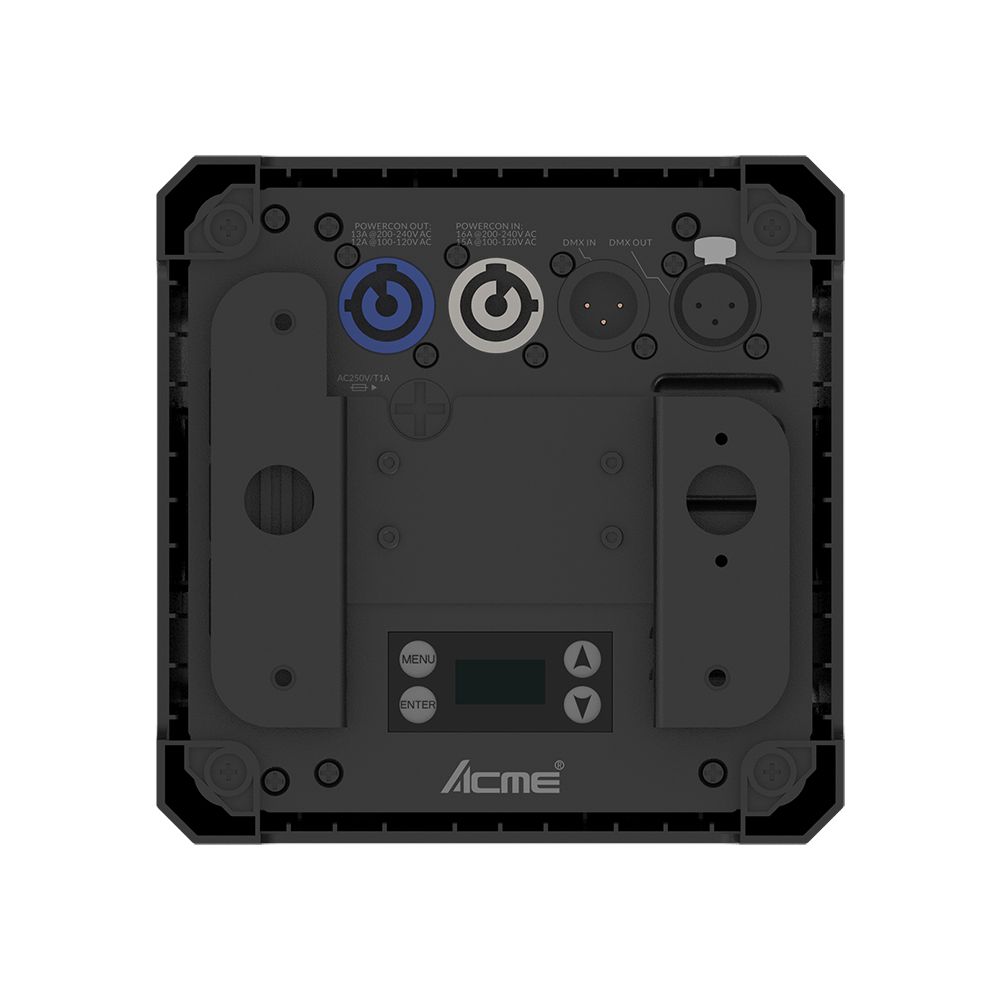

Electrical and Connectors
Input voltage range: 100-240 V~ 50/60 Hz
Power consumption: 50 W
Power in/out: PowerCon input/output
Data in/out: 3-pin & 5-pin XLR

Fixture Specification

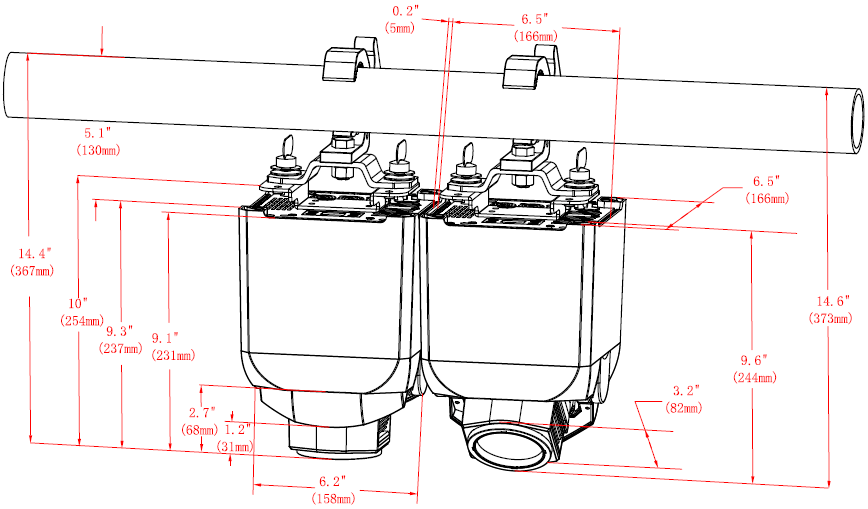

Fixture Dimensions:
Width: 166 mm (6.5″)
Depth: 166 mm (6.5″)
Height: 254 mm (10″)
Weight: 4 kg (7.7 lbs)
Carton Dimension:
Width: 235 mm (9.3″)
Depth: 325 mm (12.8″)
Height: 275 mm (10.8″)
Weight: 4.7 kg (10.4lbs) (one pack per carton)

Work environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C

Installation
Horizontally or vertically mounting are available
Operating position is universal

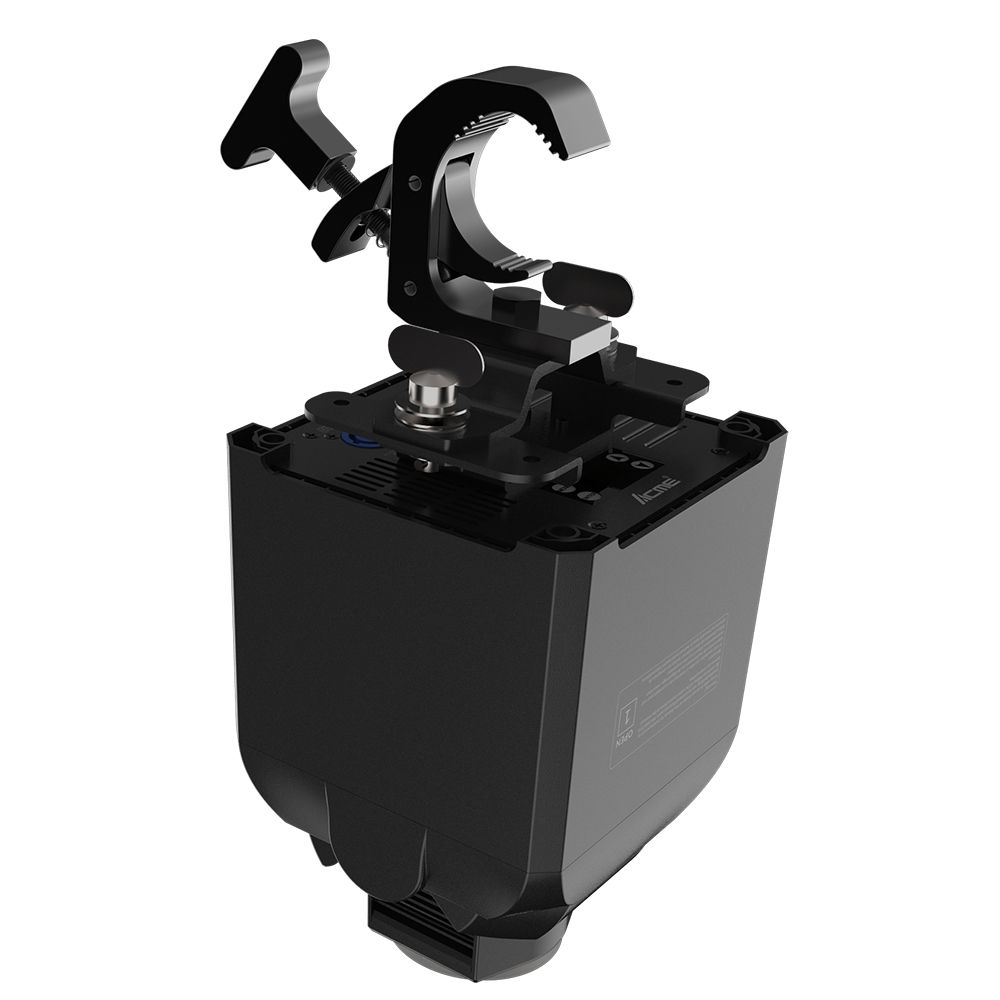

1 x clamp for 50 millimeter truss
Safety cable attachment point
