Functional Overview

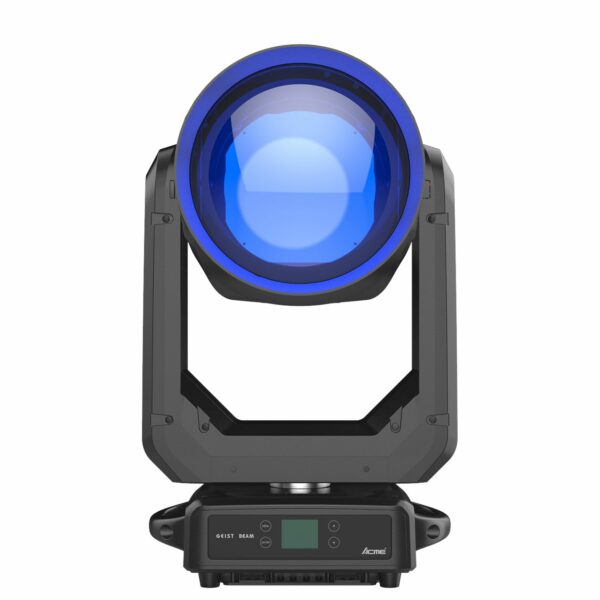

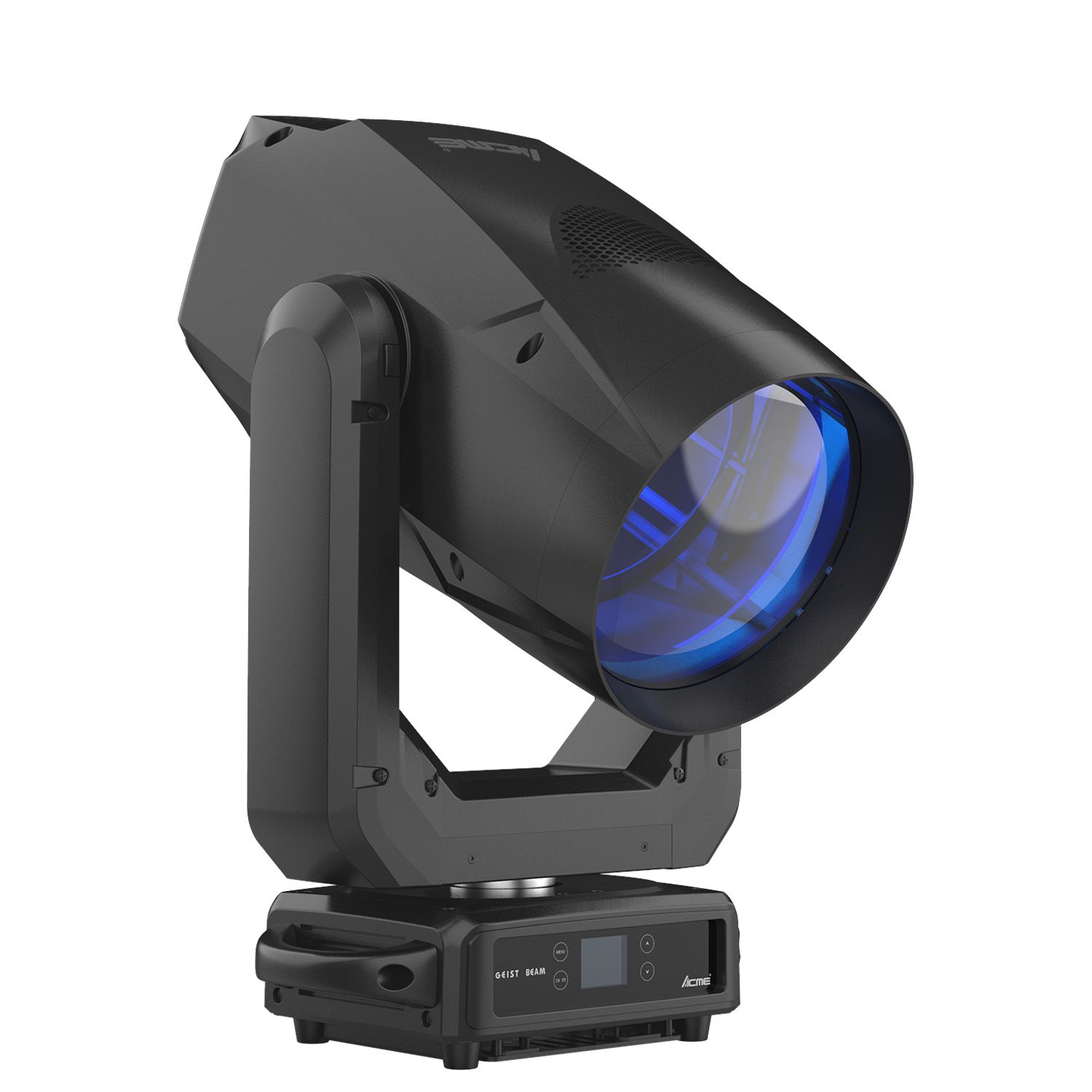

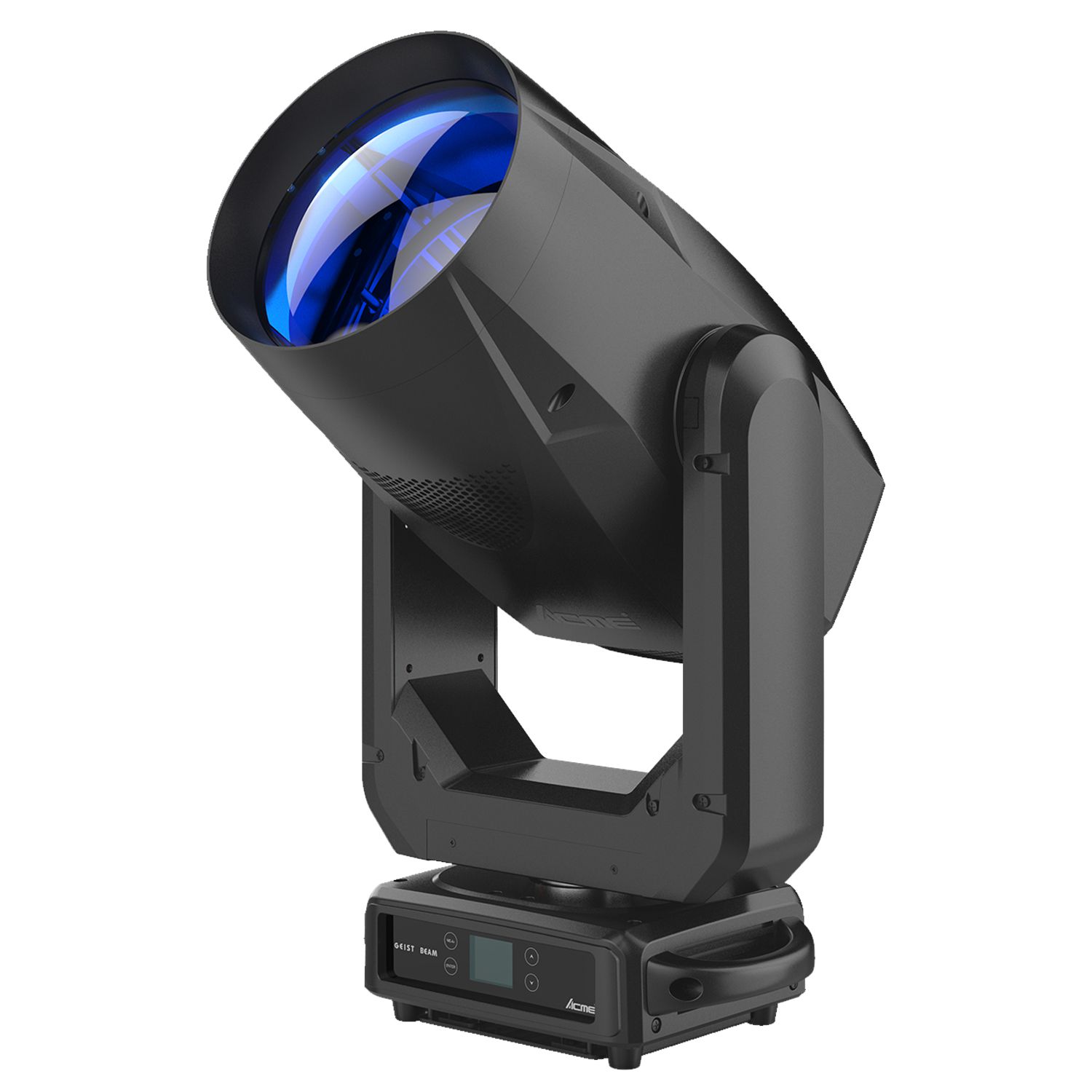

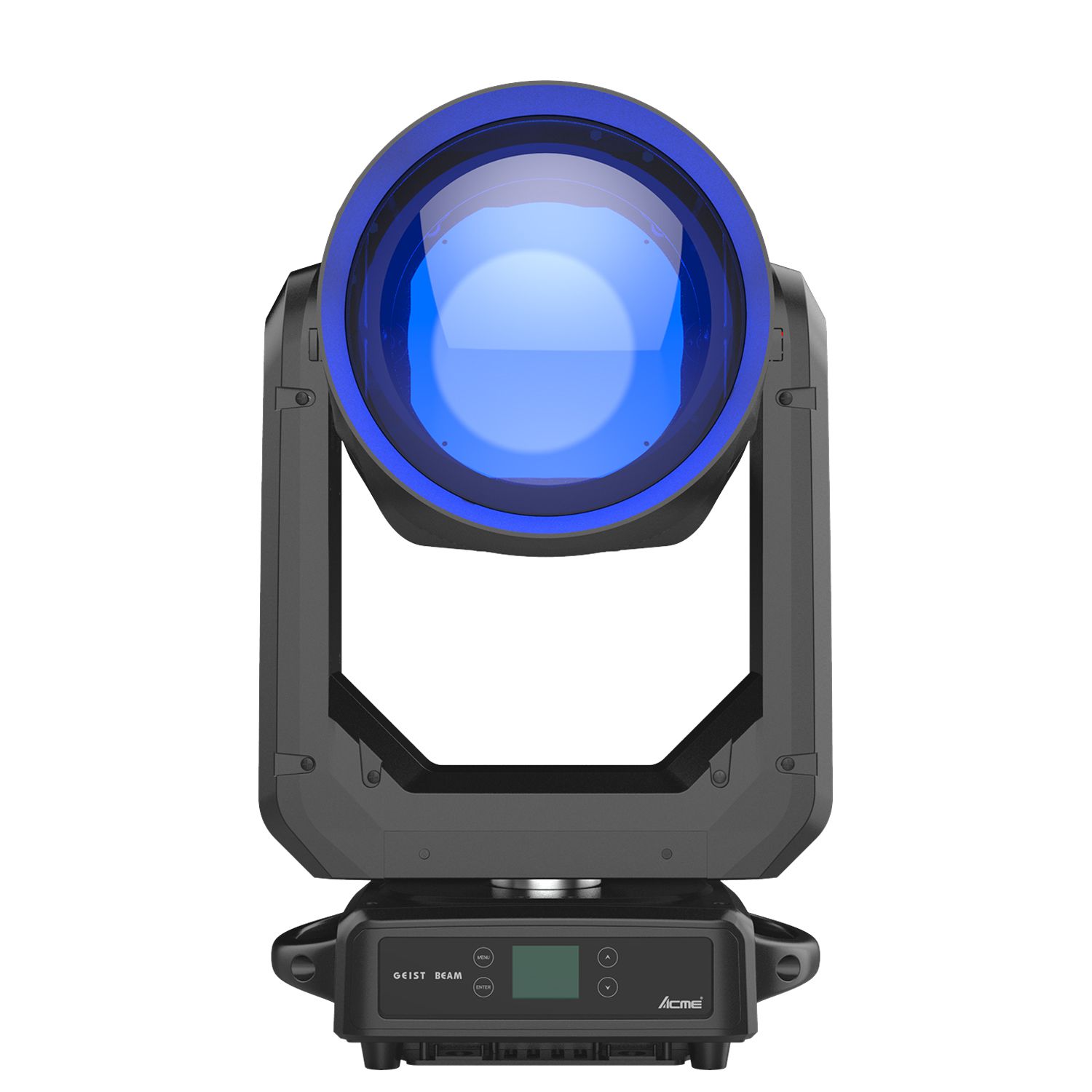

ACME GEIST BEAM is an LED moving head fixture that creates a bright, super-concentrated solid projection with the minimum beam angle as small as 3°. To achieve the intense and focused beam with an LED source, ACME uses an entirely new high-efficiency 450W LED module combined with a 220m front lens, which can provide a punchy output of 354,000lux @5meter. The newly-designed compact base helps to decrease much weight and save you the cost of transportation. Additional benefits include full CMY color mixing and separate Color Wheel with 8 colors, fixed and rotating gobo wheels, loaded with user-favorite gobos plus shaking function, including a wide variety of effects, especially when combined with the two rotating prisms.
Designed to fulfill the larger stage and live-stream applications, the ACME Geist Beam is ideal for scenarios, requiring brighter and more lumen, yet long-distance casting fixture that offers you more than just BEAM.
Features
Diameter of lens: 220mm
Fits a powerful 450W LED engine and its front lens is 220mm diameter
Color Temperature: 7000K
CRI Ra>70

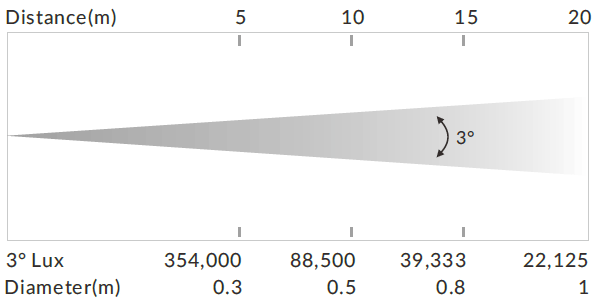

Output achieves 354,000 lux at 5 meters

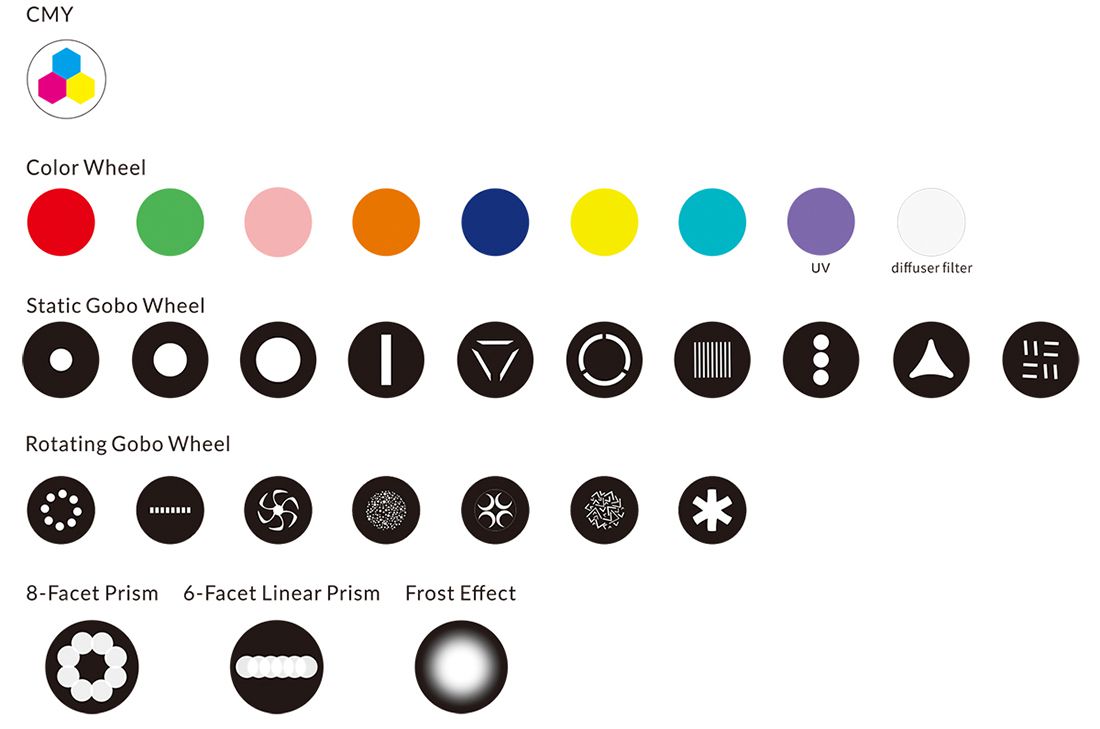

Linear CMY color mixing
Excellent color macro effect
Rainbow effect rotating in both directions
Static gobo wheel: 1 static gobo wheel with 10 gobos
Rotating gobo wheel: 1 rotating gobo wheel with 7 gobos, convenient replacment
Color Wheel: 1 Color Wheel with 8 colors
Prisms: 8-facet prism and 6-facet linear prism, can rotate in both directions and overlay uses
Beam angle: 3°
Frost: can be used independent
Outstanding strobe effect with variable speed
0-100% smooth dimming
Flicker free management
Dust-proof and oil-proof design
Technical & Specification
Model
XA-500 BEAM
Light Source
Light Sources: Powerful 450W LED engine
LED life expectancy: 20000 hours
Optical System
Advanced optical Systemto ensure image quality, clear and sharp
High – efficiency Optical System
Beam Angle: 3°
Control& Program
4-buttons touch panel
Display: Color display
Protocols: DMX512, RDM, Art-Net, sACN
DMX Protocol modes: 2
Controlchannels: 16, 23
Pan/TiltResolution: 16 bit
Firmware Upgrade: Upgrade via DMX link or USB disk
PAN & TILT
Pan movement: 540°
Tilt movement: 270°
Fixation: Tilt lock
AutomaticPan/Tiltposition correction
Rotating Gobos
1 x Rotating Gobos with 7 gobos, convenient replacment
Static Gobos
1 x static gobos with 10 gobos
Color Wheel
1 x Color Wheel with 8 colors

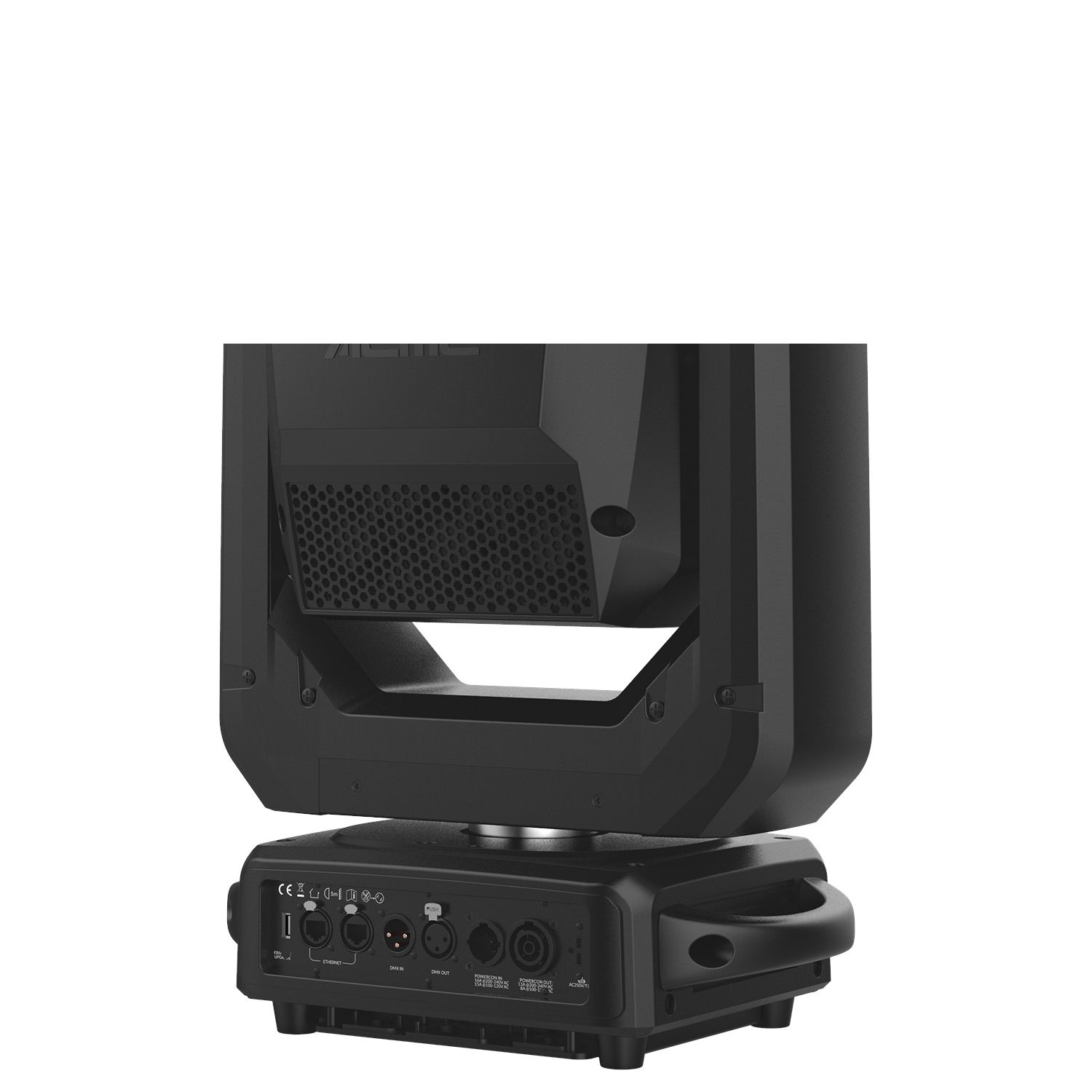

Electrical & Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100-240 V, 50/60 Hz
Power consumption: 500 W
Power In/Out：Power Connector in/out
Date In/Out：3-pin or 5-pin XLR, RJ45 connector in/out

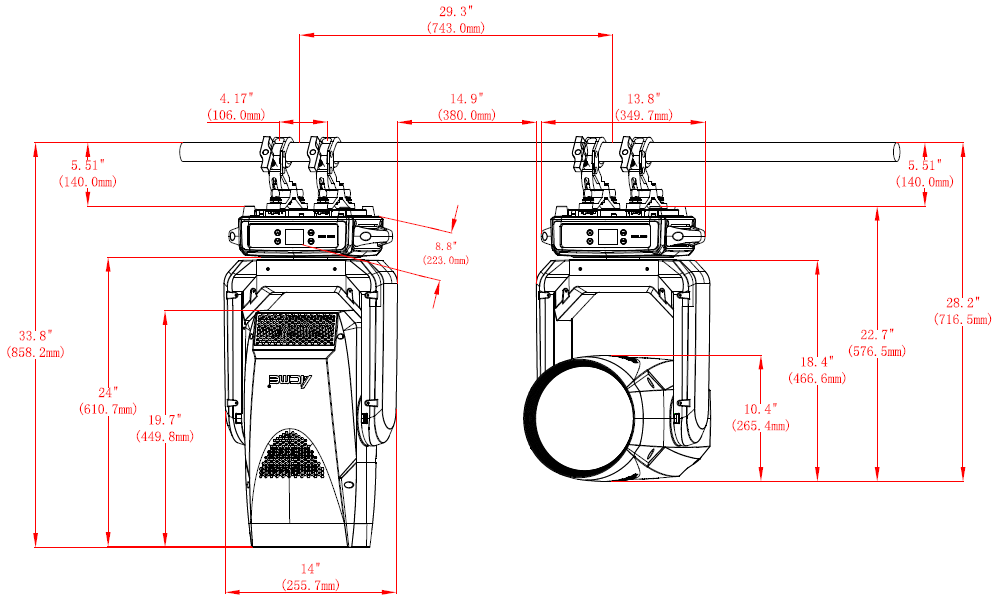

Fixture Specification
Height: 715 mm (28.1″)
Width: 350 mm (13.8″)
Depth: 223 mm (8.8″)
Weight: 27kg (60lbs)
Work Environment
Maximum ambient temperature: 45°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C
Installation
Horizontally or vertically mounting are available
Operating position is universal
2 pairs of 1/4-turn locking points under the base

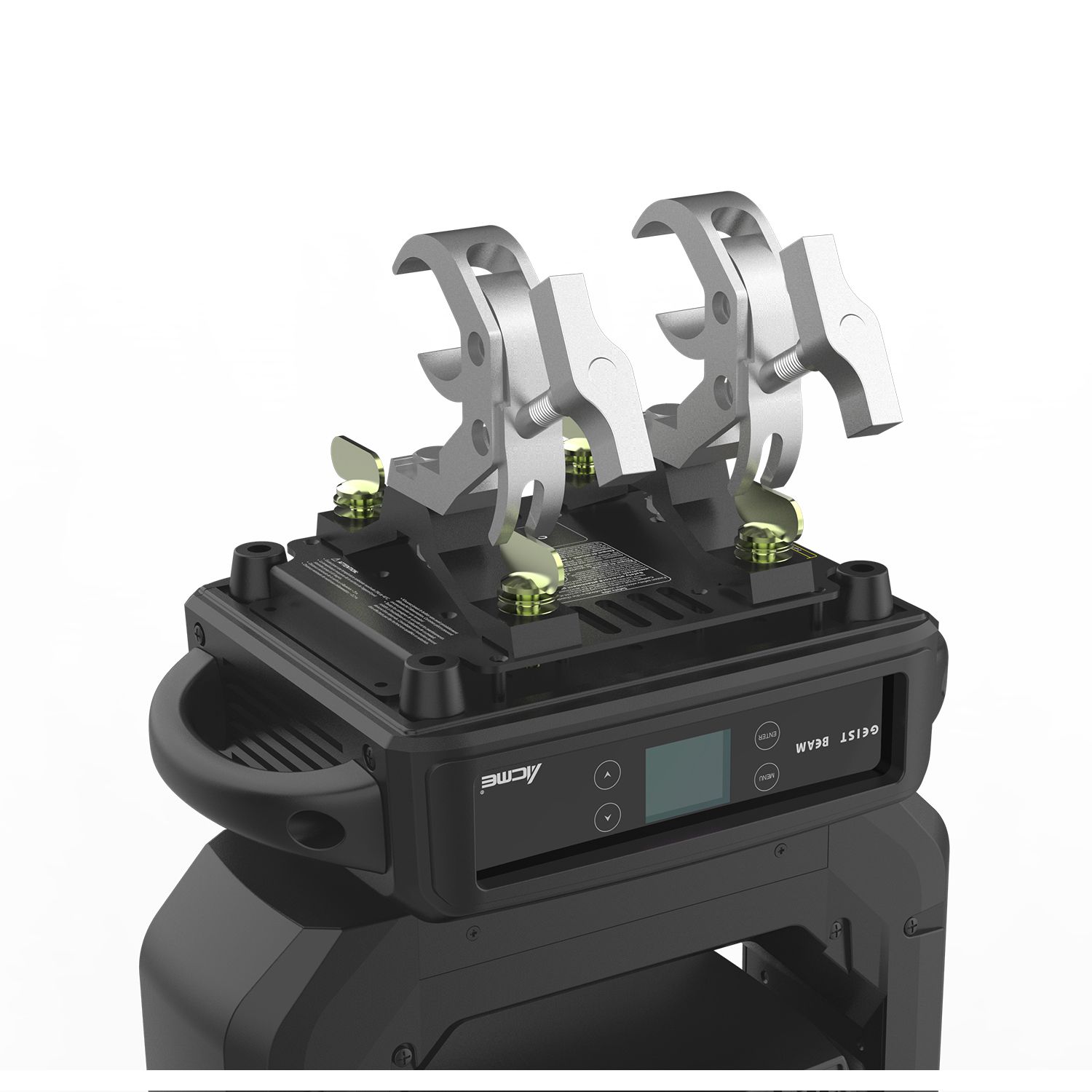

2 x fast-locked clamps with 1/4-turn locks for 50 millimeter truss
Safety cable attachment hole
Included Items
User Manual
Power Cable
2 x fast-locked clamps with 1/4-turn locks for 50 millimeter truss
Optional Accessories (with item code)
Raincover：3033001749
Clamp: 2060001619 (C-150A)
Safety cable : 2060000200（SW-02）
Signal Line：3-pin or 5-pin signal line
