Functional Overview

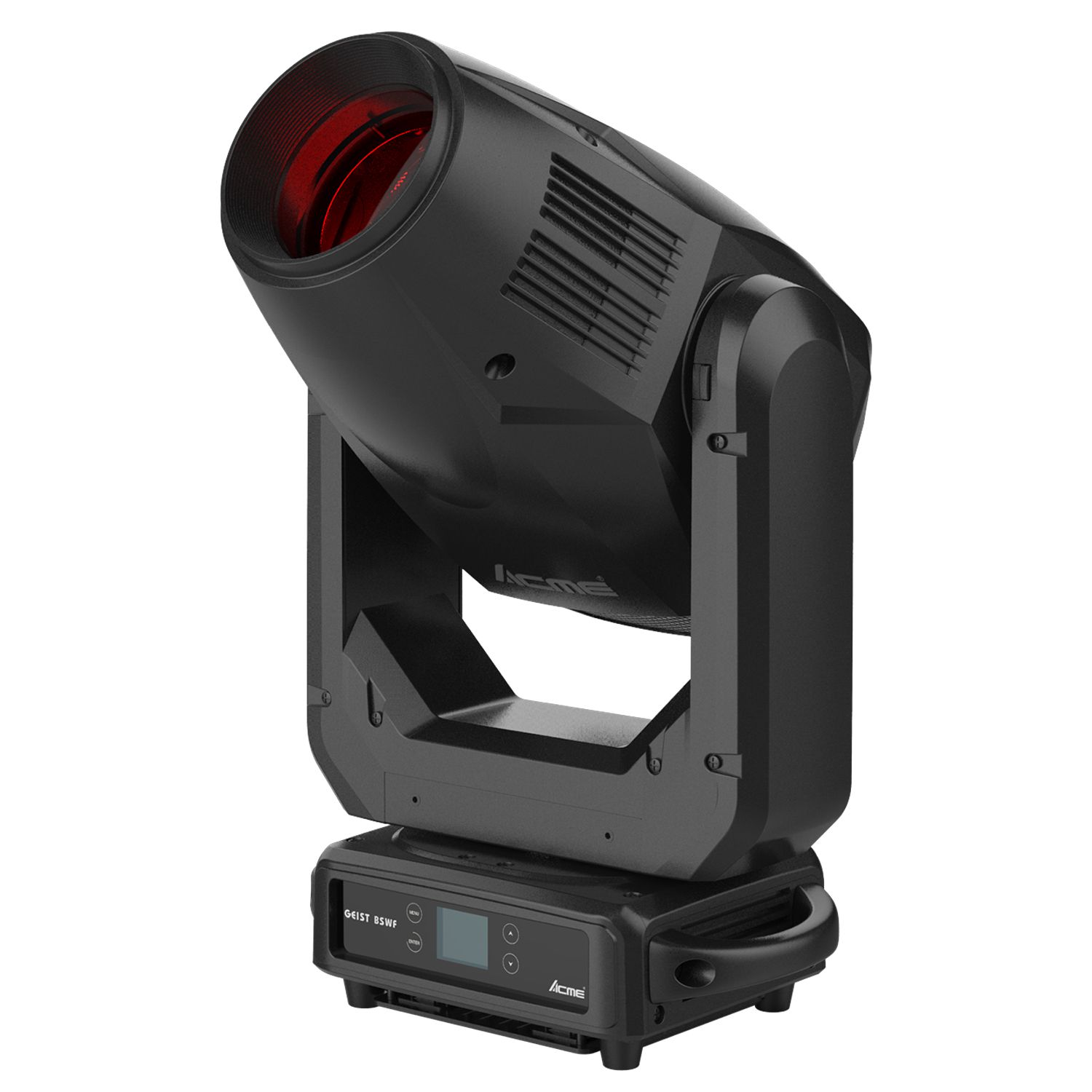

As always, ACME do what customers want us to improve mostly, so another masterpiece of ACME, GEIST BSWF comes out which meets the new requirements: the size and weight of one fixture. Its net weight is only 24.6 kg, and its small base helps reduce the weight and adapts to a variety of interfaces. The output of 450W led source is 34,000lm and the overall output of fixture is 20,000lm, which makes it became the smallest size, the highest power, light weight, and high efficiency among similar products in the market. Just like the mini version of SOLAR FLARE, Geist BSWF contains a high CRI filter, a light & heavy frost filter which made it an option for multiple video recording or fashion show application as well.
Features
Diameter of lens: 120mm
Fits a powerful 450W LED engine and its front lens is 120mm diameter
Variable CTO: 2700K – 7000K
Color Temperature: 7000K
High CRI mode Ra>90
Framing shutters: 4x fast and smooth framing shutters, each individually controllable; each blade can block light completely; framing module can be rotated at ±45°
Output achieves 48300 lux at 5 meters
Linear CMY color mixing
Excellent color macro effect
Rainbow effect rotating in both directions

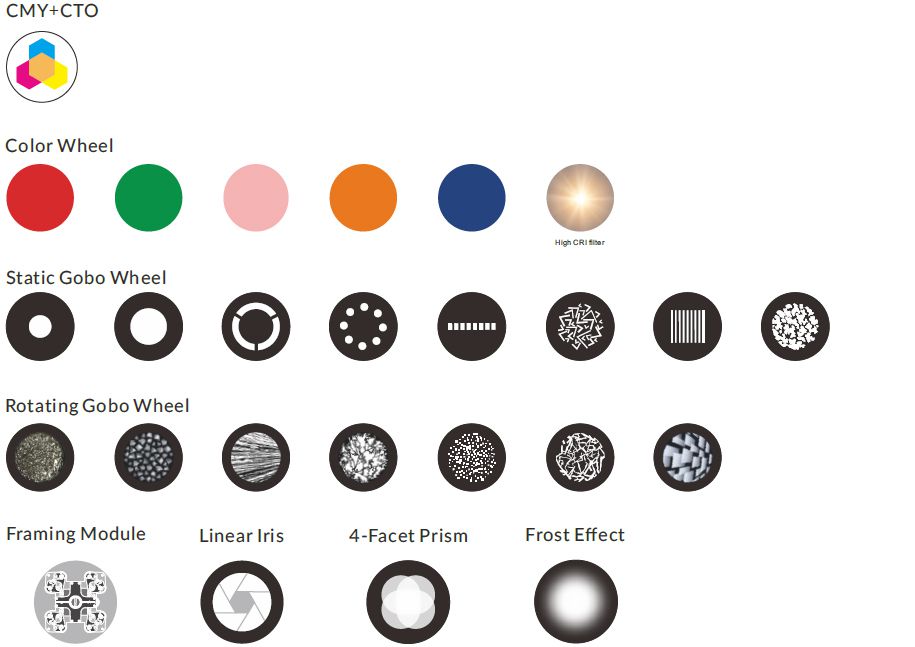

Static gobo wheel: 1 static gobo wheel with 8 gobos
Rotating gobo wheel: 1 rotating gobo wheel with 7 gobos, convenient replacment
Outside diameter: 22.5mm
Inside diameter: 17mm
Color Wheel: 1 Color Wheel with 5 colors
Prisms: 4-facet prism can rotate in both directions

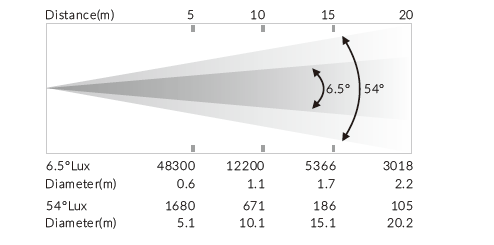

Beam angle: 6.5°-54°
Frost: can be used independent
Outstanding strobe effect with variable speed
0-100% smooth dimming
Flicker free management
Dust-proof and oil-proof design
Technical & Specification
Model
XA-500 BSWF
Light Source
Light Sources: Powerful 450W LED engine
LED life expectancy: 20000 hours
Optical System
Advanced optical Systemto ensure image quality, clear and sharp
High – efficiency
Optical System
Beam Angle: 6.5°-54°
Control& Program
4-buttons touch panel
Display: Color display
Protocols: DMX512, RDM, Art-Net, sACN
DMX Protocol modes: 3
Controlchannels: 34,25,29
Pan/TiltResolution: 16 bit
Firmware Upgrade: Upgrade via DMX link or USB disk
PAN & TILT
Pan movement: 540°
Tilt movement: 270°
Fixation: Tilt lock
AutomaticPan/Tiltposition correction
Rotating Gobos
1 x with 7 gobos, convenient replacment
Static Gobos
1 x with 8 gobos
Color Wheel
1 x Color Wheel with 5 colors
Electrical & Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100-240 V, 50/60 Hz
Power consumption: 650 W
Power In/Out：Power Connector in/out
Date In/Out：3-pin or 5-pin XLR, RJ45 connector in/out

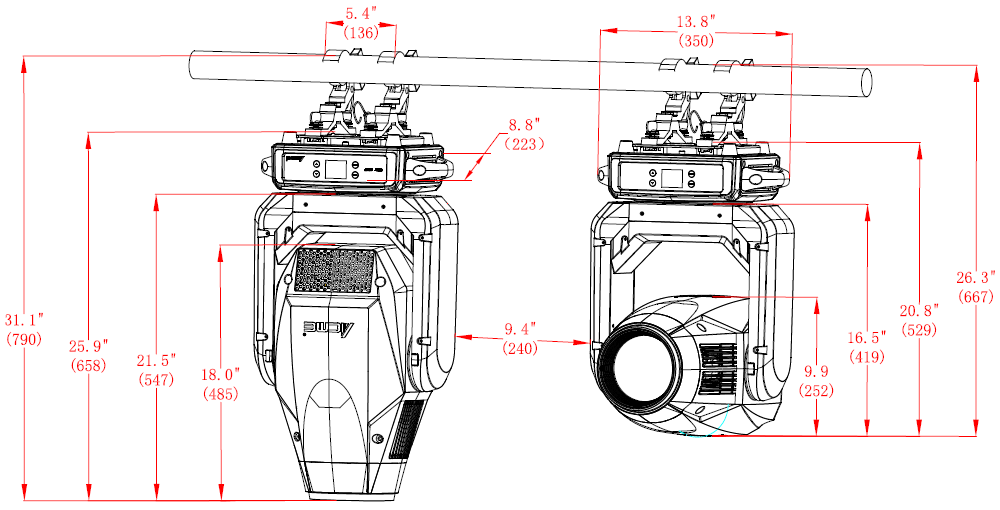

Fixture Specification
Height: 644 mm (25.4″)
Width: 364 mm (14.3″)
Depth: 252 mm (9.9″)
Weight: 24.6kg (54.2lbs)
Work Environment
Maximum ambient temperature: 45°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C
Installation
Horizontally or vertically mounting are available
Operating position is universal
2 pairs of 1/4-turn locking points under the base
2 x fast-locked clamps with 1/4-turn locks for 50 millimeter truss
Safety cable attachment hole
Included Items
User Manual
Power Cable
2 x fast-locked clamps with 1/4-turn locks for 50 millimeter truss
Optional Accessories (with item code)
Raincover：3033001749
Clamp：2060001614（C-250）
Safety cable : 2060000200（SW-02）
Signal Line：3-pin or 5-pin signal line
