Overview

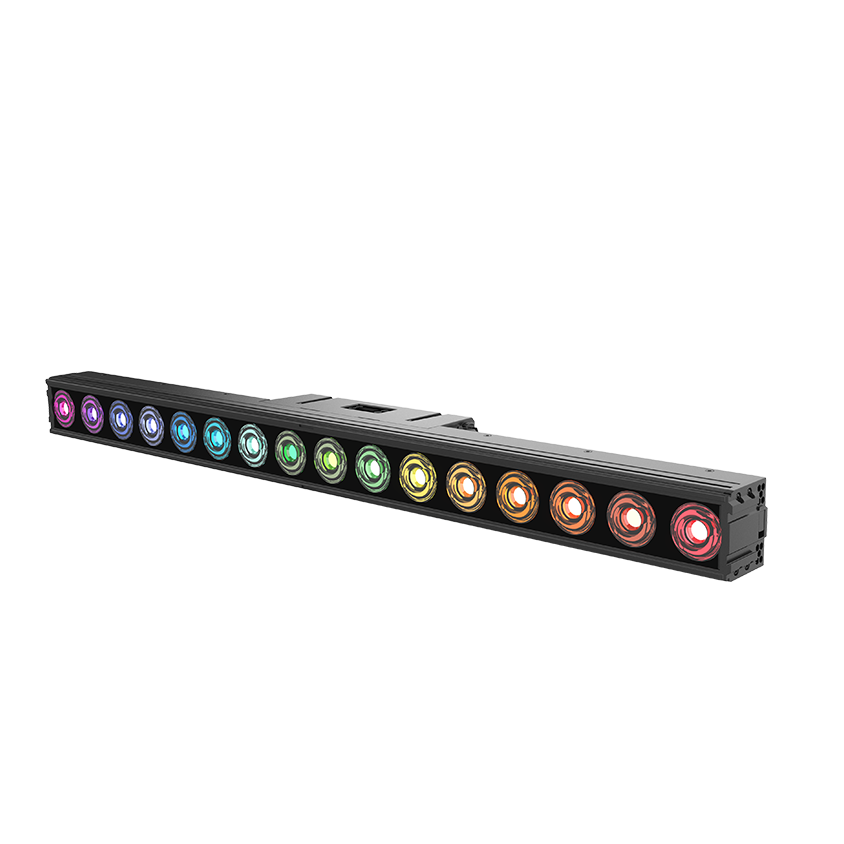

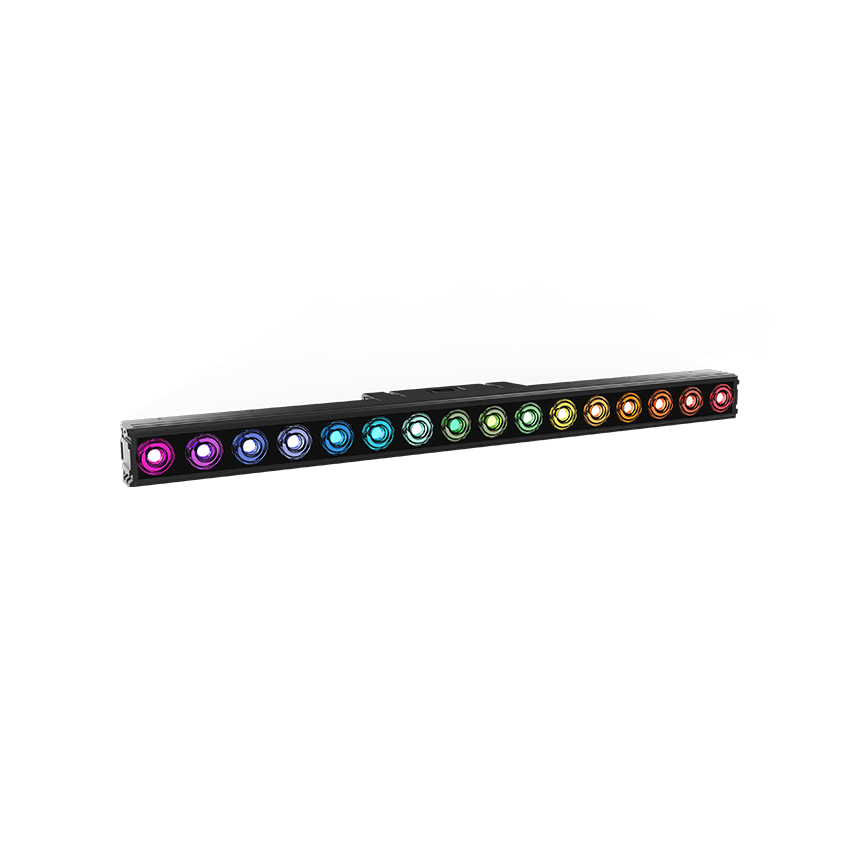

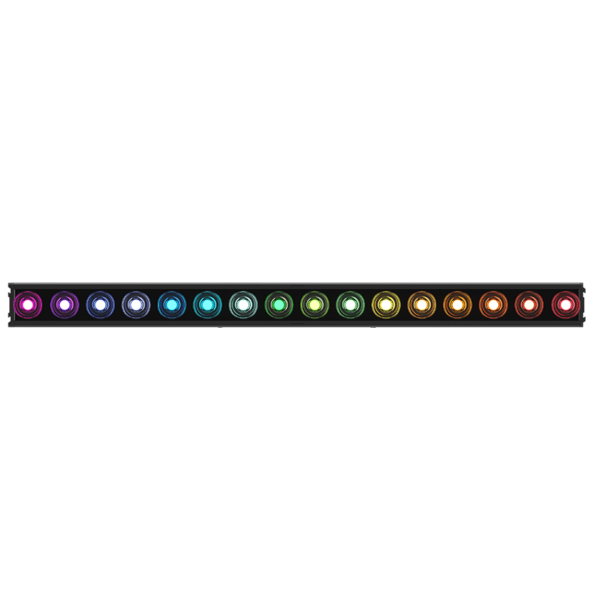

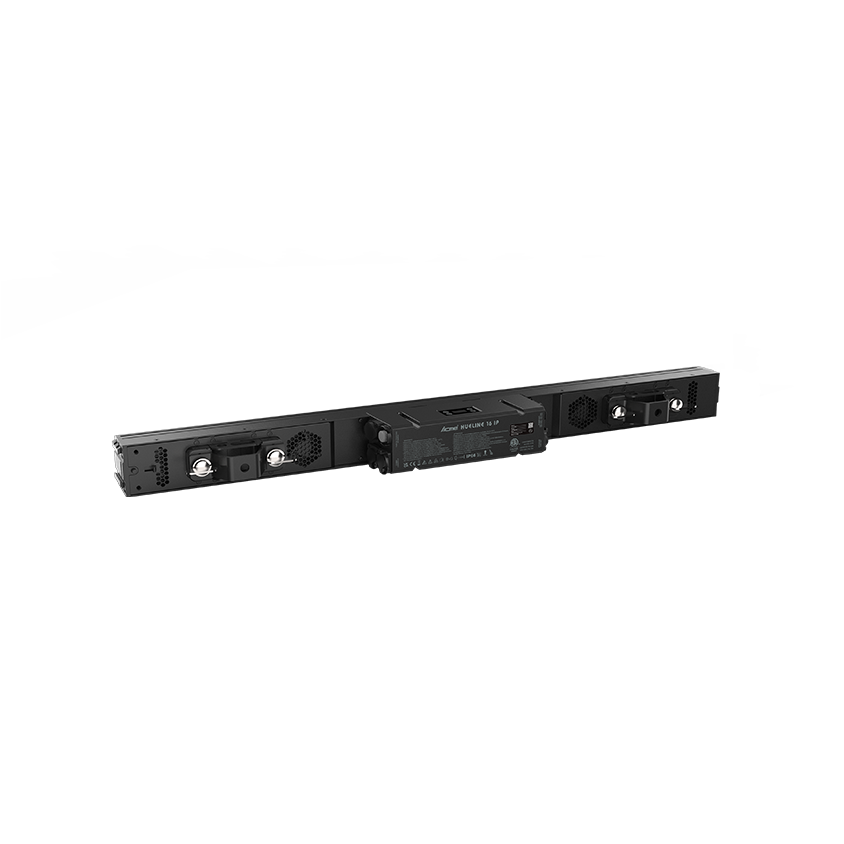

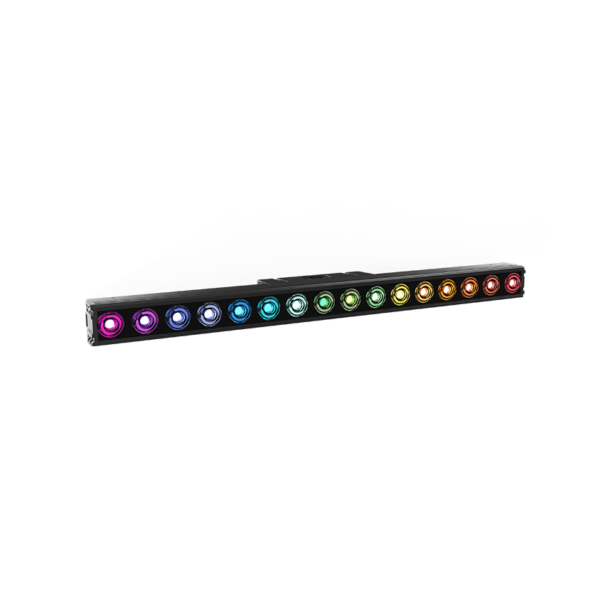

Meet the ACME HUELINE 16 IP, a versatile fixture that fulfills all your creative needs. Arranged seamlessly in a line, it offers a vibrant color spectrum, enhancing your visual experience.
Equipped with 16 individually controllable 25W RGBAWC+UV LEDs, each offering adjustable frost effects powered by ACME’s patented Smart Glass Technology, the fixture delivers soft looks and mysterious stage effects with the added UV LEDs. It uses unique deep red and deep blue light sources to provide a wider color gamut. With an ultra-narrow bezel design, the HUELINE 16 IP achieves a remarkable 90% light-to-screen ratio for an expansive visual experience.
When mounted with the floor brackets, the fixture enables 180° tilt movement, ensuring dynamic coverage. Available accessories include an optional diffuser filter and glare shield, providing additional beam effects.
Lightweight and compact, the HUELINE 16 IP takes multispectral perfection to new heights.
Model
- Model Name: HUELINE 16 IP
- Model Code: HL 16 IP
Light Source
- Light Source: 16 x 25W RGBAWC+UV LEDs
- Total Lumen Output of Fixture: 5,600 lumens
- Life Expectancy: 20,000 hours*
*Source manufacturer specification
Optical System

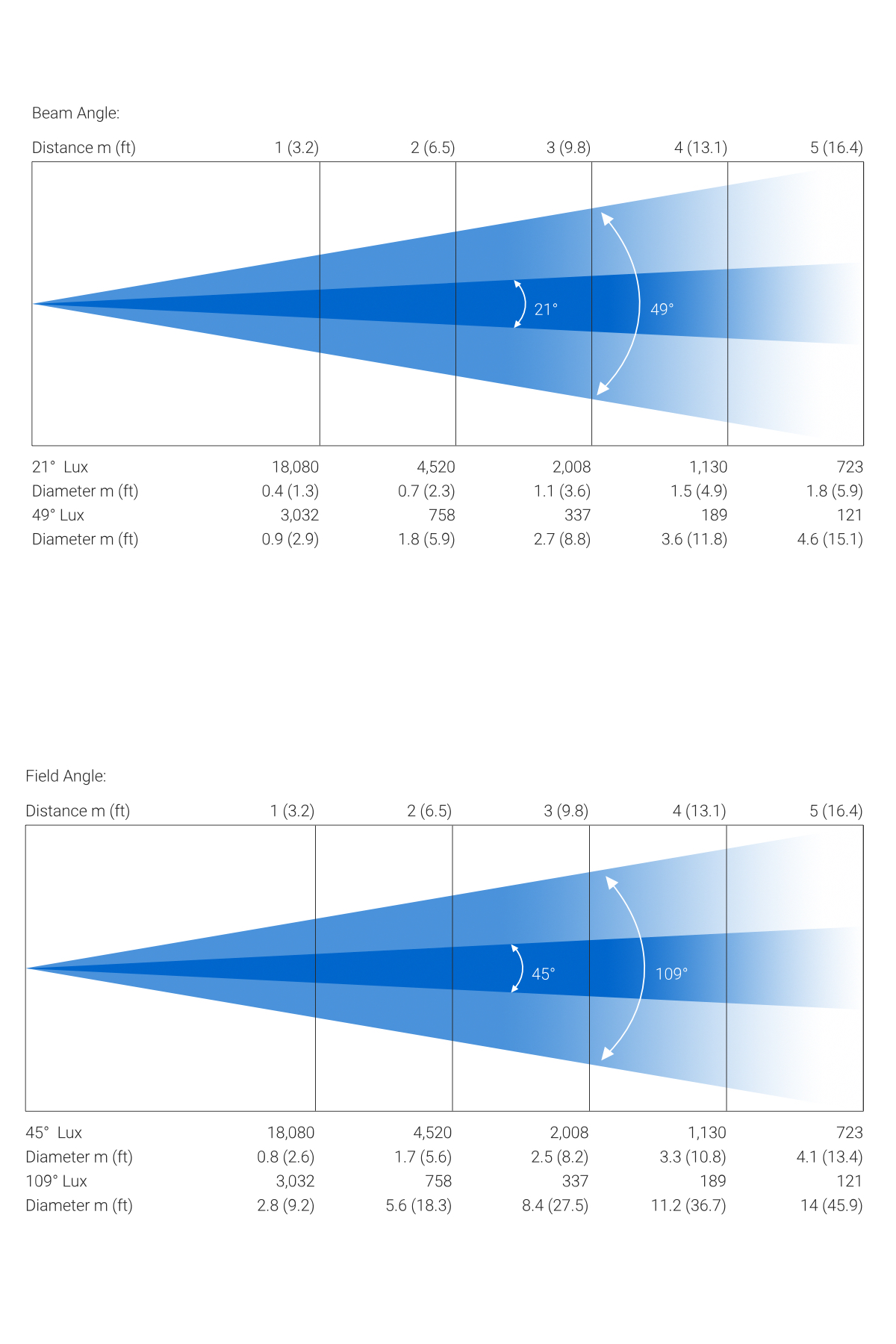

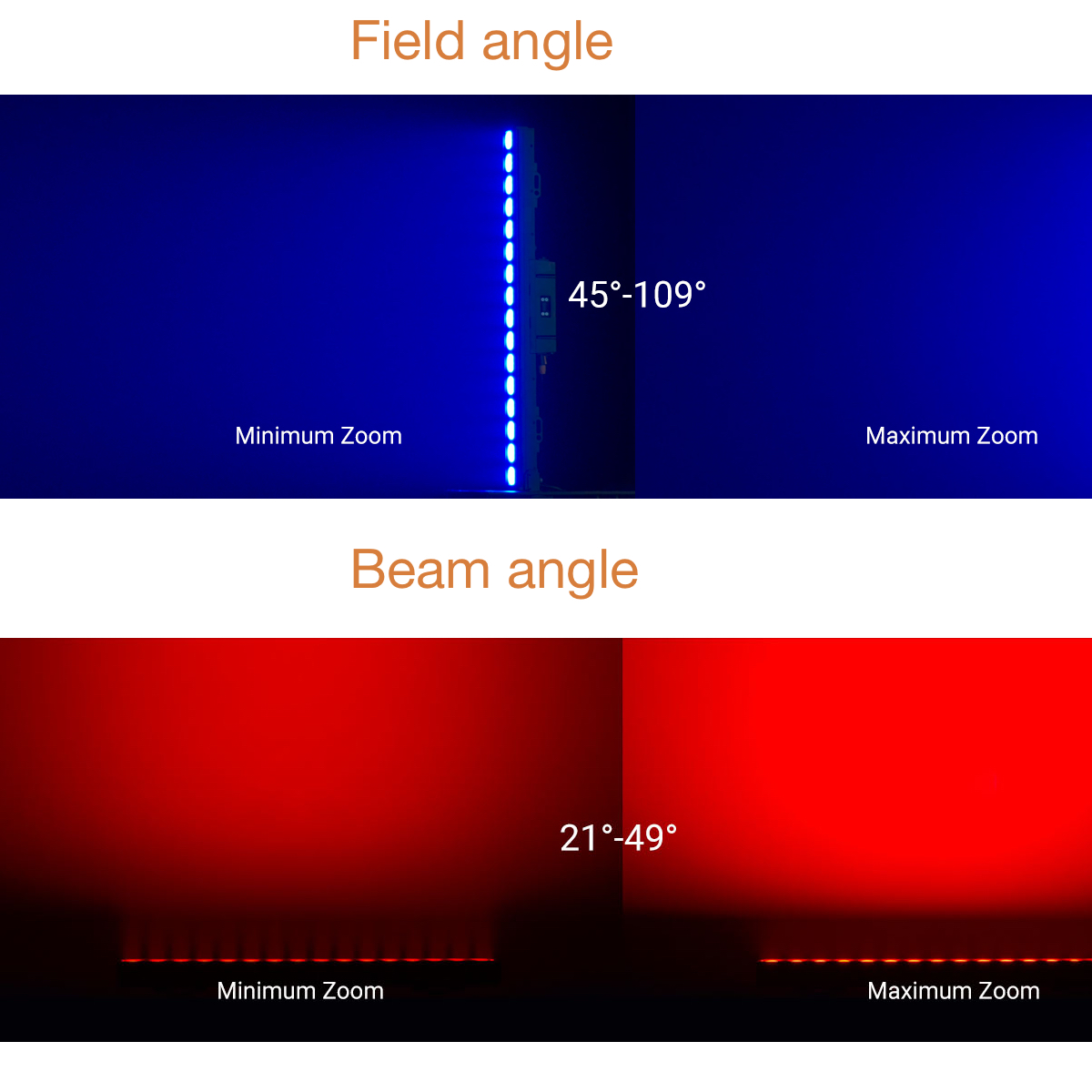

- Beam Angle : 21°-49°
- Zoom Range: 45°-109°
- optional filter: 60° x 30°
- HCRI Mode: Ra≥92
- DMX Controllable Smart Glass technology:
-
- Patent No. :
-
- CN216010577U
- US11698183B1
- DE202023101966U1
- FR3134870B3
Control
- 4 touch button control panel
- Display: OLED display
- Protocols: DMX512,RDM,Art-Net,sACN
- DMX Protocol Modes: 2
- Control Channels: 16/133
- Firmware Upgrade: Upgrade via DMX link
Pan & Tilt
- Tilt Movement: 180° (mounted with the floor brackets)
Colors
- Linear CTO Color Correction: 2,500K-8,000K
Other Effects
- Smooth dimming 0-100% (4 user selectable dimming curves)
- Tungsten emulation
- Individual pixel control and built-in color macro effects

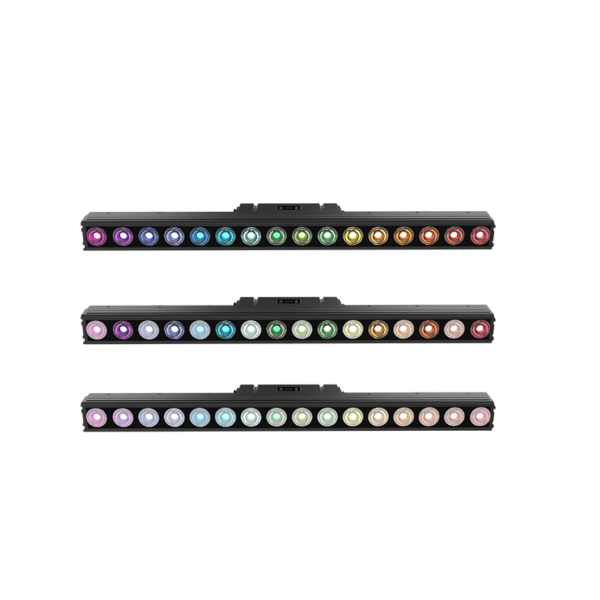

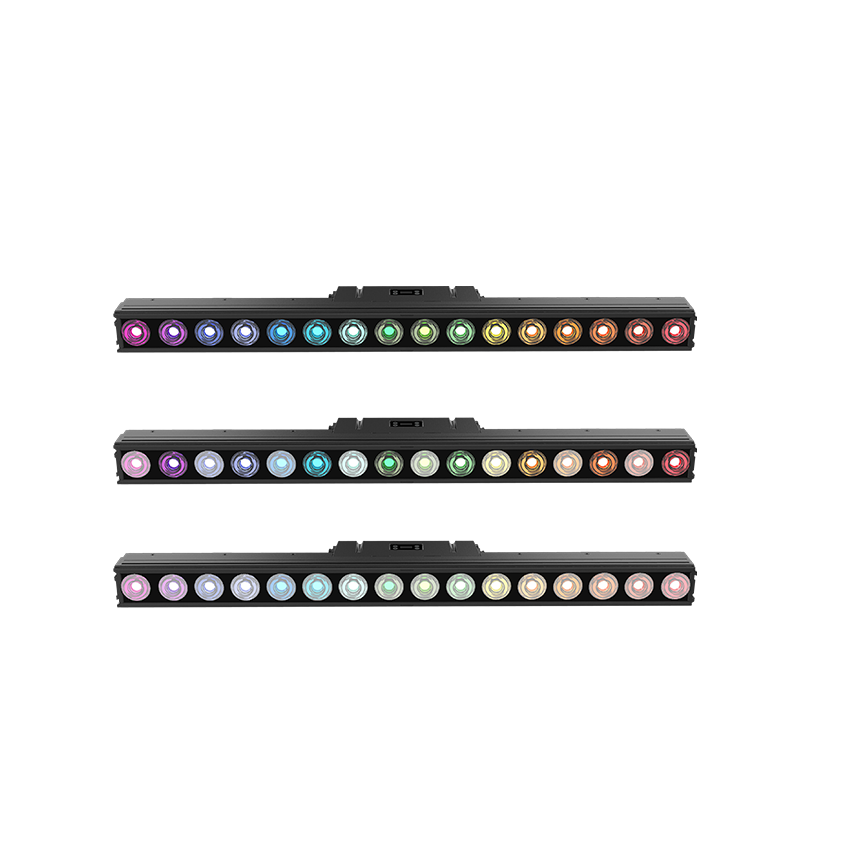

- 16 individually controllable LEDs, each with frost effects
- Outstanding color mixing
- Dimming Frequency: 12kHz

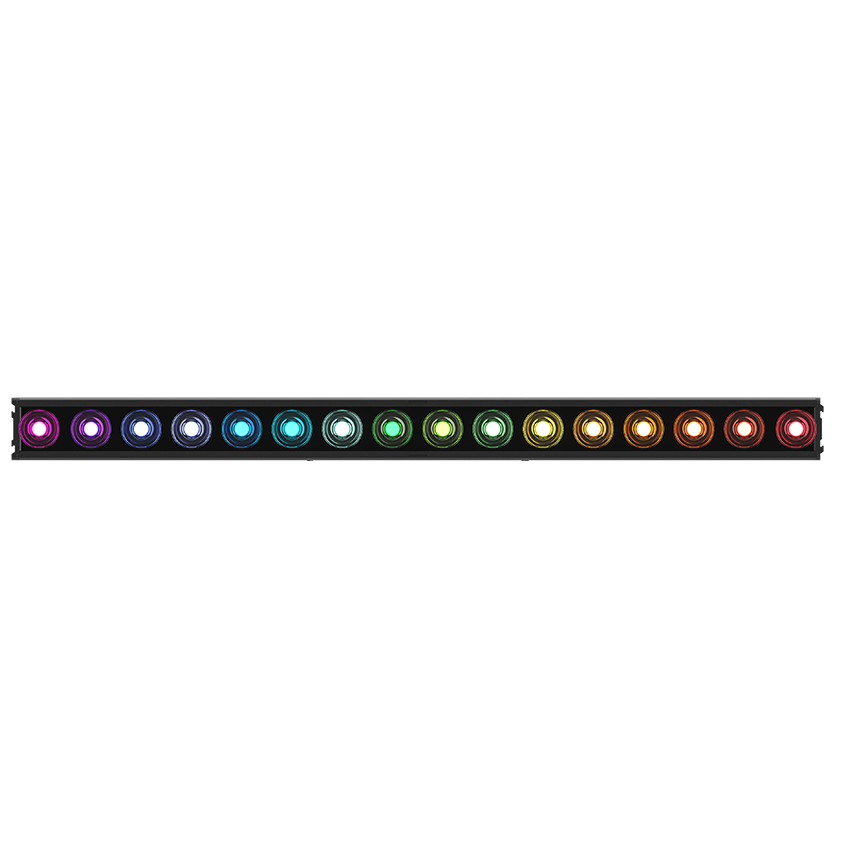

- With an ultra-narrow bezel, it achieves a 90% light-to-screen ratio for an expansive visual experience.

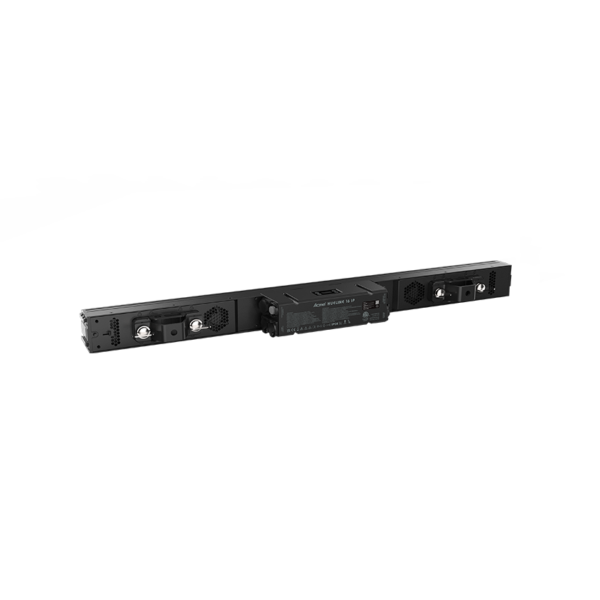

- Equipped with an inventive quick-release mechanism that allows you to quickly connect and align multiple fixtures
Electrical and Connectors
- Input Voltage Range: 100-240Vac; 50/60Hz
- Power Consumption: 190W
- Power In/Out: Waterproof power connector in/out
- Data In/Out: 3-pin or 5-pin waterproof XLR,waterproof RJ45 connector
Physical Information

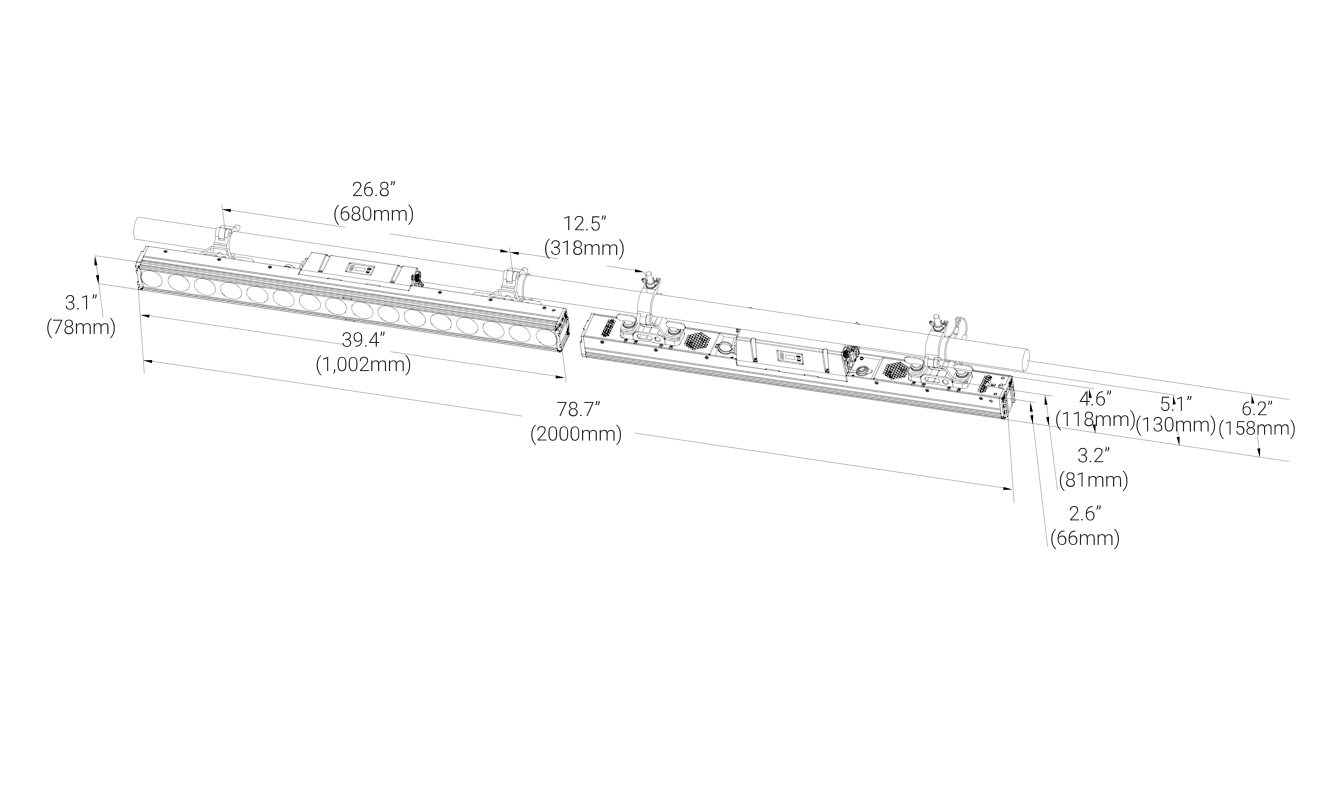

- Fixture Dimensions:
-
- Width: 1,002 mm (39.5″)
- Depth: 78 mm (3.0″)
- Height: 130 mm (5.1″)
- Weight: 9.6 kg (21.2 lbs)
Packing Information
- Flight Case Dimensions:
-
- Width : 1,220 mm (48.0″)
- Depth : 610 mm (24.0″)
- Height : 845 mm (33.3″)
- Weight :
-
- Standard: G.W.: 159 kg (350.5 lbs) (ten-pack loader case)
- North American Standard: G.W.: 170 kg (374.8 lbs) (ten-pack loader case)
- Carton Dimensions:
-
- Width : 1,100 mm (43.5″)
- Depth : 265 mm (10.4″)
- Height : 185 mm (7.3″)
- Weight :
G.W.: 11.5 kg (25.4 lbs) (one-pack loader carton)
Work Environment
- Maximum Ambient Temperature: 40°C
- Minimum Operating Temperature: -10°C
- Maximum Surface Temperature: 65°C
- Protection Rating: IP66
Approvals
- CE compliant
- UKCA compliant
- cETLus compliant
Installation
- Horizontal or vertical mounting
- 2 omega brackets

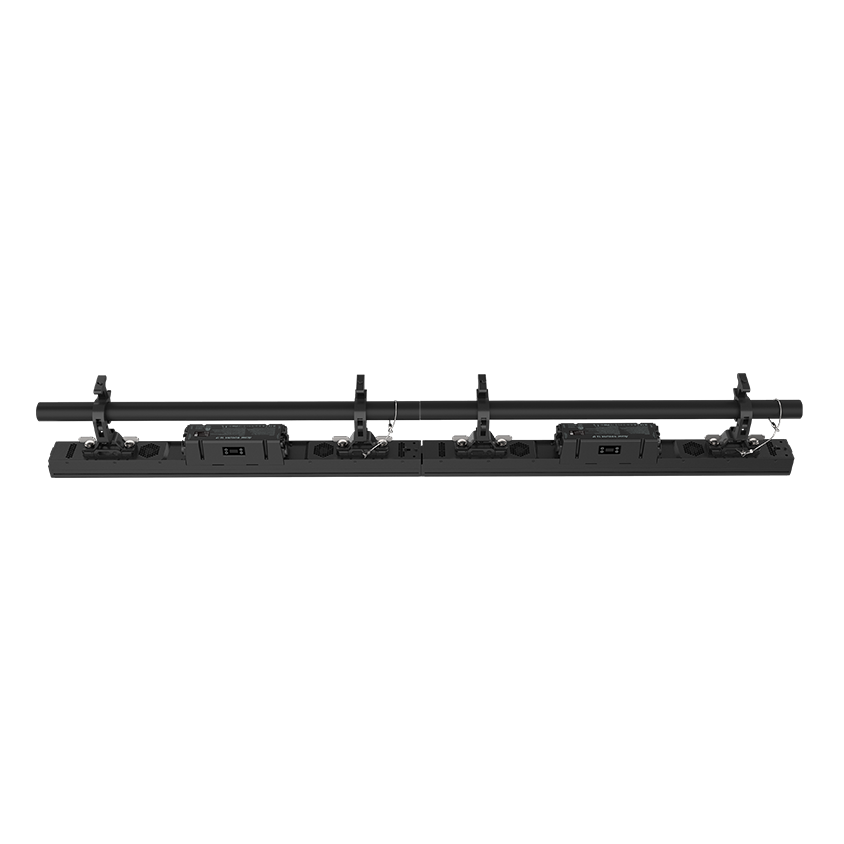

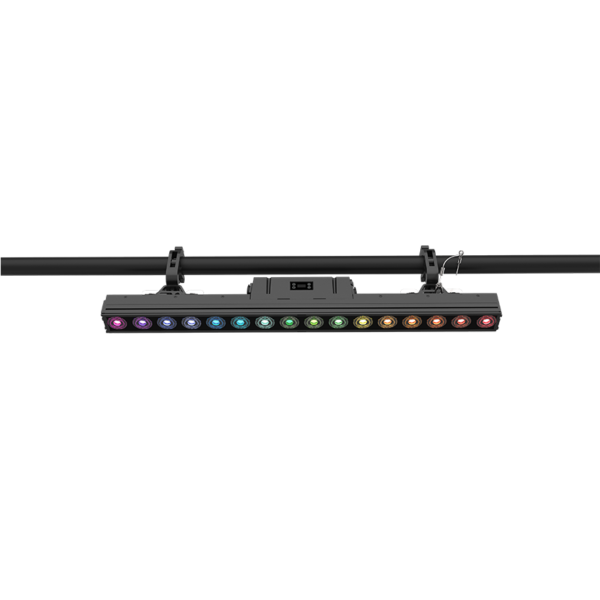

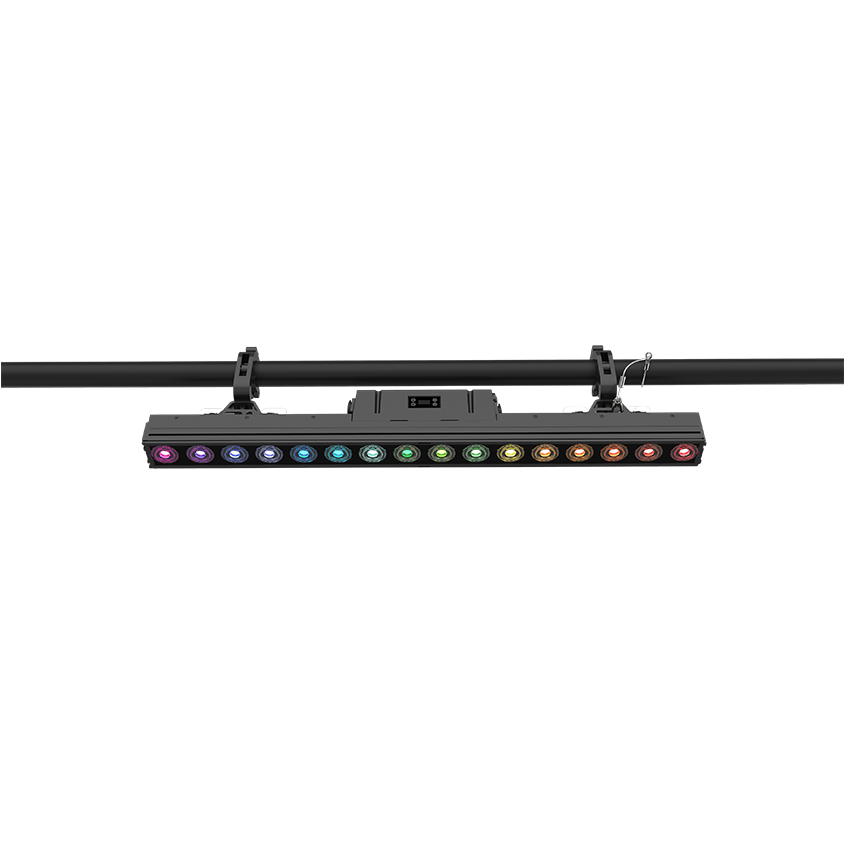

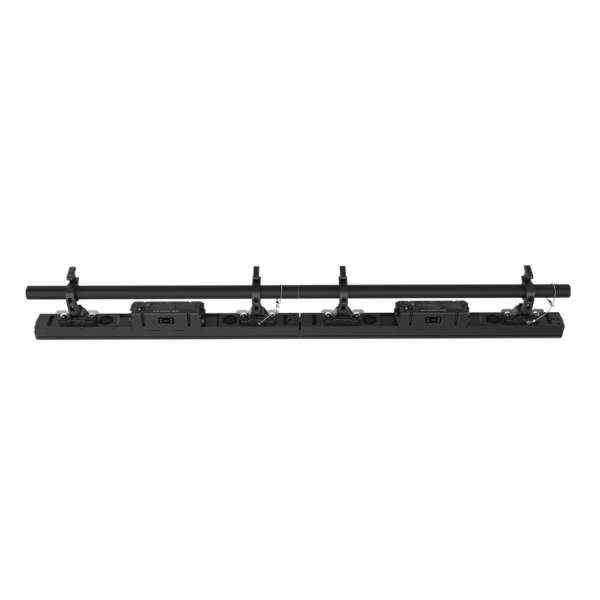

- Horizontal: Utilizing two brackets (supplied) and clamps (by others), a maximum of 5 fixtures may be connected

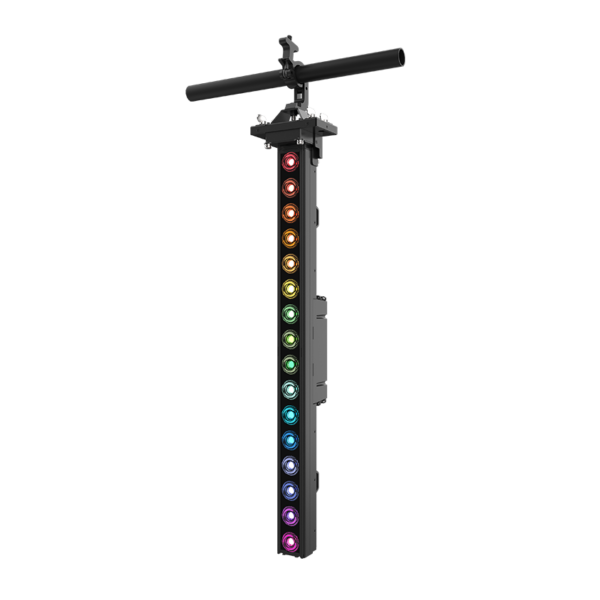

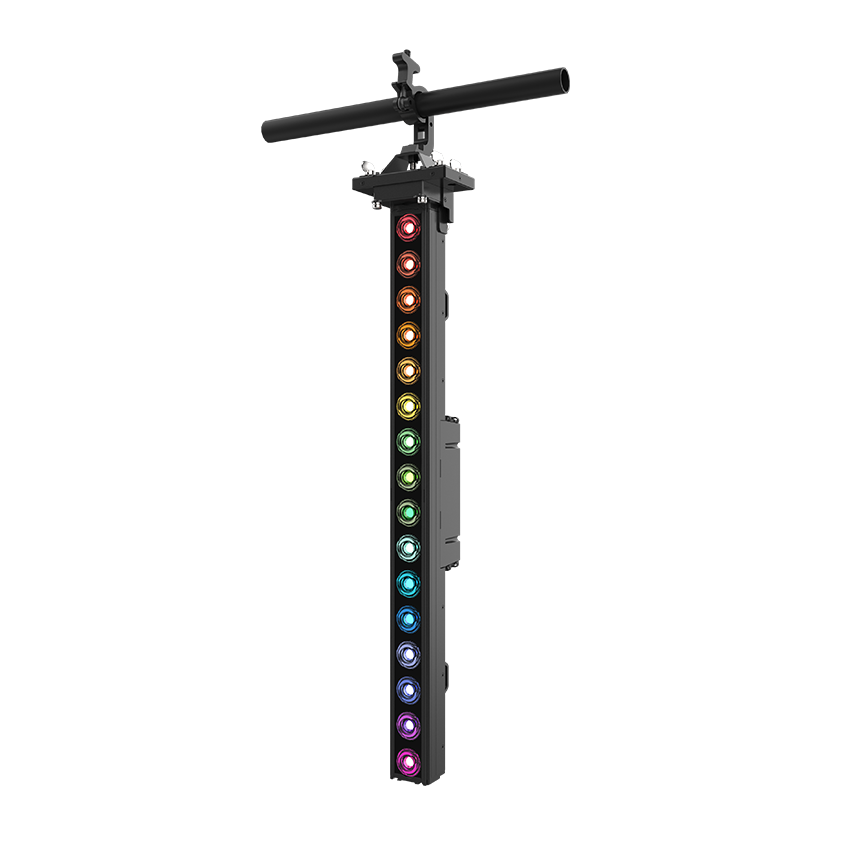

- Vertical: Using one hanging bracket (sold separately) with clamp (by others), a maximum of 3 fixtures may be connected

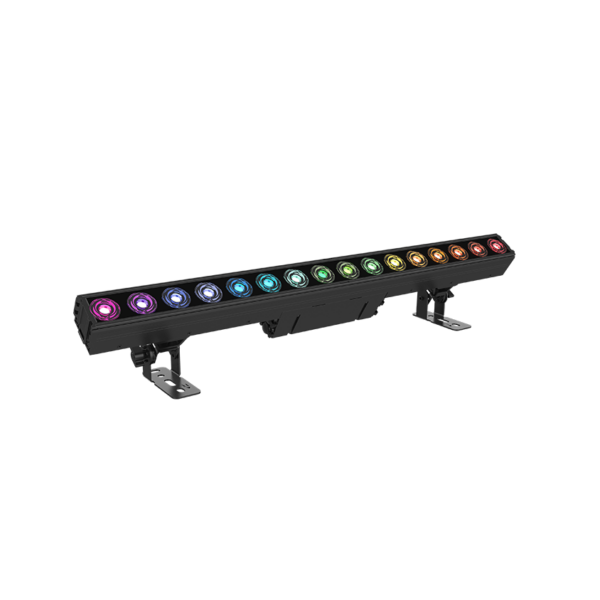

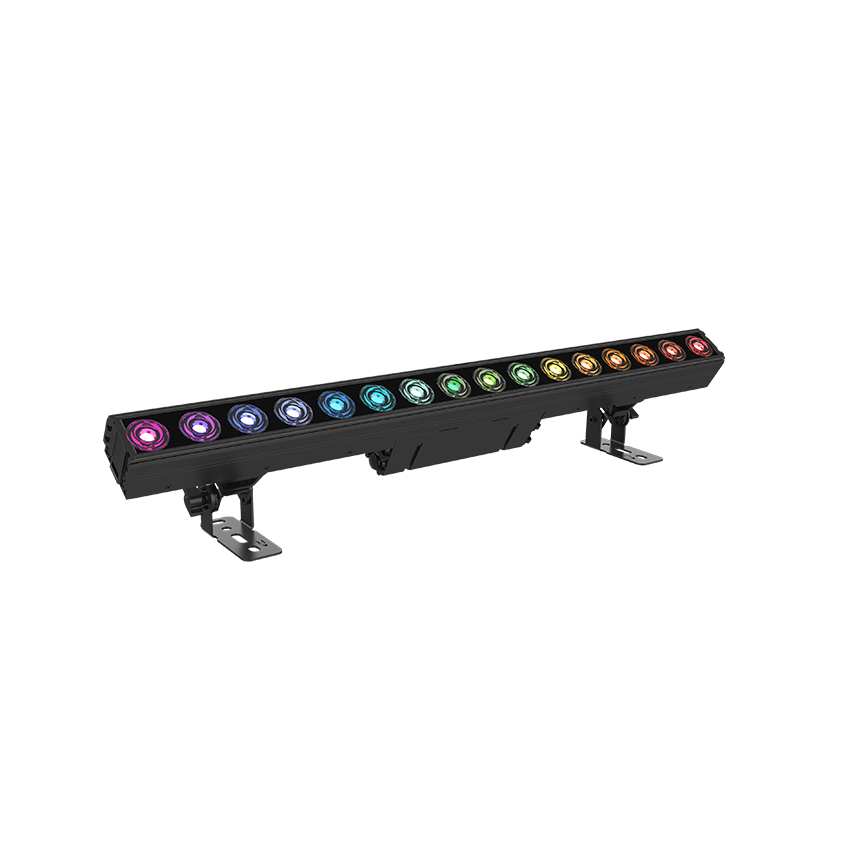

- Floor: Two floor brackets (supplied) may be attached to base of unit

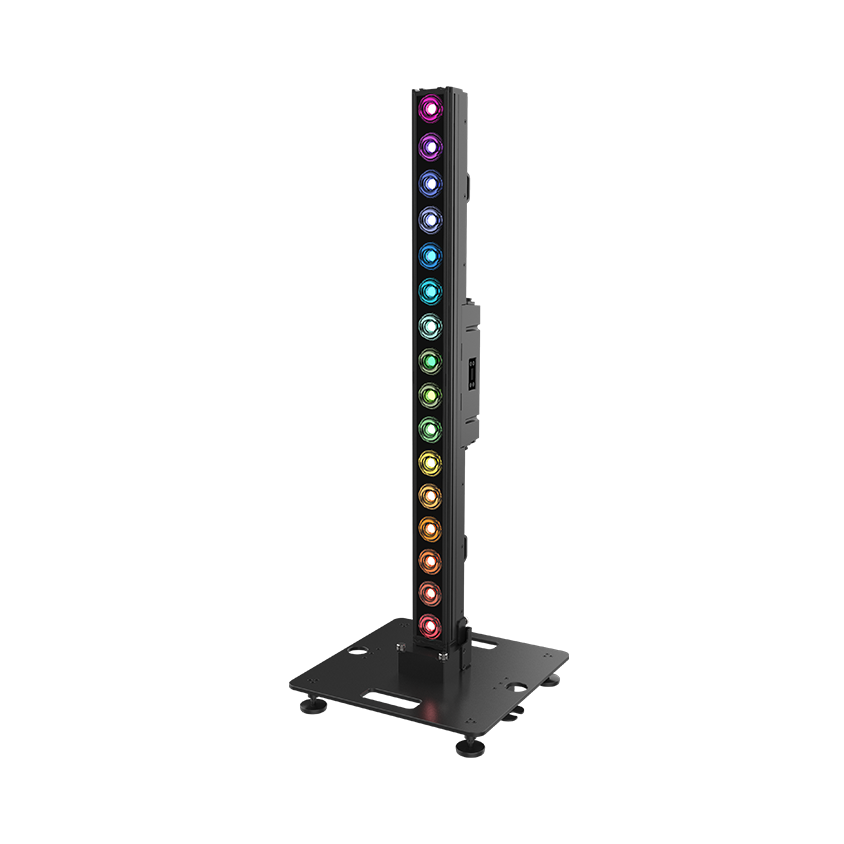

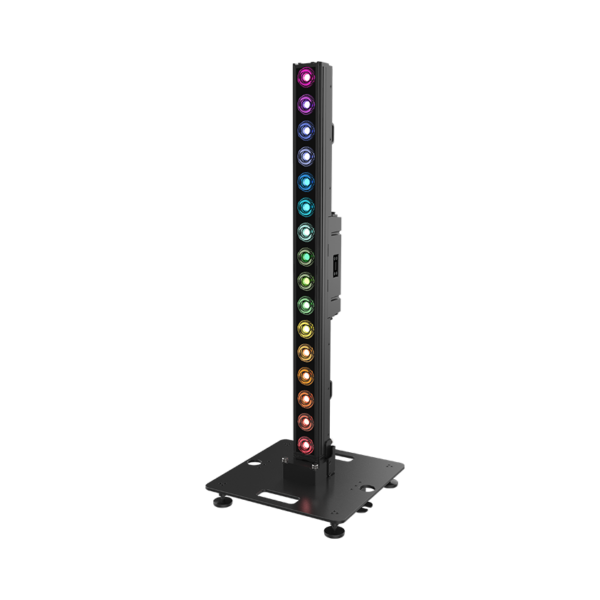

- Vertical Stand: Mounted to floor stand (sold separately), stand single unit vertically, no other fixtures may be connected
- Safety cable attachment point
Included Items
- Digital user manual
- Power cable
- 2 omega brackets (3002003002)
- 2 floor brackets (63583845)
Optional Accessories (With Order Code)
- Flight Case:
-
- Standard : Ten-pack loader case (63583828)
- North American Standard : Ten-pack loader case (63583784)
- Clamp : C-250B (2060001632-B),C-300 (2060001000)
- Safety Cable: SW-05 (2060001603-A)
- Signal Cable: 3-pin waterproof signal cable (3017013468) or 5-pin waterproof signal cable (3017013473),waterproof RJ45
- Hanging Bracket: 63582969
- Base Stand: 63582785

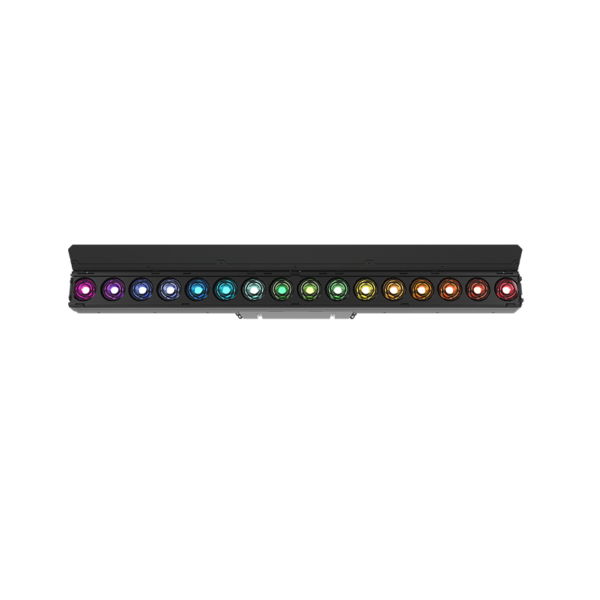

- Glare Shield: 63583846
- Diffuser Filter (40° x 20°): 3005006304
