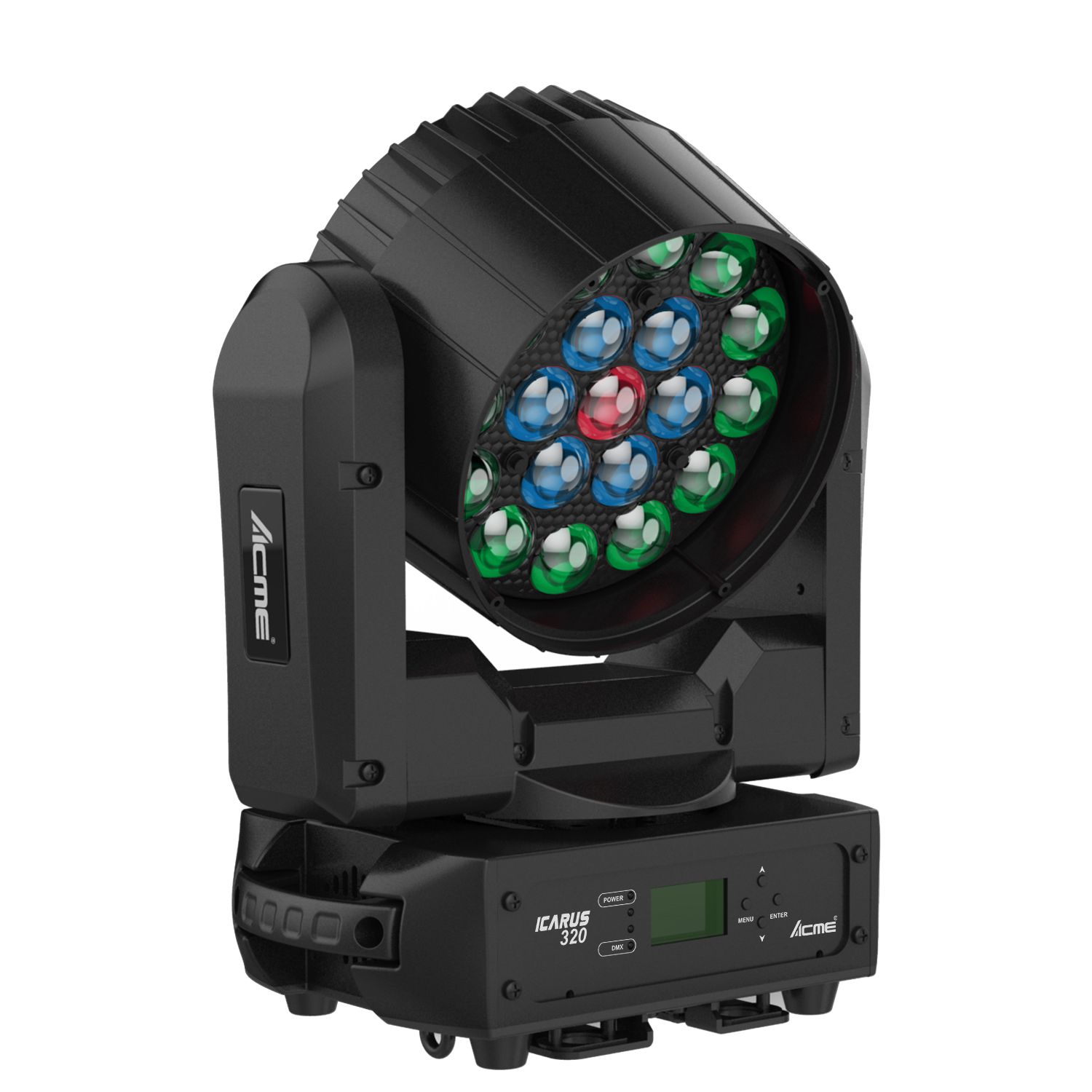

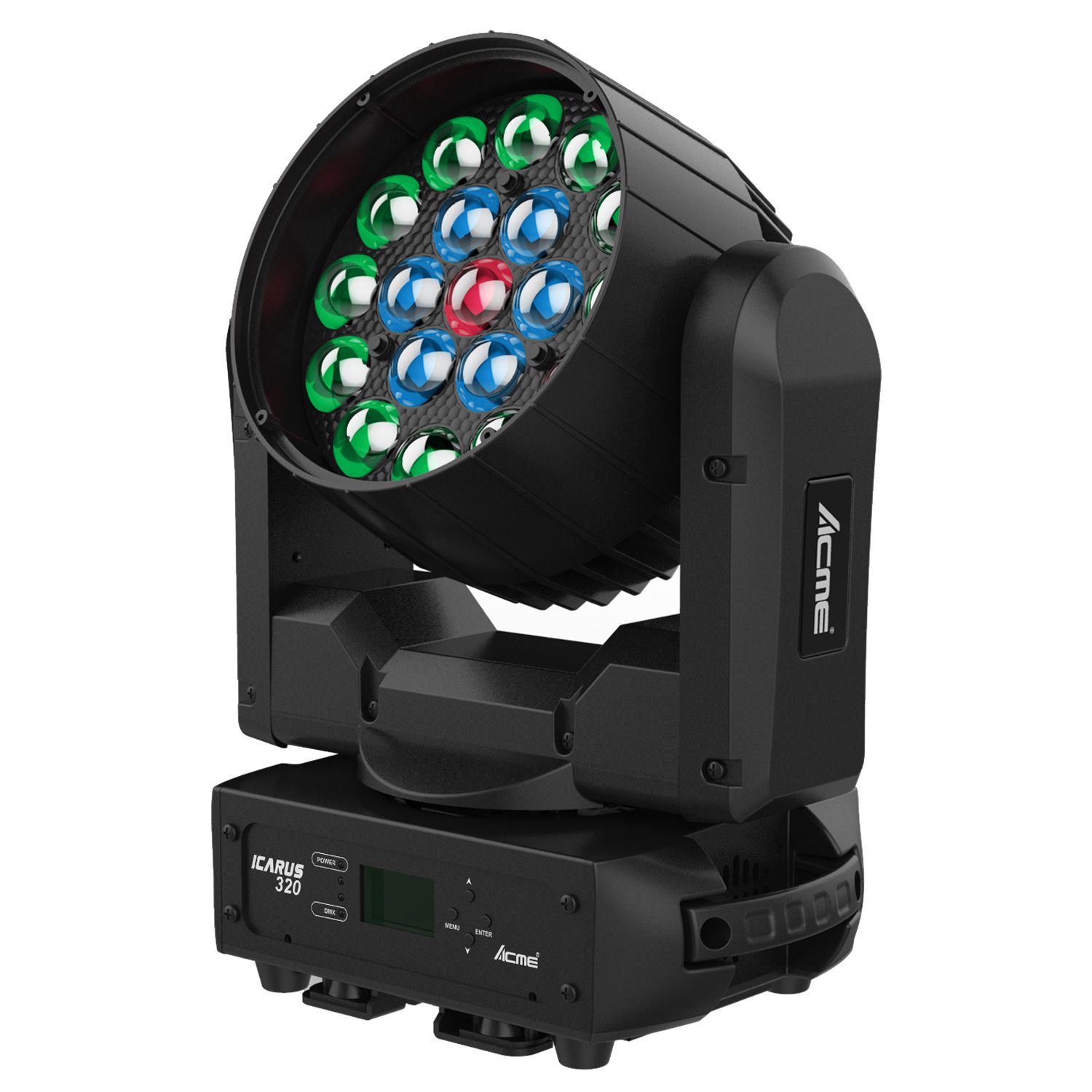

Functional Overview

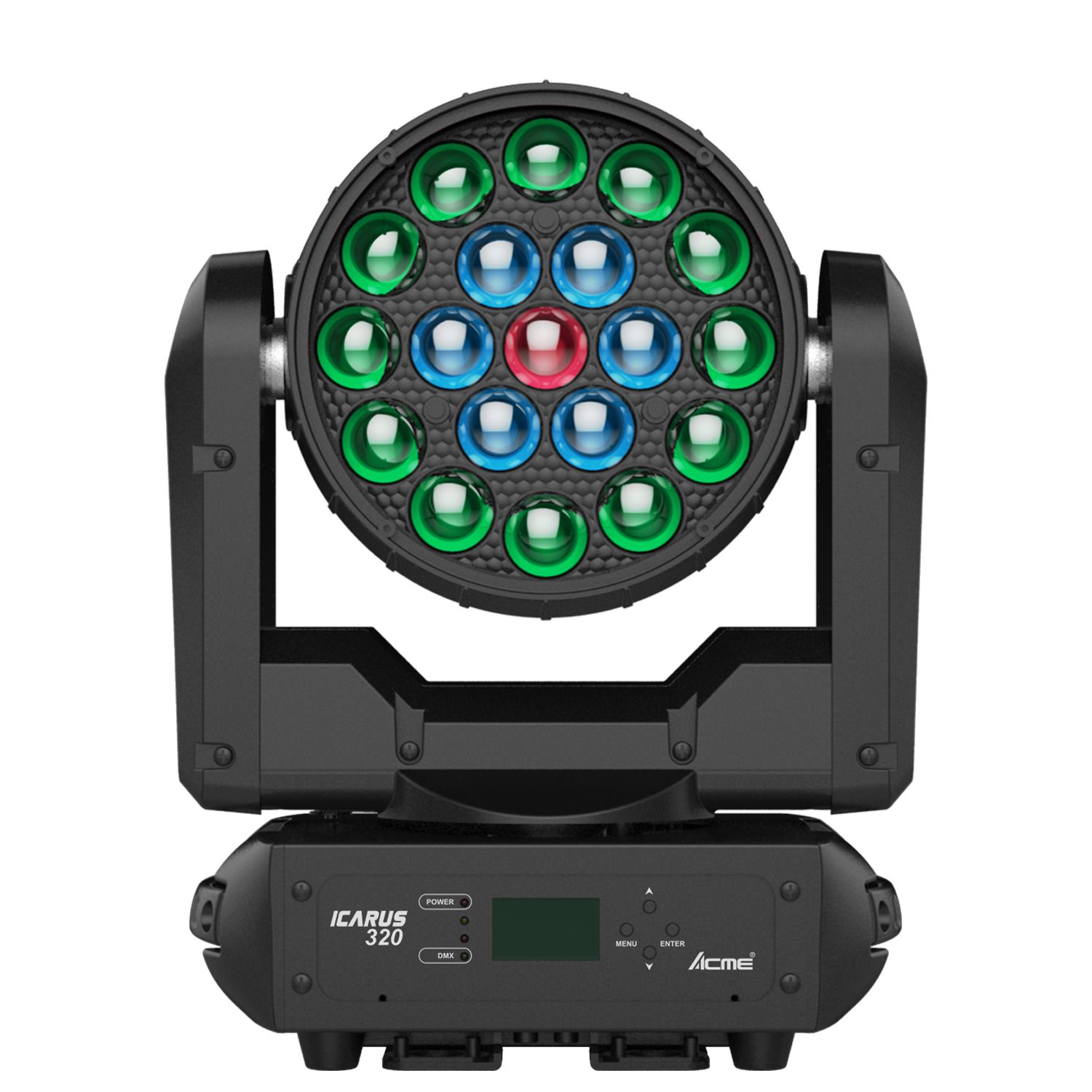

The ICARUS 320 has upgraded the light source from the PAGEANT 300Z II. It offers a washing effect by adding all the benefits of LED technology with lower energy consumption, longer lifespan, lighter weight and compact design. The ICARUS 320 is equipped with 19pcs 20W multicolor RGBW 4in1 LEDs that produce a vivid colors as well as excellent color mixing effect. It is also equipped with a motorized 1:6 zoom ratio from 10°-60° degree. Each ring of LED circle color can be controlled independently, this unique ring control not only allows you to create an endless ring chasing effect, but also to use each circle of LEDs ring as a graphic images that change dynamically in a circle. The 0-100% smooth dimming, flicker free management system and a reasonable output at 5,000lm should be confident for multi small to medium stage wash application.
Features
Light source: 19x20W RGBW LED
With powerful beam and wash effects

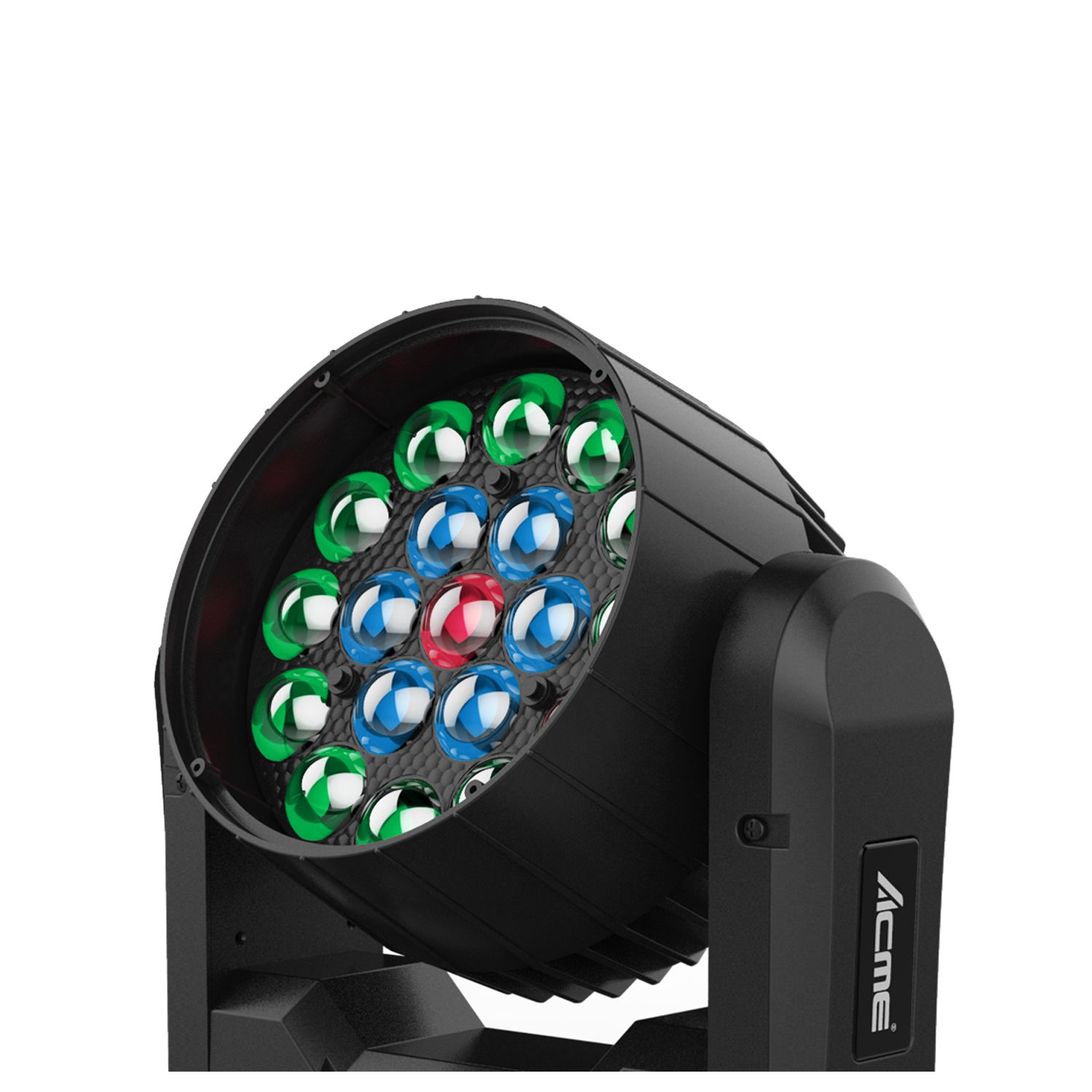

Individual control of each LED rings
Outstanding color macro effect
Variable CTO: 2500K – 8000K
Motorized linear zoom system
Zoom range: 10°~60°
Outstanding strobe effect with variable speed
0~100% smooth dimming
Fast and mute operating
Flicker free management
Dust-proof and oil-proof design
Maximum connected quantity:
6 sets (120V, 60Hz)
11 sets (230V, 50Hz)
Technical & Specification
Model
CM-320ZR
Light Source
Light source: 19x20W RGBW LED
LED life expectancy: 20000 hours
Optical System
Advanced optical system to ensure clear and large-range beam & wash effect
High – efficiency zoom optical system, ratio 1:6
Zoom range: 10° – 60°
Fixture total lumen output: up to 5000 lm

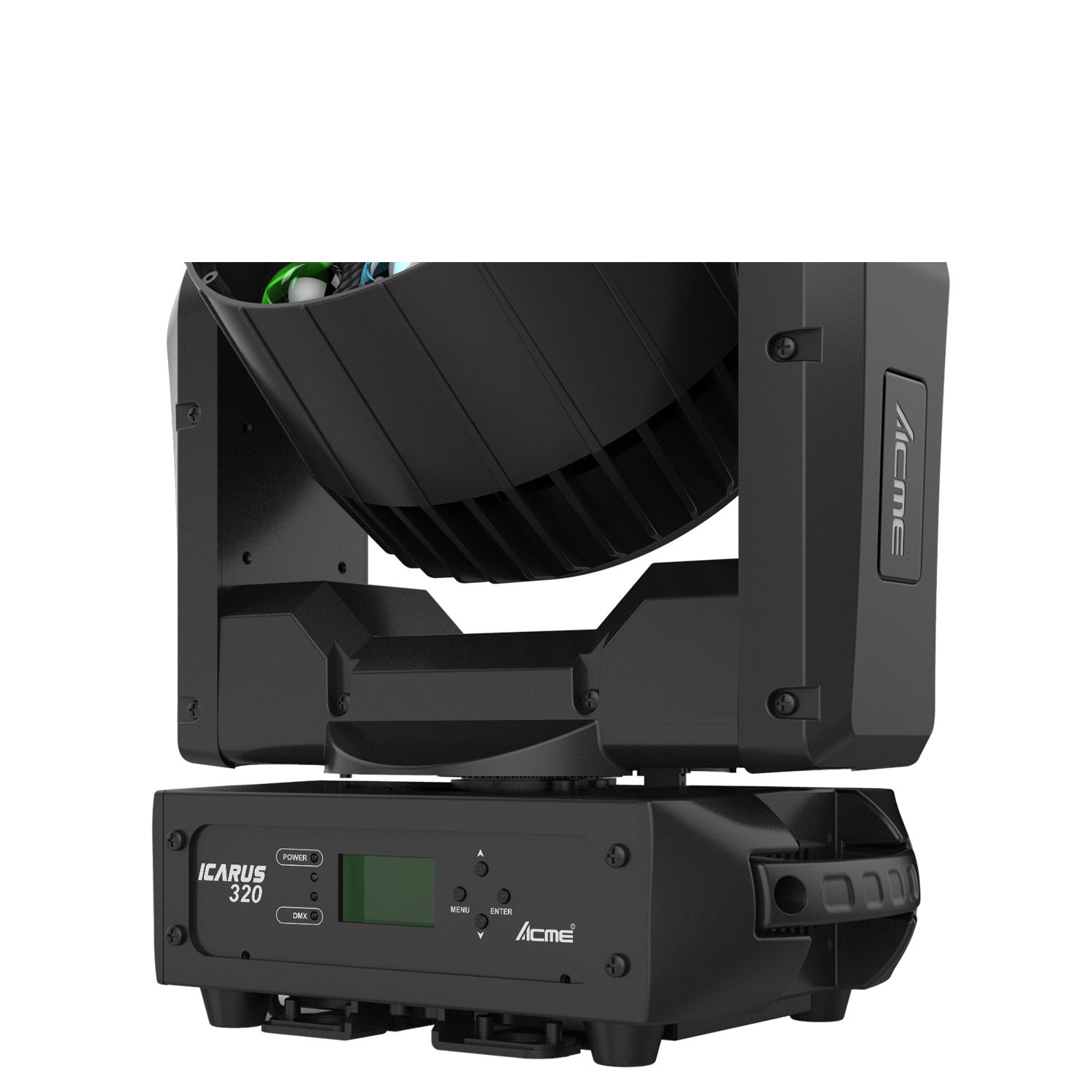

Control and Program
4-buttons
Display: LCD display
Protocols: DMX512
DMX Protocol modes: 3
Control channels: 14,26,30
Pan/Tilt Resolution: 16 bit
Dimmer: 16 bit
Upgrade the firmware via DMX link
PAN & TILT
Pan movement: 540°
Tilt movement: 270°
Automatic Pan/Tilt position correction
Electrical and Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100–240 V, 50/60 Hz
Power consumption: 255 W
Power In/Out: Power Connector in/out

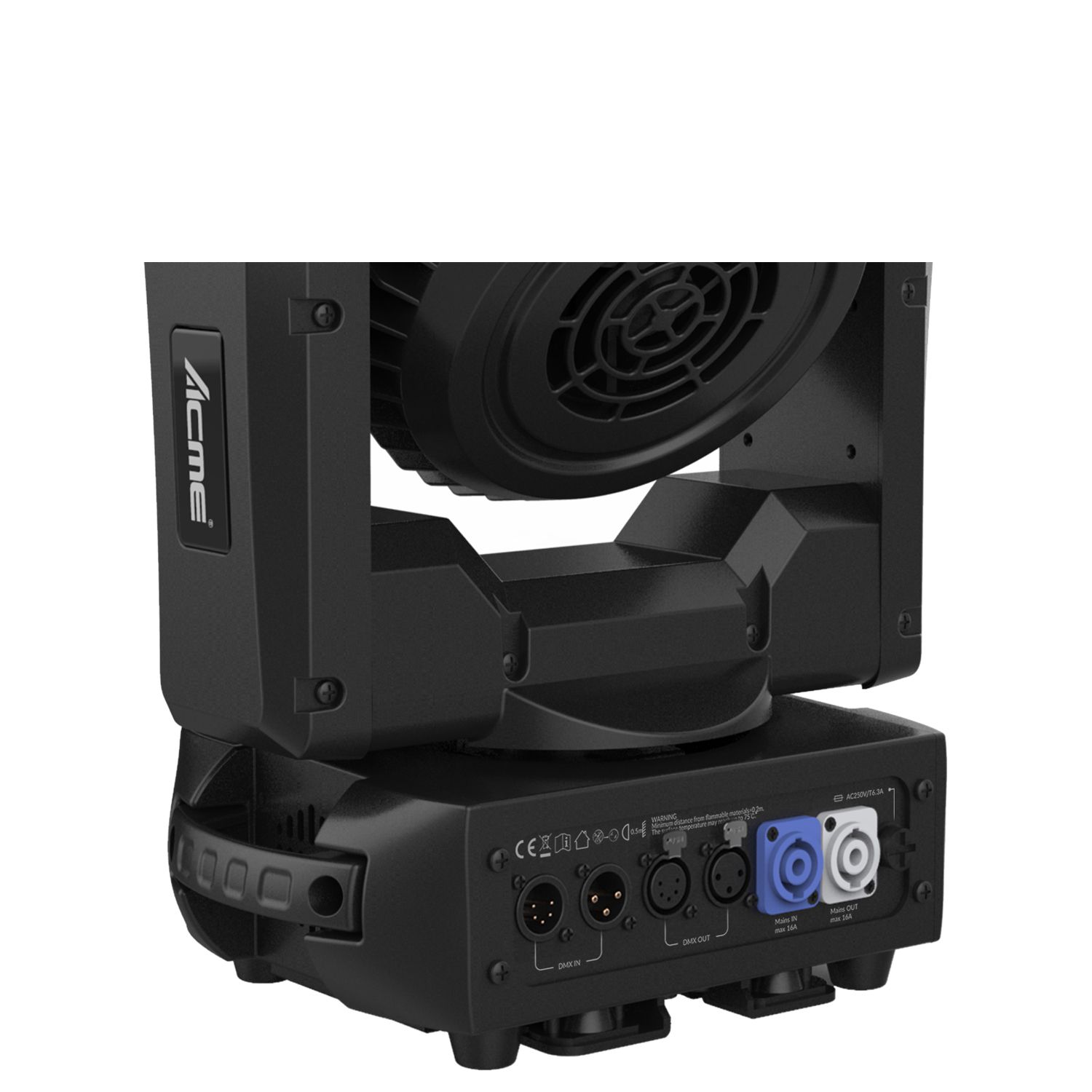

Data in/out: 3-pin and 5-pin XLR

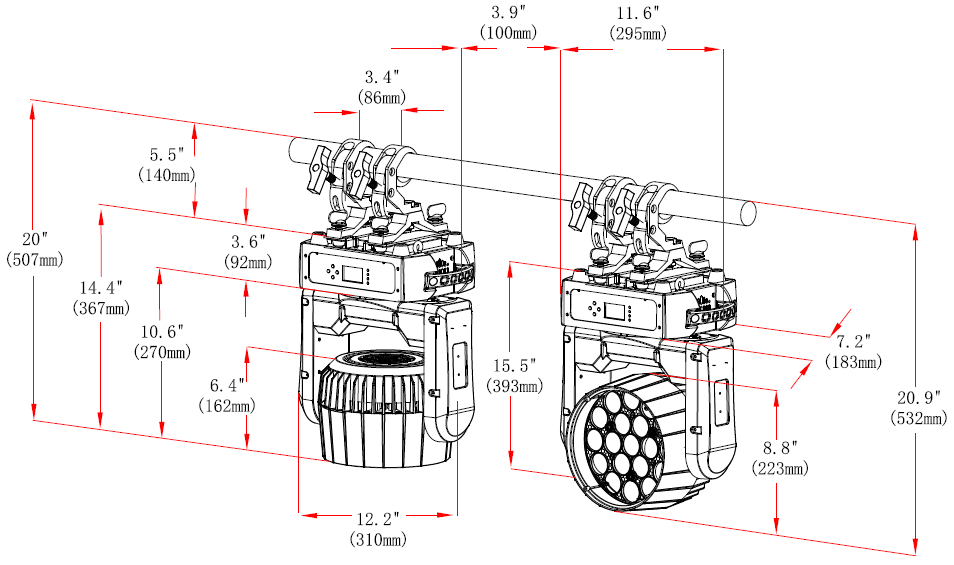

Fixture Specification
Height: 393 mm (15.4″)
Width: 183 mm (7.2″)
Depth: 310 mm (12.2″)
Weight: 9 kg (19.8 lbs)
Weight: 71.6kg (157.9lbs) (with F/C,4 in 1 standard)
F/C dimension:
Height: 635 mm (25″)
Width: 655 mm (25.8″)
Depth: 745 mm (29.3″)
Work Environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C
Installation
Horizontally or vertically mounting are available
Operating position is universal
2 pairs of 1/4-turn locking points under the base

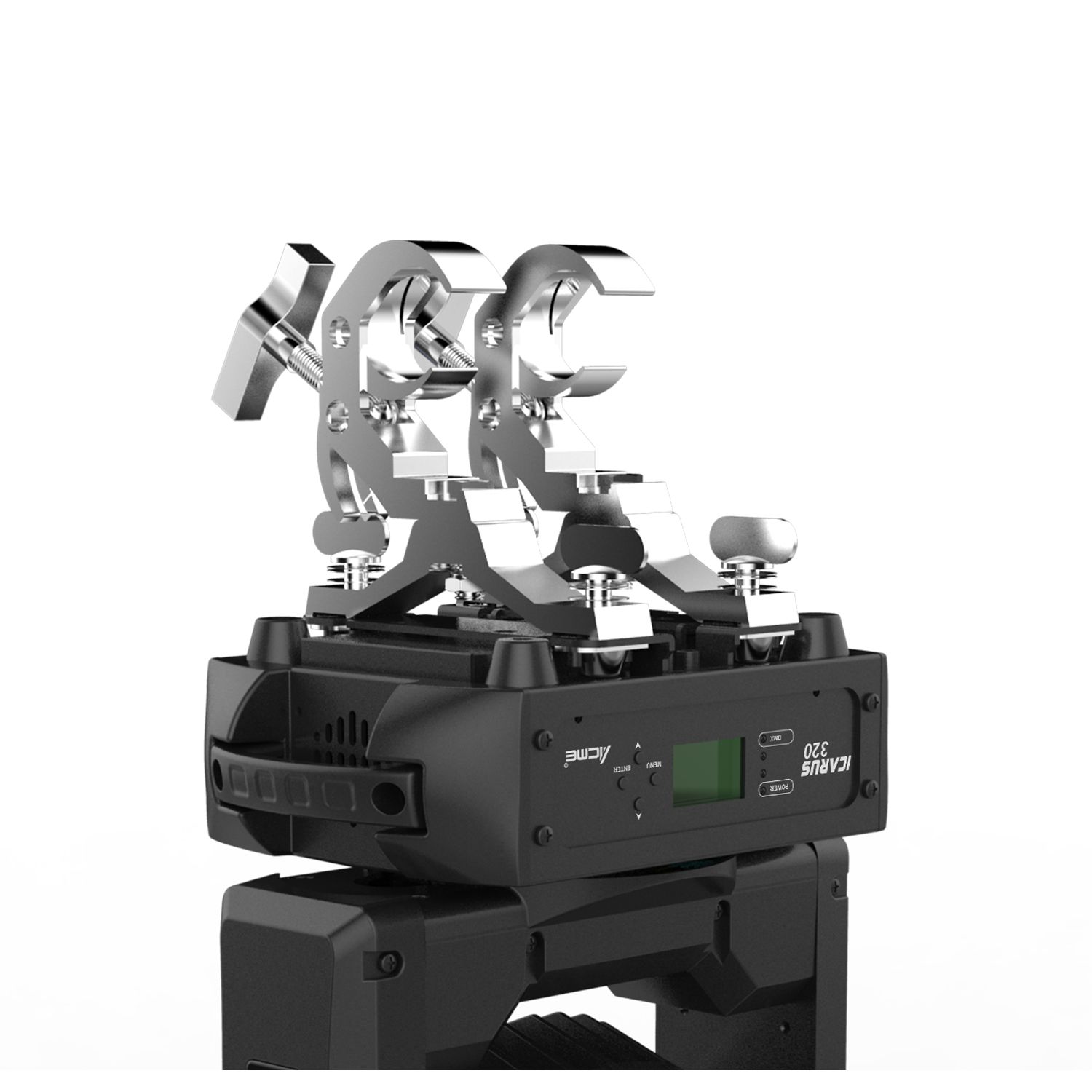

2 x fast-locked clamps with 1/4-turn locks for 50 millimeter truss
Safety cable attachment point
Included Items
User Manual
2 pairs of 1/4-turn locking points under the base
Safety cable : SW-02
Optional Accessories (with item code)
Raincover：3033001749
Clamps：2060001614（C-250）
