Functional Overview

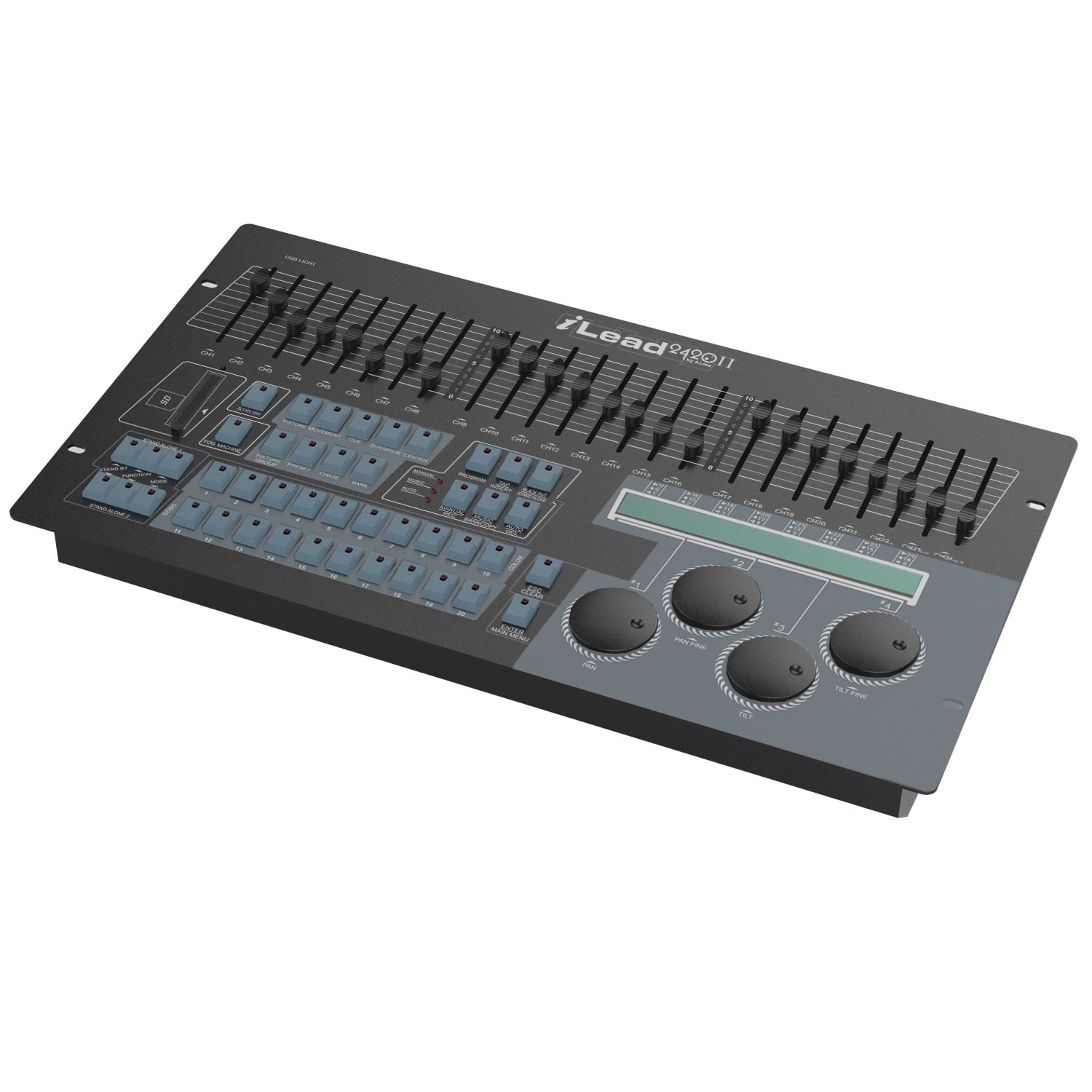

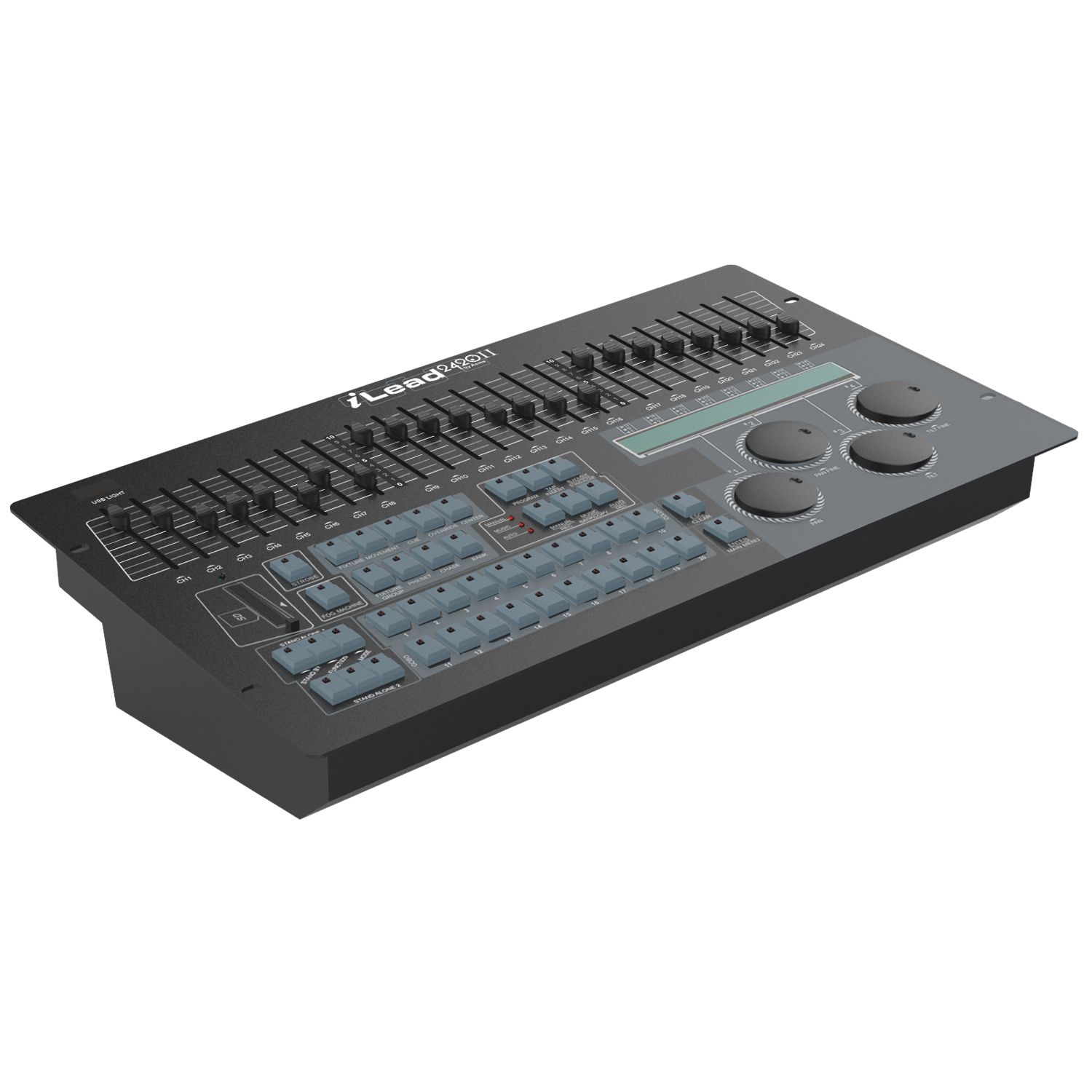

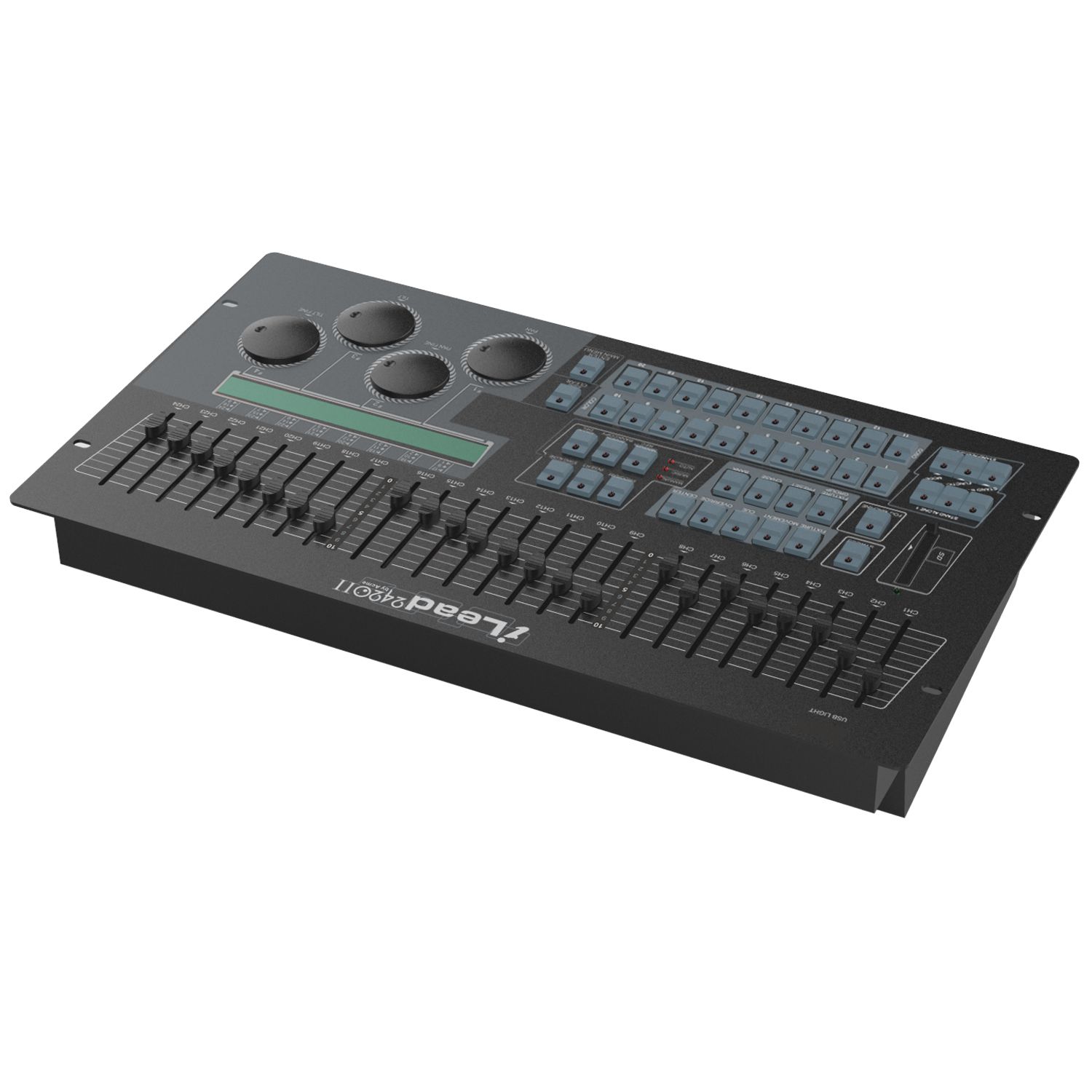

The iLead 2420 II is a powerful and professional DMX512 console, enabling you to program and Control20 DMX fixtures, each of up to 24 channels. Built-in are 10 movements, 20 presets, 60 banks of 20 scenes, 60 chases, 60 cues, 20 overrides and 20 centre position, for fast and easy show design. The Controlsurface Features 24 faders, 20 function buttons, four rotary wheels and an LCD display, enabling easy access to program, edit and operate – and get the best performance from your lighting fixtures.
Features
2 DMX outputs
484 DMX channels in total (including channel 481 for DMX fog, channel 482 for future use and channels 483-484 for DMX strobe
Fixture Library (can be set manually, but 20 fixtures max)
10 built-in movements. Can adjustPan/Tiltposition,Pan/Tiltrange, Fade time, Wait time, Loop
60 programmable chases, each 200 scenes max
1200 programmable scenes in total (60 banks x 20 scenes)
400 programmable presets (20 presets, each with 10 colors and 10 gobos)
Controls up to 20 DMX lighting fixtures, each of up to 24 channels
Controls up to 20 fixture groups simultaneously
24 faders for Controlof 24 DMX channels
60 cues: can combined multiple chases or operate chases singly
20 overrides: can assign one (or more) fixtures to perform special functions (such as followspot) during operation
20 centre points: can set the centre position of up to 20 fixtures
Stand By mode can be set for 1. Pan/ Tilt home position, 2.Pan/Tiltcentre position, 3. Preset position
Jog wheel can adjust audio sensitivity (LCD display will indicate value)
User-set password available
Lock/Unlock memory: input password to clearcontroller memory
Standard MIDI facility
Lighting library and software can be downloaded
Channel 481 can ControlDMX fog machine
Both DMX (No.483 & 484 channel) and analog strobe Controlavailable
Analog strobe speed can be adjusted via LCD display
USB gooseneck lamp
Technical & Specification
Model
IL-2420 II

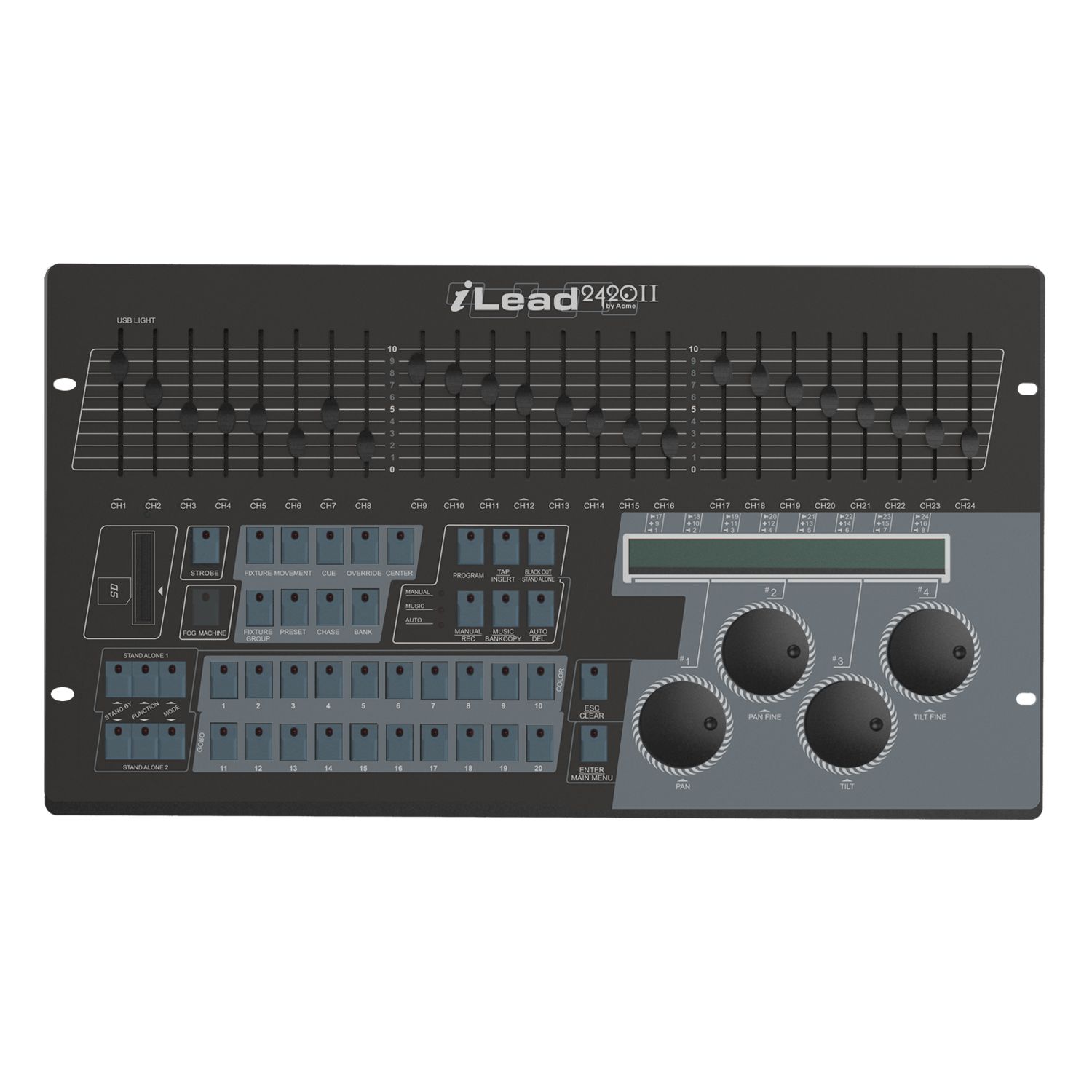

Front Panel
80-character backlit LCD display for easy programming and navigation
4 large rotary wheels for Pan/Tilt, Menu andcontrol
20 multi-function number buttons
24 faders
Strobe button
2 remote hand-heldcontrollers (CA-8)
Compact Flash drive (64M or higher recommended)
Firmware can be updated/upgraded via internet to SD card
Gooseneck USB lamp

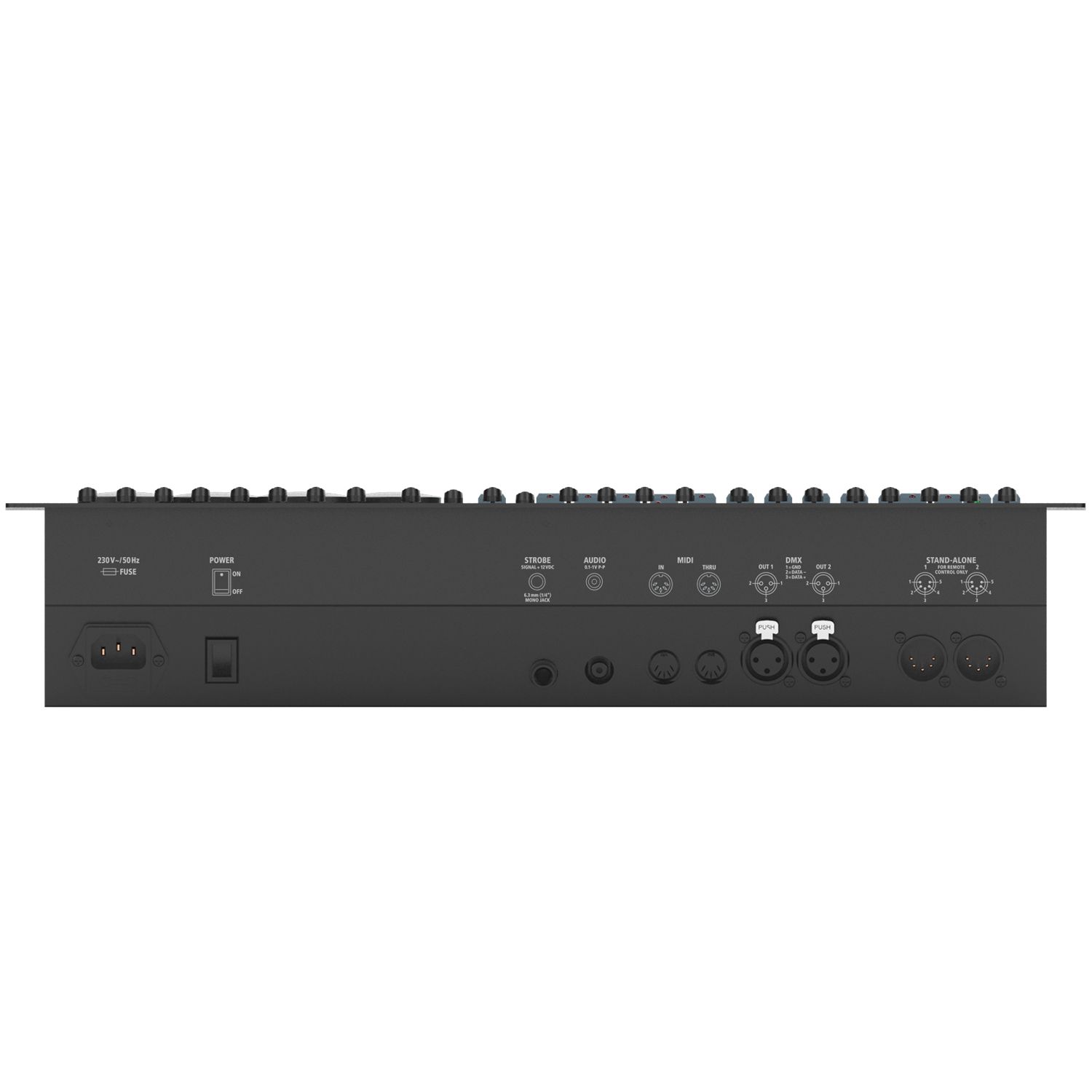

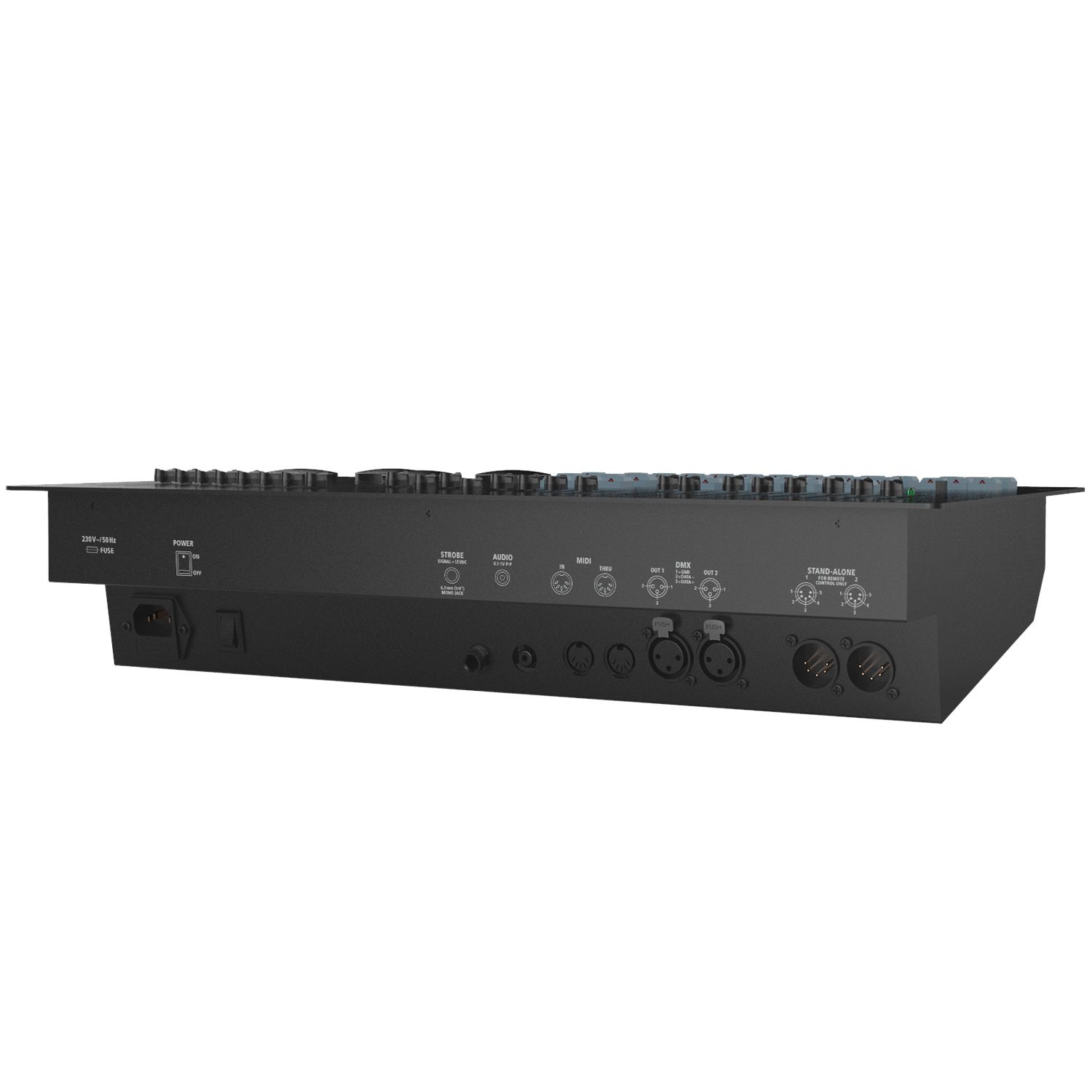

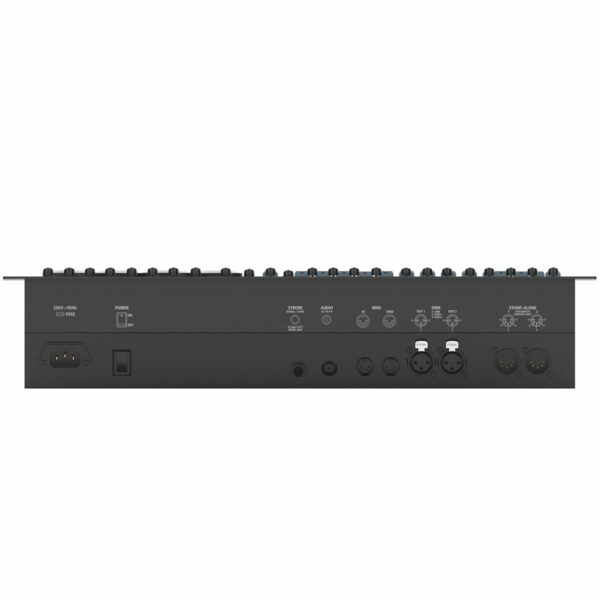

Rear Panel
2x (3-pin XLR) DMX outputs
MIDI-In port© Midi Thru/Bypass port
RCA audio input for chases, built-in mic for audio trigger
2x 5-pin XLR connectors for remotecontroller
1x strobe output(0-10V)
Electrical and Physical
Power Voltage: 100-240VAC, 50/60Hz
Power Consumption: 5W
2MB internal memory
3.6V 80mA NI-MH battery backup
19” rack-mountable (6U)
Dimensions: 19.0” x 10.4” x 3.9” (483 x 264 x 100mm)
Weight: 5.3kg
