Functional Overview

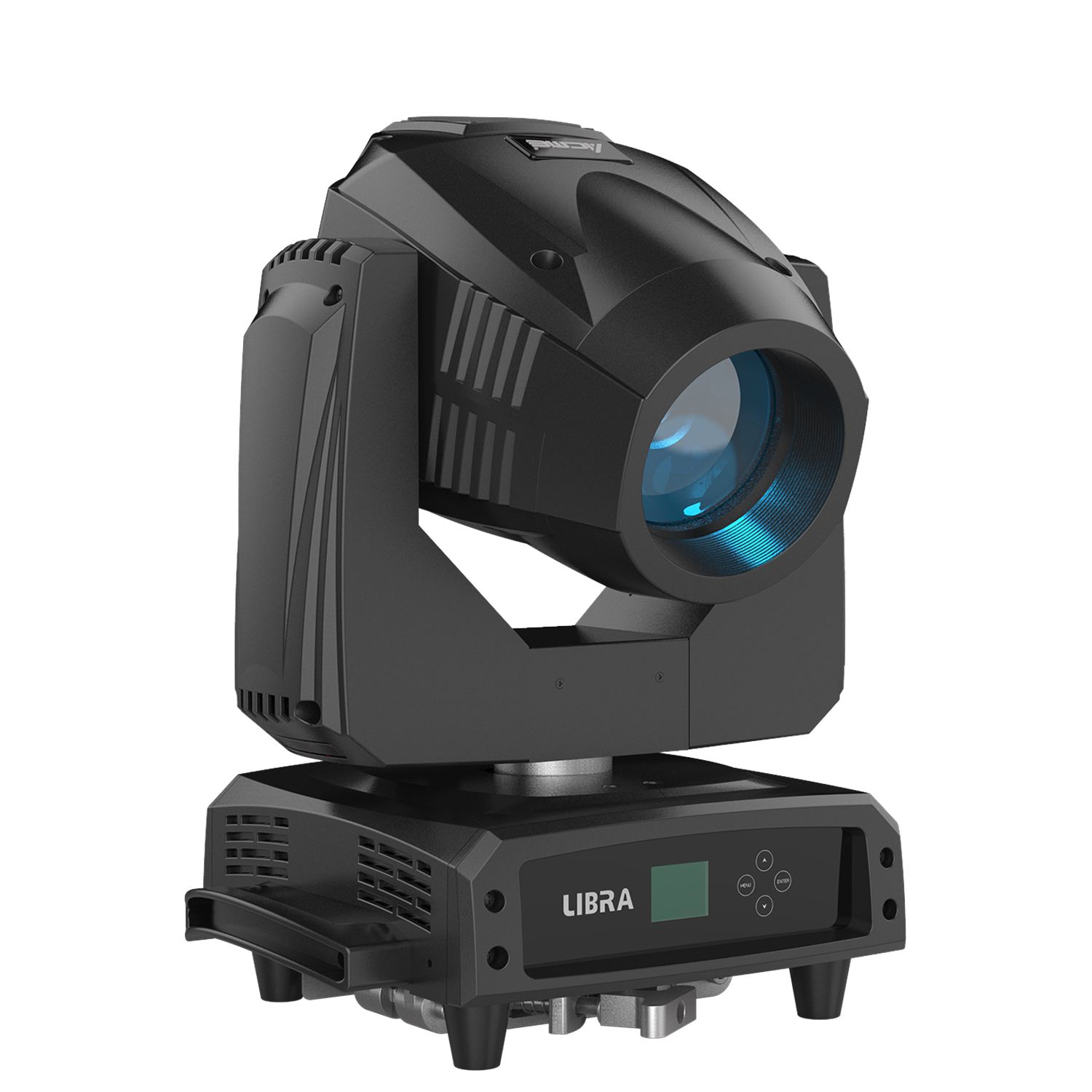

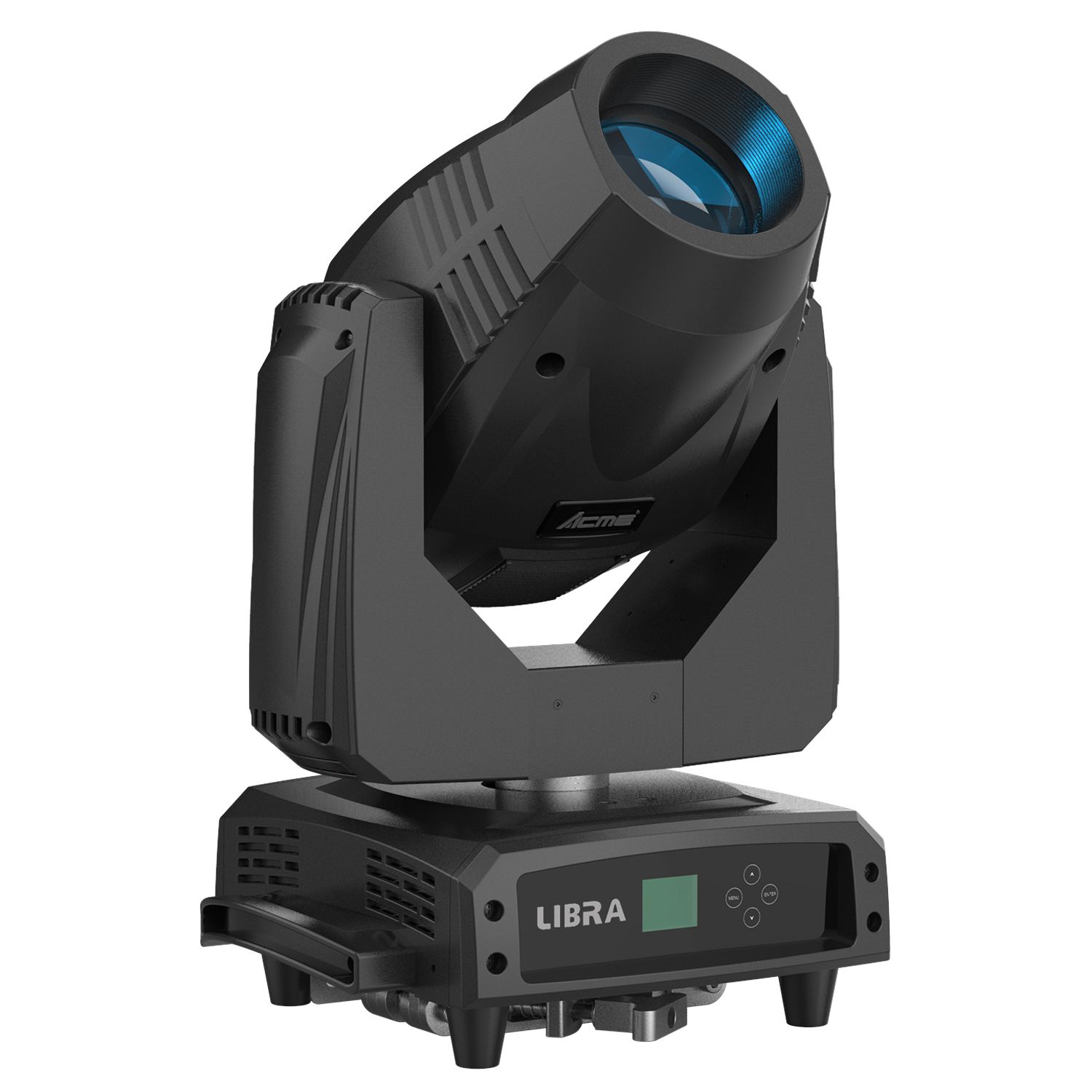

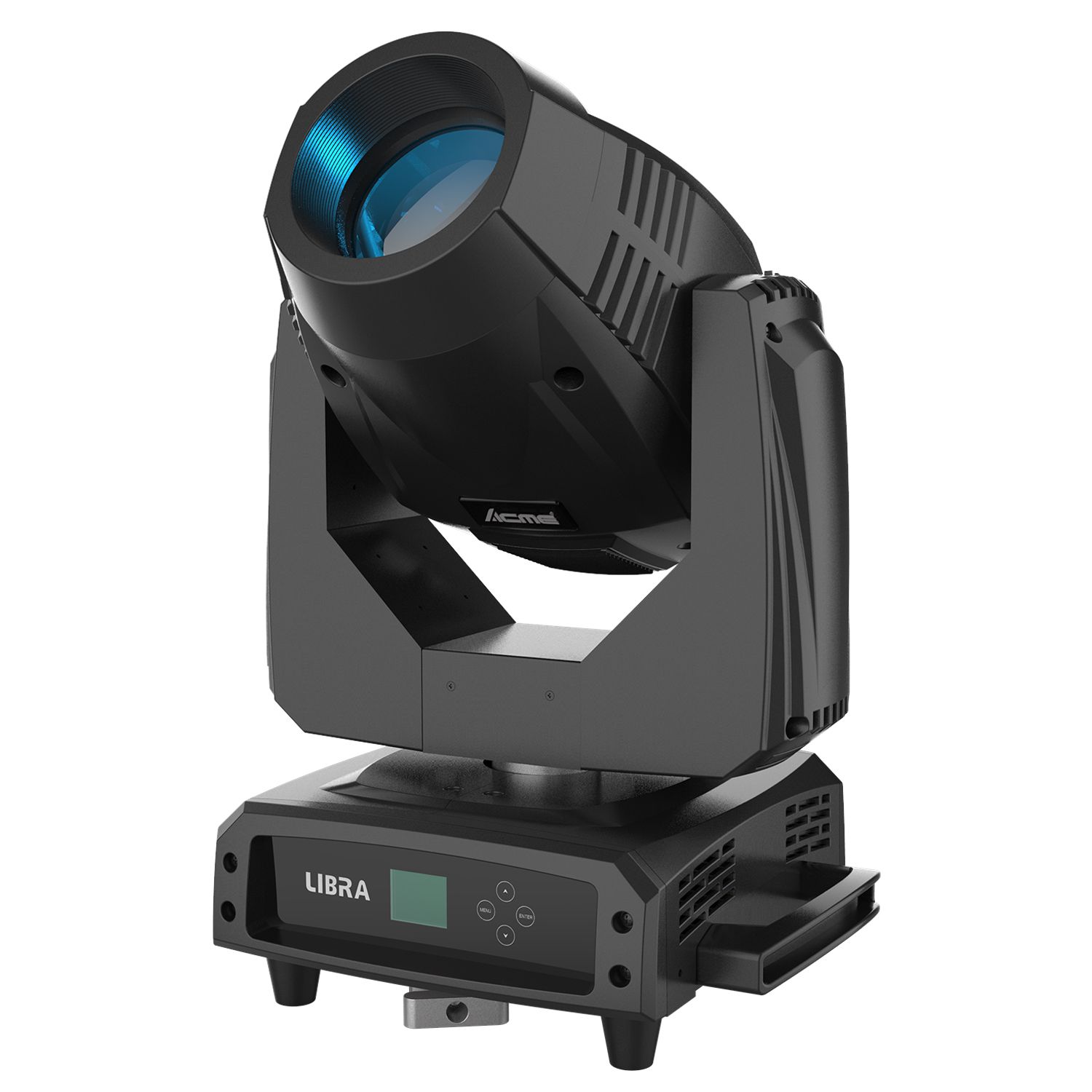

If you need a versatile performance fixture, the ACME LIBRA is your ideal choice. A true three-in-one Hybrid Moving Head fixture, LIBRA combines Beam and Spot in one compact unit that also offers diffused Wash functionality, dual Prism layering and dual Gobo wheels.
Equipped with Philips MSD Platinum 18RLL (Long-Life) 370W bulb, this unique model boasts an extended operational life and reduced need for maintenance. It also has two different frosts (one specially designed for homogenizing the Spot and another for normal use), and three different zoom modes (Beam mode, 3-7˚; Spot mode, 5-32˚ and Wash mode, 18-23˚).

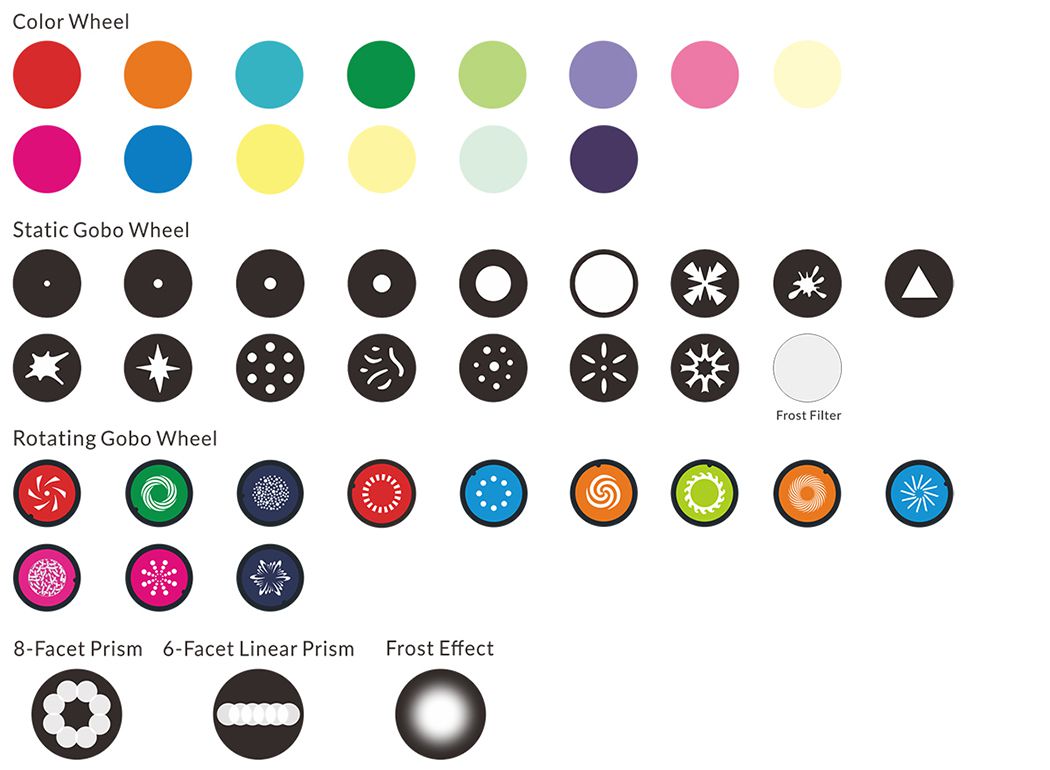

Other Features include a Color Wheel with 14 colors plus white, 1 rotating gobo wheel with 12 replaceable gobos plus open, and 1 static gobo wheel with 17 gobos plus open, delivering outstanding macro effects and bi-directional rainbow effect, as well as a variety of graphic effects.
All these Features are packed into acompact, 21kg body, giving punchy, sharp beams (over 848,000 lux@5m) or wide washes of color.
The LIBRA will enhance any show with its advanced Optical System, ensuring clear and sharp image quality. Whether you need just a handful of fixtures or many more for a large event, the LIBRA offers an ideal, scalable solution with its dynamic multi-functional performance.
Features
Diameter of lens: 120mm
Integrated Features: Beam, Spot, and Wash
Color temperature: 8000K
Lamp life: 6000 hours
Outstanding color macro effects
Rainbow effect in both directions
Motorized focus
Linear motorized zoom: 3-32°
Zoom range:
Beam Mode:3-7°
Spot Mode: 5-32°
Wash Mode: 18-23°
1x rotating gobo wheelwith 12 gobos plus open:convenient replacement
1x static gobo wheelwith 17 gobos plus open
1x Color Wheel with14 colors plus open
2x prisms: 8-facet prism + 6-facet linear prism, rotatable in both directions and overlayable
Smooth dimming from 0-100%
Independent frost effect
Outstanding strobe effect with variable speed
Dust-proof and oil-proof design
Technical & Specification
Model
XP-380 BSW
Light Source
Light Source: Philips MSD Platinum 18R LL (Long-Life)
Life expectancy: 6,000 hours
Optical System

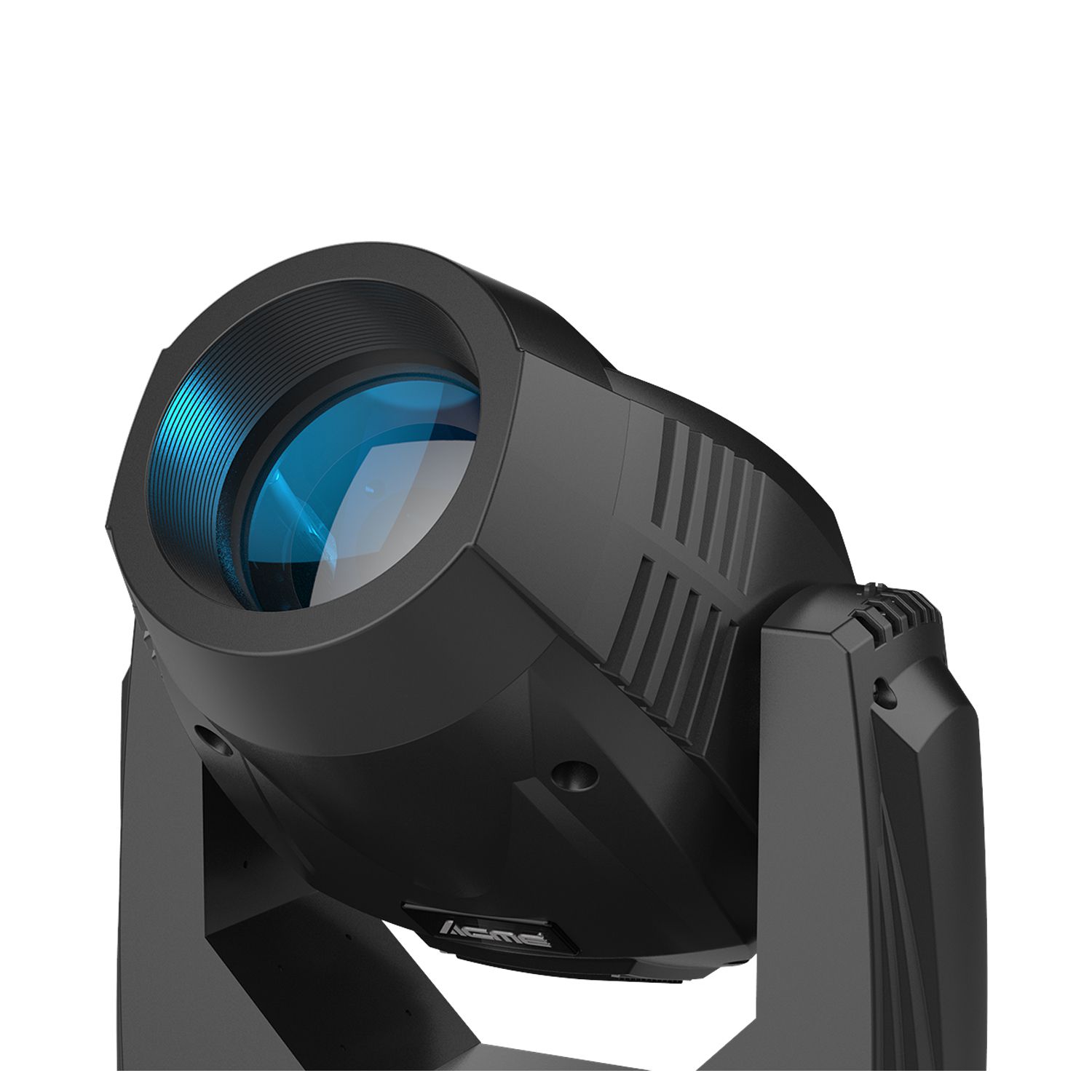

Advanced optical Systemensures clear, sharp image quality
High-efficiency Optical System,ratio 1:6.4
Control& Program

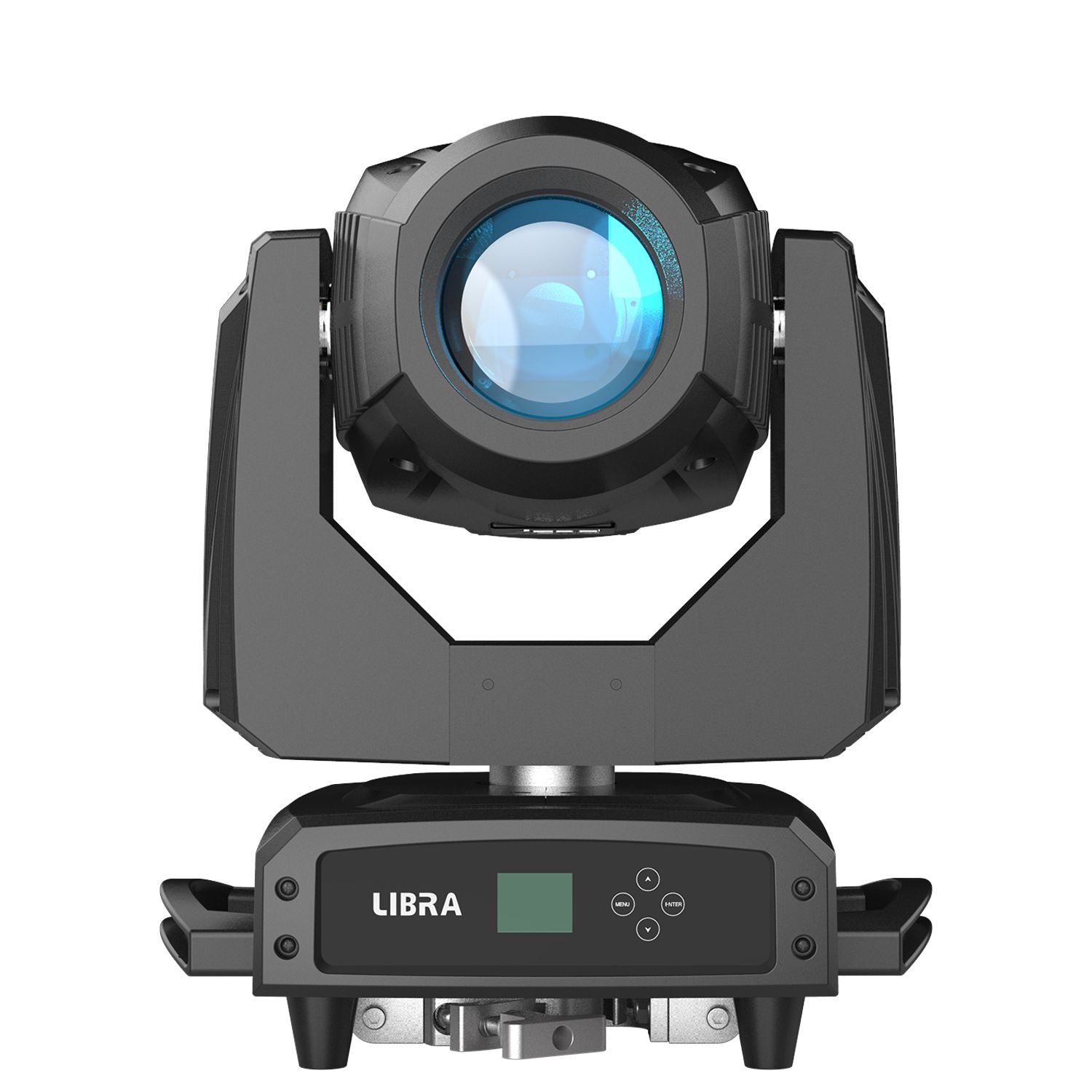

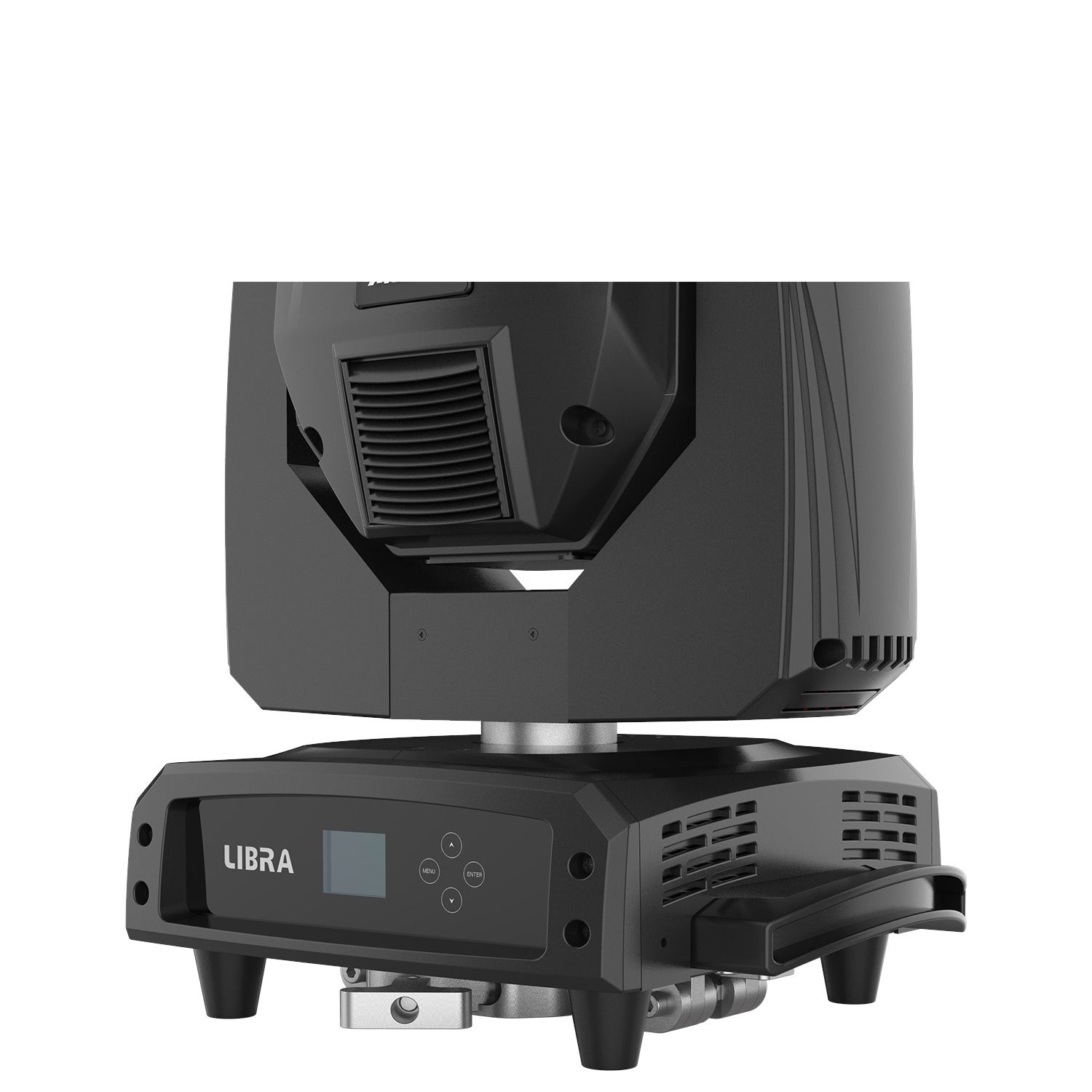

4-touch buttons
Display: Color display
Protocols: DMX512,RDM
DMX modes: 2
Controlchannels: 19,21
Pan/Tiltresolution: 16-bit
Electronic ballast
Firmware upgrade via DMX link & USB
PAN & TILT
Pan movement: 540°
Tilt movement: 270°
AutomaticPan/Tiltposition correction
Rotating Gobos
1 x rotating gobo wheel with 12 gobos plus open, convenient replacement
Image diameter: 7mm
Outside diameter: 12mm
Thickness: 1.1mm
Borofloat (or better) glass materials
Slot & Locksystem for gobo replacement
Static Gobos
1x static gobo wheelwith 17 gobos plus open
Color Wheel
1x Color Wheel with 14 colors plus open

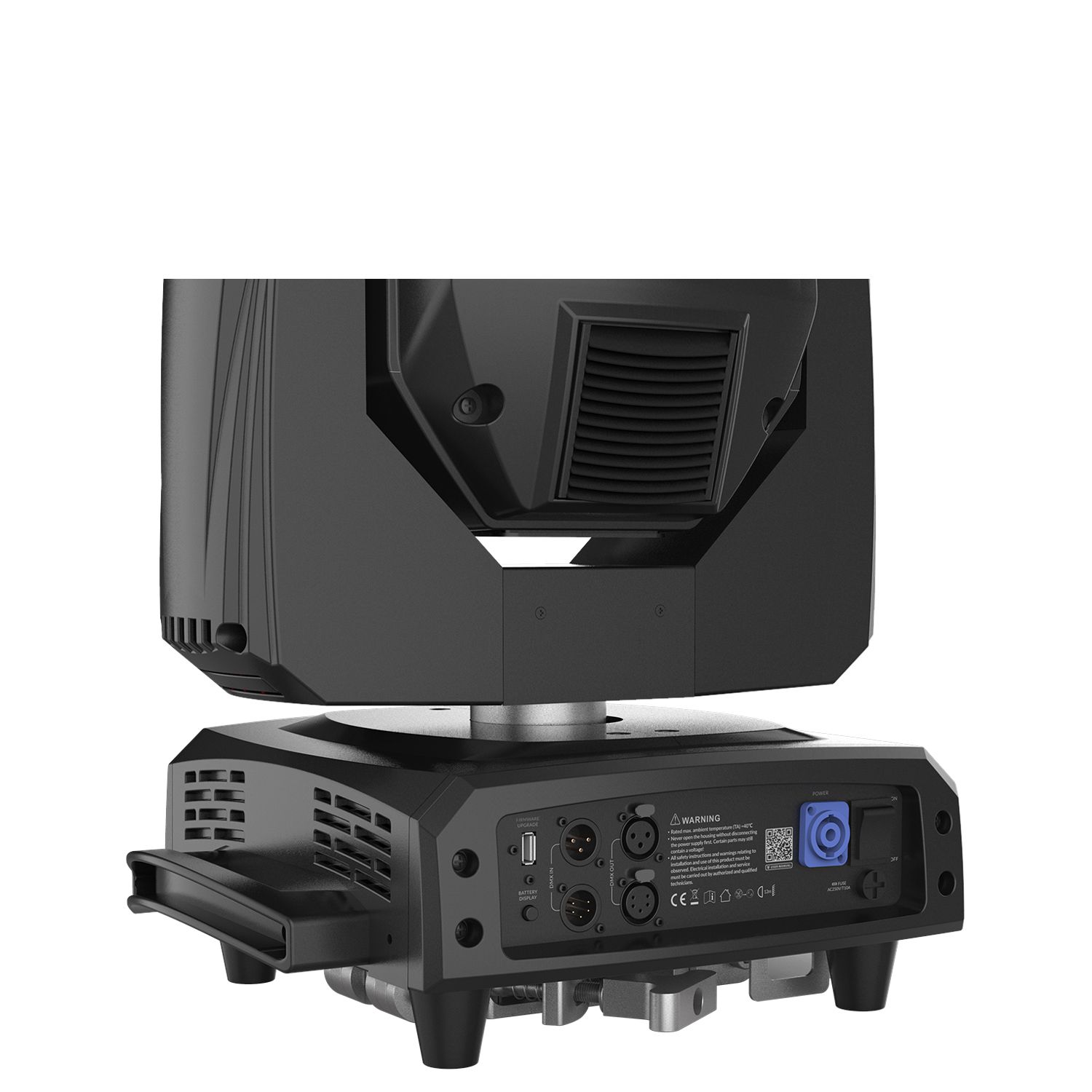

Electrical & Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100-240V, 50/60Hz
Power consumption: 580W
Power connector input

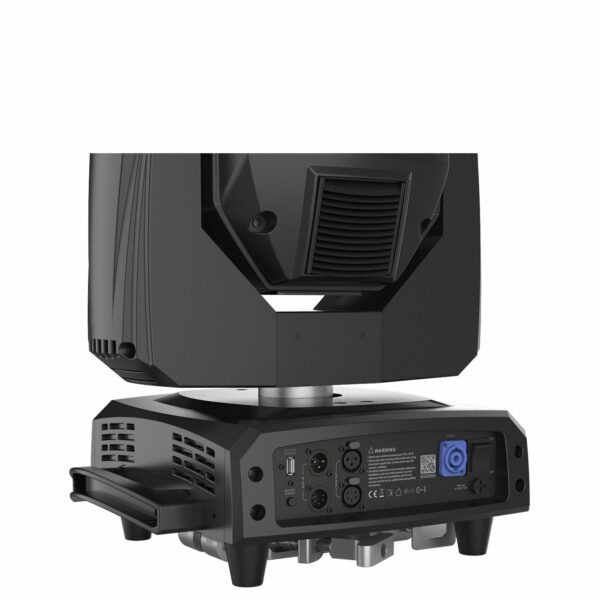

Data in/out: 3-pin and 5-pin XLR

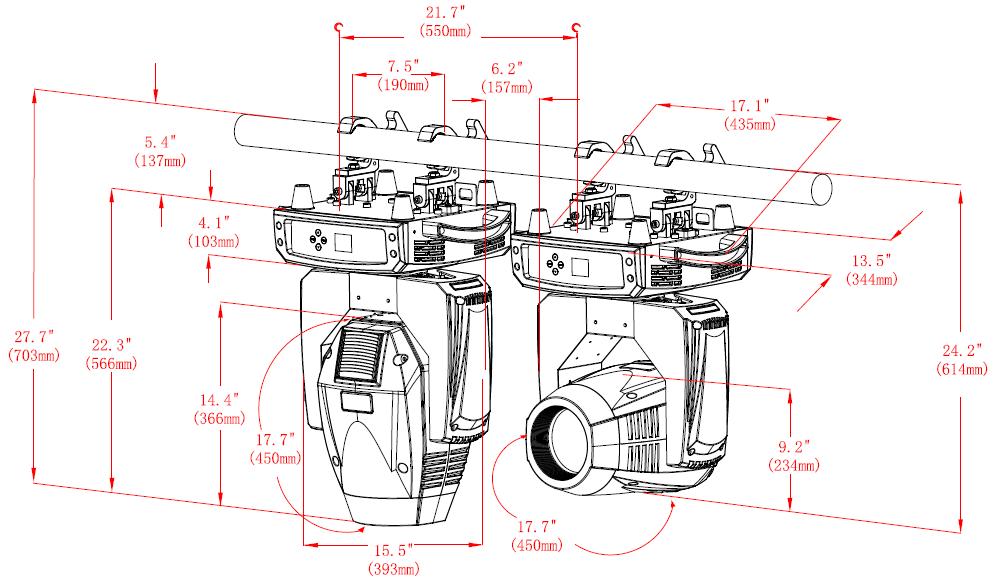

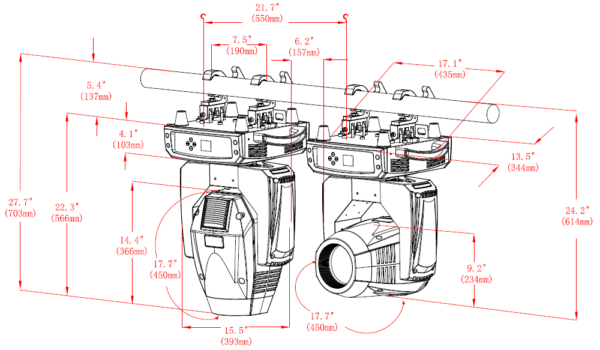

Fixture Specification
Height: 607 mm (23.9″)
Width: 435 mm (17.1″)
Depth: 344 mm (13.5″)
Weight: 21.2 kg (46.7 lb)
Work Environment
Maximum ambient temperature: 45°C
Maximum surface temperature: 65°C
Minimum operating temperature: -5°C
Approvals
CE Compliant
Installation
Horizontal or vertical mounting
Operating position is universal

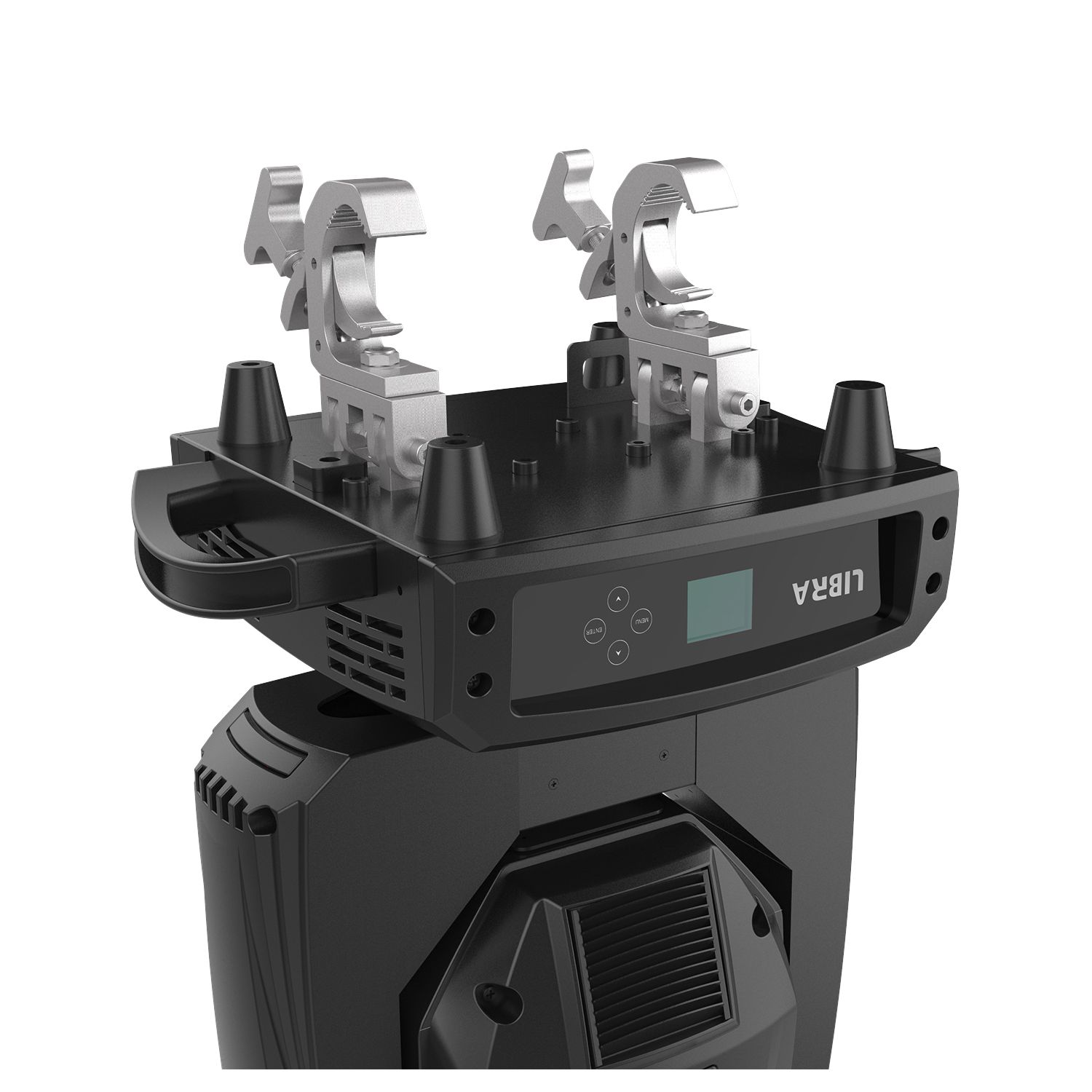

2x fast-lock clamps for 50mm truss
Safety cable attachment point
Included Items
User Manual
Power Cable
2x fast-lock clamps for 50mm truss
Optional Accessories (with item code)
Raincover：3033001749
Flight Case：3205001255 (2 in 1)
Safety cable : 2060001603-A (SW-05)
Signal Line：3-pin & 5-pin signal line
