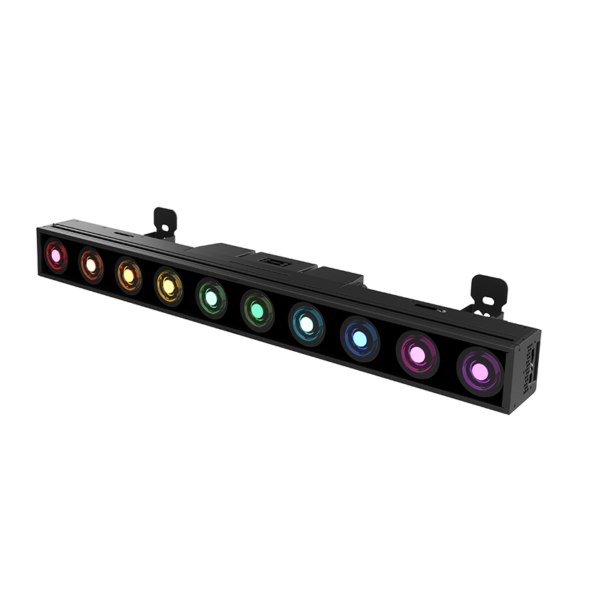

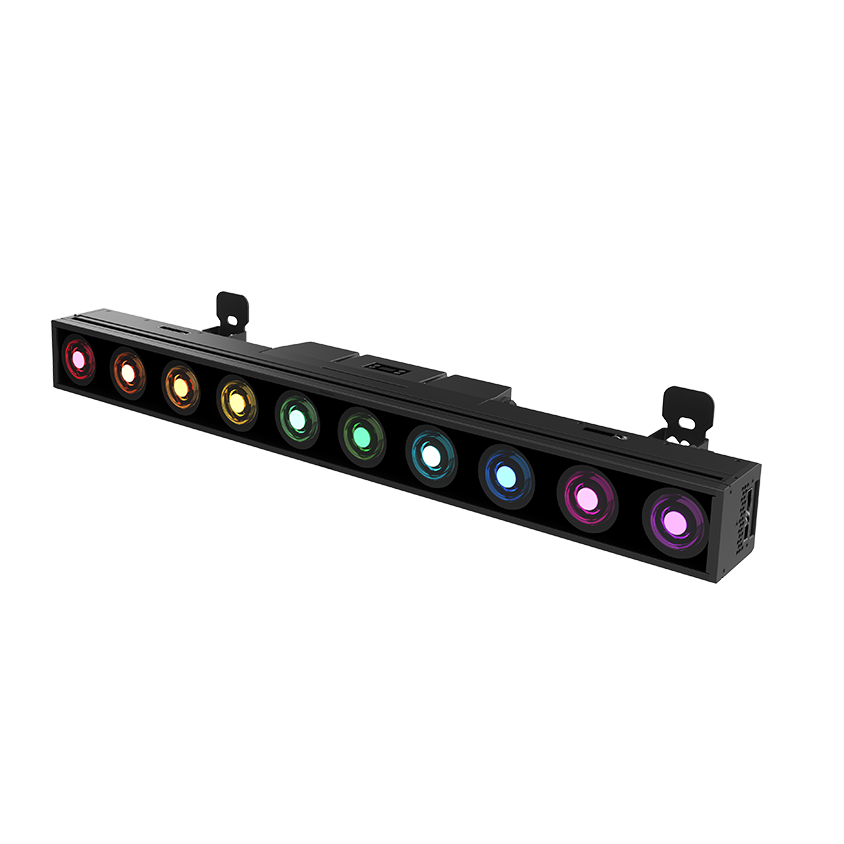

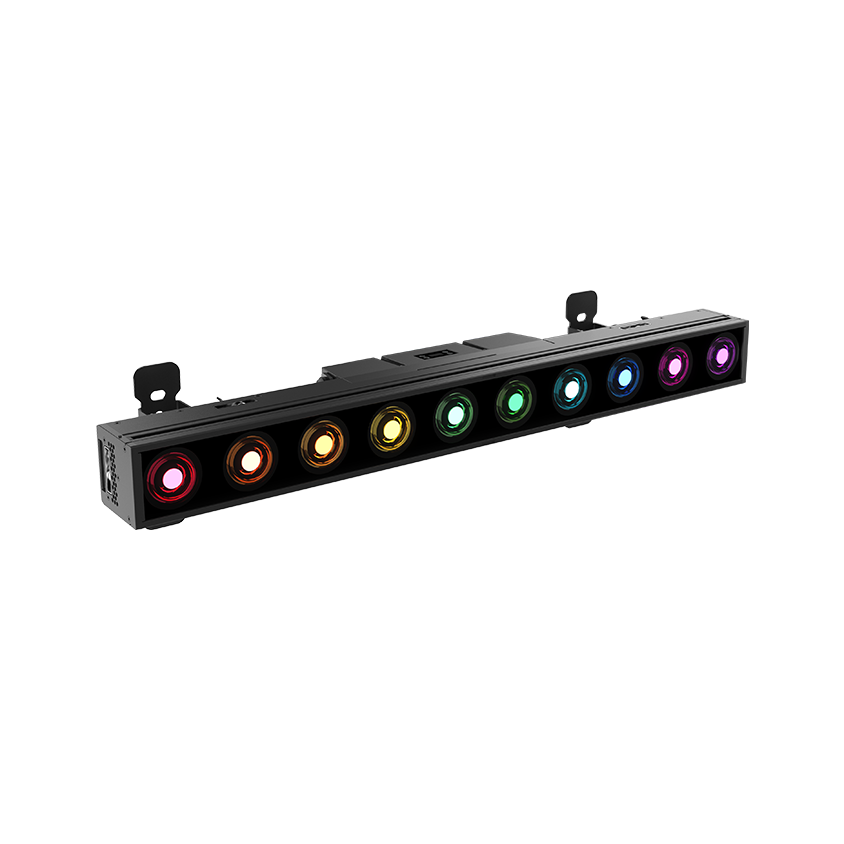

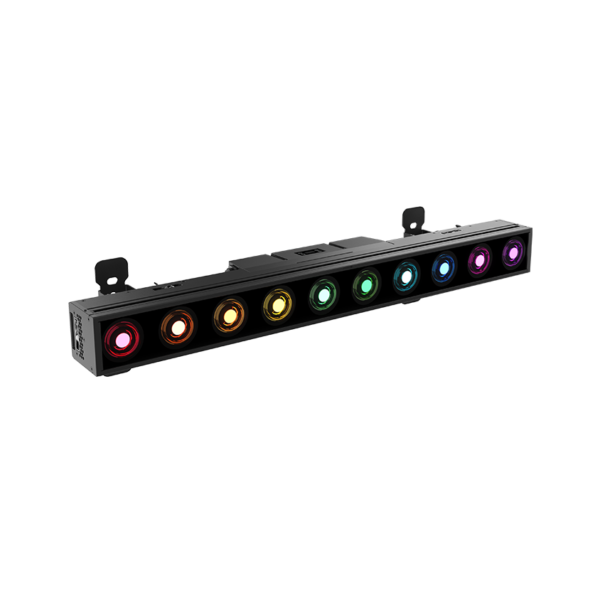

The ACME LINEFORCE 10 IP is a lightweight, multi-spectral linear wash light, designed to elevate creative lighting designs for many application. Featuring 10 powerful 120W RGBWAC+UV LEDs, the fixture provides vibrant colors, remarkable output and high-intensity illumination. The patented electronic frost system, divided into four controllable zones, allows you to change to different angles to deliver soft looks.
When placed near a wall, the LINEFORCE 10 IP produces a uniform wash effect that covers large areas. Mounted with the floor stands, it can rotate from 0° to 180°. For even more versatility, available accessories include an optional diffuser filter and glare shield for additional wash effects. The ultra-narrow bezel maximizes the light-to-screen ratio for an expansive visual experience, and the integrated interlocking system enables easy connections between multiple fixtures.
Step into the future of lighting design with the ACME LINEFORCE 10 IP. An innovative linear light that creates unforgettable moments for your audience.
Model
- Model Name: LINEFORCE 10 IP
- Model Code: CYC 10 IP
Light Source
- Light Source: 10 x 120W RGBWAC+UV LEDs
- Total Lumen Output of Fixture: 21,200 lumens
- Life Expectancy: 20,000 hours*
*Source manufacturer specification

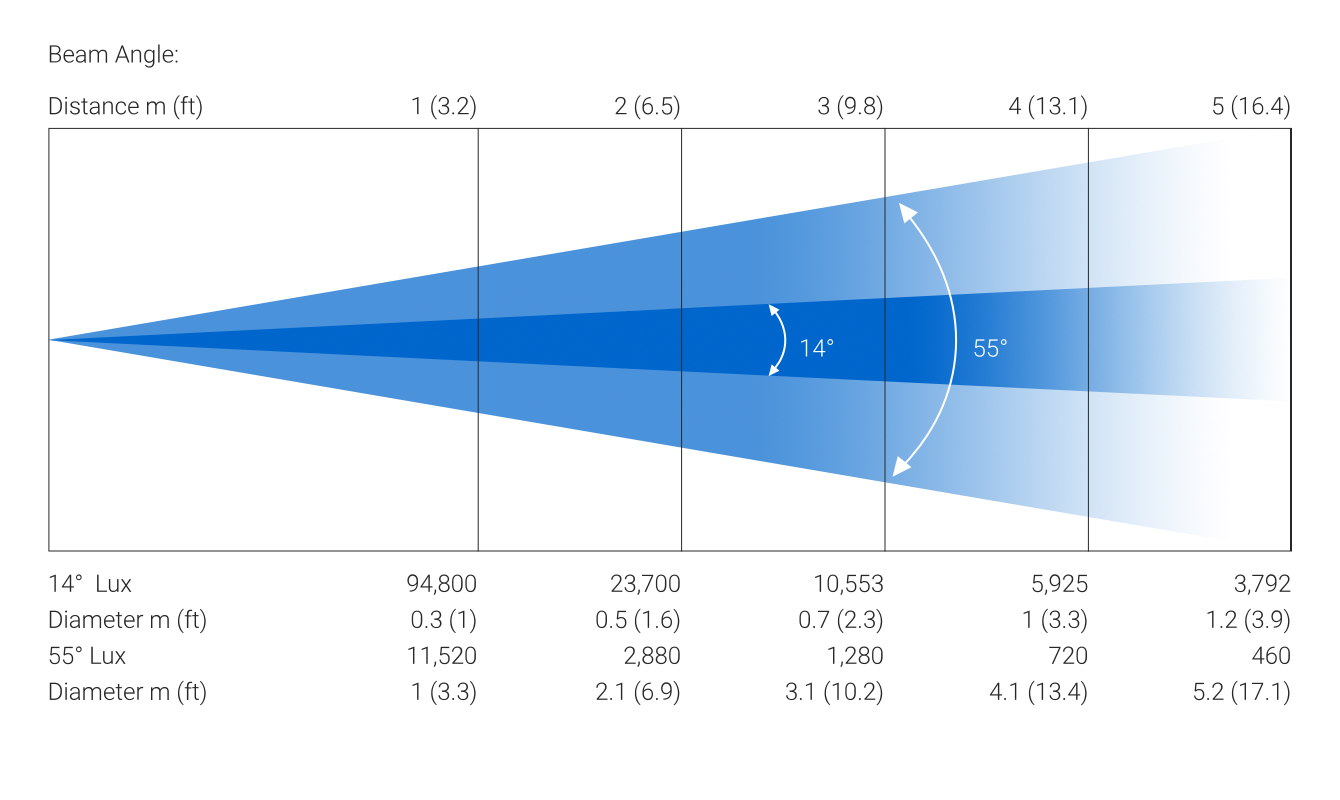

Optical System
- Beam Angle : 14°-55°
- Field Angle : 28°-133°
- HCRI Mode: Ra≥92
- DMX Controllable Smart Glass technology:
-
- Patent No. :
-
- CN216010577U
- US11698183B1
- DE202023101966U1
- FR3134870B3
Control
- 4 touch button control panel
- Display: OLED display
- Protocols: DMX512,RDM,Art-Net,sACN
- DMX Protocol Modes: 2
- Control Channels: 16/79
- Firmware Upgrade: Upgrade via DMX link
Colors
- Linear CTO Color Correction: 2,500K-8,000K
Other Effects
- Outstanding strobe effect with variable speed
- Smooth dimming 0-100% (4 user selectable dimming curves)
- Tungsten emulation
- Individual pixel control and built-in color macro effects
- The electronic frost system was divided into four controllable zones, allowing multiple combinations
- Three fan modes to meet the noise requirements of each scenario
- Mounted with the floor stands, it acheives 180° tilt movement
- With an ultra-narrow bezel design, it achieves a 90% light-to-screen ratio
- Uniform wash effect
- Equipped with an inventive quick-release mechanism that allows you to quickly connect and align multiple fixtures
Electrical and Connectors
- Input Voltage Range: 100-240Vac; 50/60Hz
- Power Consumption: 625W
- Power In/Out: Waterproof power connector in/out
- Data In/Out: 3-pin or 5-pin waterproof XLR,waterproof RJ45 connector

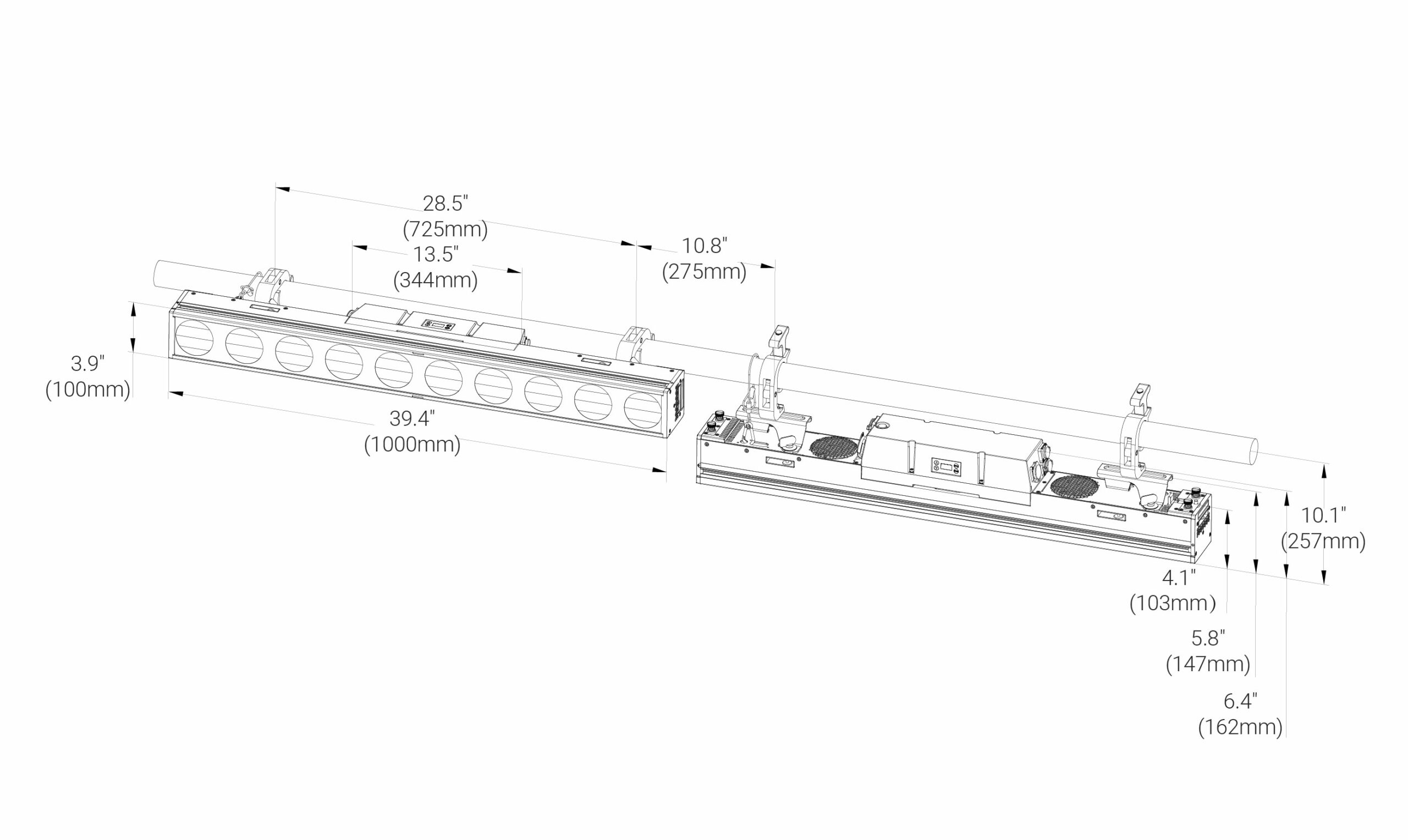

Physical Information
- Fixture Dimensions:
-
- Width: 1,000 mm (39.4″)
- Depth: 226 mm (8.9″)
- Height: 229 mm (9.0″)
- Weight: 15.6 kg (34.4 lbs)
Packing Information
- Flight Case Dimensions:
-
- Width : 1,220 mm (48.0″)
- Depth : 610 mm (24.0″)
- Height : 850 mm (33.5″)
- Weight :
-
- Standard: G.W.: 162 kg (357.2 lbs) (six-pack loader case)
- North American Standard: G.W.: 197 kg (434.3 lbs) (eight-pack loader case)
- Carton Dimensions:
-
- Width : 1,105 mm (43.5″)
- Depth : 335 mm (13.2″)
- Height : 200 mm (8.0″)
- Weight :
G.W.: 17.5 kg (38.6 lbs) (one-pack loader carton)
Work Environment
- Maximum Ambient Temperature: 40°C
- Minimum Operating Temperature: -10°C
- Maximum Surface Temperature: 70°C
- Protection Rating: IP66
Approvals
- CE compliant
- UKCA compliant
- cETLus compliant
Installation
- Horizontal or vertical mounting
- Universal working position

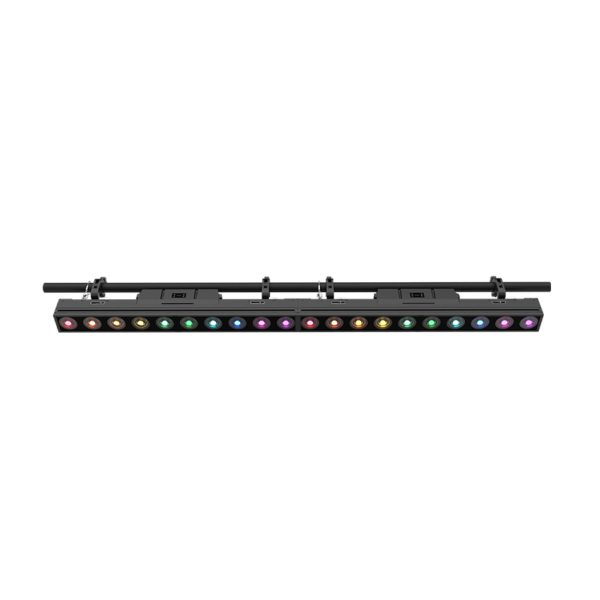

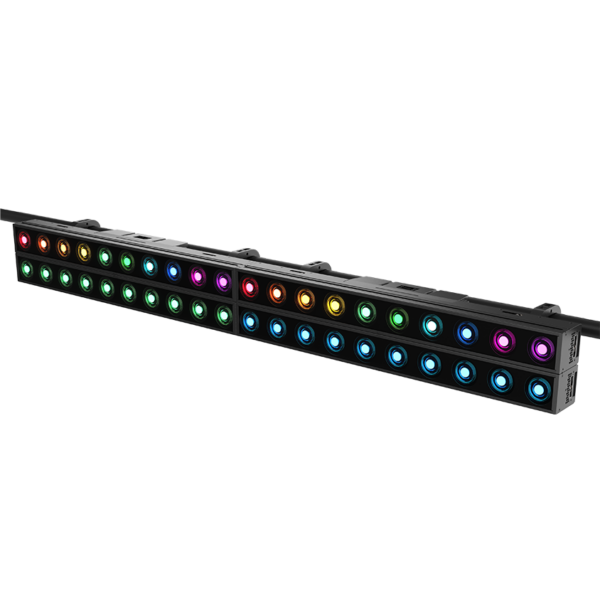

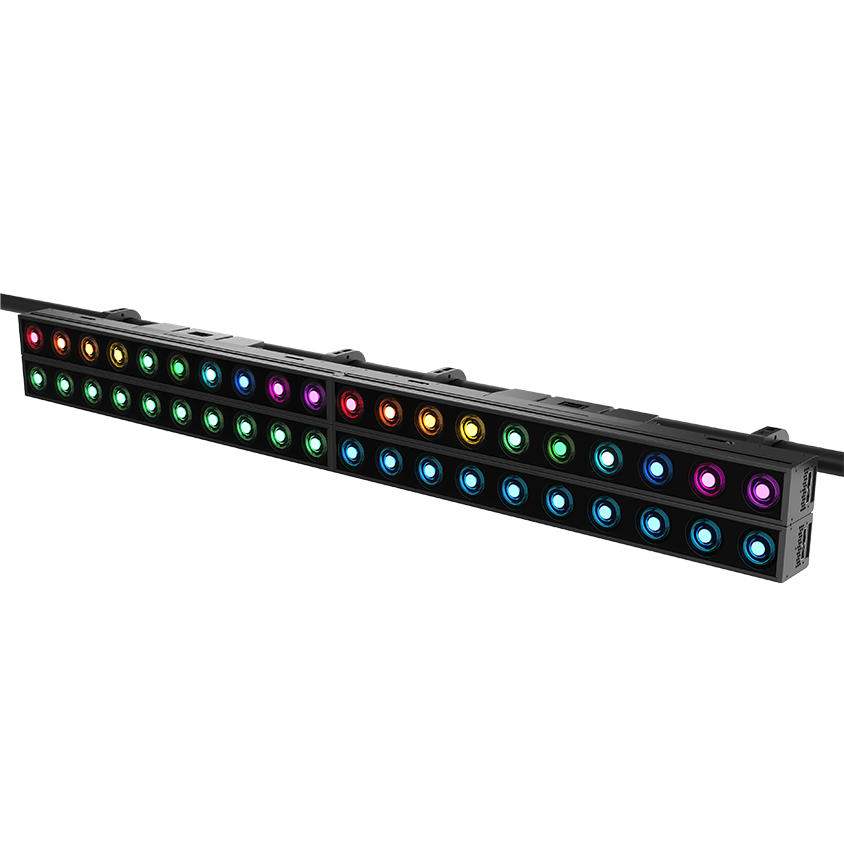

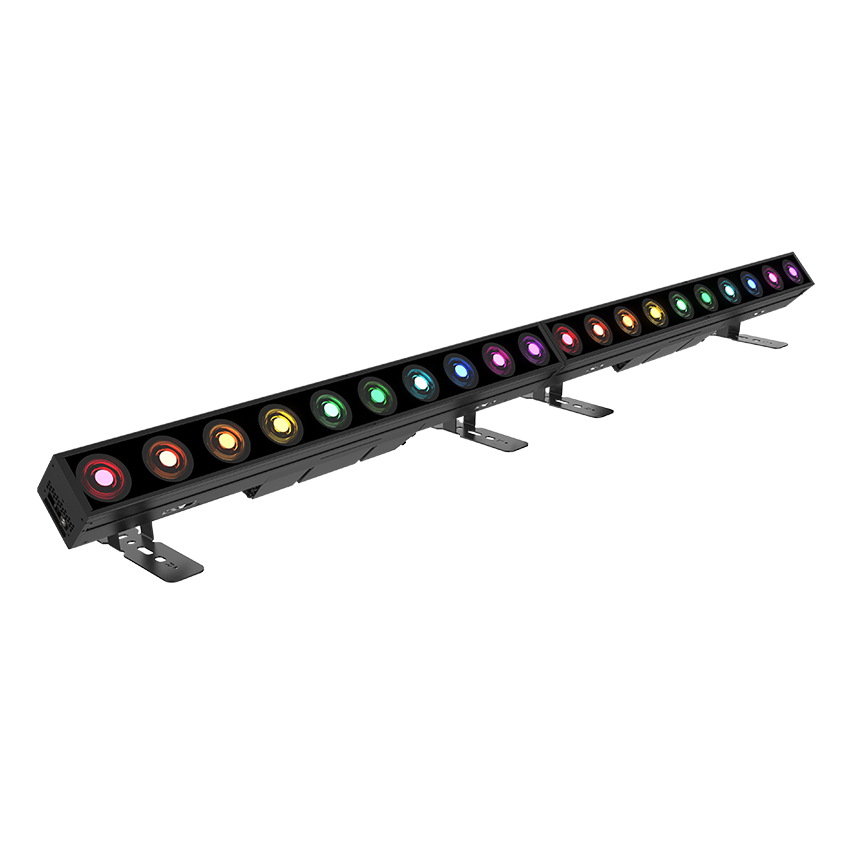

- Integrated interlocking system for combining units

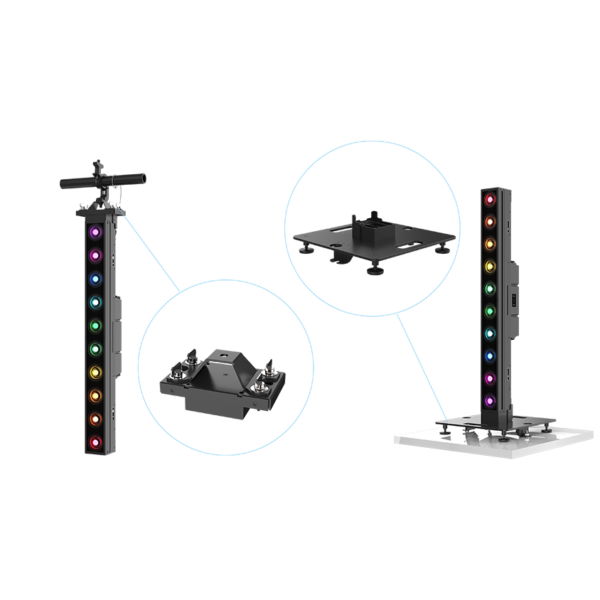

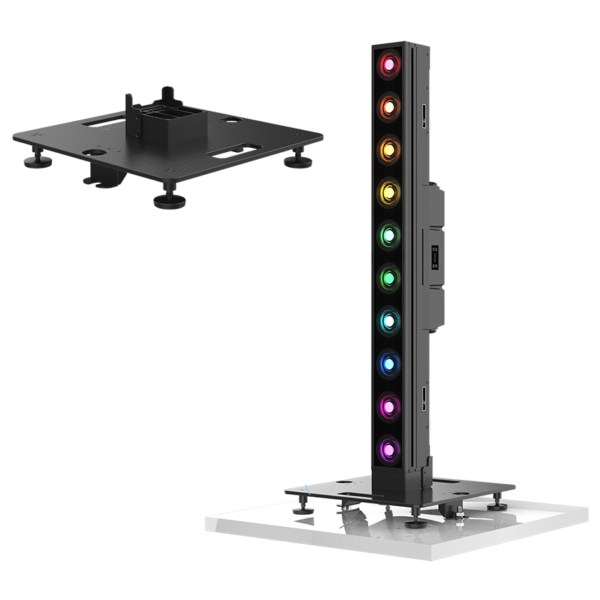

- Vertical Stand: Mounted to one base stand (sold separately), stand single unit vertically, no other fixtures may be connected

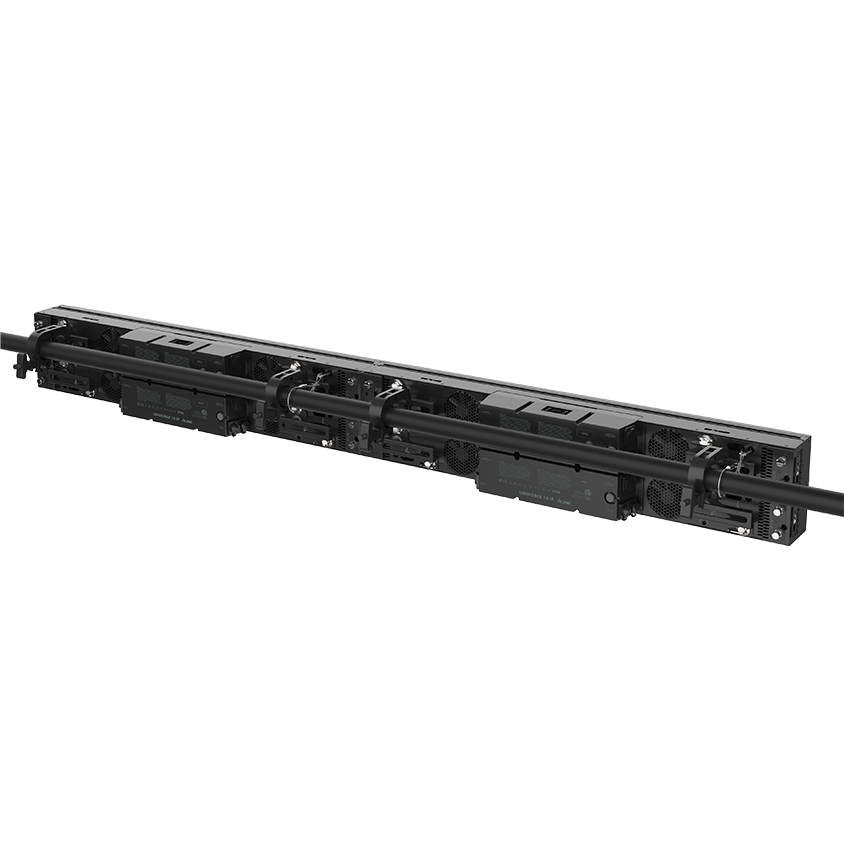

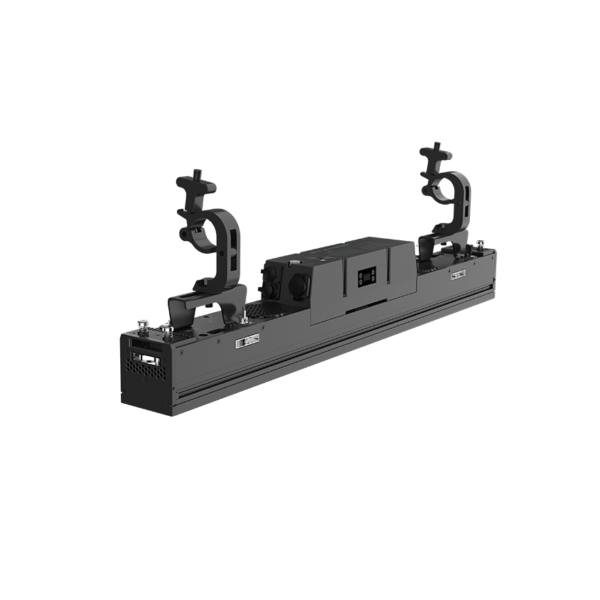

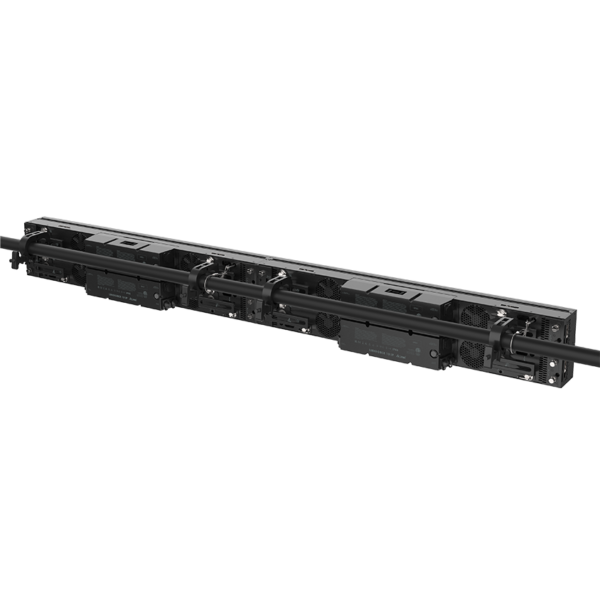

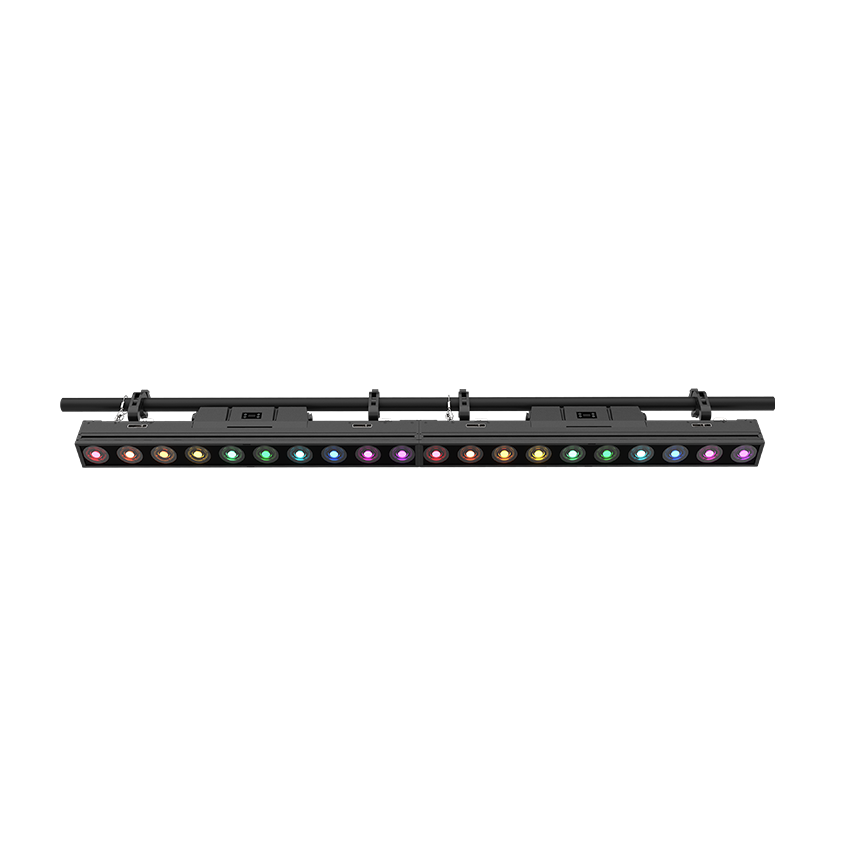

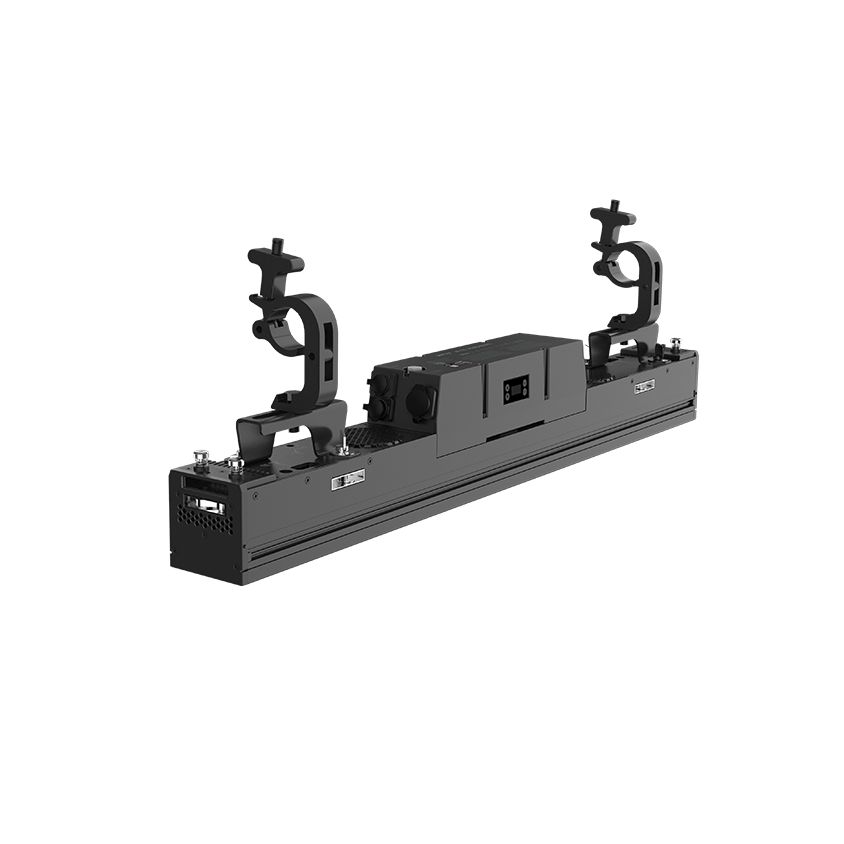

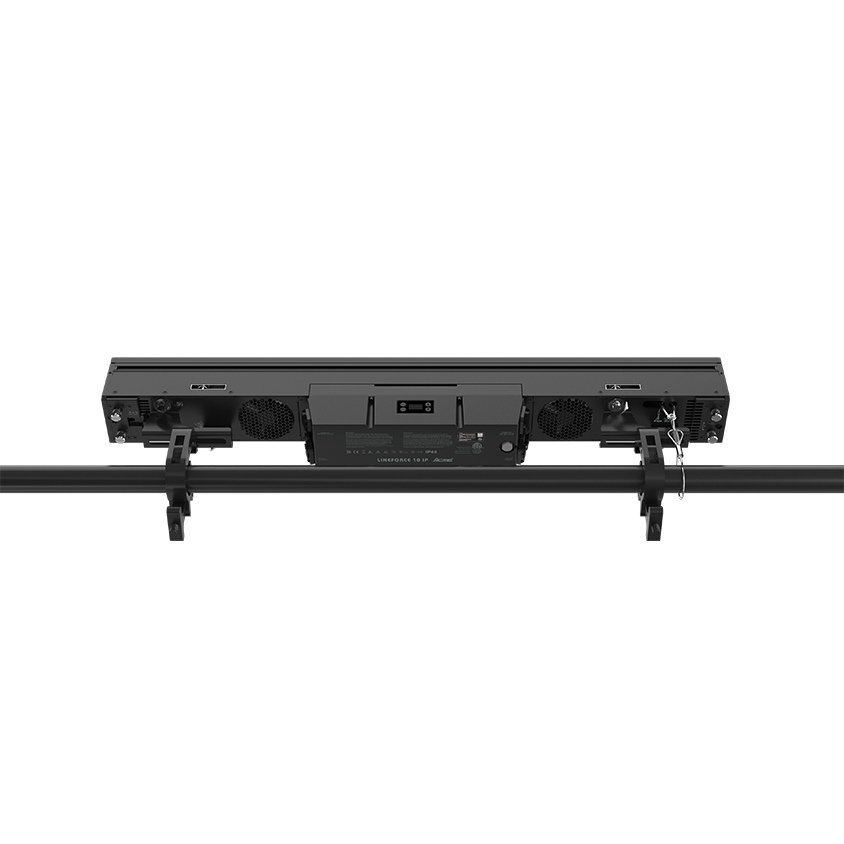

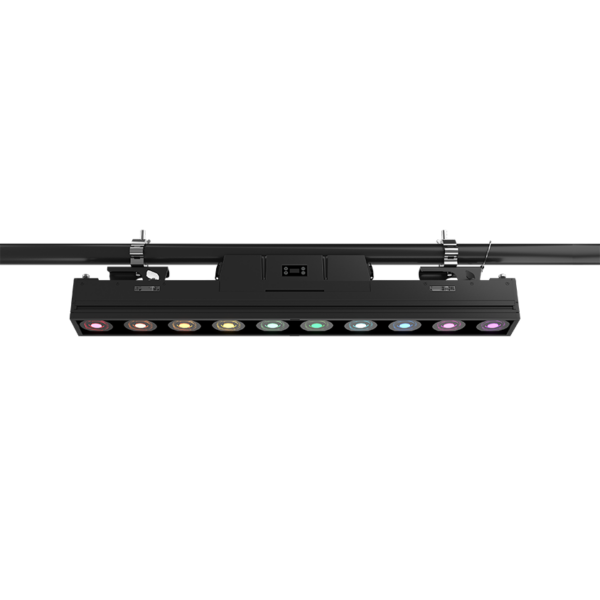

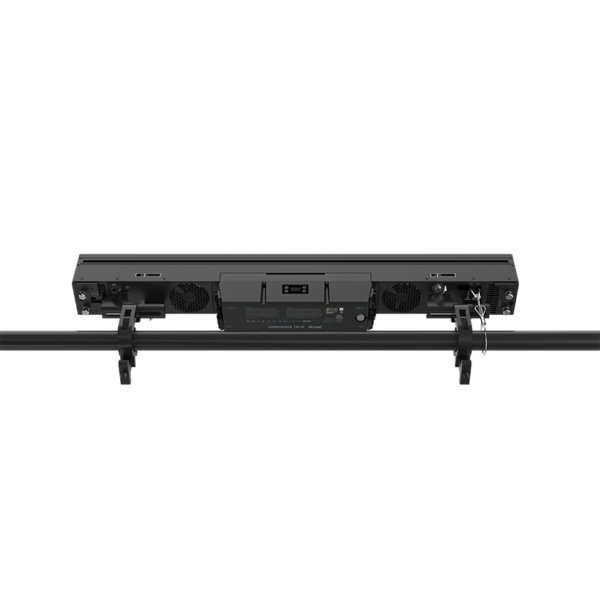

- Horizontal: Utilizing two omega brackets (supplied) and clamps (by others), a maximum of 5 fixtures may be connected

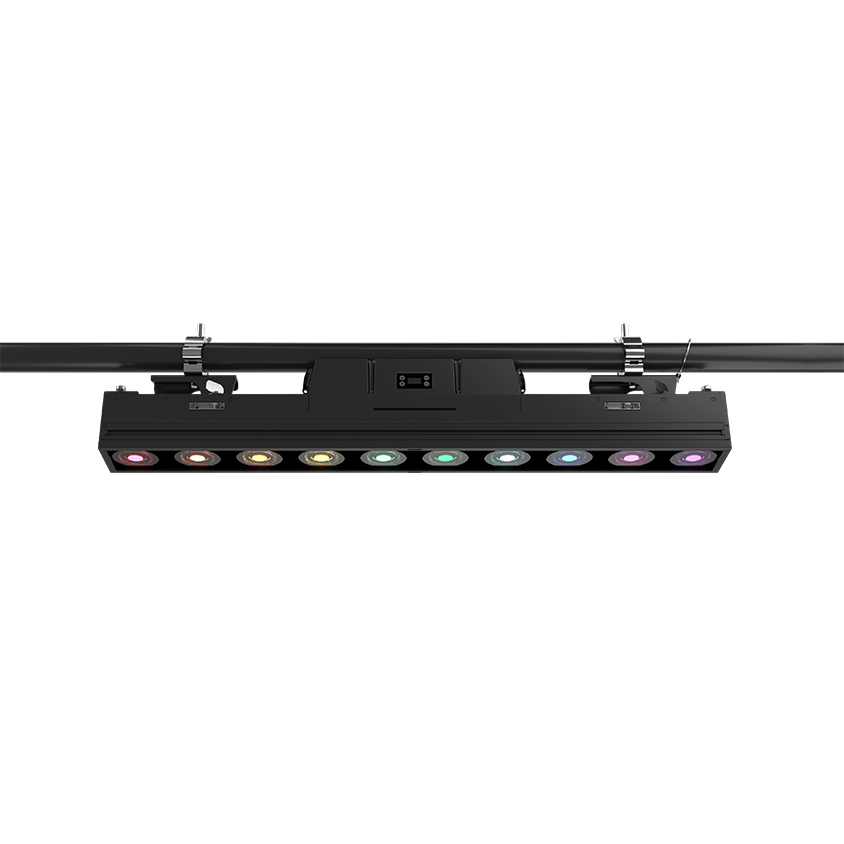

- Vertical: Using one hanging bracket (sold separately) with clamp (by others), a maximum of 3 fixtures may be connected

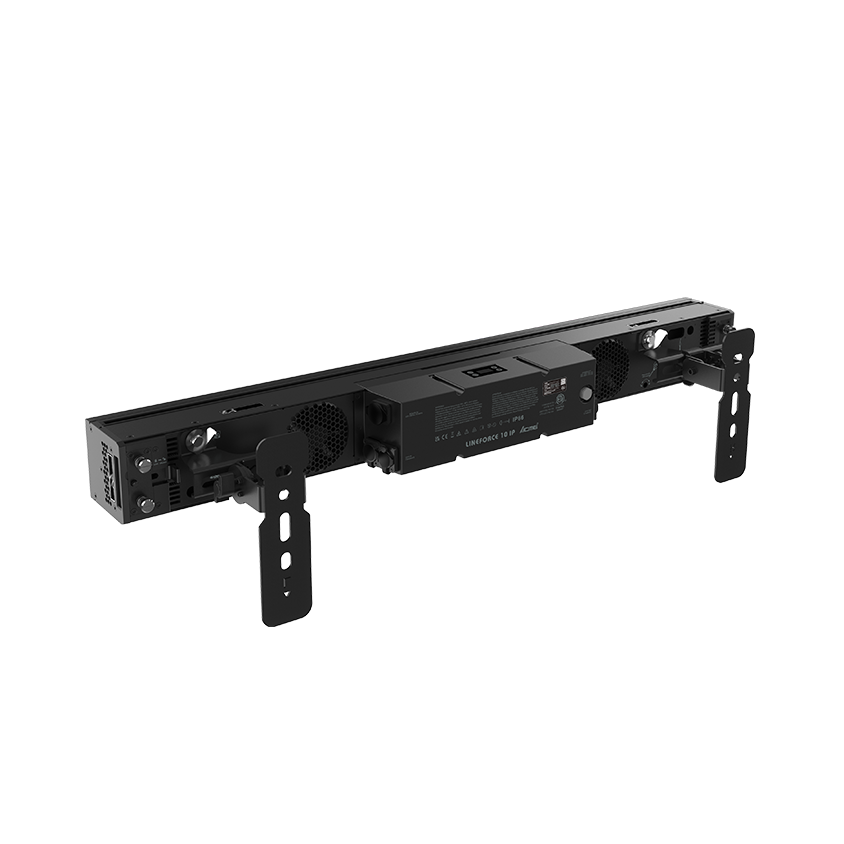

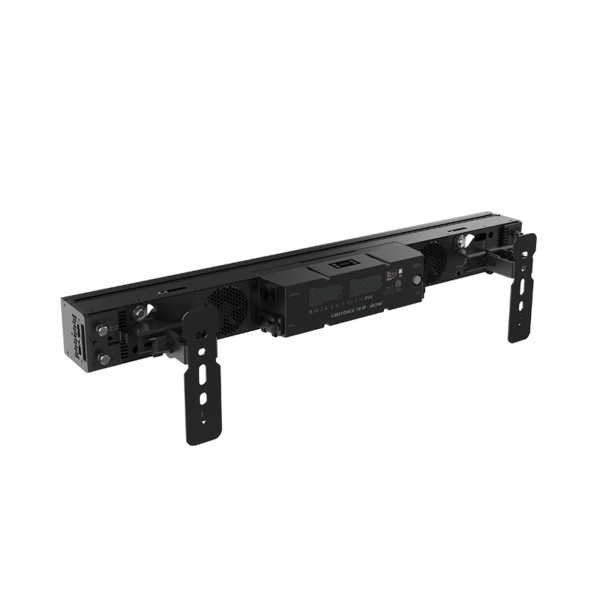

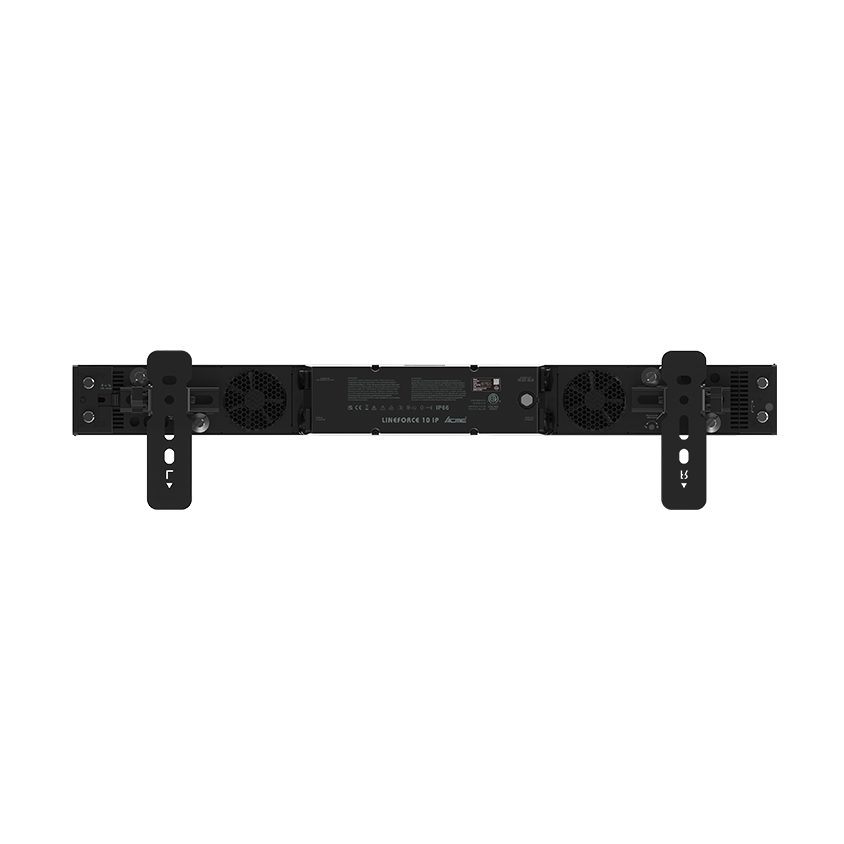

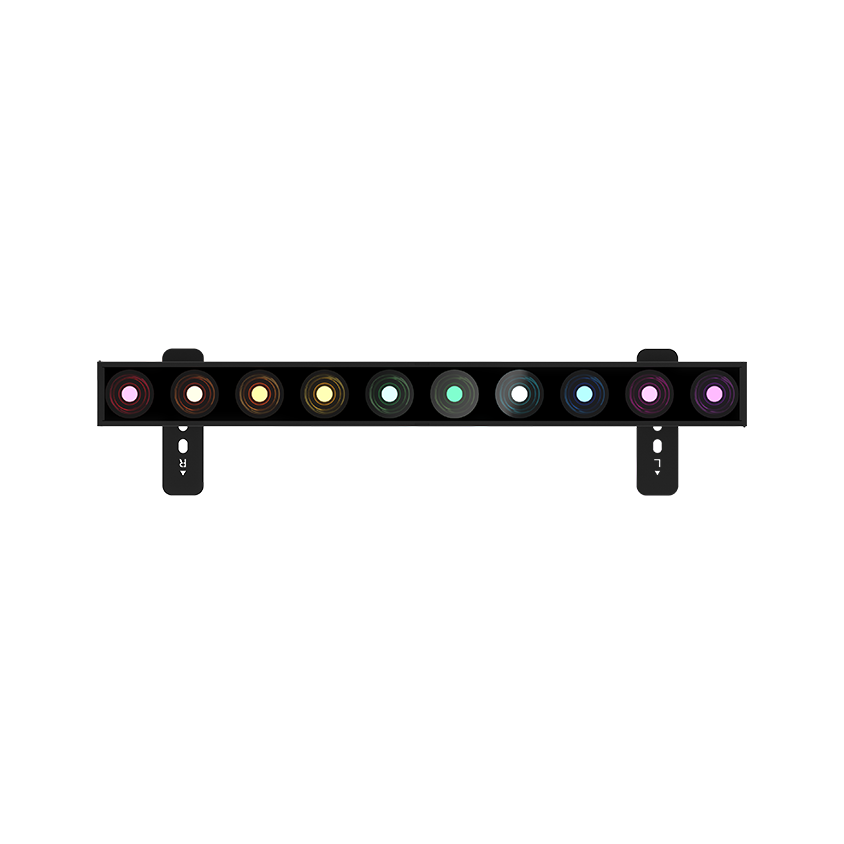

- Floor: Utilizing two omega brackets (supplied) and two floor stands (supplied)
- Safety cable attachment point
Included Items
- Digital user manual
- Power cable
- 2 omega brackets (63583930)
- 2 floor stands (63583843)
Optional Accessories (With Order Code)
- Flight Case:
-
- Standard : Six-pack loader case (63583830)
- North American Standard : Eight-pack loader case (63583785)
- Clamp : C-250B (2060001632-B)
- Safety Cable: SW-05 (2060001603-A)
- Signal Cable: 3-pin waterproof signal cable (3017013468) or 5-pin waterproof signal cable (3017013473)

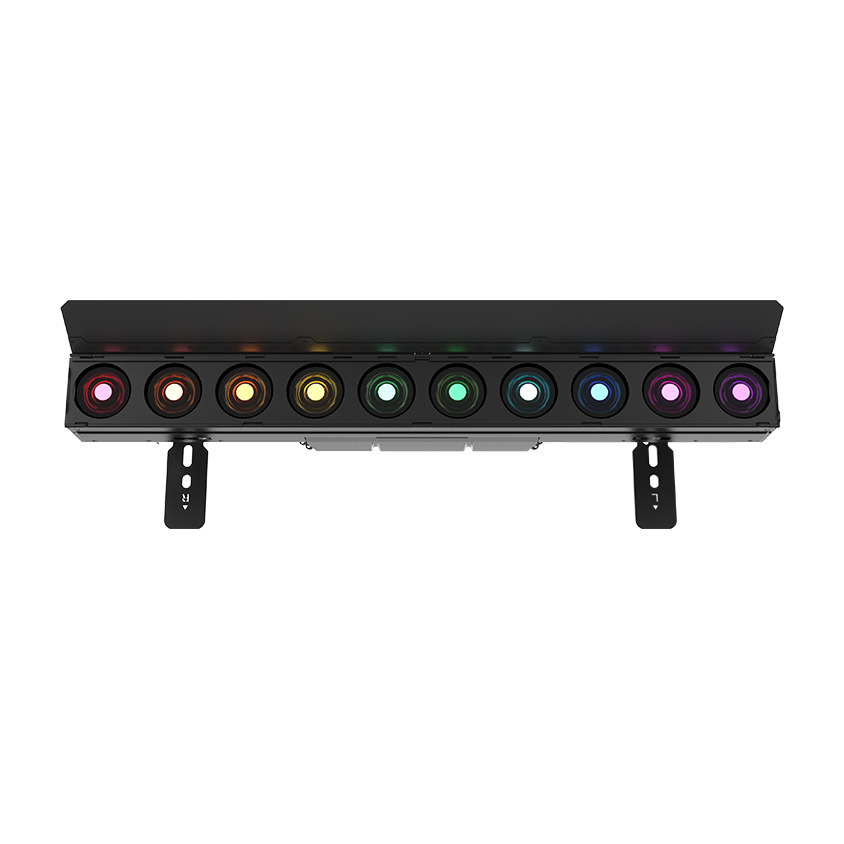

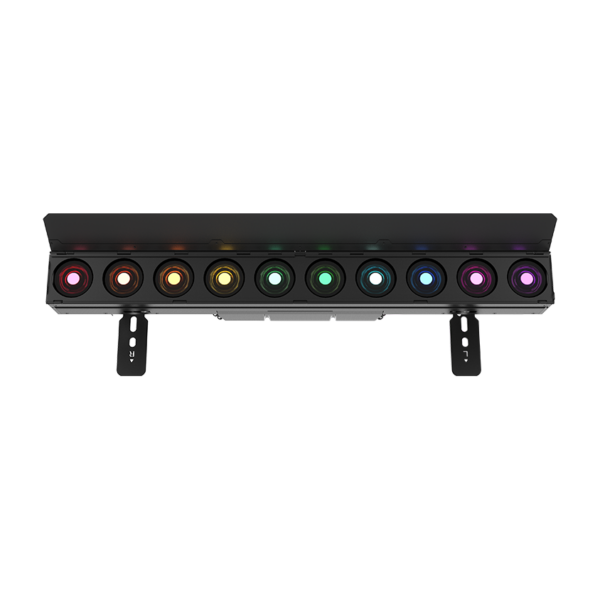

- Glare Shield: 63583730
- Hanging Bracket: 63582969
- Base Stand: 63582785
- Diffuser Filter (10°): 3005006302
- Diffuser Filter (40° x 20°): 3005006303
