Functional Overview

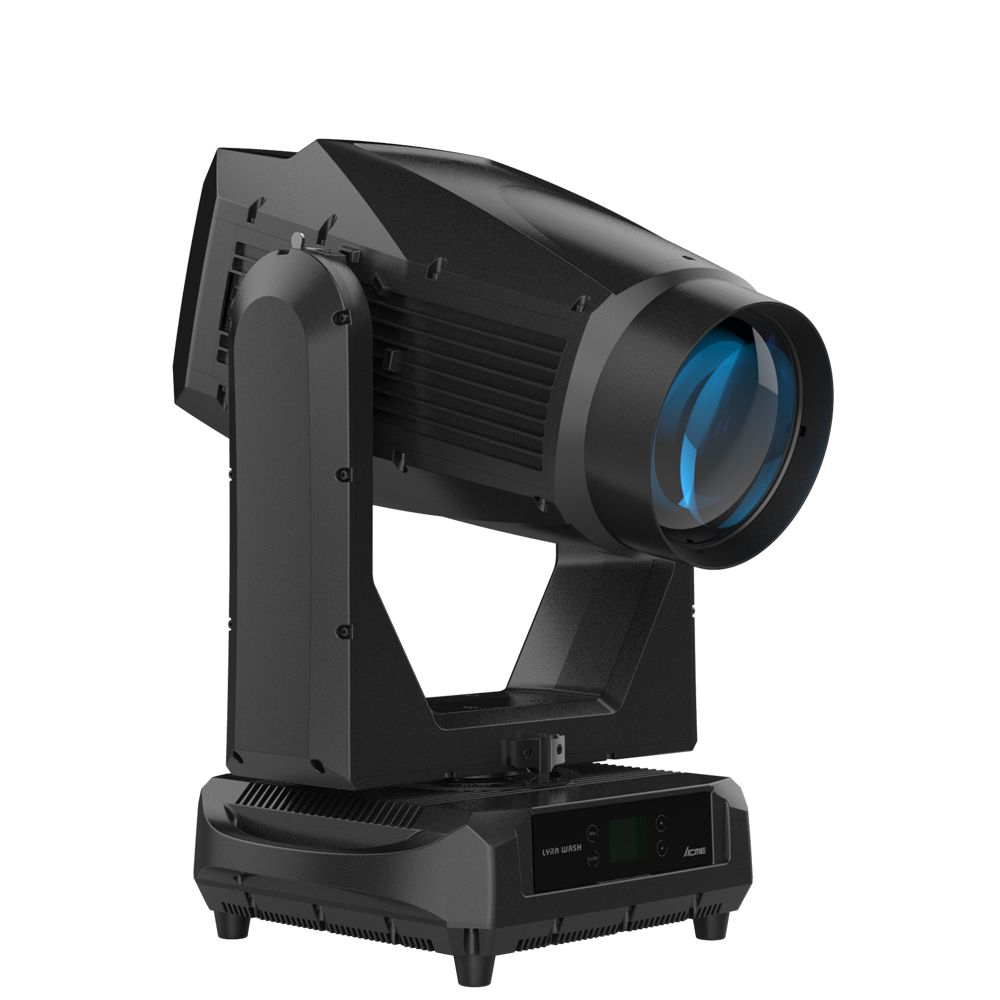

LYRA WASH brings a new generation of highly enhanced wash and beam technology and a without-comparison light out a step further to you.
Featuring an eye-catching 180mm lens 1,000 W LED source, with a highly efficient zoom system of 4.5°– 60°, an exceptionally tight, harsh and defined beam as weel as wide and even wash coverage. This high-CRI engine ensures accurate color reproduction delivered in the most shining output over 35,600 lumens. When light designers want to tone it down and bath in soft light, the 0~100% linear diffusion filter will craft a gradient and much smoother light at any degree you like. Four framing system modules at ±60° allow easily for fast and accurate geometrical forms. An uncommon design of not one, but 1 color wheel and rotating gobo wheel conmbine to create a deeper idea of a playful stage. Designed to be sealed against water and particle ingress, LYRA WASH with its IP66 rating is fearless and confident in strict outdoor conditions.
This lightweight, outdoor wash&beam knows how to work out the best shot of light in the stage.
Features
- Diameter of Front Lens: 180mm
- Standard Mode: Ra>70
- HCRI Mode: Ra>90
- HCRI Filter used to switch to HCRI mode
- Linear CMY color mixing
- Linear CTO color correction: 2,700K-6,700K
- 1 Color wheel: 5 colors, 1 HCRI filter, plus open, with bidirectional rainbow effects
- 1 Rotating gobo wheel: 6 High-precision gobos, plus open
- New material patented diffusion filter can achieve 0~100% linear softening effect and make the spot larger and more uniform
- Framing: 4 fast and smooth framing shutters. Each shutter blade position and angle can be controlled individually, the framing module can be rotated at ±60°
- Smooth dimming from 0-100%
- Outstanding strobe effect with variable speed
- IP 66 rating
Model
- XA 1000 BW IP
Light Source
- Light Source: 1000W LED Engine
- Color Temperature Output: 2,700K-6,700K
- Total Lumen Output: 56,000lm
- Rated Source Life: up to 20,000 hours*
Optical System

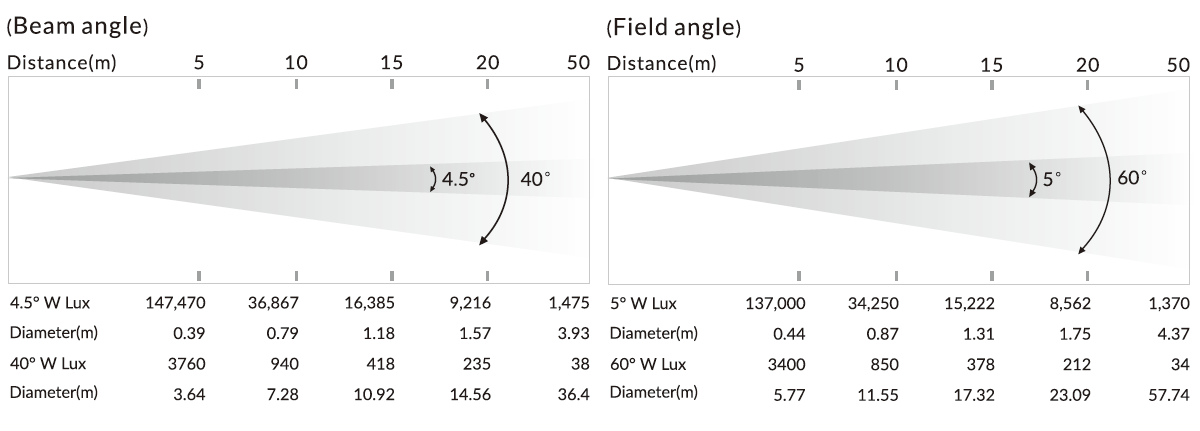

- Beam angle: 4.5°-40°
- Field angle：5°-60°
- Diameter of Front Lens: 180mm
Control and Program
- 4-Button touch panel
- Display: LCD display
- Protocols: DMX512, RDM
- DMX Protocol modes: 2
- Control channels: 19/28
- Firmware Upgrade: Upgrade via DMX link
Pan & Tilt
- Pan movement: 540°
- Tilt movement: 260°
- Automatic Pan/Tilt position correction
- Fixation: Pan/ Tilt lock
- Moving-head operated with either 16-bit resolution
Gobos
- 1 x Rotating gobo wheel: 6 High-precision gobos, plus open
Color
- Smooth CMY Color Mixing
- Linear CTO Color Correction: 2,700K-6,700K
- 1 Color wheel: 5 colors, 1 HCRI filter, plus open, with bidirectional rainbow effects
Other Effects
- New material patented diffusion filter can achieve 0~100% linear softening effect and make the spot larger and more uniform
- Framing: 4 fast and smooth framing shutters. Each shutter blade position and angle can be controlled individually, the framing module can be rotated at ±60°
- Variable light adjustment from 0 to 100%
- Outstanding strobe effect with variable speed
Electrical and Connectors
- Input voltage range: 100-240V~ 50/60Hz
- Power consumption: 1,455 W
- Power In/Out: Power Connector in/out
- Date In/Out: 3-pin or 5-pin XLR
Fixture Specification

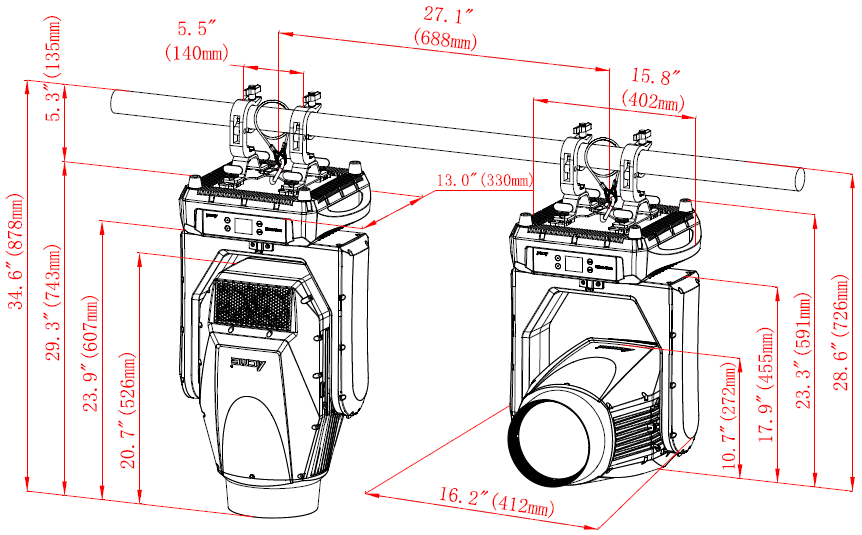

- Fixture Dimensions:
- Width: 412 mm (16.2″)
- Depth: 330 mm (13.0″)
- Height: 743 mm (29.3″)
- Weight: 41.5 kg (89.3 lbs)
- Flight Case Dimensions:
- Width: 1,143 mm (45.0″)
- Depth: 812 mm (32.0″)
- Height: 840 mm (33.0″)
- Weight: 182.2 kg (402 lbs)(Dual Loader Case)
- Carton Specification:
- Width: 630 mm (24.8″)
- Depth: 520 mm (20.5″)
- Height: 715 mm (28.1″)
- Weight: 48 kg (105.8 lbs)(include carton, one-pack per carton)
Work environment
- Maximum ambient temperature: 40°C
- Minimum operating temperature: -10°C
- Maximum surface temperature: 65°C
- Protection rating: IP66
Installation
- Horizontally or vertically mounting are available
- Universal working position
- 2x omega brackets
- Safety cable attachment hole
Included Items
- Digital User Manual
- Power Cable
- 2x omega brackets
Optional Accessories (with item code)
- Flight Case: 3205110026
- Signal Line: 3-pin or 5-pin signal line
- Safety cable: 2060001603A(SW-05)
- Clamps: 2060001614(C-250B)
