Functional Overview

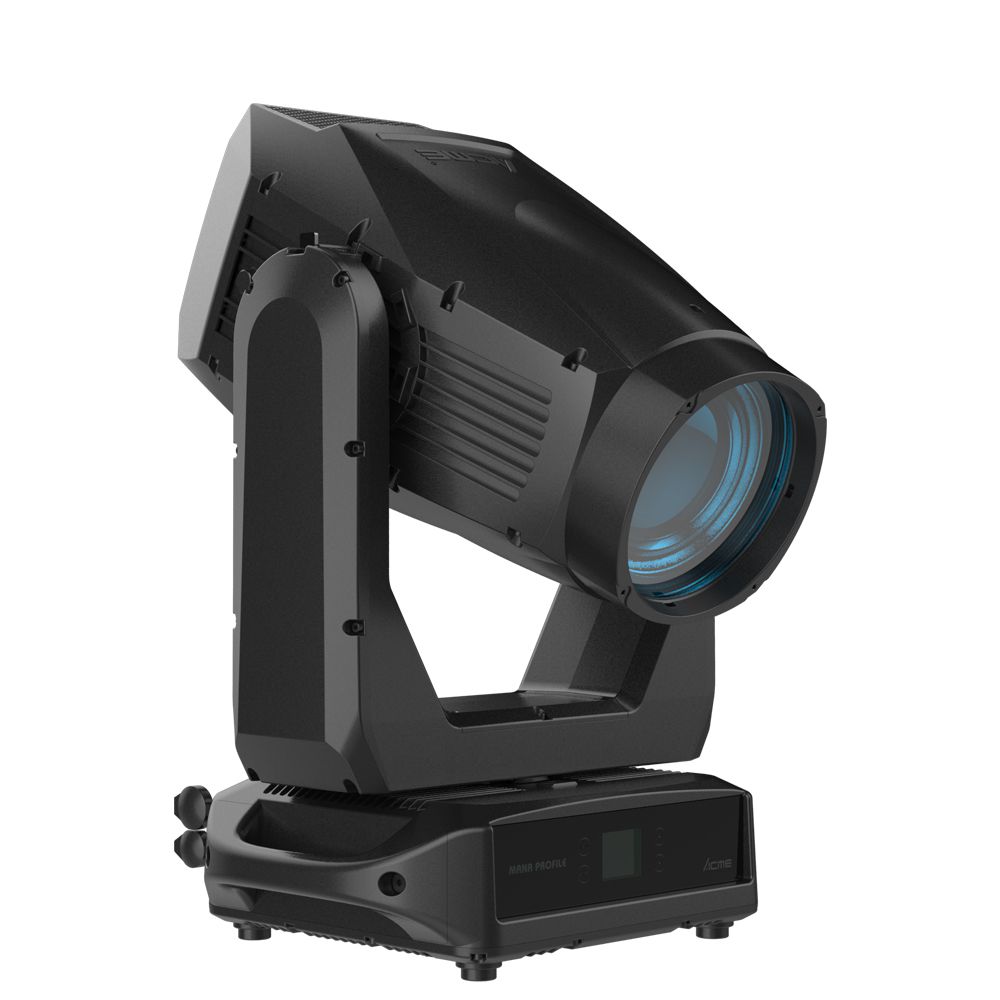

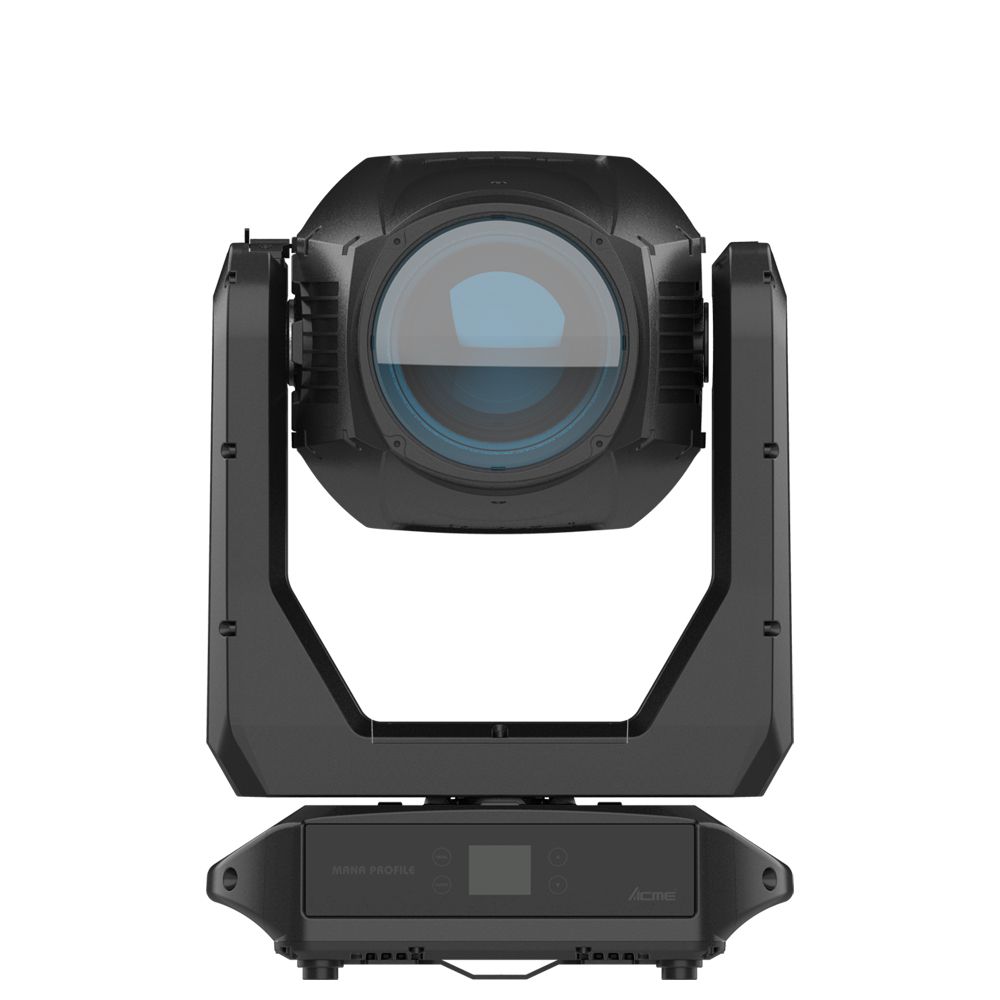

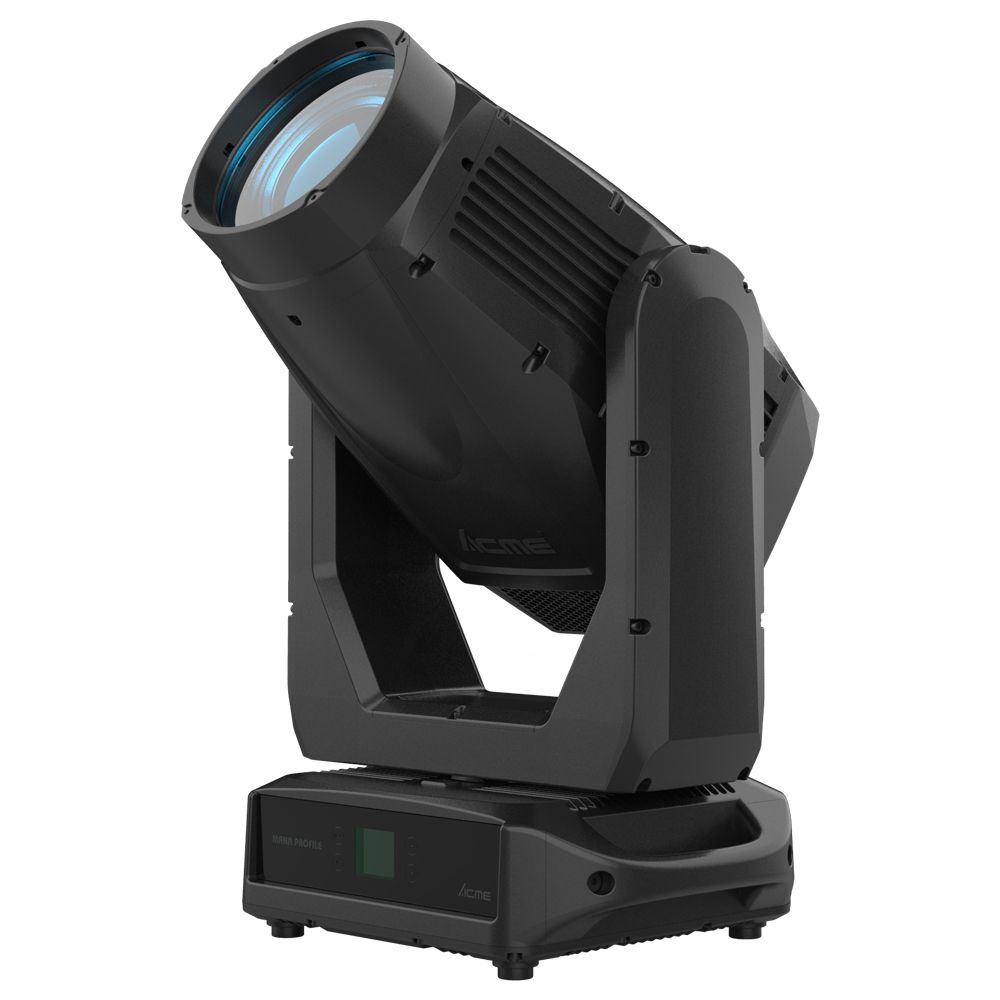

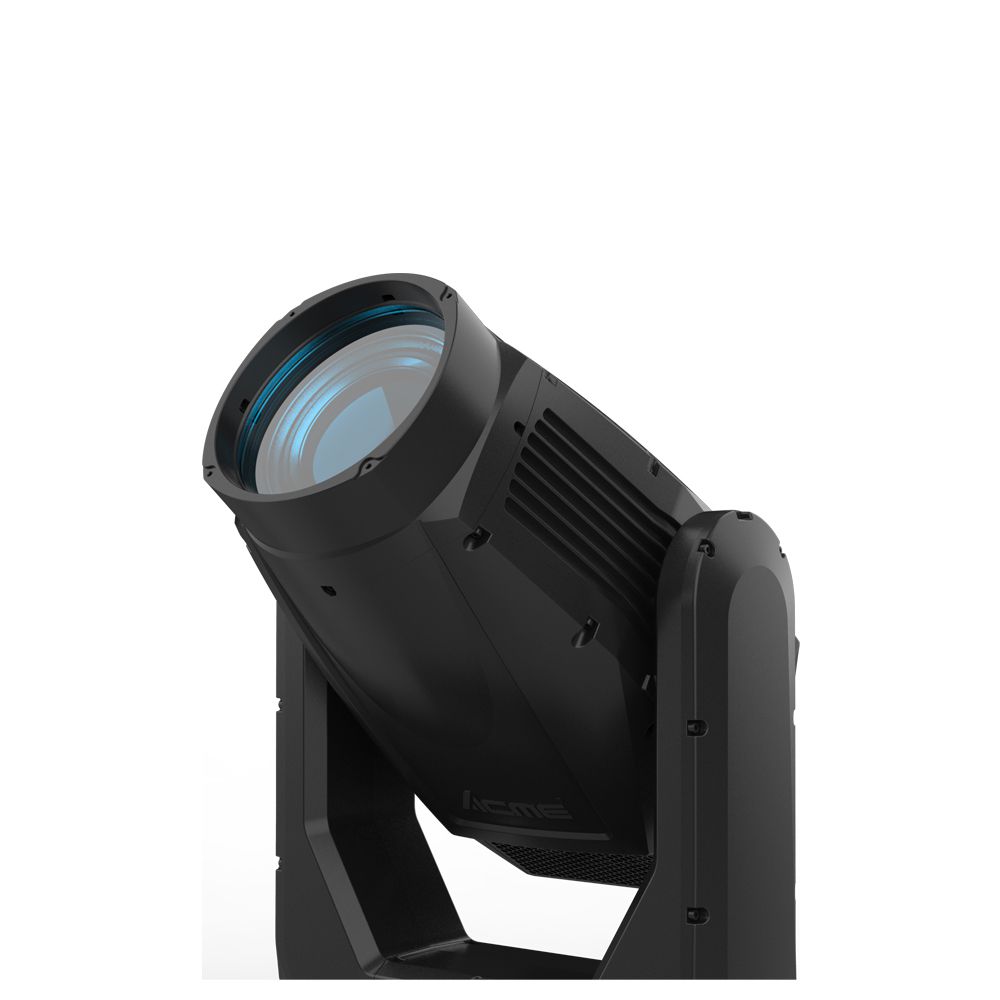

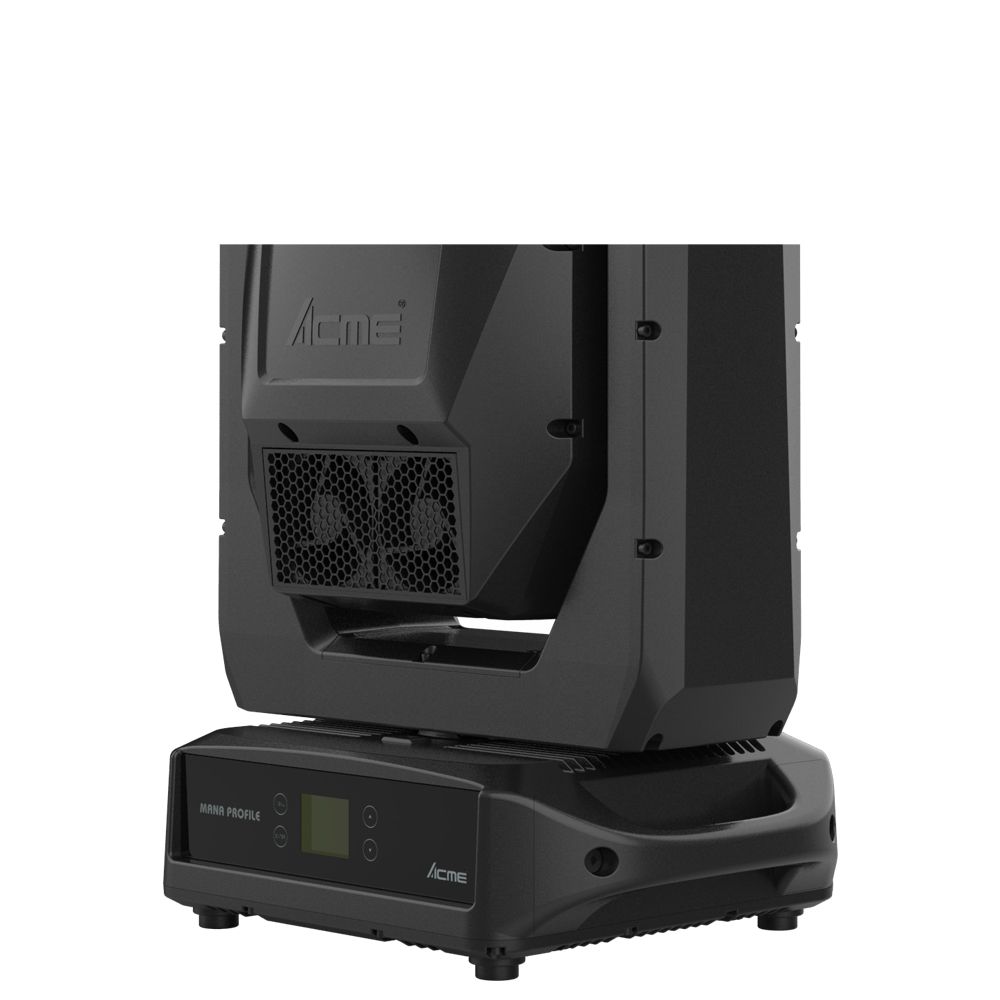

Introducing the MANA PROFILE, a powerful innovation with features designed to redefine your lighting experience. Featuring a 600W LED engine and a 170mm lens, the fixture creates brilliant and vibrant light. With a versatile beam angle ranging from 3.5° to 45° and a total lumen output of 26,000 lumens, the fixture provides unparalleled flexibility for your lighting designs. The fixture’s precise color temperature of 7,000K, with an HCRI Mode Ra≥90, ensures vivid stage illumination.
Equipped with a linear CMY color mixing system and variable CTO ranging from 2,700K to 7,000K, the MANA PROFILE offers unlimited color possibilities. Featuring multiple gobos, including 9 static gobo wheels and 8 rotating gobos, as well as abundant colors provided by 6 colors, the fixture stimulates creativity. With a graphic animation wheel and two combinable frost filters, the fixture creates captivating lighting effects.
The fixture has an IP66 protection rating, making it reliable for outdoor use all year round. The MANA PROFILE boasts outstanding strobe effects with variable speed, ensuring an unforgettable visual experience.
Features
- LED Engine comprised of 600W LED
- Diameter of Frontal Lens: 170 mm
- Beam Angle: 3.5°-45°
- Total Lumen Output of Fixture: 26,000 lumens
- Color Temperature Output of Fixture: 7,000K
- HCRI Mode: Ra≥90
- Linear CMY color mixing
- Variable CTO ranging from 2,700K-7,000K
- 1 Static Gobo Wheel: 9 gobos, plus open
- 1 Rotating Gobo Wheel: 8 gobos, plus open
- 1 Color Wheel: 6 colors + CTB, plus open
- Animation Wheel: A graphic animation wheel with continuous rotation in both directions, used alone or in combination with gobos to create the splendid water wave & flame effect, and can be changed into other wheels
- 2 Combinable Rotating and Indexable Prisms: 1 x 4-facet prism, 1 x 4-facet linear prism, rotatable in both directions
- 1 combinable light frost filter and 1 combinable medium frost filter
- 4 blades, each with separate movement and full blackout; ±60° Rotation of the complete framing system
- Motorized linear Iris
- Smooth dimming 0-100% (4 user selectable dimming curves)
- Outstanding strobe effect with variable speed
- IP66 rated
Model
- XA 600 BSWF IP
Light Source
- Light Source: 600W LED engine
- Color Temperature Output of Fixture: 7,000K
- Total Lumen Output of Fixture: 26,000 lumens
- Life Expectancy: 20,000 hours* manufacturer specification* manfacturer specification
Optical System

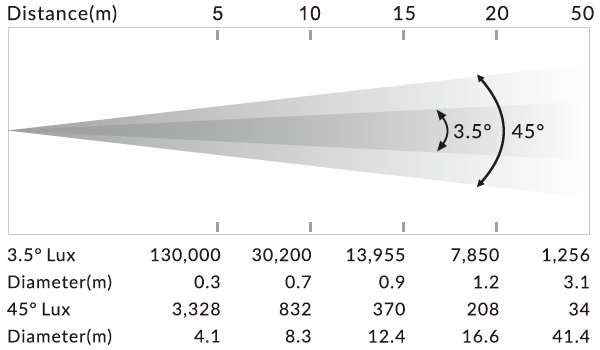

- Beam Angle: 3.5°-45°
- HCRI Mode: Ra≥90
- Diameter of Front Lens: 170 mm
Control
- 4 touch button control panel
- Display: LCD display
- Protocols: DMX512, RDM, Art-Net, sACN
- DMX Protocol Modes: 4
- Control Channels: 22/31/31/40
- Firmware Upgrade: Upgrade via DMX link or USB disk
Pan & Tilt
- Pan Movement: 540°
- Tilt Movement: 260°
- Automatic Pan/Tilt position correction
- Moving-head operated with 16 bit resolution
- Fixation: Pan/Tilt lock

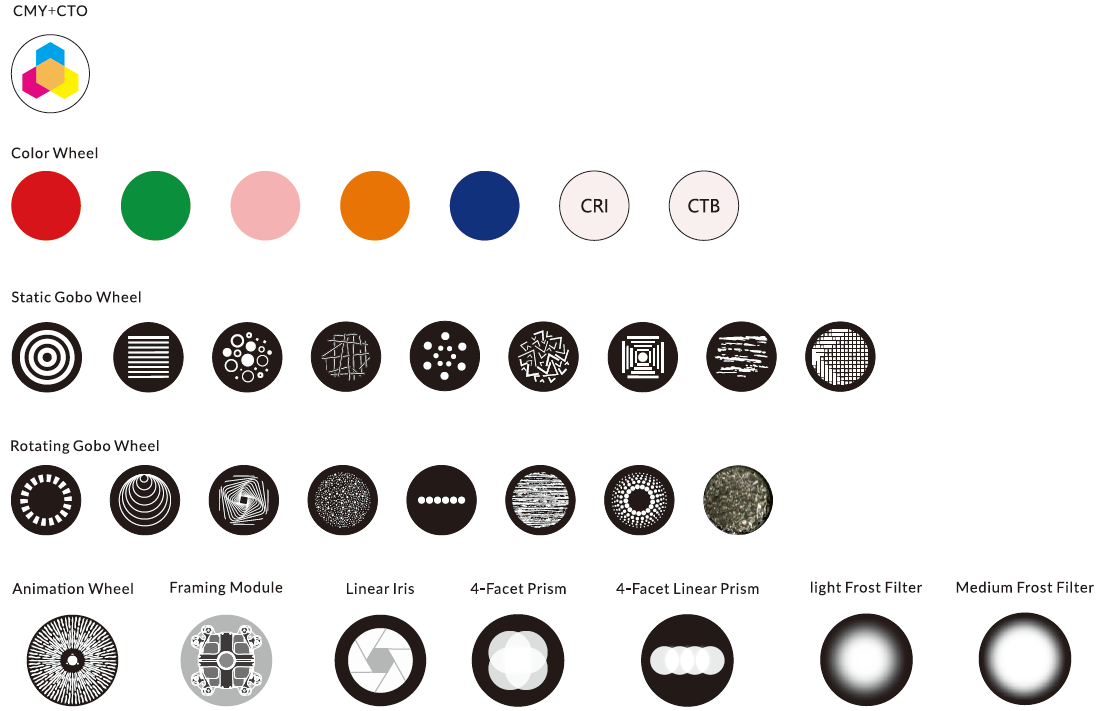

Color
- Linear CMY color mixing
- Linear CTO Color Correction: 2,700K-7,000K
- 1 Color Wheel: 6 colors + CTB, plus open
Static Gobo
- 1 Static Gobo Wheel: 9 gobos, plus open
- Gobo Diameter: 24 mm
- Image Diameter: 18 mm
- Gobo Thickness: 1.1 mm
Rotating Gobo
- 1 Rotating & Interchangable Gobo Wheel: 8 gobos, plus open
- Adjustable-speed rotating gobo in both directions
- Gobo Diameter: 20 mm
- Image Diameter: 17 mm
- Gobo Thickness: 1.1 mm
Animation Wheel
- A graphic animation wheel with continuous rotation in both directions, used alone or in combination with gobos to create the splendid water wave & flame effect, and can be changed into other wheels
Prism
- 2 Combinable Rotating and Indexable Prisms: 1 x 4-facet prism, 1 x 4-facet linear prism, rotatable in both directions
Frost Filter
- 1 combinable light frost filter and 1 combinable medium frost filter
Framing System
- Shutter Blades: 4 blades, each with separate movement and full blackout
- Rotation: ±60° of the complete framing system
Other Effects
- Outstanding strobe effect with variable speed
- Smooth dimming 0-100% (4 user selectable dimming curves)
- Motorized linear Iris

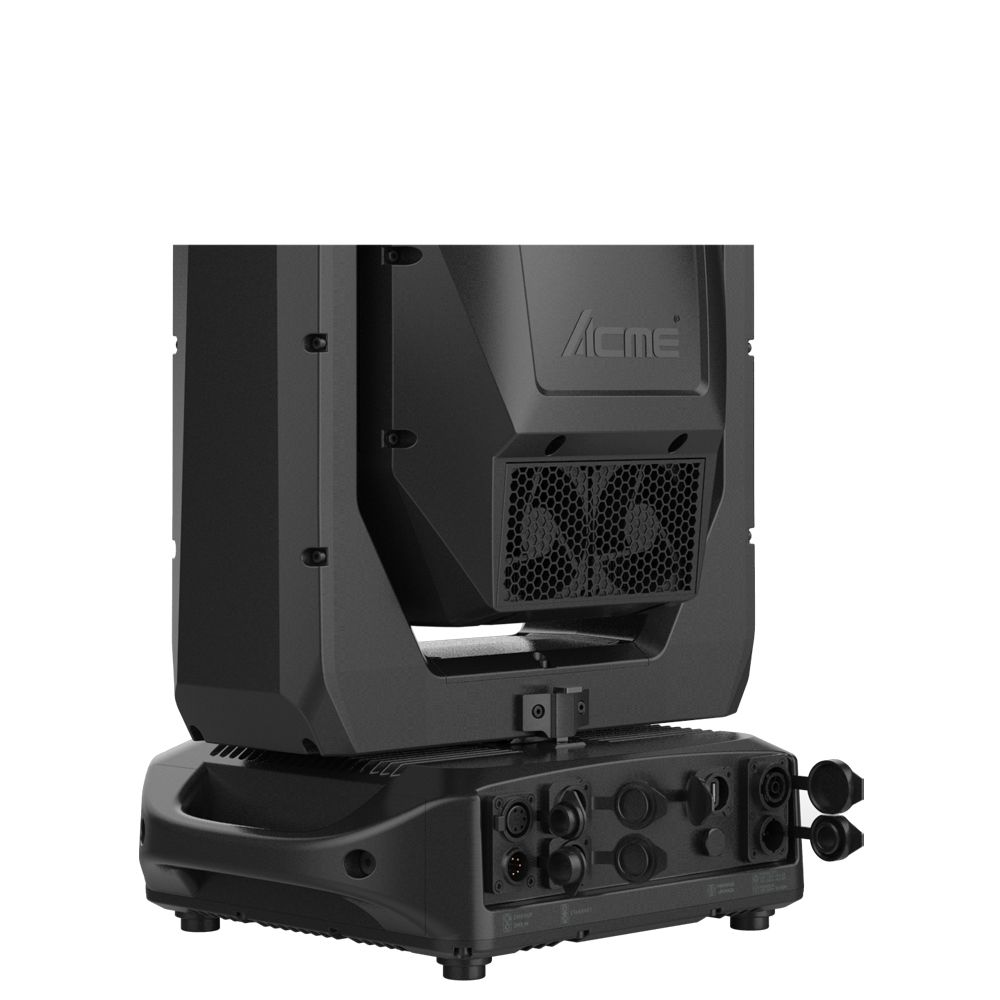

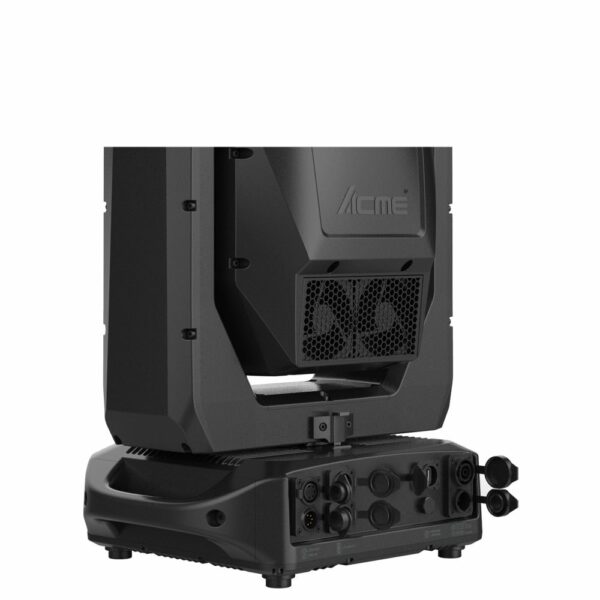

Electrical and Connectors
- Input Voltage Range: 100-240Vac; 50/60Hz
- Power Consumption: 910W
- Power In/Out: Waterproof power connector in/out (TRUE1 type)
- Data In/Out: 3-pin or 5-pin waterproof XLR, RJ45 connector
Physical Information
- Fixture Dimensions:
- Width: 380 mm (15.0″)
- Depth: 284 mm (11.2″)
- Height: 658 mm (25.9″)
- Weight: 32.5 kg (71.7 lbs)
Packing Information
- Flight Case Dimensions:
- Width: 1,220 mm (48.0″)
- Depth: 610 mm (24.0″)
- Height: 805 mm (31.7″)
- Weight:
- Standard:
G.W.: 130 kg (286.6 lbs) (two-pack loader case) - North American Standard:
G.W.: 139 kg (306.4 lbs) (two-pack loader case)
- Standard:
- Carton Dimensions:
- Width: 610 mm (24.0″)
- Depth: 490 mm (19.3″)
- Height: 675 mm (26.6″)
- Weight: 36.5 kg (80.5 lbs) (One-pack loader carton)
Work Environment
- Maximum Ambient Temperature: 40°C
- Minimum Operating Temperature: -10°C
- Maximum Surface Temperature: 75°C
- Protection Rating: IP66
Approvals
- CE compliant
- UKCA compliant
- cETLus compliant

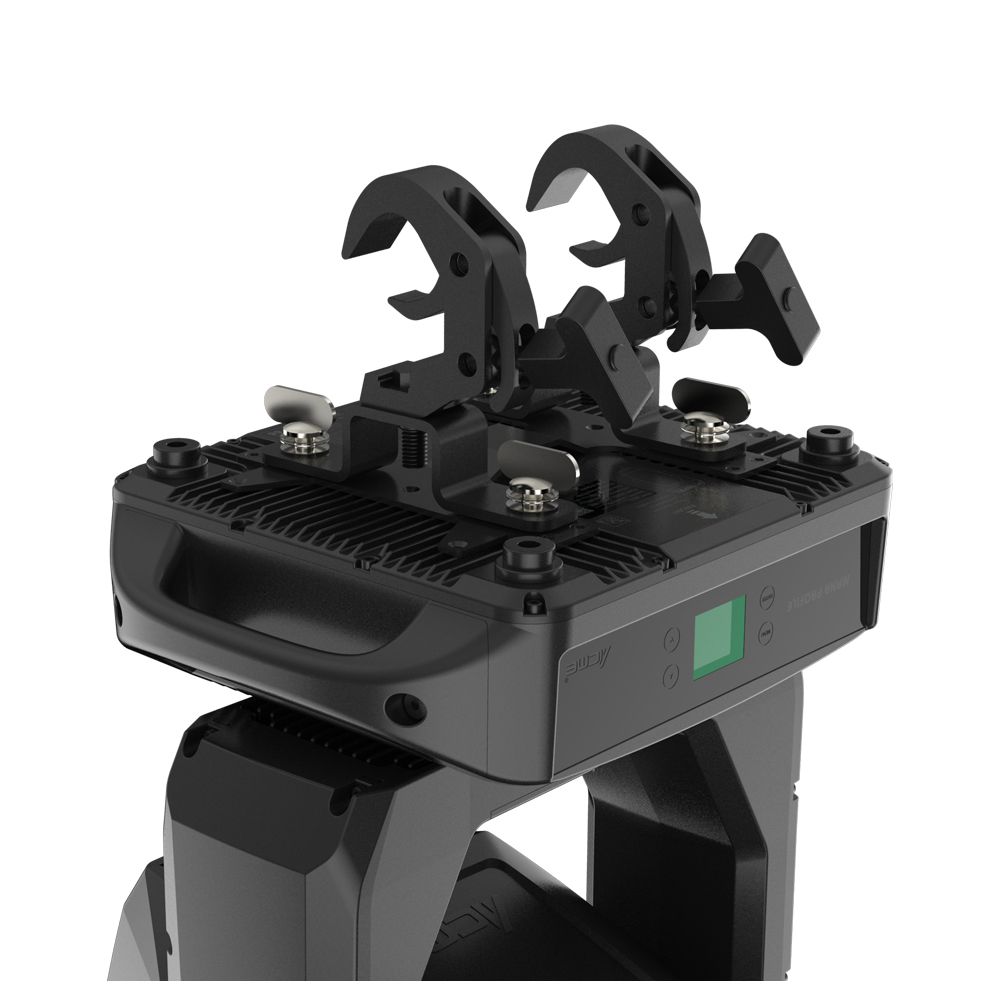

Installation
- Horizontally or vertically mounting
- Universal working position
- 2 omega brackets
- Safety cable attachment point
Included Items
- Digital user manual
- Power cable with TRUE1 type connector
- 2 omega brackets (3002003003)
Optional Accessories
- Flight Case
- Standard: 3205096033 (two-pack loader case)
- North American Standard: 3205110037 (two-pack loader case)
- Clamp: 2060001625 (C-150B)
- Signal Line: 3-pin waterproof signal line (3017013468) or 5-pin waterproof signal line (3017013473), RJ45
- Safety Cable: 2060001603-A (SW-05)
