Acme NEOZONE

Functional Overview

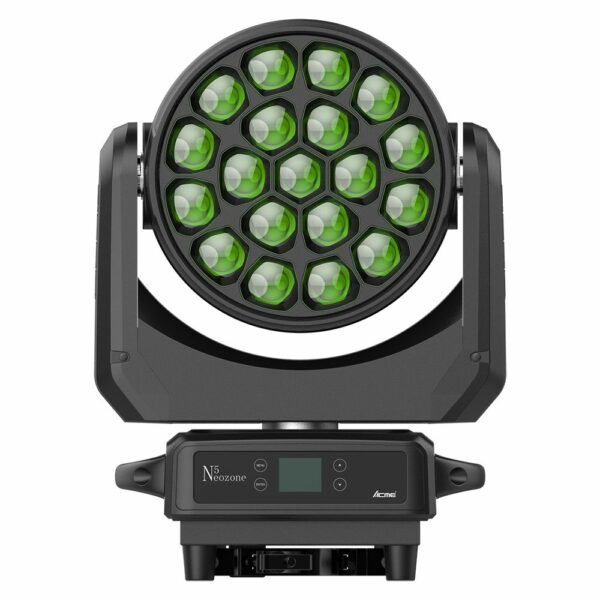

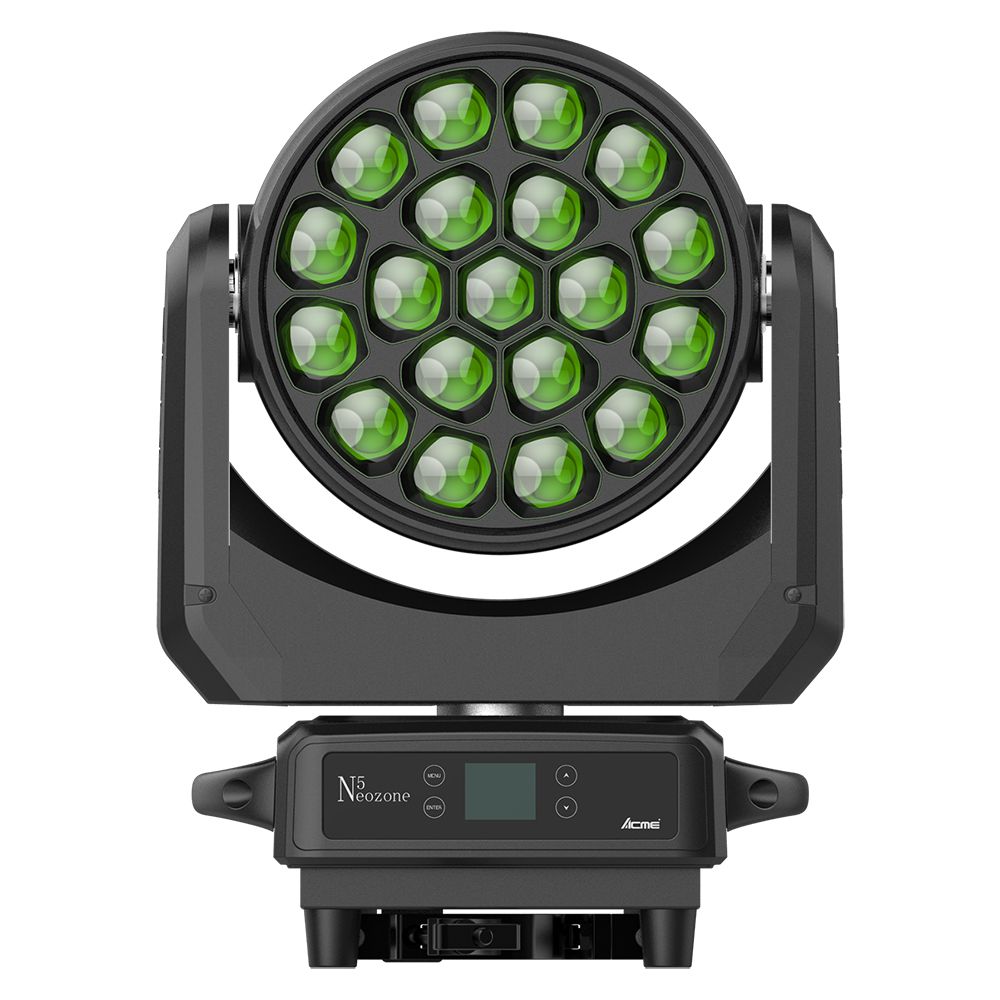

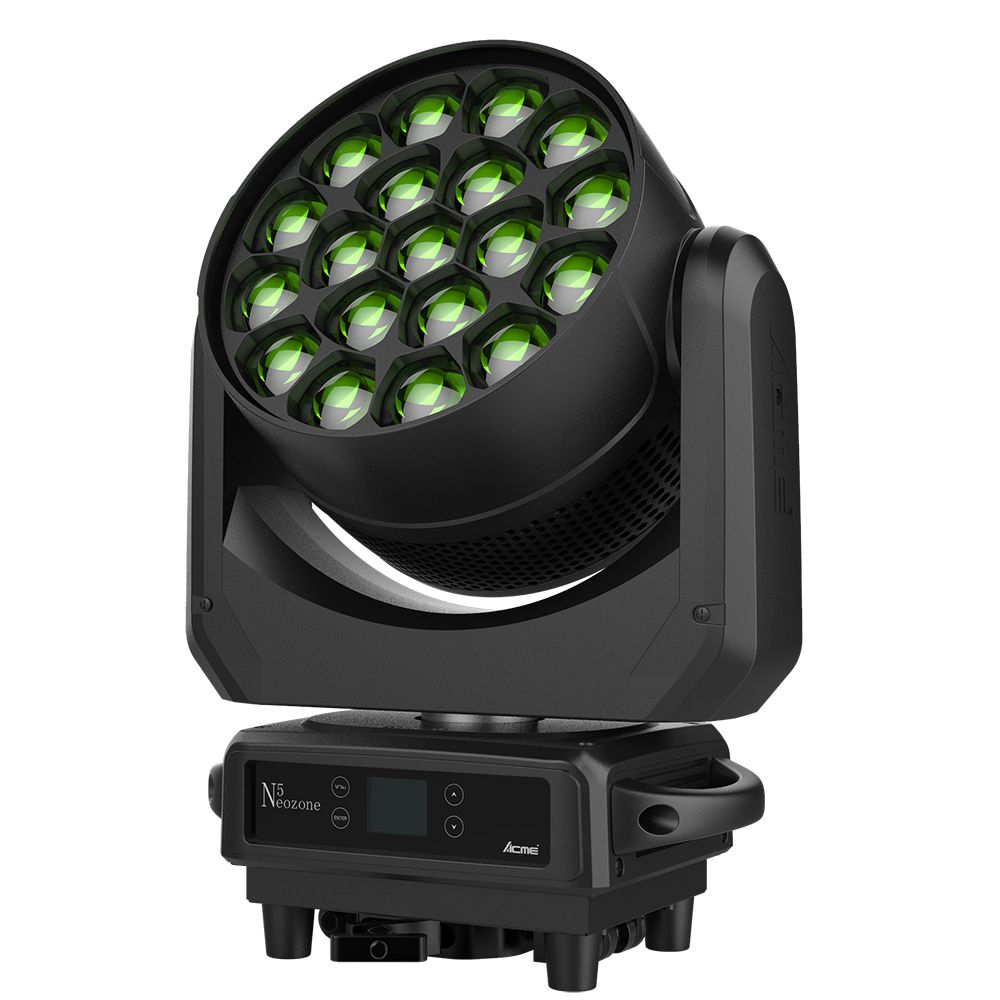

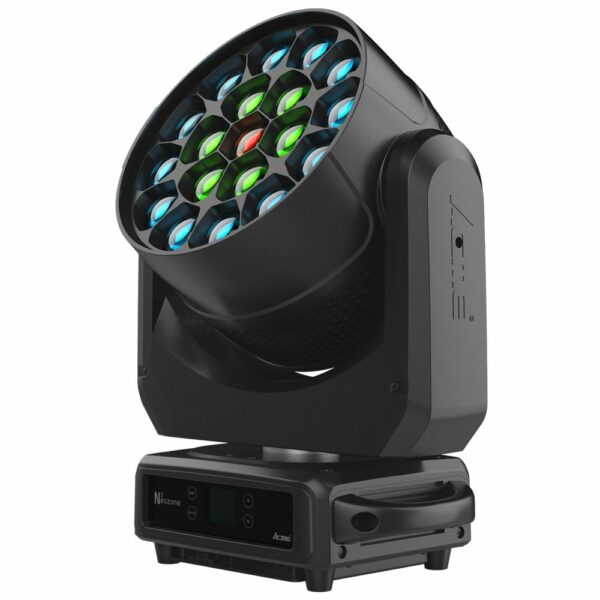

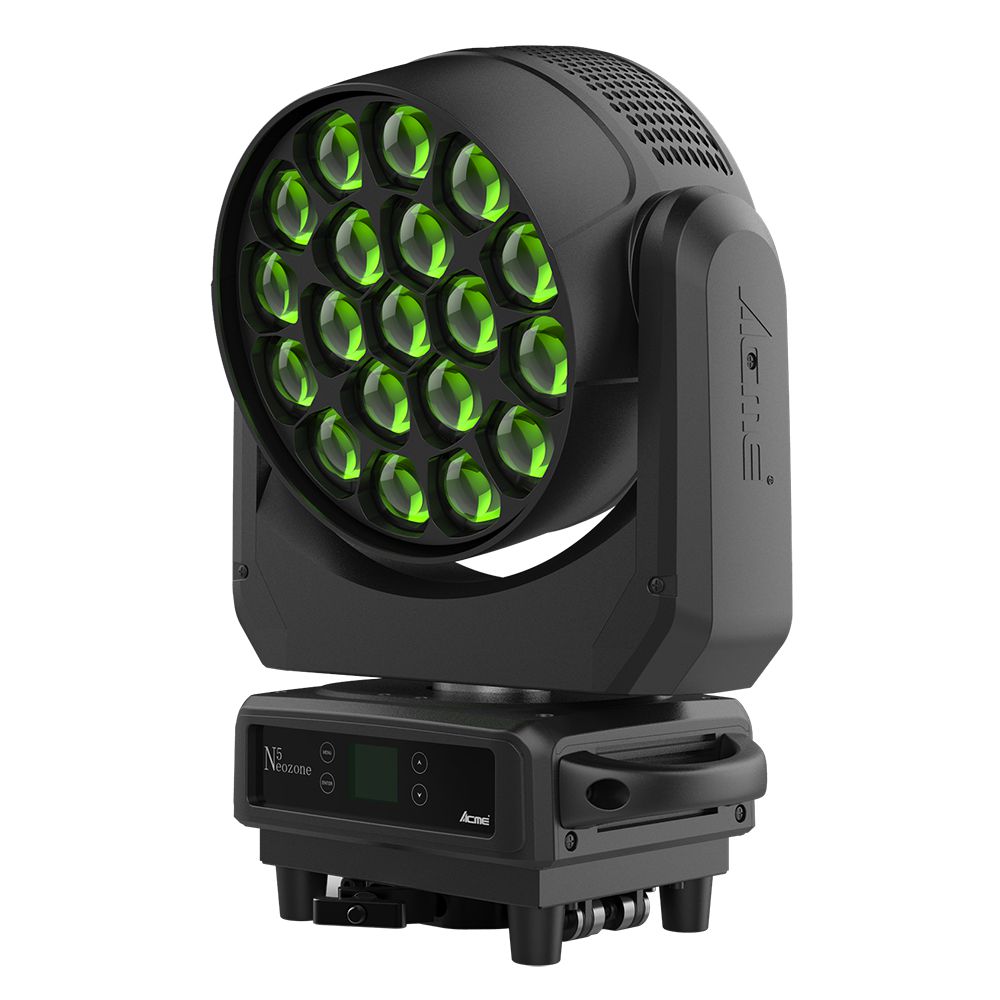

ACME NEOZONE, building on the historical ACME GLAMOUR series, delivering more punch and dynamic wash beam. Driven by 19, independently pixel controlled,40W RGBW LEDs, variable CTO from 2500K to 8000K, delivering over 9,000 lumens of full-on output to provides a gorgeous wash beam that stands out on any stage. With its wide zoom range from 4°to 50° it provides intense and well-defined mid-air beams as an exceptionally wide and even wash coverage, making it a perfect fixture for any application, even in outdoor stadium conditions. We have added more advanced correction of color uniformity technology which keeps NEOZONE at uniform color performance to solve the mixture of batch problems. Being exceptionally quiet moving with the new smooth step motors, and advanced cooling in house design,flicker-free adjustable management design for HD cameras, the fixture is ideal for live Stage, TV shows, art performing, etc.

Features
Light Sources:
Osram 19 x 40W RGBW LED
Osram 19 x 40W RGBY LED (Optional)
Variable CTO:2500K-8000K
Combing the Powerful shape Beam and dynamic Wash
Individual Pixel control
Build-in color macro effect
Motorized liner zoom system
Automated color correction system to ensure a consistent output

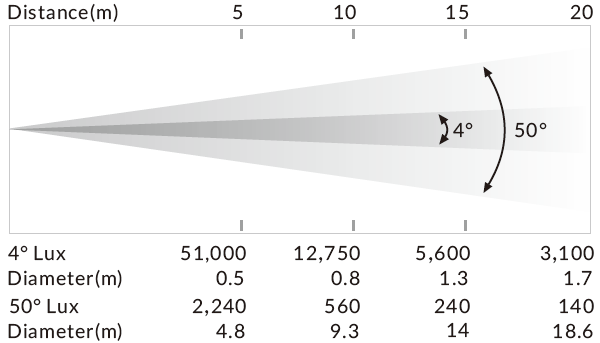

Zoom range: 4°~ 50°
CRI≥90 (RGBY)
Outstanding strobe effect with variable speed
0~100% smooth dimming
Fast moving in quiet
Flicker free management for HD and UHD cameras
Dust-proof and oil-proof housing design
Protection Rating: IP20

Technical & Specification
Model
CM 800Z

Light source
Light Sources:
Osram 19 x 40W RGBW LED
Osram 19 x 40W RGBY LED (Optional)
LED life expectancy: 30,000 hours

Optical system
Advanced optical system to ensure clear and large-range beam & wash effect
High – efficiency zoom optical system, ratio 1:10
Zoom range: 4°~50°
CRI≥90 (RGBY)

Control and Program
4-touch buttons
Display: Color Display
Protocols: DMX512,RDM, Art-net，sACN
DMX Protocol modes: 4
Control channels: 7/21/86/10+
Upgrade the firmware via DMX link
Pan/Tilt Resolution: 16 bit
Dimmer: 16 bit

PAN & TILT
Pan movement: 540°
Tilt movement: 220°
Automatic Pan/Tilt position correction

Electrical and Connectors
Power supply with electronic auto-ranging
Input voltage range: 100-240 V~50/60Hz
Power consumption: 960W
Power In/Out: Power Connector in/out
Data in/out: 3-pin or 5-pin XLR, RJ45

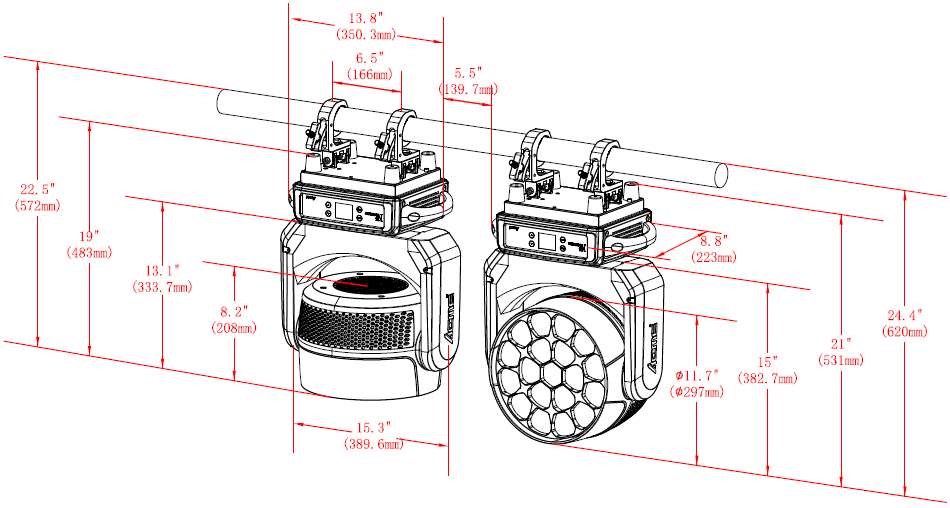

Fixture Specification
Fixture Dimensions:
Height: 297 mm (11.7 “)
Width: 390 mm (15.3″)
Depth: 482 mm (19”)
Weight: 21.3kg ( 47lbs)
Flight Case Dimensions:
Height: 765mm (30.1 “)
Width: 470mm (18.5″)
Depth: 915mm (36.0”)
Weight: 84.6kg (186.5lbs) (Dual Loader Case)

Work environment
Maximum ambient temperature: 45°C
Maximum surface temperature: 75°C
Minimum operating temperature: -10°C
Protection Rating: IP20

Installation
Available in horizontally or vertically mounting way
Multi projection angle operation

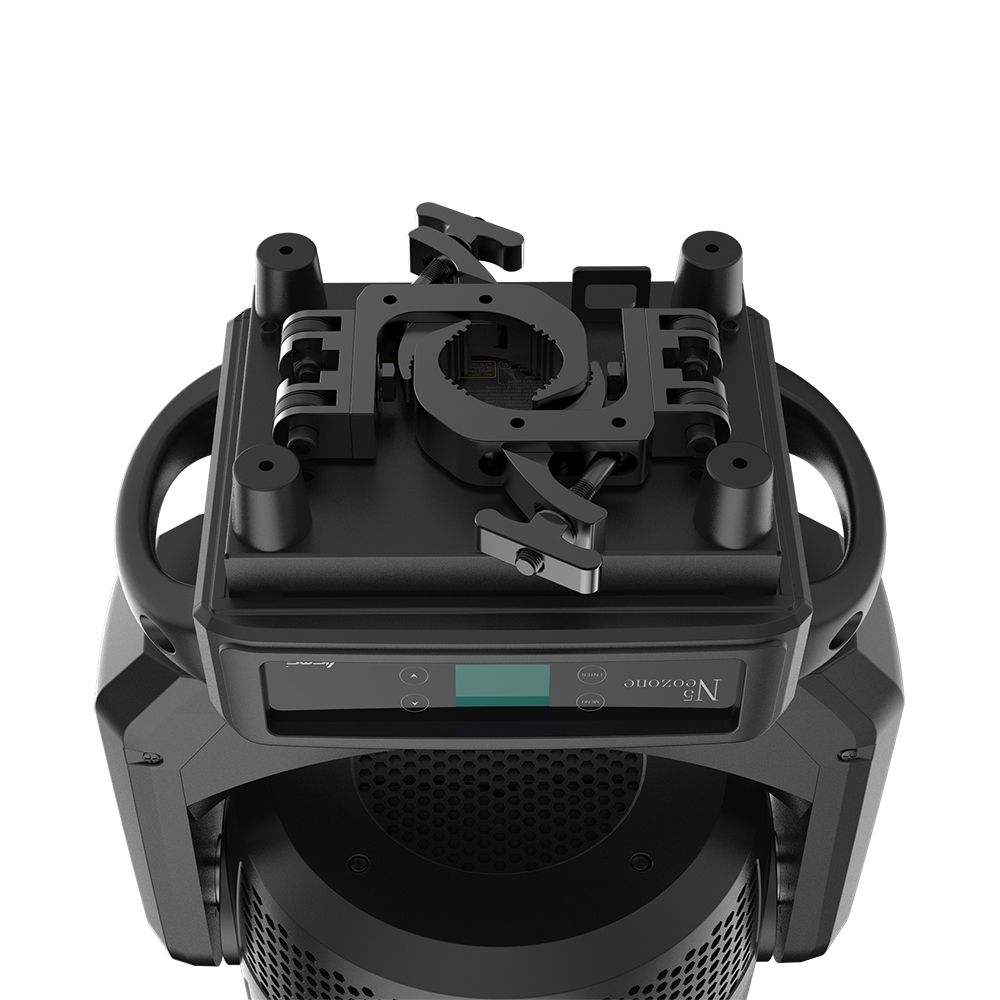

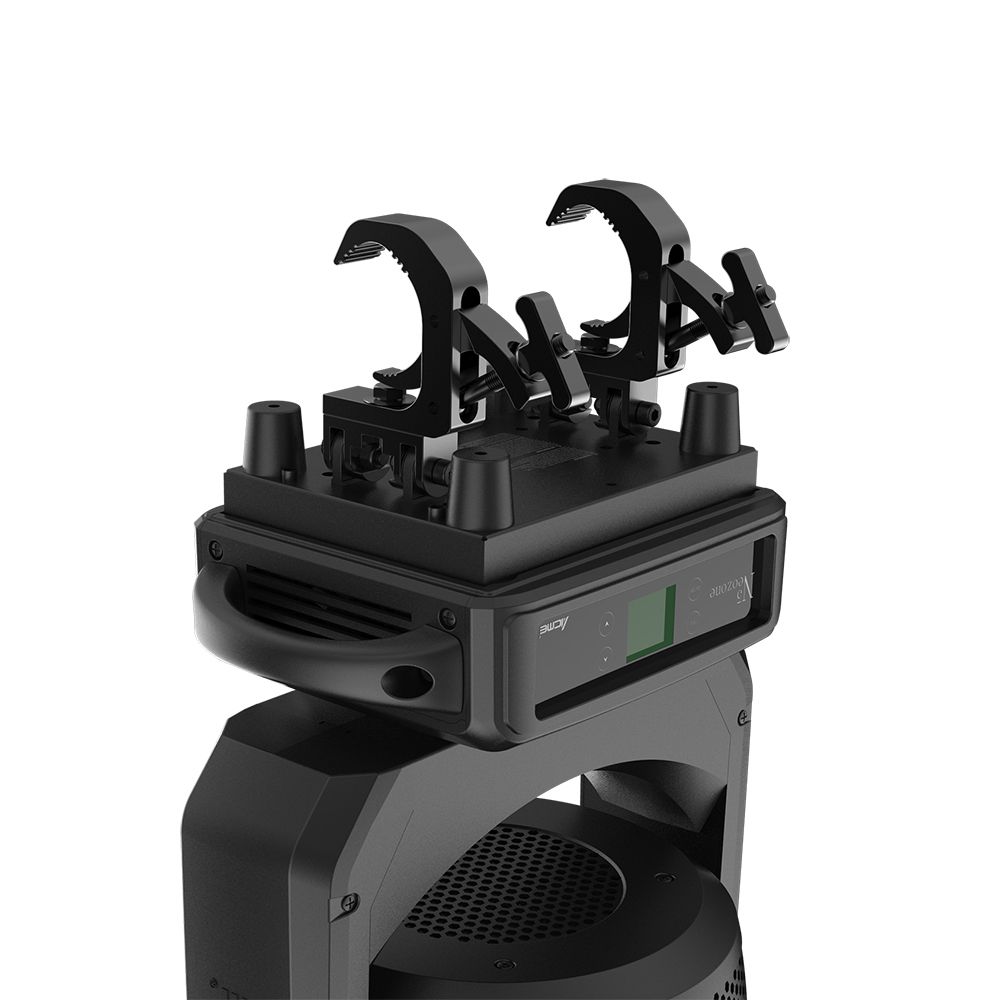

2 x Fixed foldable clamps for 50mm truss
Safety rope hanging

Included items
Digital User Manual
Power Cable
2 x Fixed foldable clamps for 50mm truss
Safety cable attachment point

Optional Accessories (with item code)
Flight case：3205001269 (2 in 1 )
Raincover：3033001749
Signal Line：3-pin or 5-pin XLR signal line
Safety rope : 2060001603-A (SW-05)
