Functional Overview

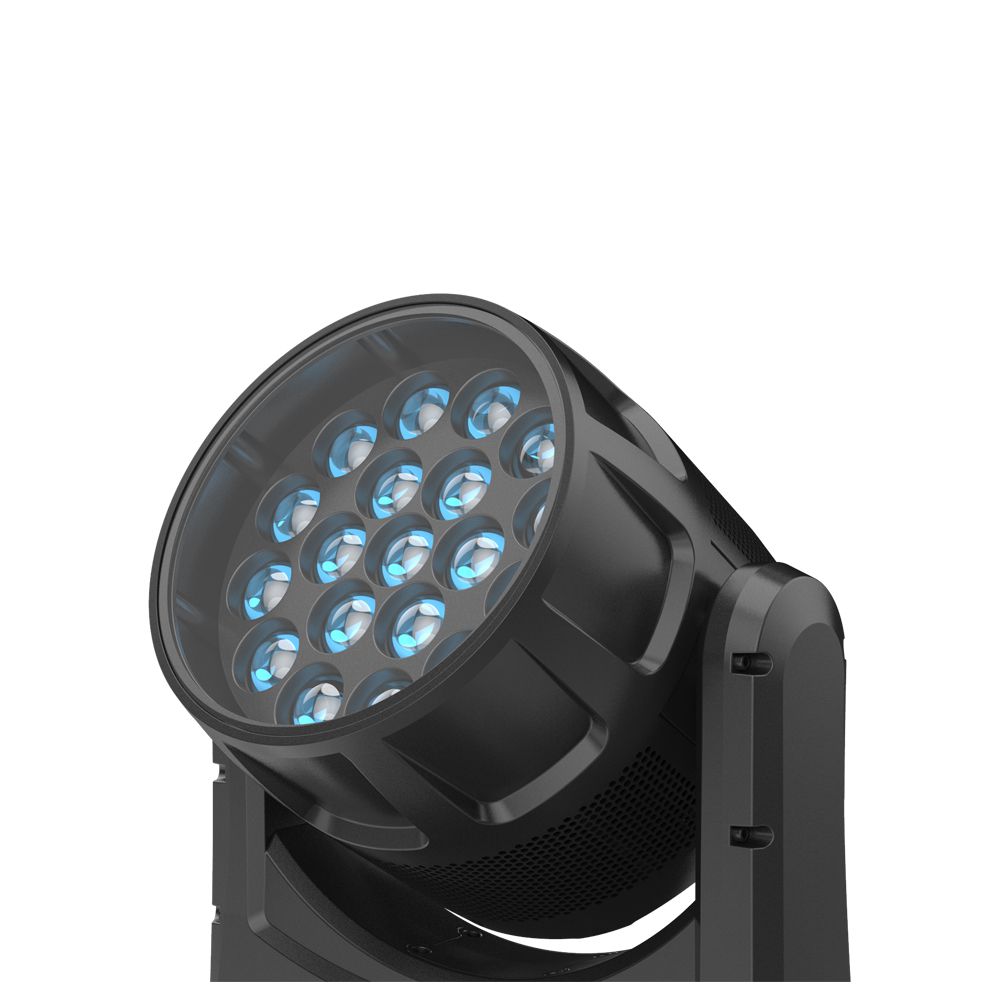

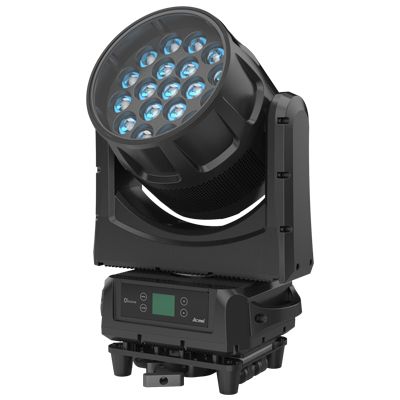

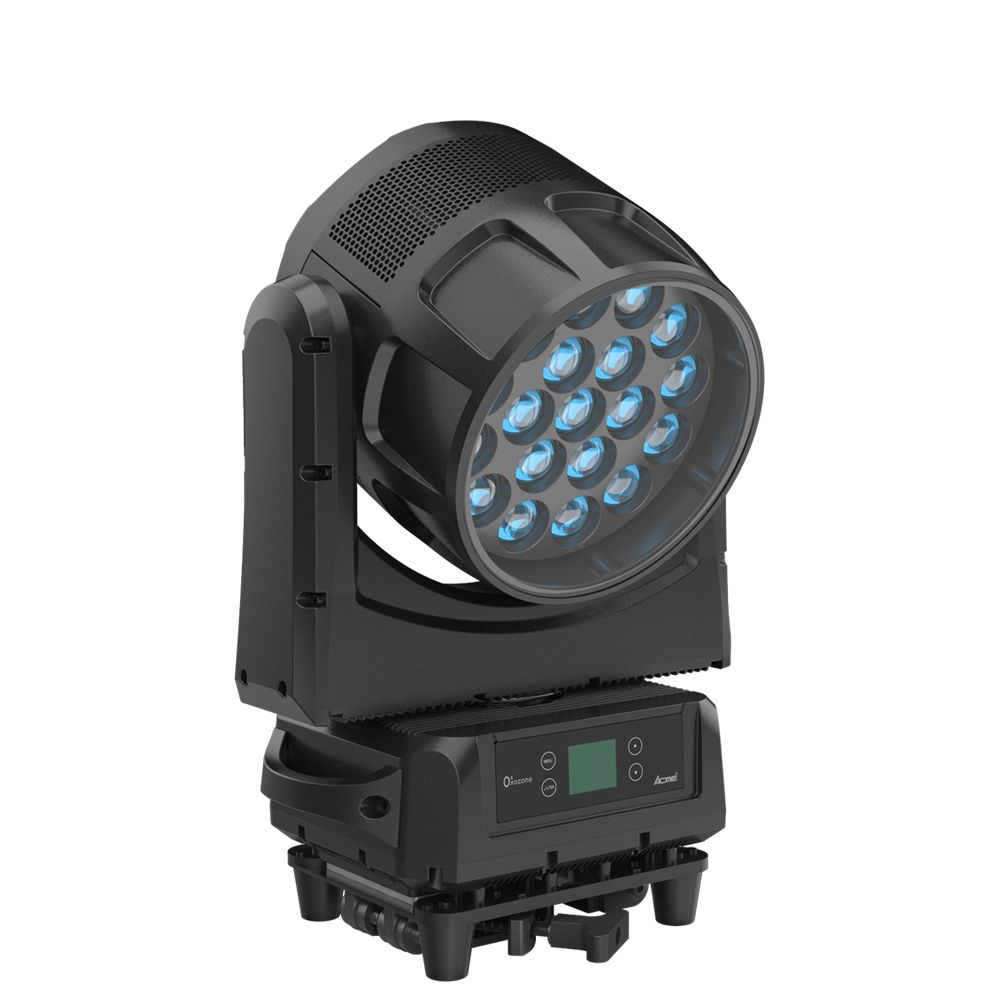

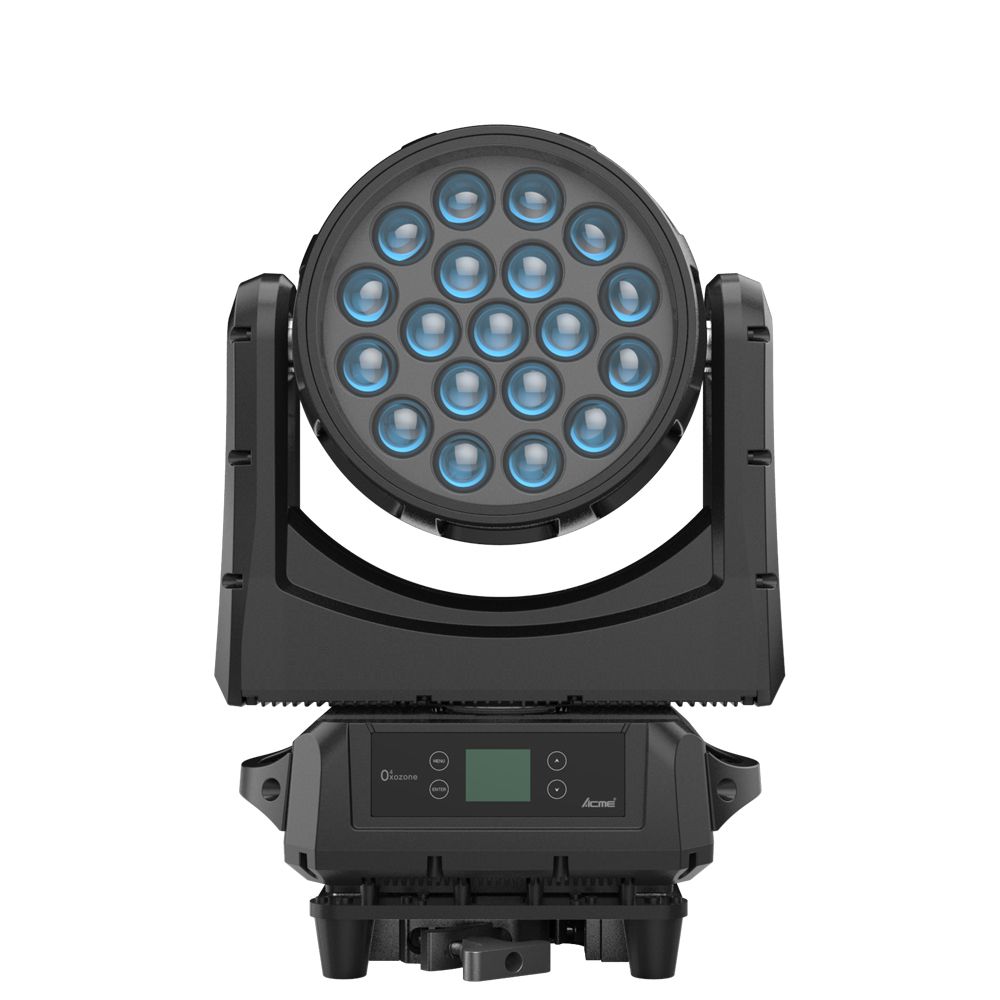

The ACME OXOZONE , as with the new generation of OZONE luminaires, uses Osram’s 19×40W RGBW 4-in-1 LED source, and delivers a narrow, 6° beam as well as 40° wide coverage, thanks to its efficient optical system ( 1:6.7 ratio).
The quality of its color-mixing and pixel control means the OXOZONE is capable of handling even the most demanding environments. With tailor-made magnesium alloy die-cast housing, robust construction and IP66-rating, the OXOZONE is designed for both indoor and outdoor applications, in any situation from dusty deserts to rainy fields, from evening parties to outdoor performances.
Thanks to its long-life LEDs, this ground-breaking fixture offers an extended operational life with reduced need for maintenance. Equipped with DMX and RDM dual-control system and offering fast and silent operation, the OXOZONE gives lighting designers much more flexibility in colors , angles and effects. It also offers a USB port for software updates and is fitted with 5-pin (3-pin optional) DMX in/out, and powerconnector in/out to daisy-chain power. All connections are IP66 rated with protective rubber covers.
Features
- Light source: Osram19x40W RGBW LED
- Powerful beam and wash effects
- Pixel control
- Outstanding color macro effect
- Variable CTO: 2500K – 8000K
- Motorized linear zoom system
- Zoom range: 6-40°
- Outstanding strobe effect with variable speed
- Smooth dimming from 0-100%
- Fast and silent operation
- Flicker-free management
- Dust-proof and oil-proof design
- Protection Rating: IP66 – can be used outdoors all year round
Model
- CM-800Z IP
Light Source
- Light Source: Osram19x40W RGBW LED
- LED life expectancy: 30,000 hours* manufacturer specification

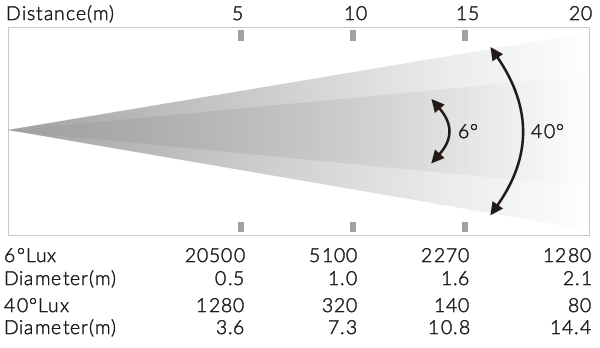

Optical System
- Advanced optical system for clear, wide-ranging beam & wash effects
- High-efficiency zoom optical system (ratio 1:6.7)
- Zoom range: 6-40°

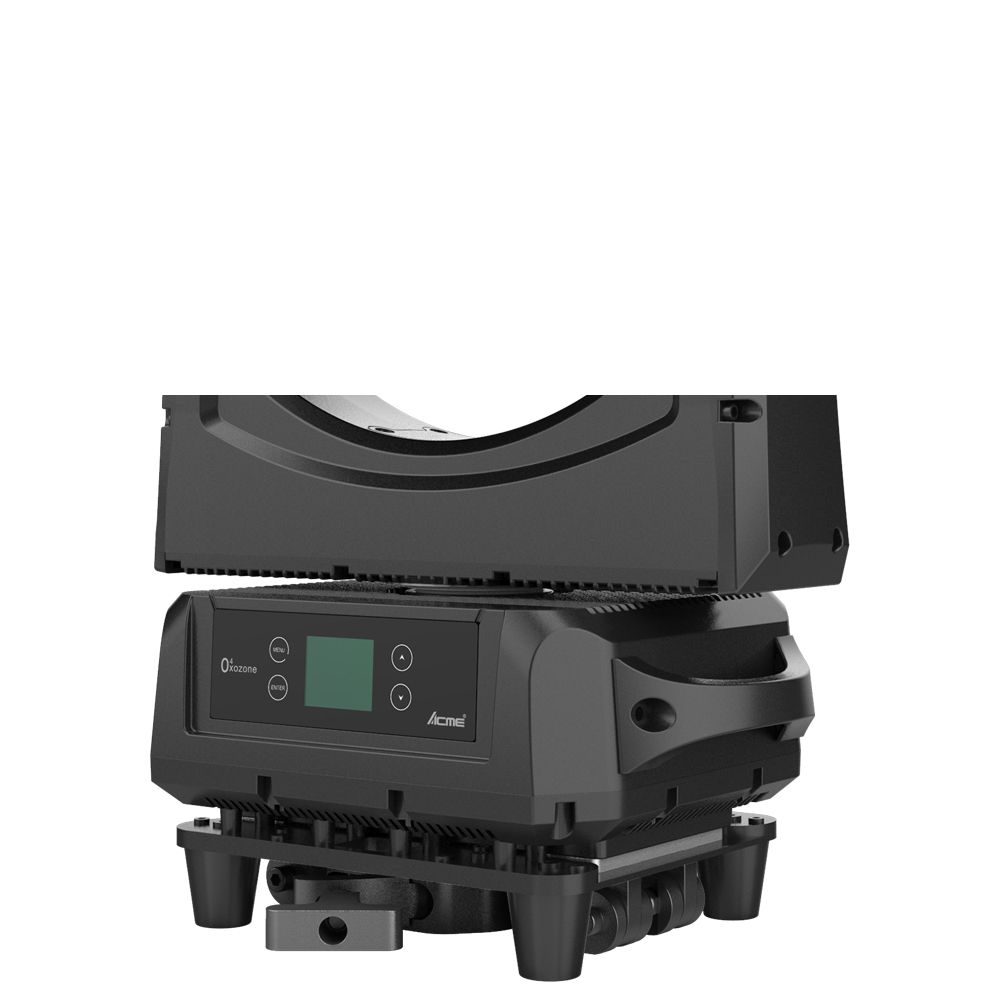

Control & Program
- 4 touch button control panel
- Display: Color Display
- Protocols: DMX512, RDM
- DMX Protocol modes: 3
- Control channels: 17/21/86
- Pan/Tilt Resolution: 16-bit
- Dimmer: 16-bit
- Firmware upgrade via DMX link & USB
Pan & Tilt
- Pan movement: 540°
- Tilt movement: 240°
- Automatic position correction

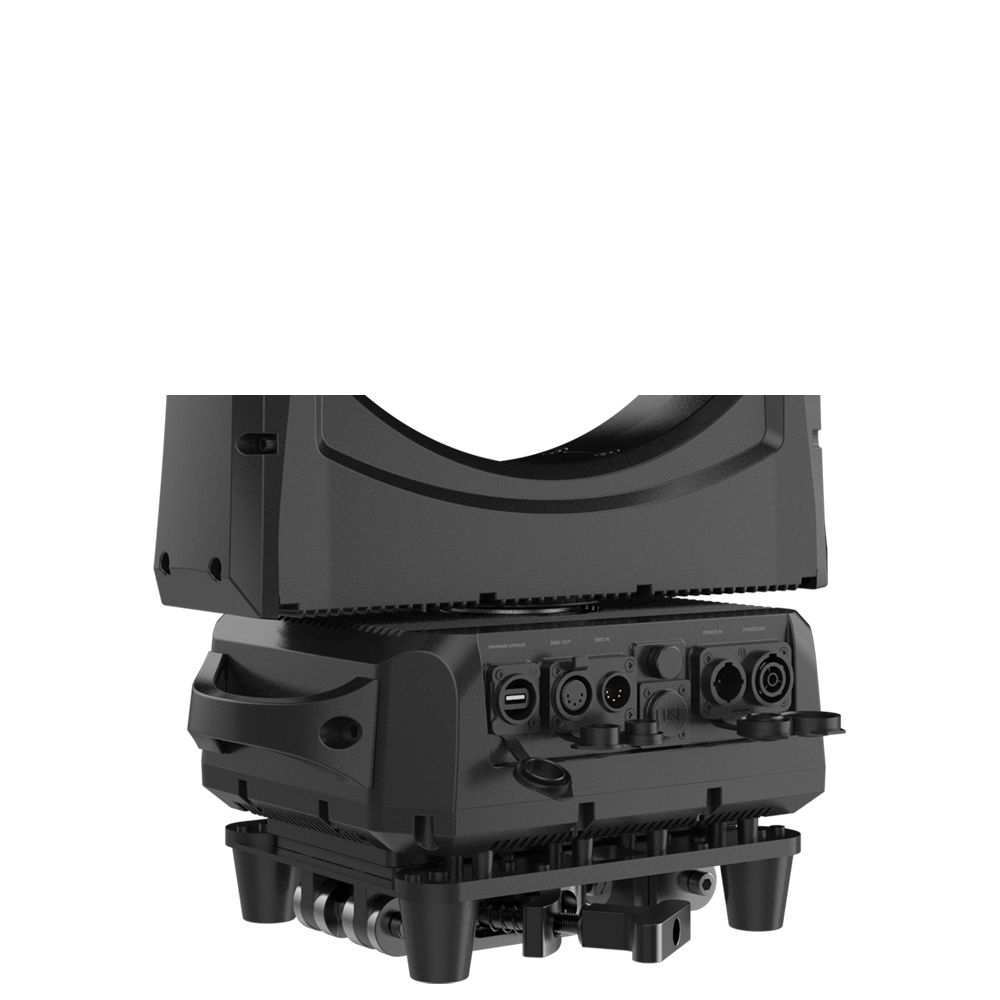

Electrical & Connectors
- Power supply with electronic auto-ranging
- Input voltage range: 100-240V~ 50/60Hz
- Power consumption: 990 W
- Power in/out: Waterproof power connector in/out
- Data in/out: 3-pin or 5-pin IP XLR
Fixture Specification

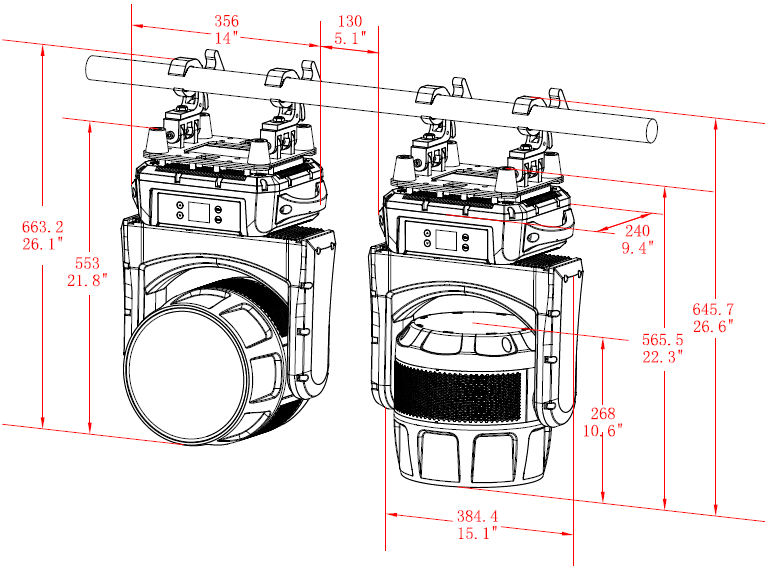

- Height: 565 mm (22.4”)
- Width: 286 mm (11.3”)
- Depth: 384 mm (15.1”)
- Weight: 26 kg (57.3 lbs)
Work environment
- Maximum ambient temperature: 40°C
- Minimum operating temperature: -10°C
- Maximum surface temperature: 75°C
- Protection Rating: IP66
Approvals
- CE compliant
Installation

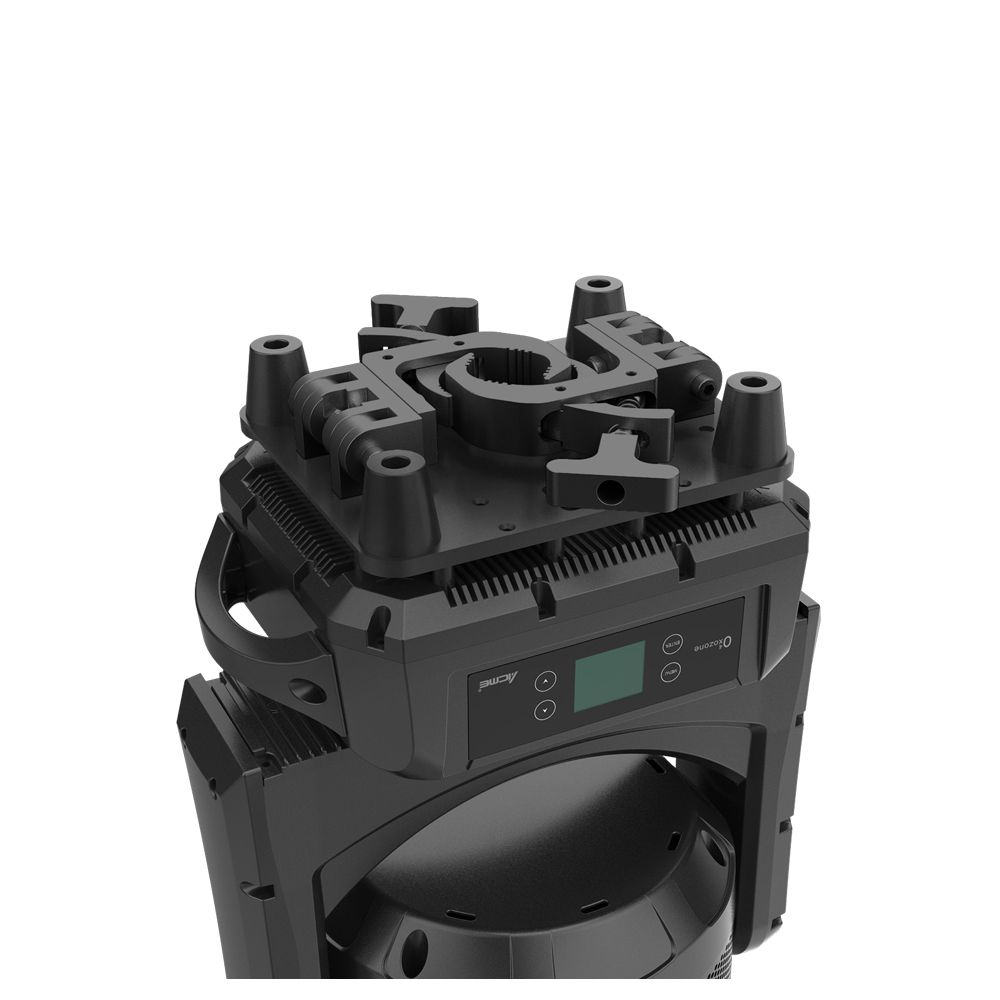

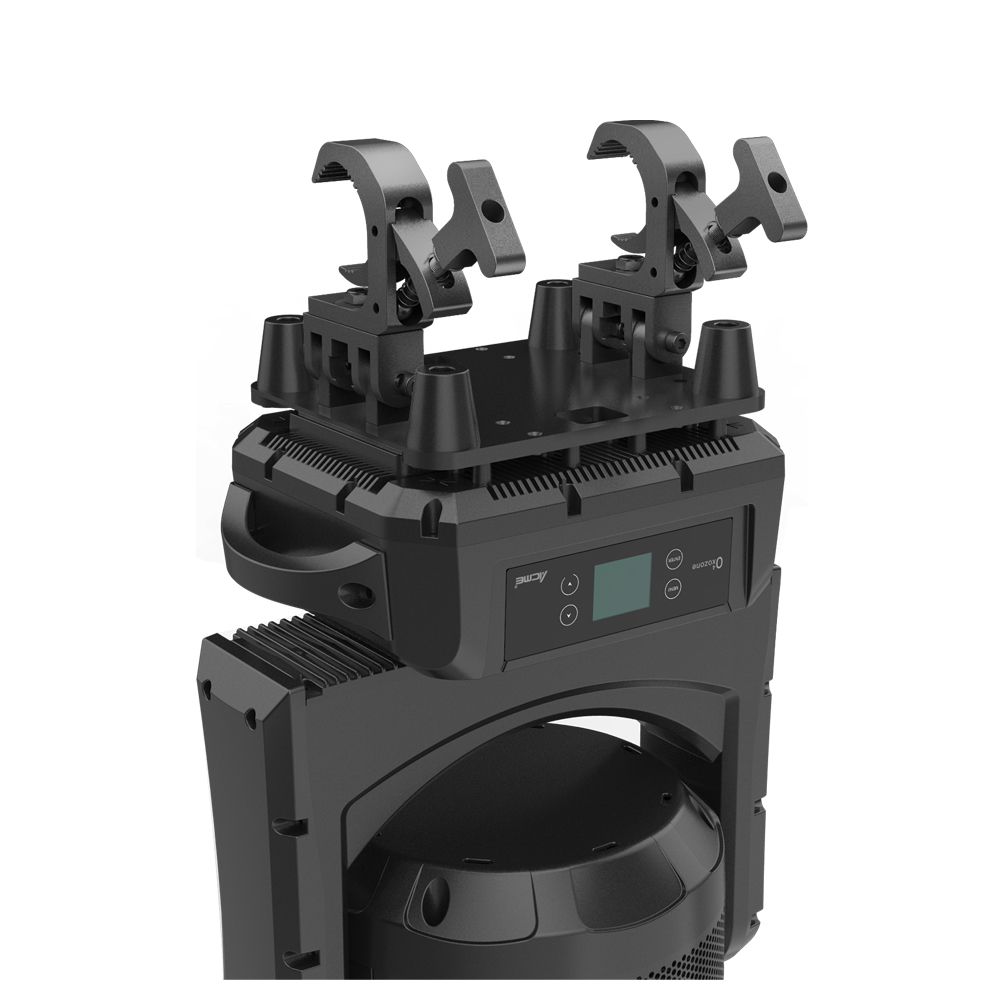

- 2 x Fixed foldable clamps for 50mm truss
- Safety Rope Hole
Included items
- Digital User Manual
- Power Cable
- 2 x Fixed foldable clamps for 50mm truss
Optional Accessories (with item code)
- Flight case: 3205001269 (2 in 1)
- Safety cable: 2060001603-A (SW-05)
- Signal Line: 3-pin or 5-pin IP signal line
