Functional Overview

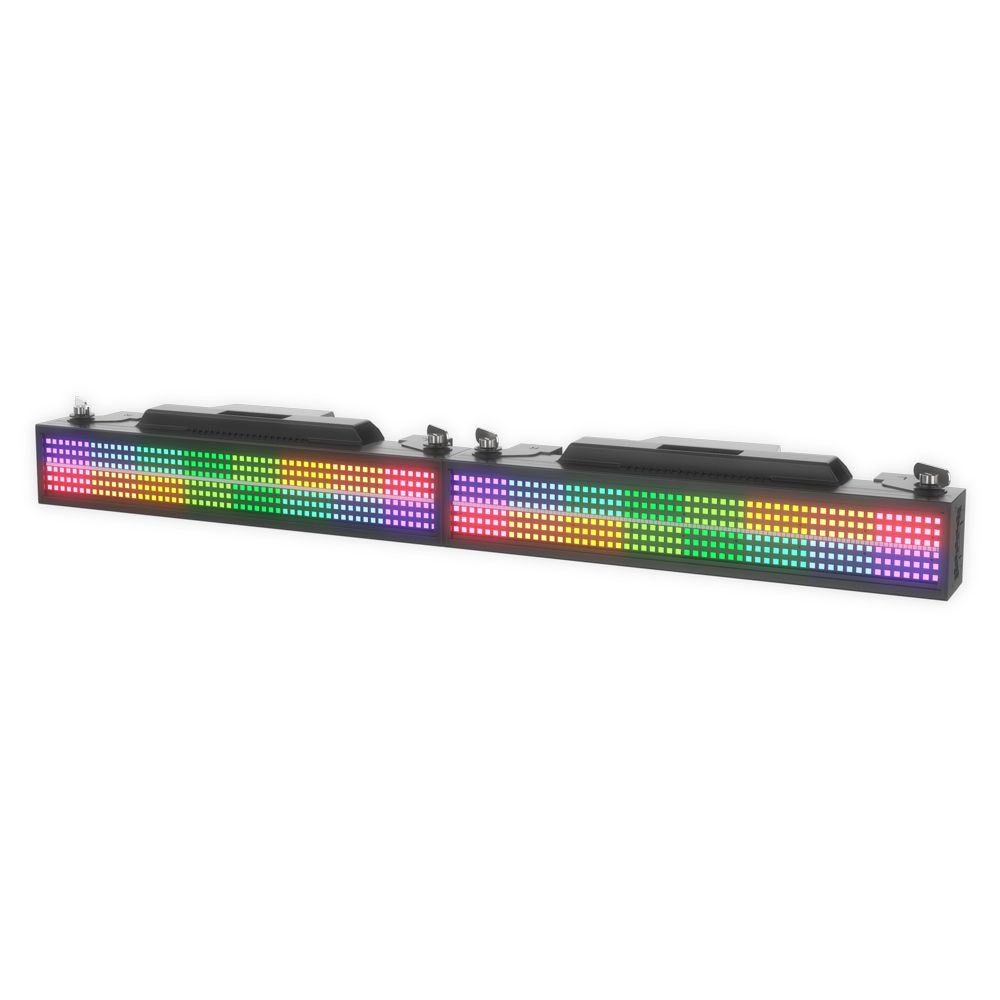

The ACME PIXEL LINE IP 500 is an remarkable fixture equipped with 336 0.5-Watt RGB LEDs and 112 6-Watt cool white LEDs, all divided into 16 controllable sections. The RGB LEDs boast a beam angle of 102° and a field angle of 149°, while the cool white LEDs boast a beam angle of 108° and a field angle of 150°.

With its outstanding color mixing effects, high output strobe effects, and patented Smart Glass Technology for frost effects, the PIXEL LINE IP 500 delivers a stunning visual effect that will leave you in awe. It is also designed for durability with an IP66 rating, making it suitable for both indoor and outdoor use.

Furthermore, it can be mounted horizontally or vertically, further increasing its versatility. Whether you’re looking to create a dynamic lighting atmosphere or simply add some visual flair to your space, the PIXEL LINE IP 500 is the perfect choice.

Features

• Light Sources:
  • 336pcs 0.5W RGB LED (can be divided into 16 controllable sections)
  • 112pcs 6W CW LED (can be divided into 16 controllable sections)
• Beam Angles:
  • RGB Beam Angle: 102°
  • CW Beam Angle: 108°
• Field Angles:
  • RGB Field Angle: 149°
  • CW Field Angle: 152°

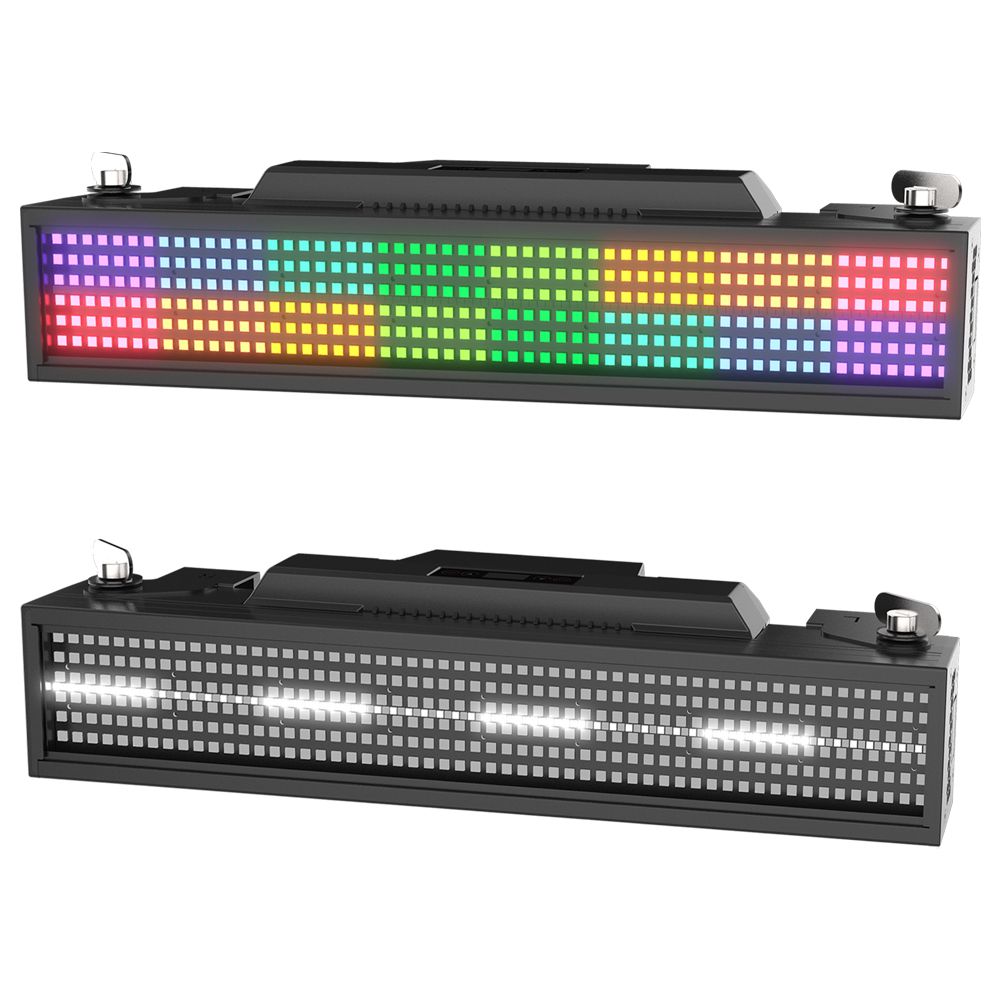

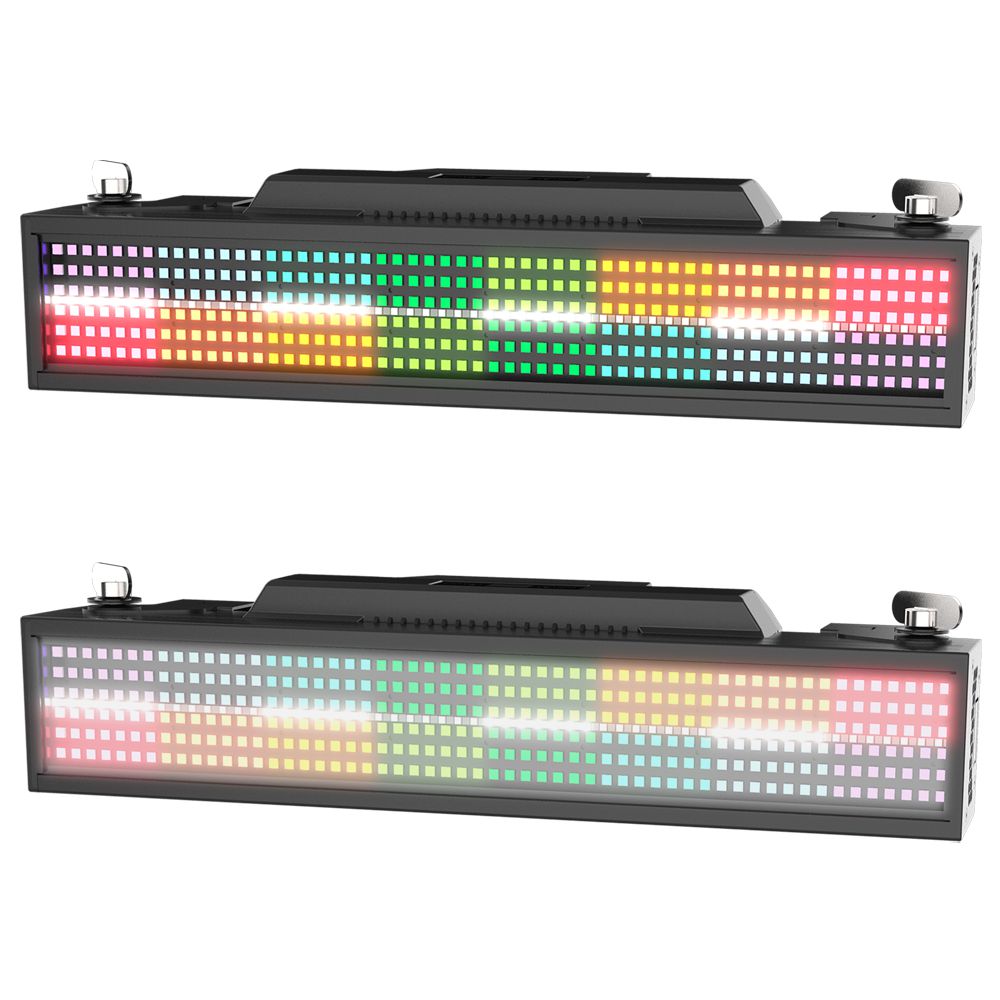

• One Linear Strobe Bar, Two Modes At Your Hand:
  • Powerful Mode (16 RGB sections plus 16 CW sections): High output, high brightness
  • Splicing Mode (16 RGB sections plus 8 CW sections): Same output as Pixel Line IP
• Total Lumen Output of Fixture: 56,449 lumens
• Color Temperature Output of Fixture: 7,000K-7,500K (CW)

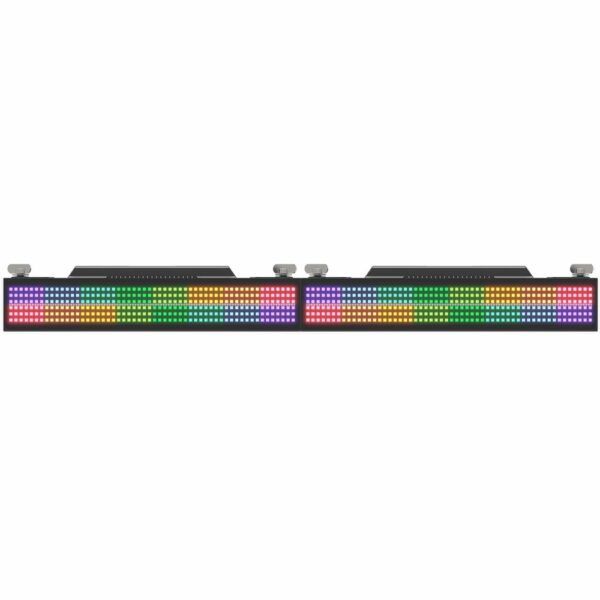

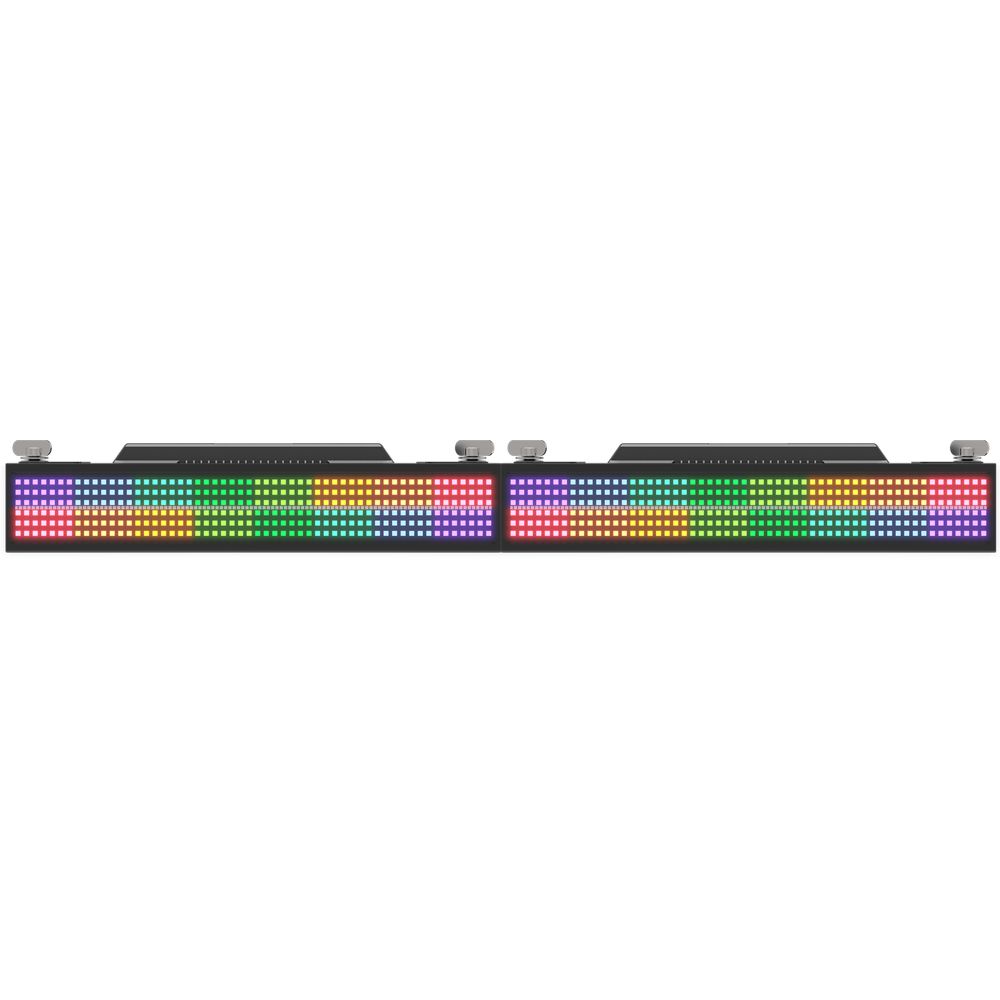

• Multiple units can be combined with quick-positioning joint design
• Outstanding color mixing effects
• High output strobe effects
• Patented Smart Glass Technology for frost effects
  Patent No.:
  CN 216010577 U
  US 11,698,183 B1
  DE 20 2023 101 966 U1
  FR 3 134 870 A3
• Variable light adjustment from 0-100% dimming
• IP66 rated

Model

• STROBE 1 IP

Version

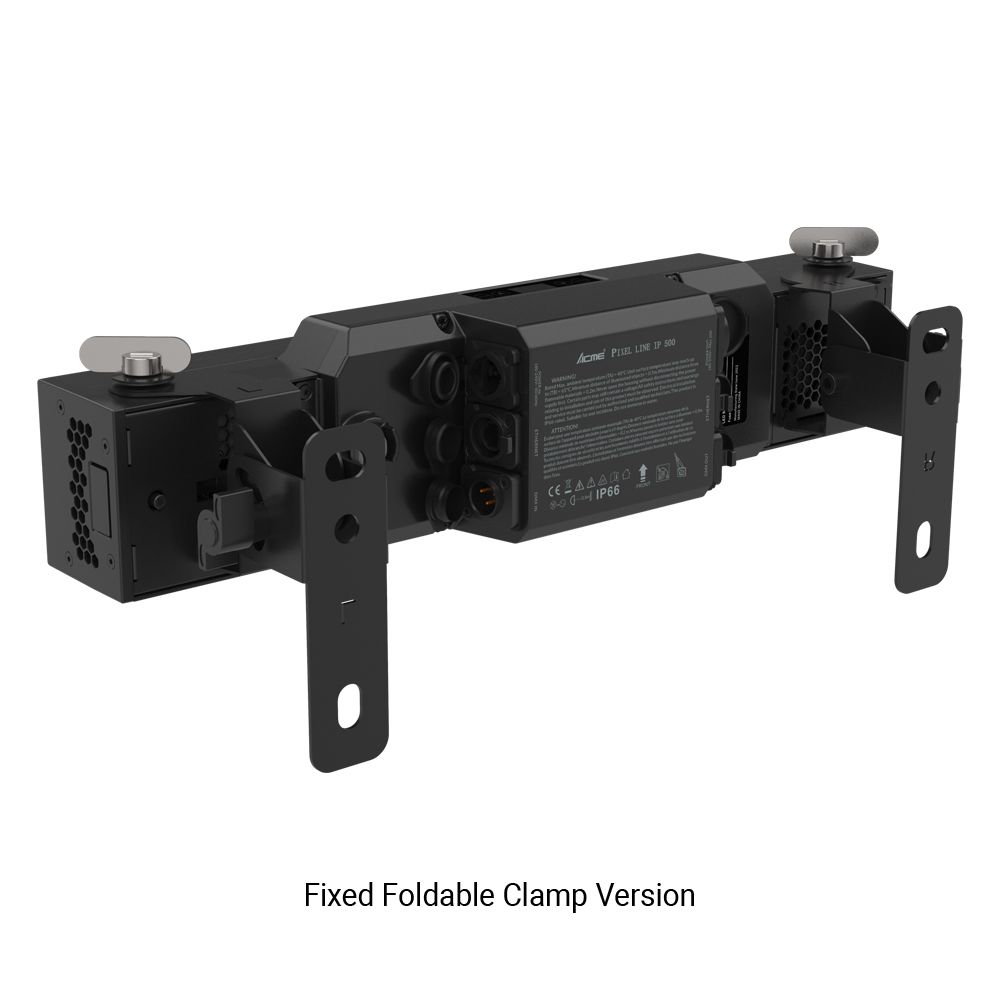

• Vesion1: STROBE 1 IP (Omega Bracket Mounting)

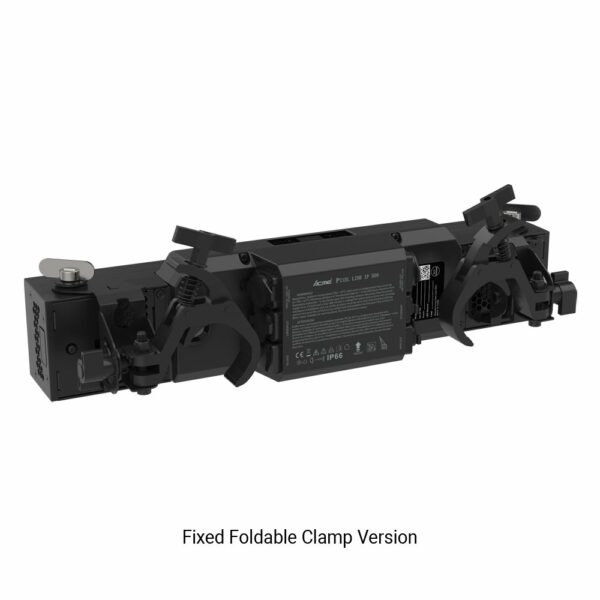

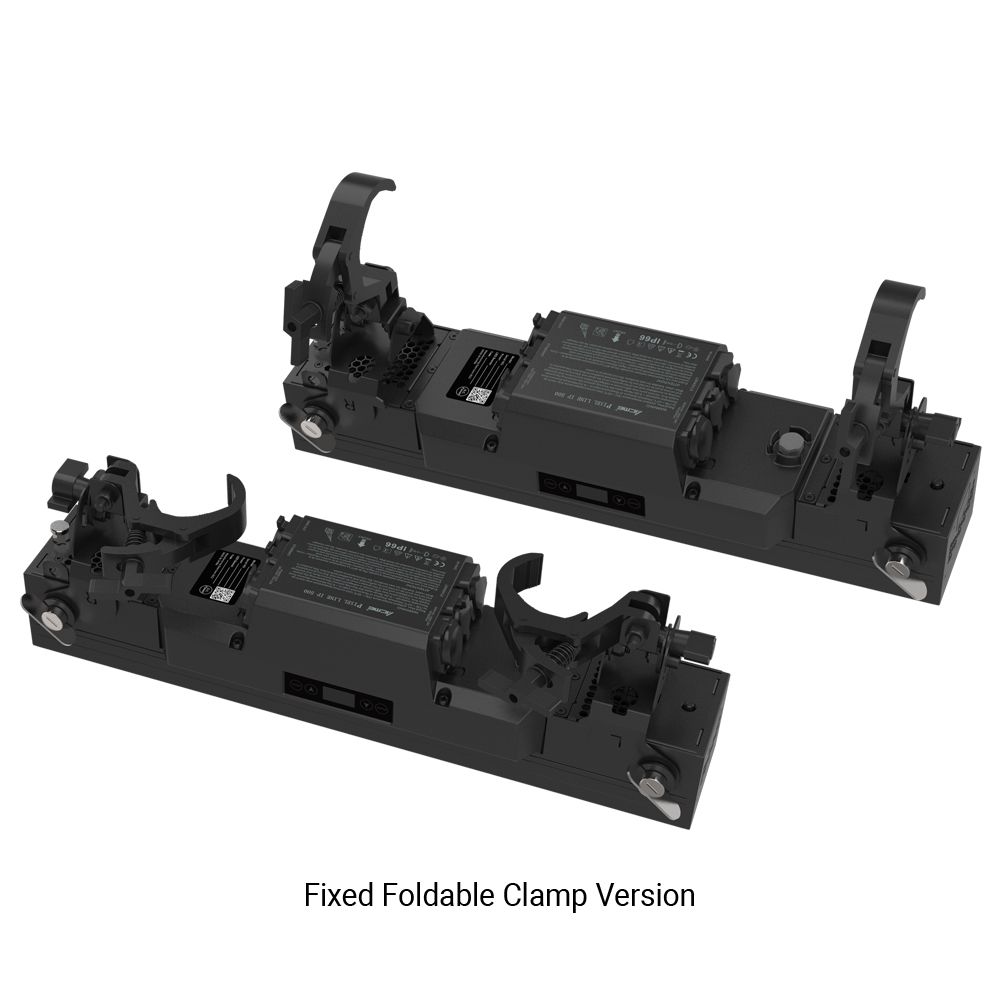

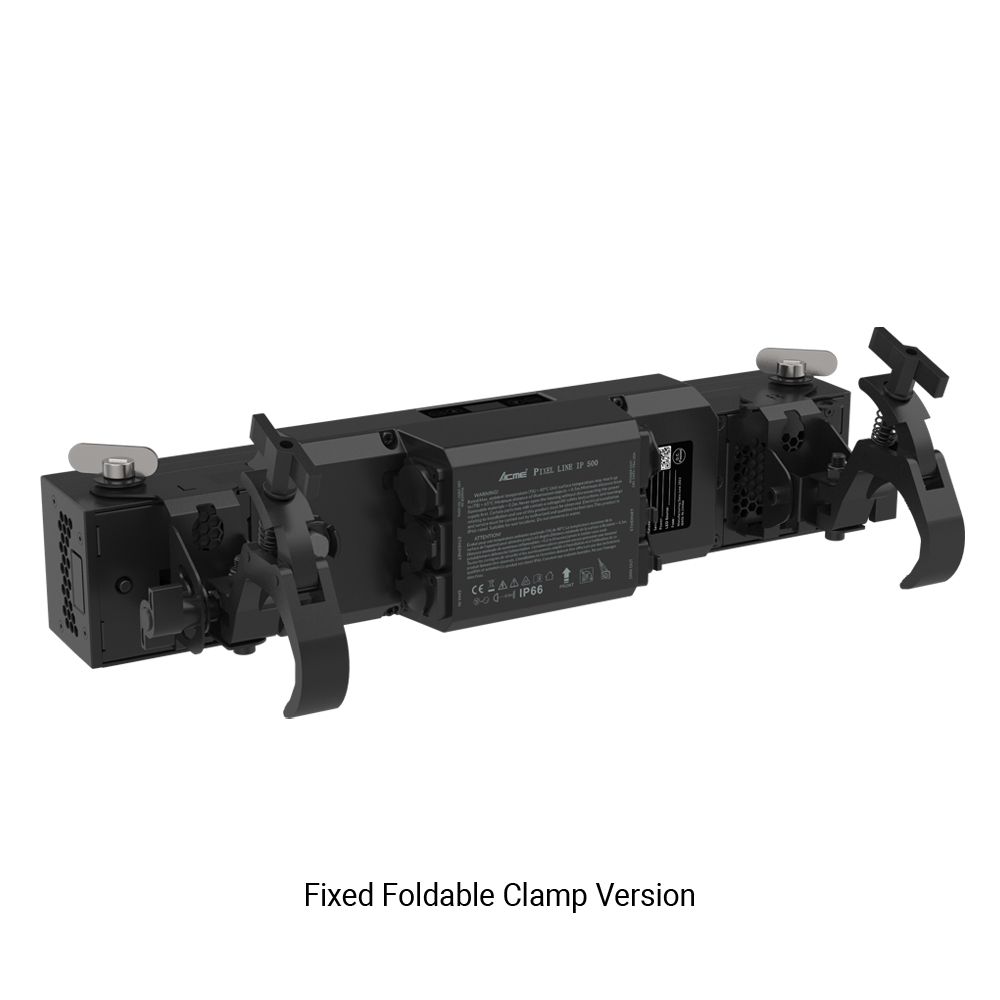

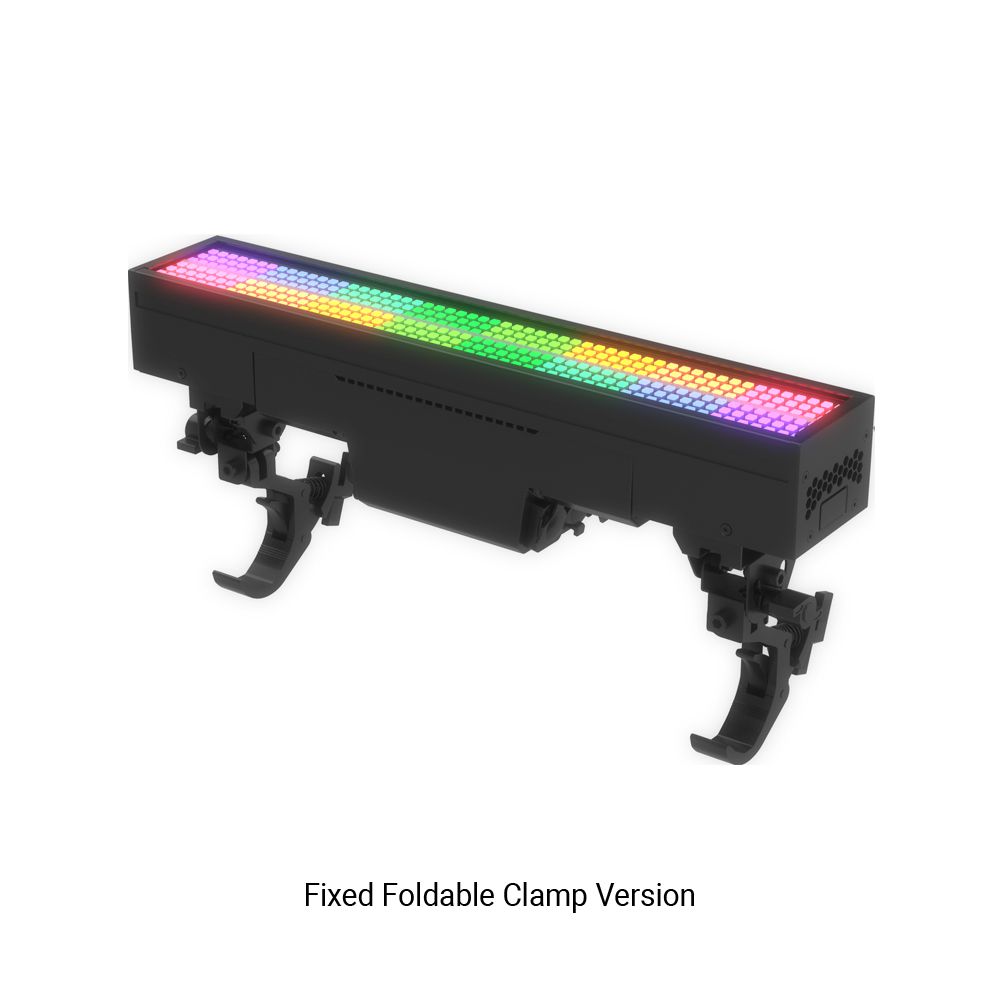

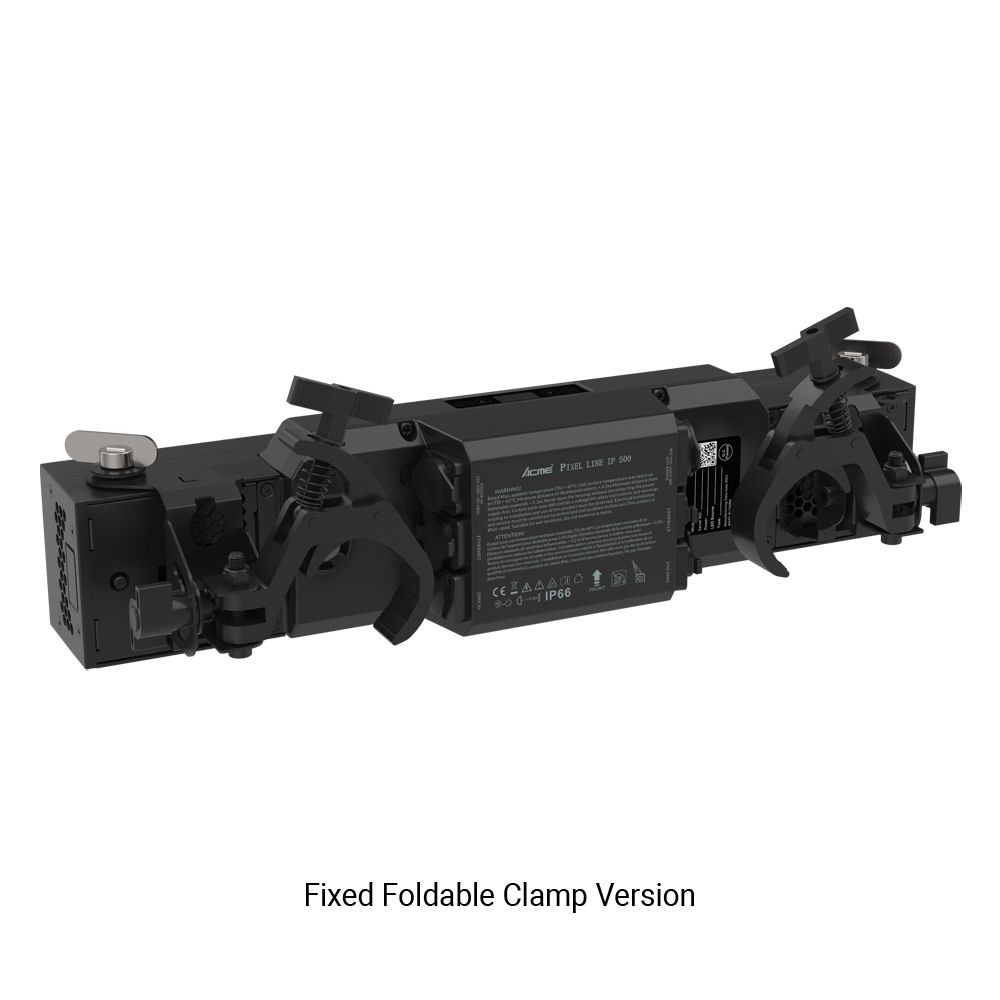

• Vesion 2: STROBE 1 IP (Fixed Foldable Clamp)
• Note: Different vesions cannot be connected together

Light Source

• Light Sources:
  • 336 x 0.5W RGB LED
  • 112 x 6W CW LED
• Color Temperature Output of Fixture: 7,000K-7,500K (CW)
• Total Lumen Output of Fixture: 56,449 lumens
• Life Expectancy: 30,000 hours*
  *Source manufacturer specification

Optical System

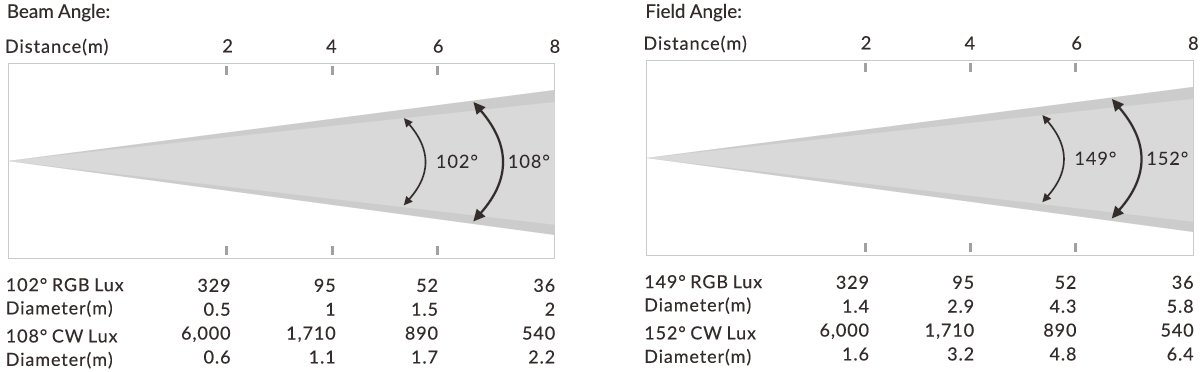

• Beam Angles:
  • RGB Beam Angle: 102°
  • CW Beam Angle: 108°
• Field Angles:
  • RGB Field Angle: 149°
  • CW Field Angle: 152°

Control and Program

• 4 button touch control panel
• Display: OLED display
• Protocols: DMX512, RDM, Art-Net, sACN
• DMX Protocol Modes: 11
• Control Channels: 8/10/16/18/22/26/34/37/39/56/62
• Firmware Upgrade: Upgrade via DMX link

Other Effects

• One linear strobe bar, two modes at your hand
• Outstanding color mixing effects
• High output strobe effects
• Patented Smart Glass Technology for frost effects
  Patent No.:
  CN 216010577 U
  US 11,698,183 B1
  DE 20 2023 101 966 U1
  FR 3 134 870 A3
• Variable light adjustment from 0-100% dimming

Electrical and Connectors

• Input Voltage Range: 100-240V~ 50/60Hz
• Power Consumption: 875W
• Power In/Out: Waterproof power connector in/out
• Data In/Out: 5-pin waterproof XLR, RJ45 connector

Fixture Specification

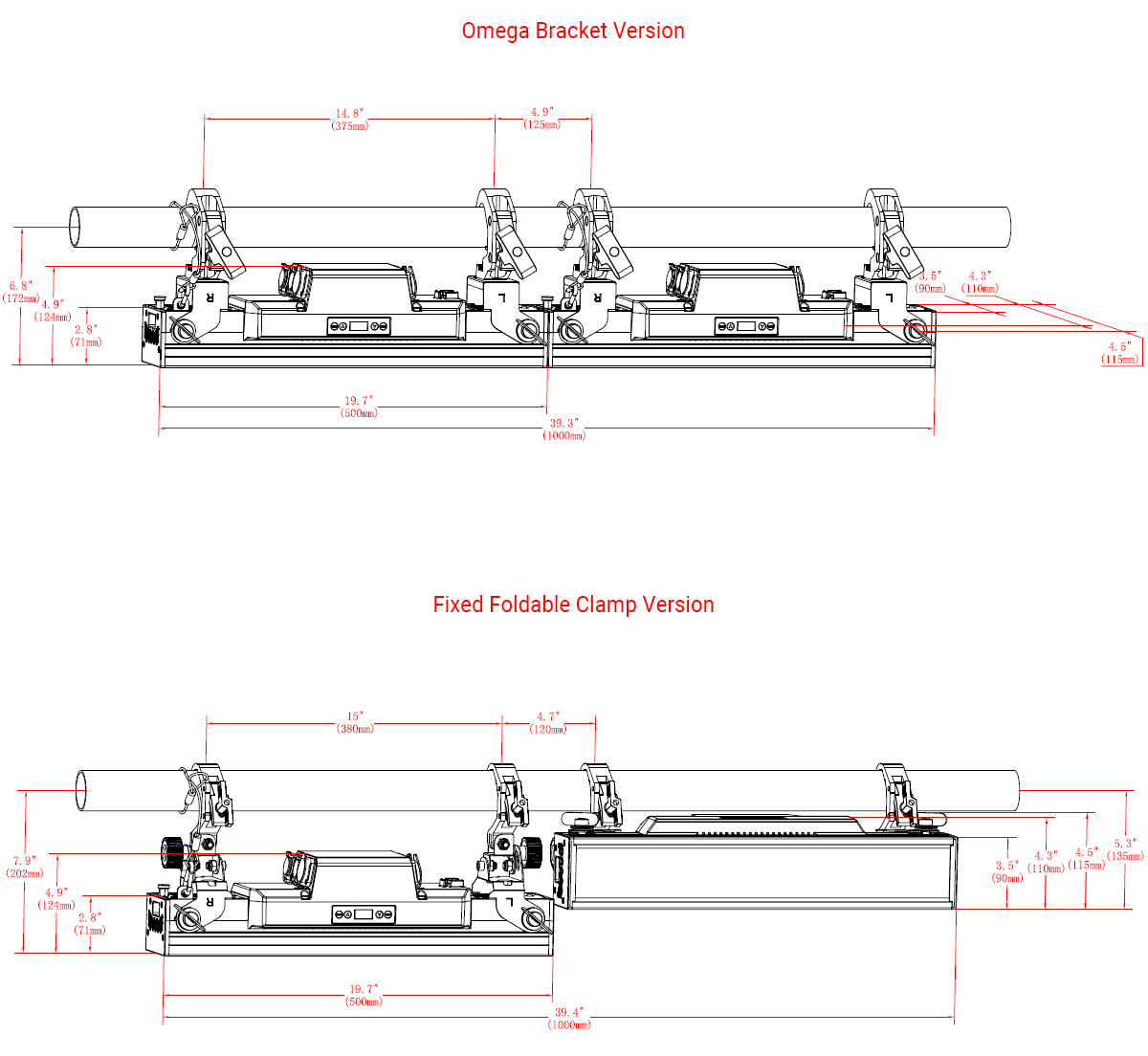

• Fixture Dimensions:
  • Width: 500 mm (19.7″)
  • Depth: 124 mm (4.9″)
  • Height: 113 mm (4.4″)
  • Weight:
    • 5.1 kg (11.2 lbs) – vesion 1 with omega brackets
    • 5.8 kg (12.8 lbs) – vesion 2 with fixed foldable clamp
• Flight Case Dimensions 1:
  • Width: 1,220mm (48.0″)
  • Depth: 610mm (24.0″)
  • Height: 810mm (31.9″)
  • Weight: 125 kg (275.6 lbs) (includes flight case, ten per flight case)
• Flight Case Dimensions 2:
  • Height: 1,170 mm (46.1″)
  • Width: 580 mm (22.8″)
  • Depth: 580 mm (22.8″)
  • Weight: 100.0 kg (220.5 lbs) (eight-pack loader case)
• Carton Dimensions:
  • Width: 595 mm (23.4″)
  • Depth: 215 mm (8.5″)
  • Height: 220 mm (8.7″)
  • Weight: 6.5 kg (14.3 lbs) (includse carton, one per carton)

Work Environment

• Maximum ambient temperature: 40°C
• Minimum operating temperature: -10°C
• Maximum surface temperature: 65°C
• Protection rating: IP66

Approvals

• CE compliant
• UKCA compliant
• cETLus compliant

Installation

• Horizontally or vertically mounting are available
• Universal working position
• 2 x omega brackets
• Safety rope hole

Included Items

• Digital user manual
• Power cable
• 2 x omega brackets (63583242)

Optional Accessories (with item code)

• Flight Case 1: 3205110036 (ten-pack loader case)
• Flight Case 2: 3205001358 (eight-pack loader case)
• Signal Line: 5-pin waterproof signal line, RJ45 signal line
• Safety Cable: 2060000200 (SW-02)
• Clamp: 2060001625 (C-150B)
• Customized Foldable Clamps in Omega Bracket (63583101)
• Customized Floor Stand w/o Omega Bracket (63582554)
