Functional Overview

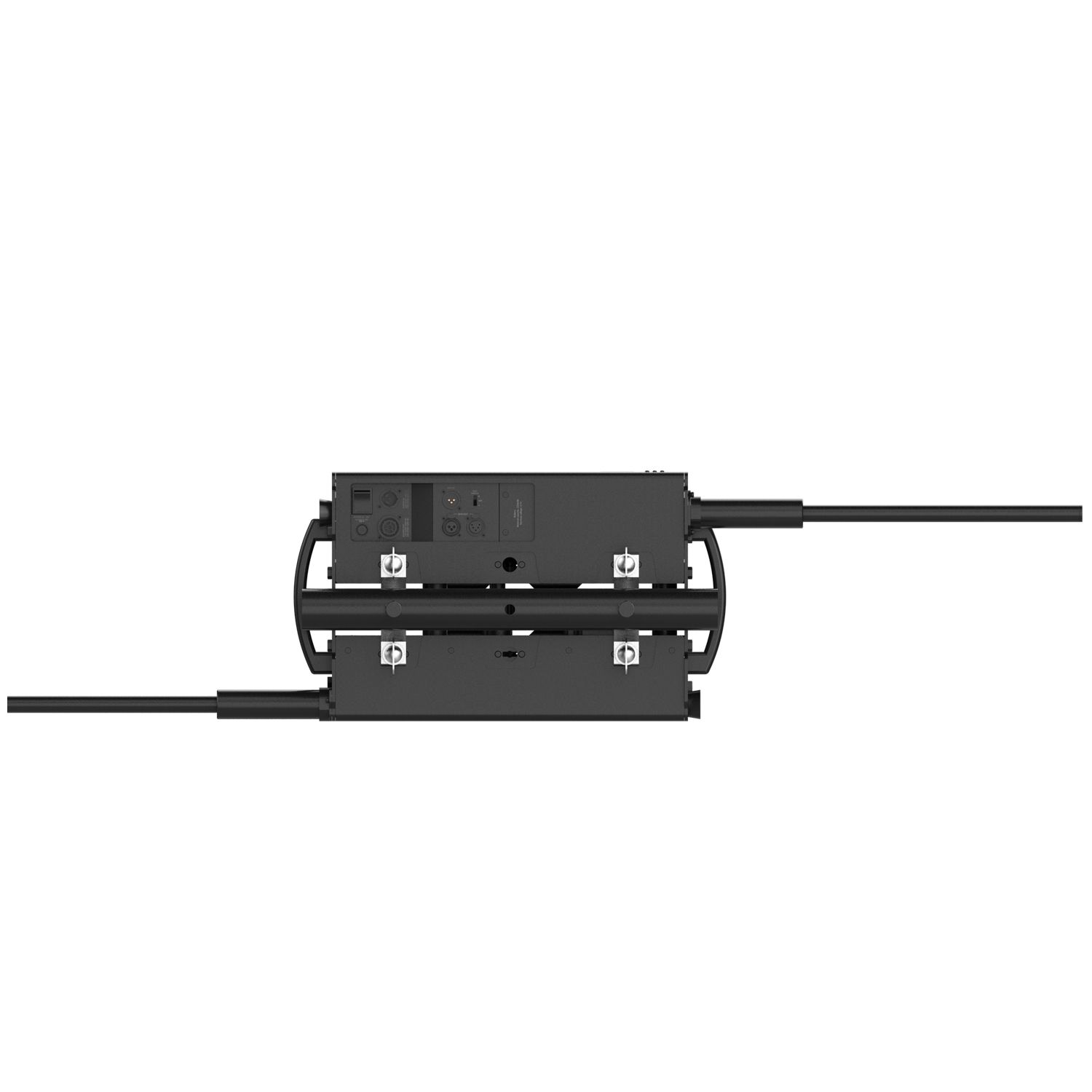

In order to assist the operation of ACME SKY TRACK, SKY TRAM was lauched now! Sky tram is a self-contained DMX controlled motor unit with a DMX interface, motor controller, which enables smooth, linear, horizontal movements of fixtures, set up or install fixtures smoothly for various performances. The lifting capacity is up to 70kg, and the noise is less than 30dB@1m. It won’t affect the performance effect, and more convenient and fast when using with the Sky track, saving transportation time and labor cost. Moreover, crash bar is for optional.
Features

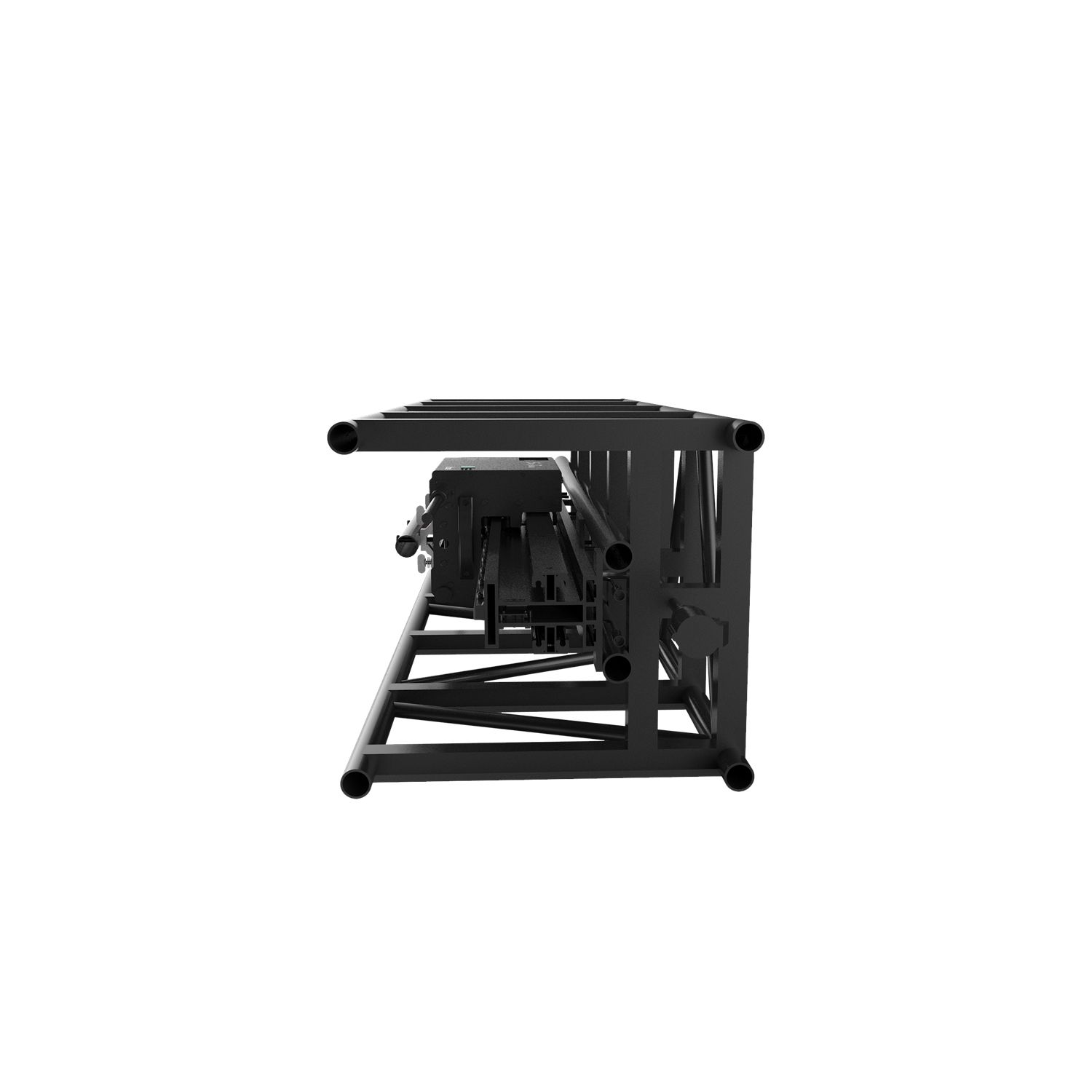

Use with SKY TRACK
Enables smooth, linear, horizontal movements of fixtures, set up or install fixtures smoothly for various performances
It is a self-contained DMX controlled motor unit with a DMX interface, motor controller
Noise： ＜30dB@1m
Technical & Specification
Electrical & Connectors
Power Voltage：AC 100~240V 50/60Hz
Power consumption: 100 W
Display：LCD display
Control Mode：DMX512,RDM
DMX Channel：6 channel
Power In/Out：Power connector in/out
Data in/out: 3-pin or 5-pin XLR in/out
Specification
Lifting capacity：70kg
No load maximum speed：0.5 m/s
Load 50kg maximum speed：0.5 cm/s
No load slowest speed：0.03m/s
Load 50kg slowest speed：0.03m/s

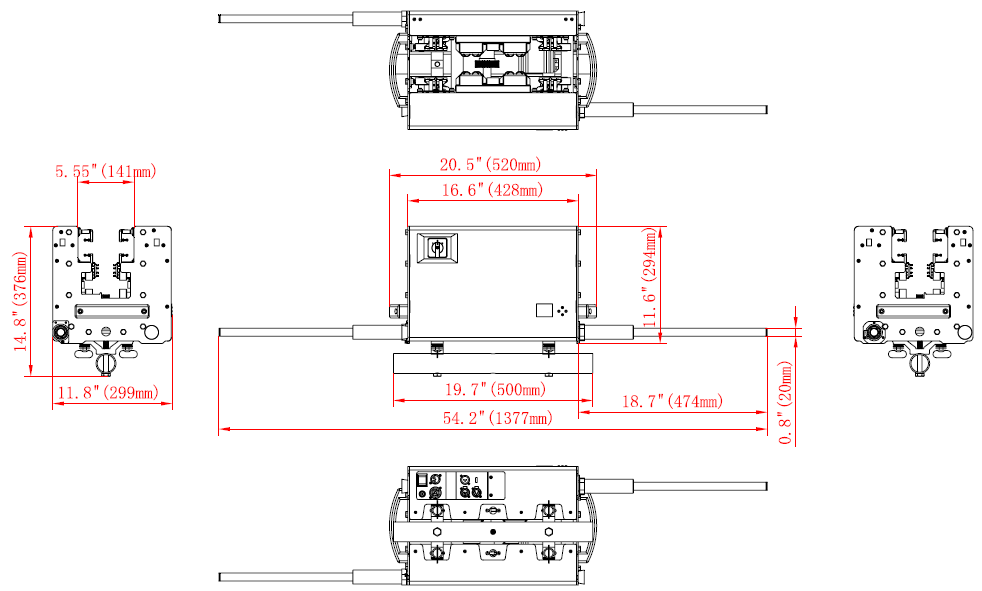

SKY TRAM:
Height: 294 mm (11.6″)
Width: 299 mm (11.8″)
Depth: 520 mm (20.5″)
With crash bar:
Height: 294 mm (11.6″)
Width: 299 mm (11.8″)
Depth: 1377 mm (54.2″)
Weight: 26kg (57.6 lbs)
Installation
Horizontally or vertically mounting are available
Operating position is universal
2 pairs fast-locked points under the base
2 x Fast-locked clamps for 50 millimeter truss
Included items
User Manual
Power Cable
2 x No.4 Fast-locked clamps （3002000238）
Optional Accessories (with item code)
Clamp：2060001603（SW-05）
Signal Line：3-pin or 5-pin signal line
