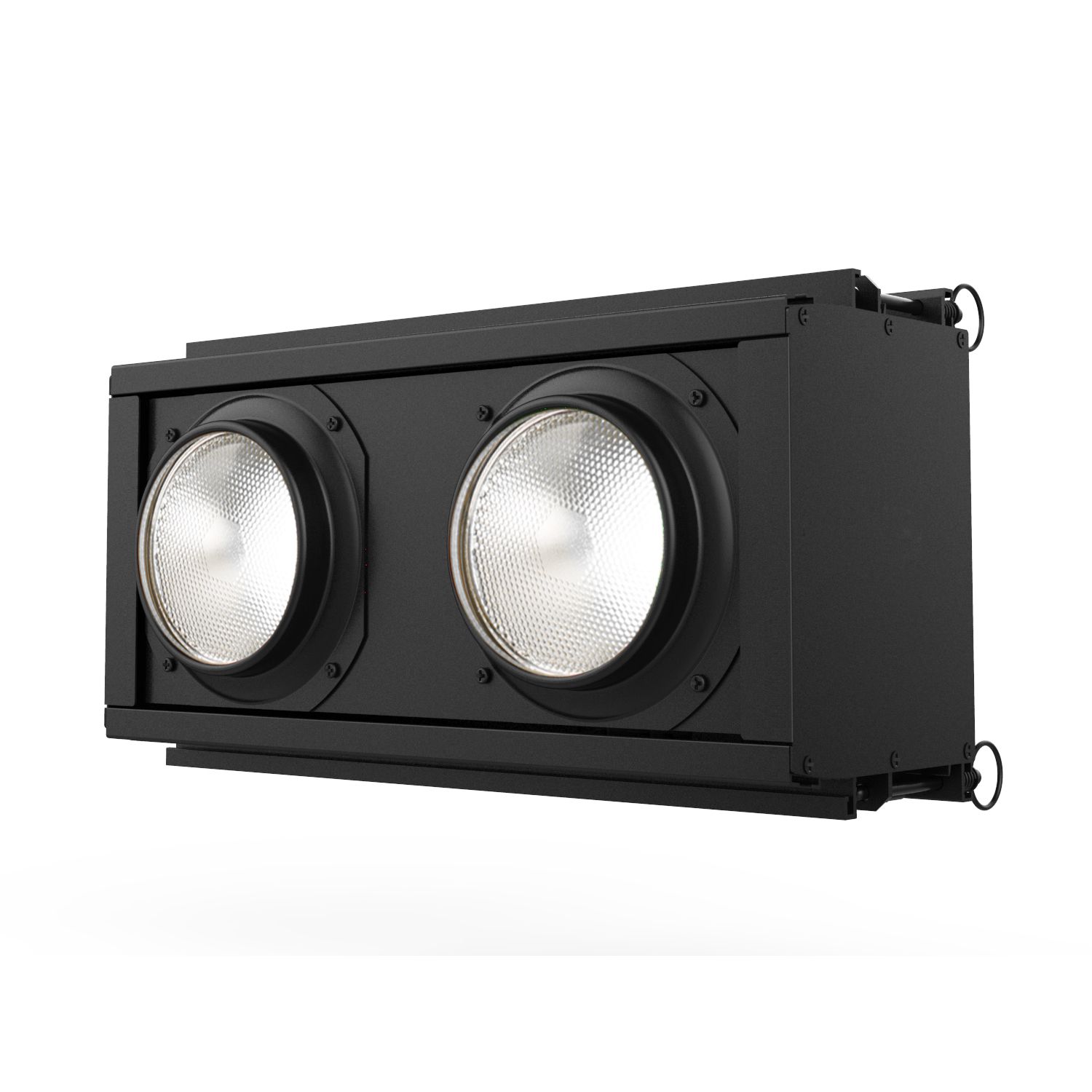

Functional Overview
STAGE BLINDER IP (BL-200 CW) is equipped with patented plug-in function, the lighting can quickly achieve horizontal and vertical assembly or bracket Installationwithout any tools. And it can be assembled freely with BL-200 series lighting. Provide multiple rotation angles, each of them can be located easily. Its brightness is higher than the traditional spectator lamp, carrying outstanding strobe effect with variable speed and IPX4 protection rating, STAGE BLINDER IP is suitable for large and medium-sized concerts, variety arts and other professional stage or entertainment places, where requiring high background.
Features
Light Source: 2 x 110W cool white LED
Color Temperature: 5000±300K
Beam Angle: 50°
0~100% smooth dimming
Outstanding strobe effect with variable speed

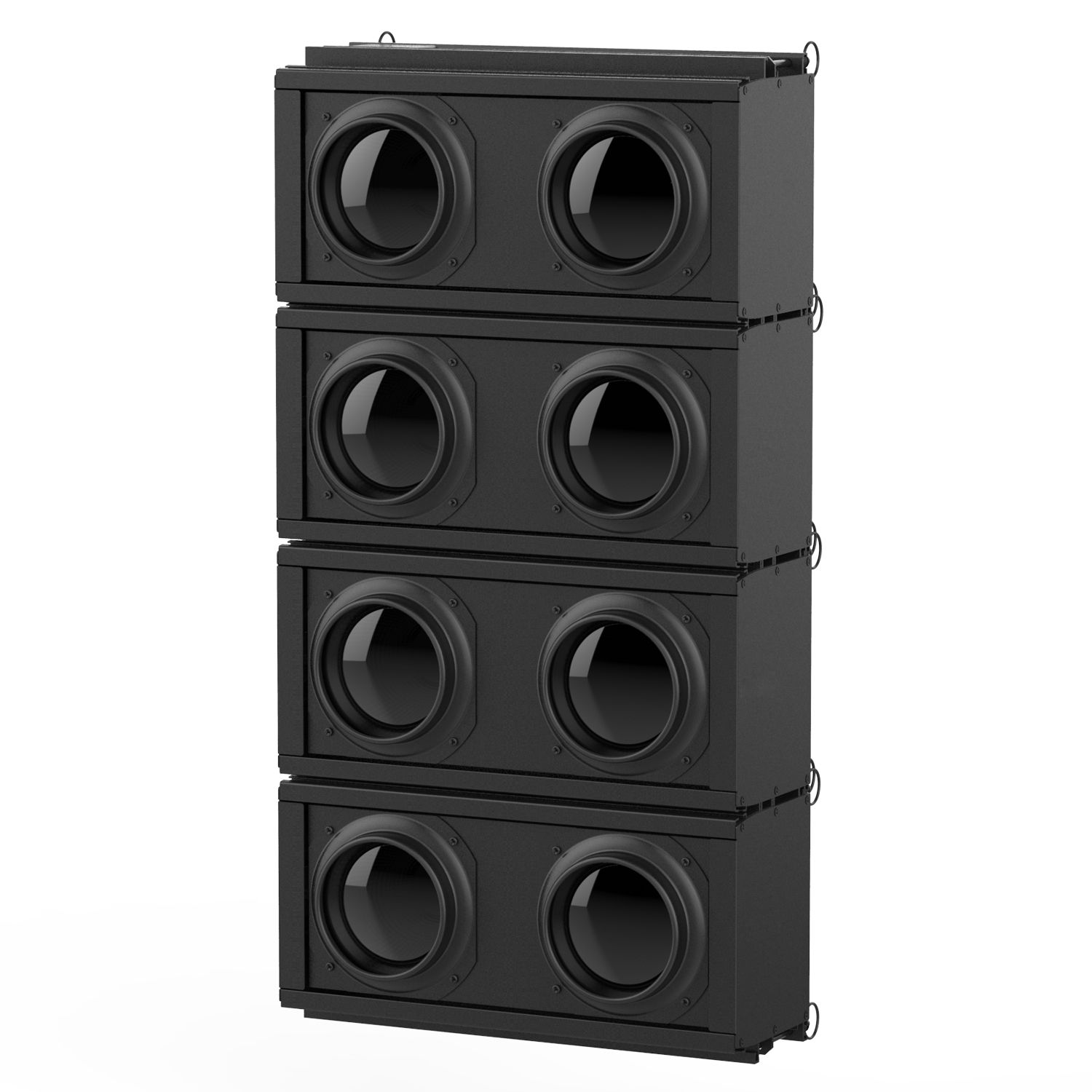

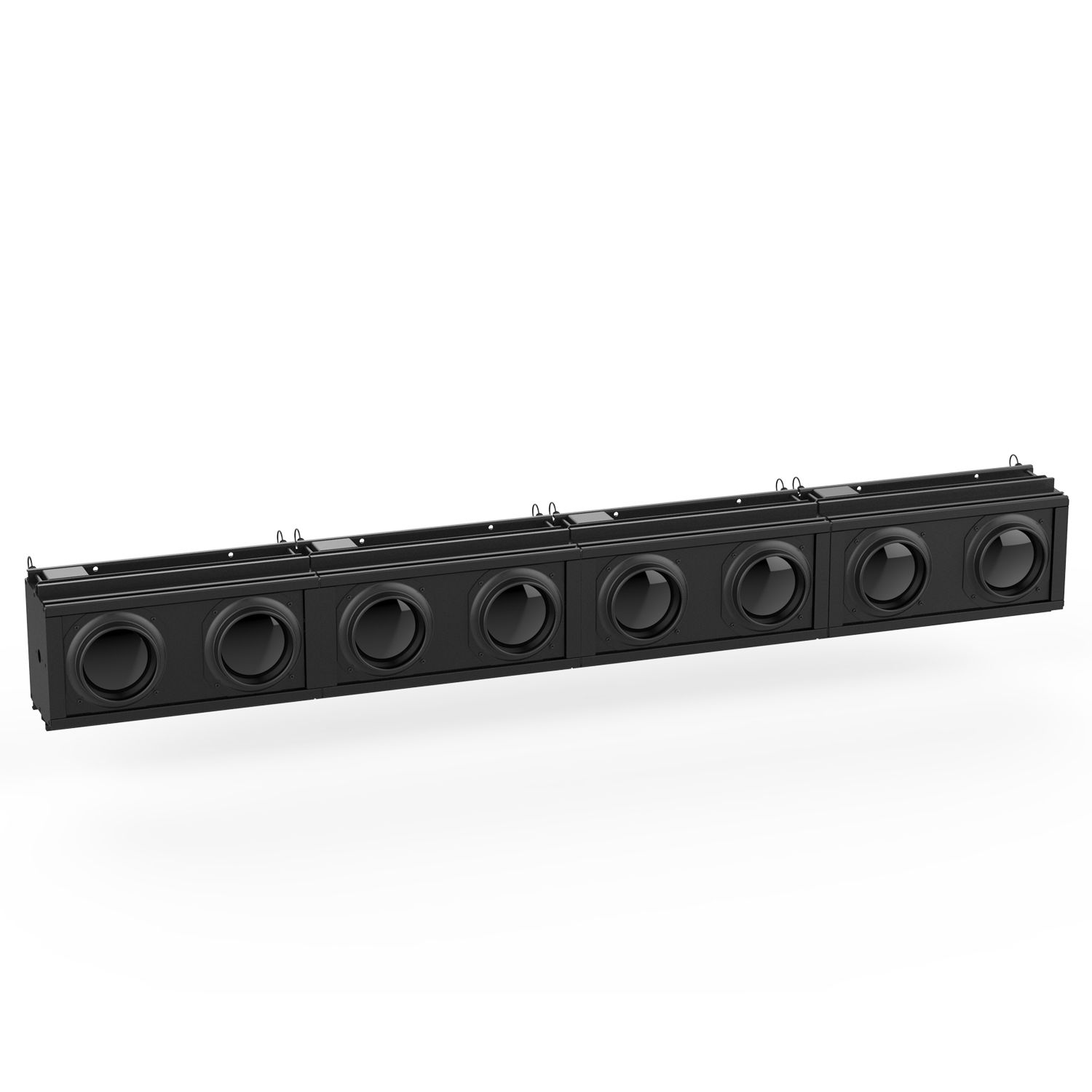

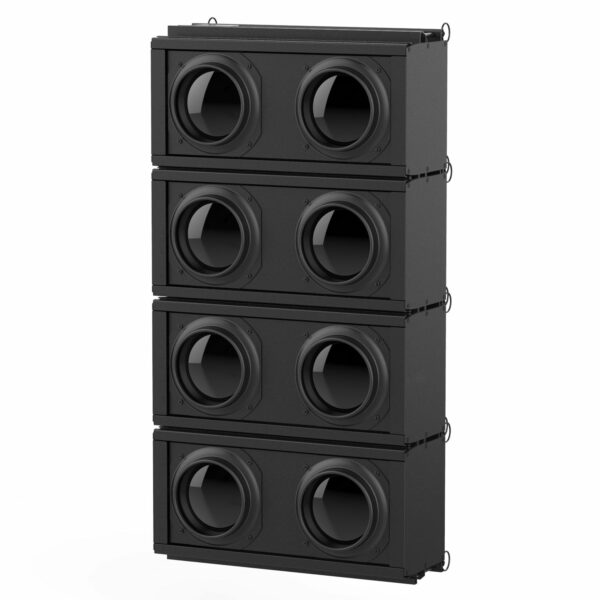

Multiple units can be joined in horizontal and vertical rapidly without accessary or tool
Provide multiple rotation angles, each of them can be located easily
Ultra-high brightness, higher than traditional spectator lamp
Compact design, excellent thermal design, easy to install
Suitable for large and medium concerts, events, professional stages, and entertainment venues where needs high brightness environment
Flicker free management
Dust-proof and oil-proof design
Protection Rating: IPX4
Maximum QTY of connnection:
230V，50Hz: 8 sets
120V，60Hz: 4 sets
Technical & Specification
Model
BL-200 CW
Light Source
Light Source: 2 x 110W cool white LED
LED life expectancy: 10000 hours
Optical System
Advanced optical Systemto ensure clear and excellent static effect
Controland Program
4 buttons
Display: LED display
Protocols: DMX512
DMX Protocol modes: 4
Controlchannels: 1,2,4,6
Dimmer: 8 bit or 16 bit
Upgrade the firmware via DMX link

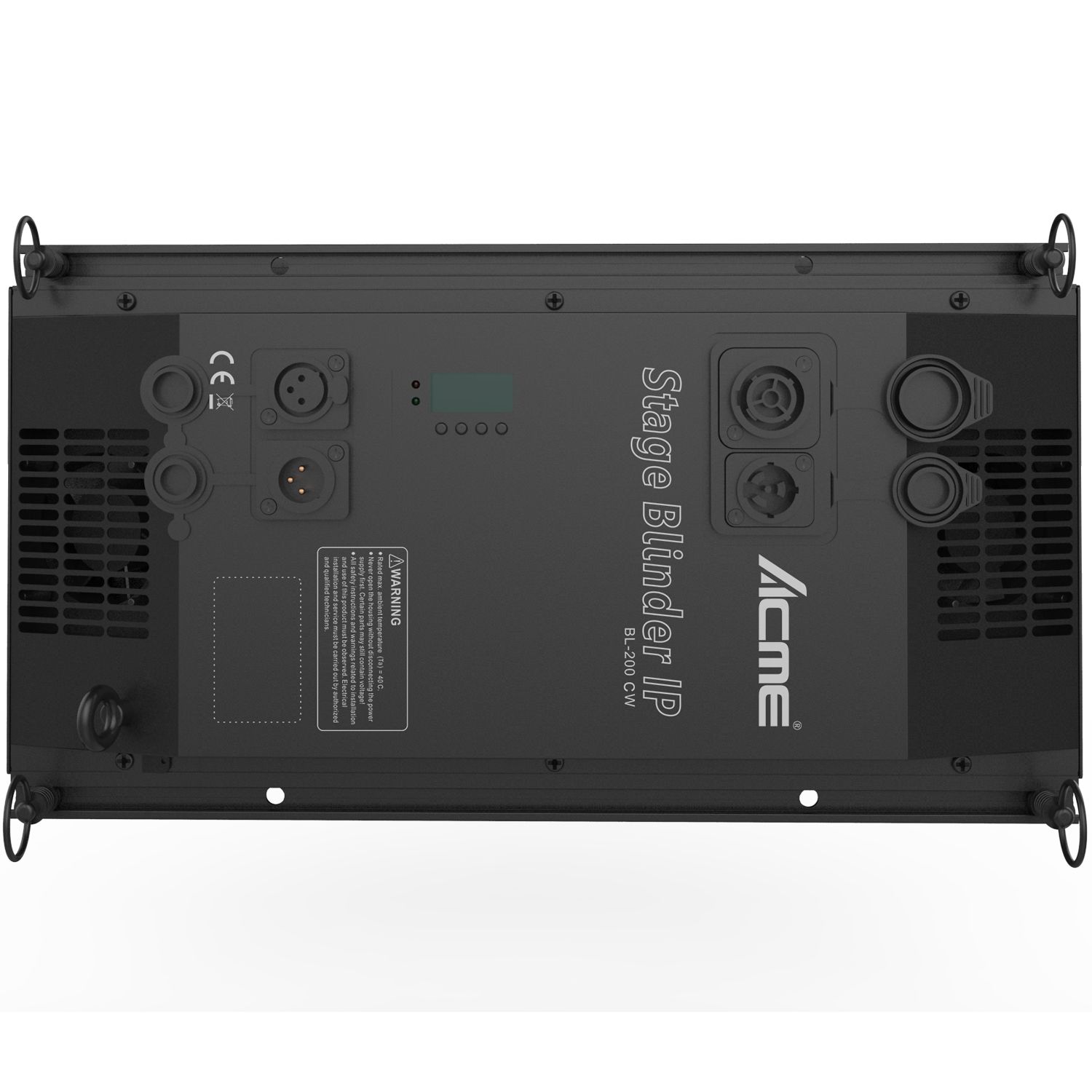

Electrical and Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100-240 V, 50/60 Hz
Power consumption: 235 W
Waterproof Power Connector in/out
Data in/out: 3-pin or 5-pin XLR

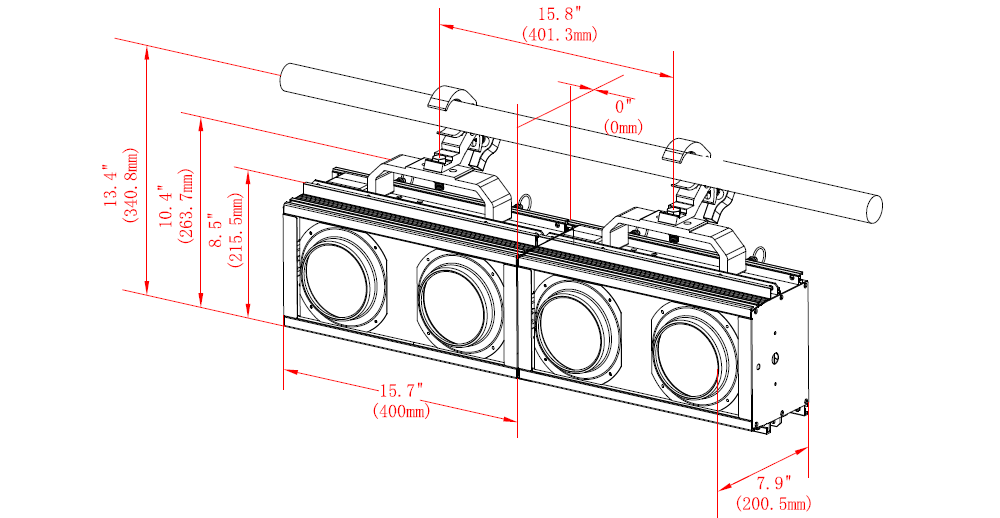

Fixture Specification
Height: 200 mm (6.8″)
Width: 215 mm (8.4″)
Depth: 400 mm (15.7″)
Weight: 6.8 kg (14.9 lbs)
Work Environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C
Protection Rating: IPX4
Approvals
CE Compliant
Installation

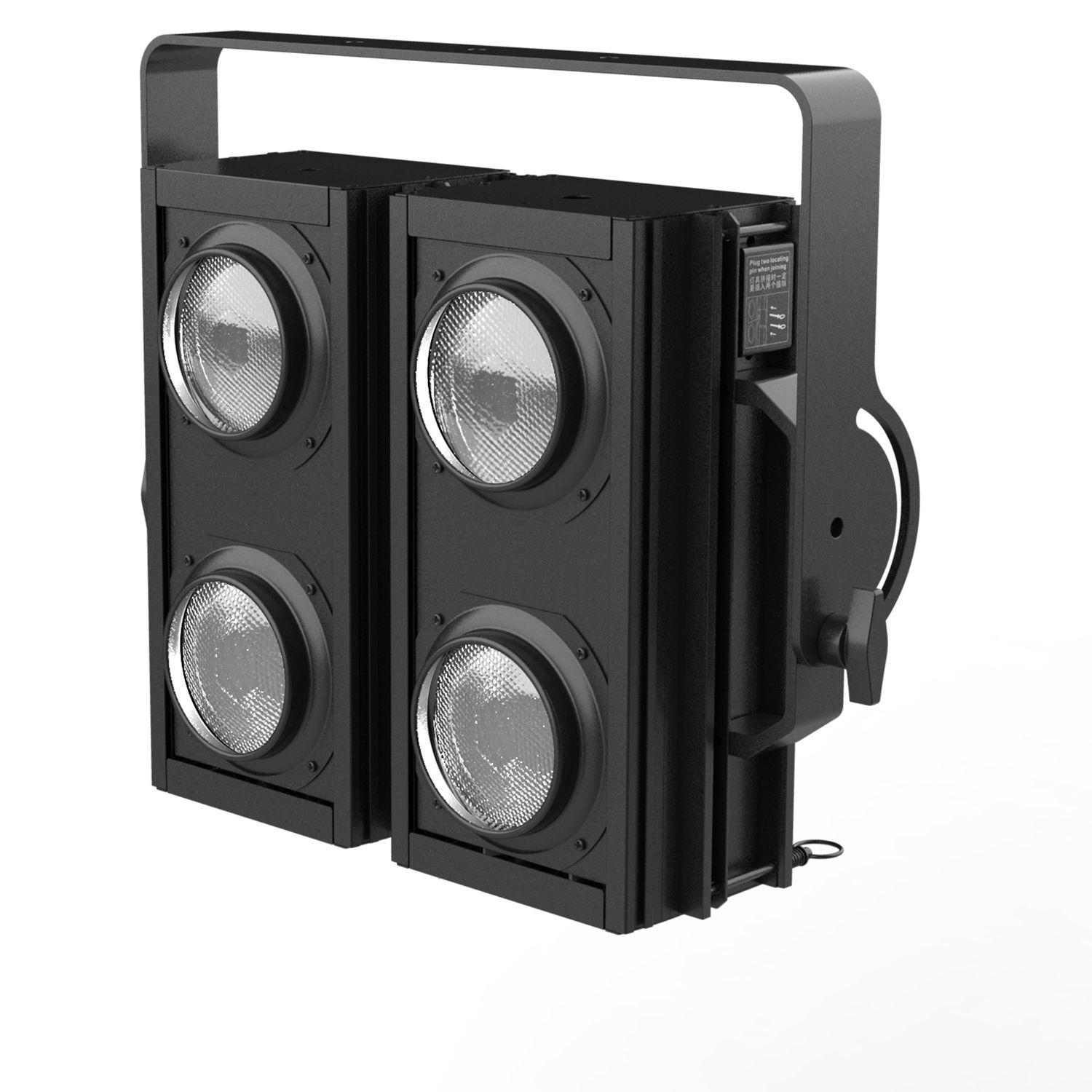

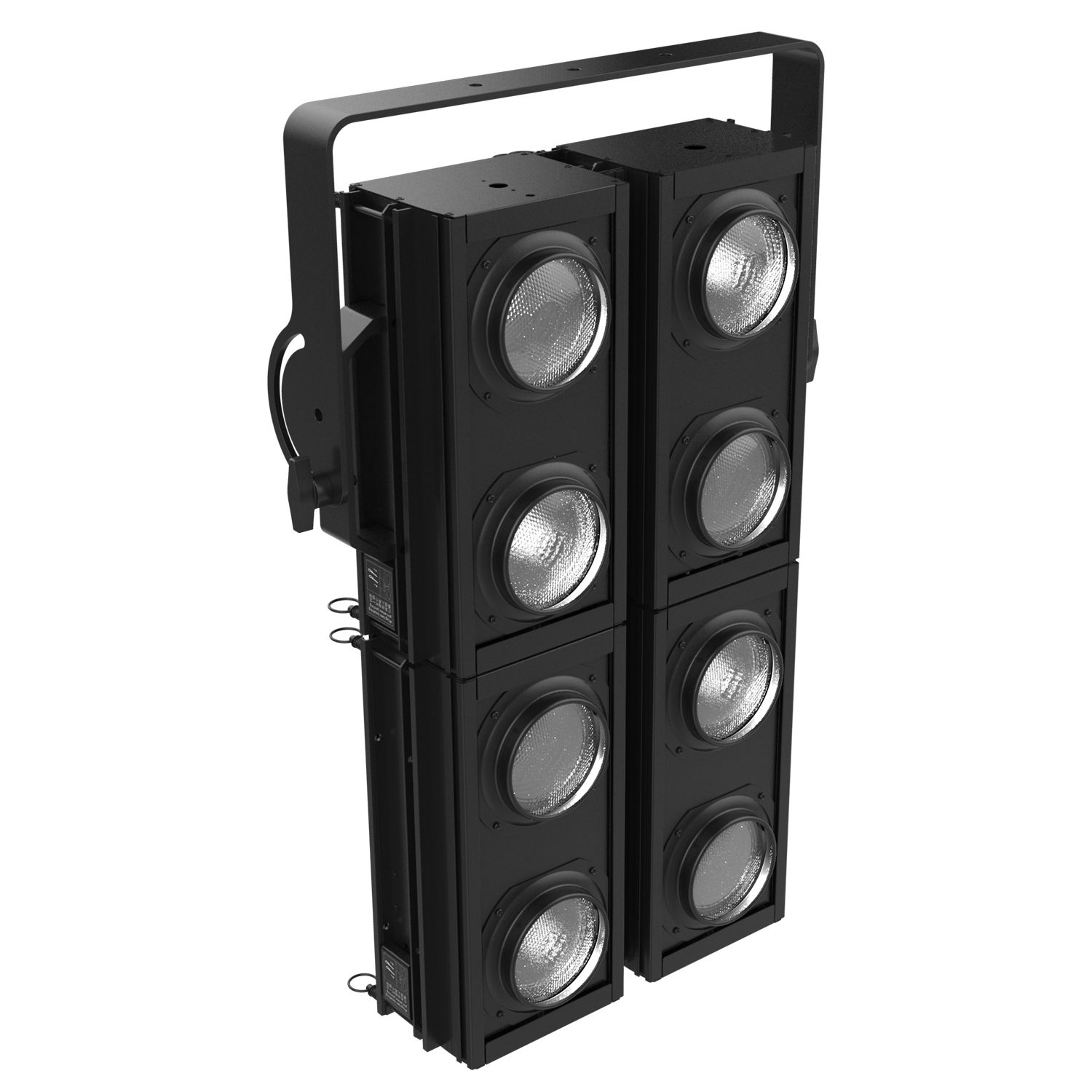

Horizontally or vertically mounting are available
Operating position is universal
The feet support with 3 locking points
Safety cable attachment point
Included Items
User Manual
Optional Accessories (with item code)
Flight Case：3205001171（8 in 1）
Clamp：2060001614（C-250）
Safety cable: 2060000200（SW-02）
