Functional Overview

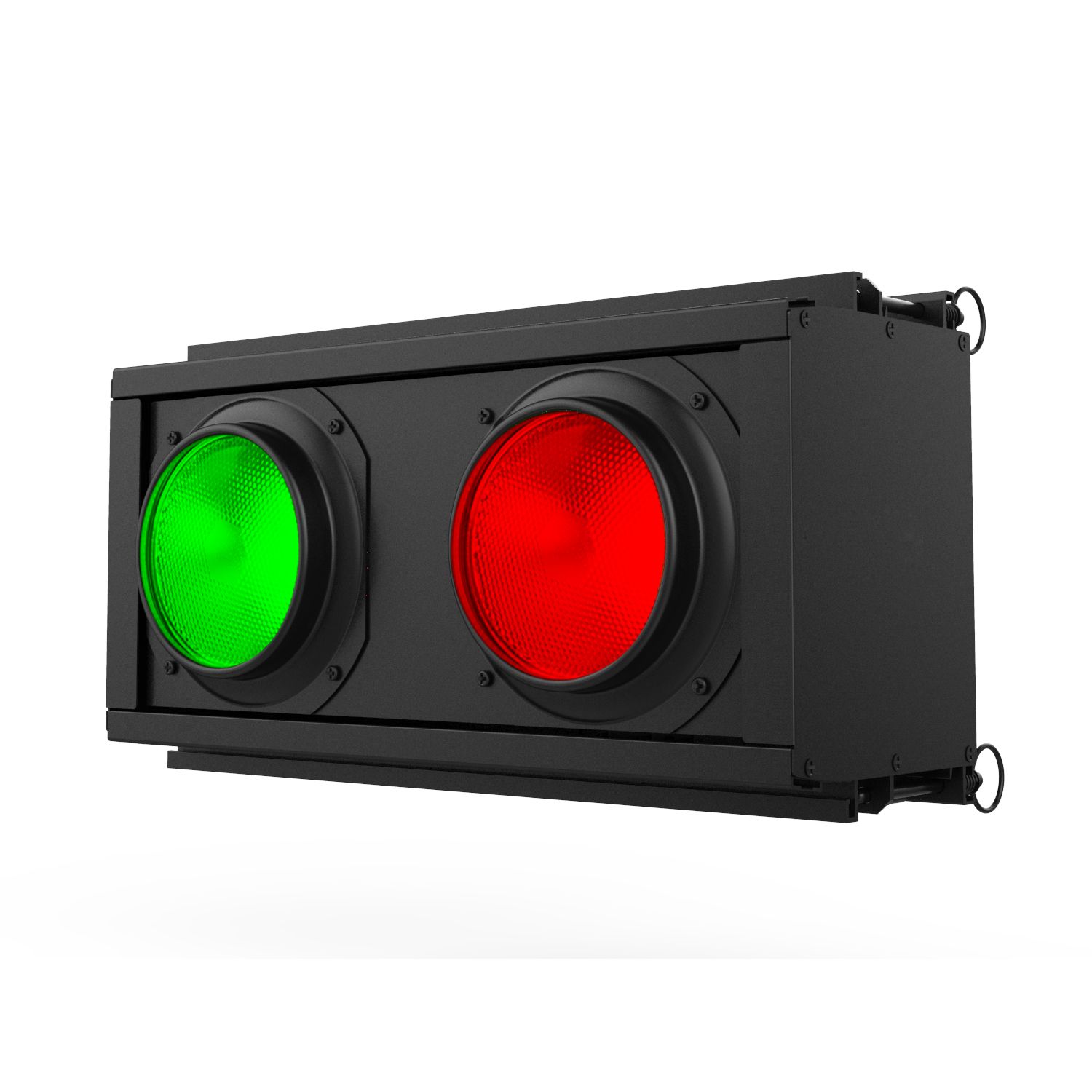

ACME’s STAGE BLINDER IP RGBW is an LED fixture with a classic Blinder appearance and featuring HSIC mode. It has a patented plug-in function, and can be quickly rigged without the need for tools. It can be freely combined with ACME’s other STAGE BLINDER IP series fixtures for added creative options, and offers multiple, easily located rotation angles.
Brighter than the traditional audience blinder, with an outstanding variable speed strobe effect, RGBW color options and IPX4 protection rating, the STAGE BLINDER IP RGBW is suitable for large and medium-sized concerts, variety acts and other professional stage or entertainment applications requiring a striking visual impact.
Features
Light Source: 2x 150W LED module
Variable CTO: 2000K – 10000K
Beam Angle: 37°
Unique HSIC mode
Smooth dimming from 0-100%
Outstanding variable speed strobe effect
Fast, tool-free mounting of multiple units in an orientation
Multiple, easily located rotation angles
Ultra-high brightness, brighter than traditional audience blinder
Compact design, excellent thermal design, easy Installation
Suitable for large and medium concerts and events of all kinds
Flicker-free management
Dust-proof and oil-proof design
Protection Rating: IPX4
Maximum Connection:
120V, 60Hz = 4 sets
230V, 50Hz = 8 sets
Technical & Specification
Model
BL-200 RGBW
Light Source
Light Source: 2x 150W LED module
LED life expectancy: 10,000 hours
Optical System
Advanced optical Systemensures clear, wide-range wash effect
Controland Program
4-button display
Display: LCD display
Protocols: DMX512, RDM
DMX Protocol modes: 4
Controlchannels: 6, 7, 10, 4 (HSIC)
Dimmer: 8-bit or 16-bit
Firmware upgradeable via DMX link
Electrical and Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100-240V, 50/60Hz
Power consumption: 235W
waterproof power connector in/out
Data in/out: 3-pin or 5-pin IP XLR

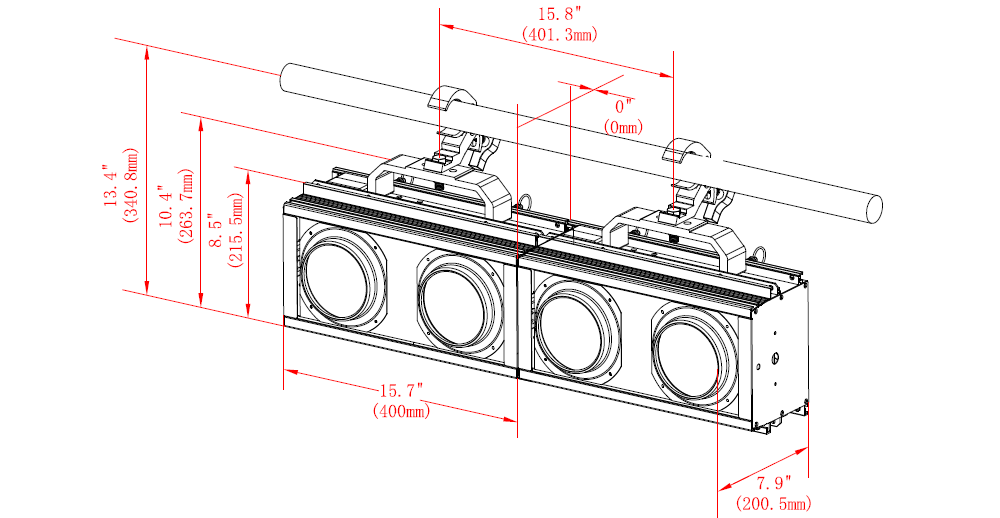

Fixture Specification
Height: 200mm (6.8”)
Width: 215mm (8.4”)
Depth: 400mm (15.7”)
Weight: 6.8kg (14.9lb)
Work Environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C
Protection Rating: IPX4
Approvals
CE compliant
Installation
Horizontal or vertical mounting available
Operating position is universal
Foot-stands with 3 locking points
Safety cable attachment point
Included Items
User Manual
Optional Accessories (with item code)
Flight case: 3205001171 (8 in 1)
Clamp: 2060001614 (C-250)
Safety cable: 2060000200 (SW-02)
