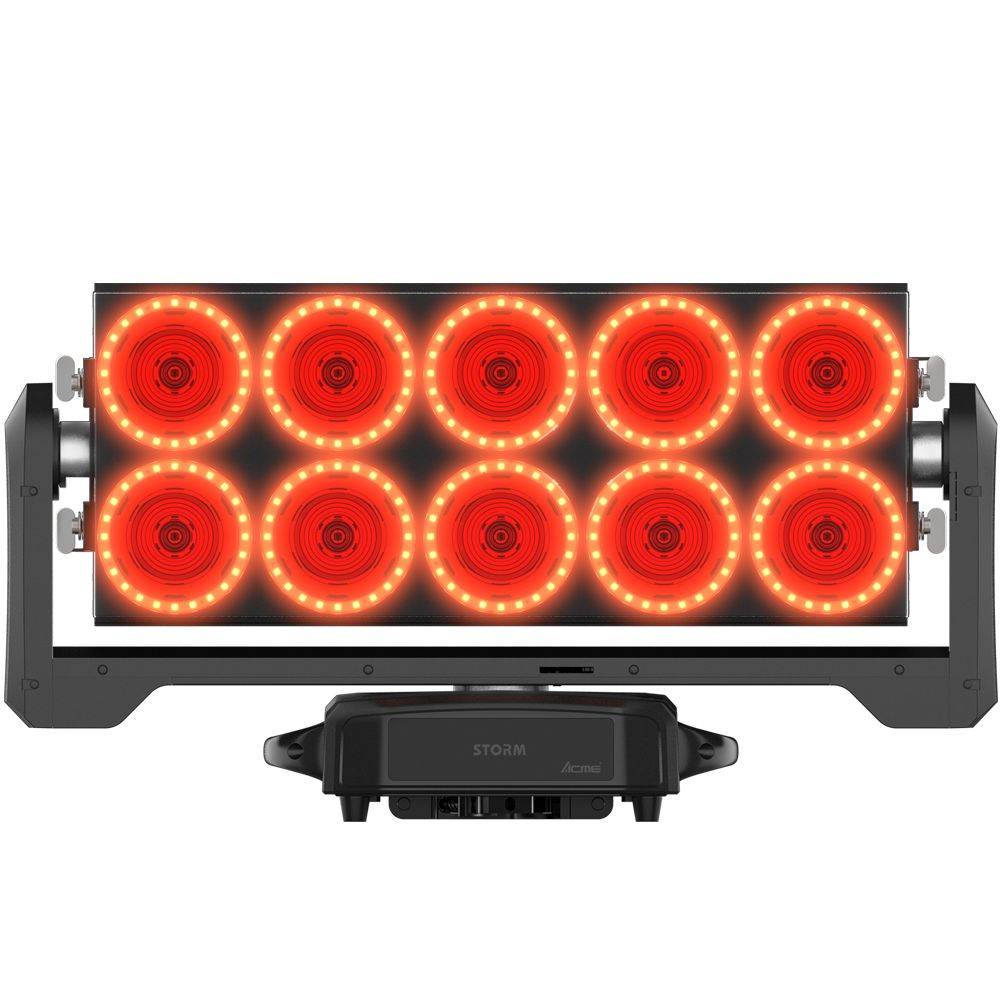

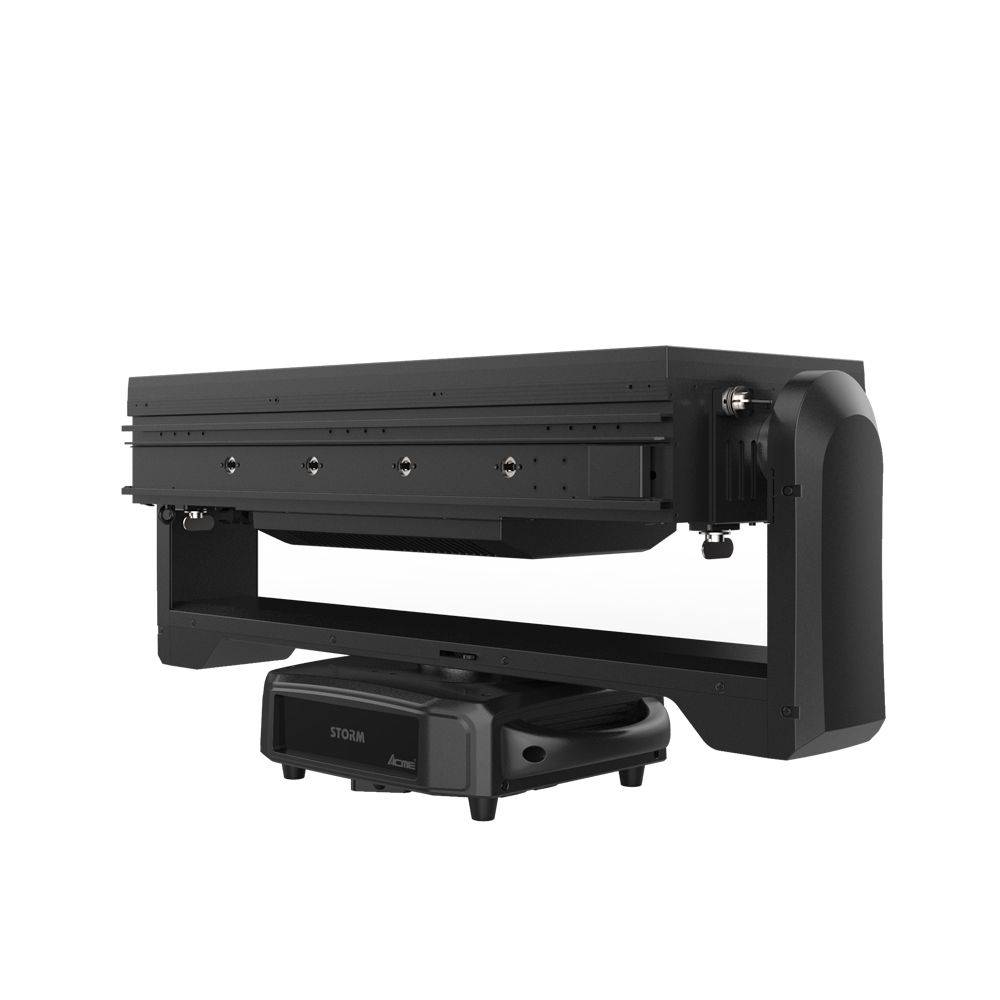

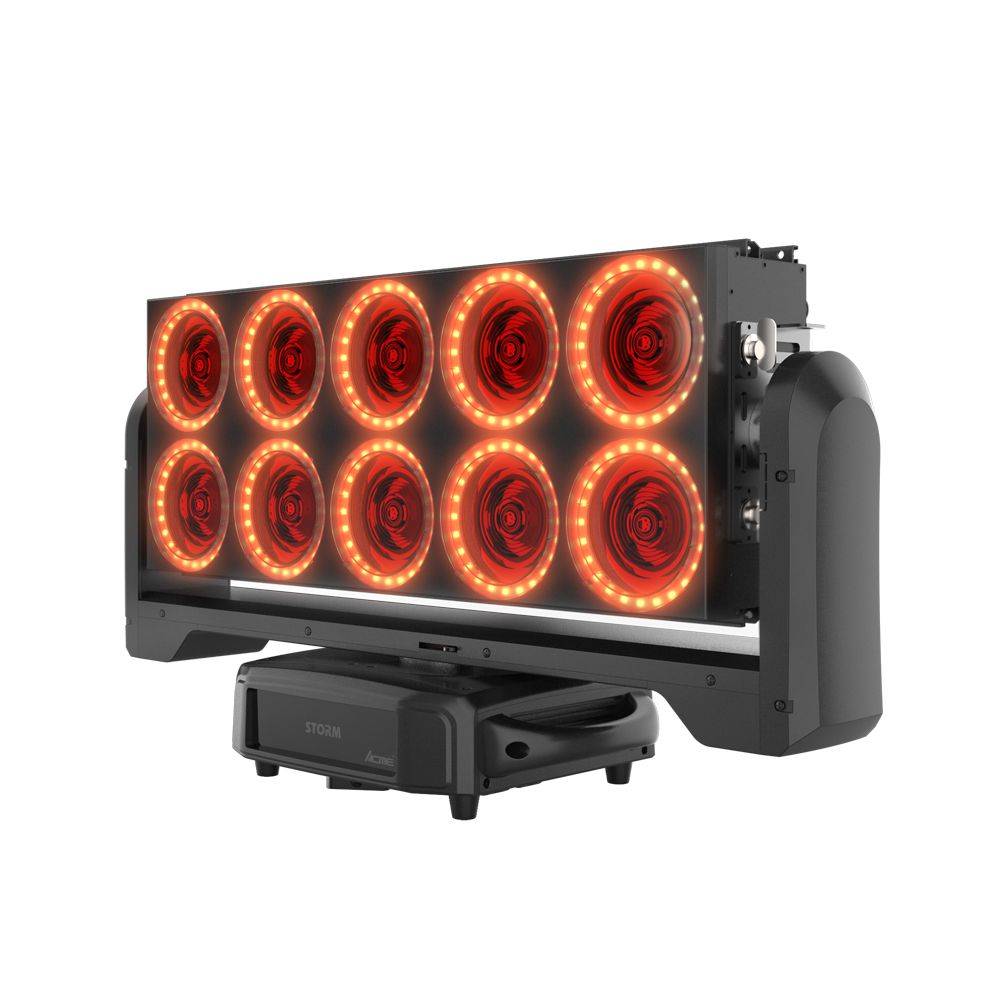

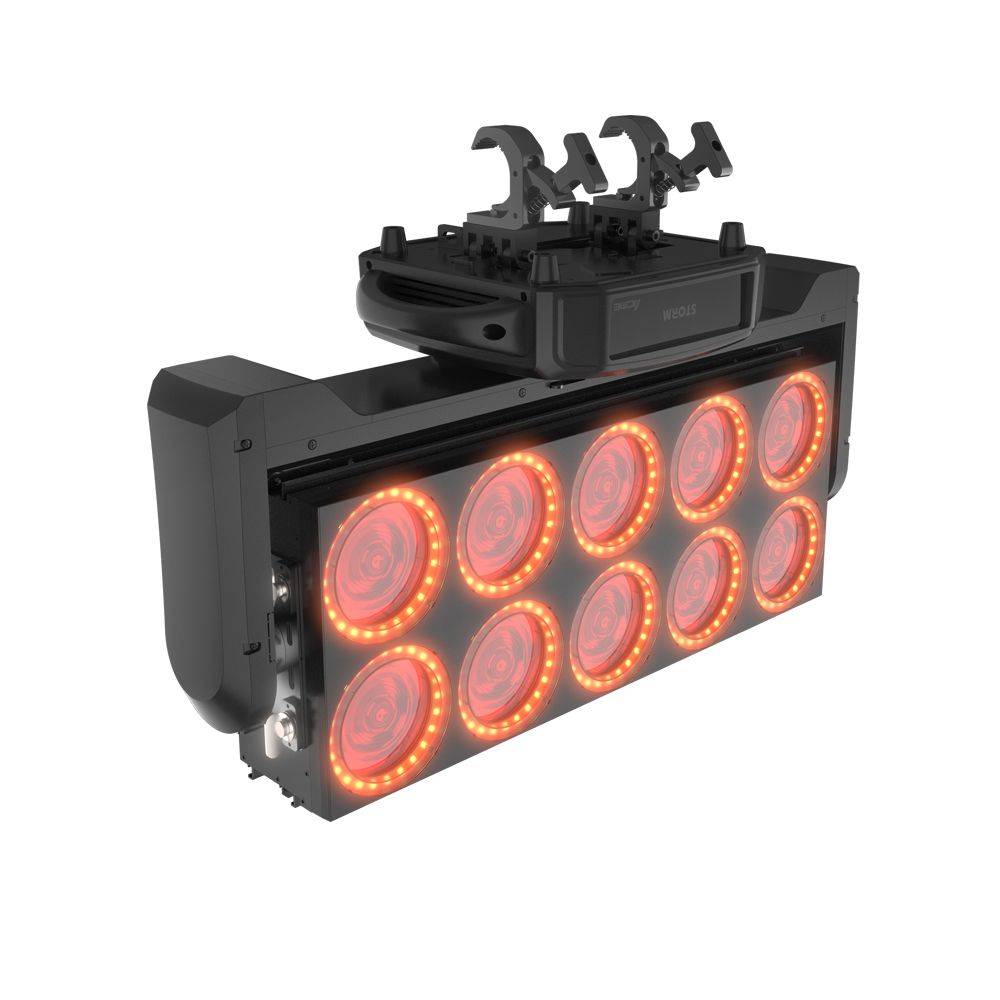

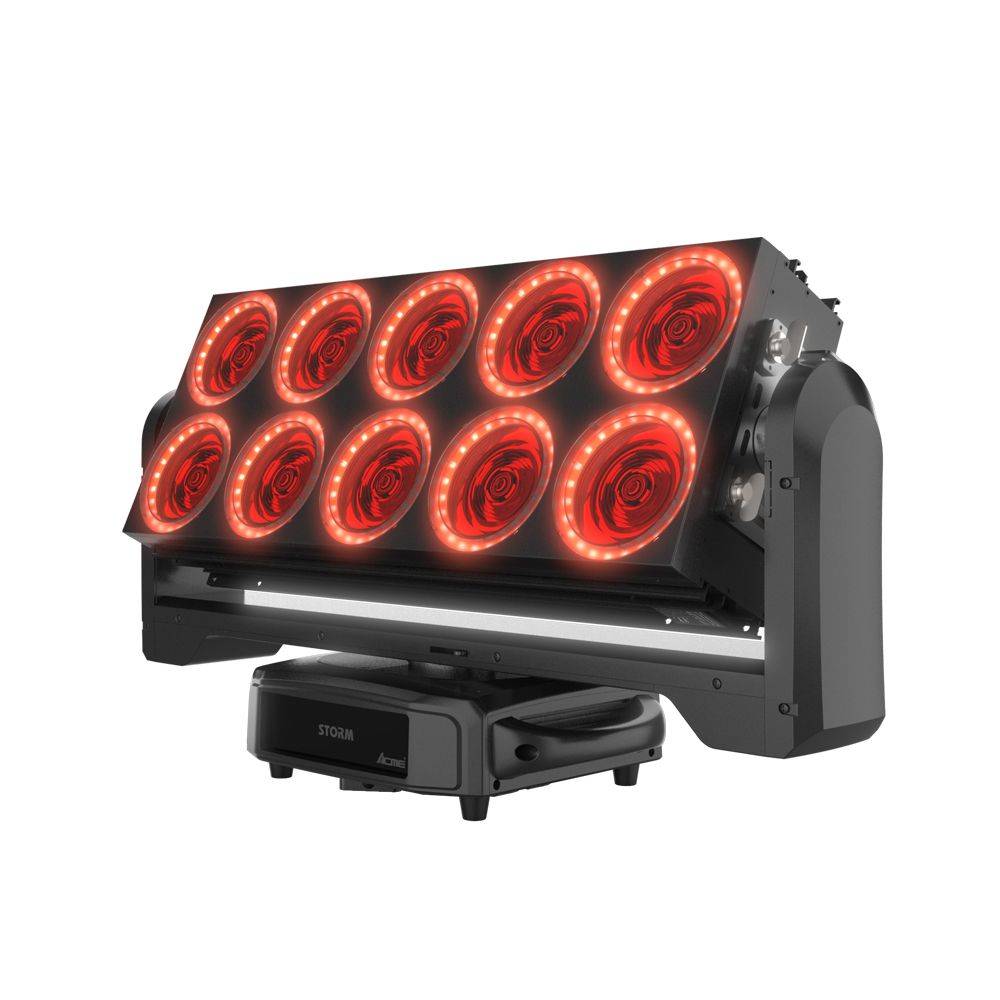

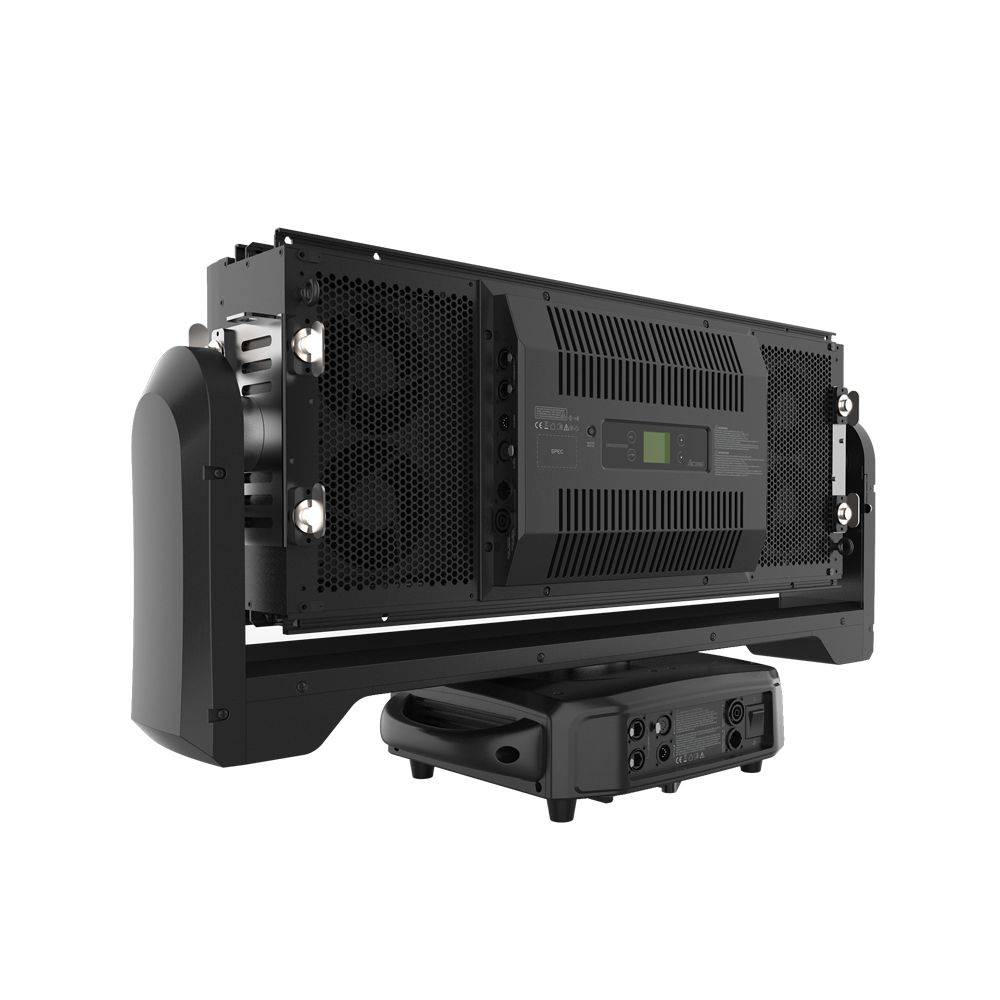

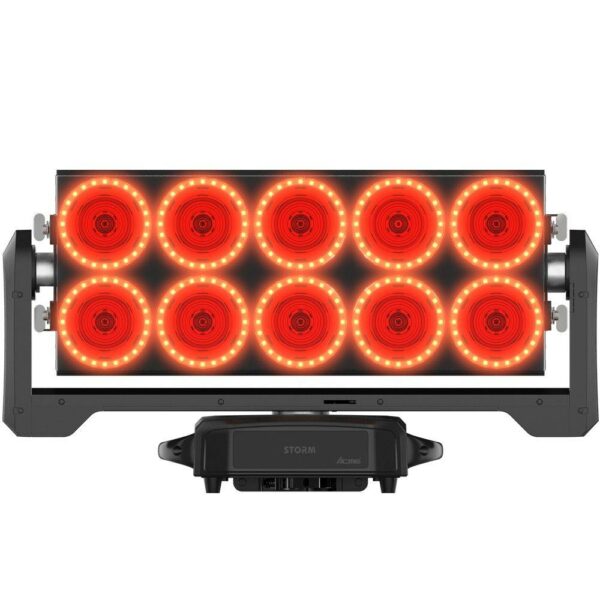

Als je kracht combineert met flexibiliteit, krijg je een masterpiece. Storm en Snowstorm zijn ontstaan vanuit inspiratie. Gemaakt vanuit iets nieuws, iets dat tot dan toe niet op de markt bestond.
Storm en Snowstorm verlichten niet langer alleen de show, ze worden zelf onderdeel van de show.
Features
- Light Sources:
- 10 x 100W LED (RAA4WW)
- Led inside ring: 10 x 6 x 0.5W LED (RGB)
- Led outside ring: 10 x 24 x 0.5W LED (RGB)
- unique ’tungsten’ LED effect
- Multi-point surface light, multi-point back light with pixel control，Rainbow effect in both directions。
- High output,low engry consumption,good heat dissipation ,long life
- Outstanding strobe effect with variable speed
- Fixed Beam Angle at a Tight 4° with sharp effect
- Smooth dimming from 0-100%
- Optioanl Forst fliters
- 2 x Fixed foldable clamps for 50mm truss
- Reserved 2 pairs of M12 locking points of removable clamp for 70 millimeter truss
Model
- MB 1000
Light Source
- Light Sources:
- 10 x 100W LED (RAA4WW)
- Led inside ring: 10 x 6 x 0.5W LED (RGB)
- Led outside ring: 10 x 24 x 0.5W LED (RGB)
- Total lumen output up to 30,000Lm
- Beam angle: 4°
- Field Angle: 6°
- LED life expectancy: 20,000 hours
Control and Program
- 4-buttons touch panel
- Display: LCD display
- Protocols: DMX512,RDM,Art-Net,sACN
- DMX Protocol modes: 2
- Control channels: 15/88
- Upgrade the firmware via DMX link
Electrical and Connectors
- Input voltage range: 100-240V~ 50/60Hz
- Power consumption: 1,100 W
- Power in/out: Power Connector in/out
- Data in/out: 3-pin or 5-pin XLR,RJ45
PAN & TILT
- Pan movement: 540°
- Tilt movement: 270°
- Pan/Tilt Resolution: 16 bit
- Automatic Pan/Tilt position correction
- Fixation: Pan/Tilt lock
Fixture Specification

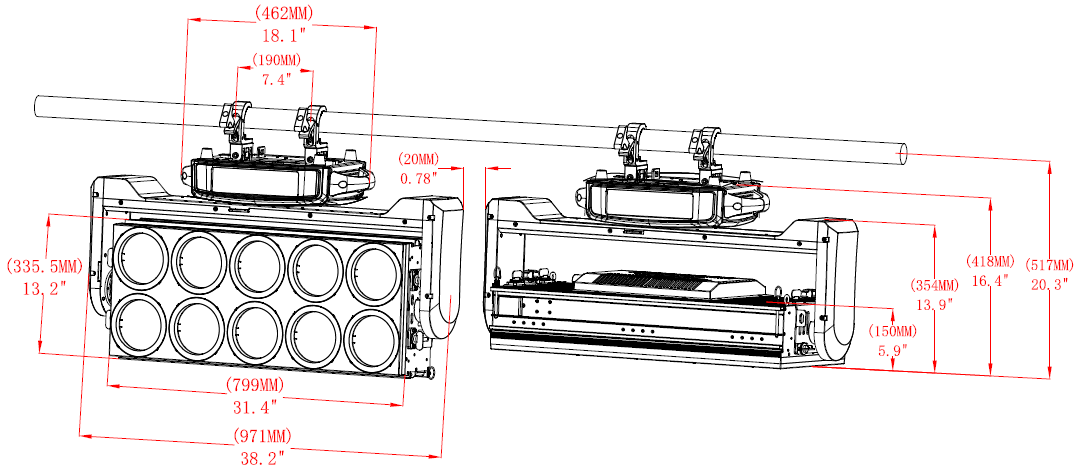

- Fixture Dimensions:
- Height: 967 mm (38″)
- Width: 352 mm (13.8″)
- Depth: 446 mm (17.5″)
- Weight: 40 kg (88 lbs)
- Flight Case Dimensions:
- Height: 1,060 mm (41.7″)
- Width: 585 mm (23″)
- Depth: 755 mm (29.7″)
- Weight: 88.5 kg (195 lbs)(Single loader case)
Work Environment
- Maximum ambient temperature: 40°C
- Minimum operating temperature: 0°C
- Maximum surface temperature: 60°C
- Protection rating: IP20
Installation
- Horizontally or vertically mounting are available
- Operating position is universal
- 2 x Fixed foldable clamps for 50mm truss
- Safety Rope Hole
- Reserved 2 pairs of M12 locking points of removable clamp for 70 millimeter truss
Iuclude Item
- Digital User Manual
- Power Cable
- Omega Bracket: 3002001497
Optional Accessories (with item code)
- Flight Case: 3205001310(Single loader case)
- Optioanl Forst fliters
- Signal Line: 3-pin or 5-pin XLR signal line
- Safety cable: 2060001603-A(SW-05)
- Tripod Stand
