Functional Overview

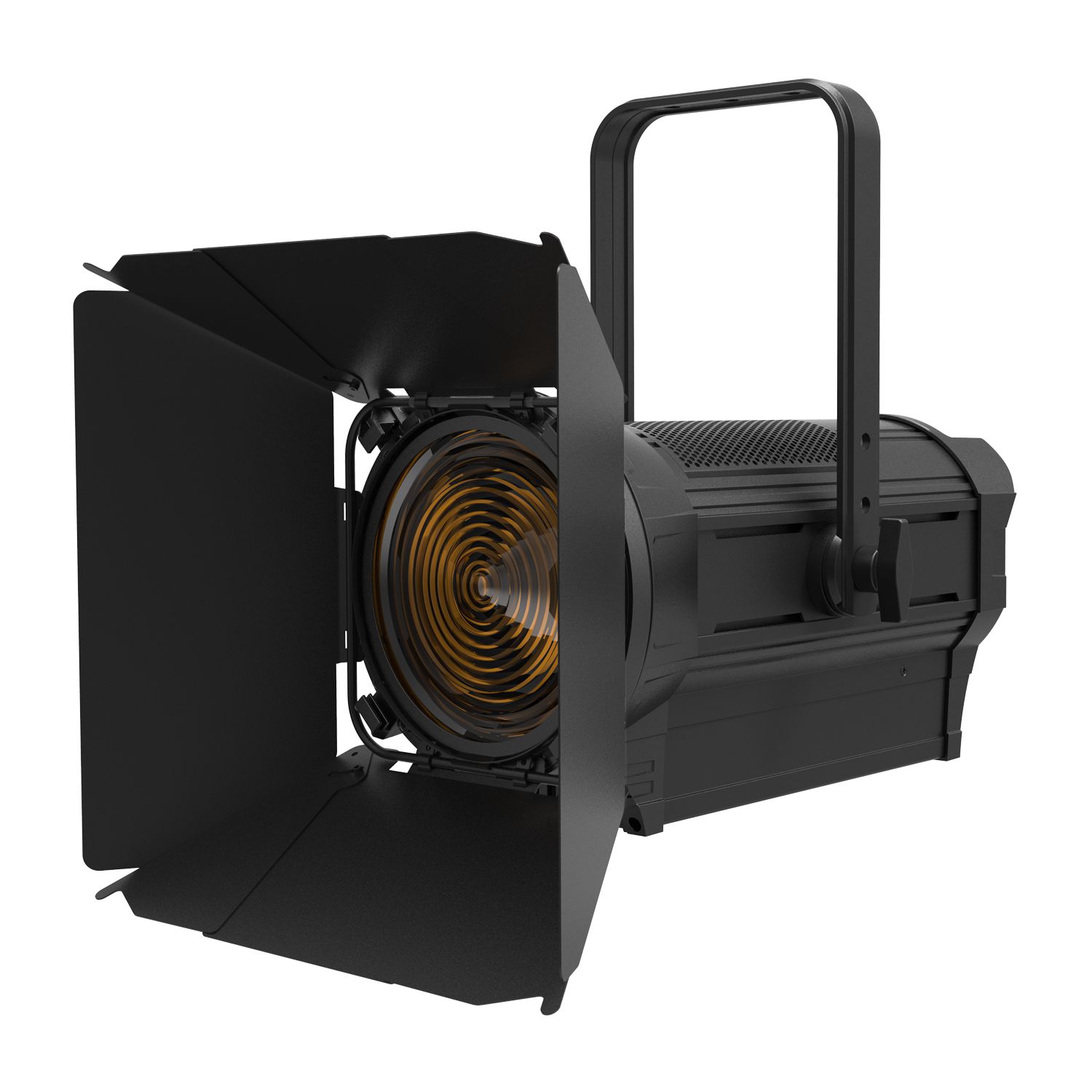

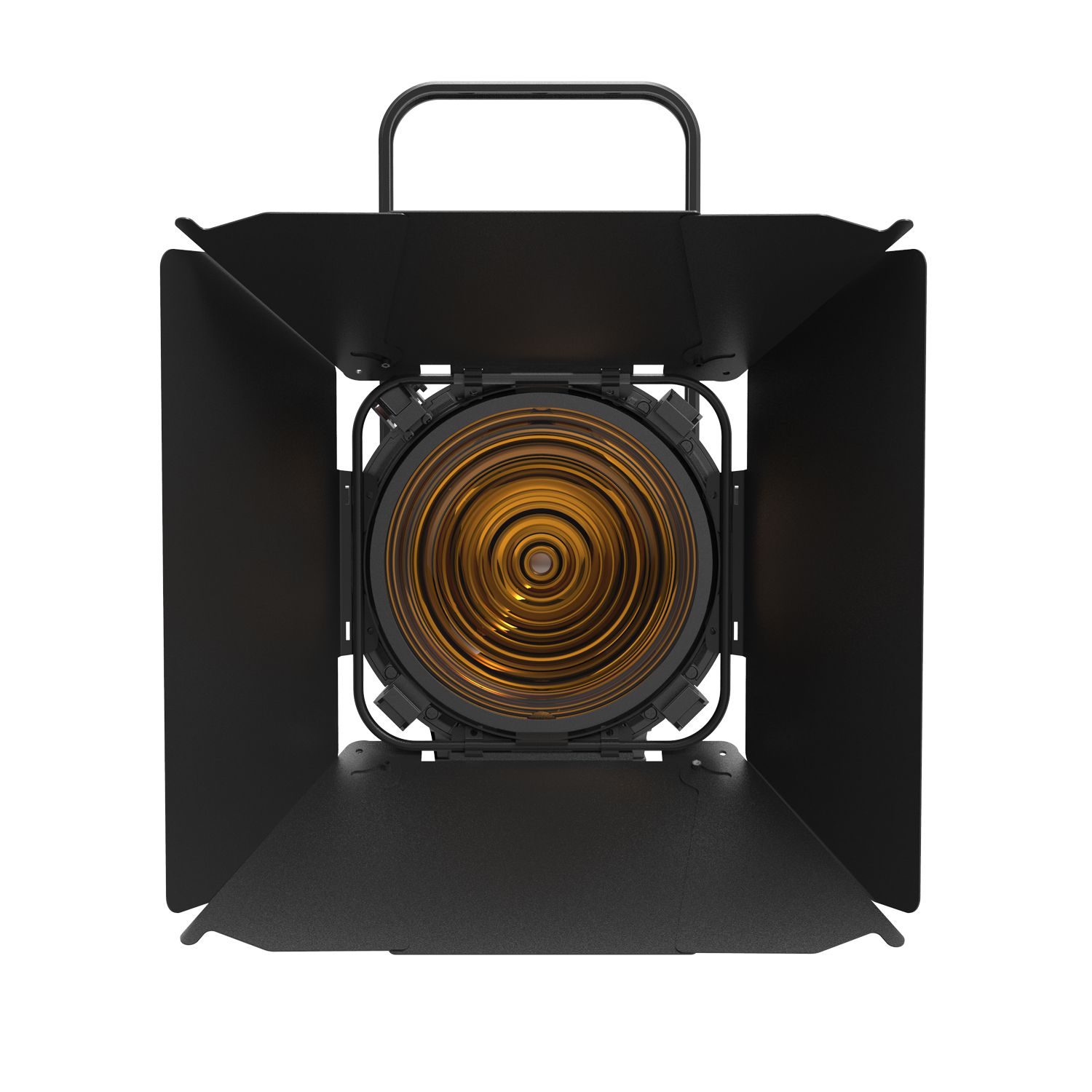

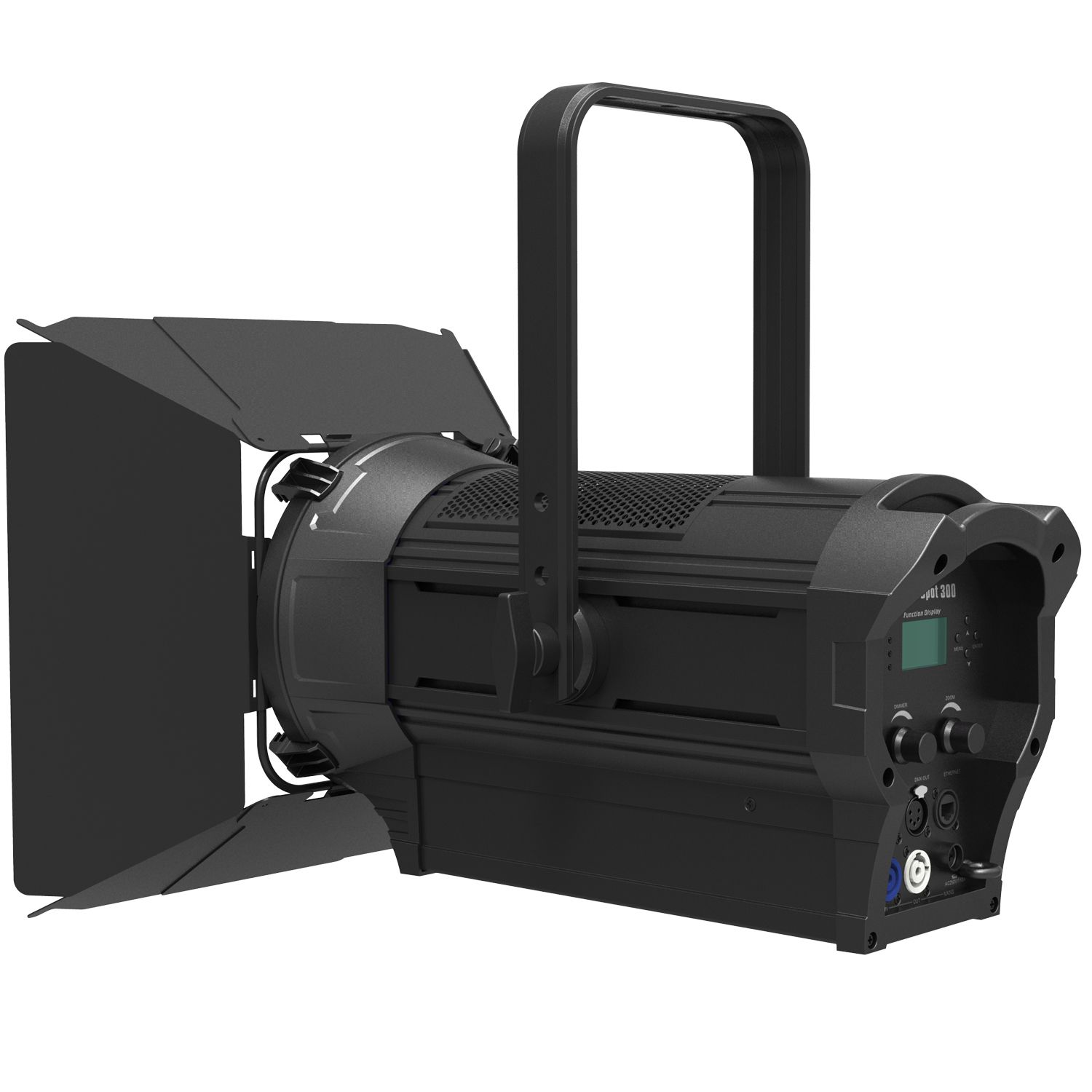

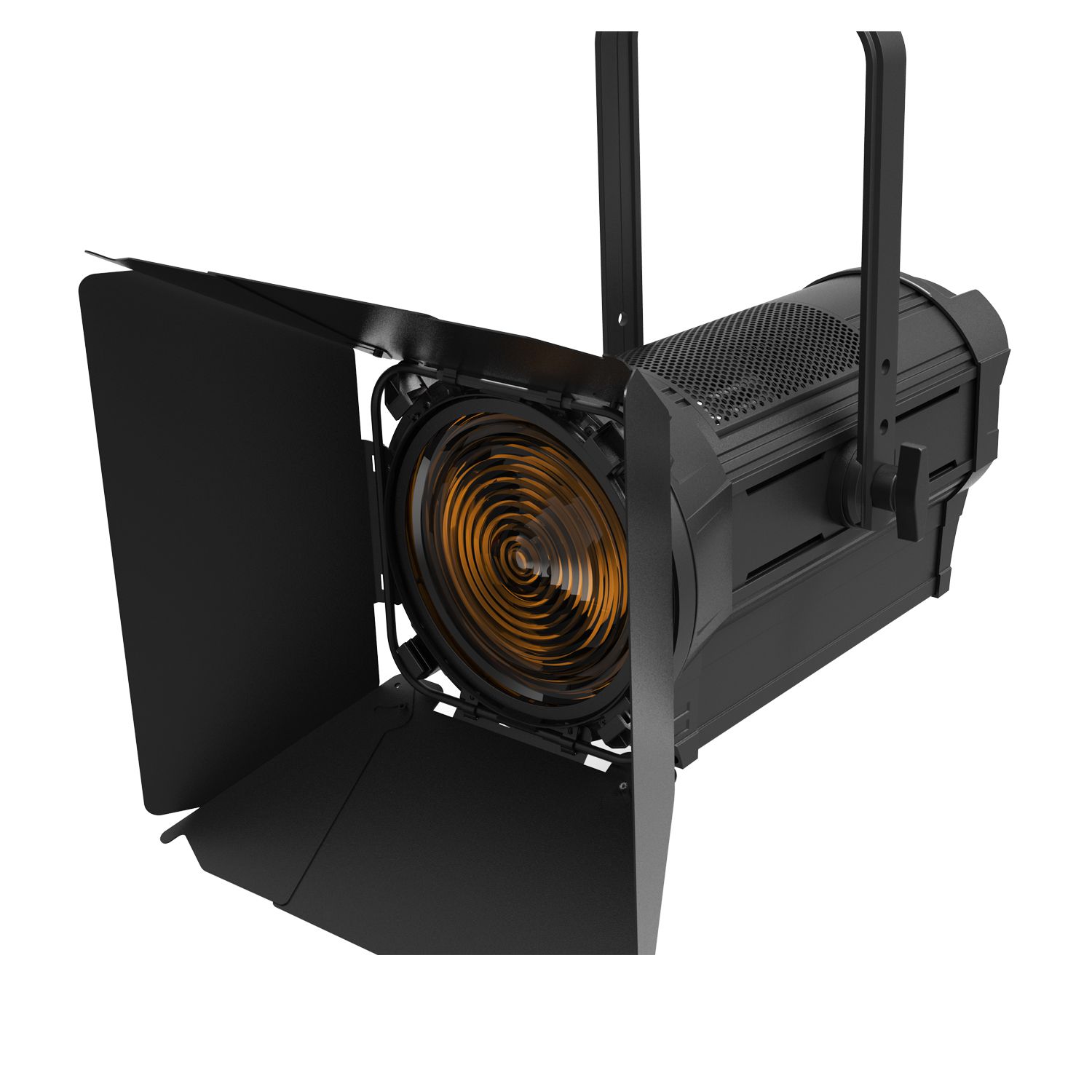

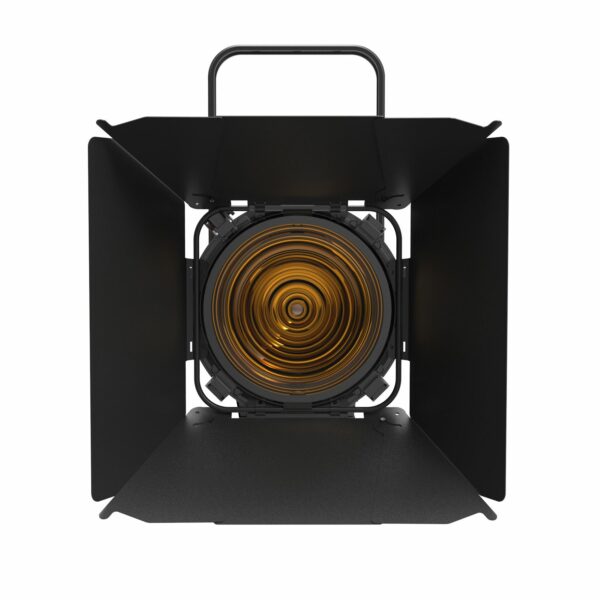

The ACME THEATRE SPOT 300 WW is a new powerful single source LED luminaire with a 300W Warm White 3,200K±200K led engine, which can project CRI≥95 clear warm light and reproduce the real effect. It can deliver 15° to 53° wide range beam angle with a high efficiency zoom optical Systemat 1:3.5 ratio. A special thermal-convection loop coupled with the advanced cooling fan which selected from top brands, only to offer you a better cooling and silent operation. Fitted with special patented clamp structure, the Theatre Spot can easily handle different Installationand avoid any unexpected movement making the light out of focus. What’s more, the Theatre Spot provides you a smooth fading performance with 4 variable dimming curves and 2 optional dimming speeds. Equipped with flicker free operation, rotating barn door and rotating bracket, this light-weight fixture is suitable for many applications, such as big shows, exhibitions, evening performances, dramas, film shooting, etc.
Features
Light Source: 1×300W warm white LED
Color Temperature: 3200±200K
Motorized focus

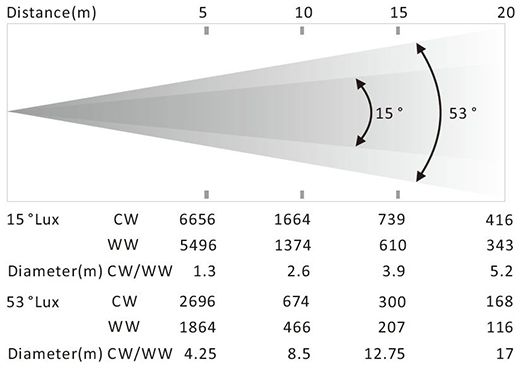

Zoom range: 15°~53°
Manual linear dimming
4 dimming curves,2 optional dimming speed
0~100% smooth dimming
Low noise under 35dB@1m
Rotating cover, rotating bracket with limiting function
Flicker free management
Technical & Specification
Model
TS-300 WW
Light Source
Light Source: 1×300W warm white LED
LED life expectancy: 10000 hours
Color Temperature: 3200±200K
optical Systemand Effects
Advanced optical Systemto ensure image quality, clear and sharp
High – efficiency zoom Optical System, ratio 1:3.5
Zoom range: 15°~53°
CRI：≥95
CQS：≥94
TLCI：≥97

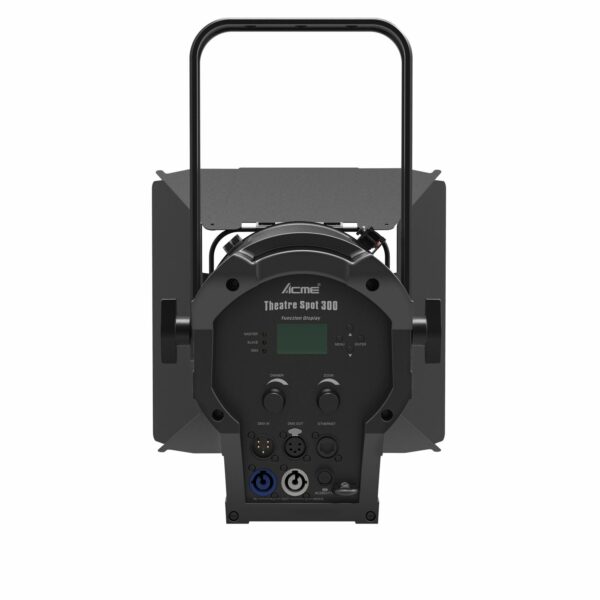

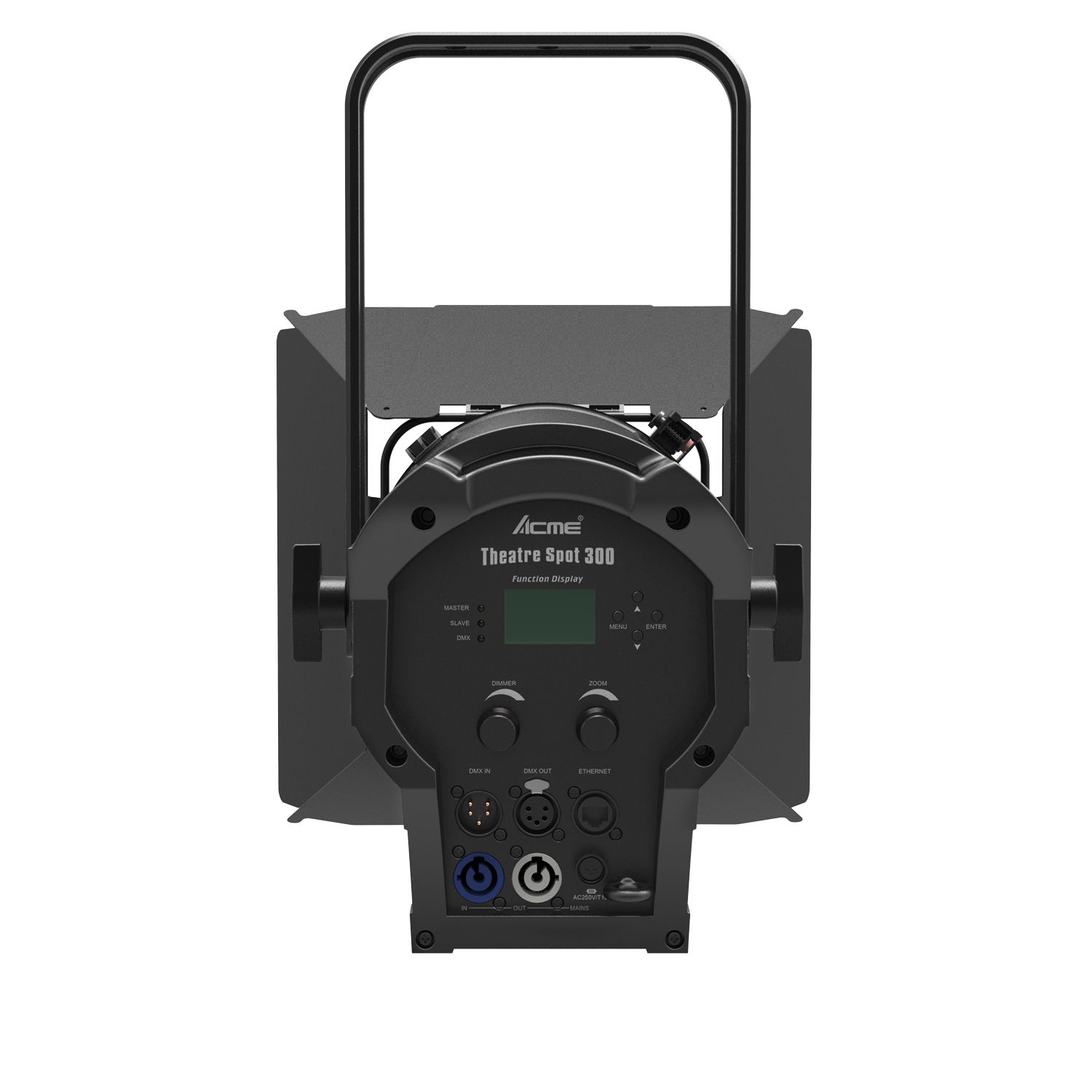

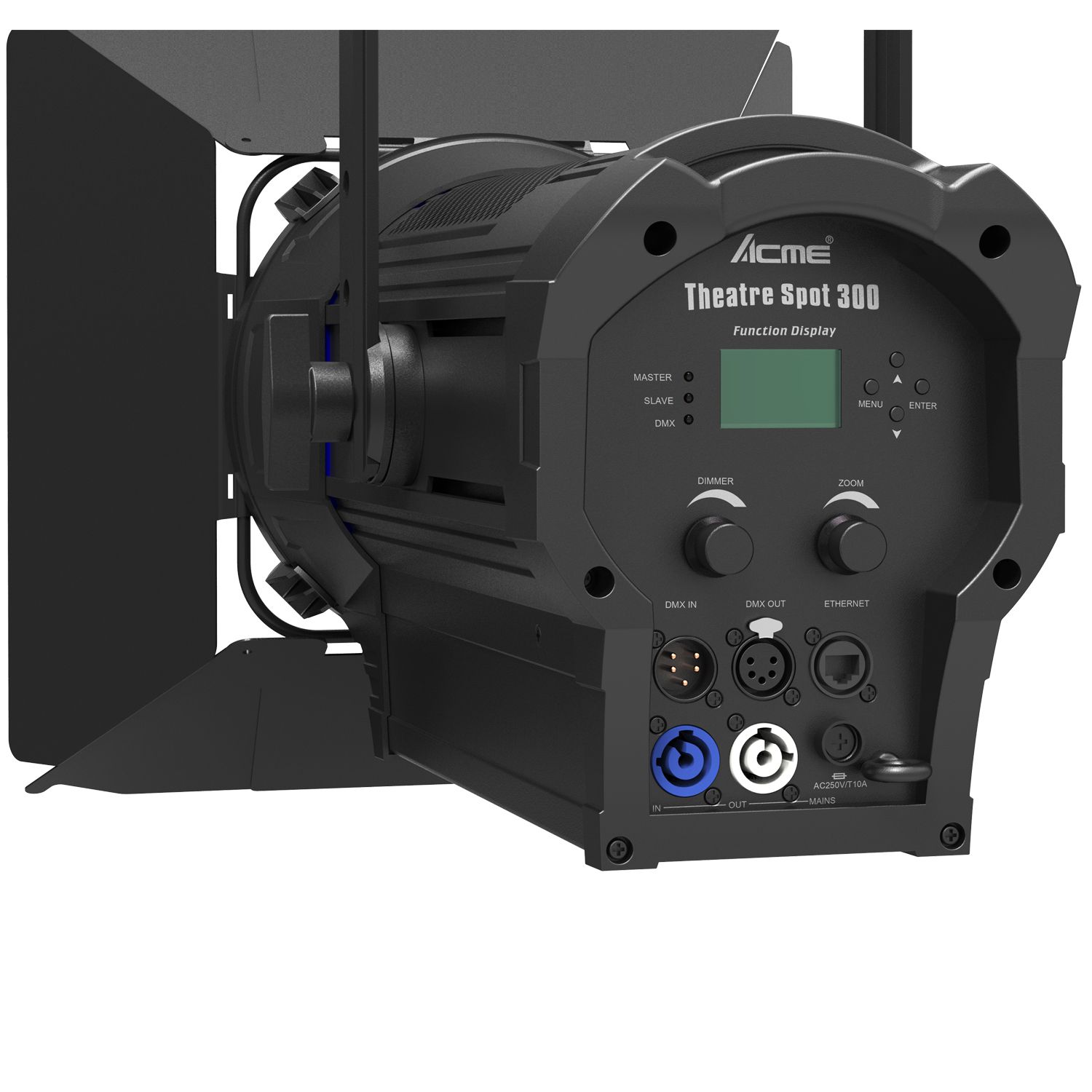

Controland Program
4-buttons
Display: LCD display
Protocols: DMX, Master/Slave, Manual, Art-Net
DMX Protocol modes: 2
Controlchannels: 2,3
Upgrade the firmware via DMX link
Electrical and Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100–240 V, 50/60 Hz
Power consumption: 400 W
Power in/out: Power Connector input/output
Data in/out: 5-pin XLR
Art-Net input: RJ45

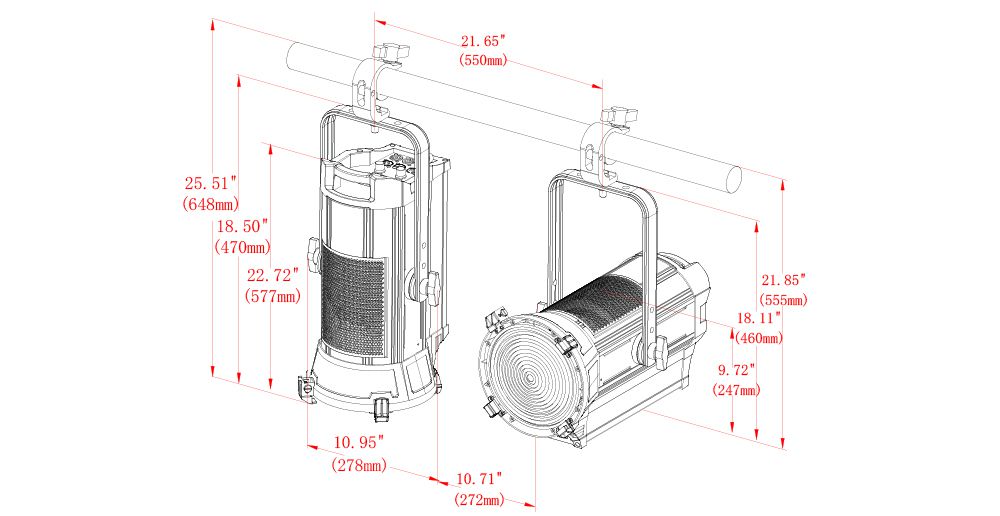

Fixture Specification
Height: 264 mm (10.3″)
Width: 278 mm (10.9″)
Depth: 473 mm (18.6″)
Weight: 10 kg (22.0 lbs)
Work Environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C
Approvals
CE Compliant

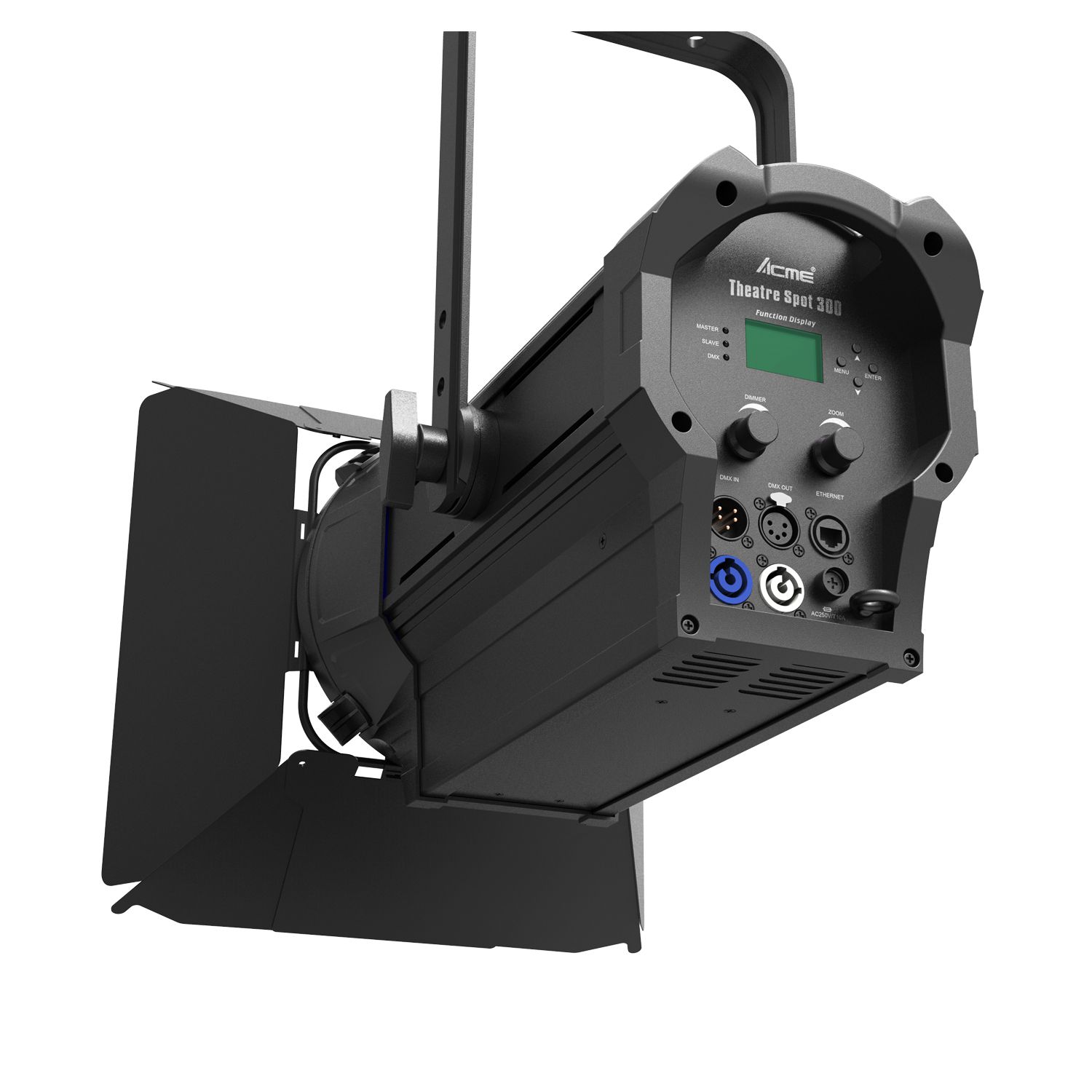

Installation
Horizontally or vertically mounting are available
Operating position is universal
The feet support with 3 locking points
Safety cable attachment point
Included Items
User Manual
Power Cable
Barn door
Optional Accessories (with item code)
Flight Case：
3205001245（2 in 1）
3205001238（3 in 1）
3205001215（6 in 1）
Clamp：2060001619（C-150A）
Signal Line：5-pin signal line
Safety cable: 2060000200（SW-02）
Rotating barn door：63580845
Cellular grid：63580925
