Functional Overview

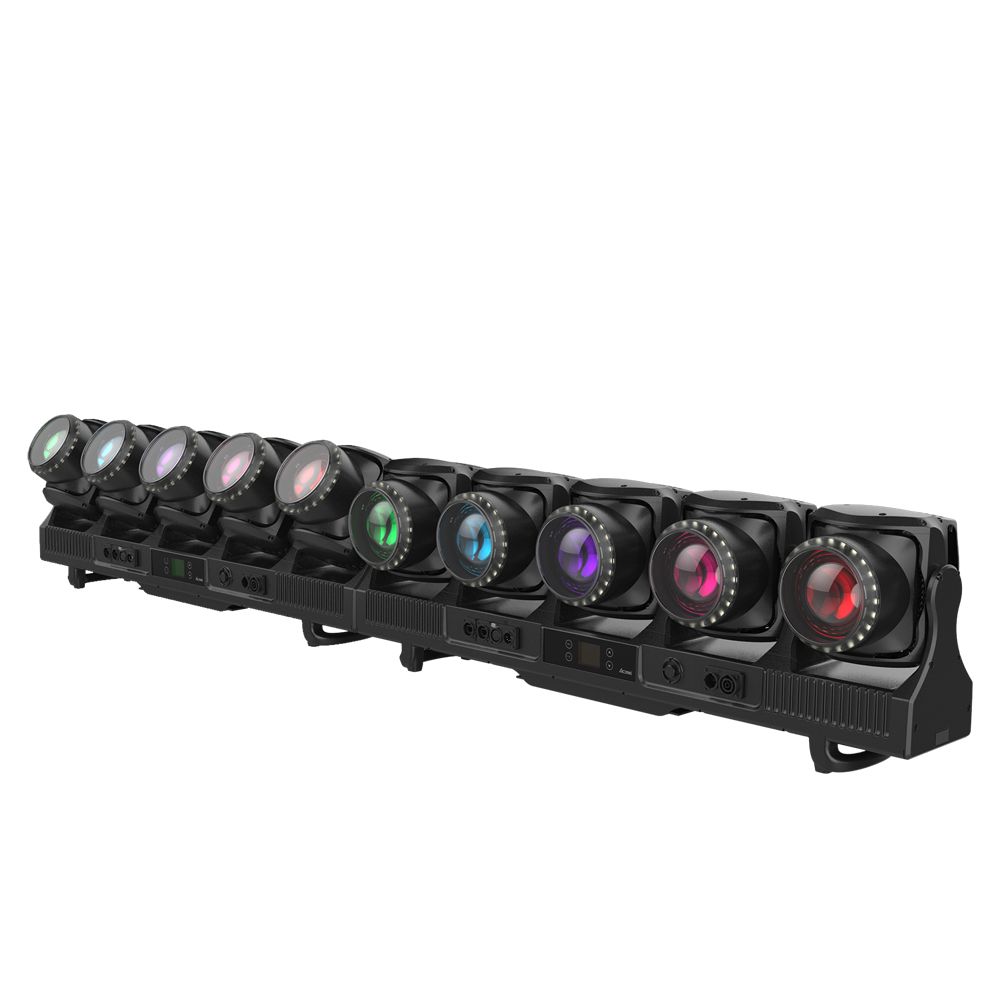

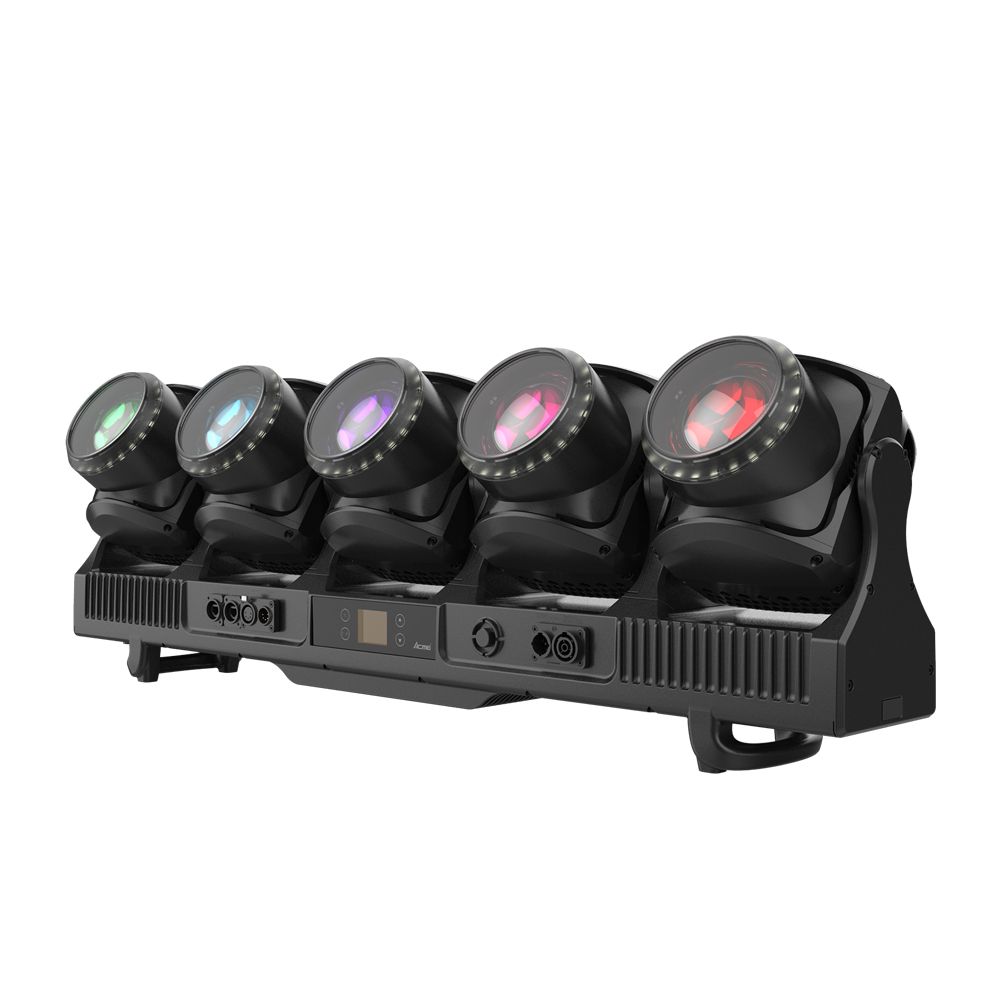

The ACME TORNADO with an innovative design and appearance designed to elevate your visual experiences to new heights. Boasting a powerful 5 x 120W LED as its main light source, complemented by a ring of 120 x 0.5W RGB LEDs encircling the fixture, it promises an unparalleled fusion of brilliance and versatility.

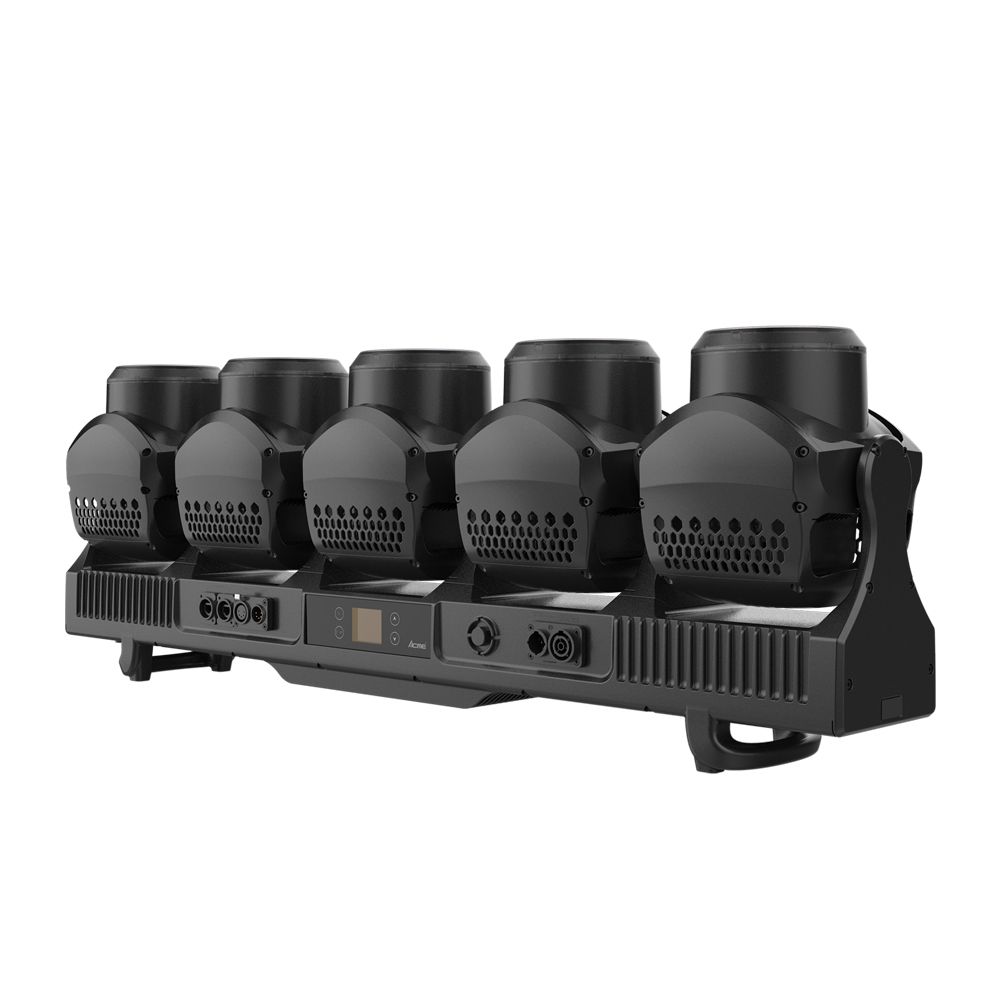

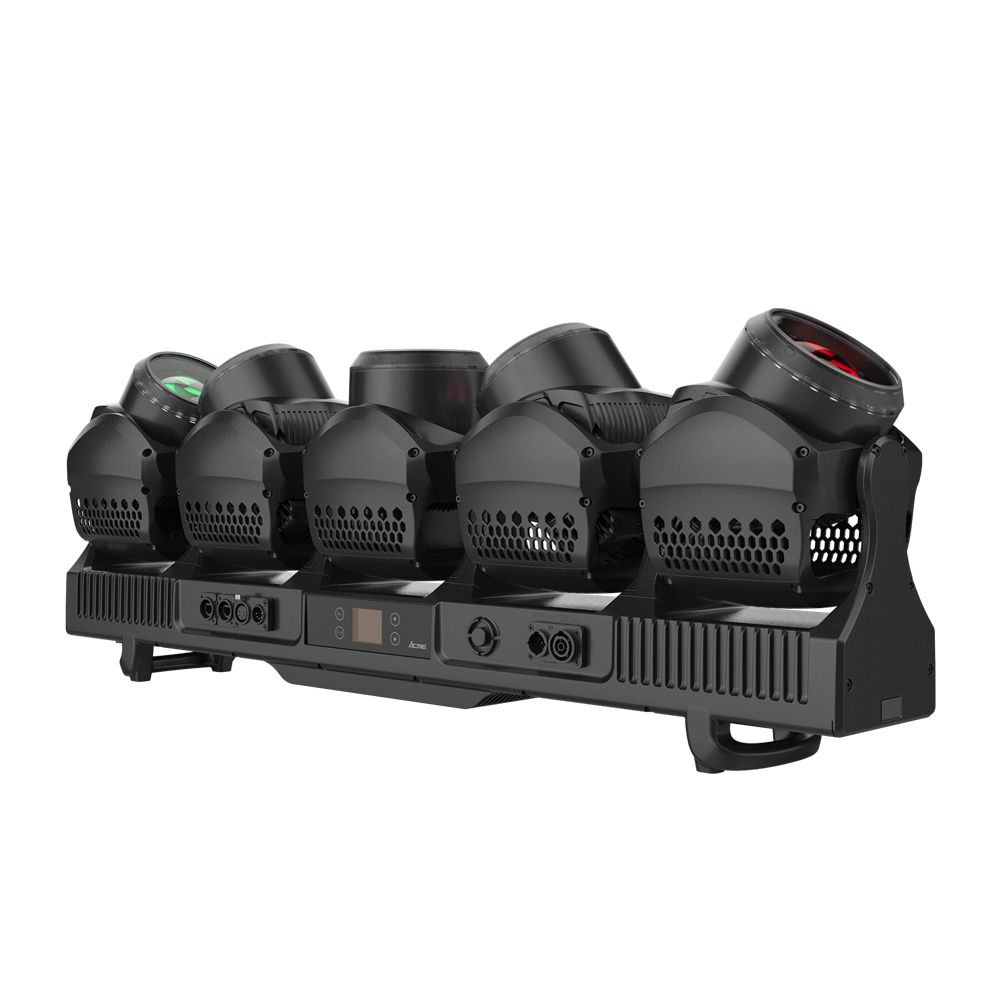

The fixture is equipped with five individual light heads featuring precise pan and tilt movements. Each head can be controlled independently, offering limitless possibilities for artistic exploration and creation.
Experience the fast and smooth linear zoom from 3° to 30°, with a field angle of 4° to 35°. Witness the magic as it produces sharp, saturated beam effects, ensuring your visuals shine with unparalleled vibrancy and brightness.
With an all-weather IP66 rating, TORNADO is designed to withstand the elements, ensuring unwavering performance in any environment, whether indoors or outdoors.
Features
- LED Engine comprised of 5 x 120W LEDs (main light)
- LED Engine comprised of 120 x 0.5W RGB LEDs (outer circle)

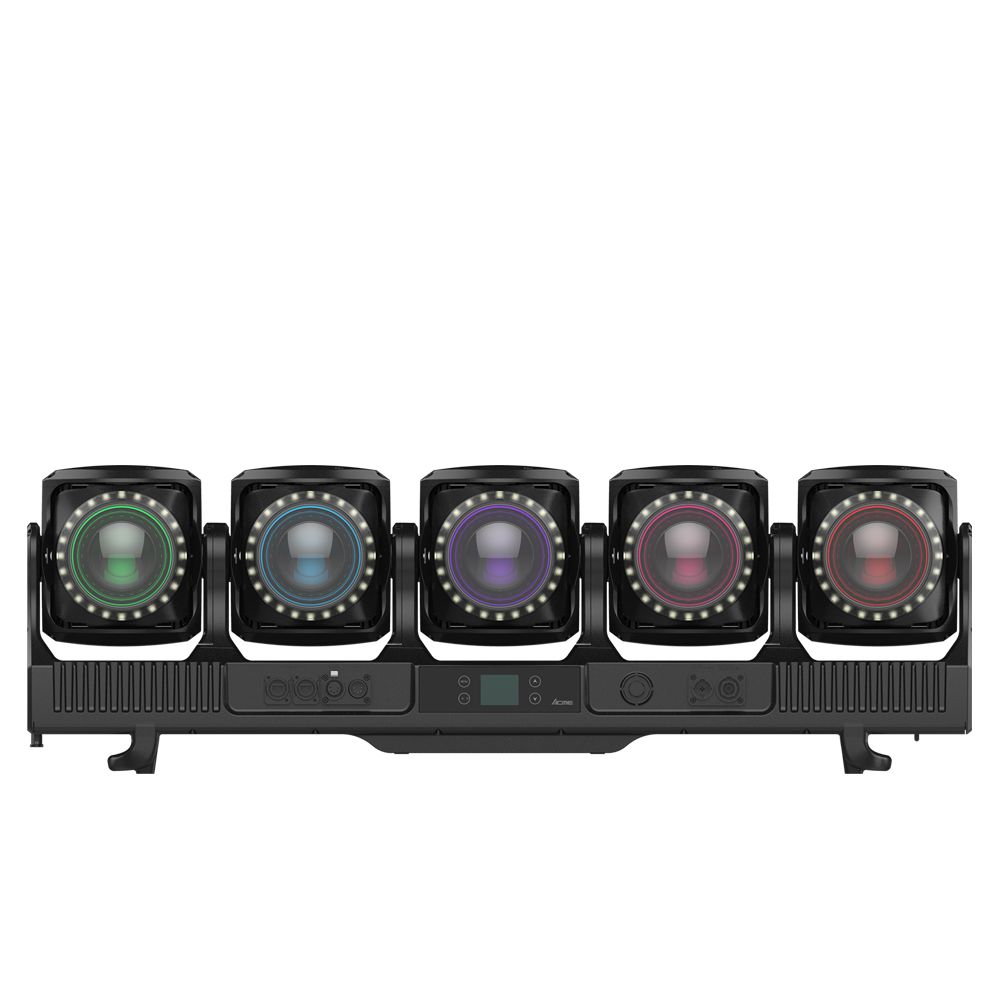

- 5 individual light heads with pan/ tilt movement, can be controlled individually
- The outer circle of the light head has 24 LEDs, which can be controlled individually
- Sharp and saturated beam effects
- Outstanding color mixing effects
- Outstanding color macro effects
- Linear focusing structure
- Outstanding strobe effects with variable speed
- Variable light adjustment from 0-100% dimming
- Horizontal connection of multiple units
- IP66 rated
Model
- TB 5 IP
Light Source
- Light Source:
- Main Light: 5 x 120W LEDs
- Outer Circle: 120 x 0.5W RGB LEDs
- Total Lumen Output of Fixture: 20,000 lm
- Life Expectancy: 20,000 hours* manufacturer specification
Optical System

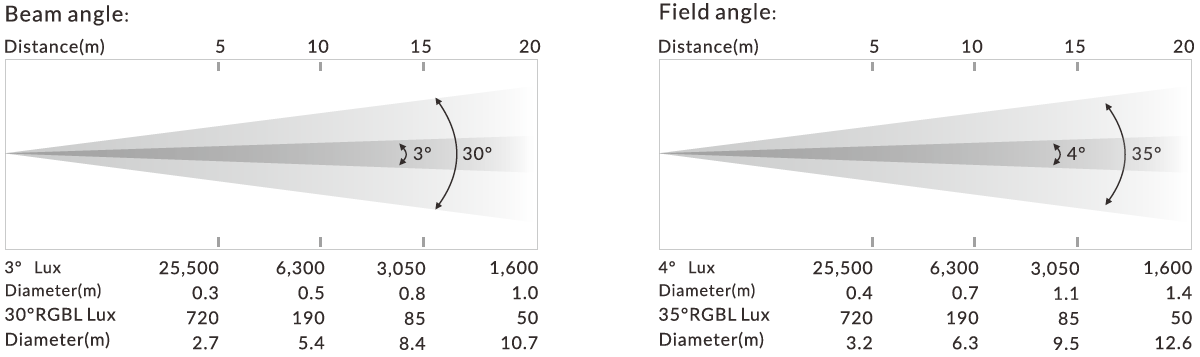

- Beam Angles: 3°-30° (beam section)
- Field Angles: 4°-35° (beam section)
Control and Program
- 4-Button touch panel
- Display: LCD display
- Protocols: DMX512, RDM, Art-Net, sACN
- DMX Protocol Modes: 2
- Control Channels: 41/71
- Firmware Upgrade: Upgrade via DMX link
Pan & Tilt
- Pan Movement: 62°
- Tilt Movement: 225°
- Automatic Pan/Tilt position correction
- Moving-head operated with 16 bit resolution
Other Effects
- Outstanding strobe effects with variable speed
- Variable light adjustment from 0-100% dimming
- Outstanding color mixing effects
- Outstanding color macro effects
- Linear focusing structure
Electrical and Connectors
- Input Voltage Range: 100-240V~ 50/60Hz
- Power Consumption: 935W
- Power In/Out: Waterproof power connector in/out (True1 type)
- Data In/Out: 5-pin XLR, RJ45 connector, USB connector
Fixture Specification

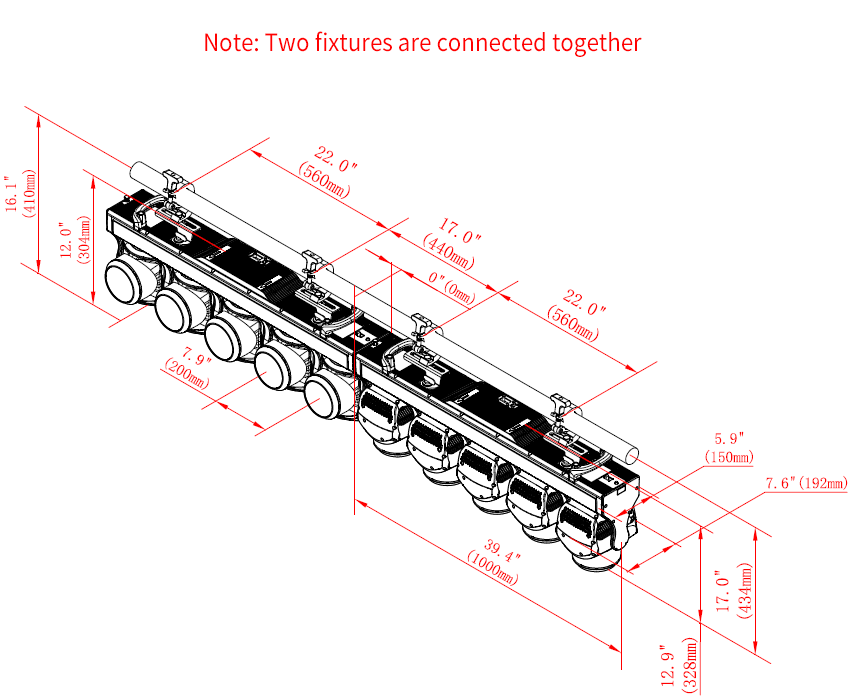

- Fixture Dimensions:
- Width: 1,000 mm (39.4″)
- Depth: 192 mm (7.5″)
- Height: 350 mm (13.7″)
- Weight: 29.0 kg (63.8 lbs)
- Carton Dimensions:
- Width: 1,120 mm (44.0″)
- Depth: 460 mm (17.7″)
- Height: 310 mm (12.2″)
- Weight: 34.5 kg (76.1 lbs)(includes carton, one per carton)
Work environment
- Maximum Ambient Temperature: 40°C
- Minimum Operating Temperature: -10°C
- Maximum Surface Temperature: 75°C
- Protection Rating: IP66
Approvals
- cETLus compliant
Installation

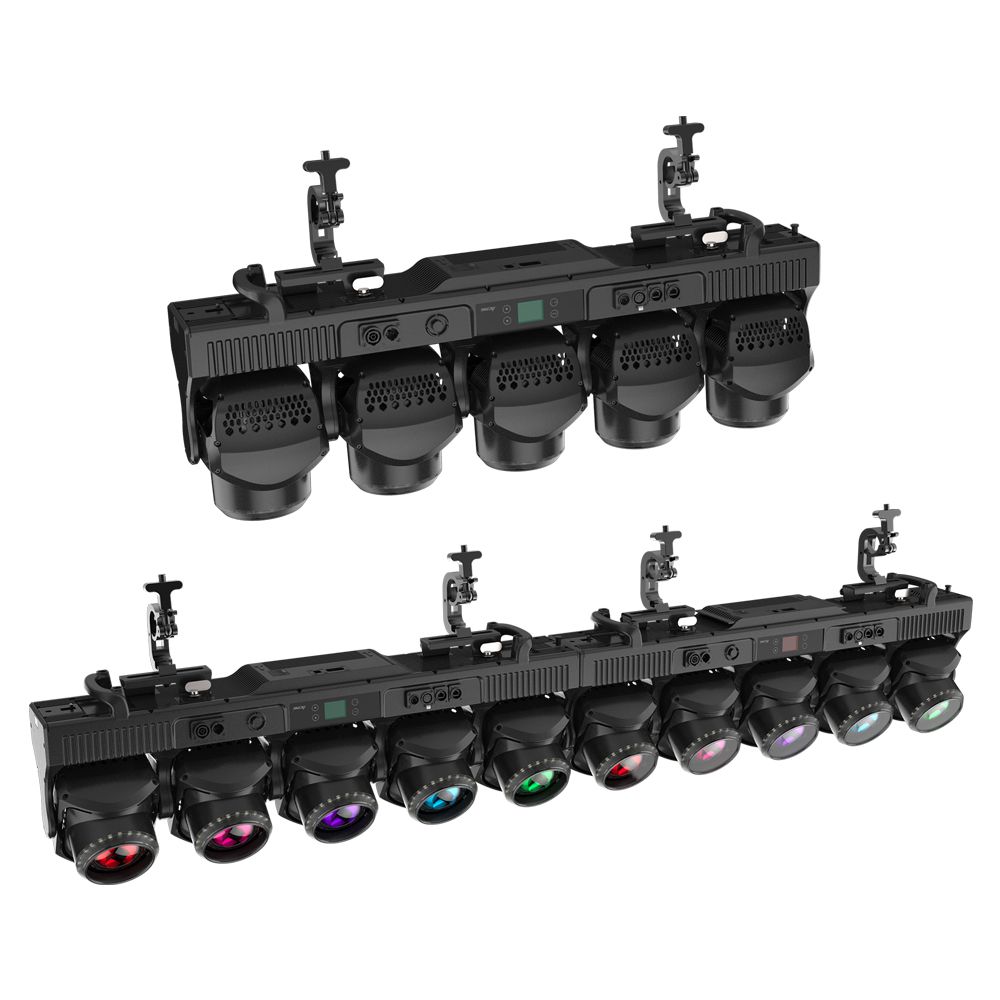

- Horizontal or vertical mounting
- Universal working position
- 2 x omega brackets
- Safety rope hole
Included Items
- Digital user manual
- Power cable with TRUE1 type connector
- 2 x omega brackets
- Safety cable attachment point
Optional Accessories (with item code)
- Clamp: 2060001632 (C-250B)
- Signal Line: 3-pin waterproof signal line (3017013468), 5-pin waterproof signal line (3017013473), RJ45
- Safety Cable: 2060001603-A (SW-05)
