Functional Overview

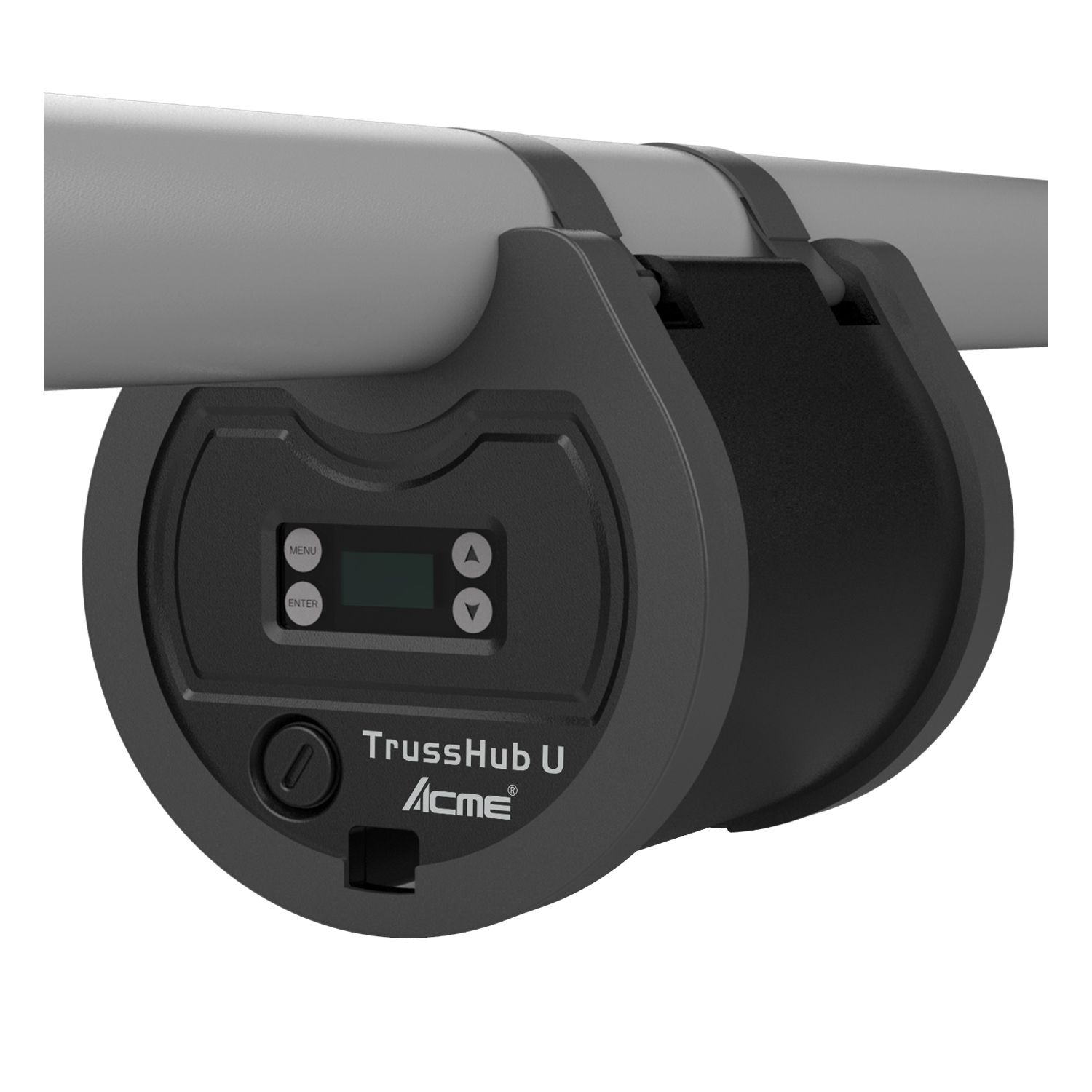

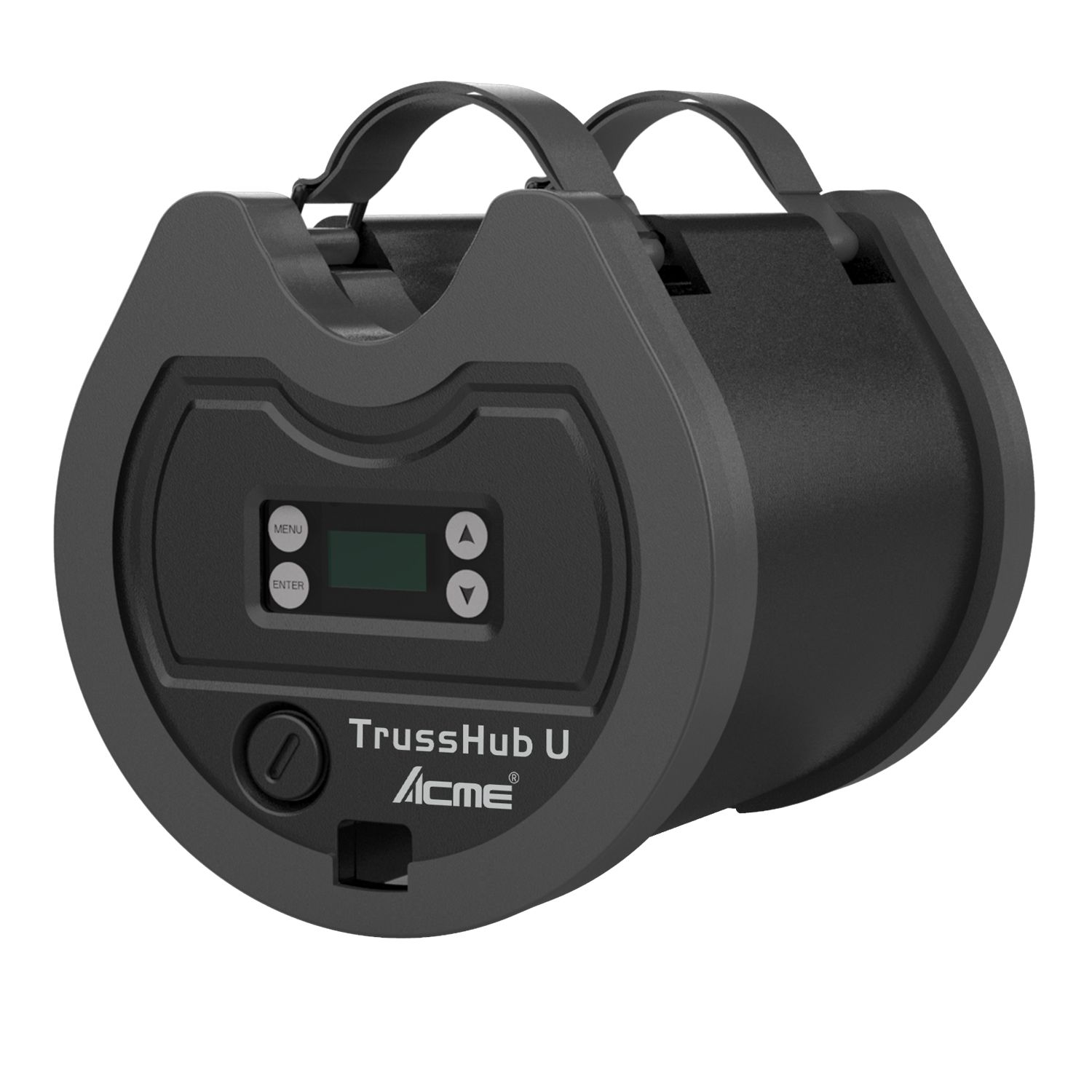

The TRUSSHUB U (CA-AN04T) is a DMX (RDM) signal amplifier and splitter, supporting standard DMX-512 and Art-Net protocols and designed for the connection of DMX receivers (moving heads, color changers, dimmers etc.). The unit has 1x RJ45 input, 1x RJ45 output and 4x DMX outputs, and is protected by shock-absorbing rubber edging on both sides. Available for 40mm, 50mm or 60mm diameter truss, it is suitable for applications in which the DMX-512 signal is weakened over long-distance transmission. The TRUSSHUB U, with its IP66 waterproof protection, works perfectly indoors or out, efficiently buffering and magnifying the DMX signal, ensuring the DMX data transmission is accurate and reliable.
Features
Art-Net to DMX-512 (RDM) signal splitter
Supports standard DMX-512 and Art-Net protocol, RDM compatible

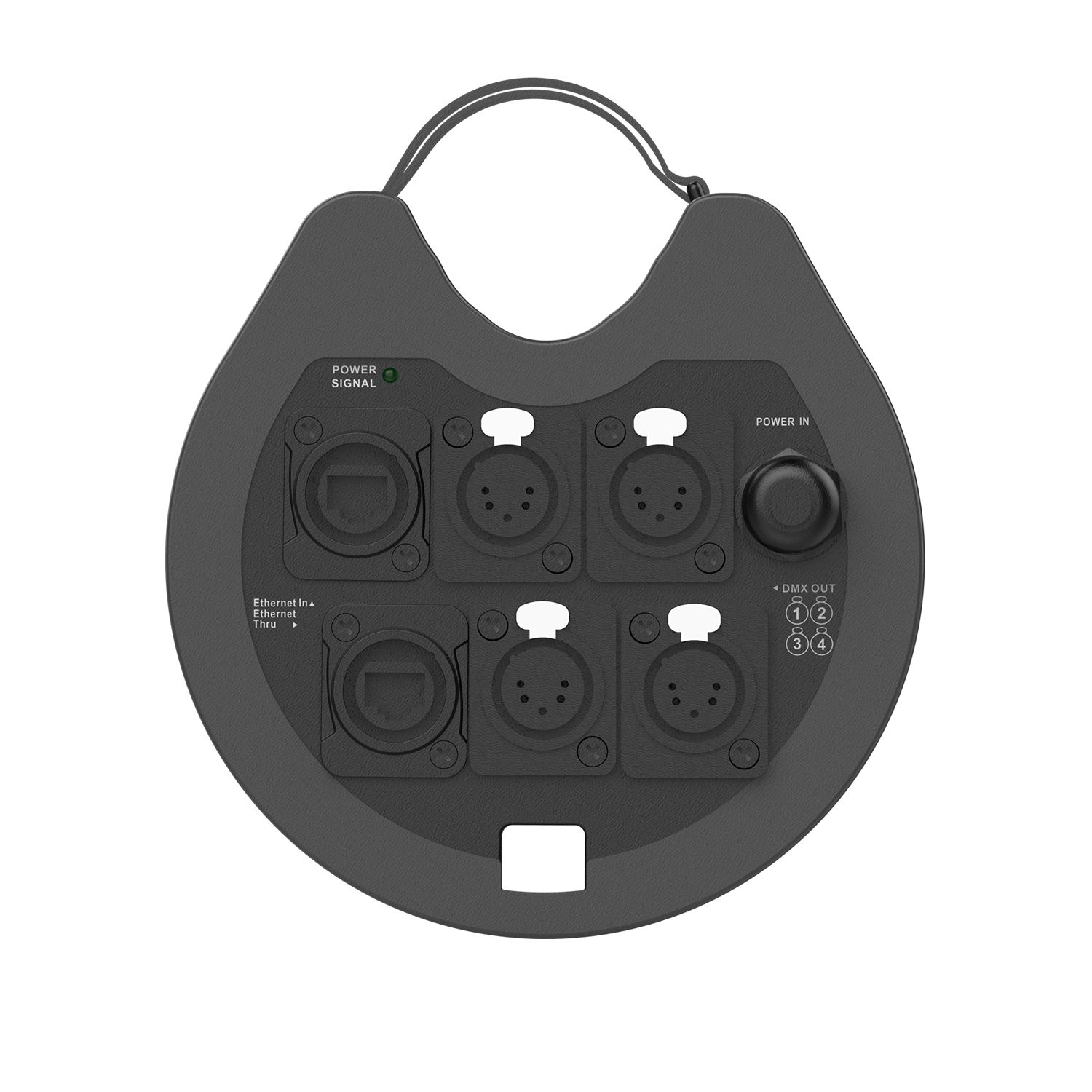

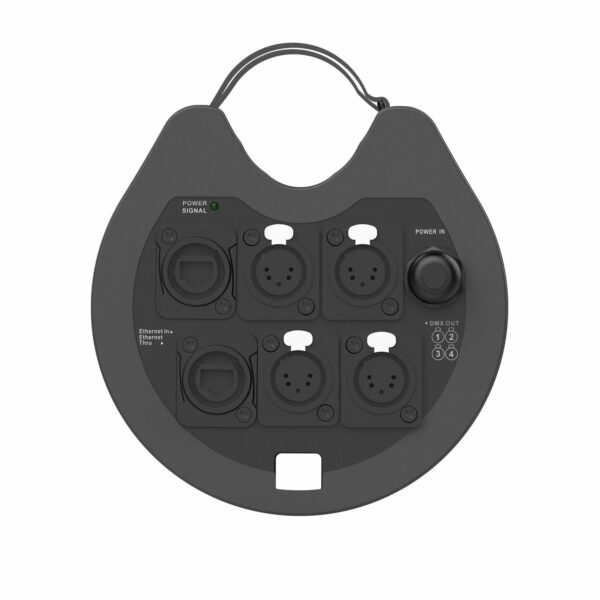

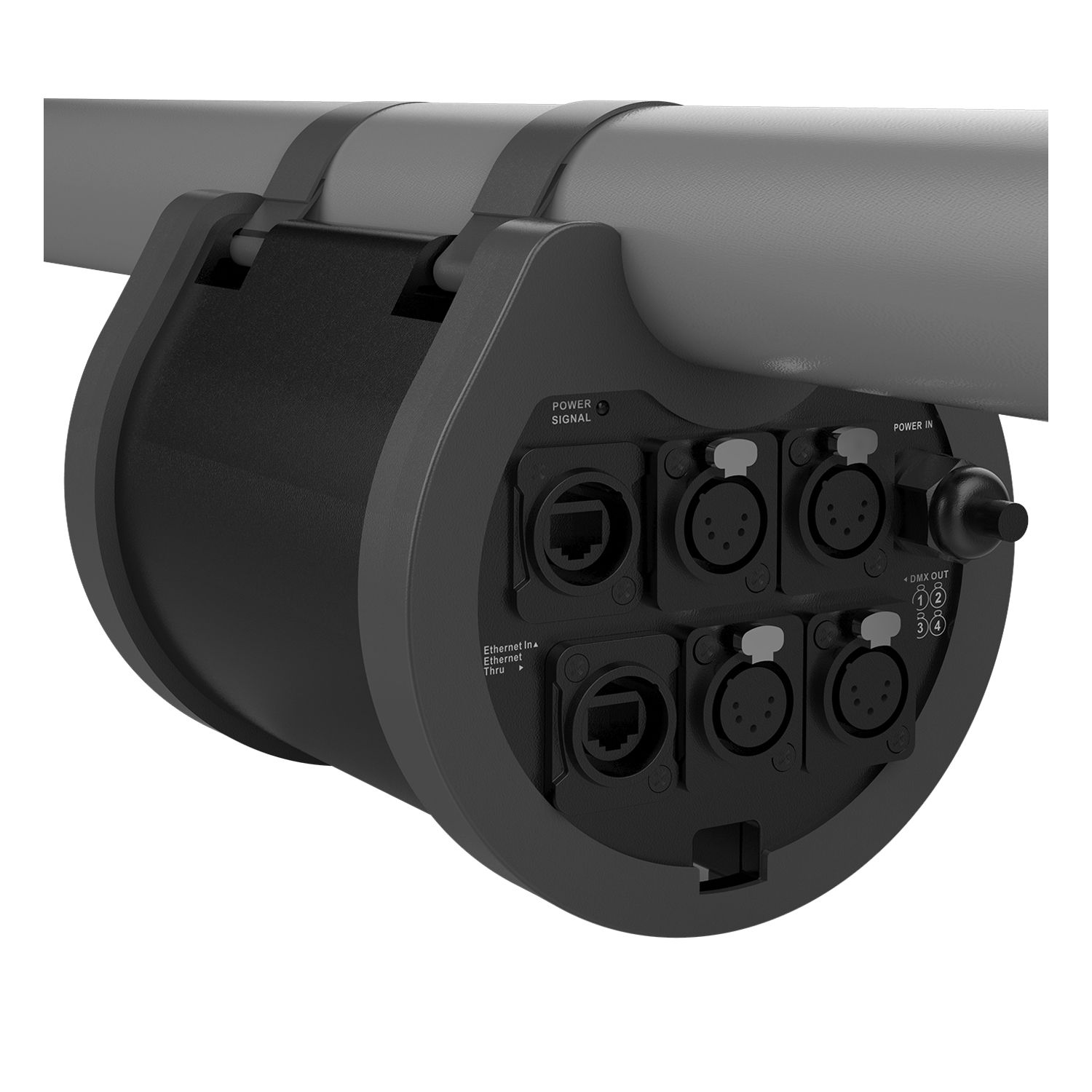

1x RJ45 input, 1x RJ45 output, 4x DMX output
Available for 40/50/60mm diameter truss
Shock-absorbing design with rubber edging on both sides
Includes two straps to securely attach to truss
Protection Rating: IP66
Technical & Specification
Model
CA-AN04T
Electrical and Connectors
Power supply with electronic auto-ranging

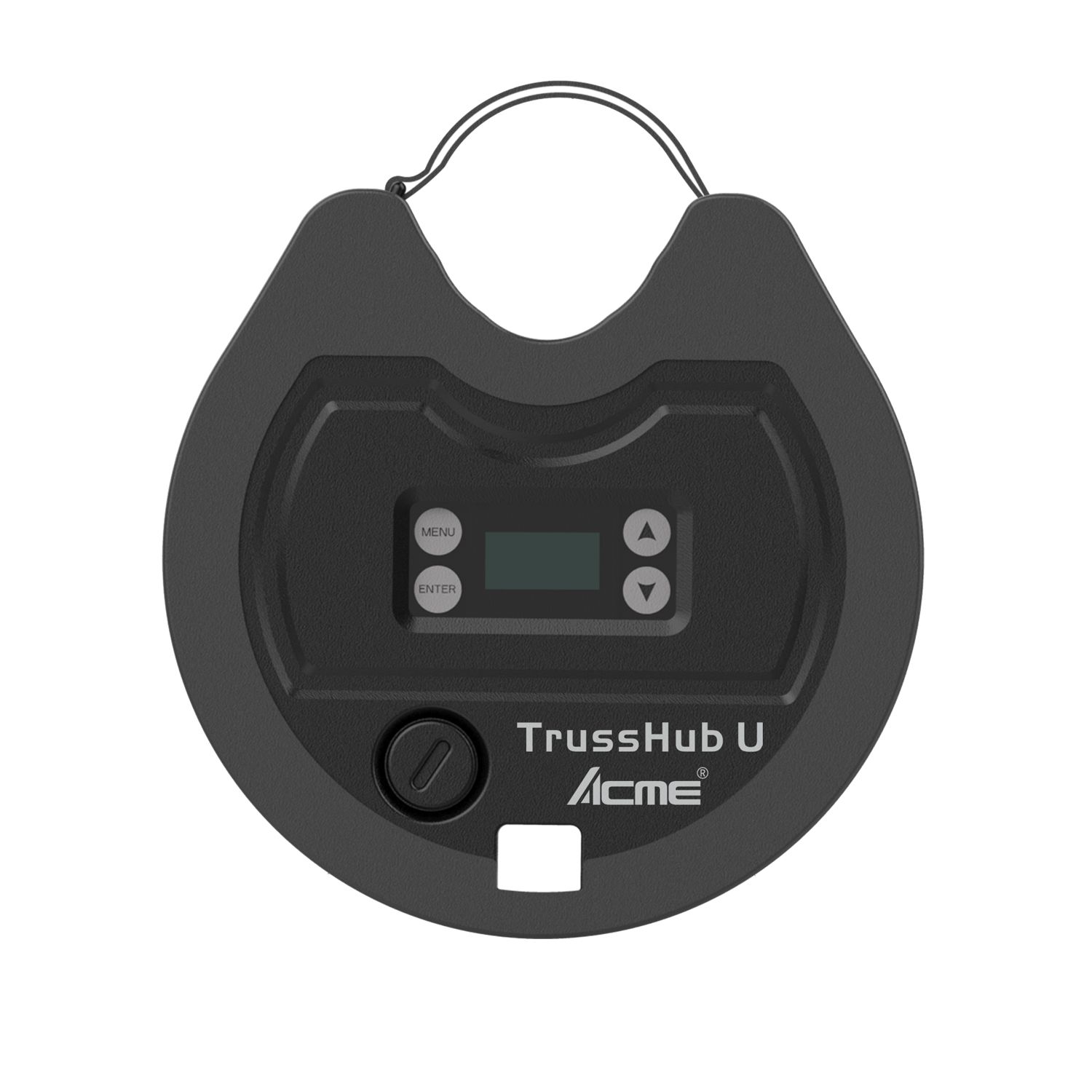

Display: OLED display
Input voltage range: AC 100-240V, 50/60Hz
Power consumption: 5W
Power in/out: Power cord out
Data in/out: 3-pin or 5-pin IP XLR, RJ45

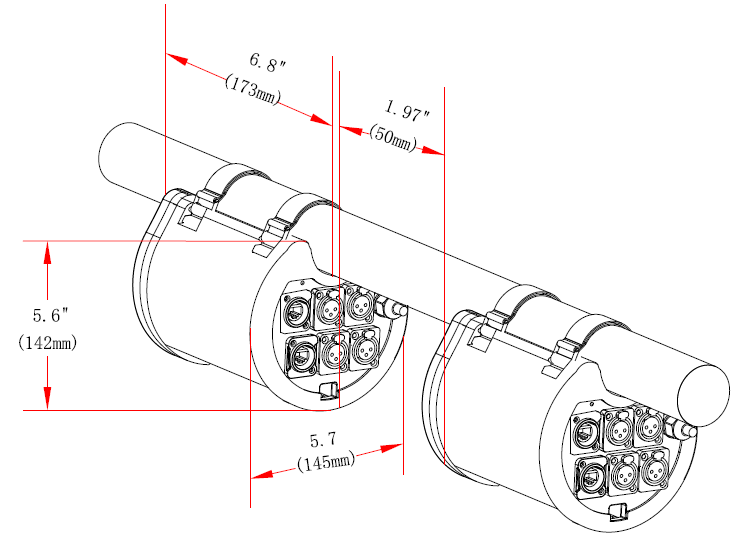

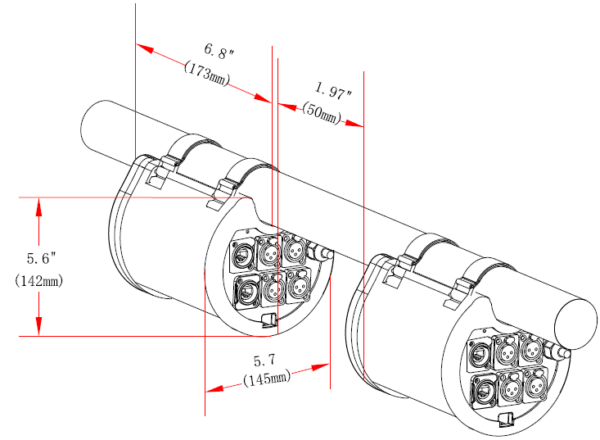

Fixture Specification
Height: 142mm (5.6”)
Width: 145mm (5.7”)
Depth: 173mm (6.8”)
Weight: 1.95kg (4.3lb)
Work Environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C
Protection Rating: IP66
Approvals
CE compliant (pending)
Installation

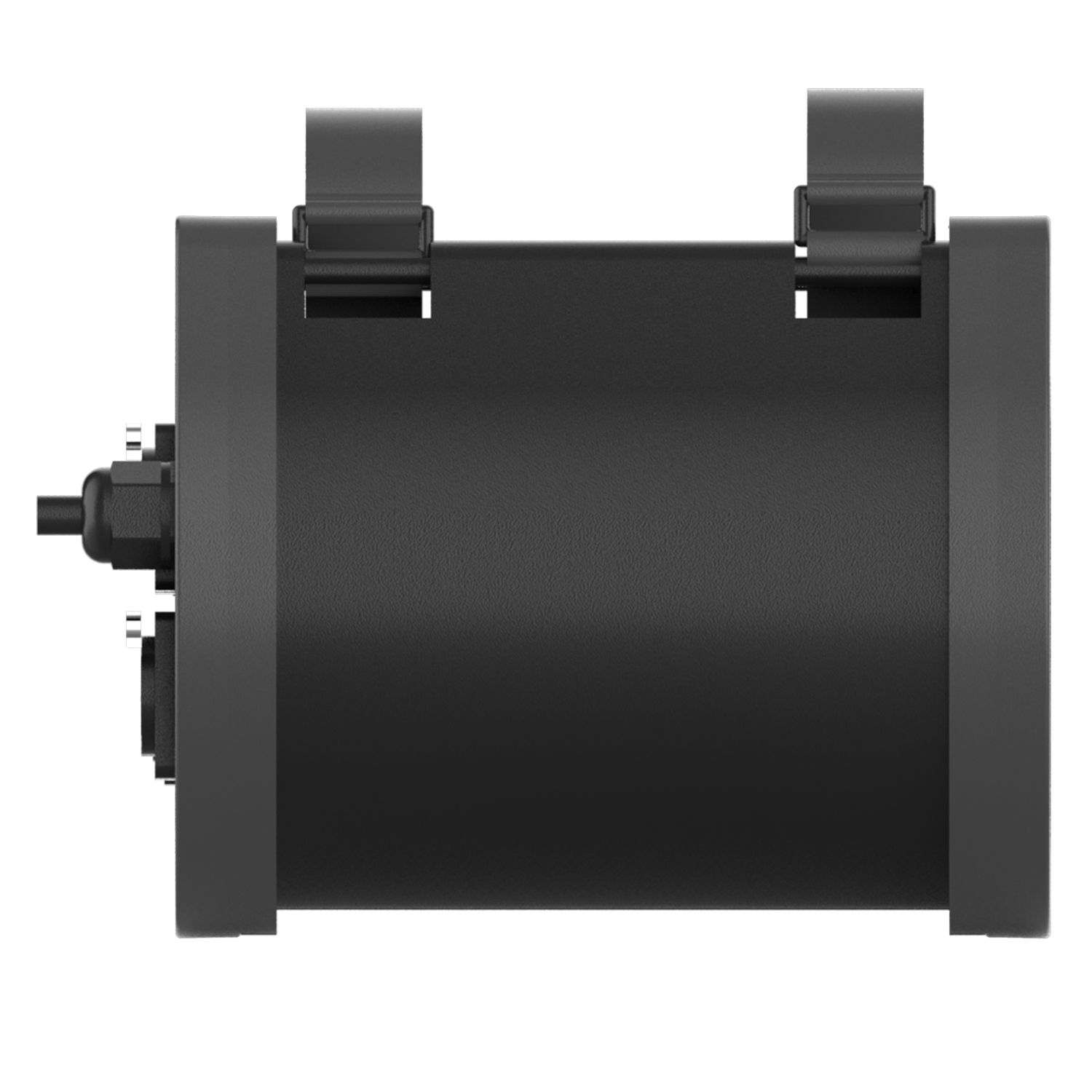

Shock-absorbing design with rubber edging on both sides

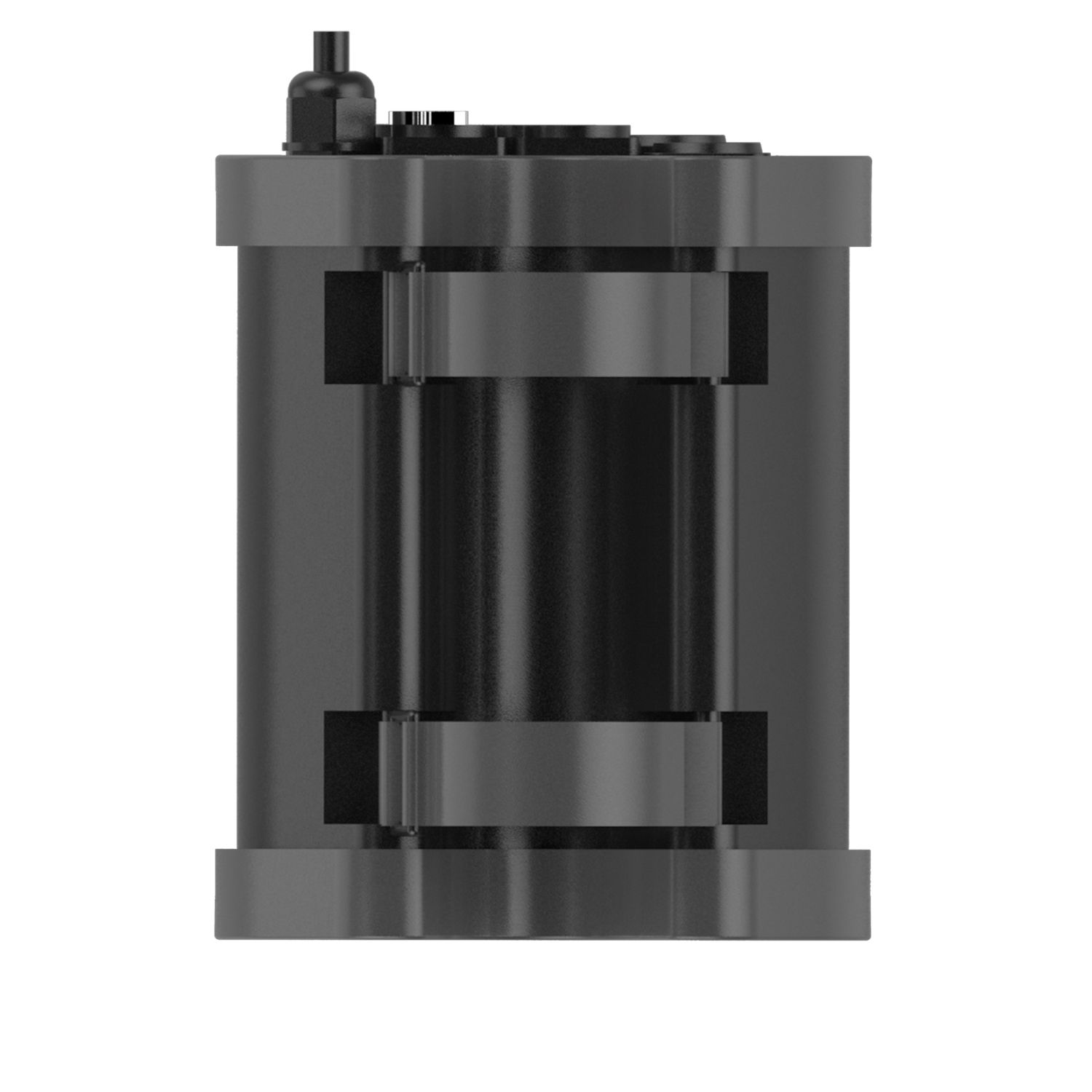

Includes two straps to attach securely to truss
Safety cable attachment point
Included Items
User Manual
Power Cable
Optional Accessories (with item code)
Signal line: 3-pin or 5-pin signal line
Safety cable: 2060000200 (SW-02)
