Functional Overview

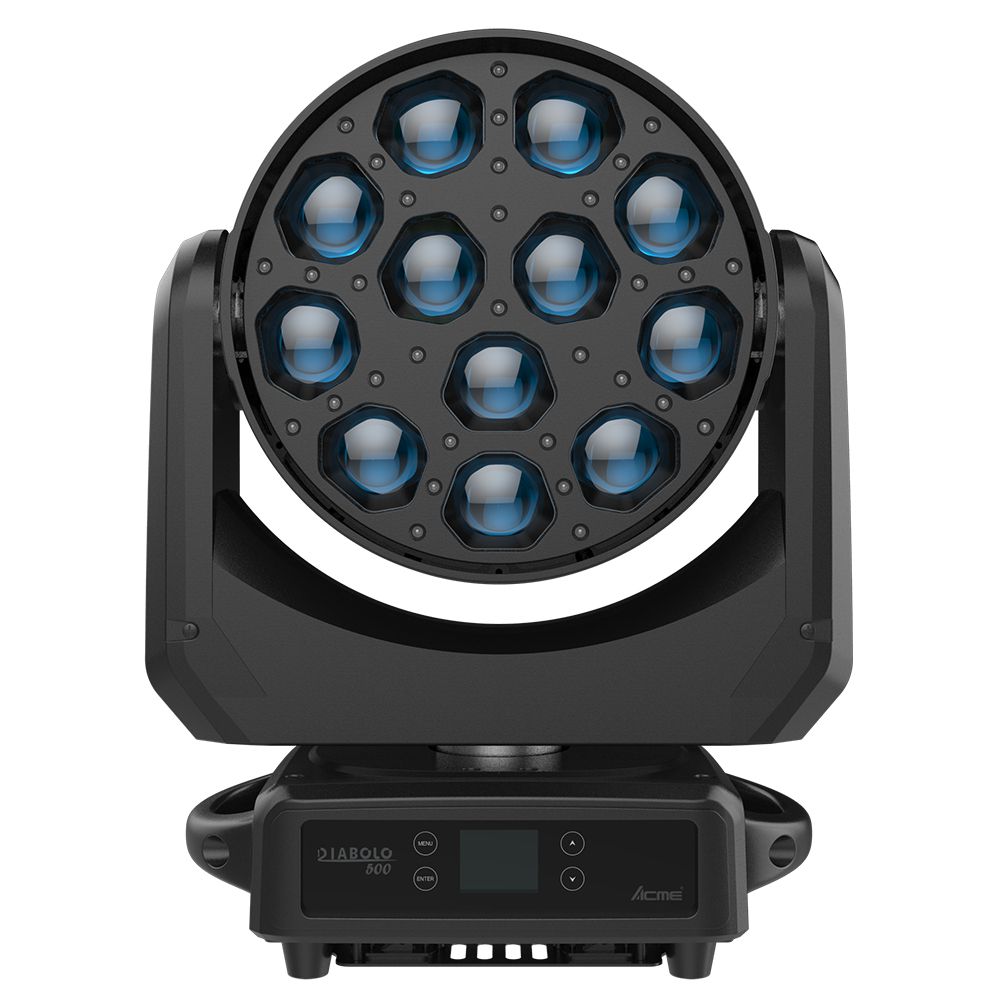

DIABOLO 500 has powerful light output, integrating powerful beam and wash effects. Adopts 12 pcs 40W LED and 31 pcs flux LED; equipped with linear focusing system, the zoom range is 4°~50°, the color in the dimming range is stable and uniform, and it is easy to create a dynamic psychedelic world. Various speed strobe effects, smooth dimming function of 0~100%, to meet the dyeing needs of performance occasions.
Features
Light source:

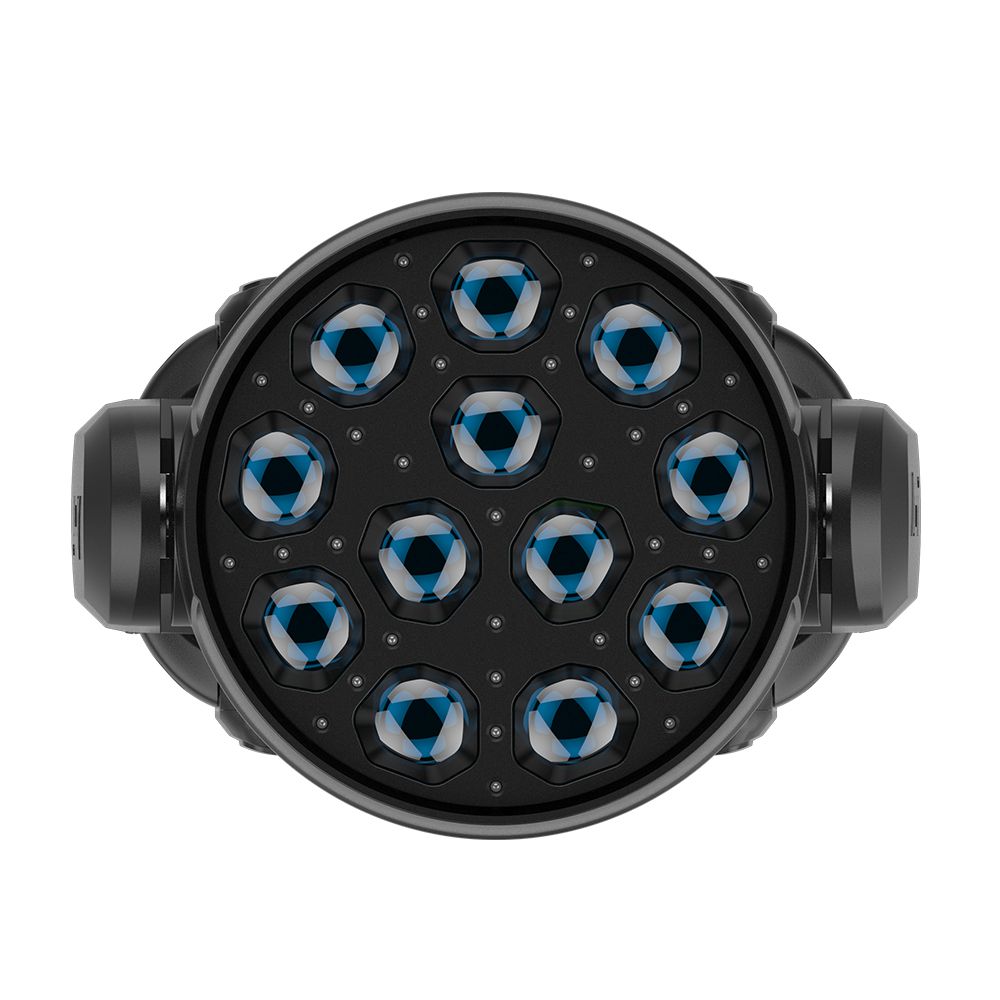

12x40w LED
31 pcs Flux LED
Color Temperature: 7000K
With powerful beam and wash effects
Outstanding color macro effect
12pcs 40W LED point-by-point control
Electronic linear zoom system

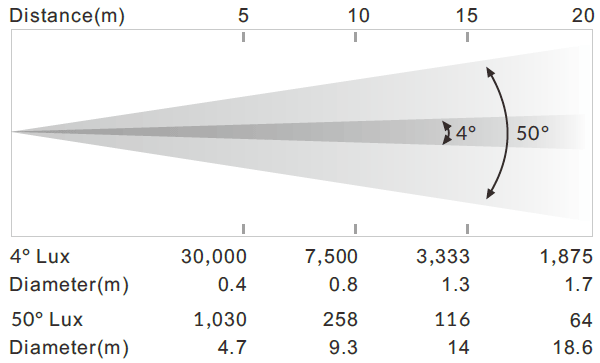

Zoom range: 4°~50°
Outstanding strobe effect with variable speed
0~100% smooth dimming
Fast and mute operating
Flicker free management
Dust-proof and oil-proof design
Technical & Specification
Model
WASH 500
Light source
Light source:
12x40w LED
31 pcs Flux LED
LED life expectancy: 20000 hours
Optical system
Advanced optical system to ensure clear and wide range lighting effect
Beam Angle:4°-25°
Spot angle:5°-50°
Control and Program

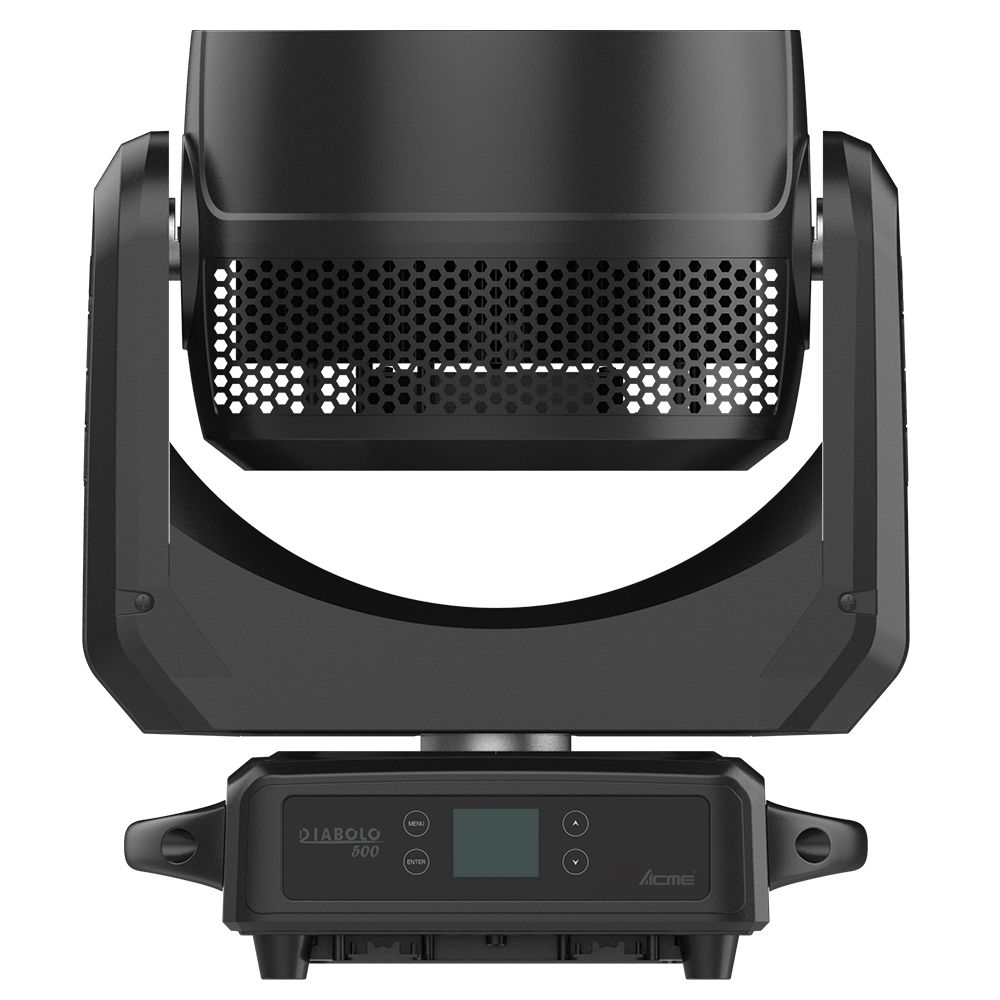

4 buttons
Display:LCD display
Protocols: DMX512,RDM
DMX Protocol modes:4
Control channels:17/20/24/90
Pan/Tilt Resolution: 16 bit
Dimmer: 16 bit
Upgrade the firmware via DMX link
PAN & TILT
Pan movement: 540°
Tilt movement: 250°
Automatic Pan/Tilt position correction
Electrical and Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100-240 V, 50/60 Hz
Power consumption: 475 W

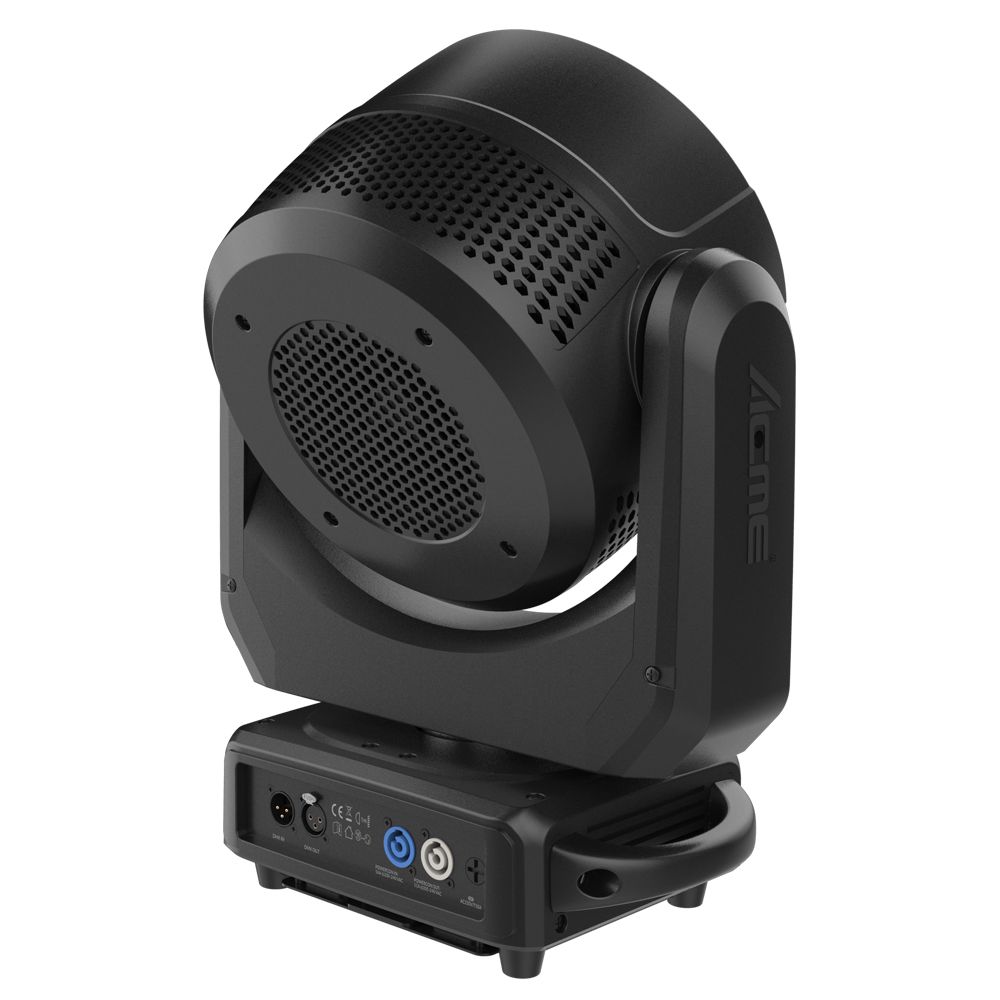

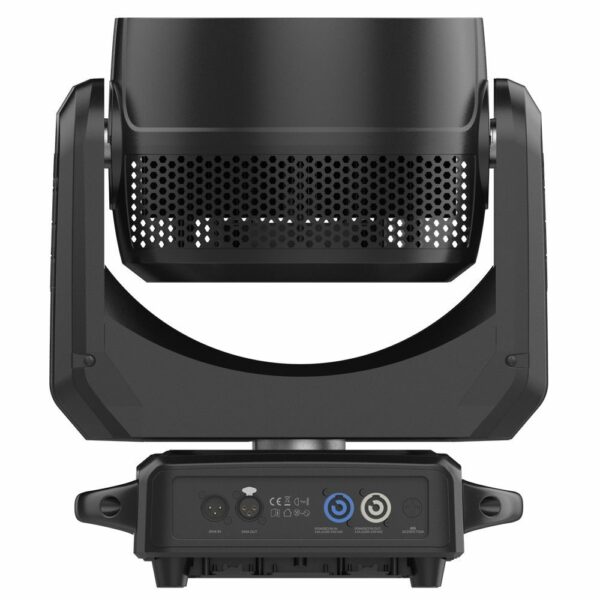

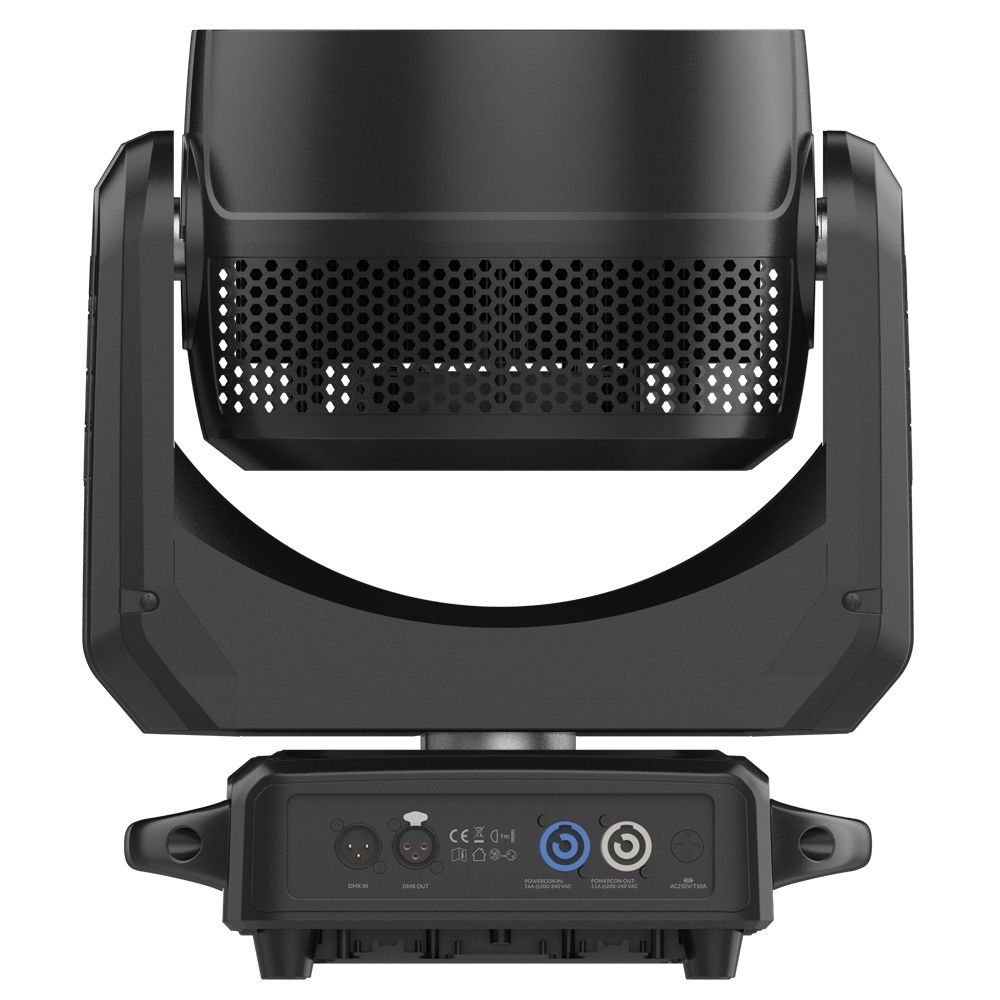

Power in/out: Power Connector in/out
Data in/out: 3-pin or 5-pin XLR

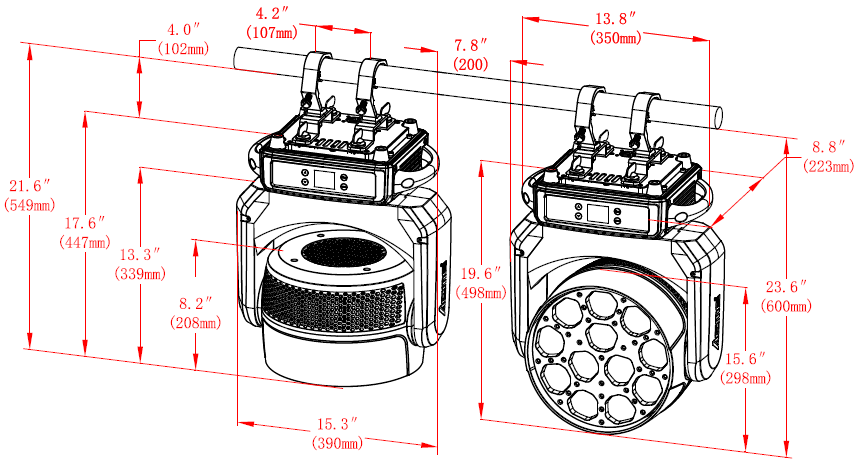

Fixture Specification
Height: 447mm (17.6″)
Width: 223 mm (8.8″)
Depth: 390 mm (15.6″)
Weight: 19 kg (41.9 lbs)
Carton Dimension：
Height：615mm （24.2″）
Width：340mm（13.4″）
Depth：490mm（19.3″）
Weight：21.5kg（47.4lbs）（with carton，1 in 1 standard）
Work environment
Maximum ambient temperature: 45°C
Maximum surface temperature: 60°C
Minimum operating temperature: -10°C
Installation
Horizontally or vertically mounting are available
Operating position is universal

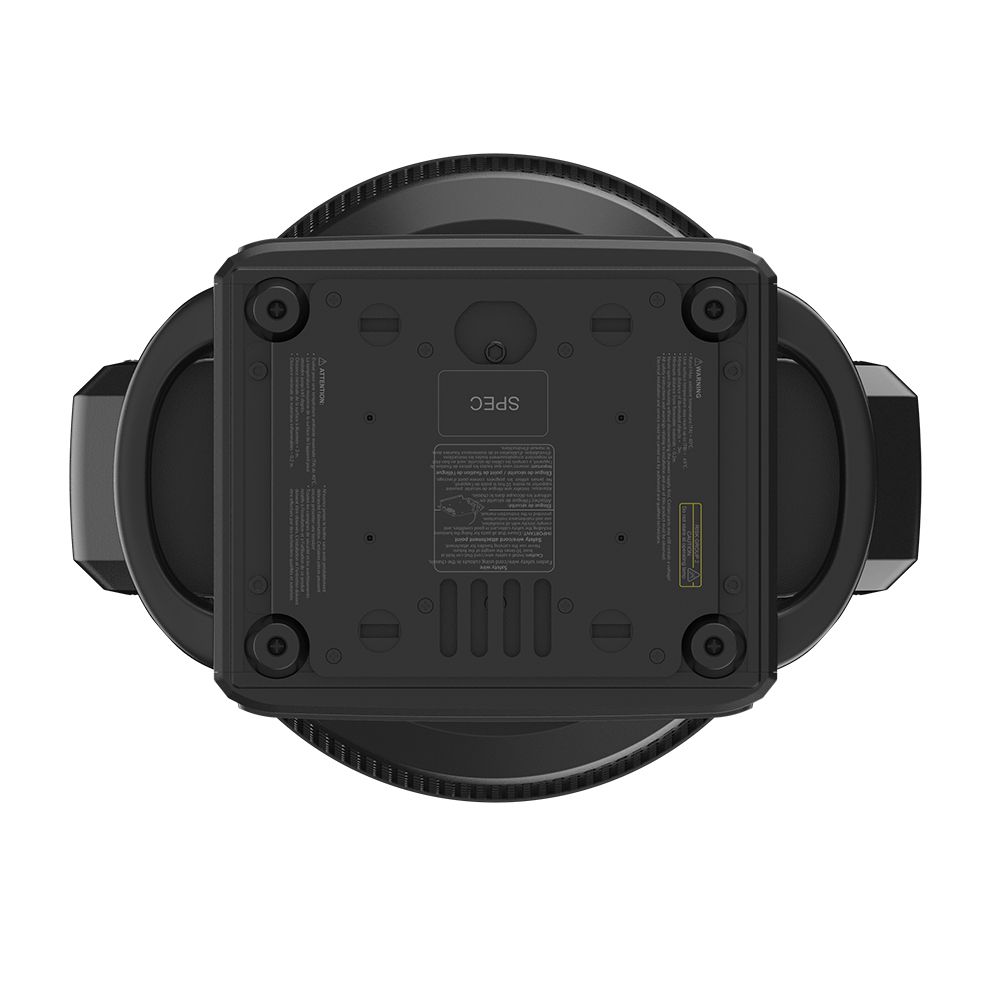

2 pairs of locking points under the base

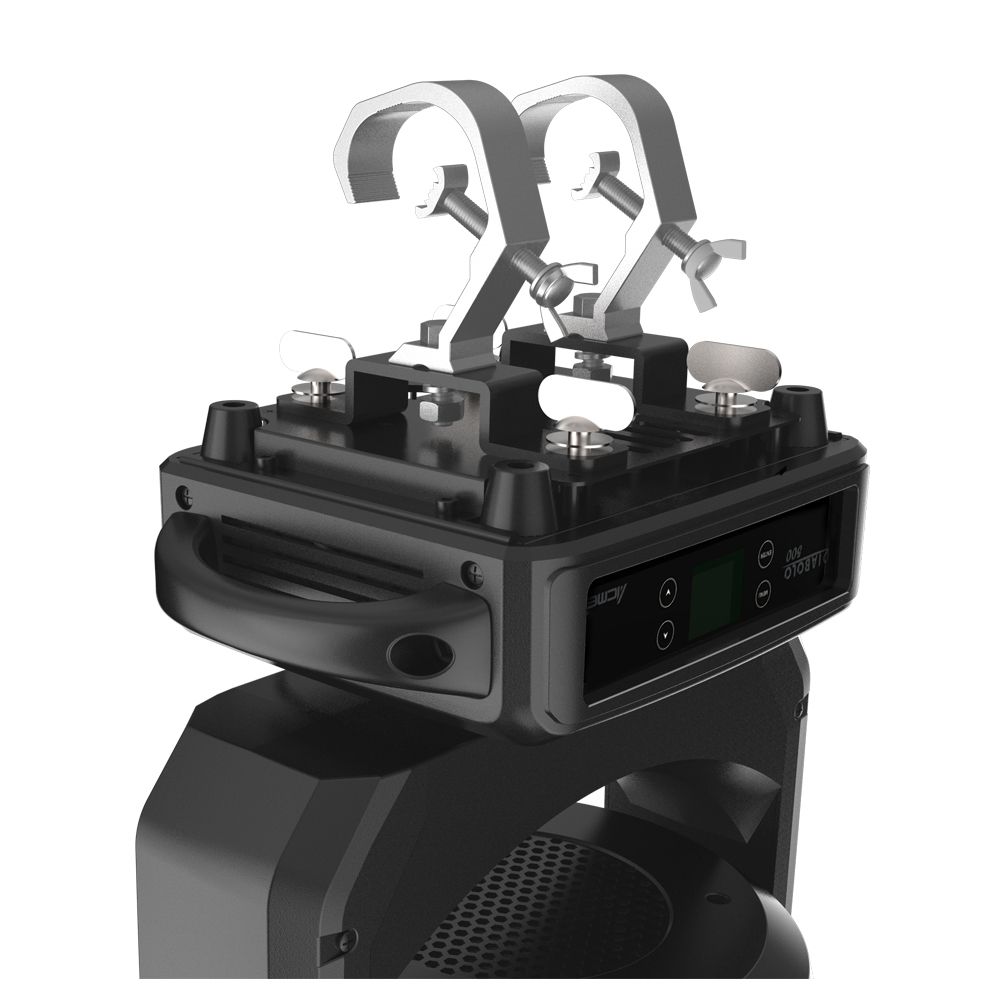

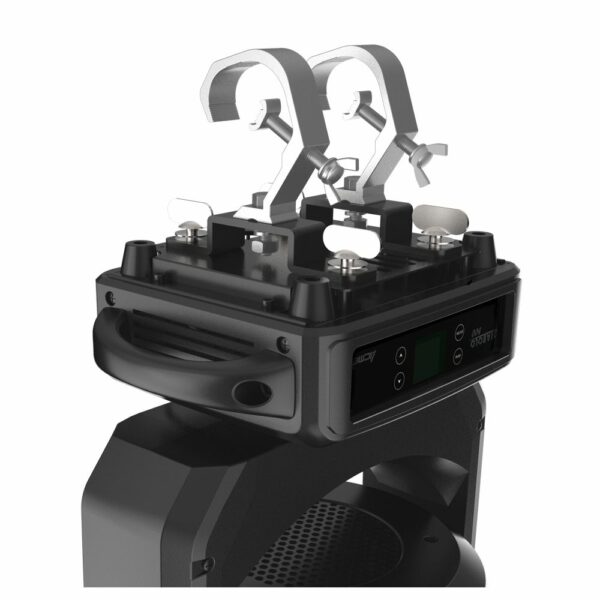

2 x C-100A clamps
Safety cable attachment point
Included items
User Manual
Power Cable
2 x C-100A clamps
Optional Accessories (with item code)
Raincover：3033001749
Clamps：2060001635 (C-100A)
Signal Line：3-pin or 5-pin signal line
Safety cable :2060000200（SW-02）
