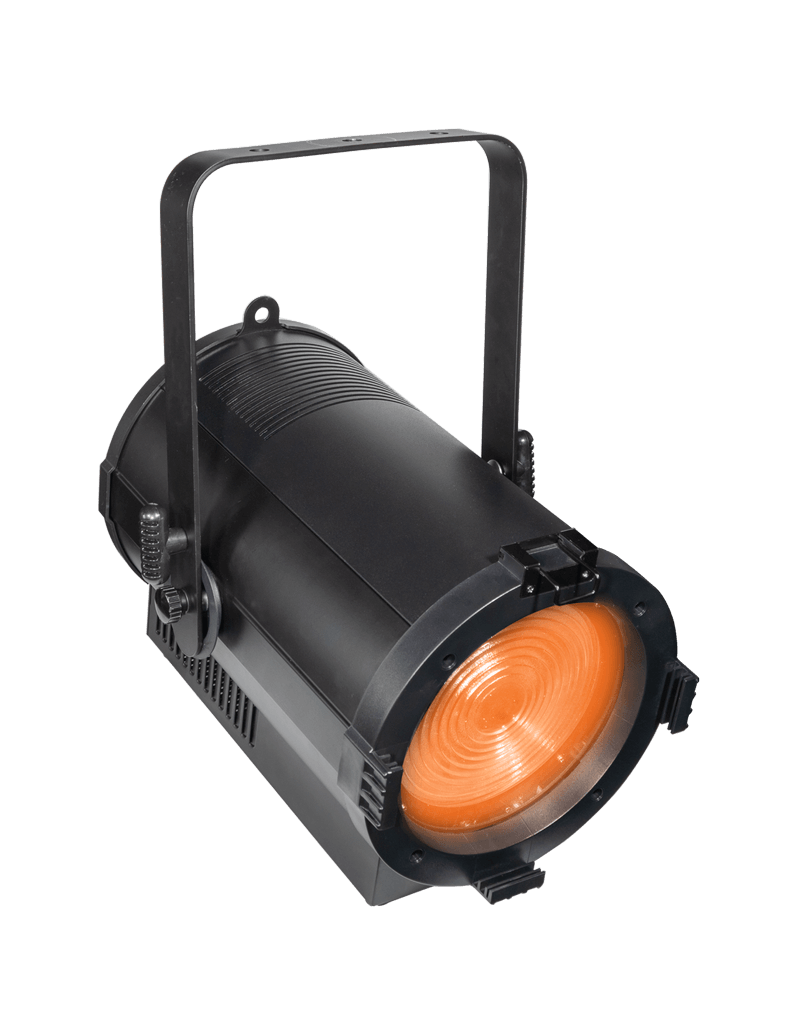

The FRES350FC is a 350W RGBALC powered LED fresnel with zoom function. The RDM-DMX compliant, 20 – 55 degree motorized zoom along with it’s superior color mixing make this fixture a good replacement for the traditional fresnels.
Specifications
Physical
- Size: 460 x 320 x 440mm
- Net Weight: 11 kg(barn door incl.)
- Gross Weight: 13 kg
Control and programming
- Control protocol: DMX, RDM
- DMX channels: 2/8/13
- DMX compliance: USITT DMX512-A
- RDM compliance: ANSI/ESTA E1.20
Optics
- Light source: 350W COB LED
- Color temperature: 3000K ~ 8000K
- Zoom range: 20°-55° motorized zoom
- LED lifetime: 50,000 hours
Construction
- Housing: Aluminum
- Color: Black
- Protection rating: IP20
Installation
- Mounting: Adjustable bracket
- Location: Indoor use only
- Orientation: Any
Connections
- AC power in, thru: IP rate power cable in
- DMX and RDM data in/out: 3-pin locking XLR
Electrical
- AC power: 100-240 V nominal, 50/60 Hz
- Power consumption figures are typical, not maximum. Allow for +/- 10% variation.
Thermal
- Cooling: Heat sink( no noise)
- Maximum ambient temperature (Ta max.): 45° C
- Minimum ambient temperature (Ta min.): -5° C
Approvals: CE
