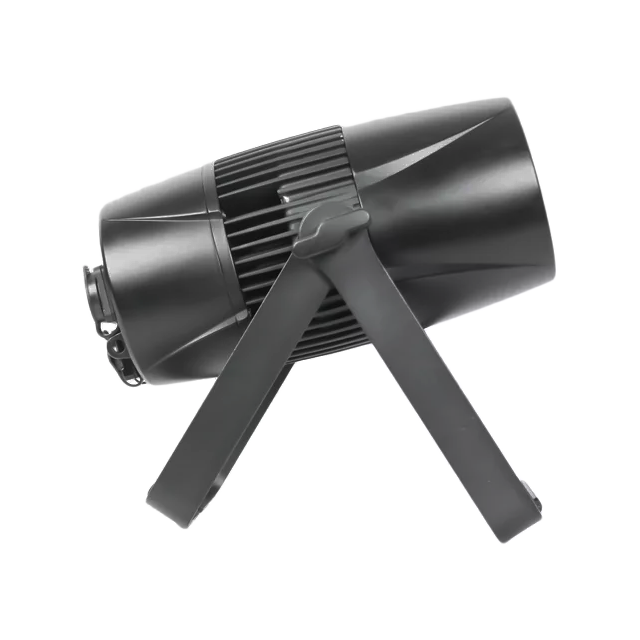

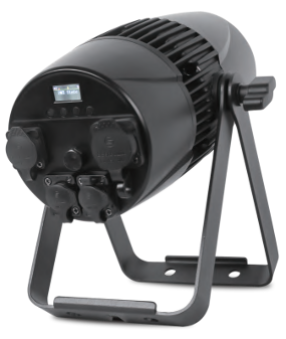

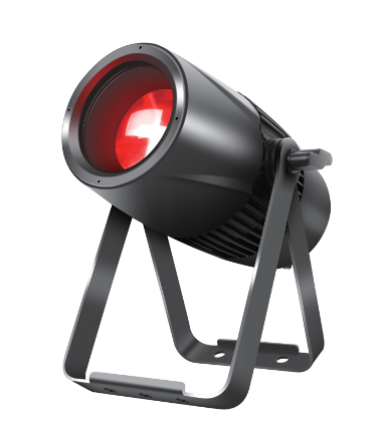

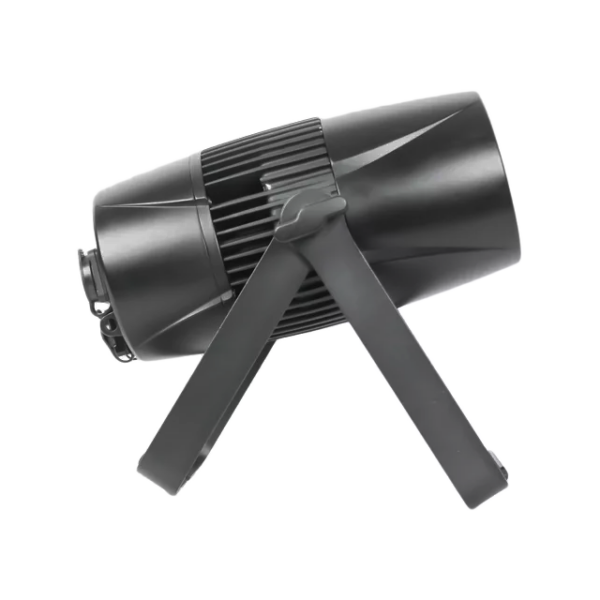

LEDZOOMBABY60 it’s a versatile powerhouse with a 60W RGBW LED source. Its motorized linear zoom goes from 4° to 50°, offering dynamic control.
Featuring high-quality glass lens optics, it ensures clear projection. RGBW color mixing and CCT control via DMX enable endless possibilities. A virtual color wheel with presets, strobing effects (adjustable from 1 to 25 Hz), and a self-charging battery backup enhance its capabilities.
This fixture operates at temperatures from -20°C to +45°C and offers flicker-free lighting with adjustable PWM. With DMX512 and RDM support, it’s customizable with 5/7/11 channel options. The sleek die-cast aluminum body is durable and stylish.
The TFT display simplifies settings, while the 0-100% electronic dimmer offers precise control. LEDZOOMBABY60 – where precision and brilliance meet in a compact, dynamic package.
Specifications
- LED Source: 60W RGBW LED
- Luminous flux: (4°) 777 lm – (50°) 1200lm @full,
- (4°) 3500 lx – (50°) 300lx @5 m full
- Source life expectancy: > 50.000 h
- Zoom: 4° – 50° motorised linear zoom
- Lens type: 90mm, high-quality glass lens optics
- Colour mixing: RGBW
- CCT: CCT control through dedicated DMX channel
- White presets: 2.000 K ~ 8.000K
- Colour wheel: virtual colour wheel with macros
- Static mode: selection of static colour
- Manual mode: manual adjustment of colour
- Body: sturdy die-cast aluminium body, coat sand black
- Protocols: DMX512, RDM
- DMX channels: 5 / 7 / 11channel
- Display: Back TFT display
- Dimmer: linear 0 ~ 100% electronic dimmer, 4 selectable dimming modes available
- Strobe / shutter: 1 – 25 Hz, electronic
- Display battery: self-charging battery backup
- Temperature: -20° ~ +45°
- LED Control: flicker free frequency with adjustable PWM
- Selectable PWM: 600 ~ 25.000 Hz
- Voltage: 100-240V – 50/60Hz
- Max power: 85W
- Output: 22 units on a single power line
- Power factor: > 0,90
- Signal connection: Seetronic XLR 5p IN/OUT connectors
- Power connection: Seetronic powerCON waterproof IN/OUT connectors
- Dimensions: 259 x 347 x 265mm
- Weight: 4,5kg
