AVTech – SPIDERNET8

The SPIDERNET8 Port Node is a reliable and versatile ArtNet-to-DMX adapter designed to expand DMX networks. It allows conversion of Ethernet data into 8 universes of DMX signal. Additionally, it can be used as a DMX Splitter with 2 inputs to 8 DMX signal outputs. It is intended for control of all kinds of lighting products such as conventionals, moving lights, LEDs, video and media via DMX signal. To optimize the performance of this product, please read the user manual carefully before use.

Features

• Supports ArtNet (V4) and DMX
• 8 Universal DMX ports
• 1 x RJ45 TCP/IP 10/100M Ethernet connector
• Artnet to DMX signal conversion
• 2 inputs to 8 outputs DMX Splitter function
• LED indicator for each output
• 16 x 2 digits LCD menu/fuction display
• USB port for fireware updating

Specifications

• Supports ArtNet(ArtNet4) and DMX
• 8 Universal DMX output ports
• 2 RJ45 TCP/IP 10/100M Ethernet connectors
• Artnet to DMX signal conversion
• 2 inputs to 8 outputs DMX Splitter function
• 16 x 2 digits LCD menu/fuction display
• USB port for firmware updating

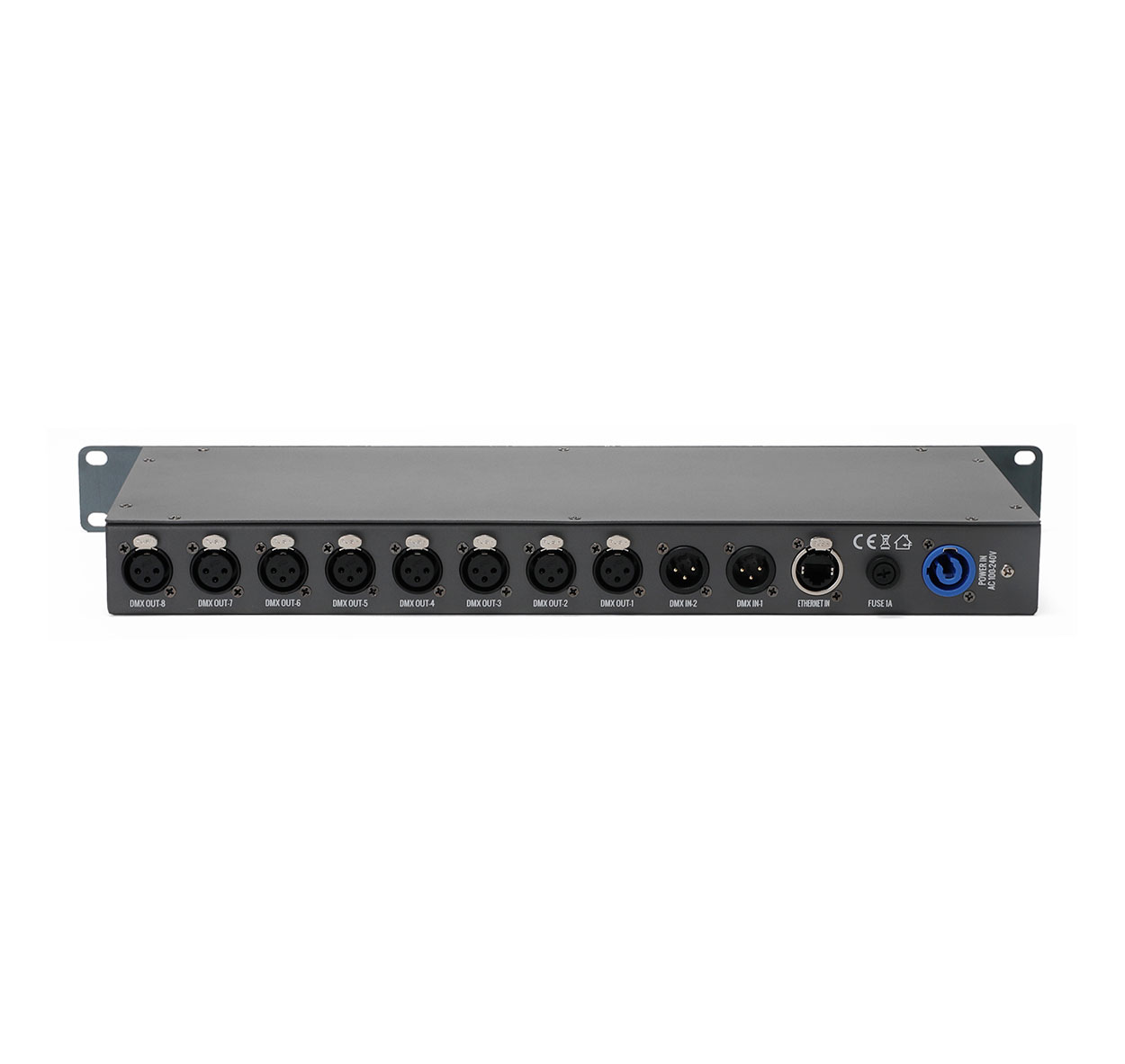

• Data inputs: EtherCon and 3pin XLR In
• Data outputs: 8 x 3pin or 5pin XLR Out
• Data Thru: EtherCon
• Power input: AC 100~240V, 50/60Hz
• Size: 482 x 168 x 44 mm (1U rack mount)
• Weight: 2.0 kg
