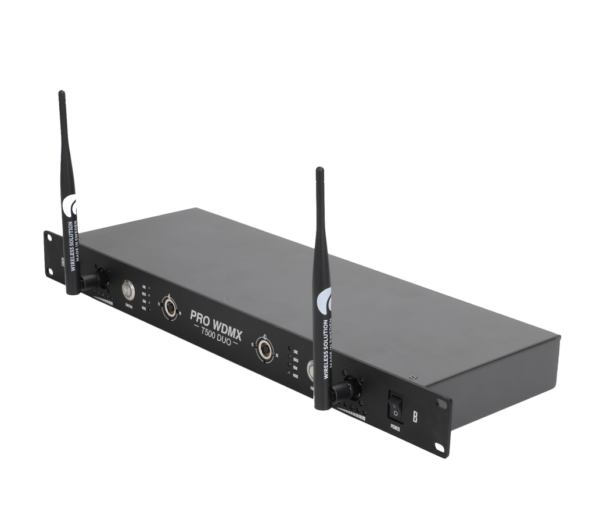

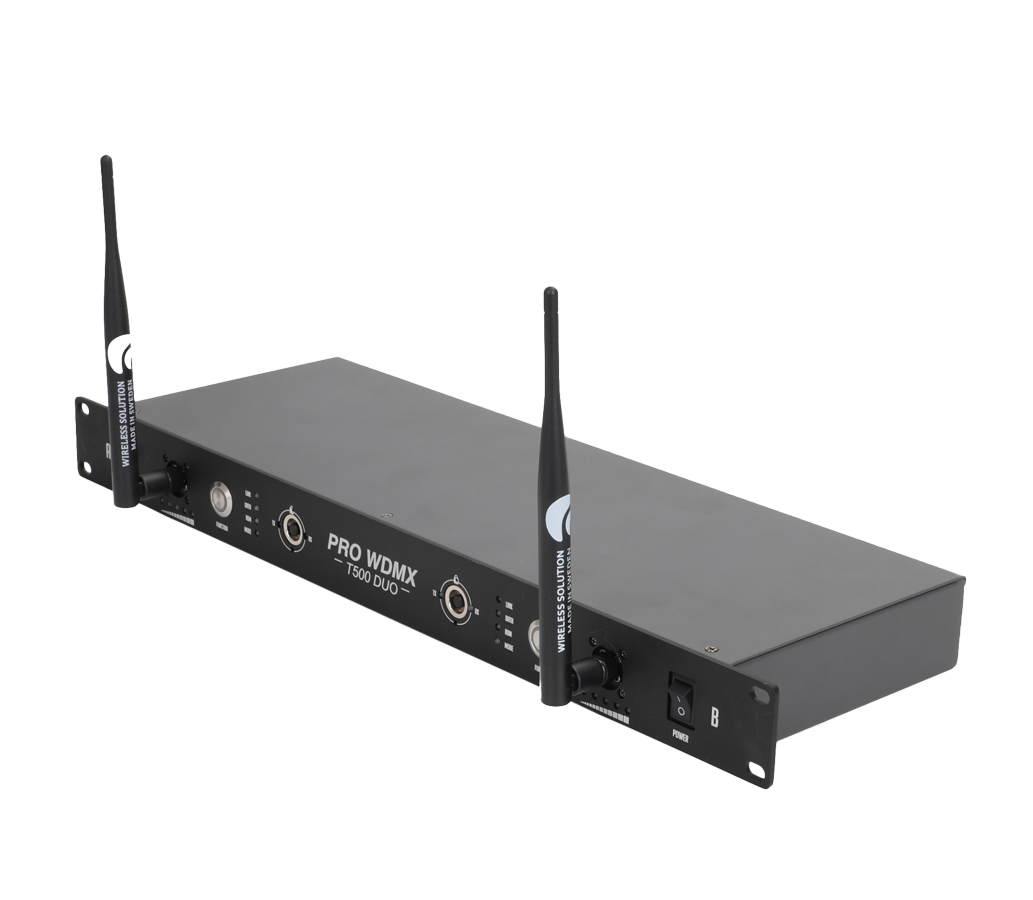

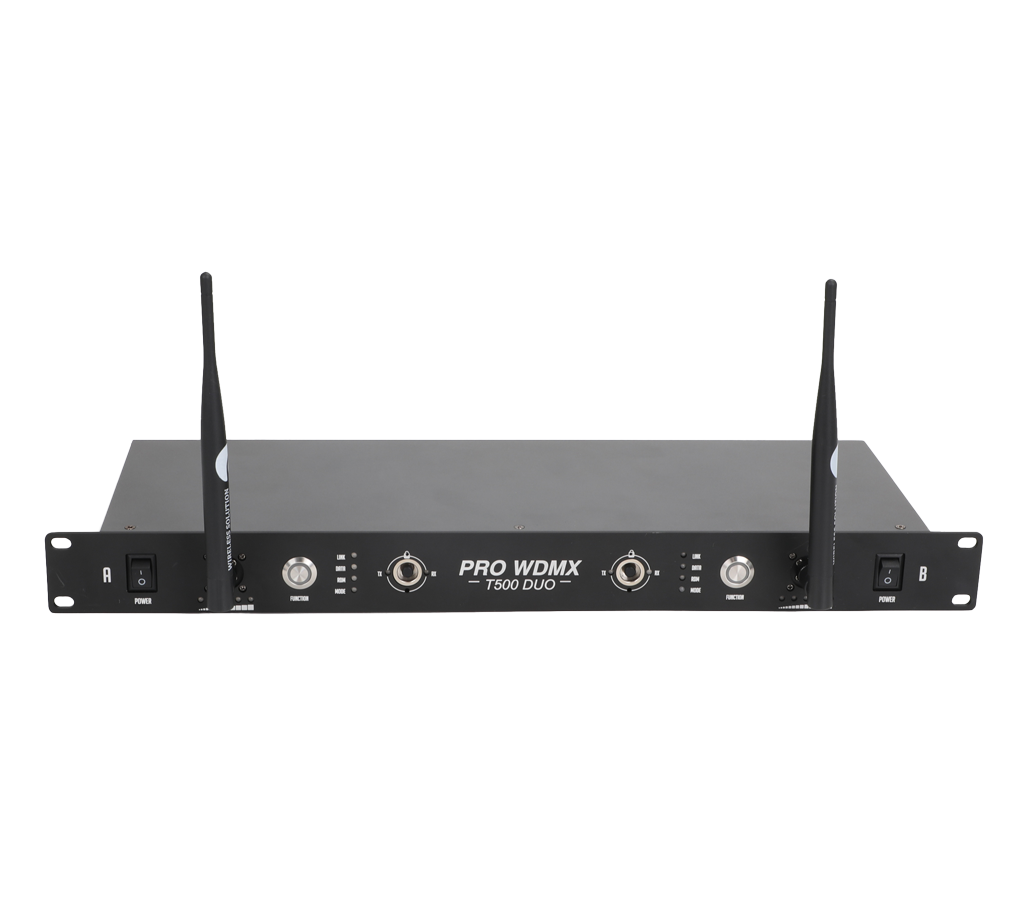

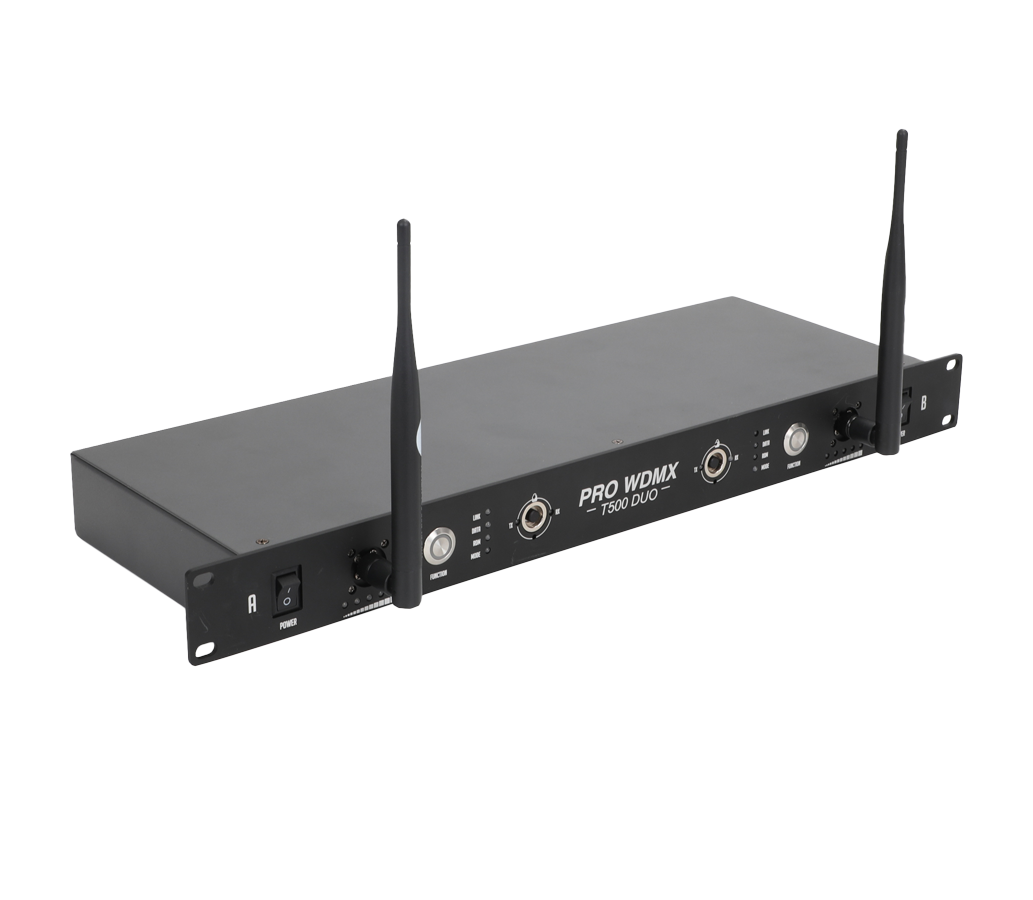

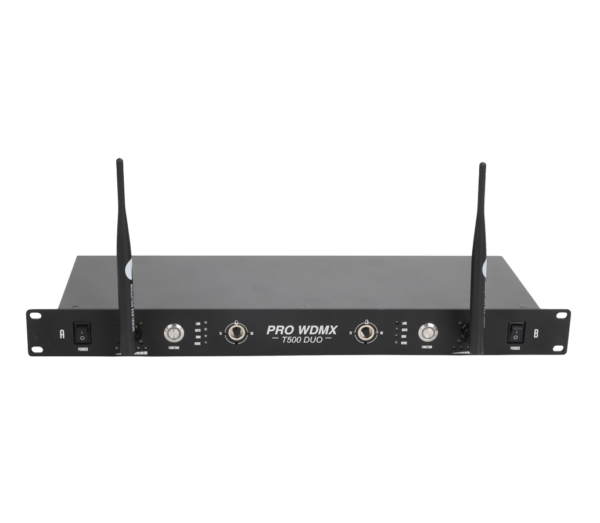

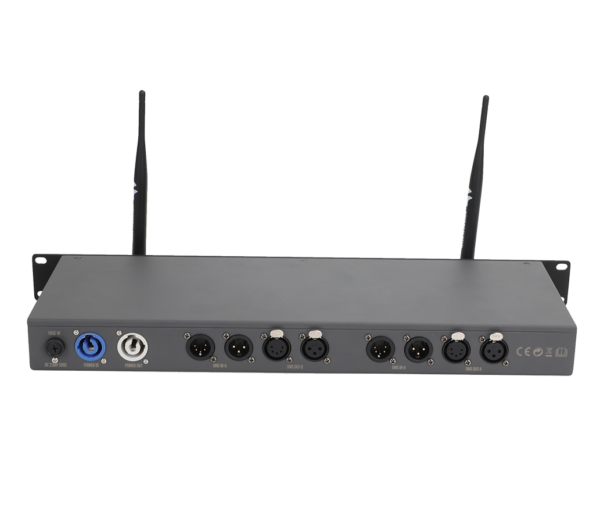

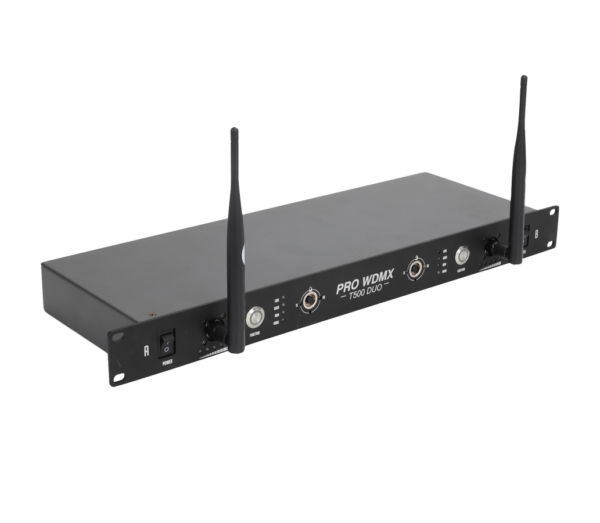

The WDMX T500DUO MK2 is two transceivers with W-DMX unit in one 19″ housing. Built-in support for DMX and RDM. Powered by Wireless Solution G5, the wireless system transmits or receives safe and reliable DMX data with-out any delay and interference. Ideal for large scale tour, mobile applications and rental market.
Specifications
- Operation modes: Transmitter or Receiver
- Wireless card: Original Wireless Solution G5
- Frequency: 2.4 GHz,license free worldwide
- Modulation method: AFHSS
- Control Protocol: W-DMX, RDM
- Number of DMX ch.: 1024
- Universes per device: 2
- Universe in coexistence:16 Max.
- Compatibility: W-DMX G3 &G4S
- DMX Latency: <5 ms
- Antenna type: 5dBi

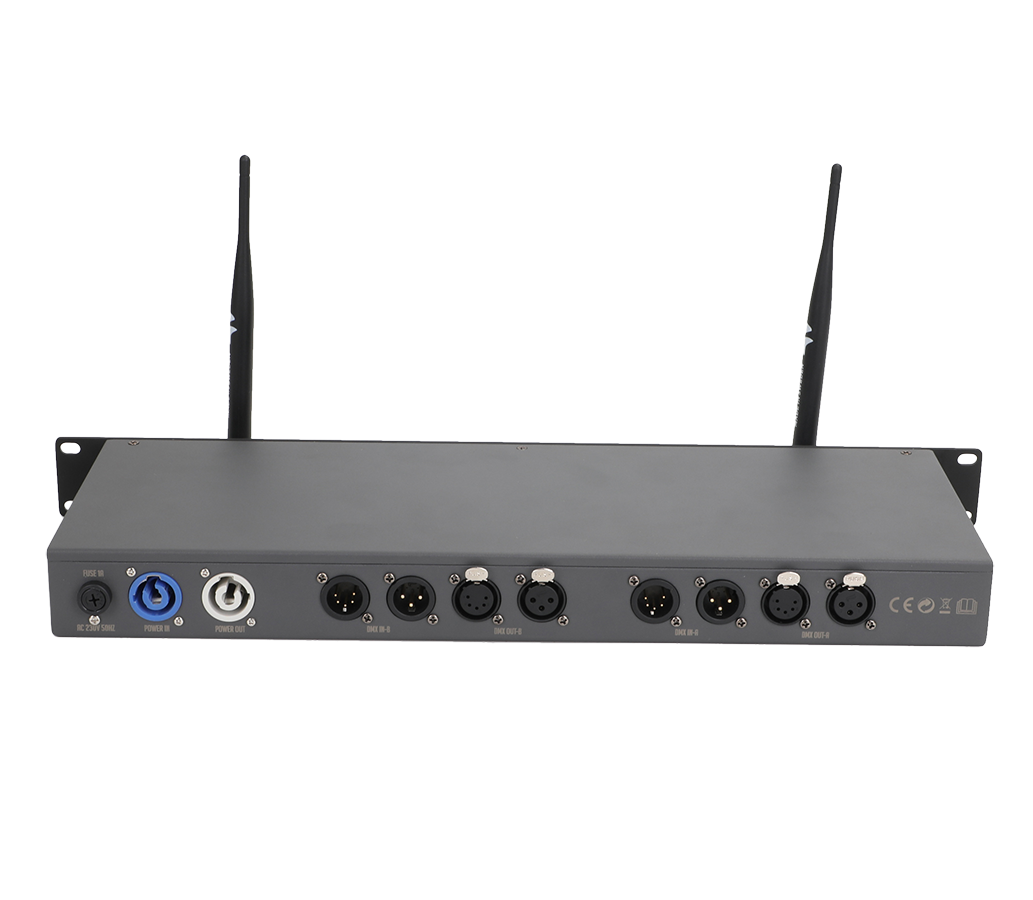

- Signal connector: 3pin or 5pin XLR In/Out
- Power connector: Powercon In and Out
- Working range: 500m (line-of-sight)
- IP rating: IP20 for indoor use only
- Mounting: Rack or Truss mounting
- Dimensions (LxWxH): 482 x 147 x 44 mm
- Weight: 3 kg
- Certification: CE
