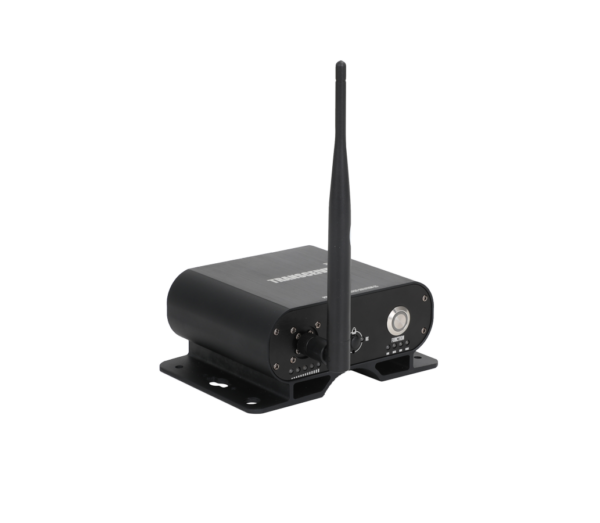

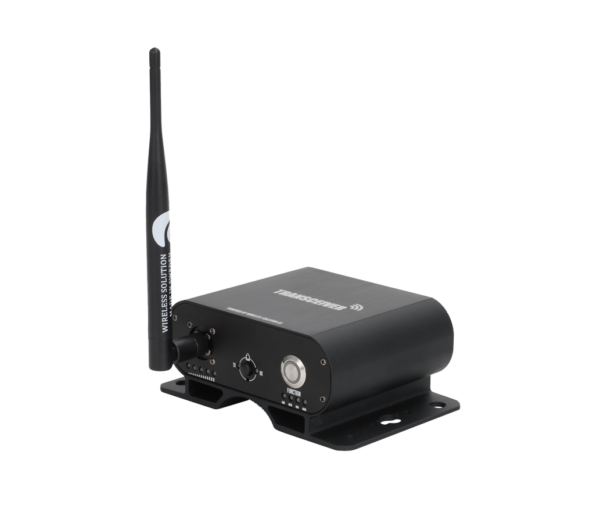

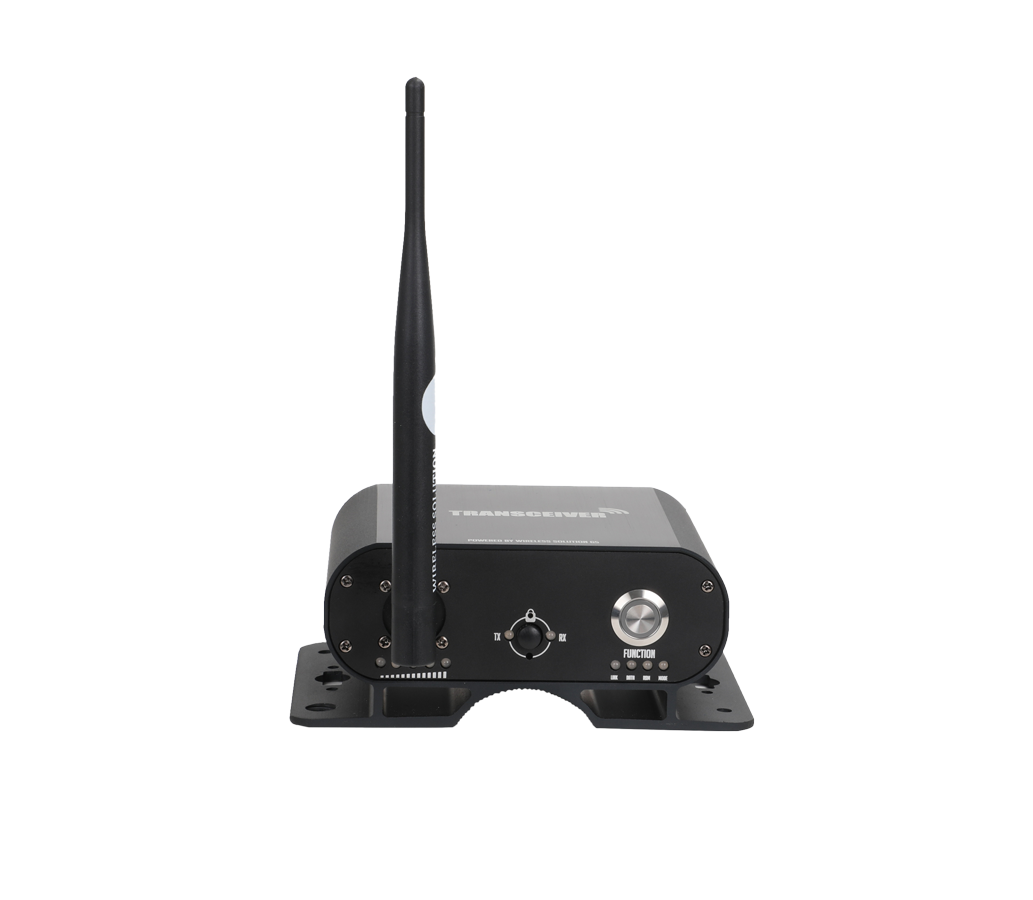

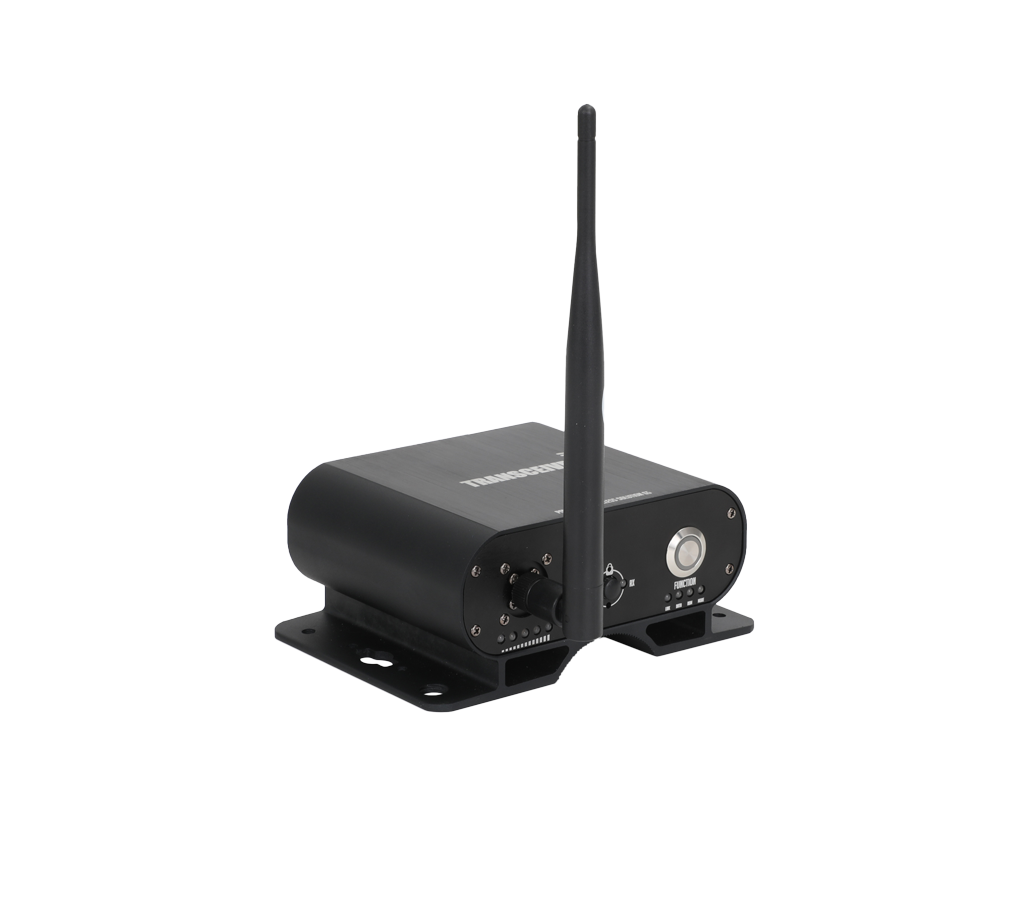

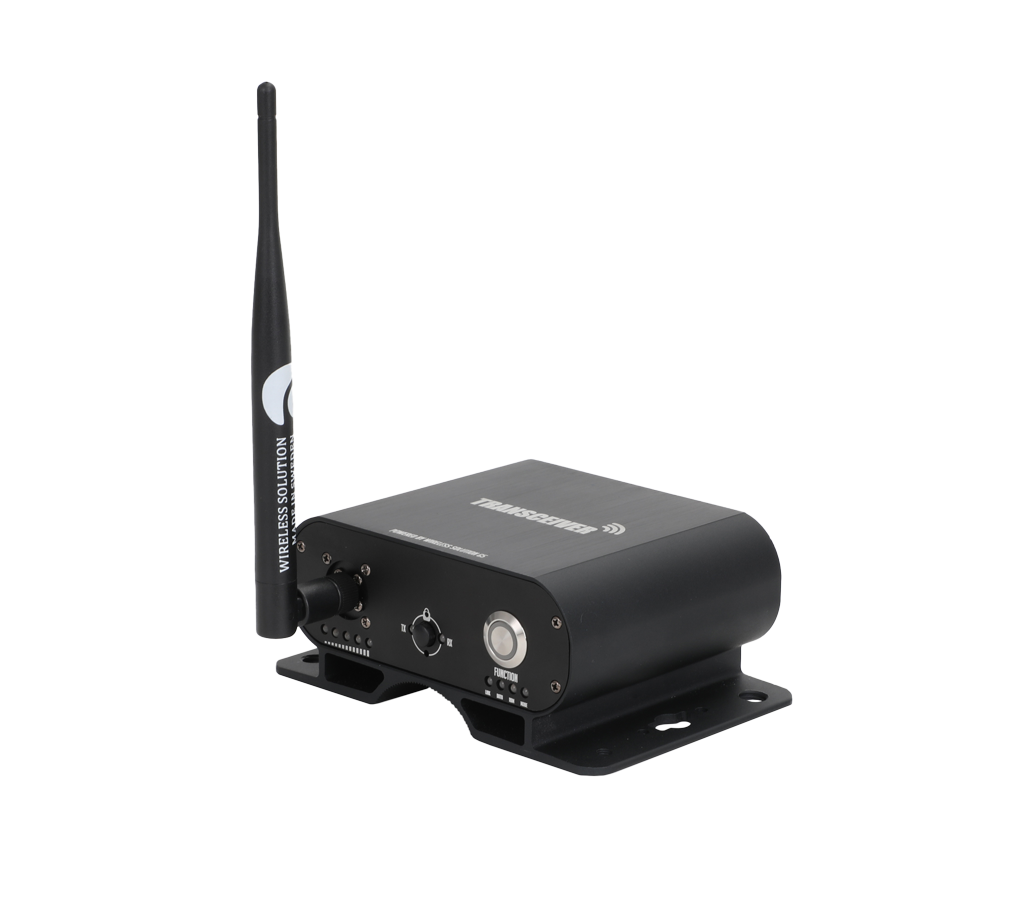

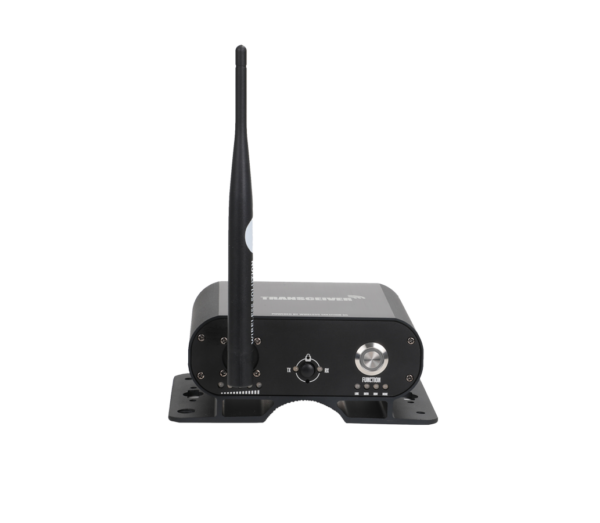

The WDMX T500 MK2 is upgrade transceiver of WDMX T500. Built-in support for DMX and RDM. Powered by Wireless Solution G5, the wireless system transmits or receives safe and reliable DMX data without any delay and interference. Ideal for large scale tour, mobile applications and rental market.
Specifications
- Operation modes: Transmitter or Receiver
- Wireless card: Original Wireless Solution G5
- Frequency: 2.4 GHz,license free worldwide
- Modulation method: AFHSS
- Control Protocol: W-DMX, RDM
- Number of DMX ch.: 512
- Universes per device: 1

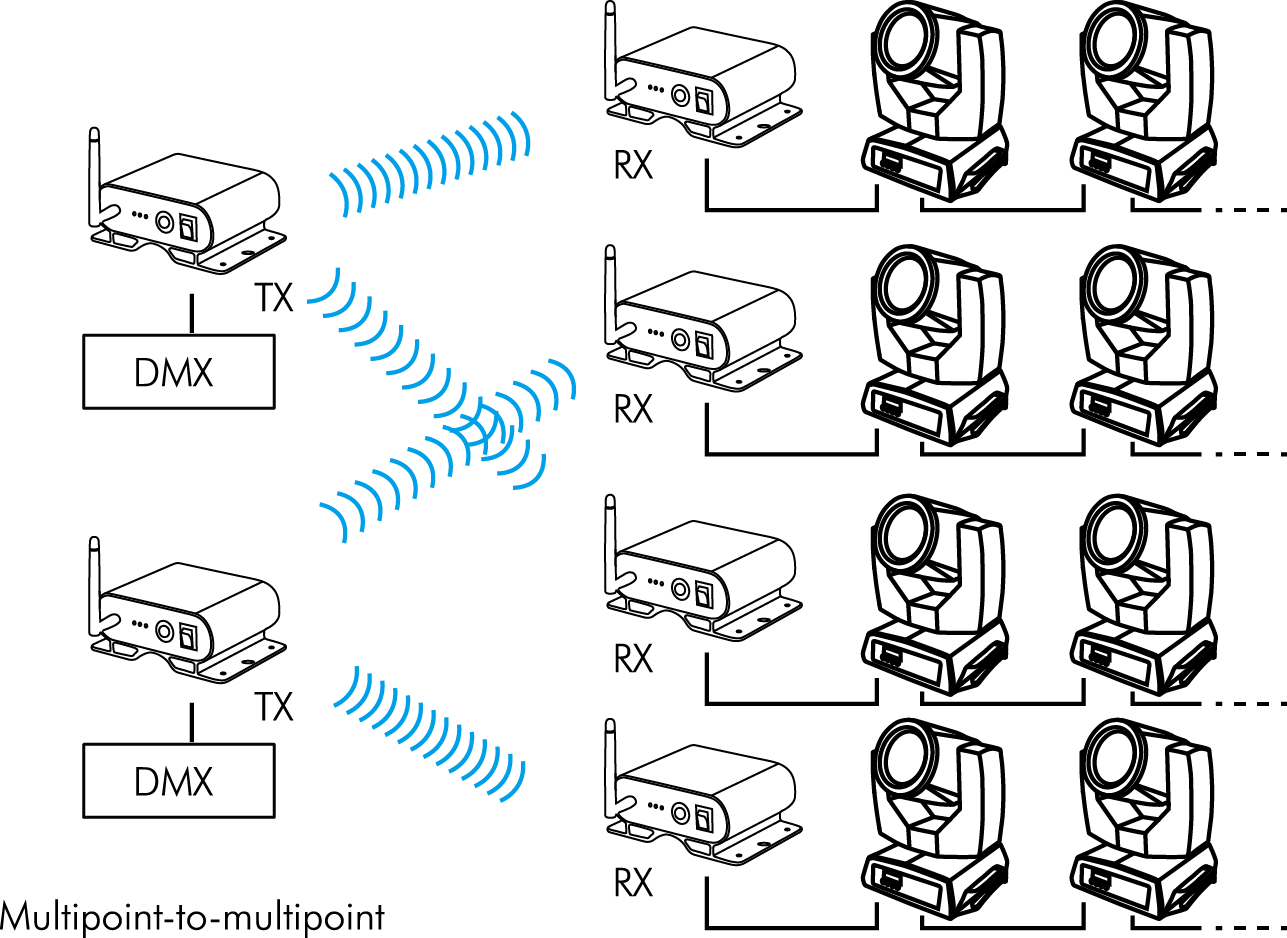

- Universe in coexistence: 16 Max.
- Compatibility: W-DMX G3 &G4S
- DMX Latency: <5 ms
- Antenna type: 5dBi

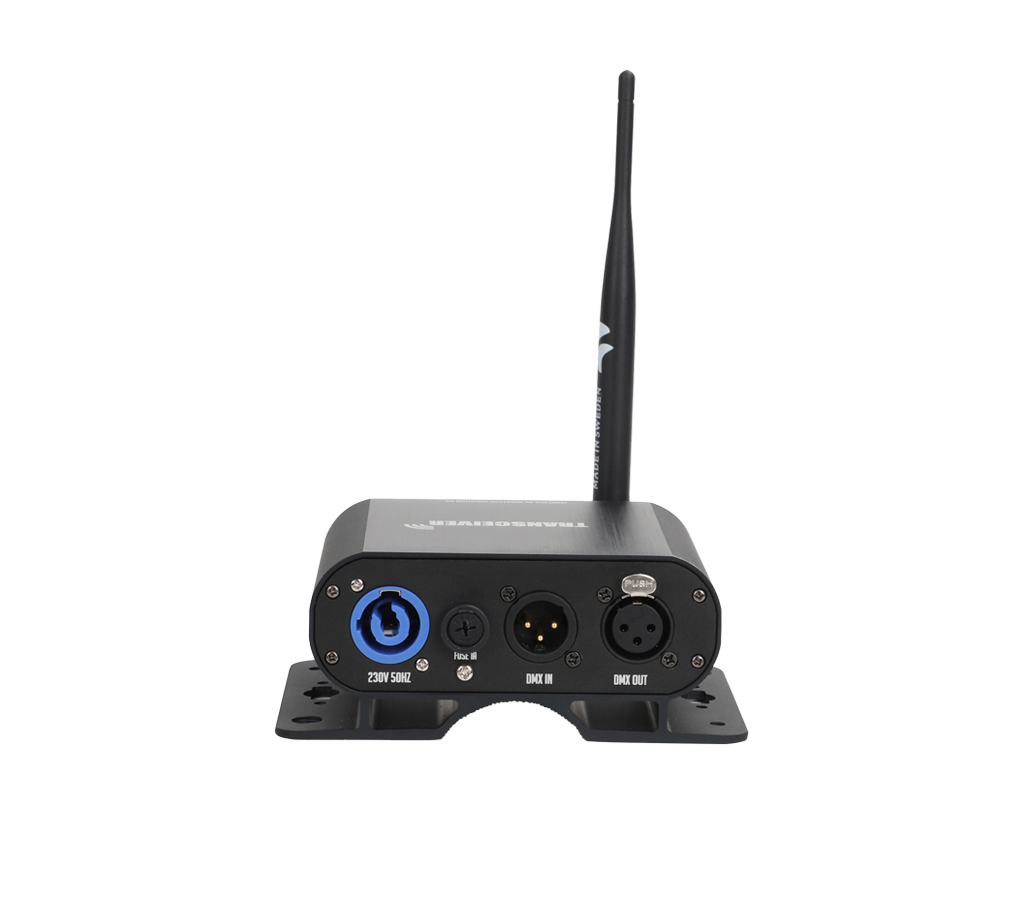

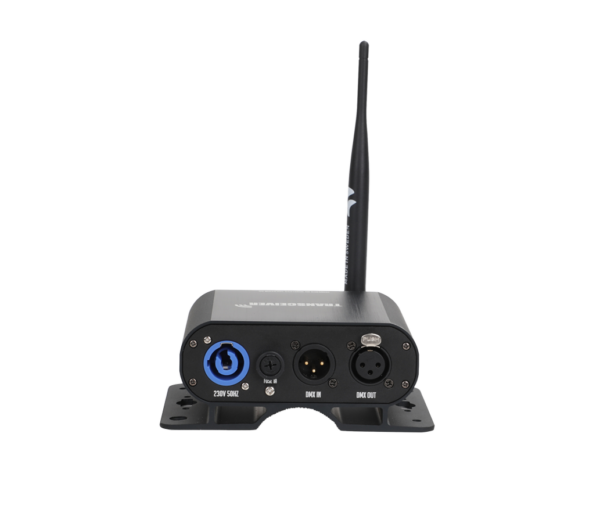

- Signal connector: 3pin or 5pin XLR In/Out
- Power connector: Powercon In
- Working range: 500m (line-of-sight)
- IP rating: IP20 for indoor use only
- Mounting: Truss mounting bracket included
- Dimensions (LxWxH): 145*100*57 mm
- Weight: 120 kg
- Certification: CE
