OPTICS
LED: 1pcs
Multi Color (Quad): RGBW
Optional:
– Full White LED (FW): 2700K,3000K,3500K,4000K,4500K,5000K,5700K,6500K
– Tuneable White LED (TW): 3000K-6500K
Output(10°): 526lm(FW，CRI80); 416lm(TW); 338lm(Quad)
CRI(FW version): 90,80,70
LED life span: ≥50,000hrs
Beam angle: 10°,12°,15°,25°,30°,60°,20°x65°,etc.
Dimming: linear 0-100%
Optional accessory:
Visor (5.05.01.99.0392), snoot(5.05.01.99.0393), snoot wide(5.05.01.99.0394), honeycomb louvre(5.03.01.01.2143-A-N0)
MECHANICS
Dimension: 126x106x154mm
Weight: 0.82kgs
Lens material : PMMA + anti-UV lens
Mounting: floor, ceiling or wall mounting (adjustable bracket)
ELECTRONICS
Power: 12W
Power factor: >0.5,CCS auto calibrating
Components: integrated driver and power supply
Connector: 8 pin power+DMX integrated cable + IP68 connector
Power: AC 100-277V 50/60Hz
Electronic accessory: plug, leader cable
SOFTWARE
Control: DMX512 /RDM (wireless/DALI/ 0-10V available on request)
DMX channel: FW ( 1ch) ,TW ( 2chs ) ,RGBW(4chs)
ENVIRONMENT
Ta:-20℃to +45℃
Anti-condensation system: optional
Corrosion resistance: optional for marine environment
Passive cooling: die cast aluminum housing
Compliance: IK08，IP66，Class I

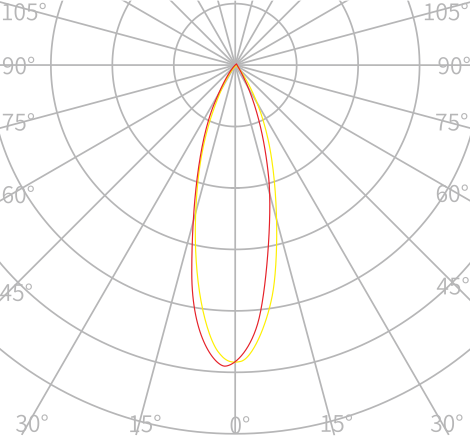

Photometrixs (0 KB)
