Technical data
- Power consumption: 190
- Power supply voltage: 85-265V
- Voltage frequency: 50/60Hz
- Diode type: 4in1
- Diode power: 10W
- Display: Color LCD
- Number of diodes: 19
Utility data
- Color: RGBW
- Color rendering index (CRI): 78,9
- Beam angle (min): 25°
- Beam angle (max): 25°
- Dimming: Linear: 0 – 100%
- Flash frequency (min): 1Hz
- Flash frequency (max): 9Hz
- Number of DMX channels: 12/32
- DMX standard: DMX 512
- Control interface: 4 buttons

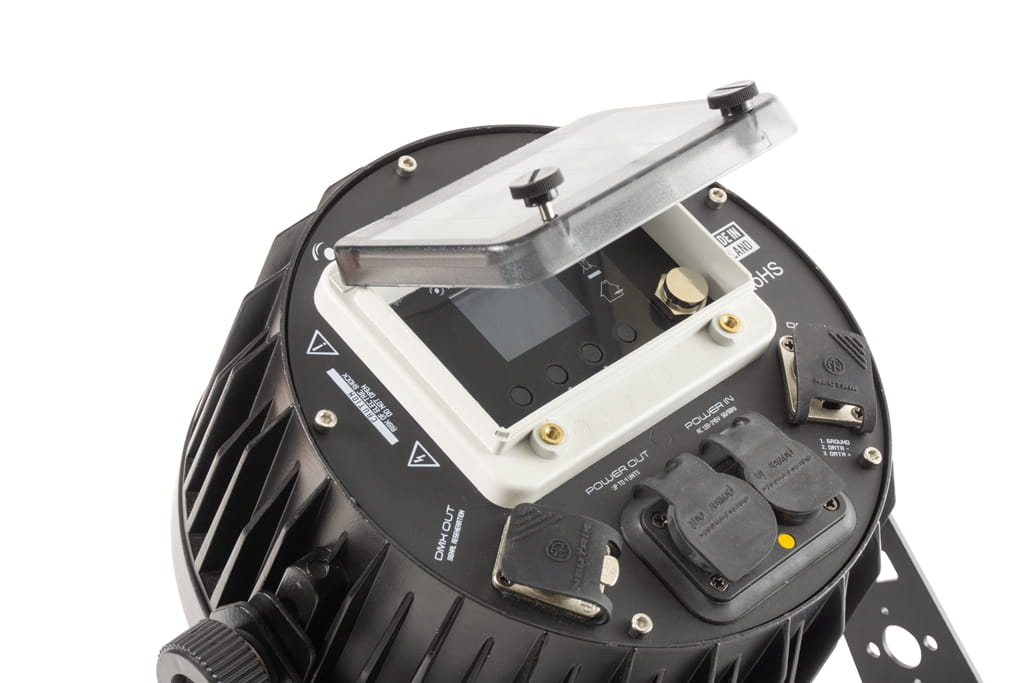

Interfaces
- AC IN: PowerCON True1
- AC OUT: PowerCON True1
- DMX IN: XLR – 3 pin
- DMX OUT: XLR – 3 pin
Physical characteristics
- IP Rating: IP65
- Housing made: Aluminum
- Cooling: Passive
- Height [cm]: 29
- Width [cm]: 29
- Depth [cm]: 17
- Weight [kg]: 4,4
- Weight with packaging [kg]: 5
- Type of packaging: Carton Box
