Technical data
- Power consumption: 200W
- Power supply voltage: 100 – 245V
- Voltage frequency: 50/60Hz
- Diode type: COB
- Diode power: 200W
- Display: LCD Matrix
- Number of diodes: 1
Utility data
- Color: White
- Beam angle (min): 37°
- Beam angle (max): 37°
- Dimming: Linear: 0 – 100%
- Flash frequency (min): 1Hz
- Flash frequency (max): 20Hz
- Number of DMX channels: 2
- DMX standard: DMX 512
- Control interface: 4 buttons
- Operating modes: DMX512, Strobe, Sound-controlled, Manual
- Features: DMX Signal regeneration, Electronic protection against overheating
- Additional information: Sound controlled strobe mode (available from the menu)

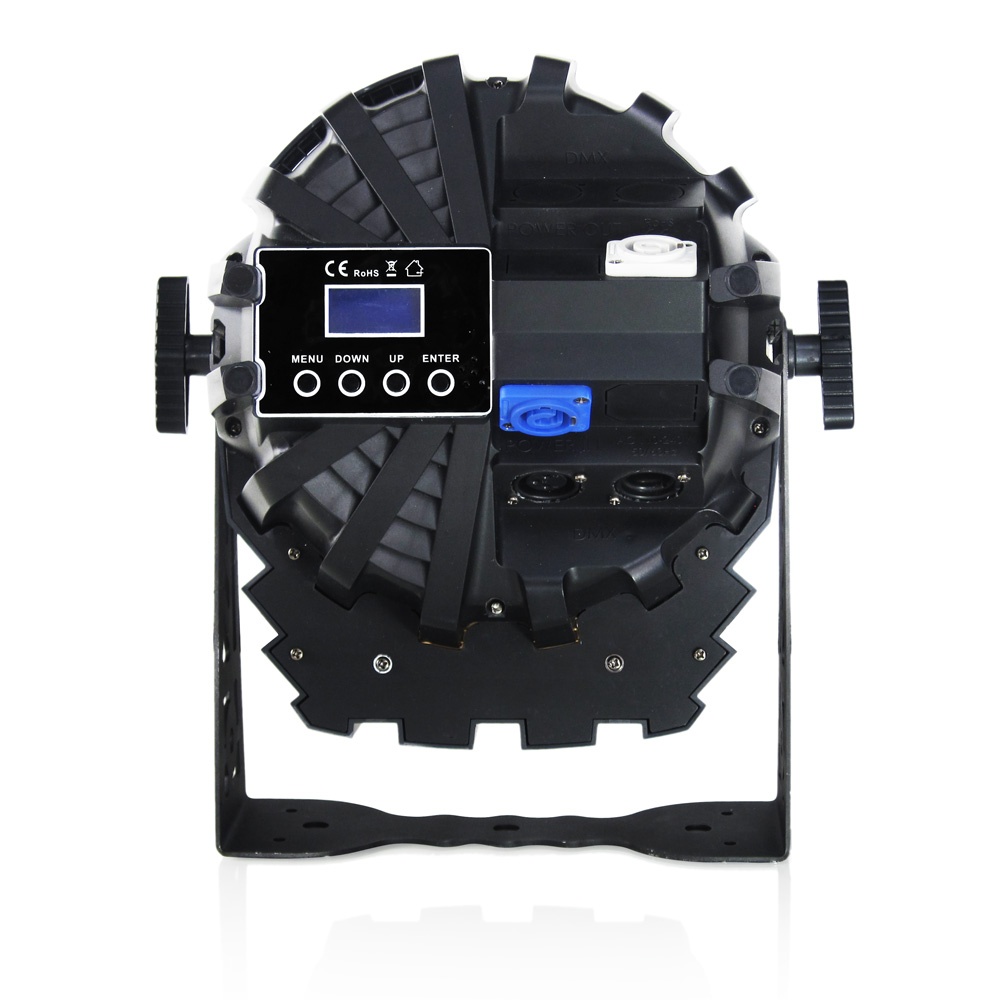

Interfaces
- AC IN: powerCON
- AC OUT: powerCON
- DMX IN: XLR – 3 pin
- DMX OUT: XLR – 3 pin
Physical characteristics
- IP Rating: IP20
- Housing made: ABS
- Cooling: Active
- Height [cm]: 27
- Width [cm]: 30
- Depth [cm]: 21
- Weight [kg]: 2,9
- Weight with packaging [kg]: 4
- Type of packaging: Carton Box
