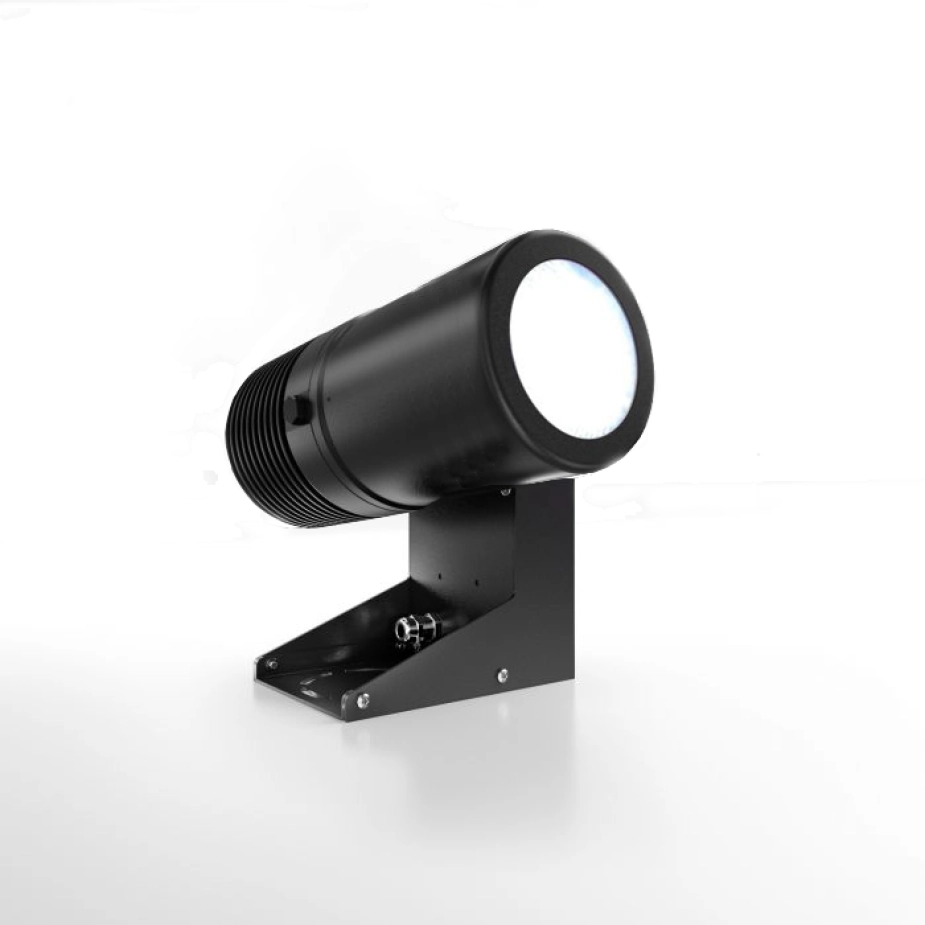

OLINE 80 High Power LED Line Projector

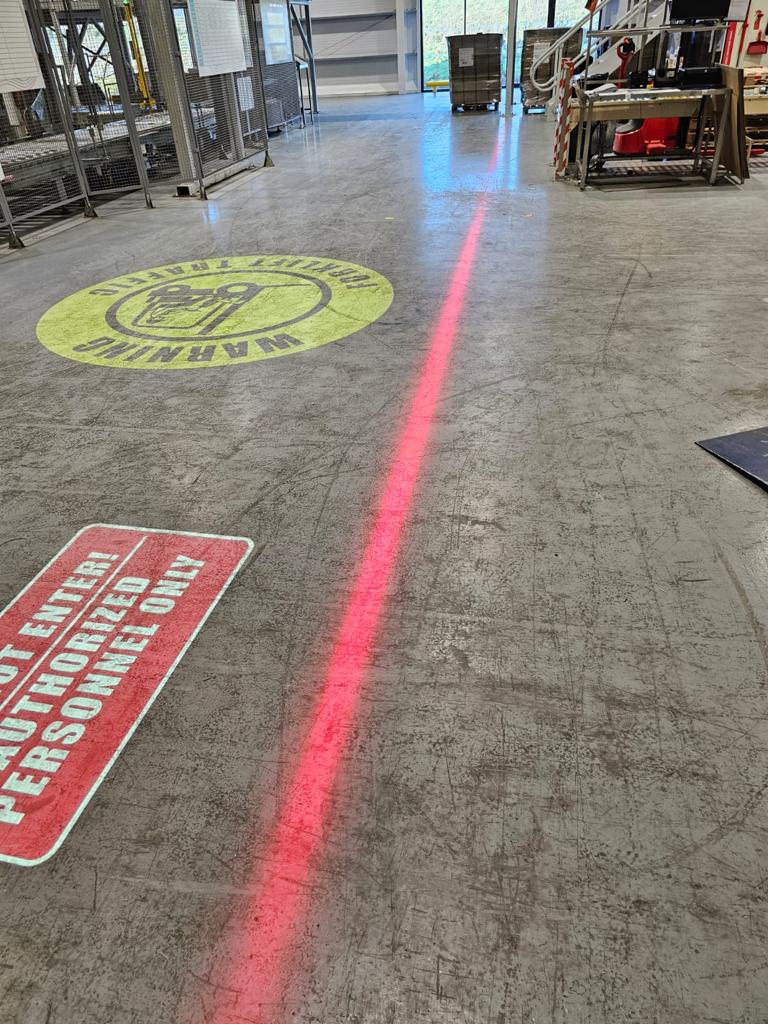

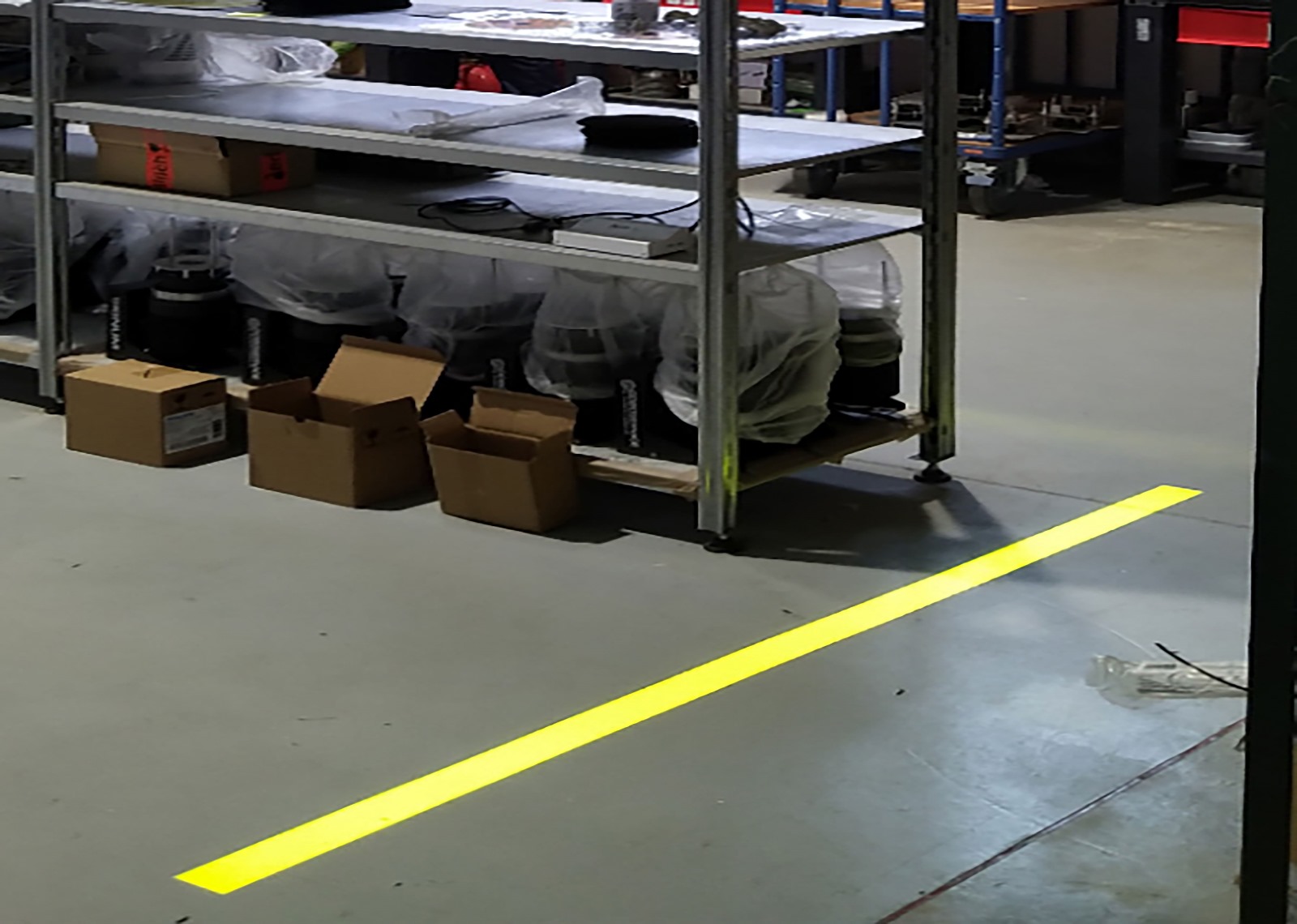

Projects a thick, permanent floor line that eliminates the need for maintenance required by floor tape and paint lines.
– Designed for Industrial Environments – Wide power range
– Wide temperature range
– Maintenance free, no fans or motors – Adjustable line length option
Item Codes: EL-80 Yellow, EL-80 Green, EL-80 Blue, EL-80 Red, EL-80 Orange
Power Supply: 100-240/277VAC, 50/60Hz (Volt.Range: 90-305VAC, 48-63Hz; 127-431VDC)
Power Draw: 80W, 0.7A/115V, 0.3/277V
Inrush Current: COLD START 75A (t width=570us at 50% I peak) at 230VAC per NEMA 410
Units per Breaker: Power Cord: 20A Type C: 11 units, 16A Type C: 9 units
Power cord:Length: 72” (1.8m), Plug: Nema 5-15 (cord is interchangeable)
Control Input Signals: 1-10V, 10-100KOhm, PWM, Dry Switch (for on/off or dimming)
Environmental Rating: Driver: IP67, Projector: IP65
Safety Standards: Driver: EC: EN IEC 60598-1:2021, N IEC 60598-2-1:2021, Driver: UL E334687 Meanwell HLG or MOSO
Temperature Range: -13°F to 104°F (-25°C to 50°C)
Lamp Type: 80W LED, multiple colors
Rated Life: LED: 35,000h (L70*), Driver: 192,000h brightness loss) (*L70= the time to 30%
Projection Colors: Yellow, Green, Red, Blue,Orange (colors are pre-configured and not interchangeable)

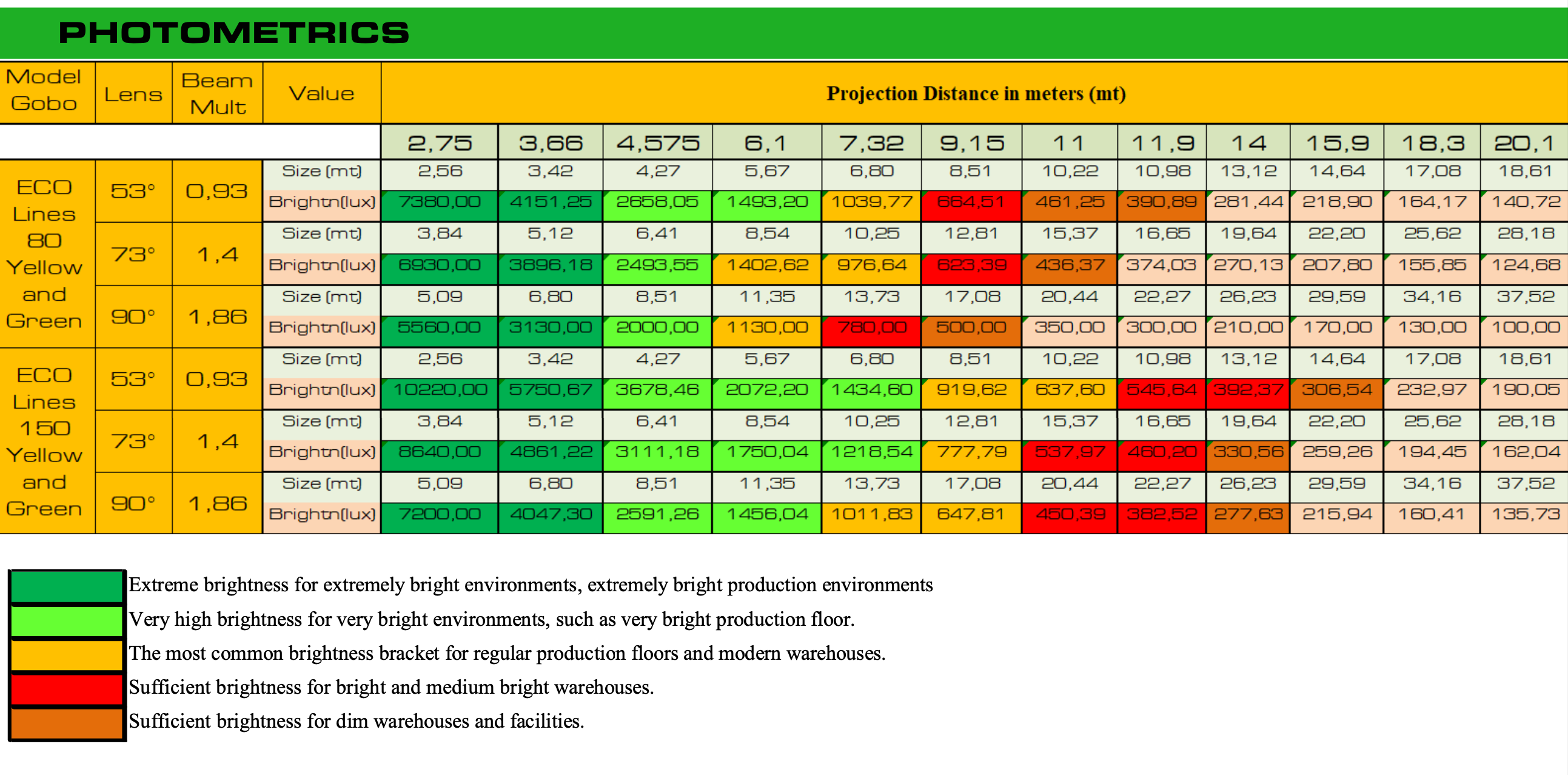

Line Width: 75 to 125mm depending on projection distance
Projection Lenses: 53° (1:0.93 throw ratio) 73° (1:1.4 throw ratio) 90° (1:186 throw ratio)
Specsheet (455.663 KB)
