Source:
– 700W LED ARRAY
– Source life expectancy: > 50.000 h
– Note: for Luminous flux and Colour rendering refer to the table at the end of this document
CONTROL
– Protocols: DMX512, RDM (DALI optional)

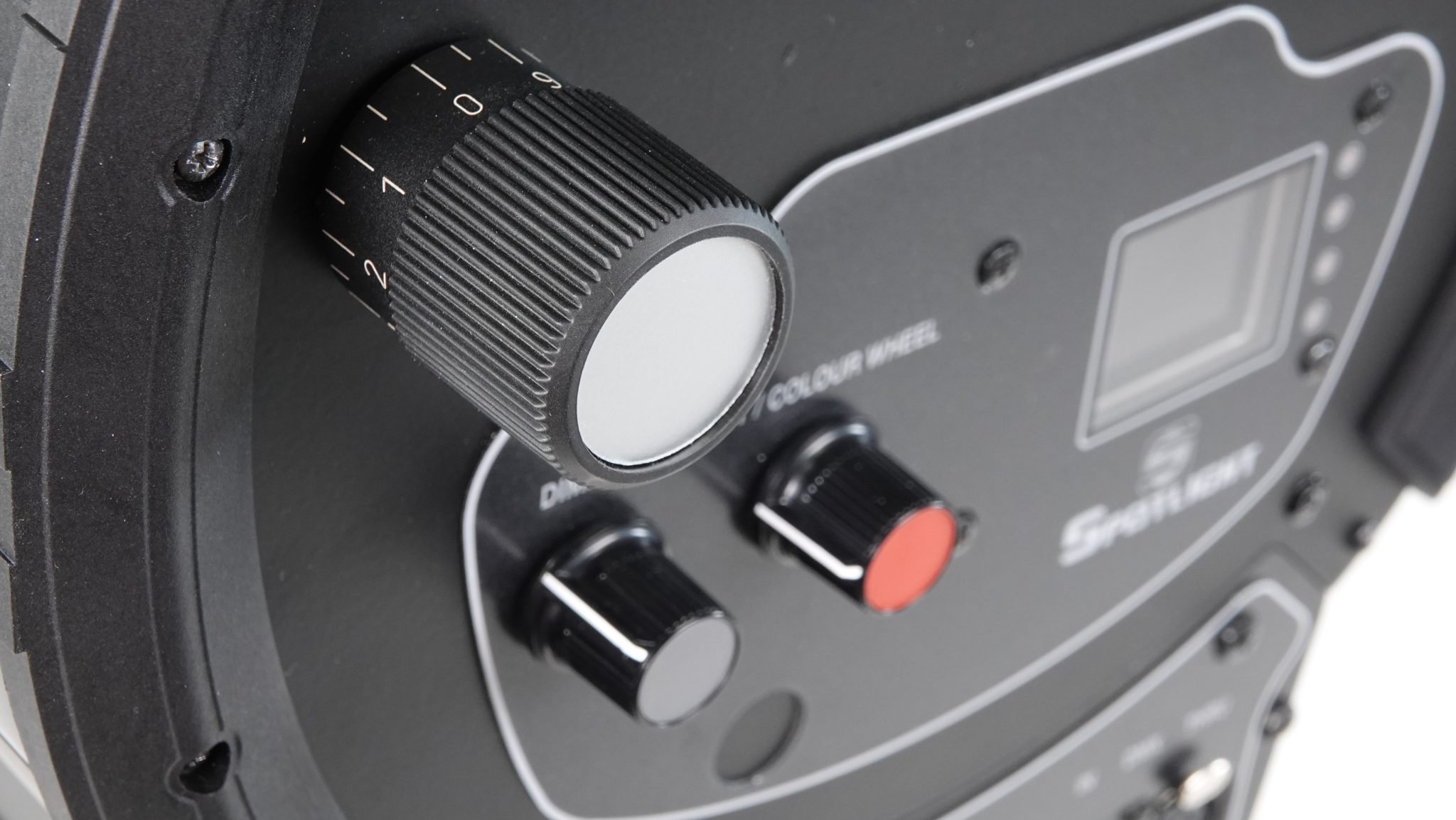

– Local potentiometer
– Reversible graphics display with standby-shutdown function
– Wireless ready
OPTICS
– 250mm High-quality glass lens optics
– Focus: manual
– Gobo size: B
– Note: for Beam angles refer to the table at the end of this document
HOUSING
– Highly resistant body in extruded aluminum
– Finishing: Black
– IP 20
CONNECTION

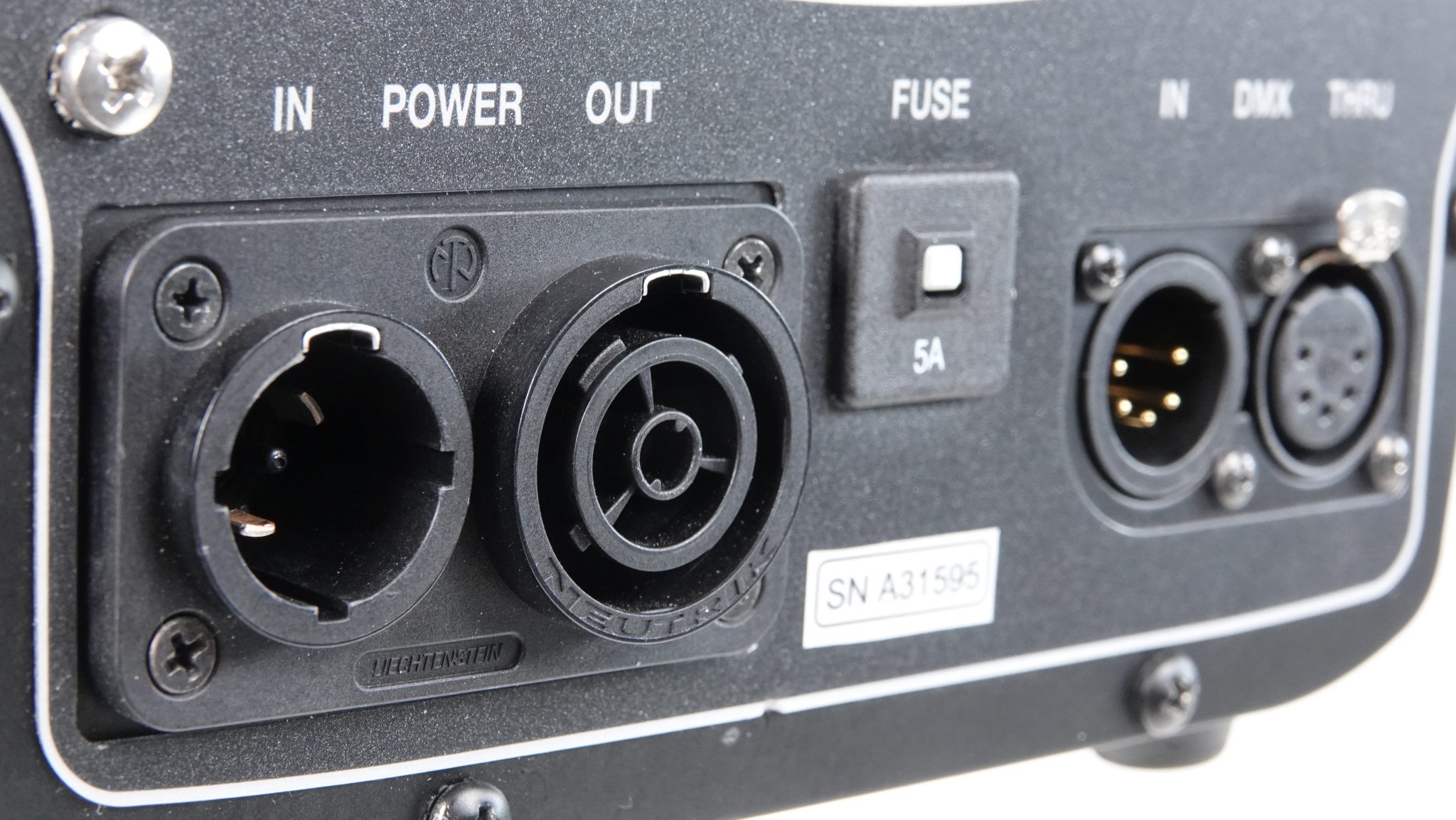

– Power connector: Chassis PowerCON TRUE1 In/Out
– Additional cable: 2m H05RN-F cable with powerCON TRUE1 female cable connector
– DMX: XLR 5-pole In/Out panel connectors
COMPLIANCE
– CE
– EN 60598-1; EN 60598-2-17
– SSL Licensing Program
– Manufactured in Italy with Quality System ISO 9001:2015
SOFTWARE FUNCTIONS
– ESD: 8 or 16bit extra soft dimming
– 3 selectable dimmer curves
– Adjustable delay in turning on and off
– PWM LED 500Hz-20KHz
– Service channel
– Stand-alone
– Master Slave
– Hour-counter on single LED
– Storage and factory recovery
– Upgradable Firmware via DMX/USB tool
– Advanced remote settings for all parameters via DMX
THERMAL MANAGEMENT

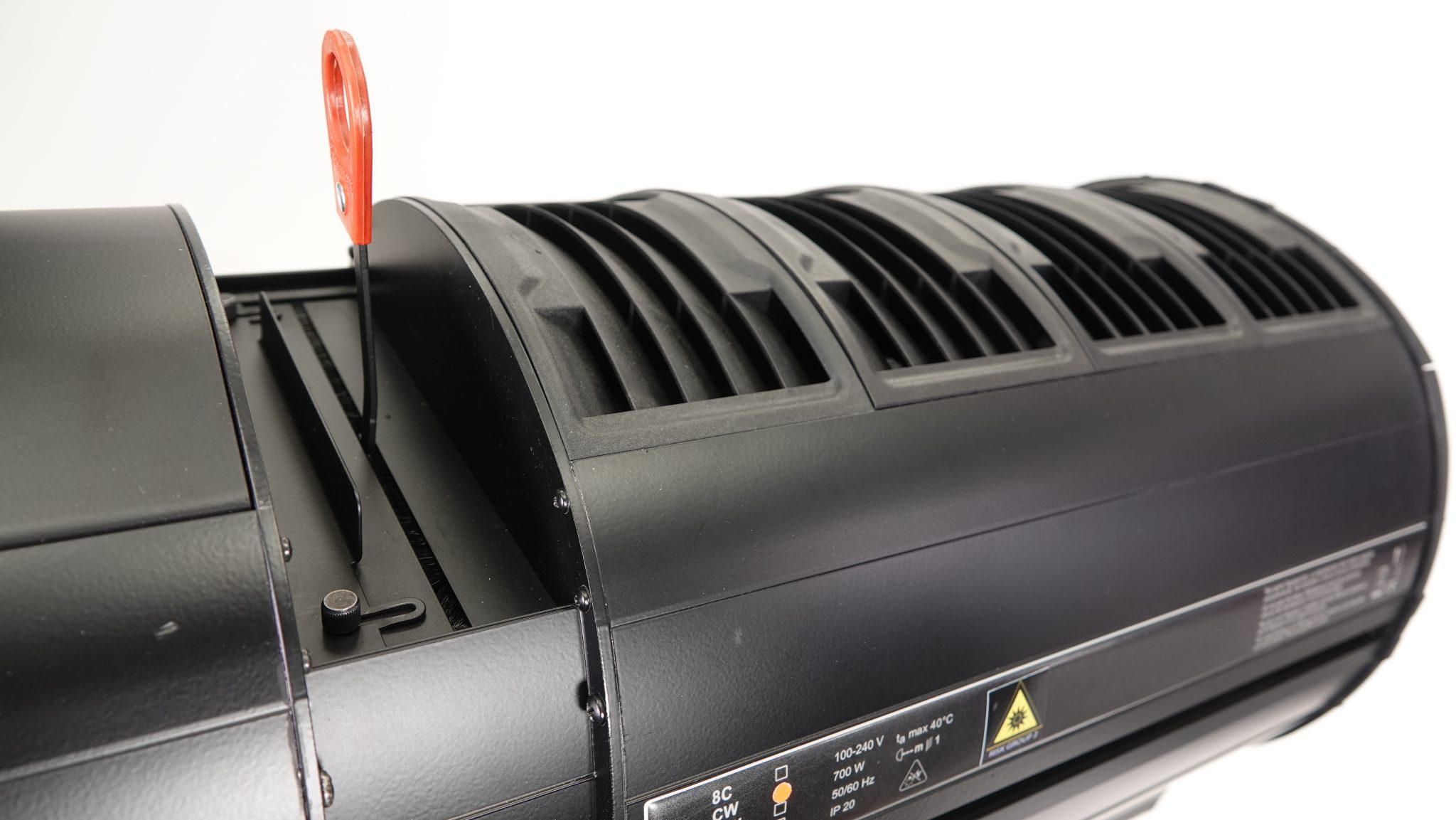

– Wide ventilation slots for better LED cooling with selectable fan speed in: “standard”, “silent” and “auto” or DMX regulated
– High efficiency heat pipe cooling system
– No heat load from LED engine towards electronic and vice-versa avoiding the risk of failure due to overheating
– Ta max 40°C
PRESETS

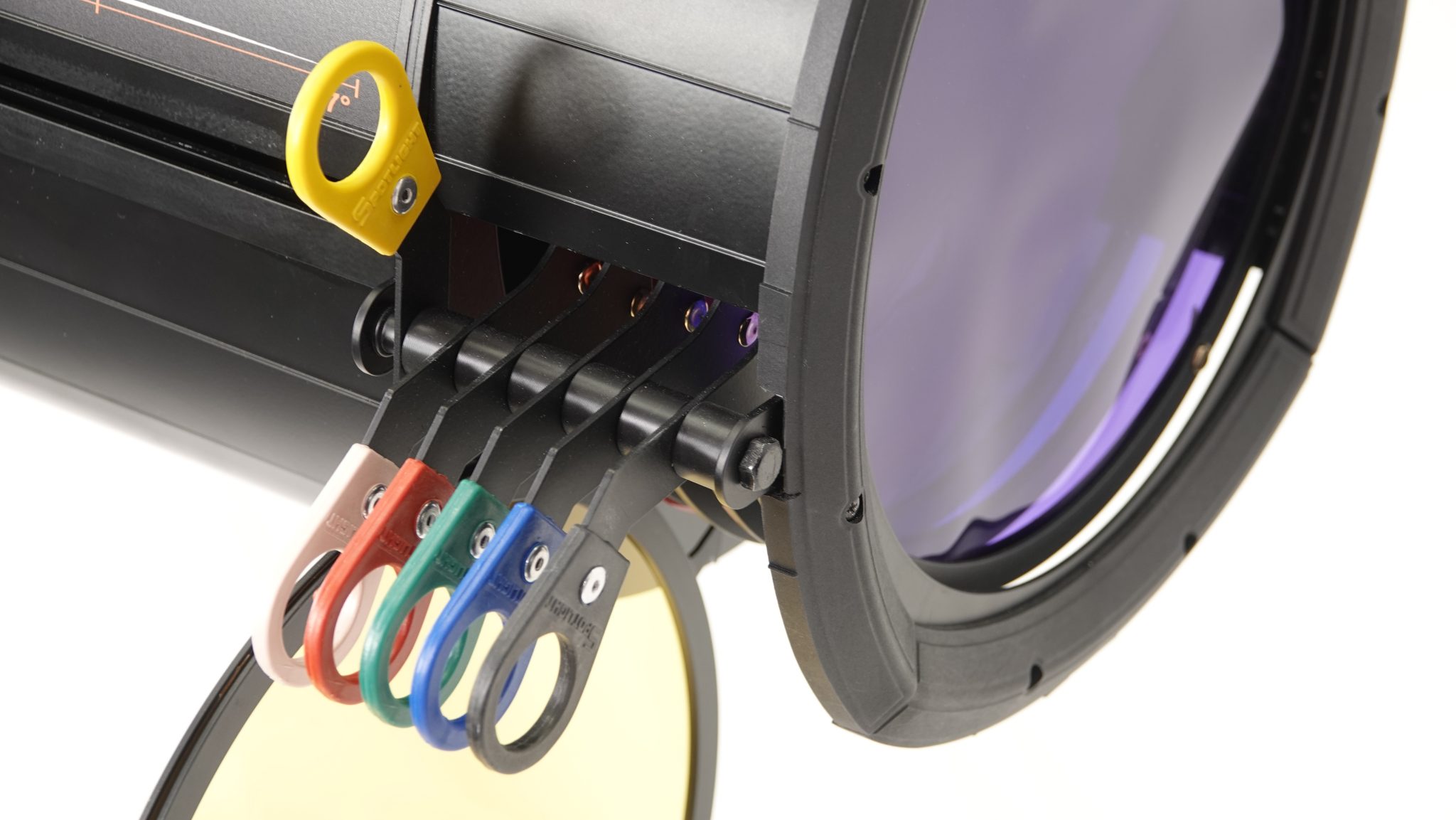

– 6way built-in manual colour changer
ELECTRICAL
– Power supply: 100-240 V – 50/60 Hz
– Power consumption 700 W
– PF>0.94/230VAC PF>0.98/115VAC at full load
